FusionServer 1288H V6 1U 2 socket computing Rack Server
- Category: >>>
- Supplier: Shanghai Kaifei International Trade Co. Ltd.
Share on (1600565275166):
Product Overview
Description

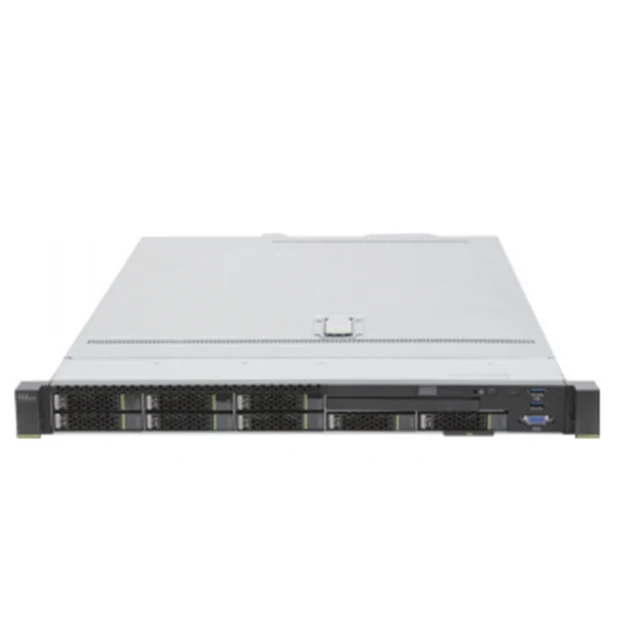

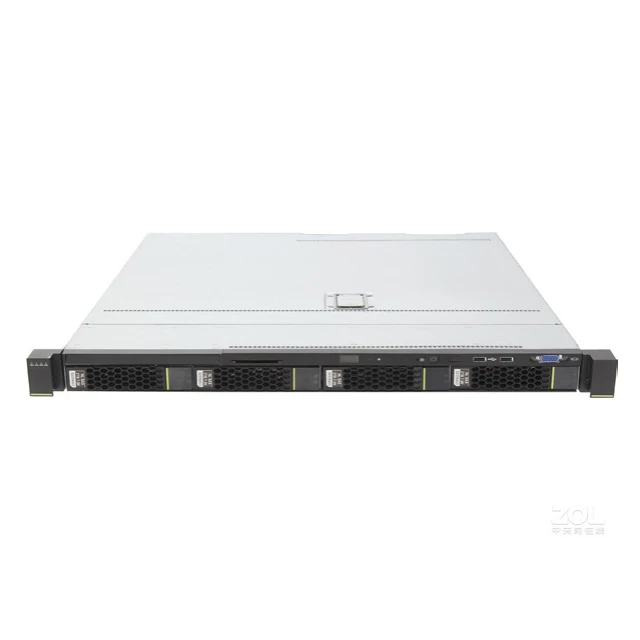

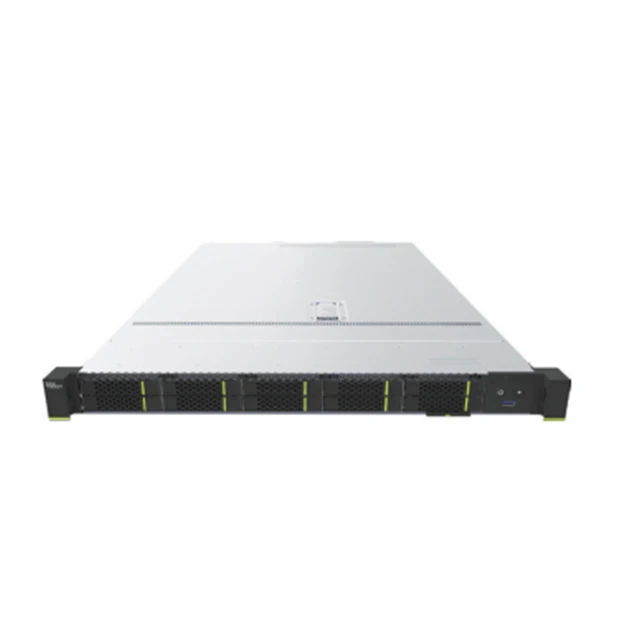

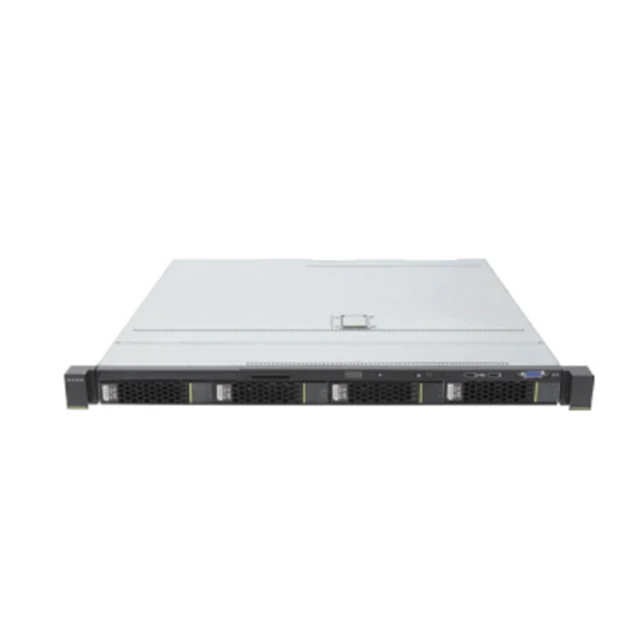

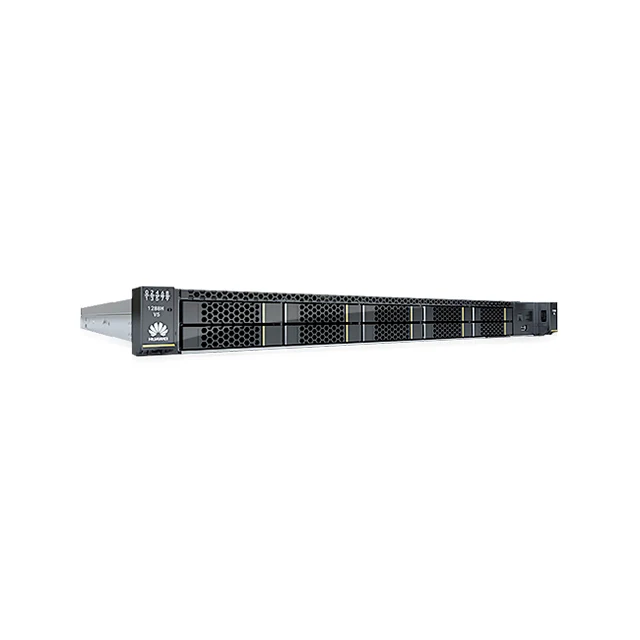

FusionServer 1288H V6 1U 2-socket computing Rack Server
Product Description
The FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing. The 1288H V6 is configured with two Intel® Xeon® Scalable processors and provides up to 32 DDR4 DIMMs, and 4 x 3.5-inch or 10 x 2.5-inch local storage resources (configurable with 4 or 10 NVMe SSDs). It incorporates core technologies, such as DEMT and patented technologies such as FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down operating expense (OPEX) and improve return on investment (ROI).
Features
High Density, Ultimate Computing Power
- 80 computing cores in a 1U space;
- 12 TB memory capacity;
- 10 NVMe SSDs.
Flexible Expansion for Diversified Applications
- 2 OCP 3.0 network adapters, hot swappable;
- 6 PCIe 4.0 slots;
- 2 M.2 SSDs, hot swappable, hardware RAID;
- 7 hot-swappable, counter-rotating fan modules in N+1 redundancy.
Innovation and Intelligent O&M
- 5 Intelligent technologies bring 30% higher O&M efficiency;
- Standard and open interfaces for easy integration of third-party components.
Specification
| Model | FusionServer 1288H V6 |
| Form Factor | 1U rack server |
| Processors | One or two 3rd Gen Intel Xeon Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Chipset | Intel C621A |
| Memory | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Local Storage | Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | Provides expansion capability of multiple types of networks Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required Hot swappable function supported |
| PCIe Expansion | Provides six PCIe slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards |
| Fan Modules | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Management | The iBMC chip integrates one dedicated Gigabit Ethernet (GE) management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports CD-free deployment and Agentless for smart and simplified management • (Optional) Configured with the FusionDirector management software to provide advanced management functions such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic management throughout the lifecycle |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc |
| Security Features | Supports power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and cover opening detection |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications | CE, UL, FCC, CCC, VCCI, RoHS, etc |
| Installation Kit | Supports L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
