Products Description

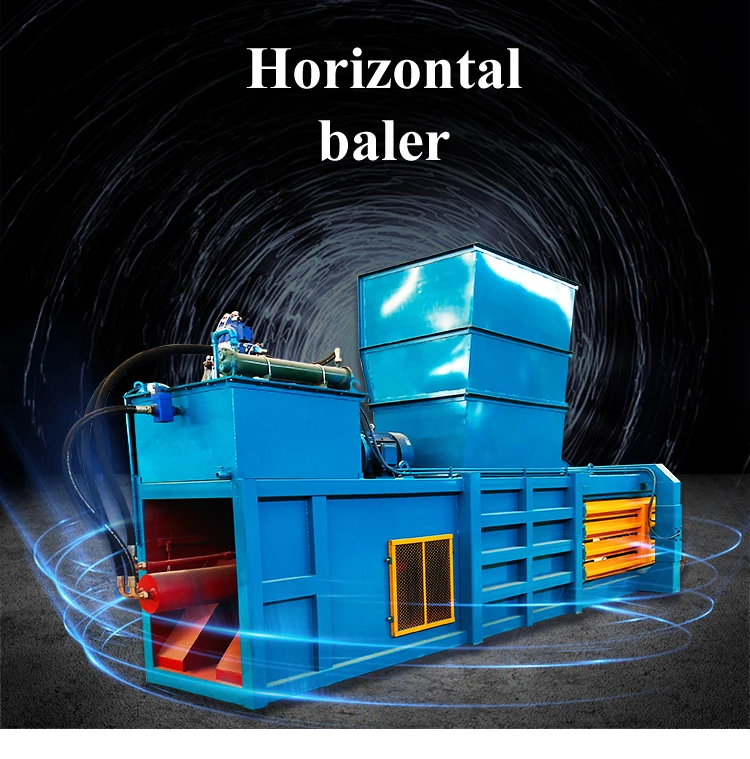

Mainly suitable for horizontal hydraulic balers for waste paper, plastic, iron filings, cotton, wool, waste paper, waste paper
boxes, waste cardboard, yarn, tobacco leaves, plastic, cloth, woven bags, knitted wool, hemp, sacks , tops, hair balls, cocoons,
silk, hops, wheat firewood, grass, garbage and other loose materials compression packaging, reduce the volume to facilitate
packaging, transportation and reduce storage space. It has the characteristics of tight structure, strong and firm; economical and
practical, easy to operate, safe and reliable, etc. It is an ideal equipment for material packaging, waste recycling and other
industries to get rich.
boxes, waste cardboard, yarn, tobacco leaves, plastic, cloth, woven bags, knitted wool, hemp, sacks , tops, hair balls, cocoons,
silk, hops, wheat firewood, grass, garbage and other loose materials compression packaging, reduce the volume to facilitate
packaging, transportation and reduce storage space. It has the characteristics of tight structure, strong and firm; economical and
practical, easy to operate, safe and reliable, etc. It is an ideal equipment for material packaging, waste recycling and other
industries to get rich.
Product Paramenters
Model | 80 | 100 | 120 | 160 | 180 | 200 | |||||
power system | Hydraulic system high and low pressure combination | ||||||||||
motor | 15KW hydraulic pump one | 22KW hydraulic pump one | 22KW+15KW Hydraulic pump two | ||||||||
Rated displacement | 63ml/r | 80ml/r | 100ml/r | 230ml/r | |||||||
preset pressure | 31.5MPa | ||||||||||
Main nominal thrust | 800KN | 1000KN | 1200KN | 1600KN | 1800KN | 2000KN | |||||
System pressure | 28MPa | ||||||||||
Power Specifications | 3PH380V | ||||||||||
Control System | PLC, material detection, automatic operation control, manual button operation | ||||||||||
Hydraulic oil grade | 46# Anti-wear hydraulic oil | ||||||||||
Feeding port size (length. width) mm | 1300*720 | 1500*820 | 1700*1020 | 2000*1020 | 2000*1020 | 2000*1020 | |||||
Package size (width. height) mm | 700*800 | 900*1000 | 1100*900 | 1100*1200 | 1100*1300 | 1100*1400 | |||||
Block density kg/m3 | 400-450 | ||||||||||
Yield (bags/hour) | 3-5 | 4-7 | |||||||||

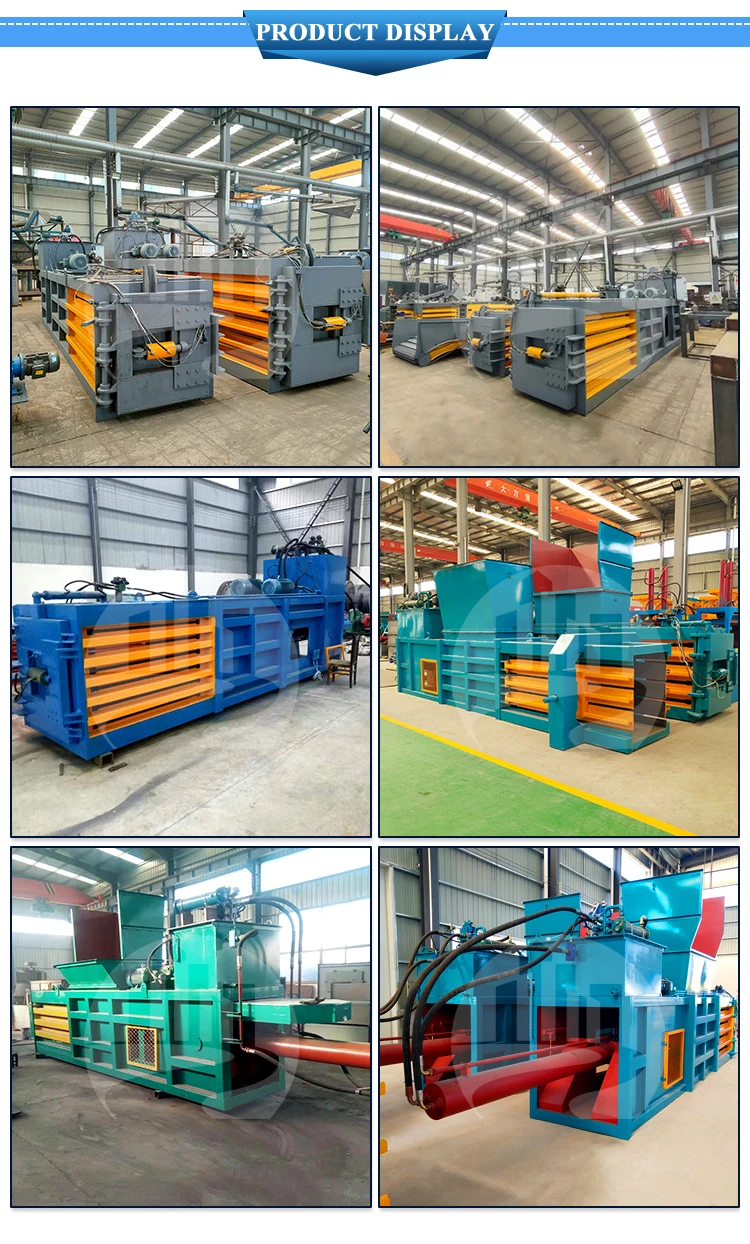

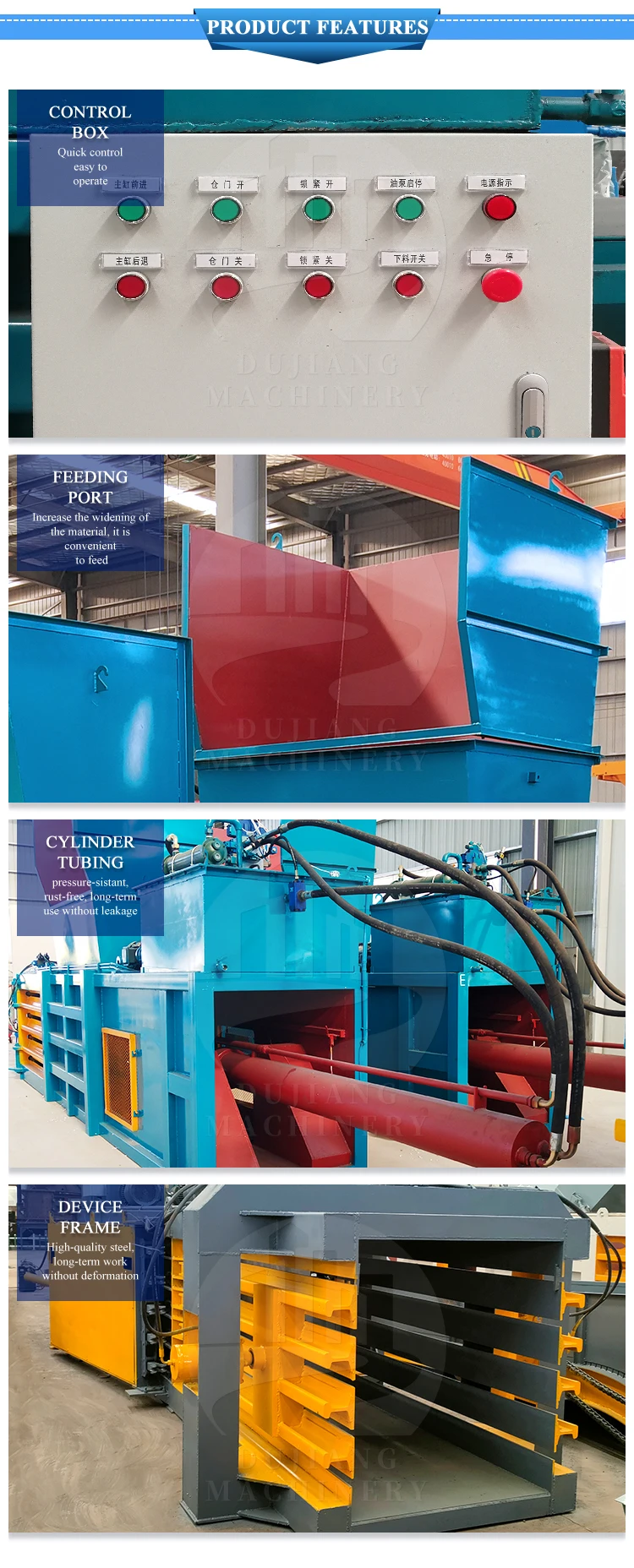

Details Images
Contact us

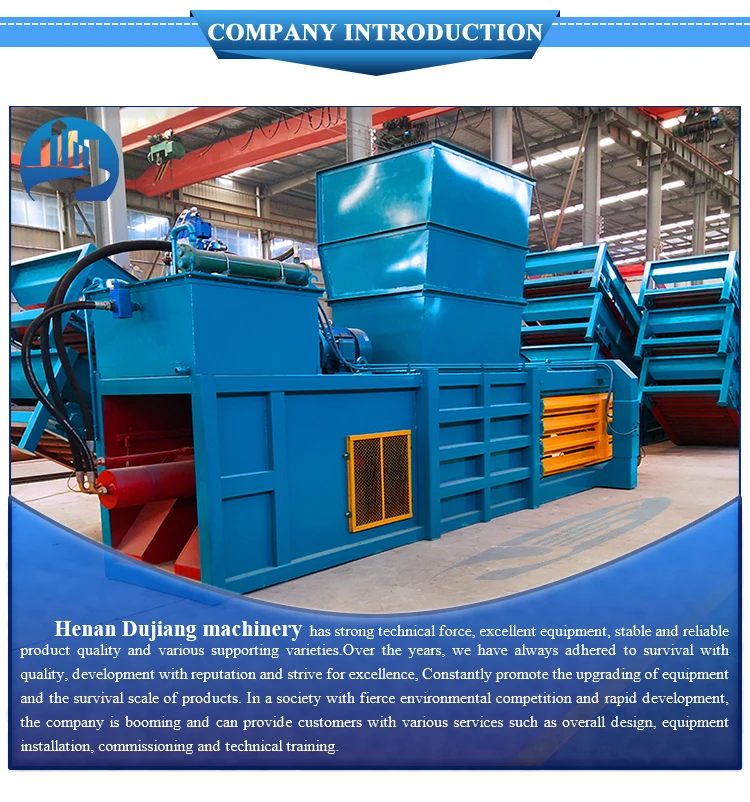

Company Profile
