Raycus Laser Source 1000W 2000W 3000W 6000W for Fiber Laser Cutting and fiber laser welding

Share on (1600565296124):


Price:

Quantity:


Product Overview

Description



Product Introduction


Introduction
The third-generation single module CW fiber laser series developed by Raycus ranges from 300w to 3000w, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc, with a narrow seam of the cut sheet and bright section.


Technical characteristics
* High electro-optical conversion efficiency
* Output fiber length can be customized
* QBH/QD connector
* Maintenance-free operation
* Wide modulation frequency range
* Small size, easy to install

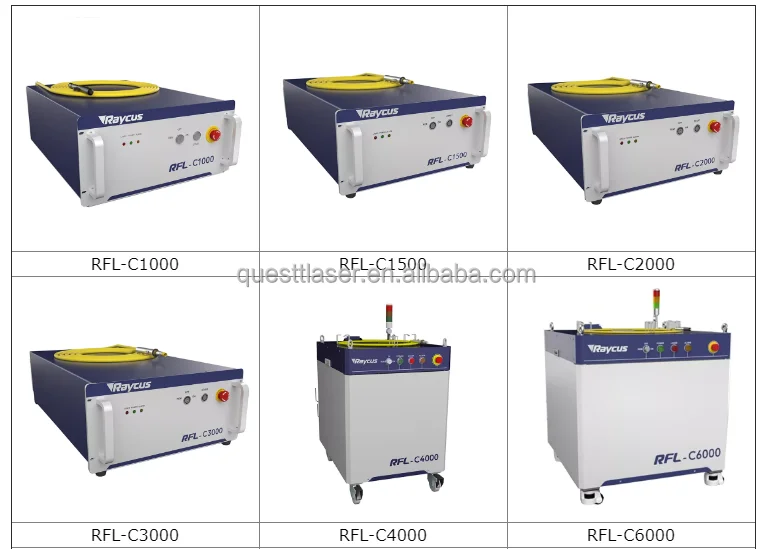

Model

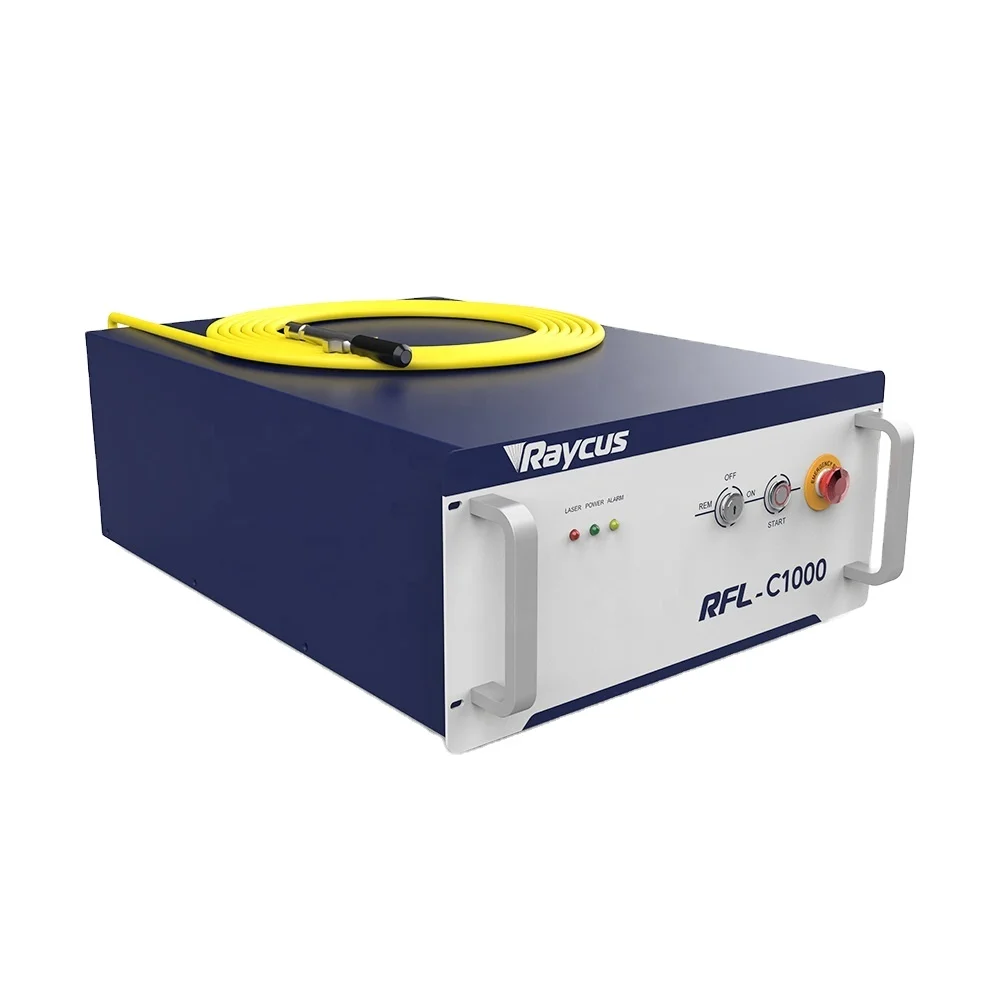

RFL-C1000
RFL-C1500
RFL-2000
RFL-C3000S
Optical Properties
Average output power
1000w
1500w
2000w
3000w
Central wavelength
1080±5nm
Max frequency
5kHz
20kHz
20kHz
5kHz
Output power instability
±1.5%
Red laser
Yes
Output characteristics
Output connector
QBH (customizable)
Output fiber core diameter
 25μm
50μm
50μm
50μm
Beam quality
<1.5
Polarization state
random
Output fiber length
20m (customizable)
Electronic control characteristics
Input power
200-240V, Single Phase

380±10%V, Three Phase

Control mode


 RS232, AD

Power adjustment range
10-100%
Other characteristics
Dimensions
410*405*150mm
 410*610*150mm
414*686*158mm
900*447*250mm
Weight
25kg
40kg
50kg
80kg
Cooling method
water cooling
Working temperature
10-40℃


Application Field


* Precision Cutting
* Metal Welding
* Sheet Metal Piercing
* Metal Carving
* Surface Treatment
* 3D Printing/Rapid Prototyping
