tractor agriculture equipments

Product Overview

Description

tractor agriculture equipments

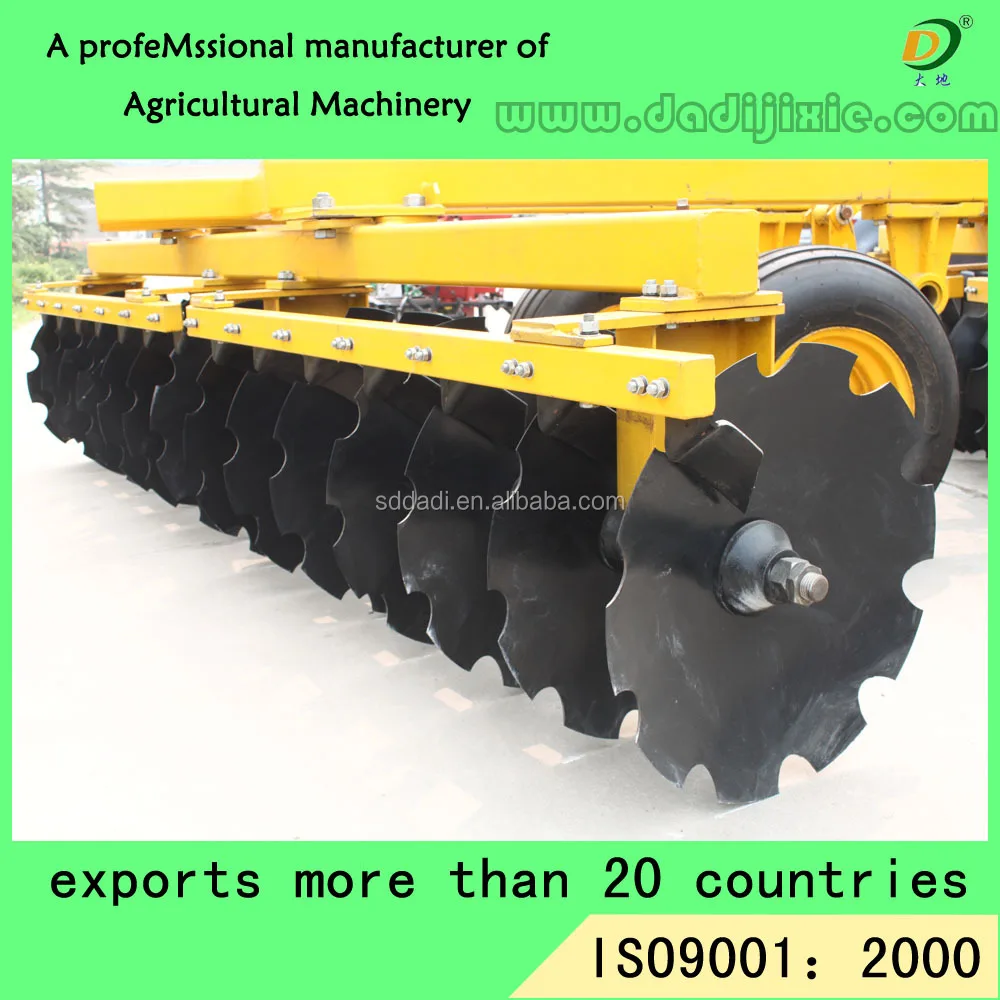

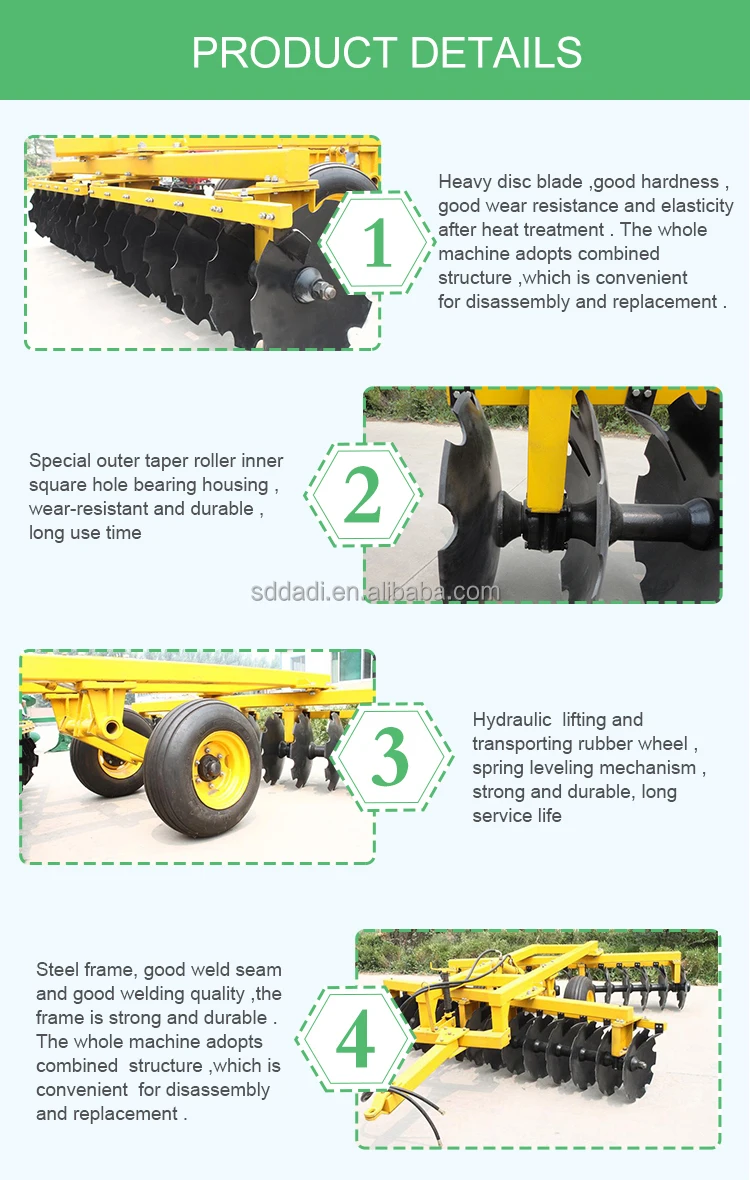

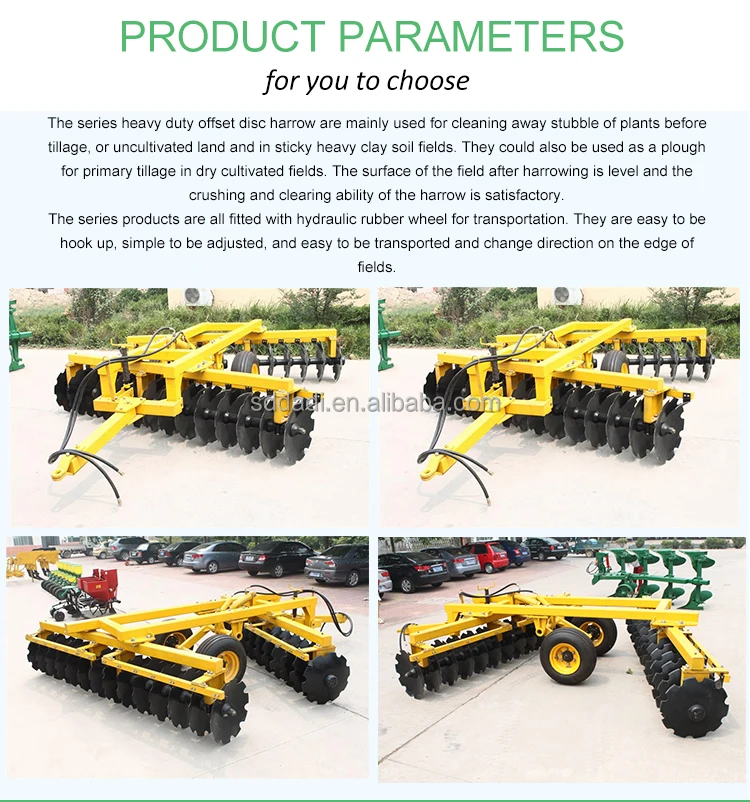

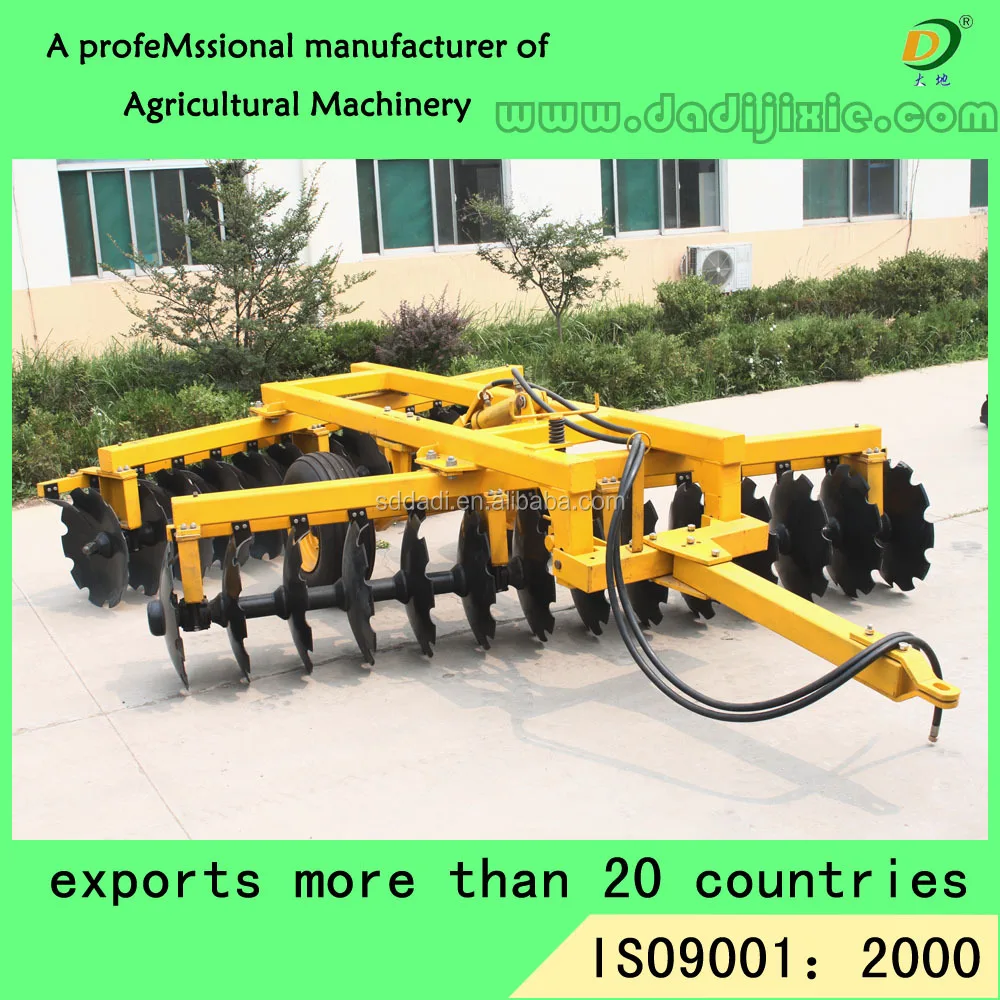

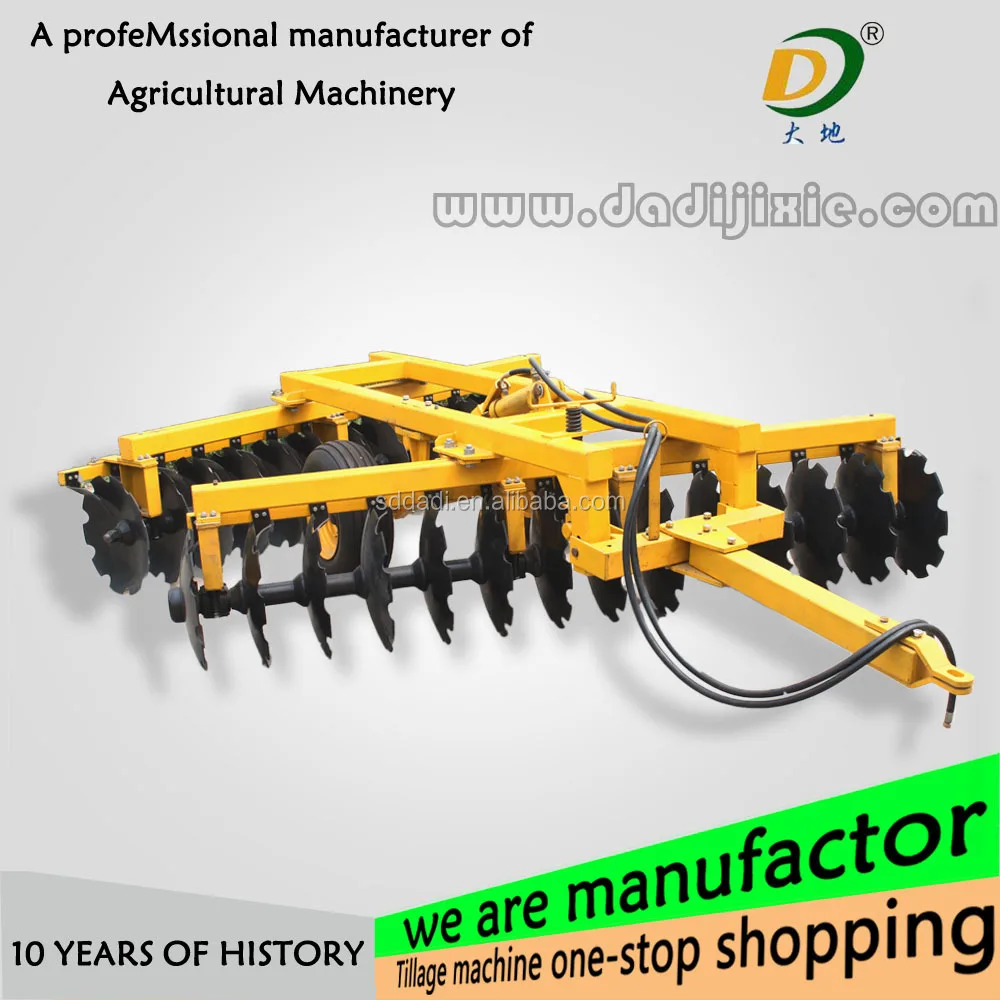

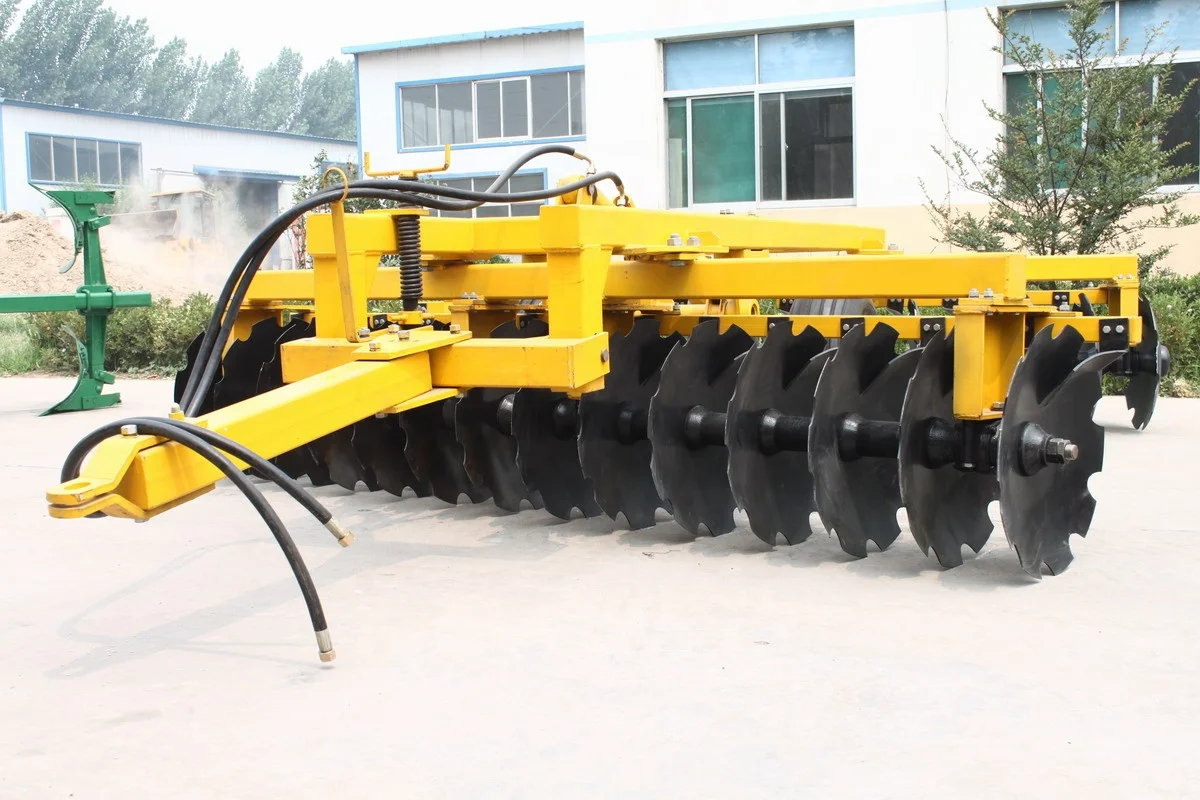

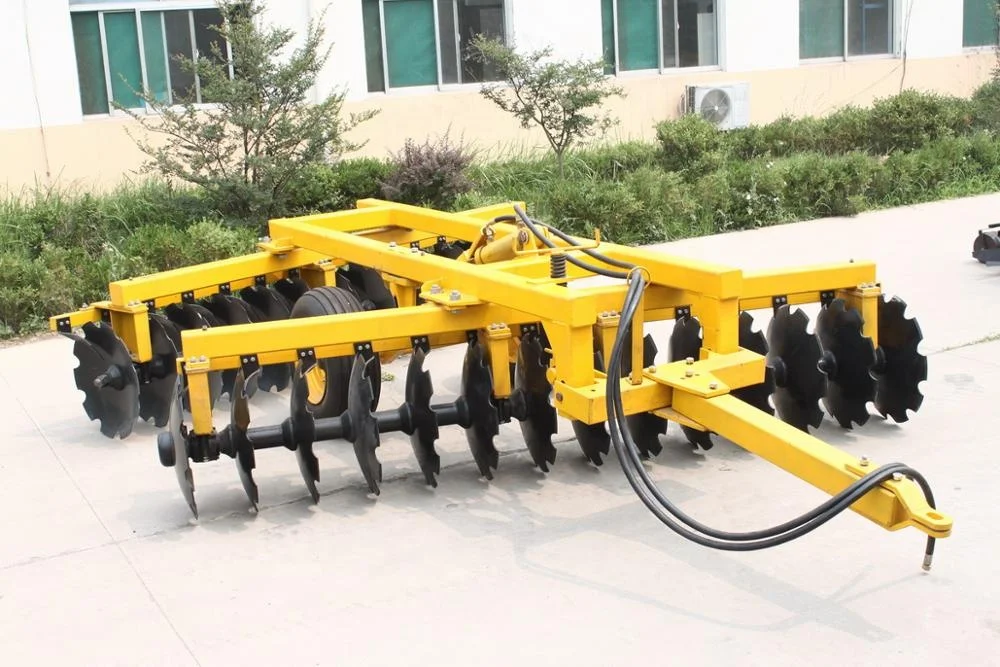

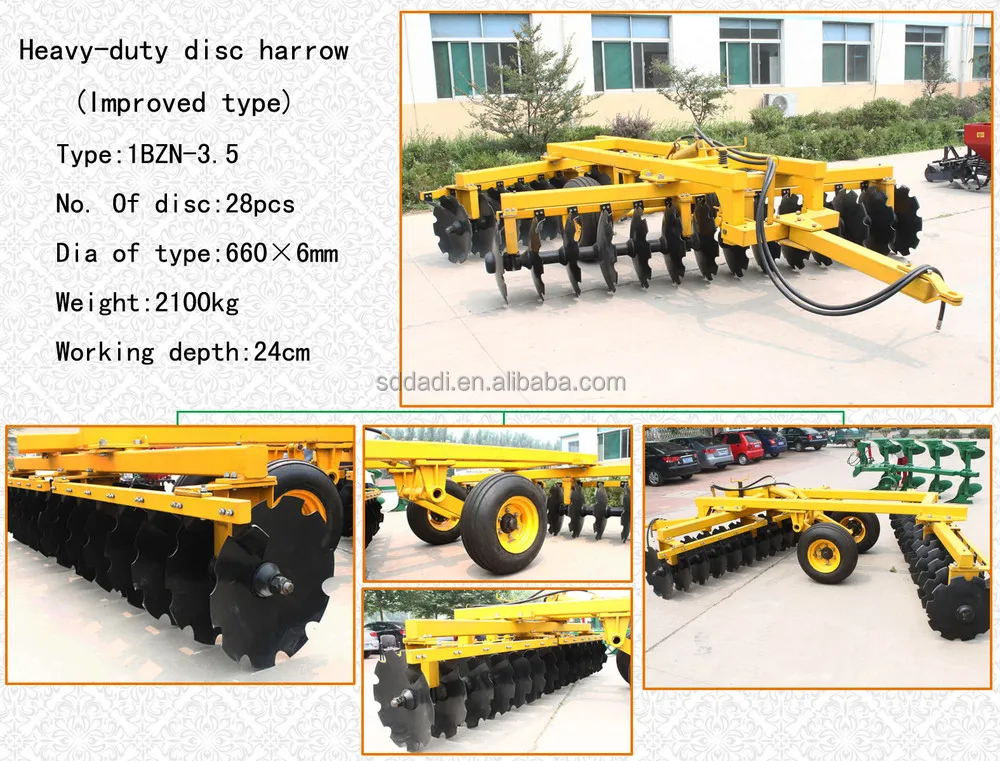

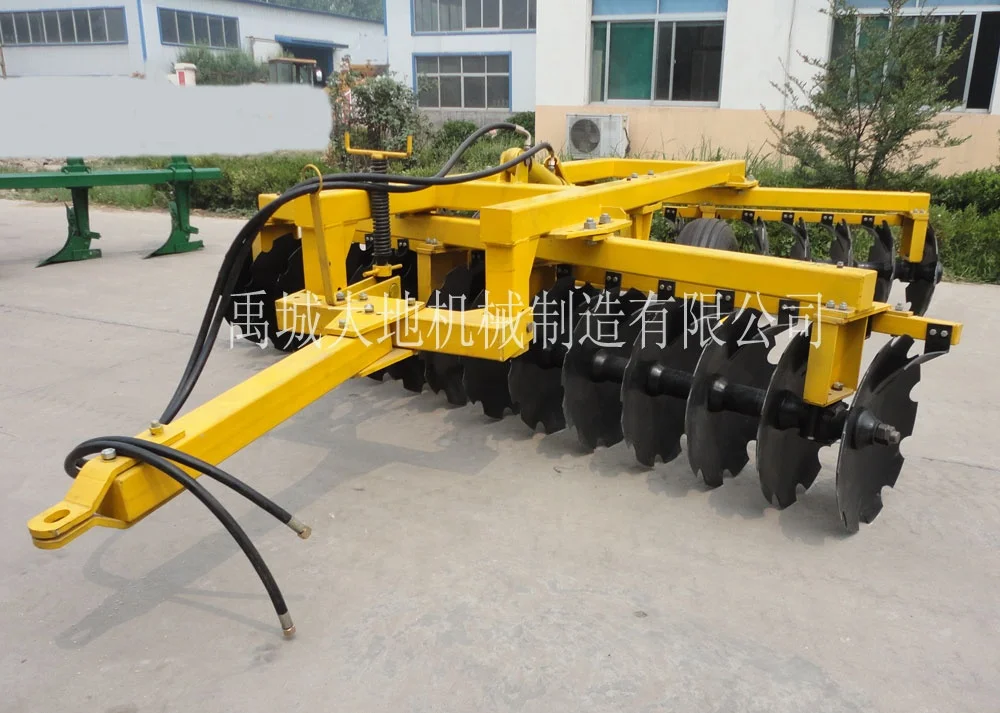

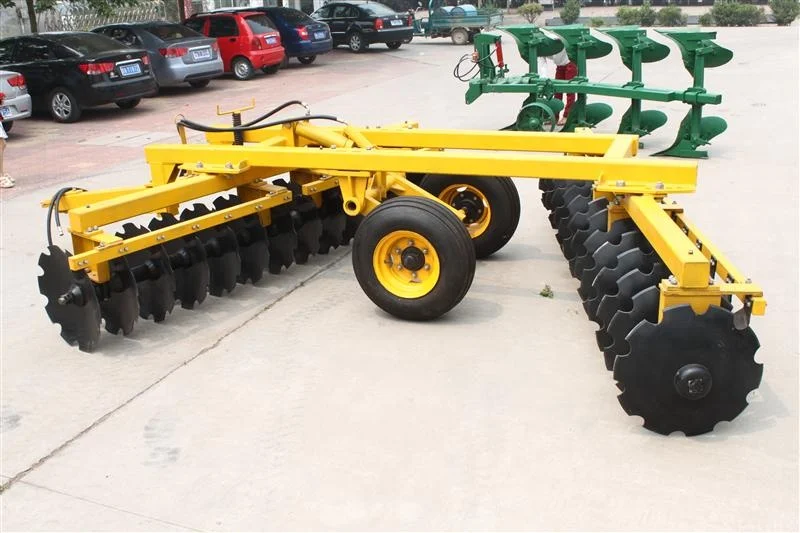

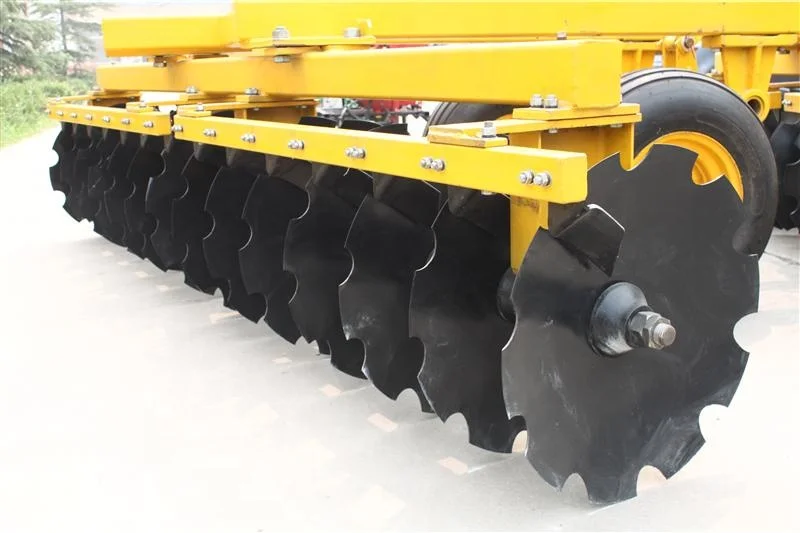

1BZN series  heavy-duty disc harrow are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry culdtivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.



Specifications:





ype		Advanced version
Model		1BZN-4.0	1BZN-3.5	1BZN-3.0
Working width	mm	4000	3500	3000
Total Weight	kg	2400	2050	1950
Qty. of disc	pcs	32	28	24
Dia. Of disc	inch	26"
Thickness of disc	mm	6
Spacing of disc	mm	270
Thickness of frame	mm	8
Model of tyre		11L-15,12PR
Qty. of bearing	per	16
Bearings category	per	taper roller bearing
Axle of disc	mm	Round 42mm
Ground clearance	mm	260
Overall Dimension (LxWxH)	mm	5500×4100×1230	5450×3960×1230	5370×3560×1230
Matched tractor power	hp	>100	90-140	80-120
