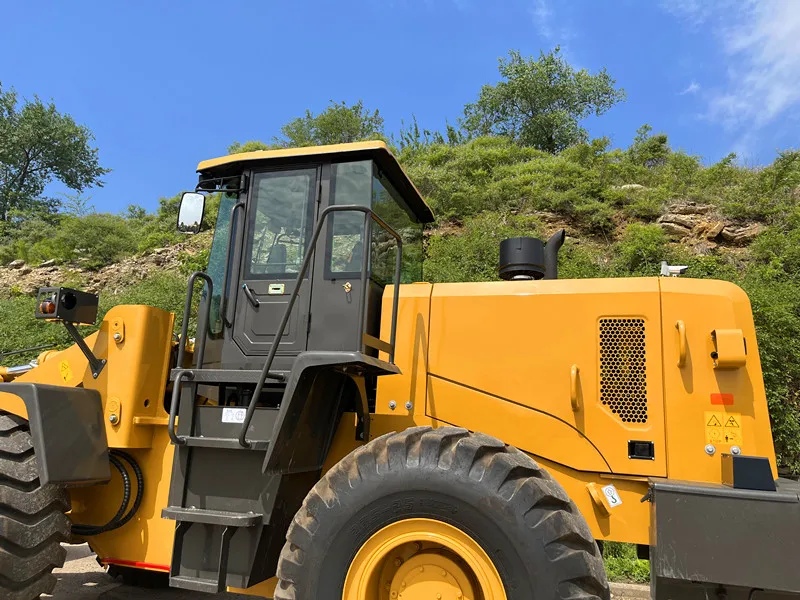

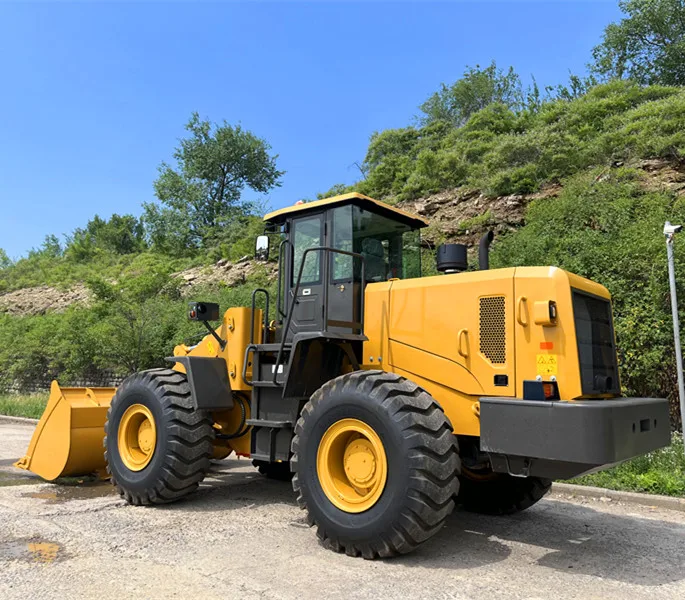

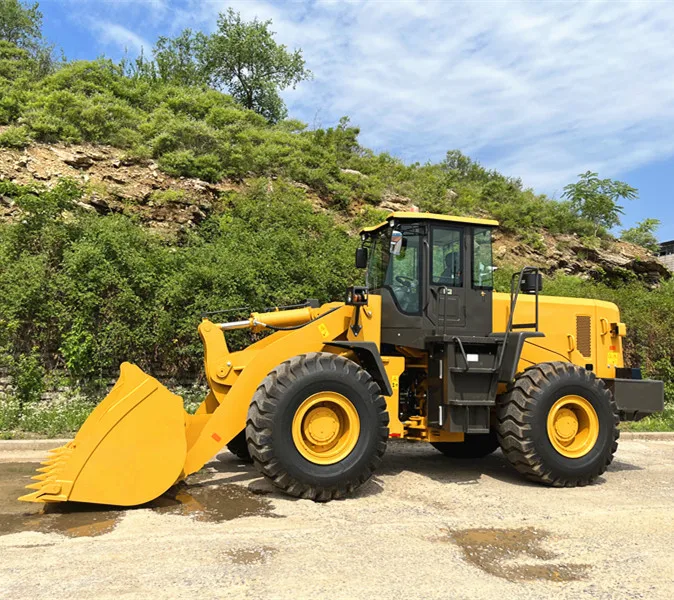

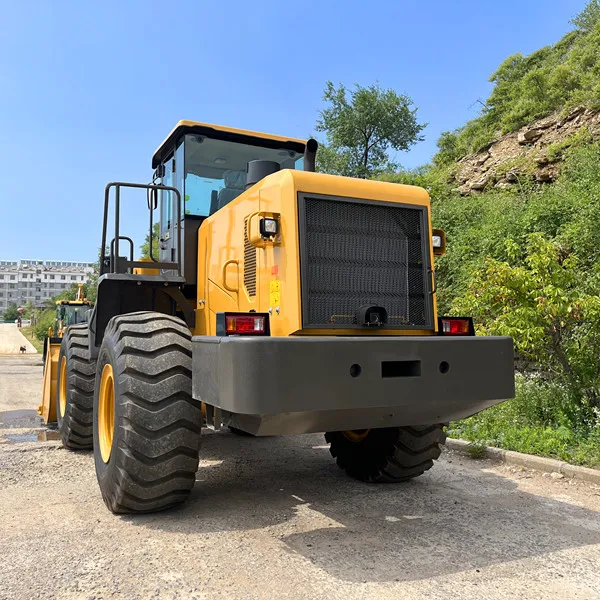

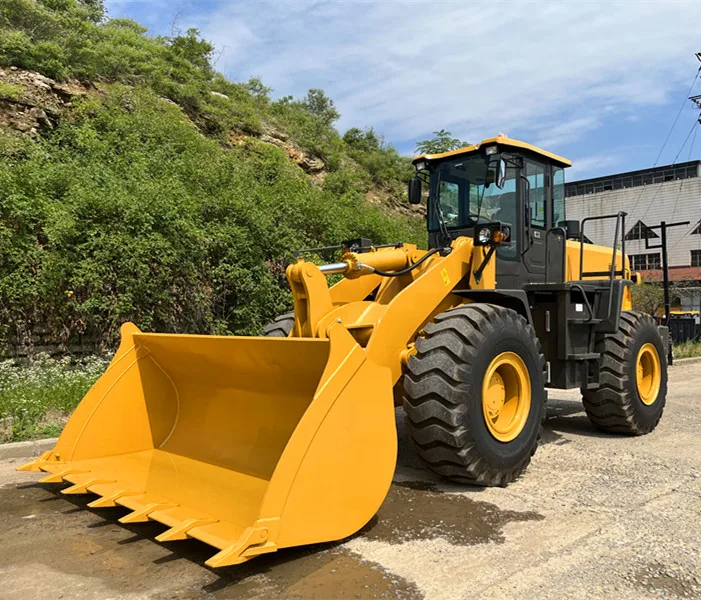

ZL50 Construction machine equipment 5ton front end wheel loader with quick hitch

Share on (1600565337169):


Price:$36,800.00

Quantity:


Product Overview

Description


ZL50 Construction machine equipment 5ton front end wheel loader with quick hitch






Product Description


1).High-powered engine, large power storage.


2).The new sealed cab with warm-wind equipment is much more comfortable for operating.


3).Torque-converter and transmission box, the detached structure makes easy maintenance.


4).Main articulated positions take sealed, lubricated, double dust-proof layers, which owns good durability.


5).The strengthened bucket with additional edge tooth is more wear-resisting and reliable.


 5 ton wheel loader 1.jpg








Technical Parameters





















































































































































Performance



rated load



5000kg



overall weight



16500kg



rated bucket capacity



3m3



maximum tractive force



152KN



maximum breakout force



≥170KN



maximum grade ability



30℃



maximum dump height



3150mm



maximum dump reach



1250mm



overall dimension (L×W×H)



8085×2950×3450mm



minimum turning radius



6150mm



Engine



model



Weichai SteyrWD10G220E23



type



lnline water cooling dry cylinder injection



No. of cylinder-bore/stroke



6-126×130mm



rated power



162kw



maximum torque



980N.m



min fuel-consume ratio



≤215g/kw.h



Transmission system



torque converter



ZL50



gearbox mode



planetary



gear shift



2forward shift 1 reverse shift



maximum speed



38km/h



Drive axles



main reducing spiral



bevel gear grade 1reduction



decelerating mode



planetary reduction,grade 1



wheel base (mm)



3250mm



wheel tread



2250mm



minimum ground clearance



460mm



Hydraulic system



system working pressure



18Mpa



boom lifting time



5.95±0.2s



total time



10.95±0.5s



fuel tank capacity



249L



function of leveling automatically



yes



Brake system



service brake



air over hydraulic disc brake on 4 wheels



parking brake



manual parking brake



Tyre



type specification



23.5-25













Detailed Images

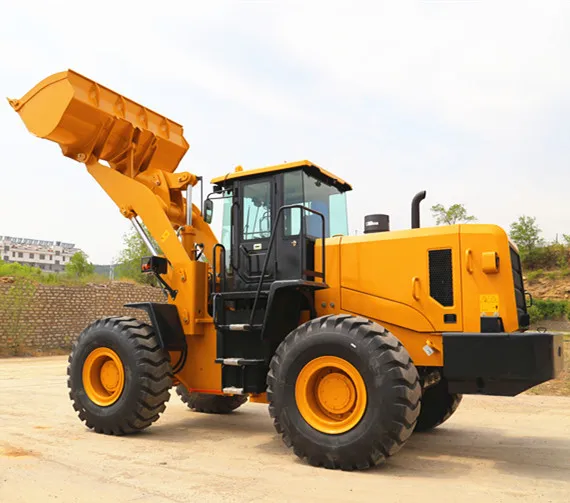

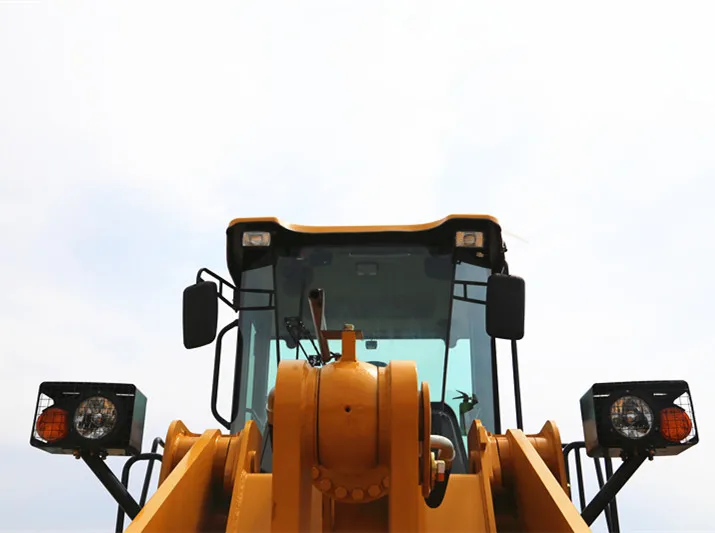

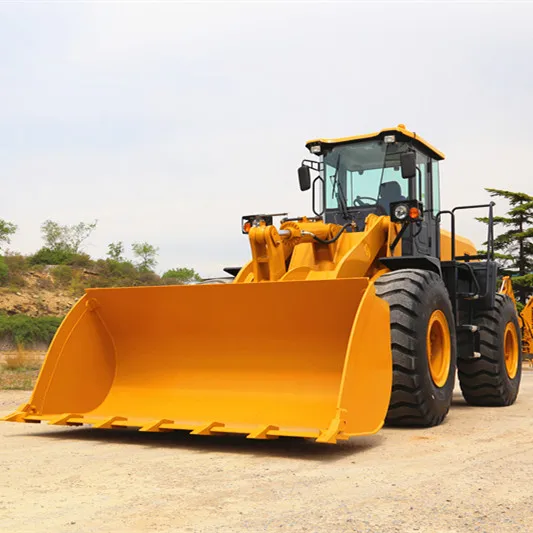

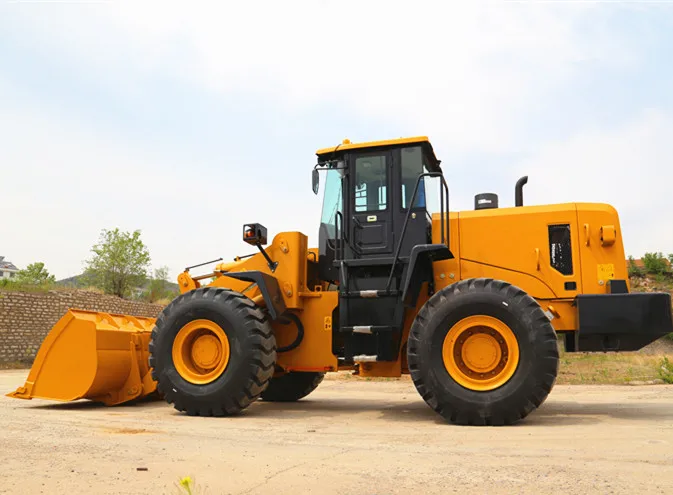

loader 4.jpgloader 6.jpgloader 13.jpgloader 25.jpgloader 1.jpg

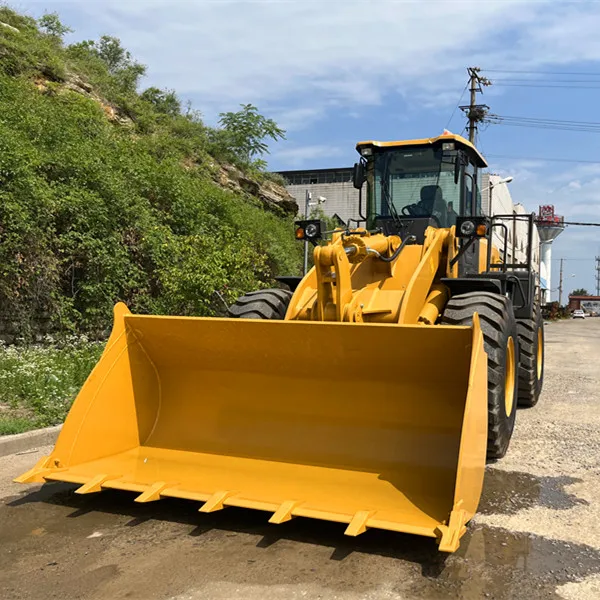

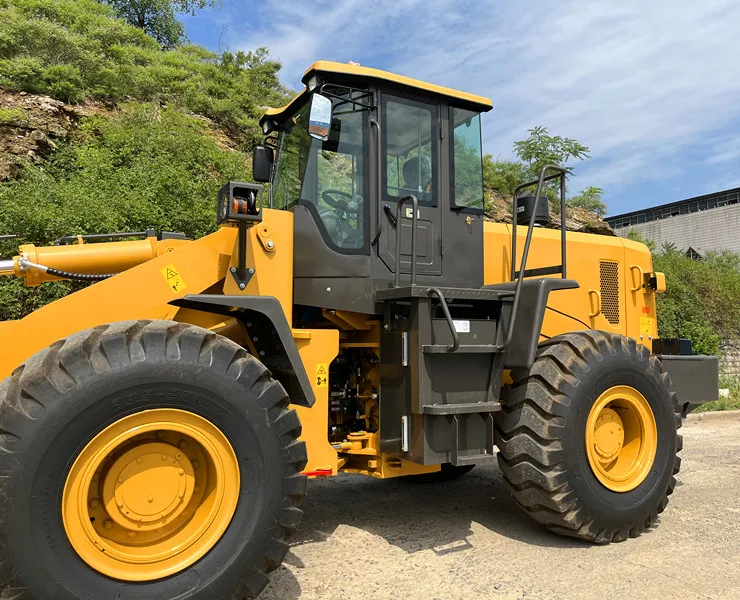

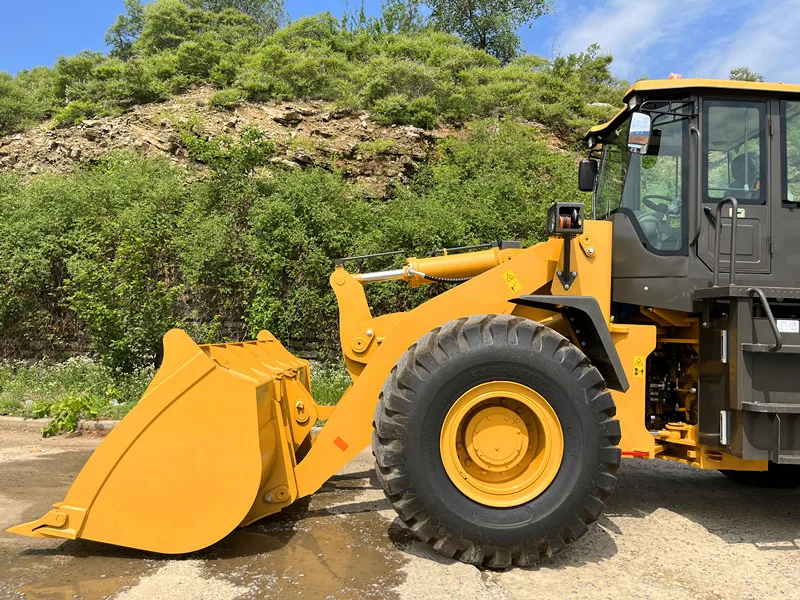

5 ton wheel loader 5.jpg5 ton wheel loader 6.jpg5 ton wheel loader 7.jpg5 ton wheel loader 9.jpg5 ton wheel loader 11.jpg











Our company


1.Qingzhou hanke intelligent equipment co.,Ltd (SWLTD ) is a leading intelligent engineering machinery manufacturer for 11 years, since 2006.
2.Main products are wheel loaders ,concrete mixer truck and forklifts and structural parts of engineering machinery.
3.We have passed ISO9001:2001 international quality management system certificate, CE certificate, etc.
4.Hanke is the main rims and frames supplier for Caterpillar (Qingzhou city) Company and Foton Lovol Heavy Industry Company.
5.The company registered capital is RMB10,000,000.00(USD16,300,000). There're 360 employees, including 62 engineering technicians, covering workshop area 80000 square meter.
6.Our products are sold worldwide in Belgium, Germany, Britain, France, Holland, Finland, Syria, Sweden, Kazakhstan, South Africa, Egypt, and Mexico ect.

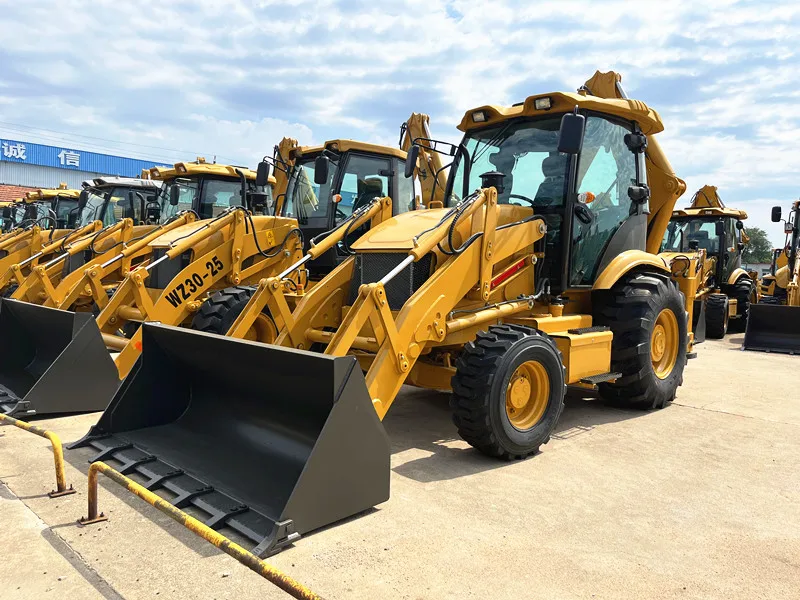

backhoe loader 3.jpg

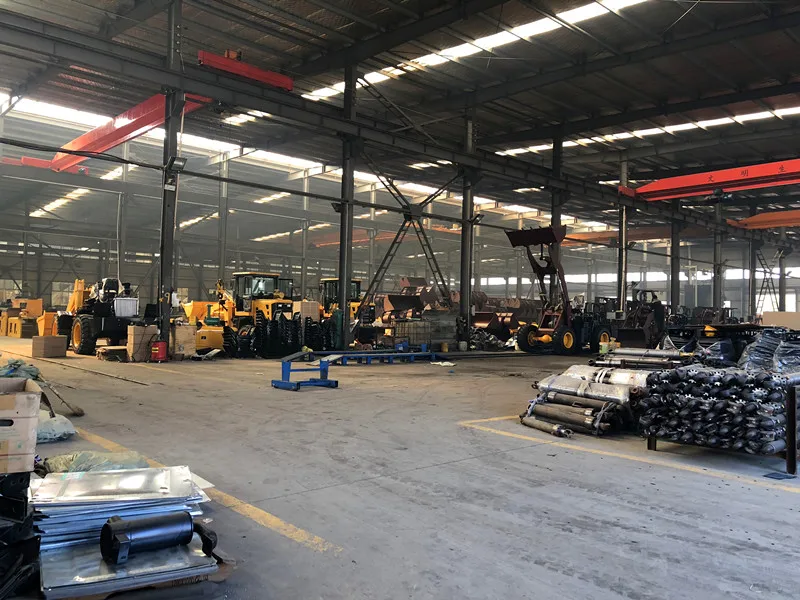

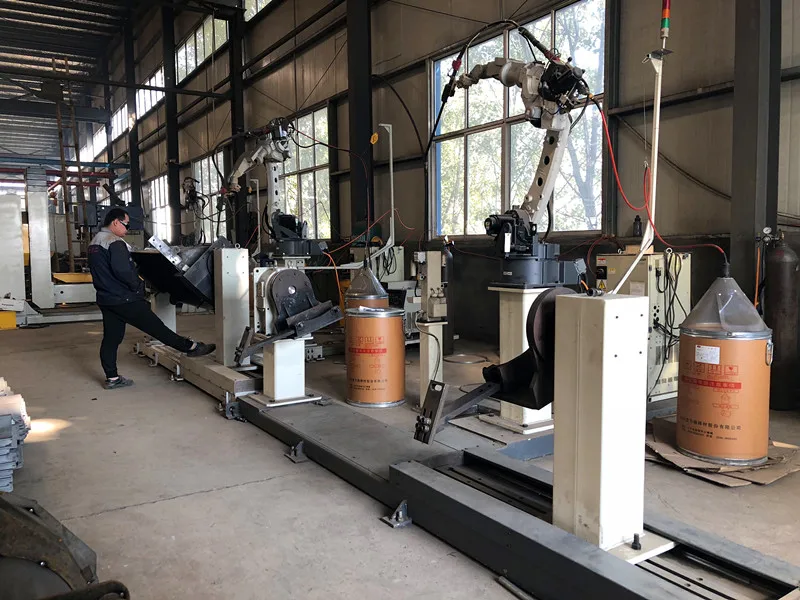

wheel loader S22.jpgwheel loader 21.jpg
