Product introduction：

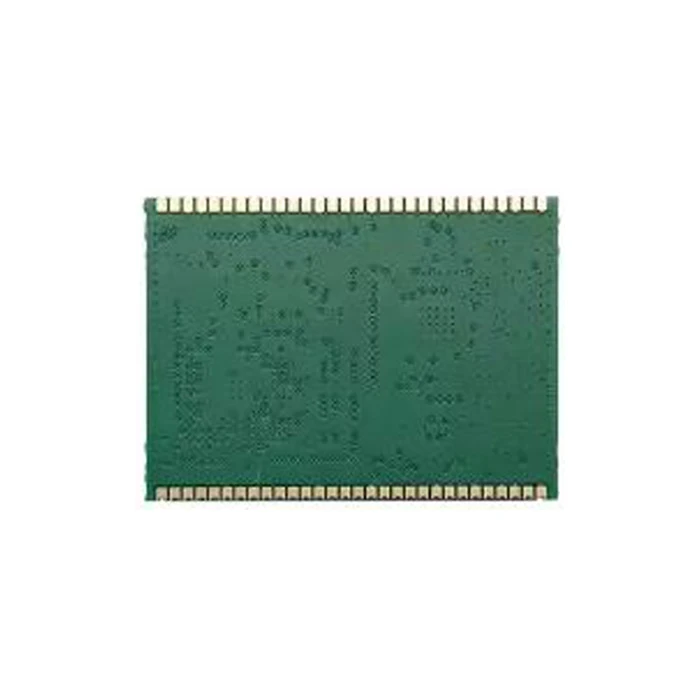

UM4B0 is a full-system multi-frequency high-precision RTK positioning and orientation module independently developed by Hexinxingtong. It is a light and small single-sided surface mount package, which greatly increases the application range of RTK technology products and can be applied to GIS information collection, UAV , light robots, intelligent driving and other fields.
UM4B0 adopts Hexincom's new generation full-frequency high-precision SoC chip - Nebulas-II, which supports 432 super channels. Its powerful processing capability and built-in JamShield multi-frequency anti-jamming technology can simultaneously track BDS, GPS, GLONASS, Galileo and other system-wide multi-frequency satellite signals and multi-frequency anti-jamming processing to complete the enhanced multi-mode multi-frequency RTK Engine solver, significantly improving RTK initialization speed, measurement accuracy, and reliability in complex environments such as city blocks and shade.
UM4B0 integrates the on-board MEMS chip and U-Fusion integrated navigation algorithm, which can effectively solve the situation of interruption of positioning results caused by the loss of satellite signals, and can provide continuous high quality in complex environments such as buildings, tunnels, viaducts and shades. positioning results.
UM4B0 adopts Hexincom's new generation full-frequency high-precision SoC chip - Nebulas-II, which supports 432 super channels. Its powerful processing capability and built-in JamShield multi-frequency anti-jamming technology can simultaneously track BDS, GPS, GLONASS, Galileo and other system-wide multi-frequency satellite signals and multi-frequency anti-jamming processing to complete the enhanced multi-mode multi-frequency RTK Engine solver, significantly improving RTK initialization speed, measurement accuracy, and reliability in complex environments such as city blocks and shade.
UM4B0 integrates the on-board MEMS chip and U-Fusion integrated navigation algorithm, which can effectively solve the situation of interruption of positioning results caused by the loss of satellite signals, and can provide continuous high quality in complex environments such as buildings, tunnels, viaducts and shades. positioning results.
Product main features：
1、30*40mm, smallest multi-system multi-frequency high precision module
2、 Support GPS L1/L2/L5+GLONASS L1/L2+BDS B1I/B2I/B3I/B1C/B2a+Galileo E1/E5a/E5b
3、Based on 432 channel NebulasII GNSS SoC chip
4、20Hz update rate
5、Instant RTK initialization and long-distance RTK
6、Enhanced multi-system multi-frequency RTK technology, JamShield Adaptive narrow-band anti-interference and
2、 Support GPS L1/L2/L5+GLONASS L1/L2+BDS B1I/B2I/B3I/B1C/B2a+Galileo E1/E5a/E5b
3、Based on 432 channel NebulasII GNSS SoC chip
4、20Hz update rate
5、Instant RTK initialization and long-distance RTK
6、Enhanced multi-system multi-frequency RTK technology, JamShield Adaptive narrow-band anti-interference and
U-AutoAlign multi-path mitigation
7、On board MEMS integrated navigation, support improved U-Fusion integrated navigation algorithm
7、On board MEMS integrated navigation, support improved U-Fusion integrated navigation algorithm
8、Support odometer input and external high-performance IMU interface*
9、SMD packaging

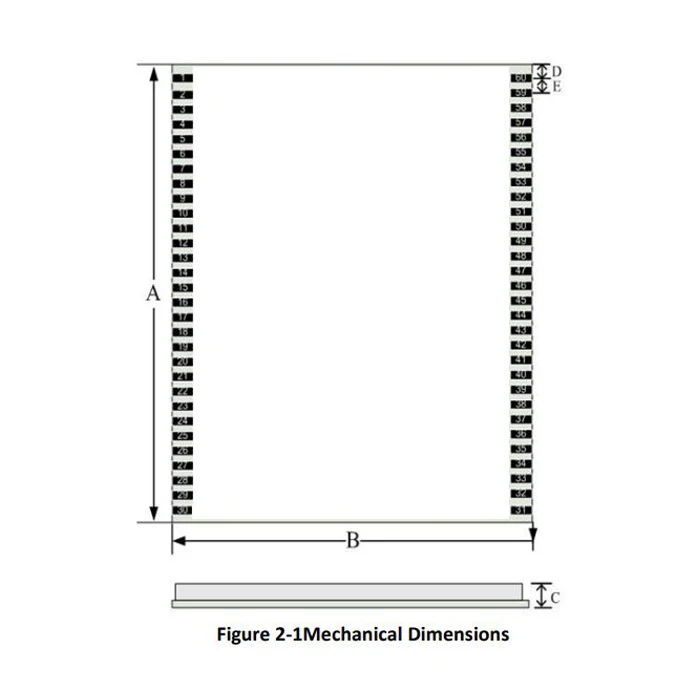

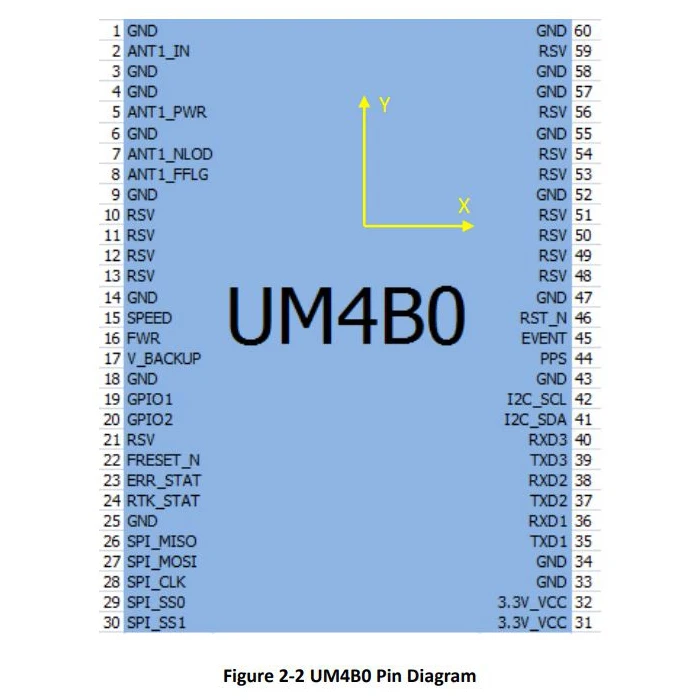

Technical Specifications | ||||||
Channels | 432 channels, based on NebulasII SoC chip | Cold Start | ＜30s | |||
Frequency | GPS L1/L2/L5 BDS B1I/B2I/B3I/B1C/B2a GLONASS L1/L2 Galileo E1/E5a/E5b QZSS L1/L2/L5 | RTK Initialization Time | ＜5s (typical) | |||
Single Point Positioning (RMS) | Horizontal: 1.5m Vertical: 3m | Initialization Reliability | ＞99.9% | |||
DGPS (RMS) | Horizontal: 0.4m Vertical: 0.8m | Differential Data Data Formats | RTCM 3.0/3.2/3.3 NMEA-0183， Unicore Binary | |||
DGPS (RMS) | Horizontal: 1cm+1ppm Vertical: 1.5cm+1ppm | Update Rate Time accuracy (RMS) | 20Hz 20ns | |||
Heading Accuracy (RMS) | 0.2 degree@1m baseline | Data Accuracy (RMS) | 0.03m/s | |||
Cold Start Reacquisition | <25s <1s | Power Consumption | 1.7W | |||
Size | 30×40×4 mm | Weight | 8.8g | |||
Functional Ports | ||
3x UART, 1xI2C, 1x SPI (LV-TTL) | 1x1PPS (LV-TTL) | |
1x Event input | ||

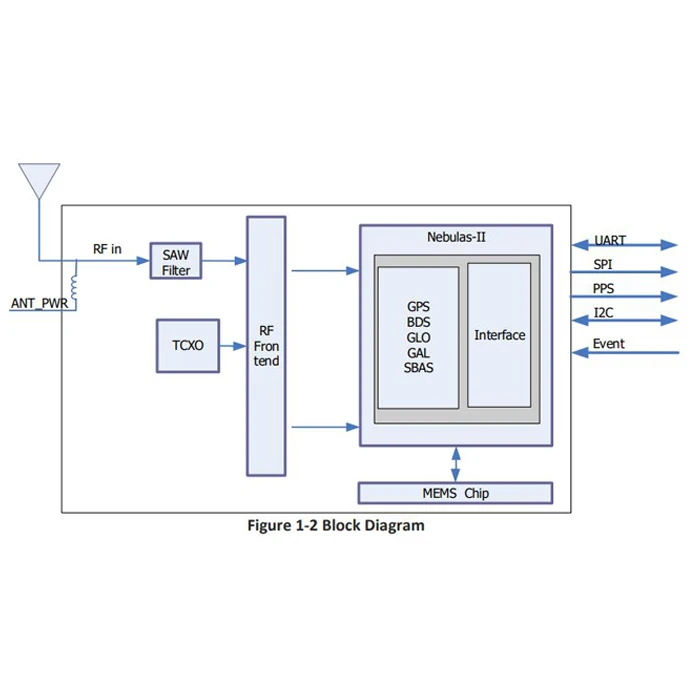

1. RF Part
The receiver gets filtered and enhanced GNSS signal from the antenna via a coaxial cable. The RF part convert the RF
input signals into the IF signal, and convert IF analog signal into digital signals required for NebulasII die (UC4C0).
input signals into the IF signal, and convert IF analog signal into digital signals required for NebulasII die (UC4C0).
2.NebulasII SoC（ UC4C0）
NebulasII (UC4C0) is UNICORECOMM’s new generation high precision GNSS SoC with 55nm low power design,
supports up to 12 digital intermediate frequency or 8 analog intermediate frequency signals, which can track 12 navigation signals with 432 channels.
supports up to 12 digital intermediate frequency or 8 analog intermediate frequency signals, which can track 12 navigation signals with 432 channels.
3. MEMS
By deploying anti-interference function block and on-board MEMS device, UM4B0 can maintain excellent application experience even in the most challenging environments such as urban canyons.
4. 1PPS
UM4B0 outputs 1 PPS with adjustable pulse width and polarity.
5. Event
UM4B0 provides 1 Event Mark Input with adjustable pulse width and polarity.
6.Reset (RST)
Active low, the active time is not less than 5 milliseconds.
Active low, the active time is not less than 5 milliseconds.
