QT4 24 construction block making machine new ideas for small business 2022 machine block cement concrete
- Category: >>>
- Supplier: Linyi Dongyue Building Materials Machinery Co. Ltd.
Share on (1600565347752):
Product Overview
Description
Contact: Leo Xu WhatsApp(Wechat, Telegram): 0086 158 669 830 73 E-mail: leo@donyuegroup.com
28 years manufacturer of concrete(clay) block machines, many model for choose with different capacity! Contact me!
Hot Similar Model
Product Description

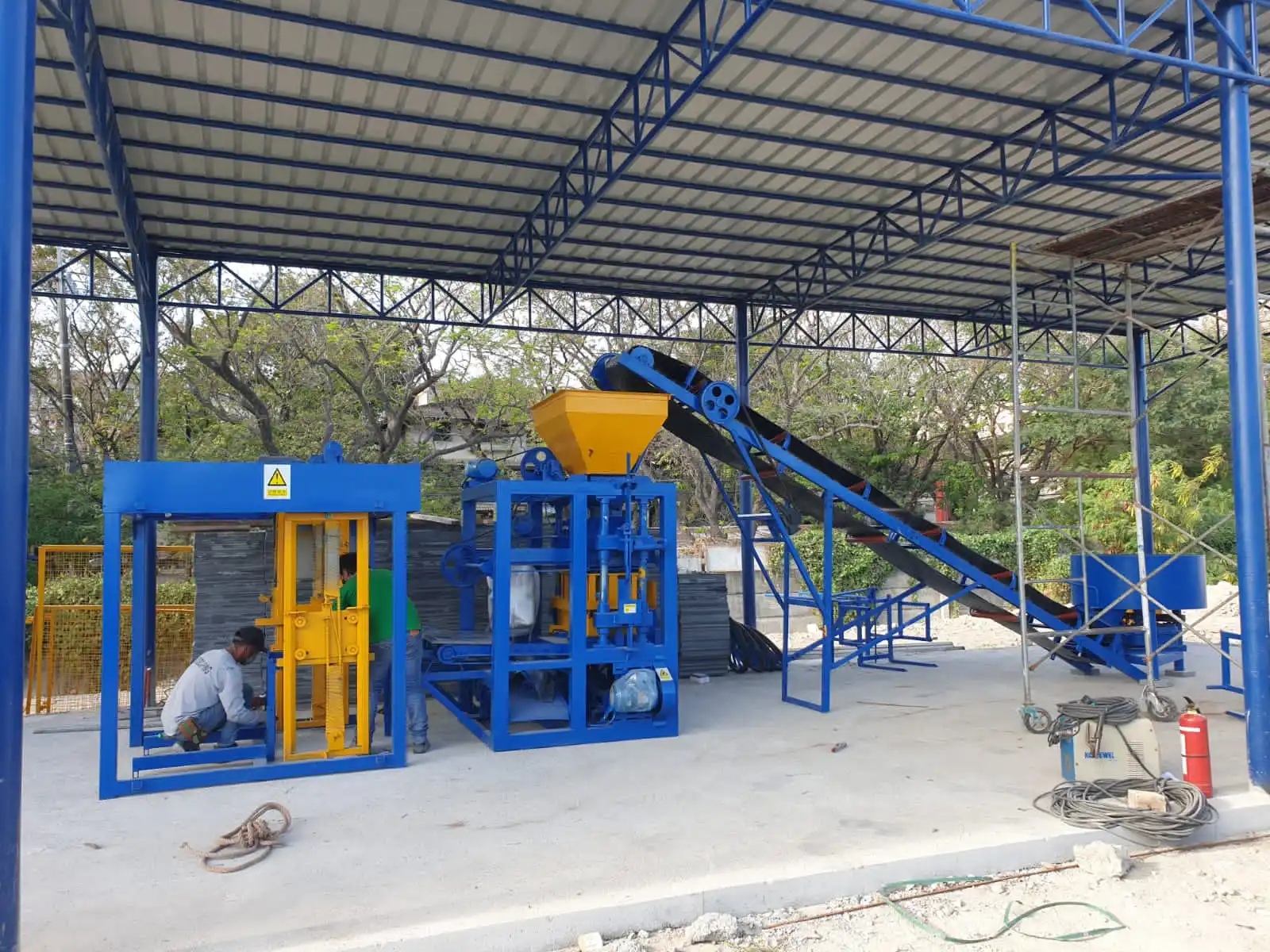

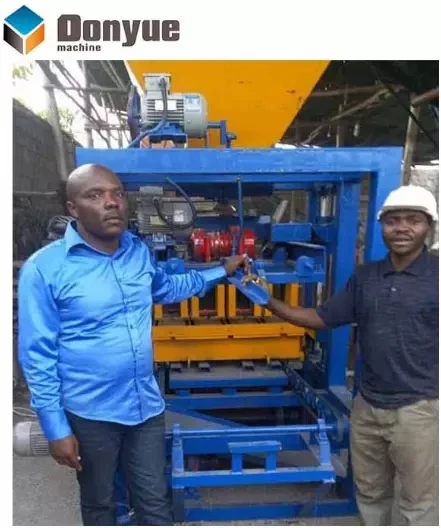

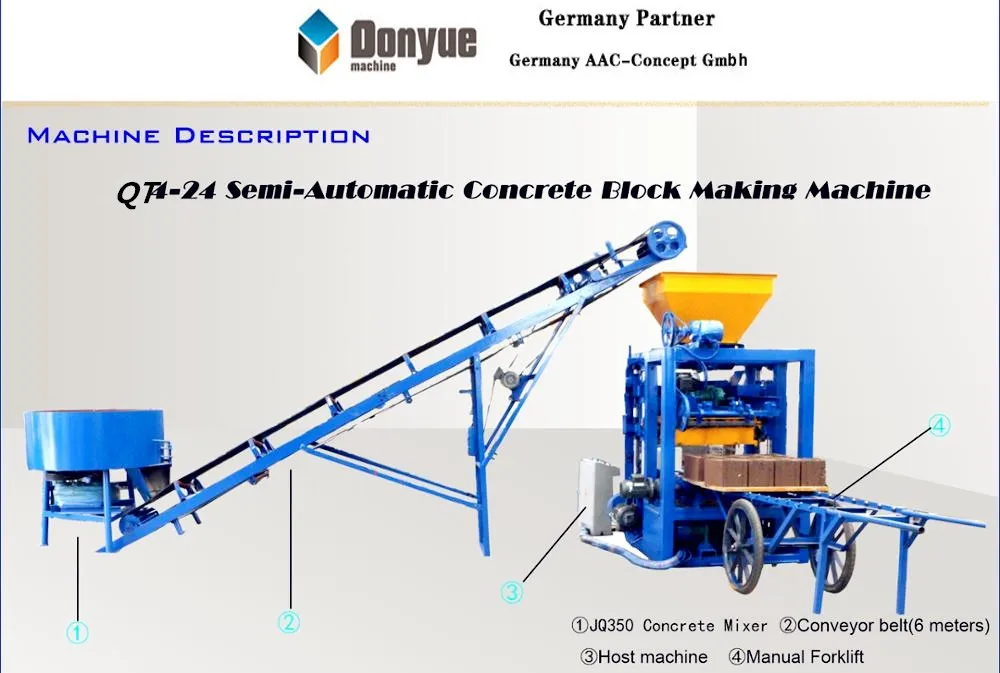

Best selling Semi-automatic line QT4-24
2-3 workers for whole line

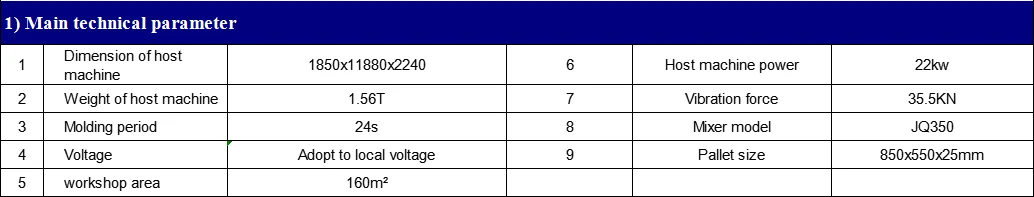

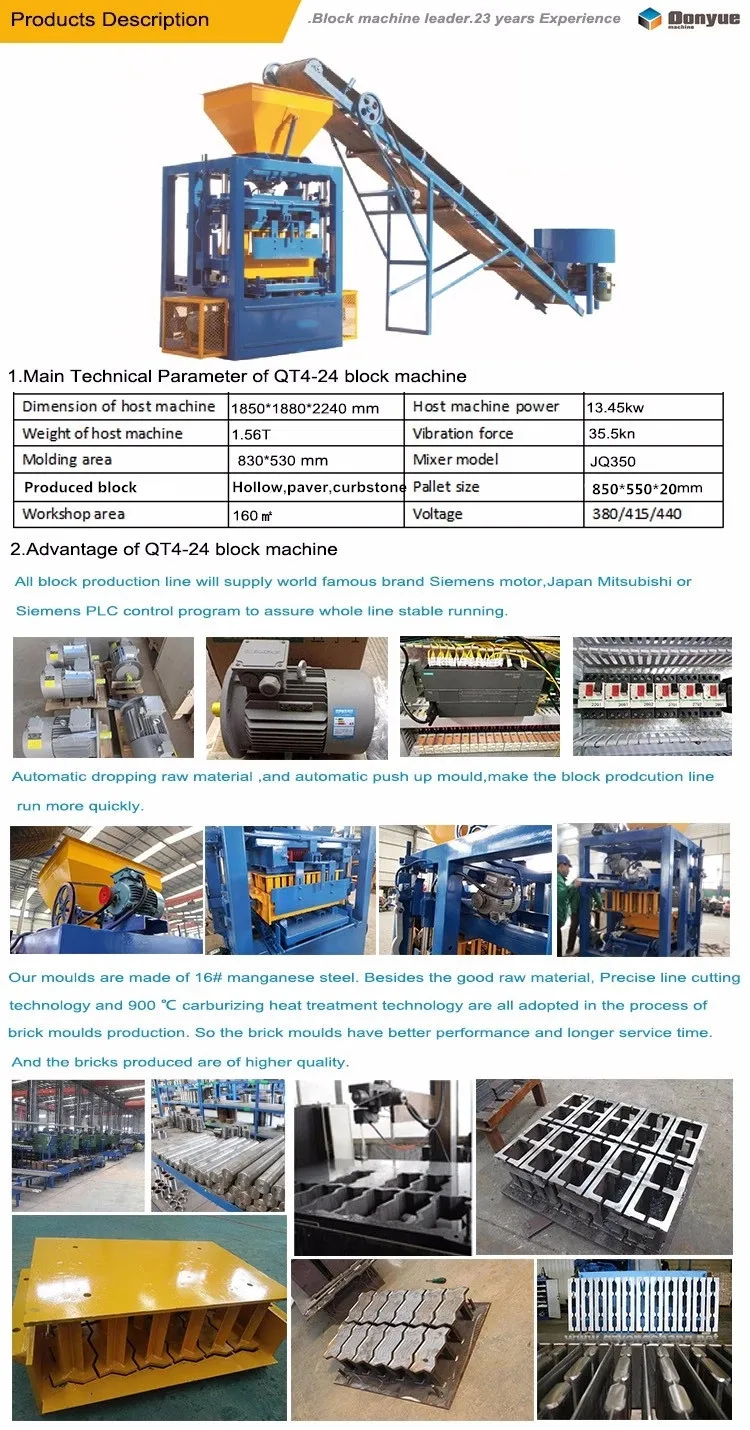

MAIN TECHNICAL PARAMETER | ||||||
Dimesion of host machine | 1850*1880*2240mm | Total machine power | 31KW | |||
Mould period | 20-24S | vibration force | 35.5KN | |||
Pallet size | 850x550x20mm | Mixer modle | JQ350 | |||
Weight of host machine | 1560kg | Voltage | 380/415/440V | |||

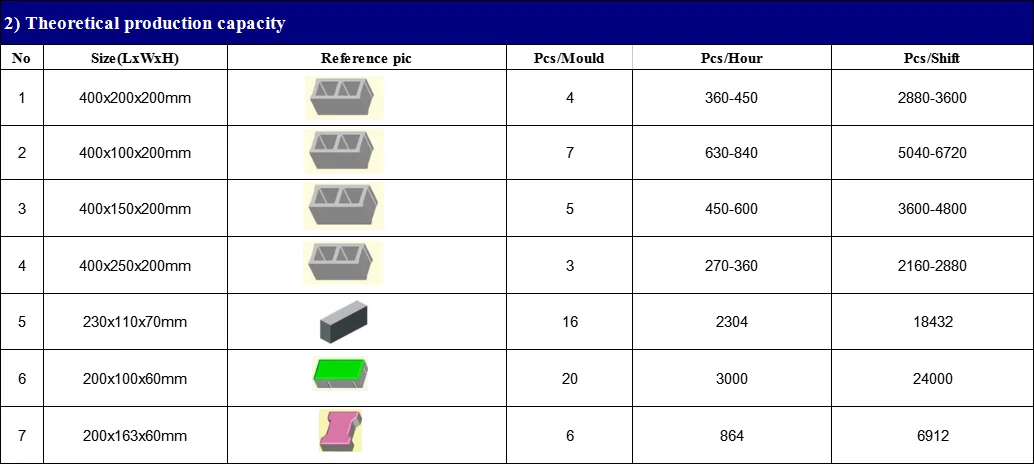

THEORETICAL PRODUCTION CAPACITY | ||||||

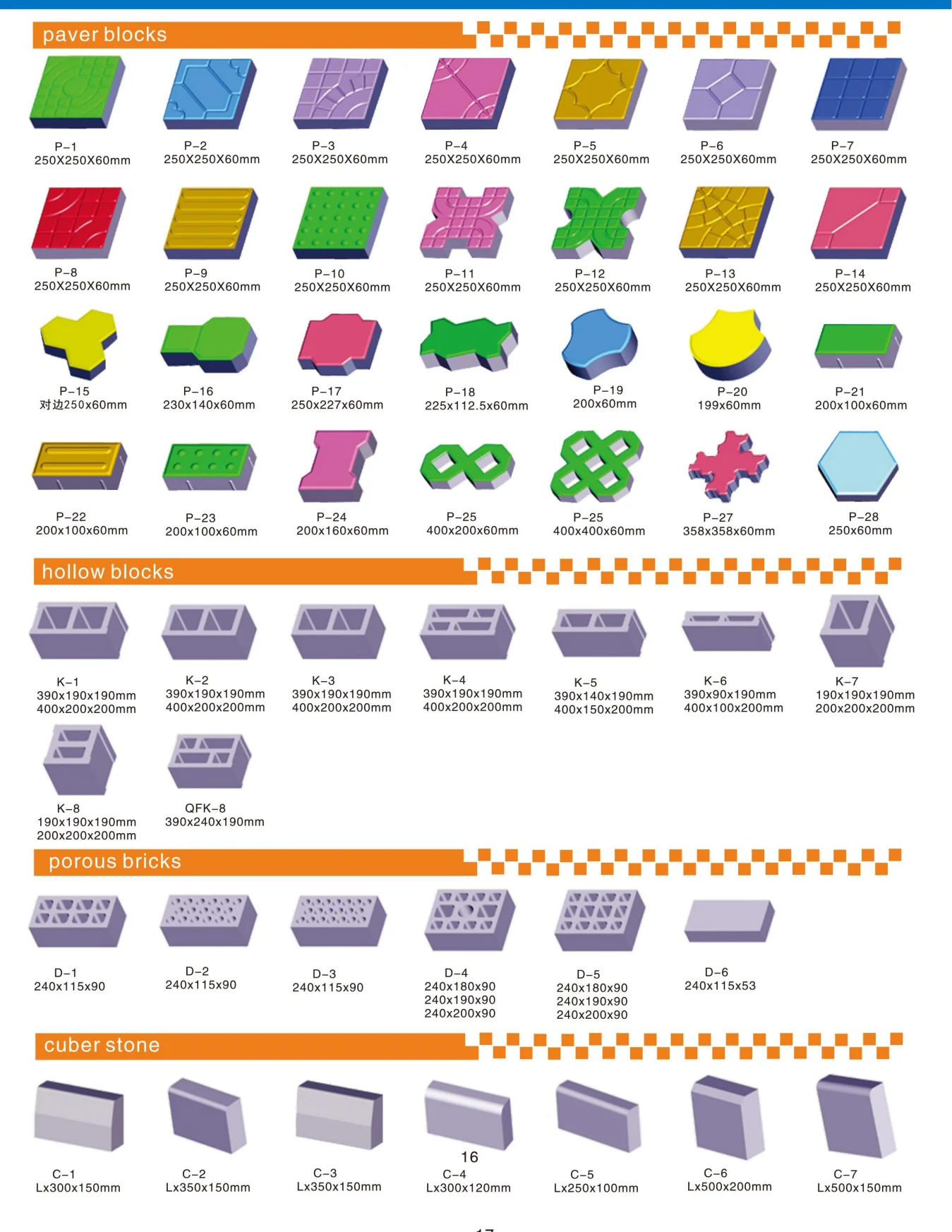

Size (L*W*H) | Pcs/Cycle | Pcs/hour | Pcs /Shift (8 hours) | |||
400x200x200mm | 4 | 450 | 3600 | |||
400x250x200mm | 3 | 360 | 2880 | |||
400x150x200mm | 5 | 600 | 4800 | |||
400x100x200mm | 7 | 840 | 6720 | |||
400/500X250X200mm hourdis or slab | 3 | 360 | 2880 | |||
400/500X200X200mm hourdis or slab | 4 | 450 | 3600 | |||
400/500X160X200mm hourdis or slab | 4 | 450 | 3600 | |||
400/500X150X200mm hourdis or slab | 5 | 600 | 4800 | |||
230X110X70mm solid brick | 20 | 2400 | 19200 | |||
200x100x60mm paver block | 14 | 1680 | 13440 | |||
200x163x60mm paver block | 8 | 960 | 7680 | |||
245X112.5X60mm S shape paver | 9 | 1080 | 8640 | |||
250x250x60mm Hexagonal brick | 6 | 720 | 5760 | |||
800x80x200mm curbstone | 3 | 180 | 1440 | |||

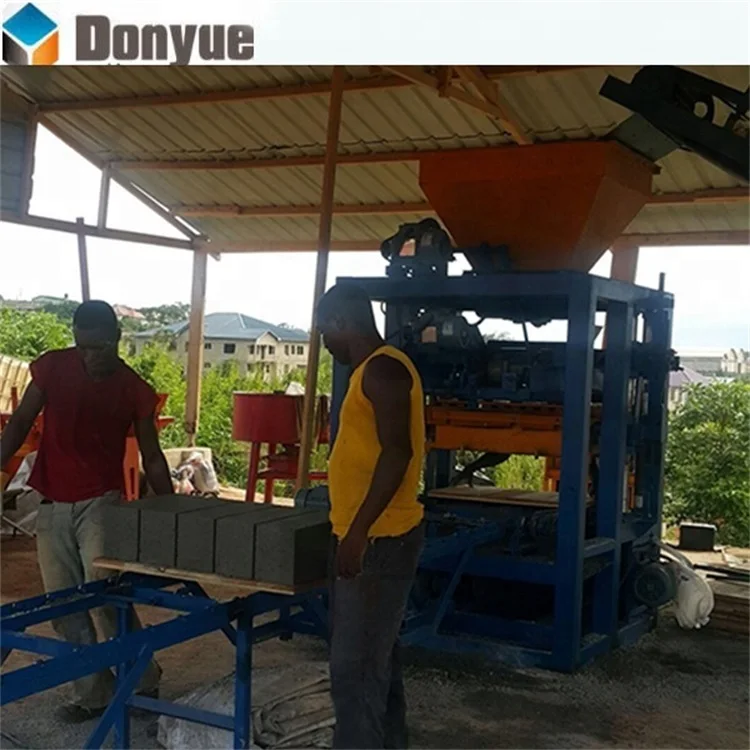

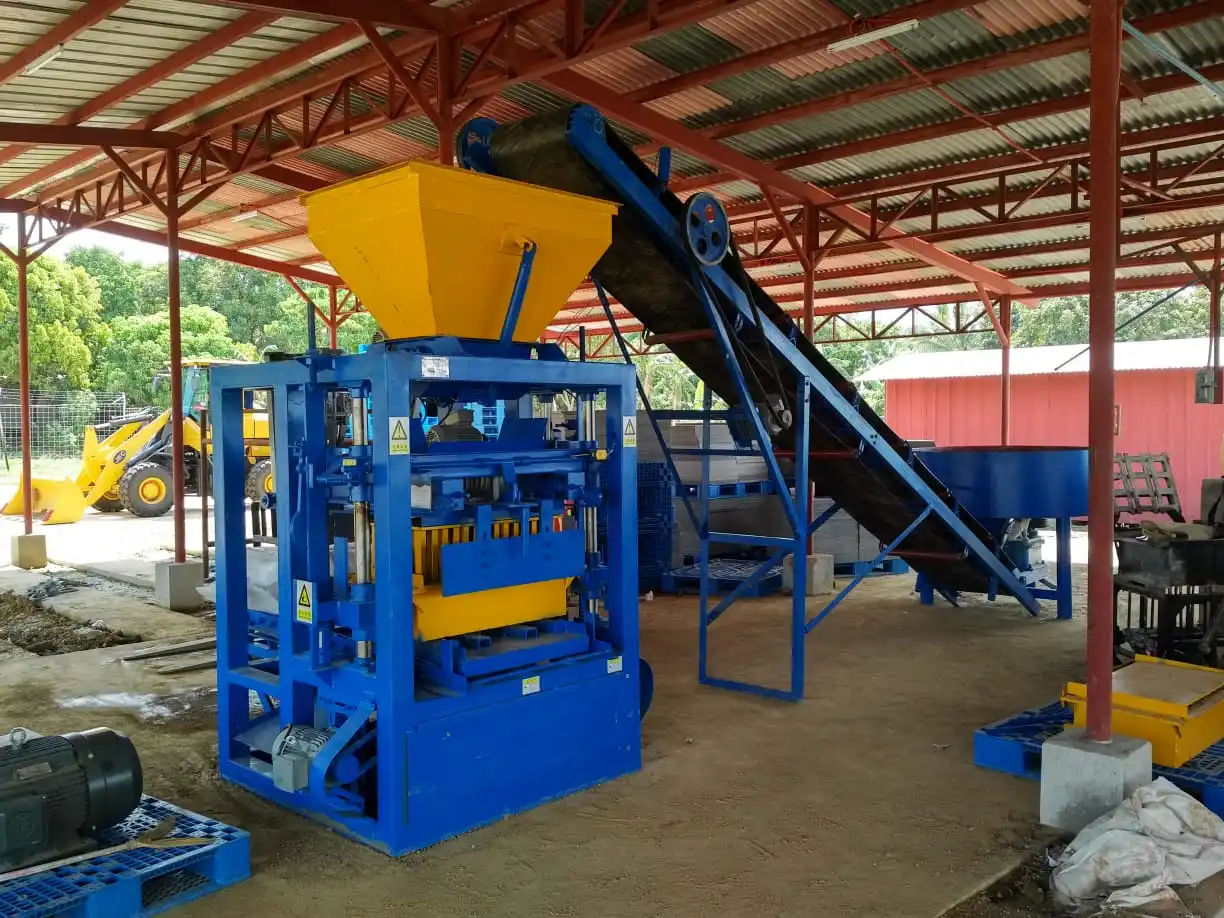

QT4-24 - Best selling semi-automatic model
The main advantage of QT4-24 semi auto block making machine.
1.QT4-24 block machine is one of our newly designed block making machine. With less power.
2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
3.It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.

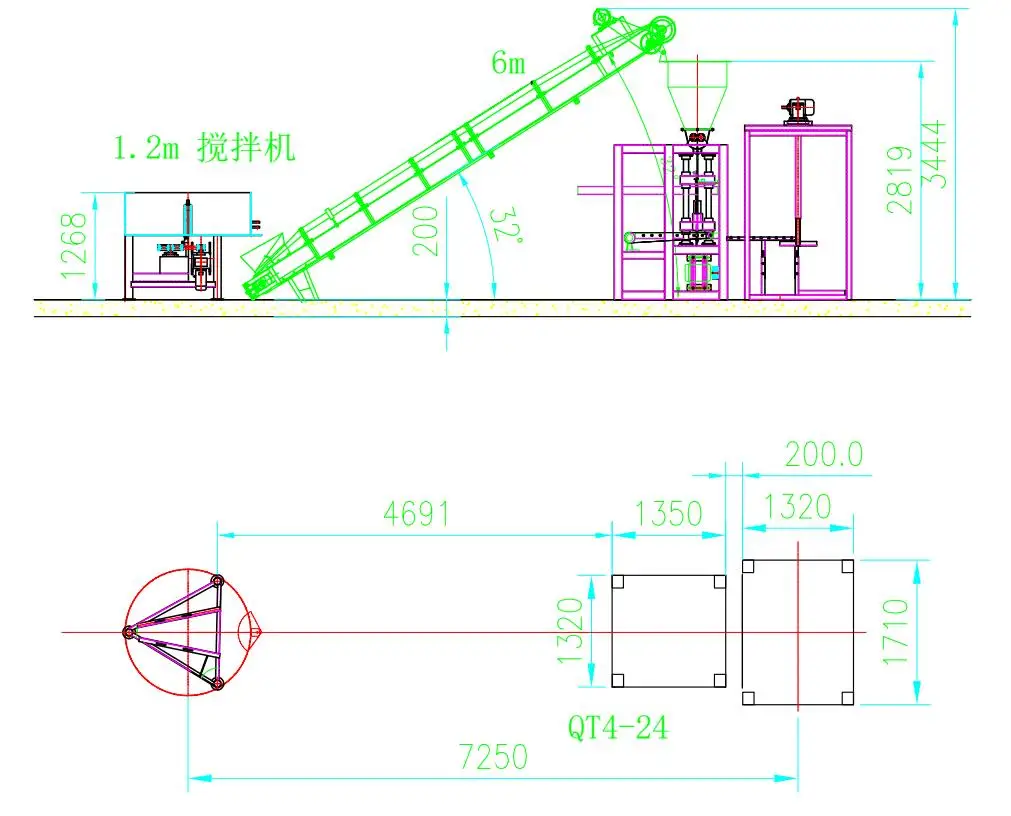

Production process
Materials
Two options for reference
1. 8%-10% cement, 30-40% sand, 50-60% crushed stone
1. 8%-10% cement, 30-40% sand, 50-60% crushed stone
2. 8-10% cement, 30% fly ash, 60% sand or stone powder
Other materials can also be used
Production process
1. Material Batching and preparation Section: Raw materials are discharged to the mixer. The mixed raw materials are sent to the mixer.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to the block making machine through belt conveyor.
3.Block forming Section: Mixed raw material are then sent to the mould case. Under PLC computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section: After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Block Curing Section : Wet product will be conveyed through green block conveyor then to the stacker.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to the block making machine through belt conveyor.
3.Block forming Section: Mixed raw material are then sent to the mould case. Under PLC computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section: After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Block Curing Section : Wet product will be conveyed through green block conveyor then to the stacker.

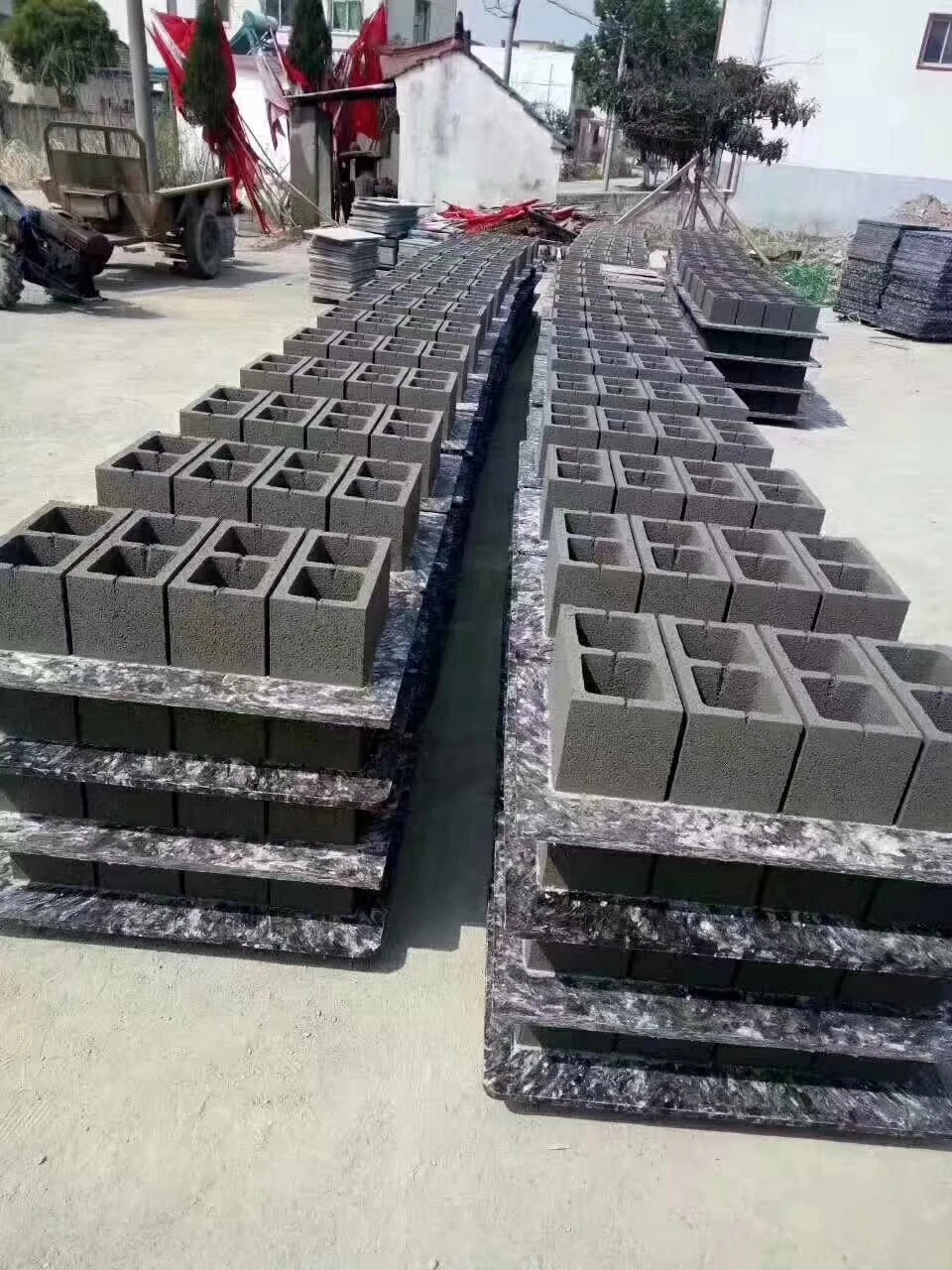

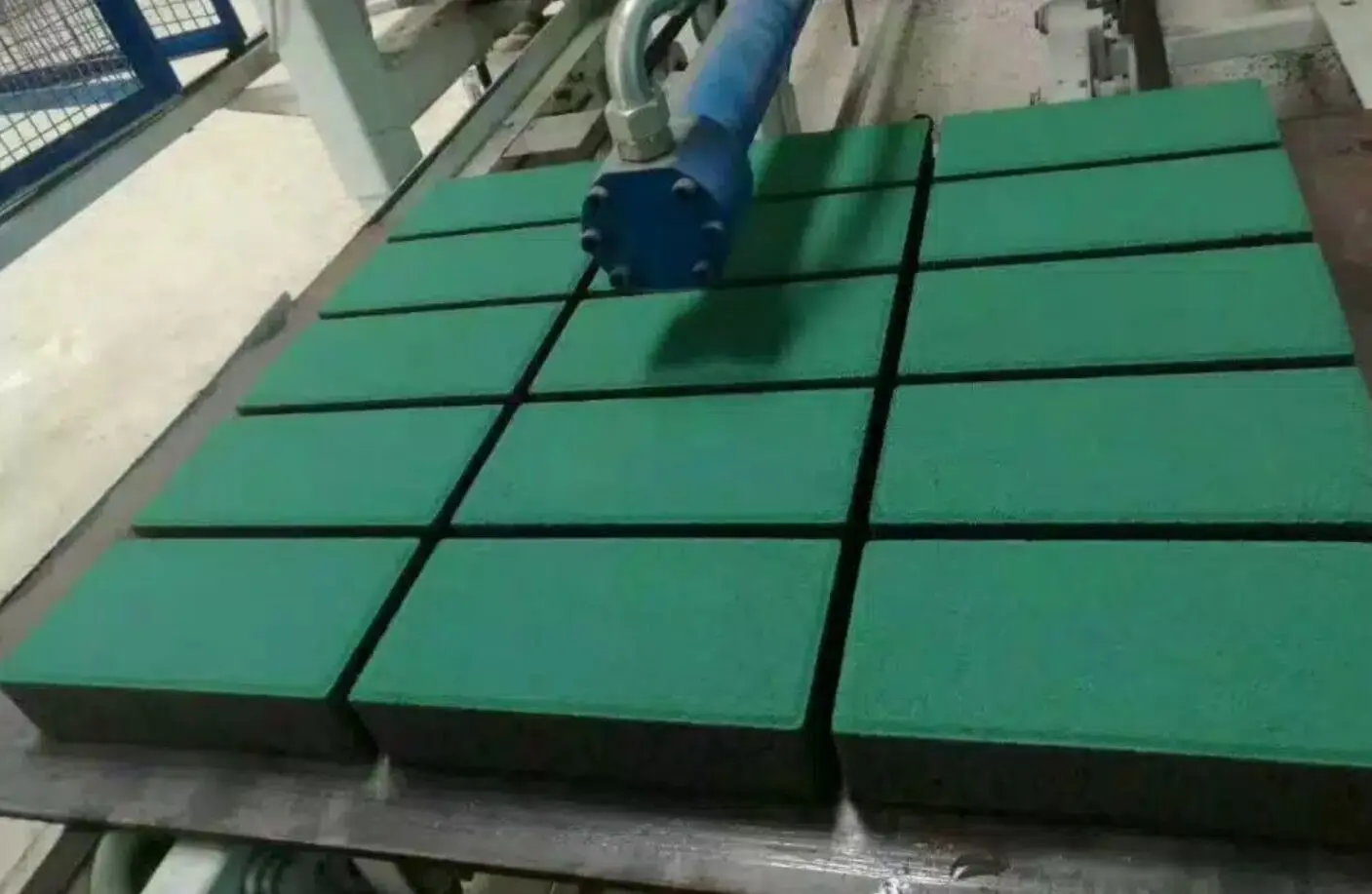

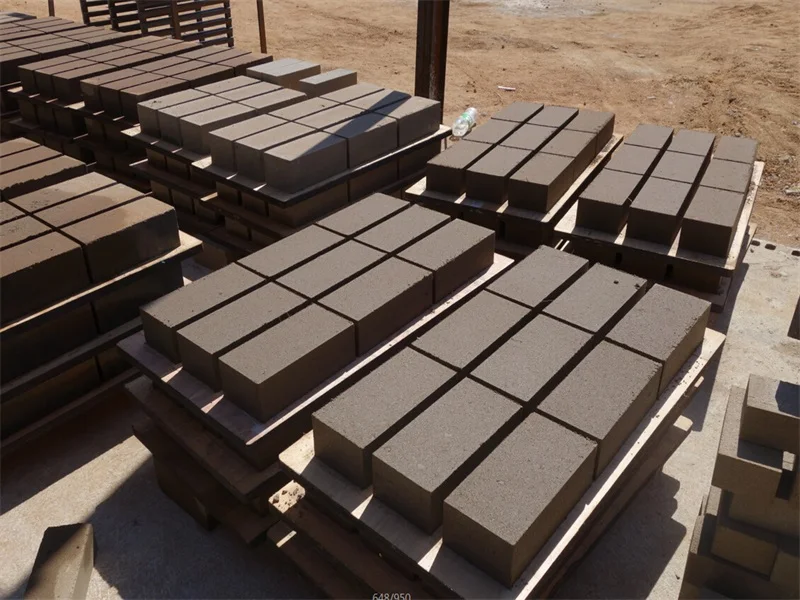

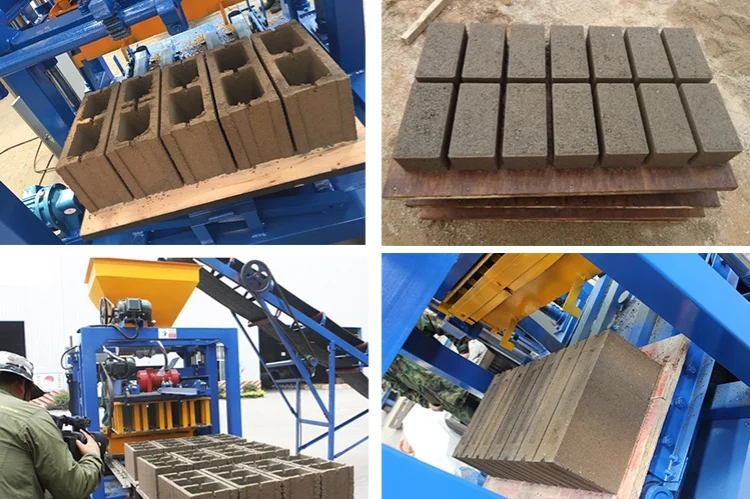

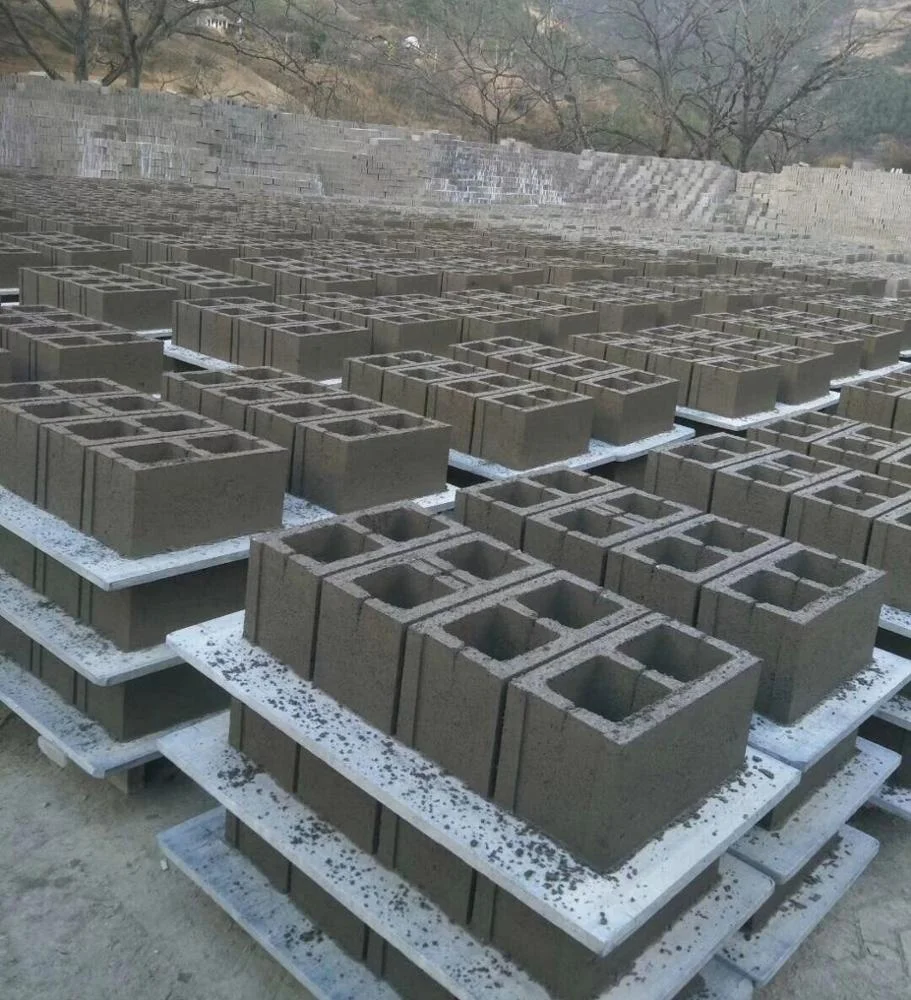

Finished blocks

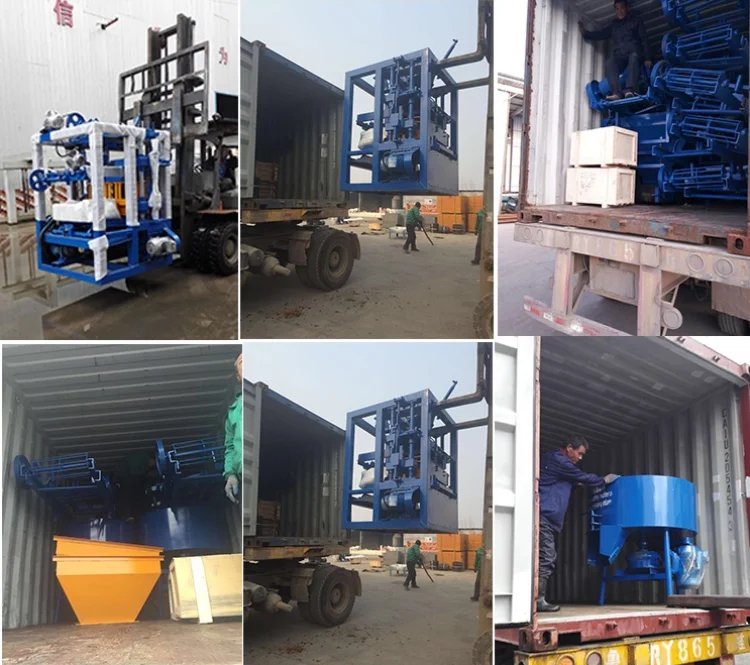

Packing & Delivery
About loading into containers
One 20ft container can load 2 sets QT4-24 line.
One 20ft container can load 1 set QT4-24 line with 800pcs pallets.
One 20ft container can load 1 set QT4-24 line with stacker and 200pcs pallets.

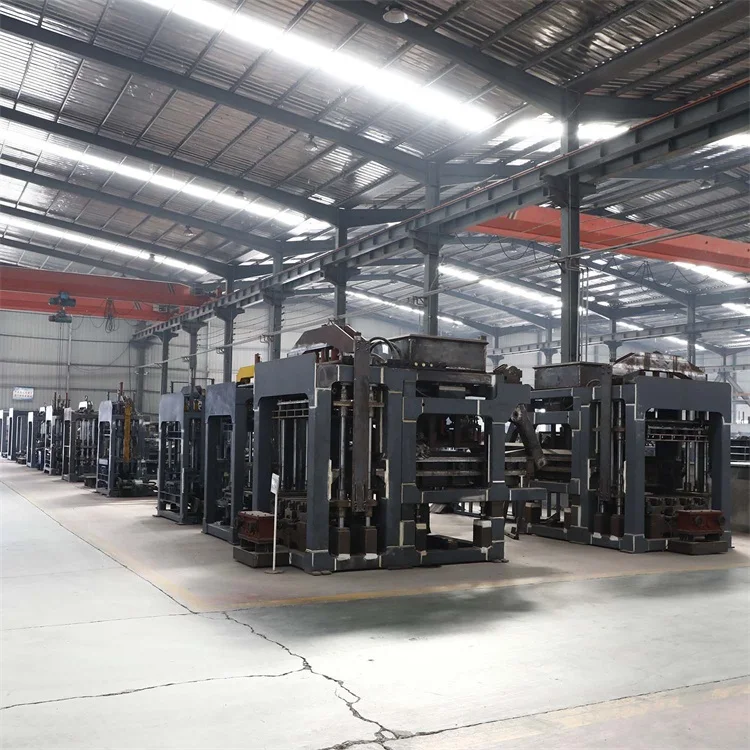

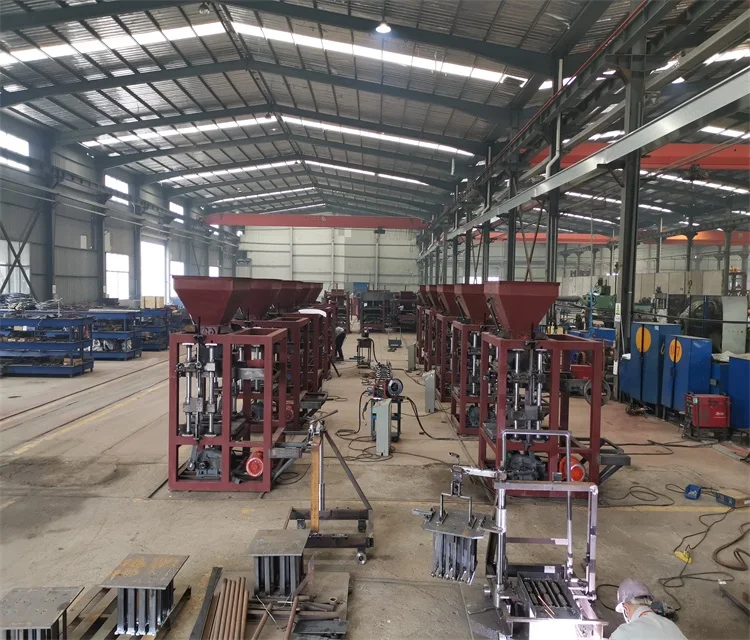

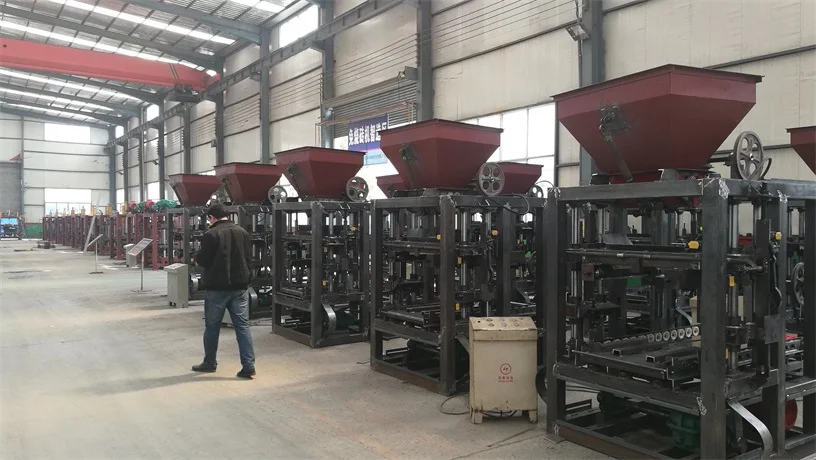

Company Profile

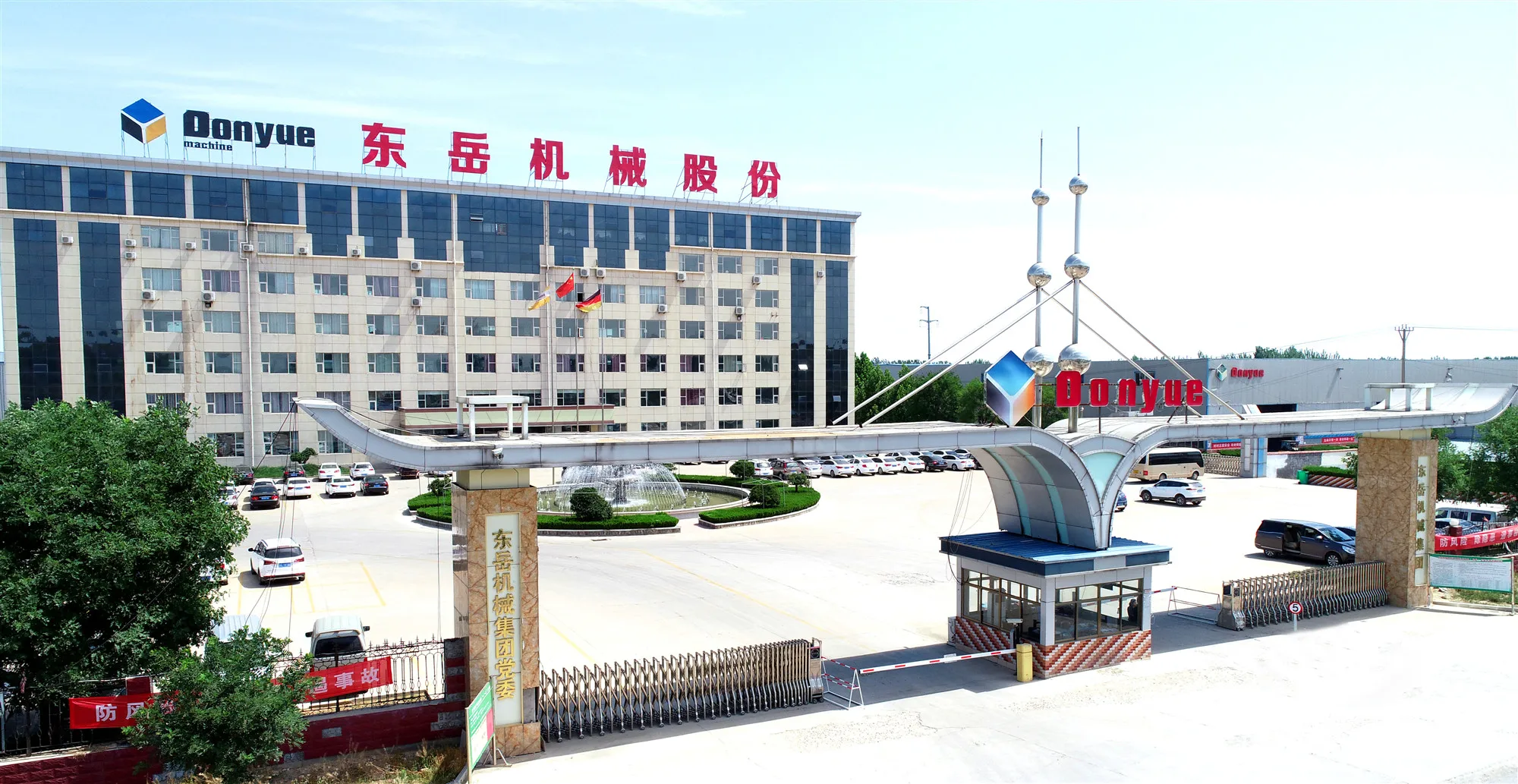

DONGYUE MACHINERY GROUP CO.,LTD - Since 1994
Long History With Rich Experience: Our company has been in brick making machine for 28 years .With long time experience, our customers come from Middle East,South East Asia,Africa,South American and we has exported more than 40 countries.
Sincere Service return to our customers: Our block machine has providedmore than 1,000 sets of block machines to different customers to make huge profit.
Perfect After-sale Service : Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved, we will fly to your site for help.Installation concrete blockmachine& train of workers
Long History With Rich Experience: Our company has been in brick making machine for 28 years .With long time experience, our customers come from Middle East,South East Asia,Africa,South American and we has exported more than 40 countries.
Sincere Service return to our customers: Our block machine has providedmore than 1,000 sets of block machines to different customers to make huge profit.
Perfect After-sale Service : Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved, we will fly to your site for help.Installation concrete blockmachine& train of workers
LINYI Dongyue Building Material Machinery Co.,ltd , which was organized in 2011 is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved aerated concrete block, autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing DONGYUE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance.
we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
