75 мм соломинки, экструдер, машина для производства соломинок для риса, производственная линия соломинок для съедобного риса
- Category: Straw Making Machines >>>
- Supplier: Jinan Xilang Machinery Co. Ltd.
Share on (1600565366663):
Product Overview
Description
PRODUCTS DESCRIPTION

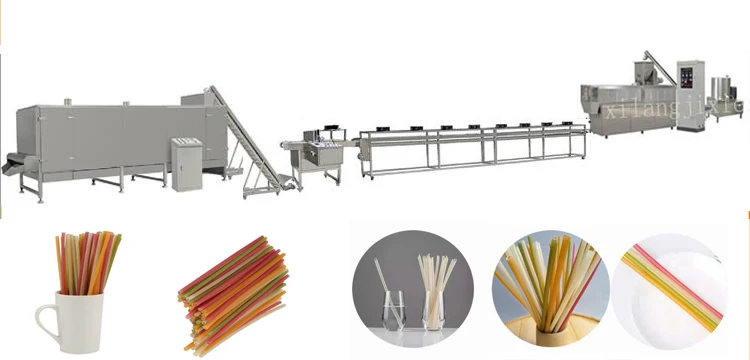

Brief introduction of 75mm straws extruder rice straw making machine edible rice straw production line
Edible Rice Straw Making Machine is used for making Drinking Rice Straw. This straw is a new type product which are very welcomed at present market. Compared with traditional plastic straws, this straw is environmentally friendly, can be eaten after used, as it mainly be made from grain flour and easily degraded.
Raw material of 75mm straws extruder rice straw making machine edible rice straw production line
Rice flour, tapioca flour and other grain flour.
Products of 75mm straws extruder rice straw making machine edible rice straw production line
By adjusting the forming mold and ingredients, edible straws with novel shapes and rich colors can be produced.
PRODUCT SPECIFICATIONS
Model | XL100-III | XL75-IV |
Installed power | 100kw | 200kw |
Production capacity | 100-150kg/h | 200-300kg/h |
Appearance size (L * W * H) | 50 x 2 x 2.2 m | 60 x 2 x 2.6 m |
PRODUCT CONFIGURATION
Process flow of 75mm straws extruder rice straw making machine edible rice straw production line
raw material preparing→mixing→extruding→transporting→cutting→drying→cooling→(packaging)

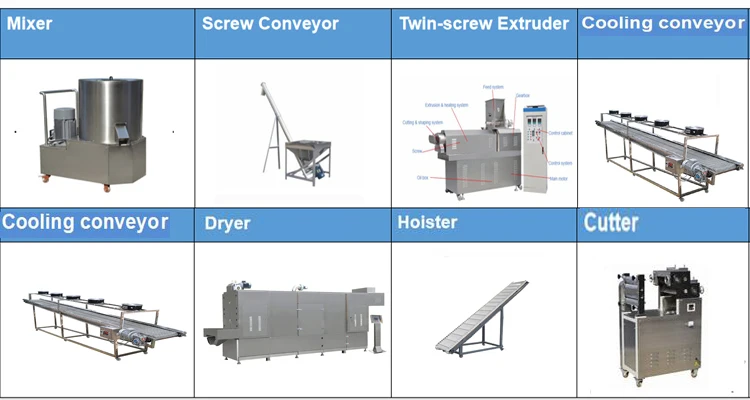

Equipment list of 75mm straws extruder rice straw making machine edible rice straw production line
[1] mixing machine → [2] screw hoist → [3] twin screw extruder → [4] cooling conveyor → [5] Cutting machine → [6] hoist → [7] multi-layer oven
1 | mixer | 1pc | Mix the materials with water or other liquid. |
2 | Screw Conveyor | 1pc | Convey the materials into twin screw extruder. |
3 | Twin Screw Extruder | 1pc | Raw material is cured and puffed in extruder, then become different shapes by changing moulds. |
4 | Cutter | 1pc | Cut long products to short |
5 | Hoist | 1pc | Convey the products into dryer |
6 | Cooling conveyor | 2pcs | Cooling the rice straws down and conveying |
MAIN MACHINE DETAILS
Twin screw extruder of 75mm straws extruder rice straw making machine edible rice straw production line
1)Pure copper motor, low heat, sufficient power and stable performance.
2)The control cabinet adopts a visual automatic temperature control system, the temperature of each zone can be adjusted separately, the temperature control is intuitive, and the parameters are accurate.
3)Double spiral in the same direction, controlled by a separate control cabinet.
4)The screw is made of high wear-resistant materials with hardness above HRC55 and has a long service life.
5)International brand power supply devices, strong stability, can run continuously for more than 700 hours.
3)Double spiral in the same direction, controlled by a separate control cabinet.
4)The screw is made of high wear-resistant materials with hardness above HRC55 and has a long service life.
5)International brand power supply devices, strong stability, can run continuously for more than 700 hours.
PACKING AND SHIPPING
Firstly the rice straw machines are packed with winding film or carton.
Secondly the edible rice straw machine will be fixed on bracket with wire.
Finally the edible rice straw machine will be packed with wooden case.
Secondly the edible rice straw machine will be fixed on bracket with wire.
Finally the edible rice straw machine will be packed with wooden case.
SUCCESSFUL WORKS
Fortified rice Project in India
Breakfast cereal line in Turkey
Project in Thailand
COMPANY PROFILE
FAQ
Q1: Are you a trade company or a manufacturer?
A1:We are a manufacturer,we have own factory and R&D department.
SGS has certified our company on site.welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss
before contract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4. Can you provide food or feed formula?
A4: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q5: What is your terms of payment ?
A5: 30% T/T in advance ,70% balance before shippment after inspection.
Q6: How about the after-service?
A6: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
A1:We are a manufacturer,we have own factory and R&D department.
SGS has certified our company on site.welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss
before contract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4. Can you provide food or feed formula?
A4: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q5: What is your terms of payment ?
A5: 30% T/T in advance ,70% balance before shippment after inspection.
Q6: How about the after-service?
A6: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
