IR Infrared 100 Points Finger Touch Interactive Whiteboard Spray Frame for Education
- Category: >>>
- Supplier: Shenzhen Oway Smart Tech Co. Ltd.
Share on (1600565372265):
Product Overview
Description

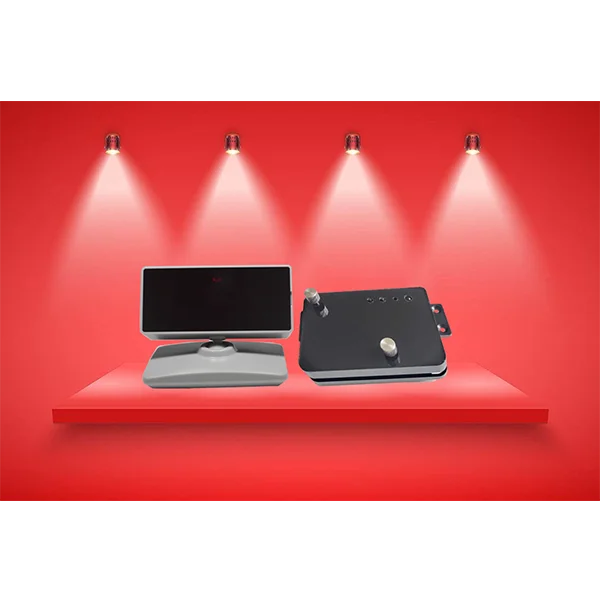

Oway FT6 Portable Finger Touch Interactive Whiteboards

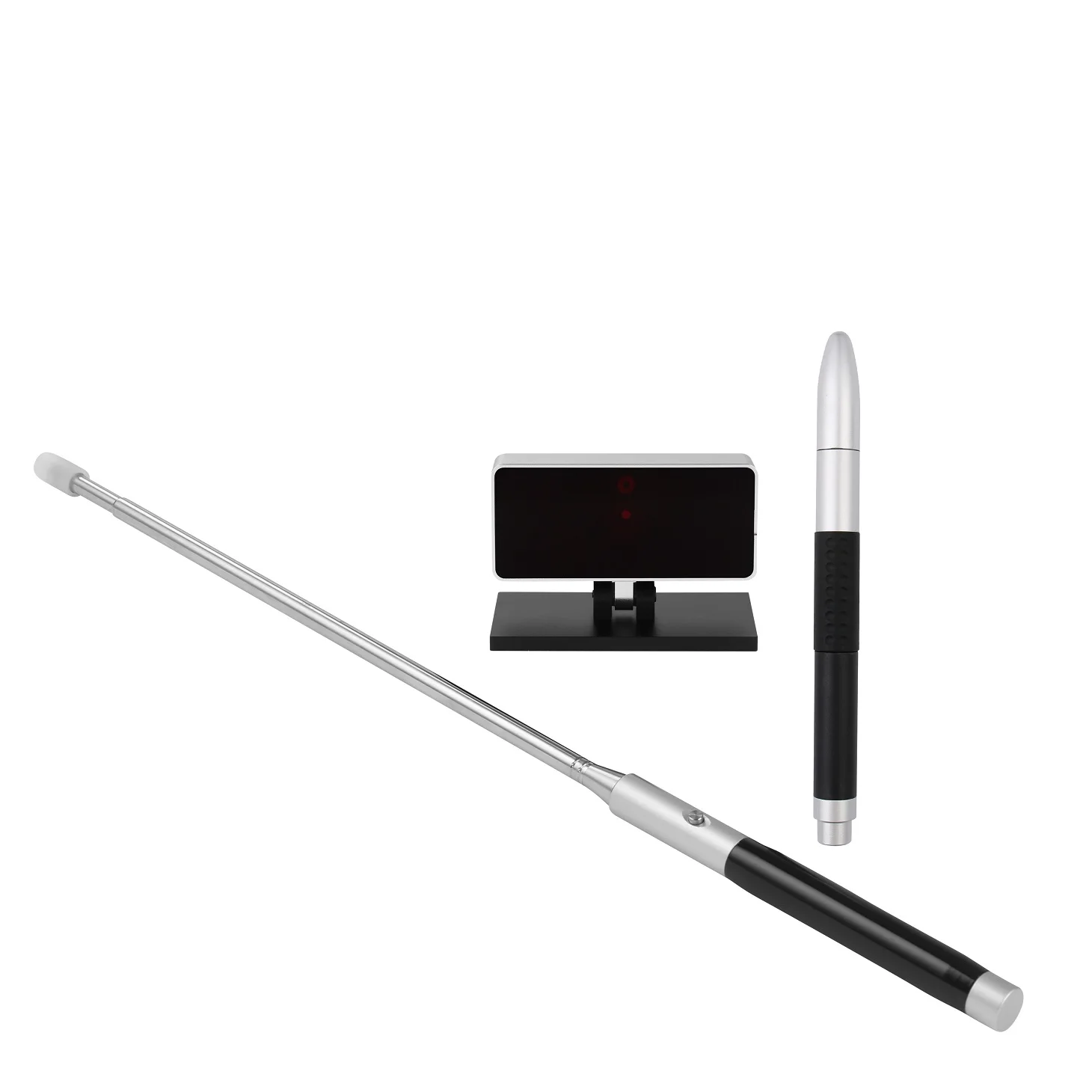

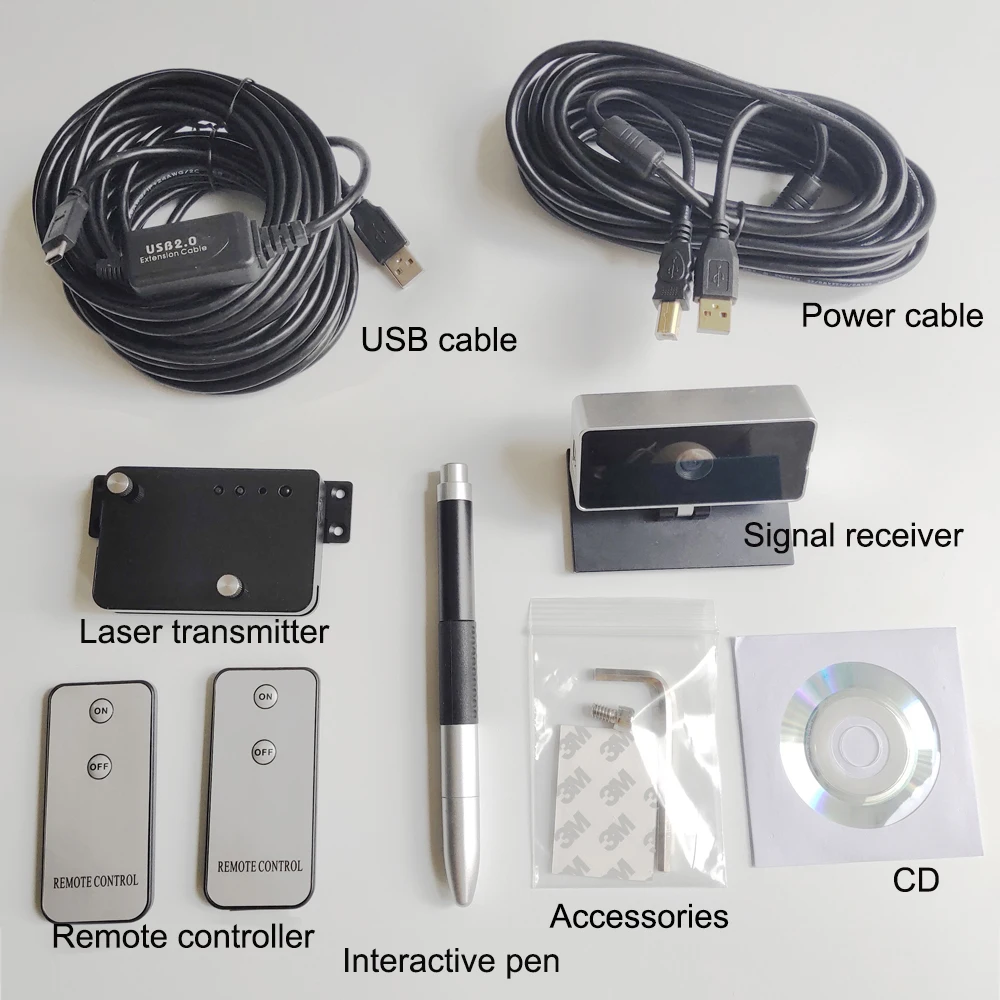

Products Description

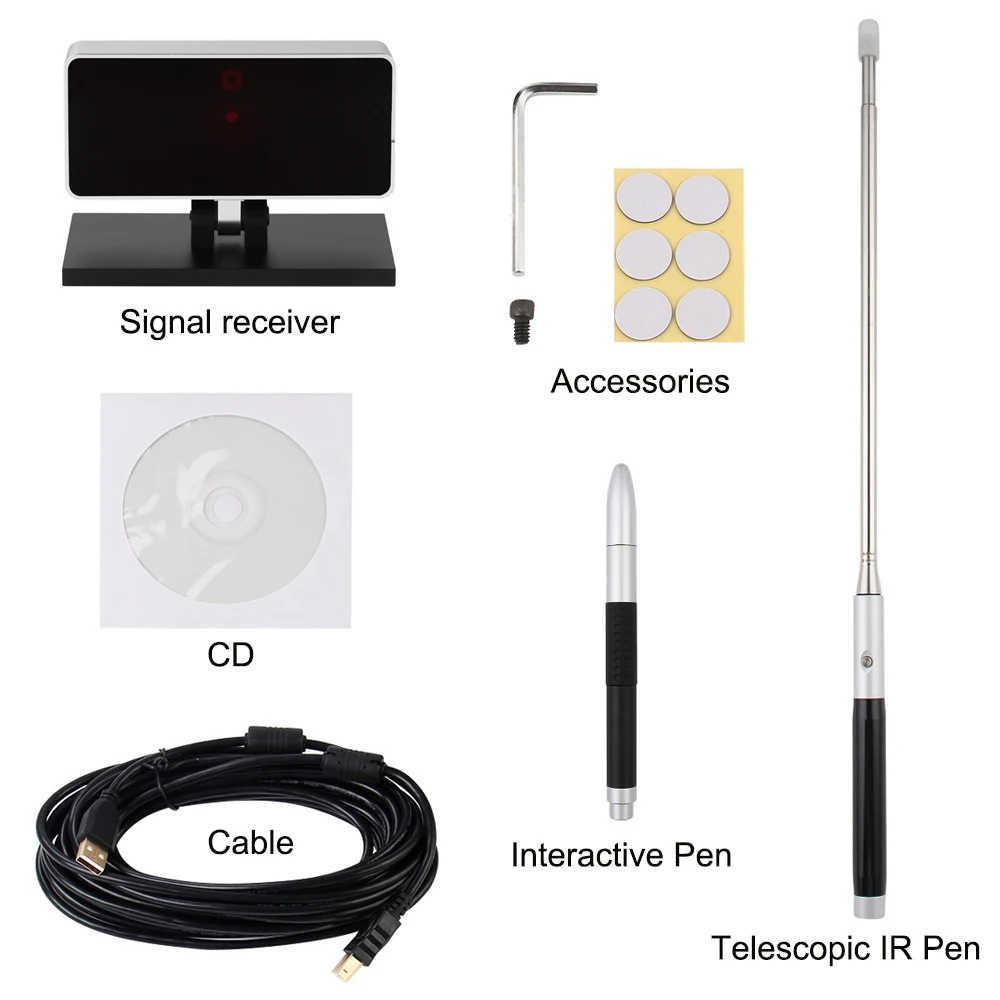

Laser transmitter 1pc
USB cable 1pc
USB cable 1pc
Power cable 1pc
Interactive pen 1pc
Remote controller 2pcs
Interactive pen 1pc
Remote controller 2pcs
CD 1pc

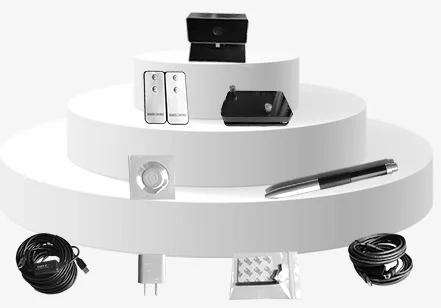

Accessories
Specifications：
Calibration | Automatic(5 seconds) / Manual (4/15 points) | ||||||
Multi-touch | 100 points touch,Writing and erasing can be performed simultaneously | ||||||
Latency | 30ms | ||||||
Filter | Software auto-control, enhance stability | ||||||
Minimum Active Size | 30 inch | ||||||
Max Active Size | 200inch( no sunshine room) | ||||||
Technology | Laser Image Calibration Technology | ||||||
Positional Accuracy | ±1 Pixel (Resolution: 4096*4096) | ||||||
Aspect Ratio | 4:3；16:9；16:10 | ||||||
Ultra short throw： 0.28/0.16 | installation distance：0.25-0.5m | ||||||
Short throw:0.83 /0.57/0.38 | installation distance：0.84m-1.2m | ||||||
Long throw:1.28 | installation distance: 2.2m-5.5m | ||||||
Number of lasers | unit *2 | ||||||
Power | 5w | ||||||
Power of Laser Beam | 280mw*2 | ||||||
Power requirements | 3.3V/2A | ||||||
Signal refresh rate | 60fps | ||||||
Connect | The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just need power | ||||||
Weight | 0.5kg | ||||||
OS Requirement | Windows XP, Windows 7, Windows 8, Windows10 | ||||||
Software | OwaySIWB; multi-board | ||||||
Certification | CE, FCC | ||||||
Warranty | 3-years | ||||||
Package | 1. Sensor 2.Emitter 3.IR pen 4.USB cable(10m) 5.Remote 6.Power Adaptor 7.CD with software | ||||||
After years of innovative research and development, FT6 has become the main product of the new series of OWAY Group Limited. It is not only more stable but also easier to install and use. Currently, it uses the world's most advanced laser imaging technology. The level of automation and stability are far ahead of other products.
Feature:
1. Support 100-point finger touch at the same time;150inch screen.

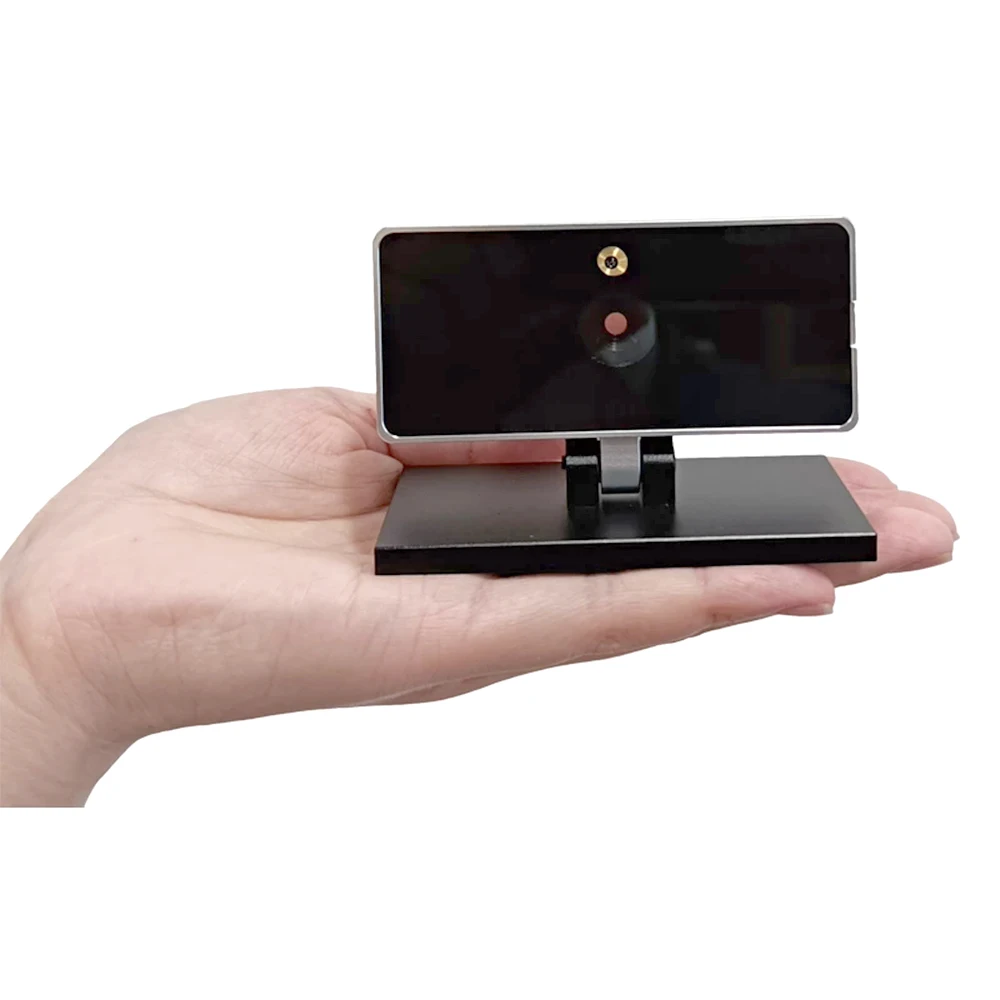

2. Light weight (The main parts include laser emitter and signal receiver, with a total weight of no more than 500 grams)
3. Auto-calibration, complete within 5 seconds, the success rate of more than 98%.
4. Competitive price
5. The shortest throw ratio: 0.25, you can freely adjust the required screen size, very flexible.
2. Light weight (The main parts include laser emitter and signal receiver, with a total weight of no more than 500 grams)
3. Auto-calibration, complete within 5 seconds, the success rate of more than 98%.
4. Competitive price
5. The shortest throw ratio: 0.25, you can freely adjust the required screen size, very flexible.

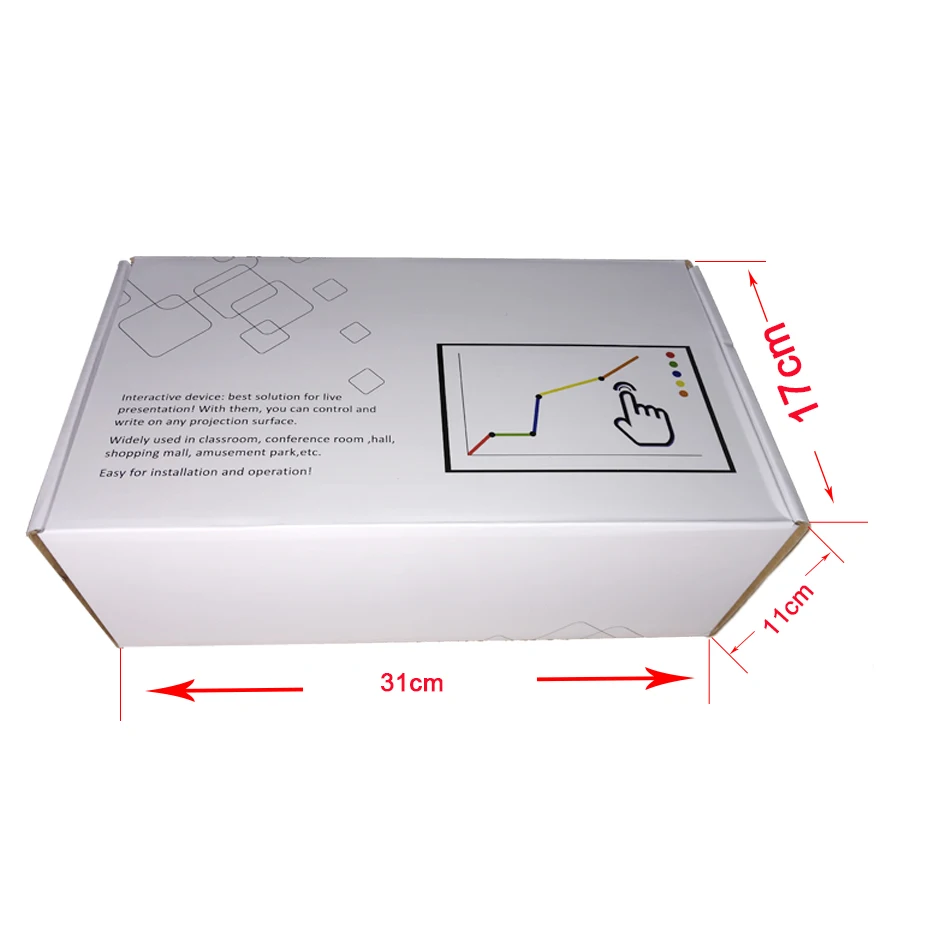

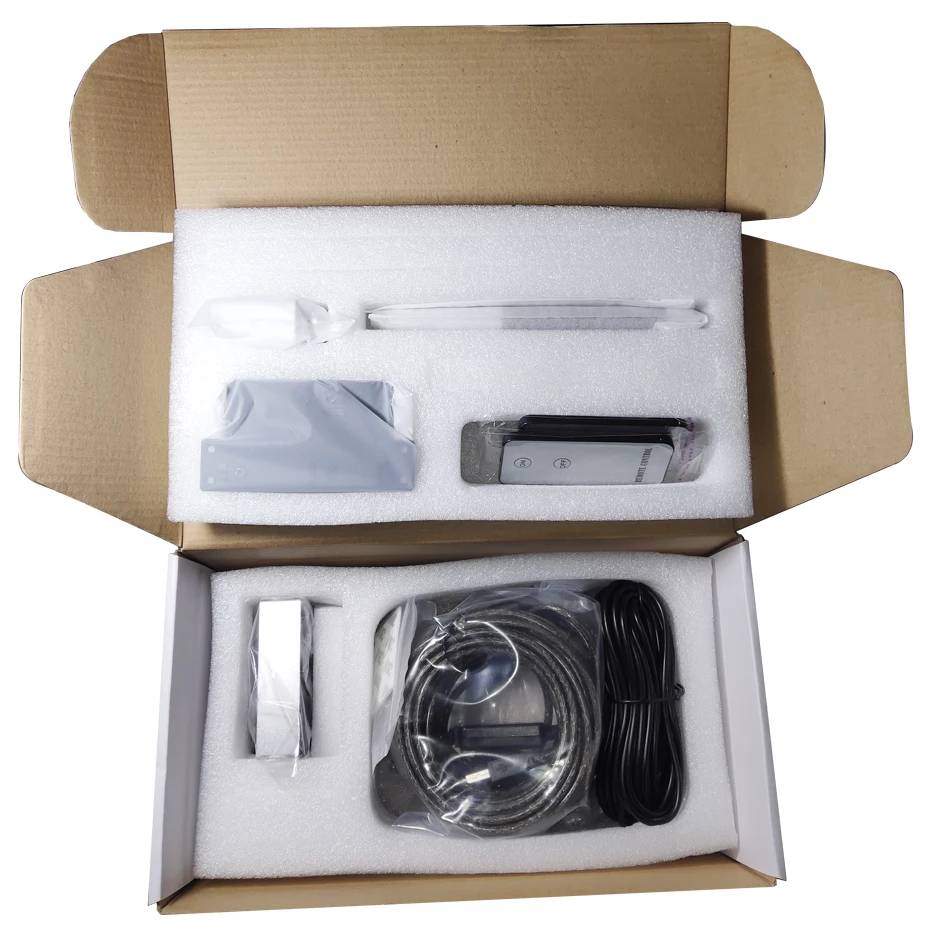

Product packaging

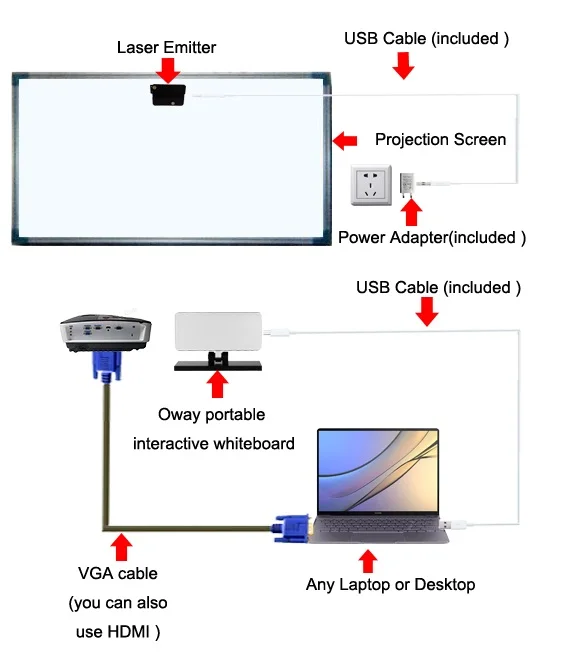

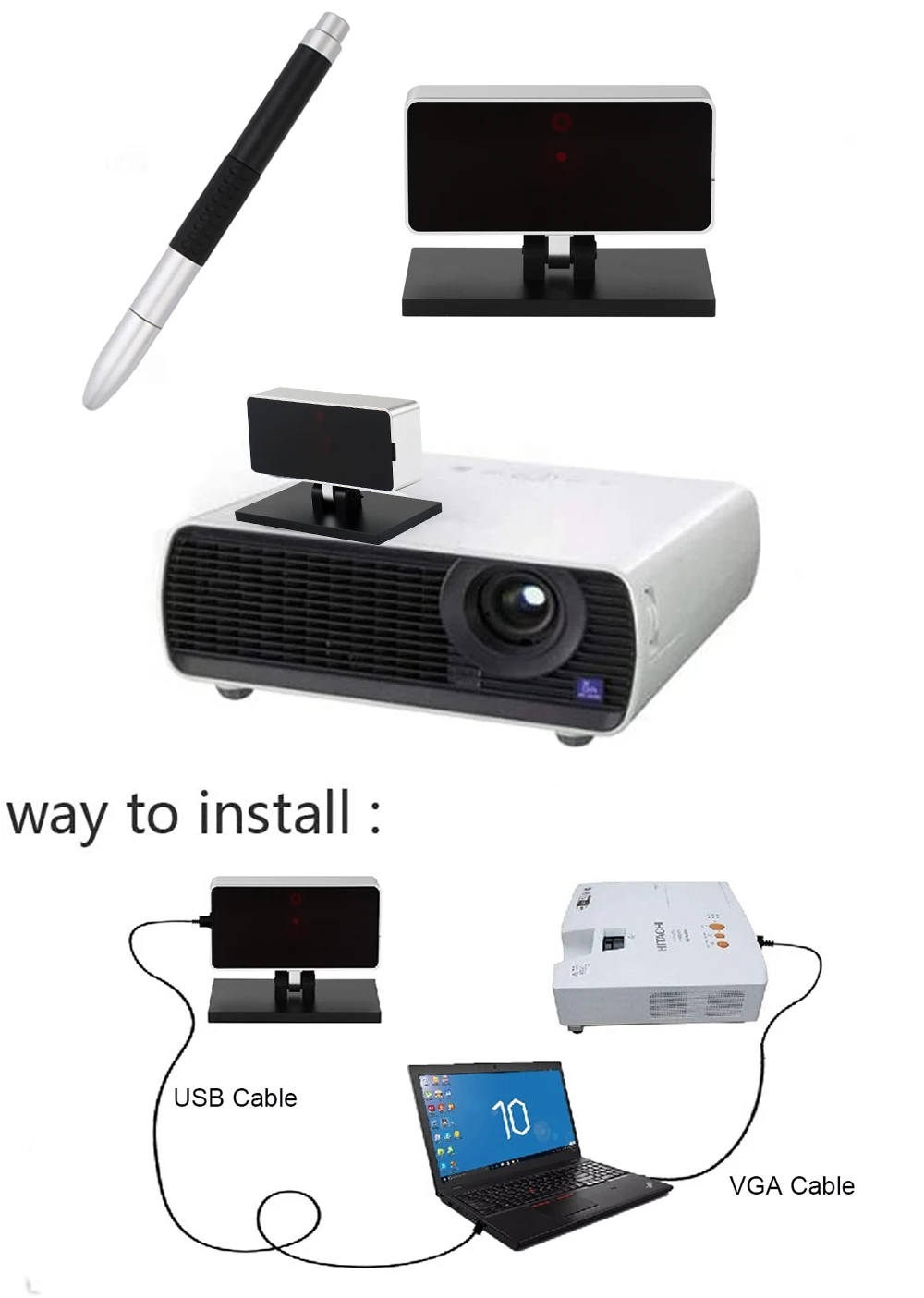

Installation Instructions
FT6 is small and easy to install. It doesn’t require professional technology to install.

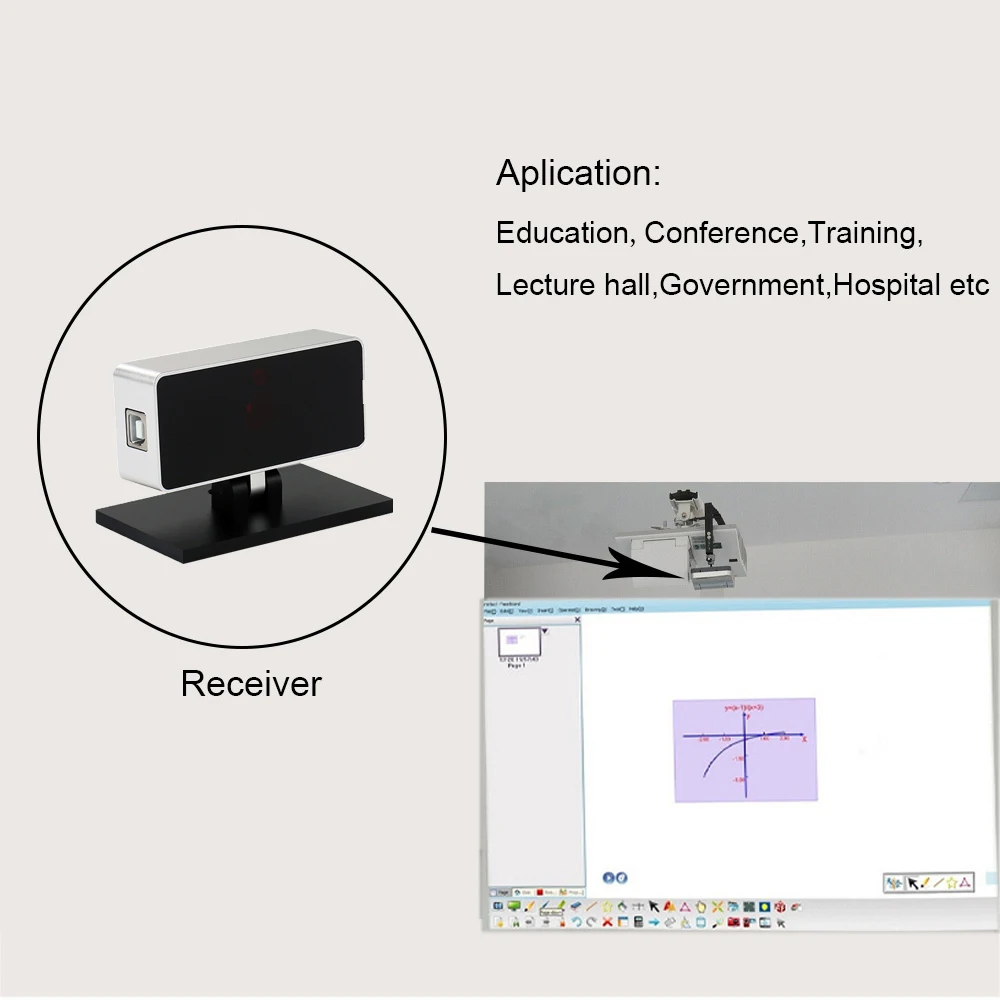

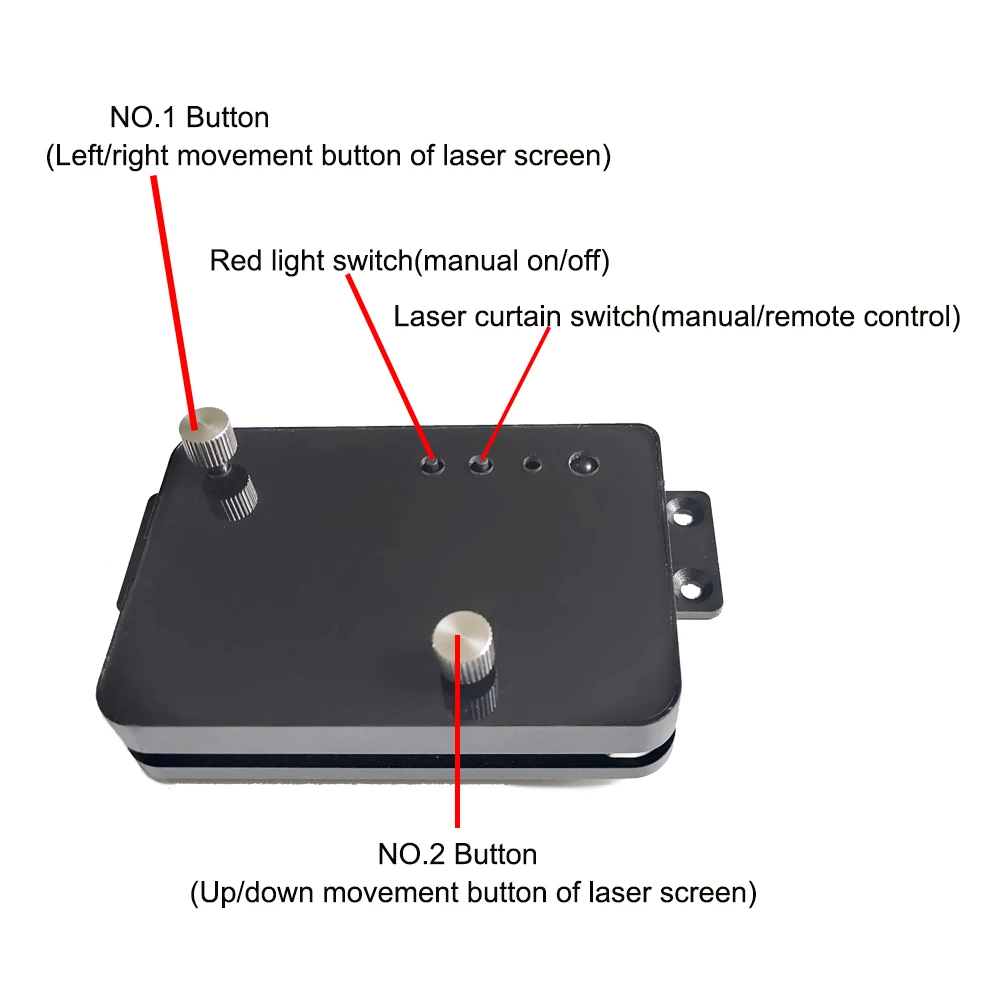

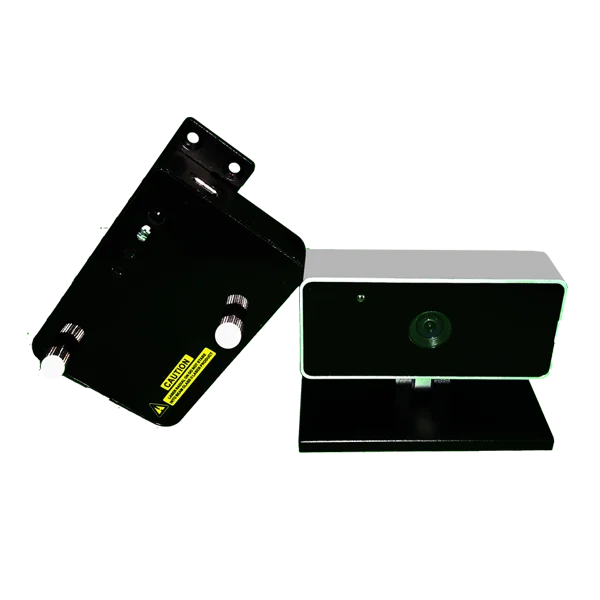

Just install the laser emitter in the middle area above the whiteboard (or flat surface) and put the signal receiver on the projector.
Just install the laser emitter in the middle area above the whiteboard (or flat surface) and put the signal receiver on the projector.

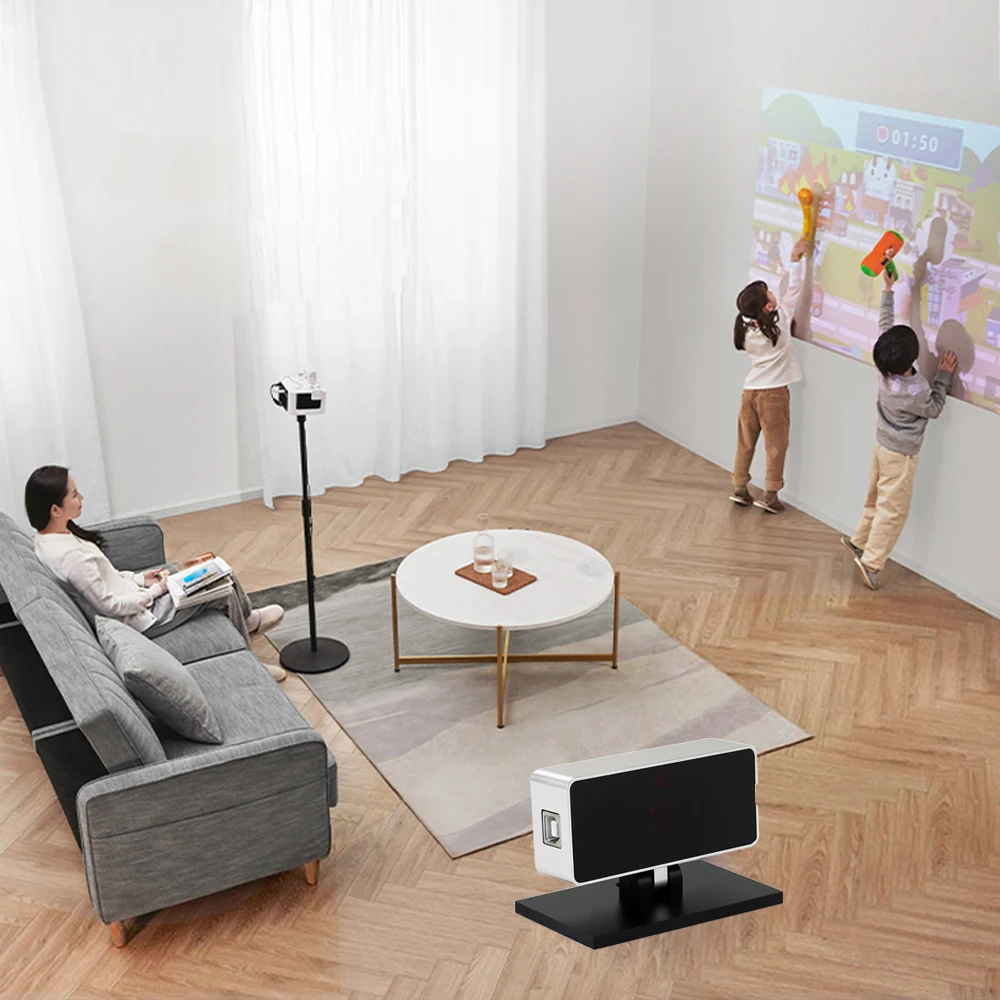

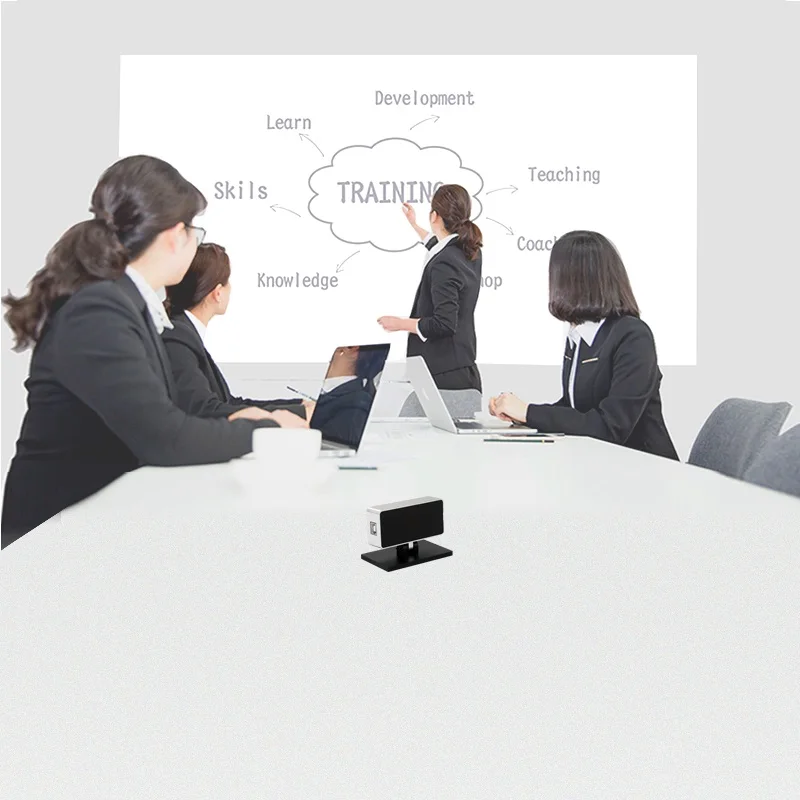

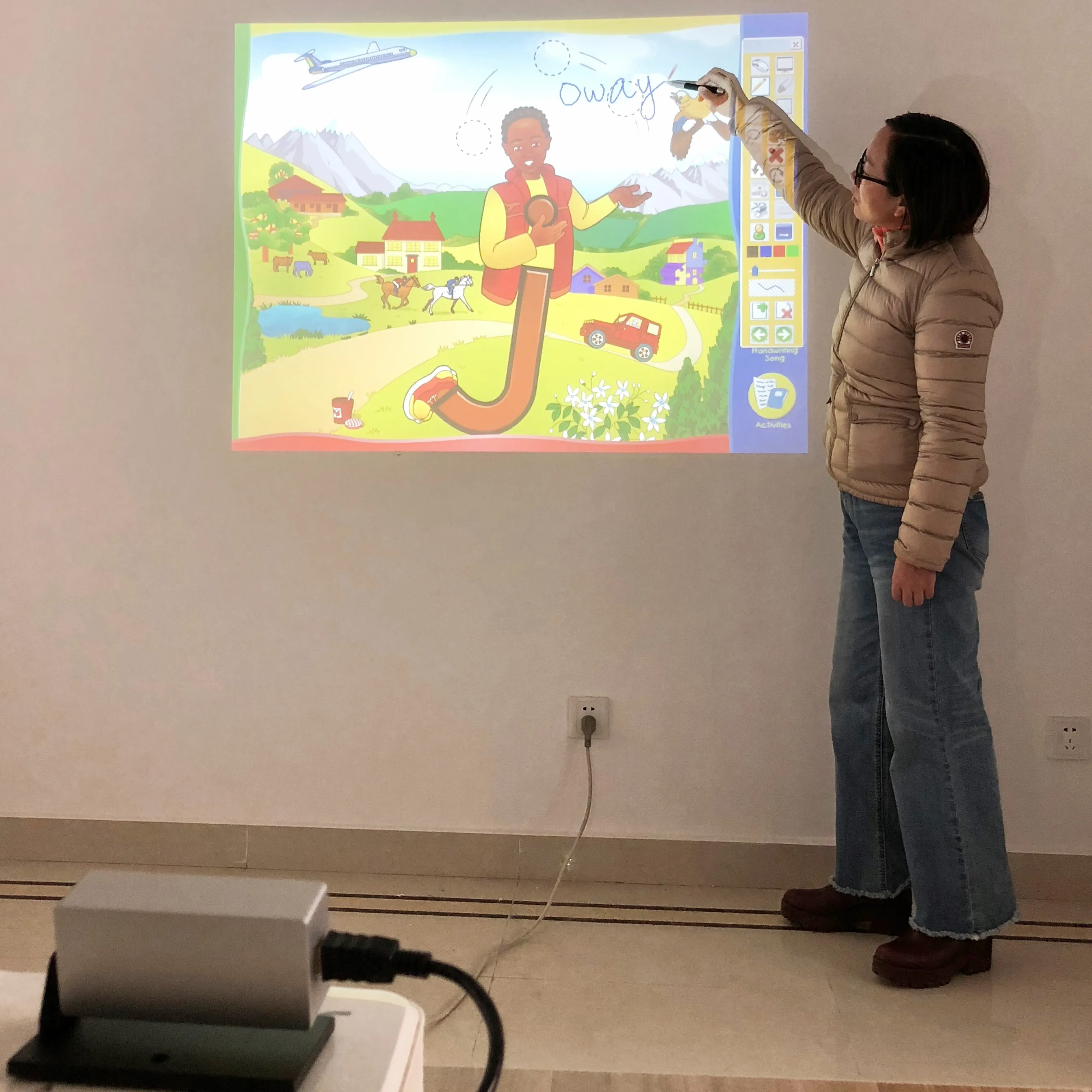

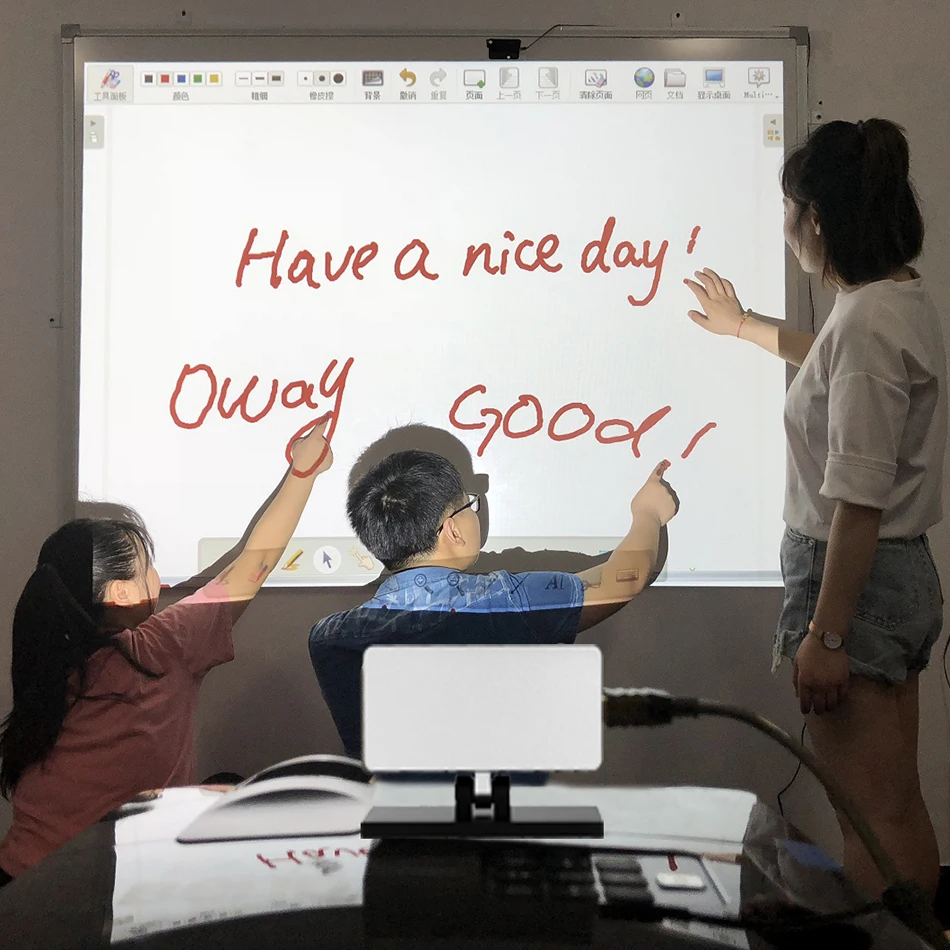

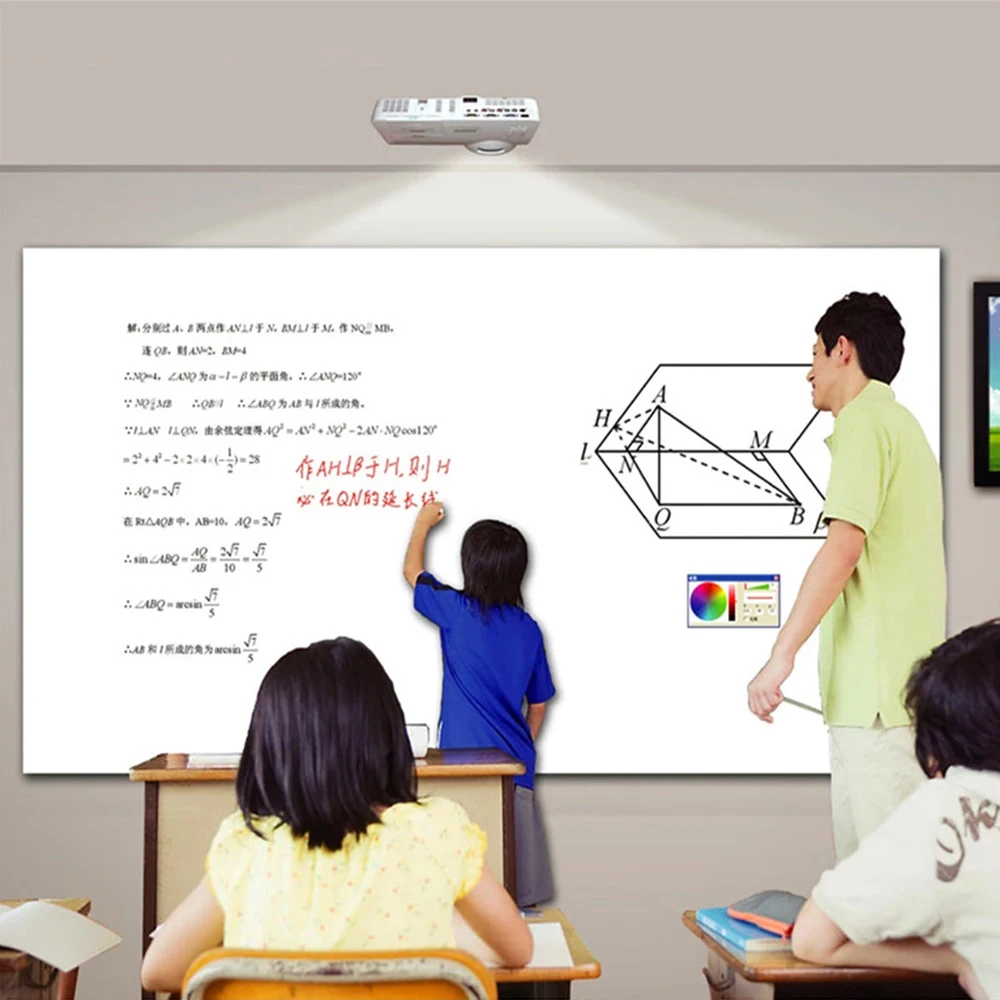

Application Scenario

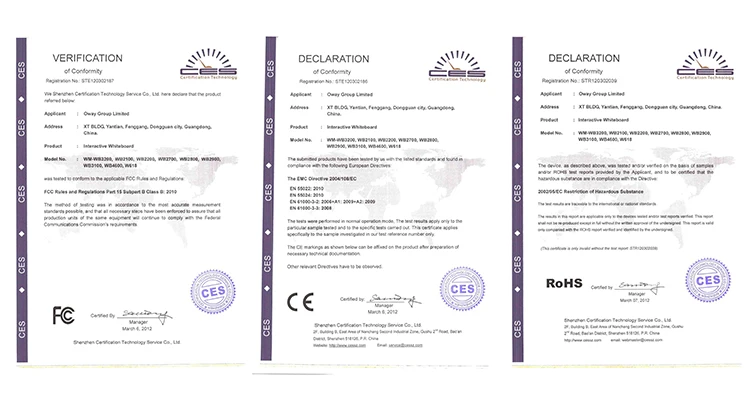

Certifications
Exhibition
Company Profile

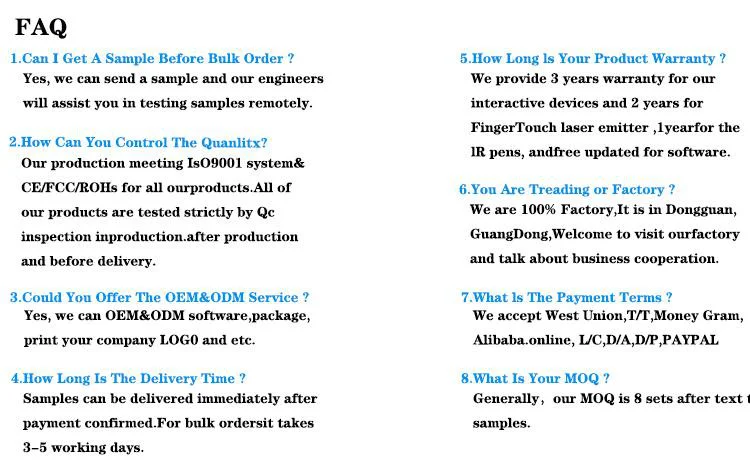

FAQ
