Product Overview
Description
Products Description

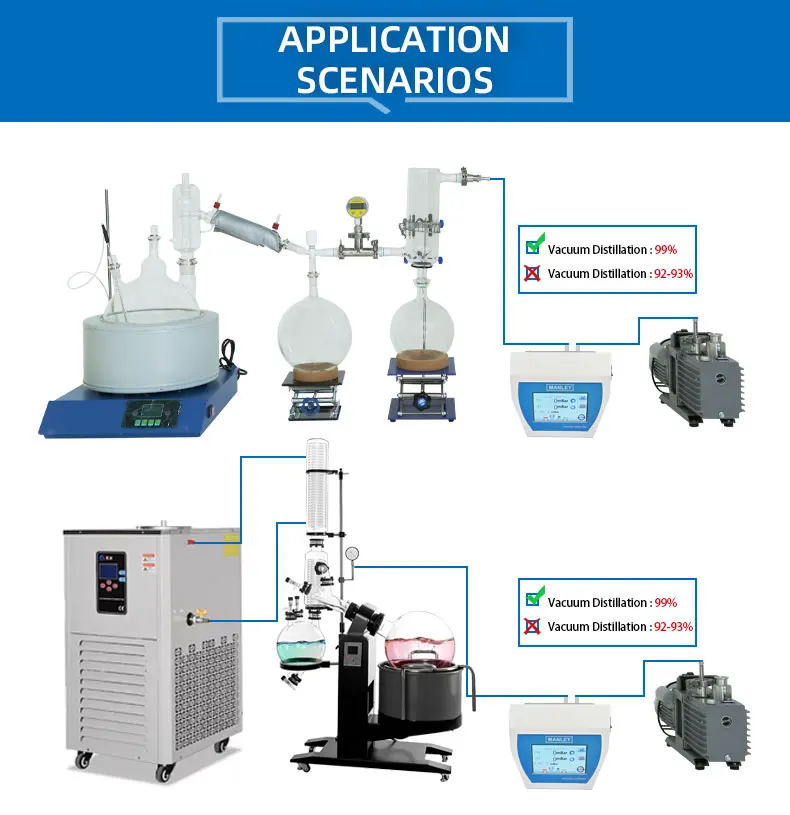

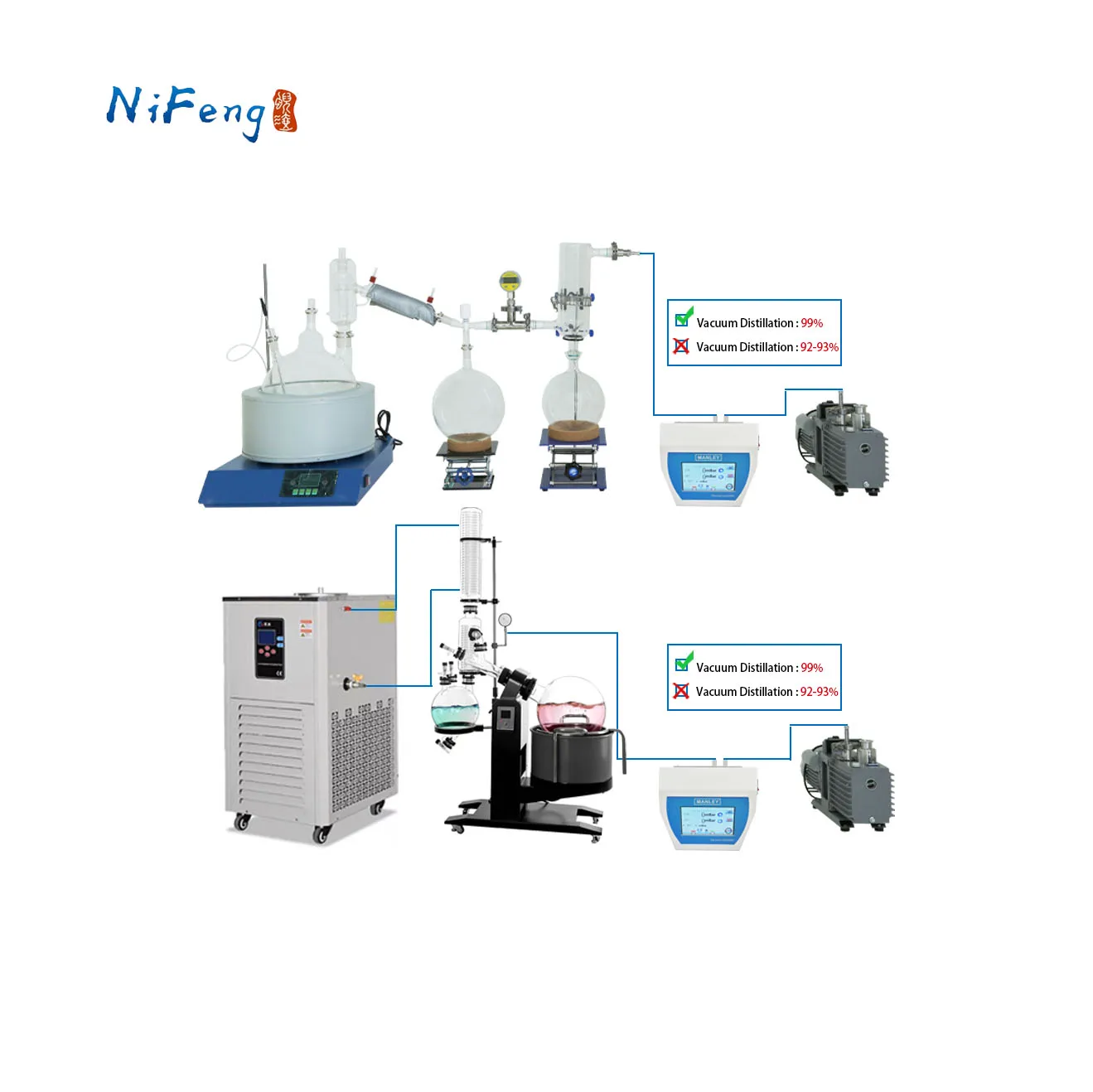

When the vacuum degree is not appropriate, the reagent will burst and burst boiling, through the use of automatic vacuum control and rotary evaporator series, can make the rotary evaporator inside the ideal vacuum degree, especially for the concentration of volatile reagents, can get the most ideal recovery rate.
Vacuum controller | Vacuum controller (anti-corrosion) | ||||
Model | VC-4000 | VC-5000 | |||
Performance | Pressure range | 0~760mmHg、0~1000mbar | 0~760mmHg、 0~1000mbar | ||
Standard control | 1~760mmHg 1~1000mbar(Custom control) | ||||
Accuracy of measurement | 5mbar=500pa | ||||
Control precision | 1~10mbar(adjustable) | ||||
Function | Display item | LCD touch screen Display pressure measured value Pressure set point | |||
Release the vacuum | One key to release the vacuum | ||||

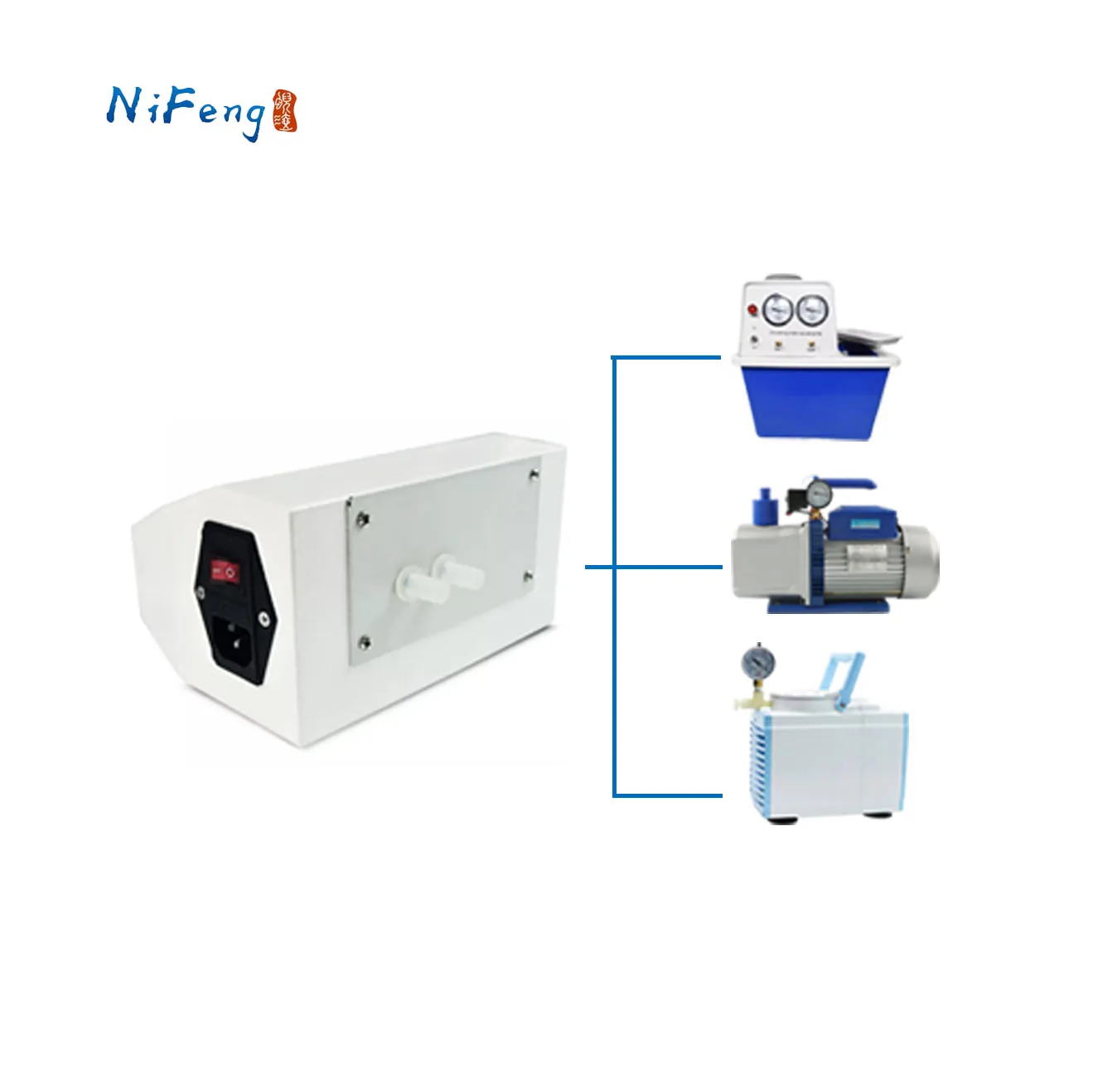

Other features | Can control the vacuum pump open and close, can carry out 5-section gradient program control, Step - by - step control of vacuum during vacuum distillation by synthetic experimental chromatography. (Scheduling operation of time and vacuum) | ||||
Constituent parts | Pressure transducer | Compression resistance and corrosion resistant semiconductor pressure probe | |||
Electromagnetic valve | Domestic | Domestic/imported | |||
Piping material | Resistance to acid and alkali | Resistance to acid and alkali | |||
Interface caliber | Φ8mm | Φ8mm | |||
Ambient temperature | 5~35℃ | ||||

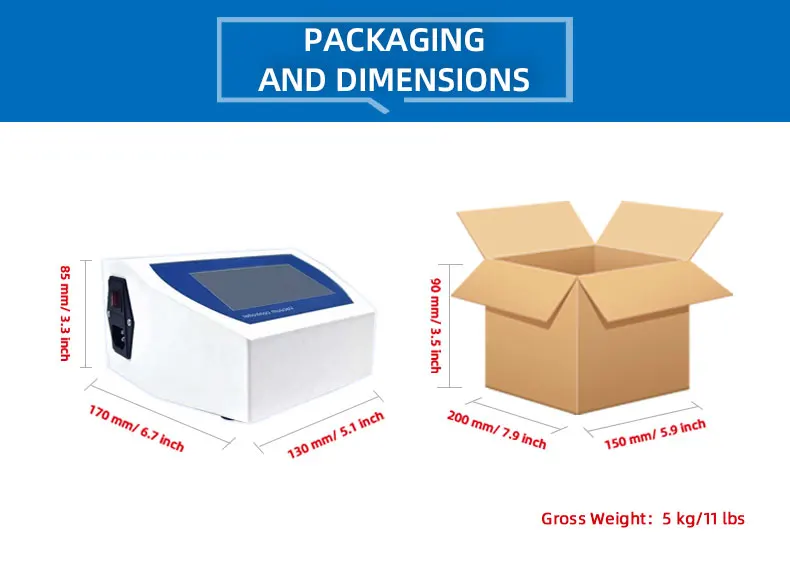

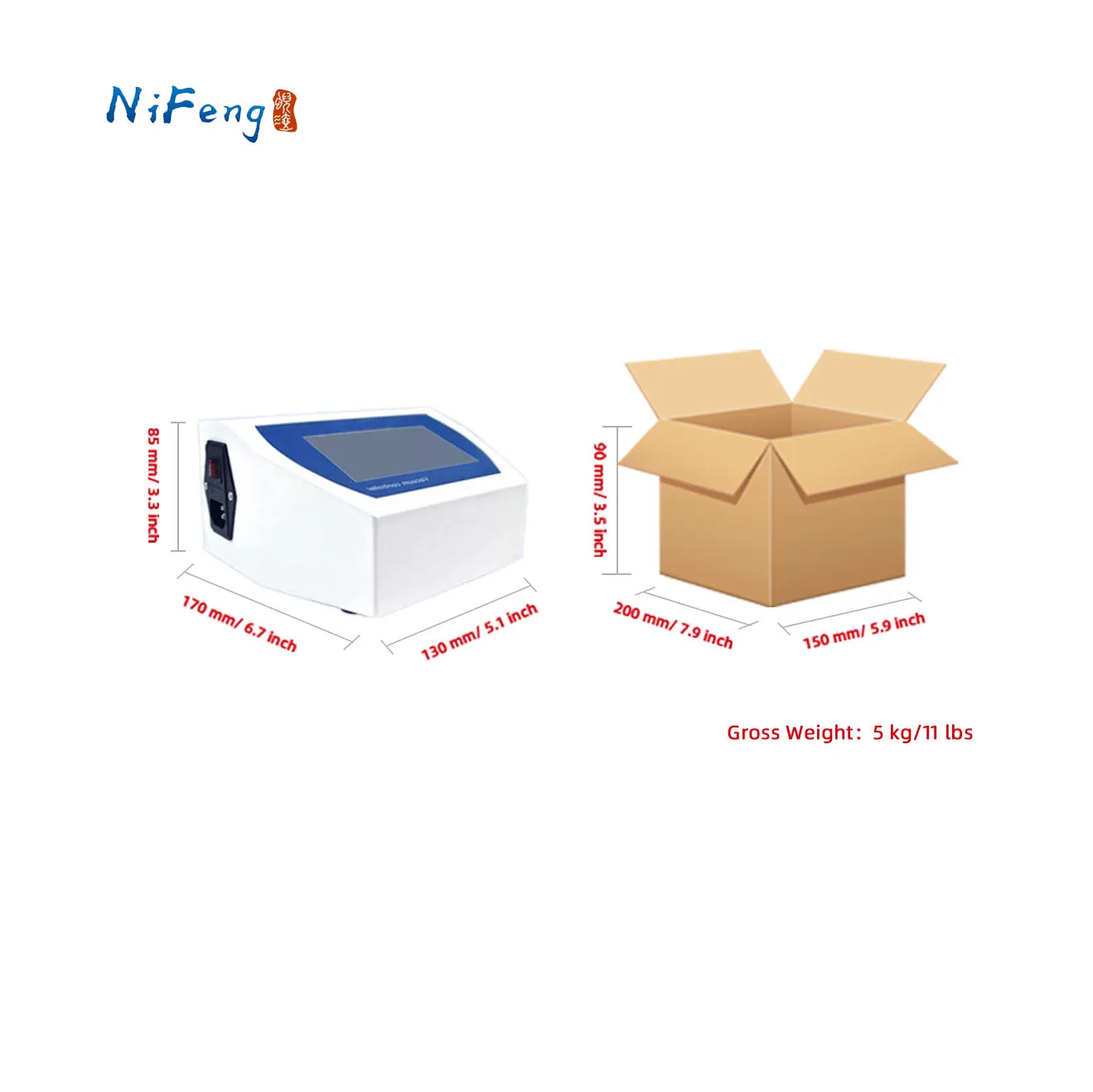

Outside dimensions | 200*150*90mm 7.9*5.9*3.5inch | 200*170*100mm 7.9*6.7*3.9inch | |||
Power | 220V/110V | ||||
1. The key parts are completely imported, with high control precision, corrosion resistance, valve life reaches tens of millions of times.

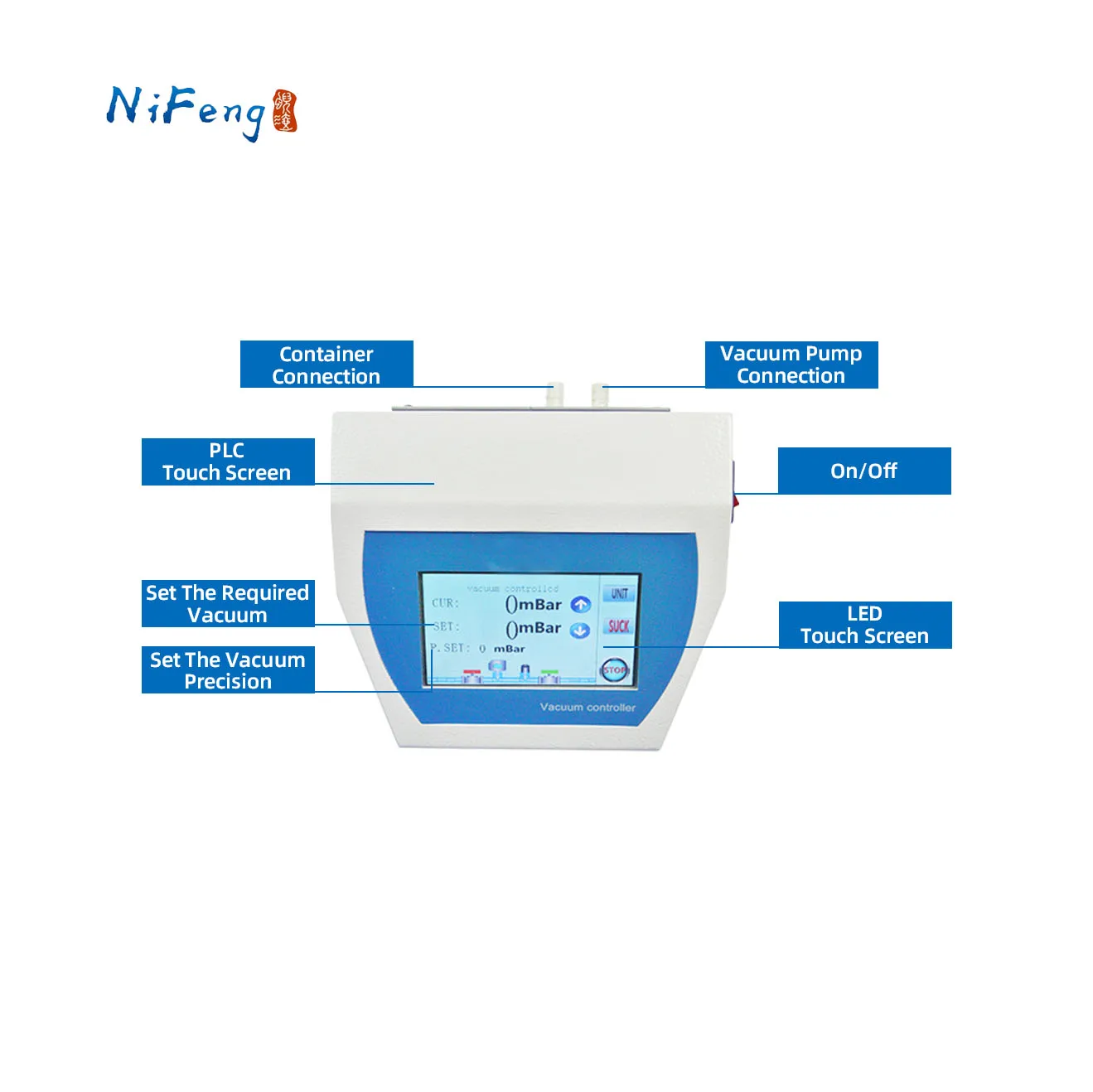

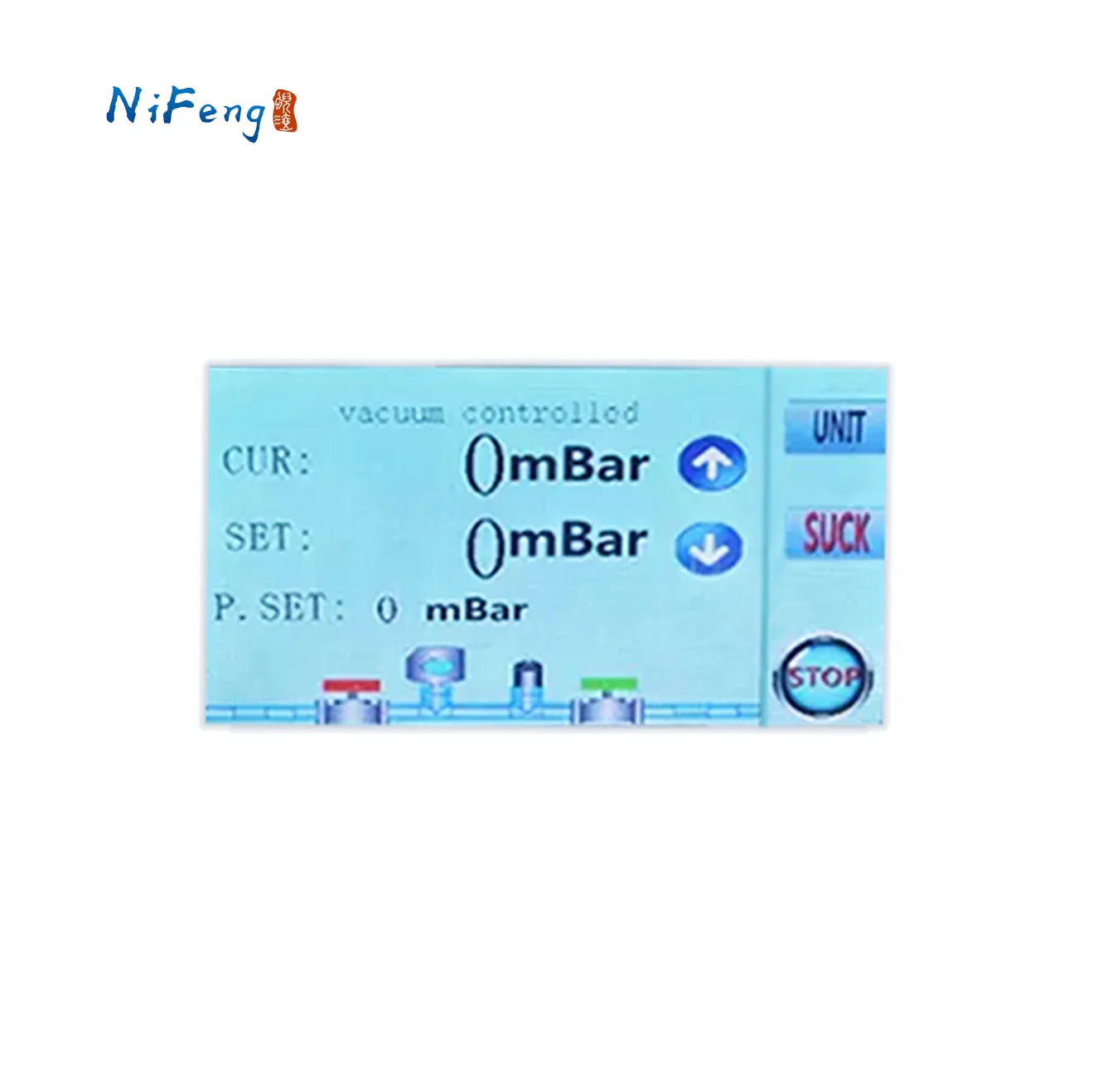

2. Large screen touch color LCD screen can display the detection and setting of vacuum degree, and can directly adjust the vacuum degree on the LCD screen.
3. The vacuum controller can effectively and automatically control the vacuum degree inside the container, and it is the only one at home and abroad that can control the vacuum degree in real time and adjust the vacuum degree arbitrarily. Accuracy up to 1mbar (100PA), 1~10mbar freely adjustable.
2. Large screen touch color LCD screen can display the detection and setting of vacuum degree, and can directly adjust the vacuum degree on the LCD screen.
3. The vacuum controller can effectively and automatically control the vacuum degree inside the container, and it is the only one at home and abroad that can control the vacuum degree in real time and adjust the vacuum degree arbitrarily. Accuracy up to 1mbar (100PA), 1~10mbar freely adjustable.
