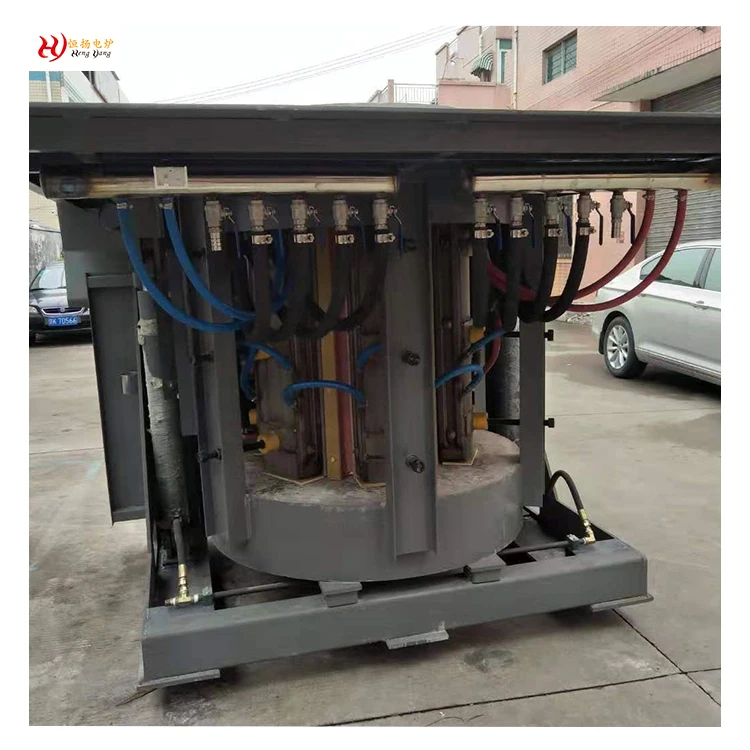

Standard Customization Hot Selling 3 Tons Large Capacity Large High Temperature Metal Processing Melting Furnace
- Category: >>>
- Supplier: Foshan Nanhai Hengyang Electric Furnace Co. Ltd.
Share on (1600565419036):
Product Overview
Description
What we can provide?
Provide melting furnace of superior performance and outstanding durability for your melting workshop. Various models are available to meet special requirements about investment casters, specialty foundries and the precious metals industry. The heavy steel shell furnaces are designed to provide furnaces with maximum rigidity and strength for capacities up to 30MT.
Furnace Feacture
1. Hydraulic tilting. When pouring metal liquid, steel shell furnace can stay at any angle,and change titling speed.
2. Equipped with magnetic yoke. Its indctor is covered by yoke in more than 65% area, so it have less magnetic leakage, and it can save about 5% energy than aluminum shell furnace.
3. Can meet higher standards of environmental protection requirements. Steel shell furnace can be equipped with a variety of fume collector and fume hoods to meet goverment's pollution reuirements such as MACT standards.
4. More function! Heavy steel shell furnace can be equipped with anti-fall protection device, furnace cover, lining push-out
system, a load cells, furnace-leak alarm, ect.
2. Equipped with magnetic yoke. Its indctor is covered by yoke in more than 65% area, so it have less magnetic leakage, and it can save about 5% energy than aluminum shell furnace.
3. Can meet higher standards of environmental protection requirements. Steel shell furnace can be equipped with a variety of fume collector and fume hoods to meet goverment's pollution reuirements such as MACT standards.
4. More function! Heavy steel shell furnace can be equipped with anti-fall protection device, furnace cover, lining push-out
system, a load cells, furnace-leak alarm, ect.
Whole model list
Model (Furnace capacity) | Input power 50Hz | ||||||
(Furnace capacity) | Rated Power ( KW ) | Rated Voltage ( V ) | Rated Current ( A ) | Transformer capacity ( KVA ) | |||
GW-0.05T | 50 | 380 | 80 | 65 | |||
GW-0.1T | 100 | 380 | 160 | 120 | |||
GW-0.15T | 160 | 380 | 256 | 250 | |||
GW-0.2T | 160 | 380 | 256 | 250 | |||
GW-0.25T | 200 | 380 | 320 | 250 | |||
GW-0.35T | 250 | 380 | 400 | 315 | |||
GW-0.5T | 300 | 380 | 480 | 400 | |||
GW-0.75T | 400 | 380 | 640 | 630 | |||
GW-1T | 750 | 380 | 1200 | 1000 | |||
GW-1.5T | 1000 | 380 | 1600 | 1250 | |||
GW-2T | 1400 | 750 | 1078 | 1600 | |||
GW-3T | 2000 | 750 | 770*2 | 2500 | |||
GW-5T | 3000 | 950 | 912*2 | 4000 | |||
GW-10T | 5000 | 1000 | 1443*2 | 6300 | |||
GW-15T | 8000 | 1000 | 1154*4 | 10000 | |||
GW-20T | 10000 | 1000 | 1443*4 | 12600 | |||
GW-30T | 15000 | 1000 | 2165*4 | 16000 | |||
Remark
1. Furnace capacity is designed based on the density of 7.8g/cm³.
2. Aluminum shell furnace capacity range: 0.05T-5T; steel shell furnace capacity range: 0.5T-30T.
2. Aluminum shell furnace capacity range: 0.05T-5T; steel shell furnace capacity range: 0.5T-30T.
3. The above data is about standard furnaces. Furnaces can be customized in different power and capacity according to customer's need.

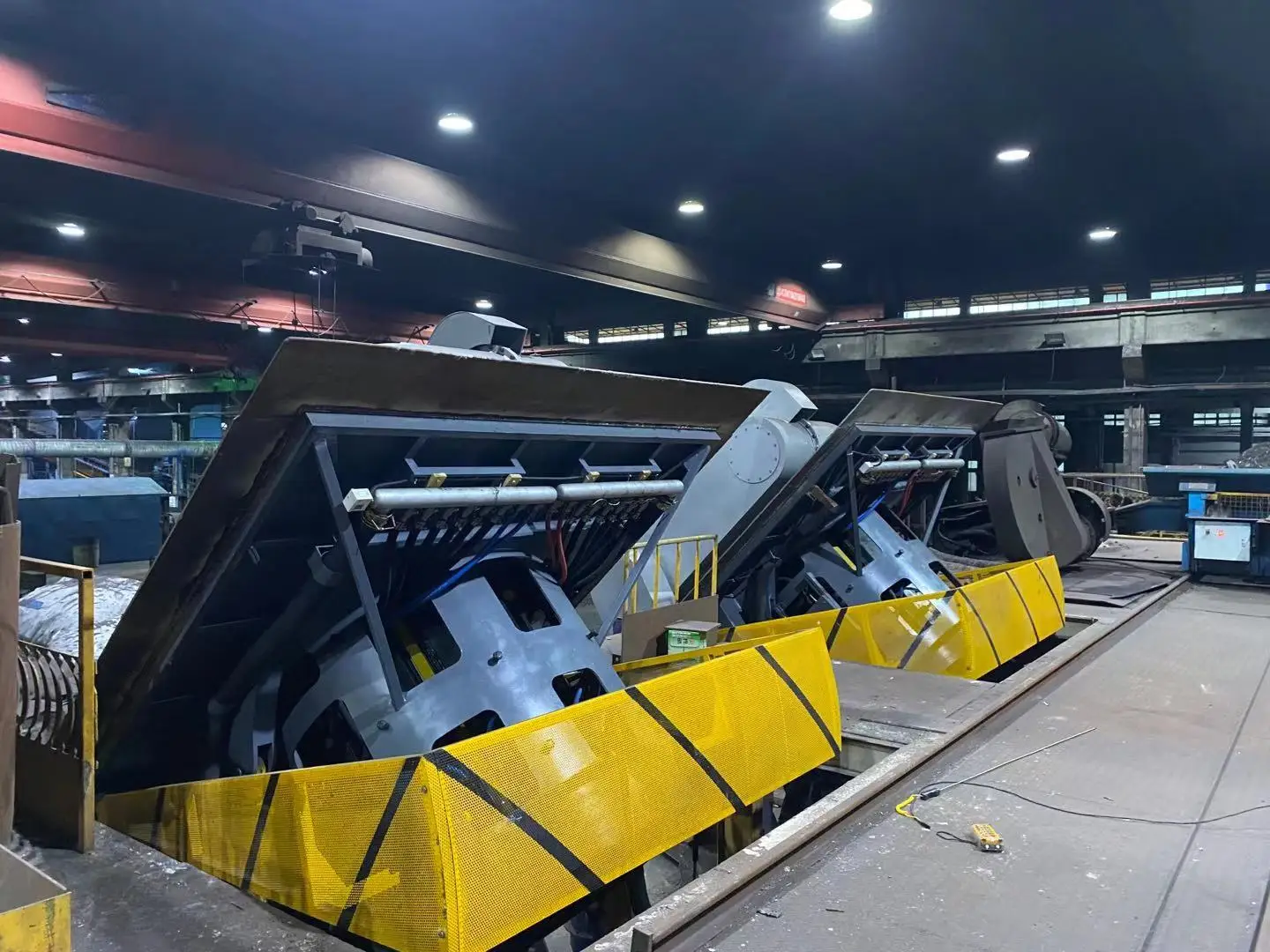

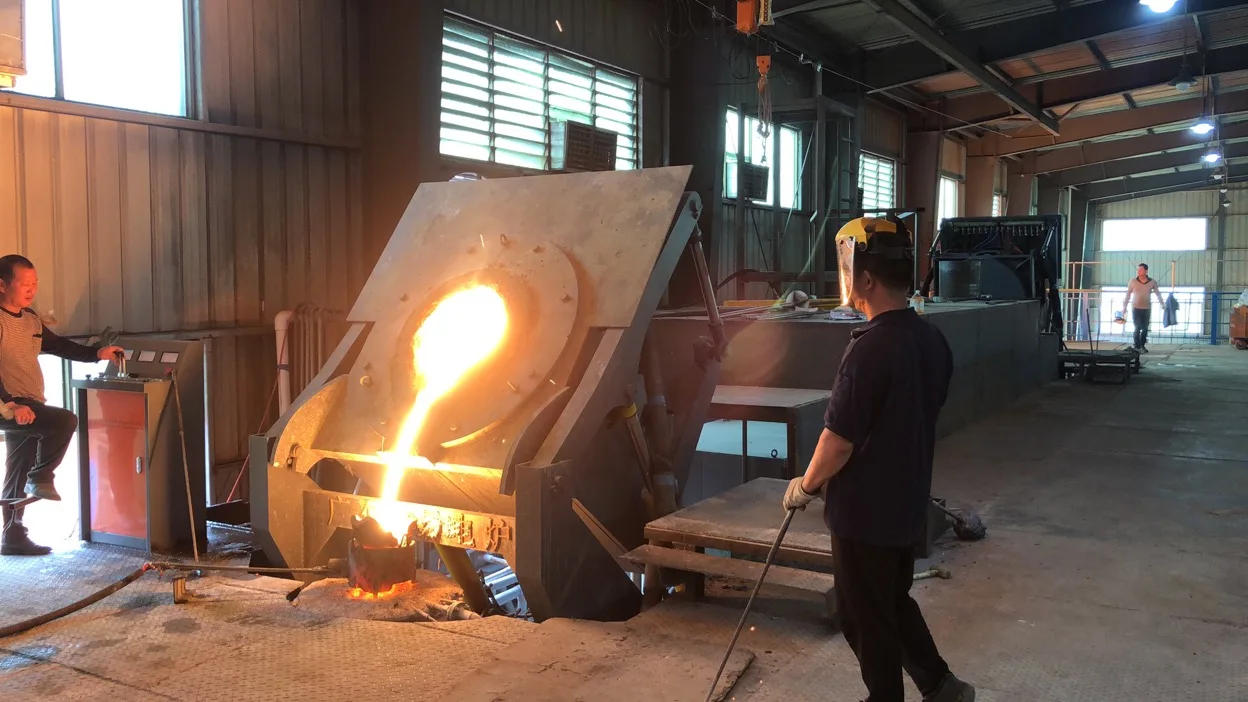

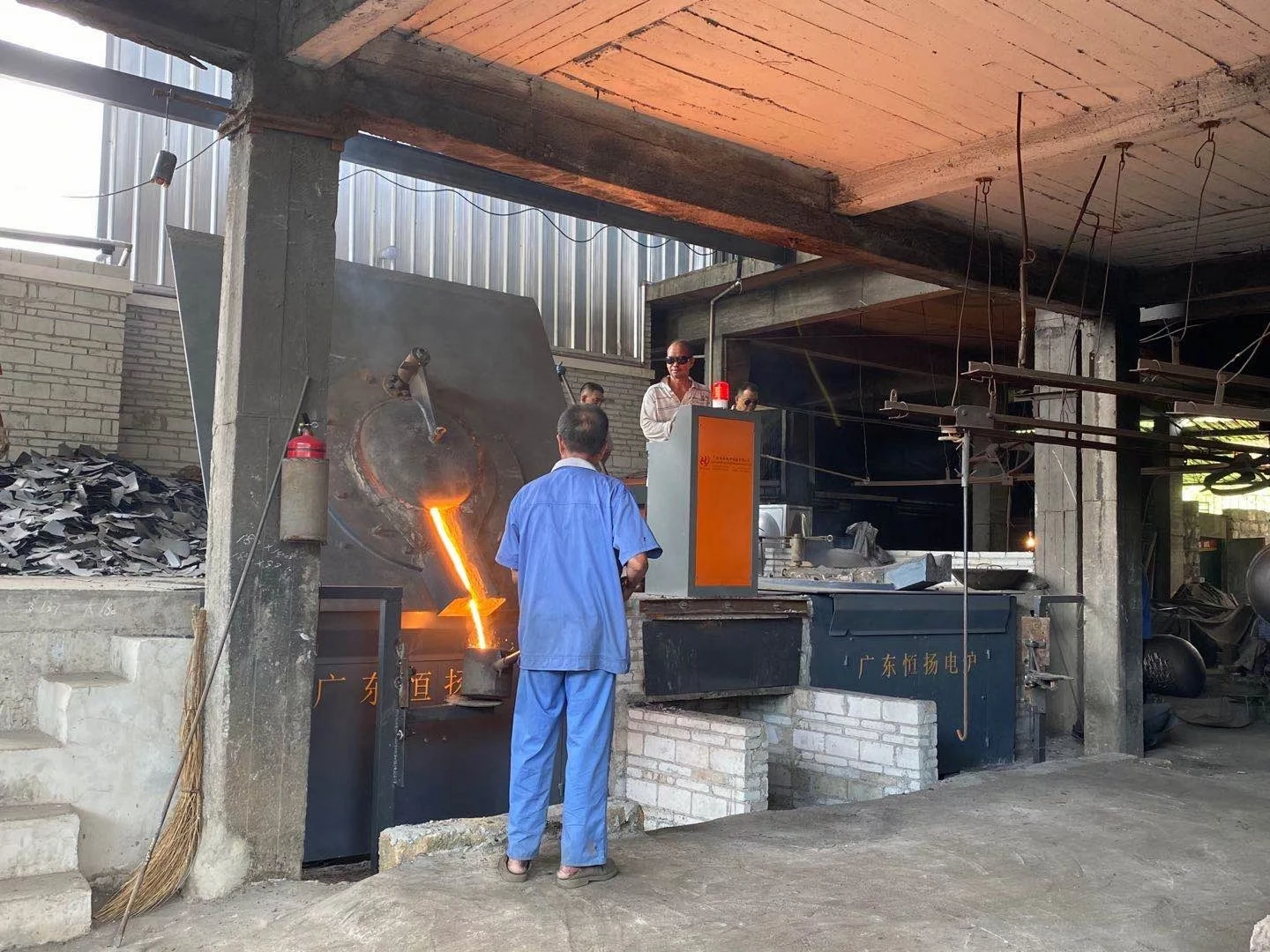

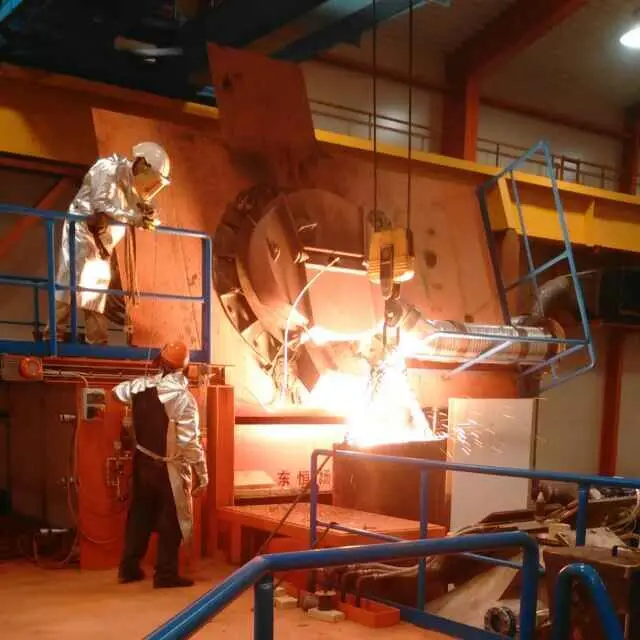

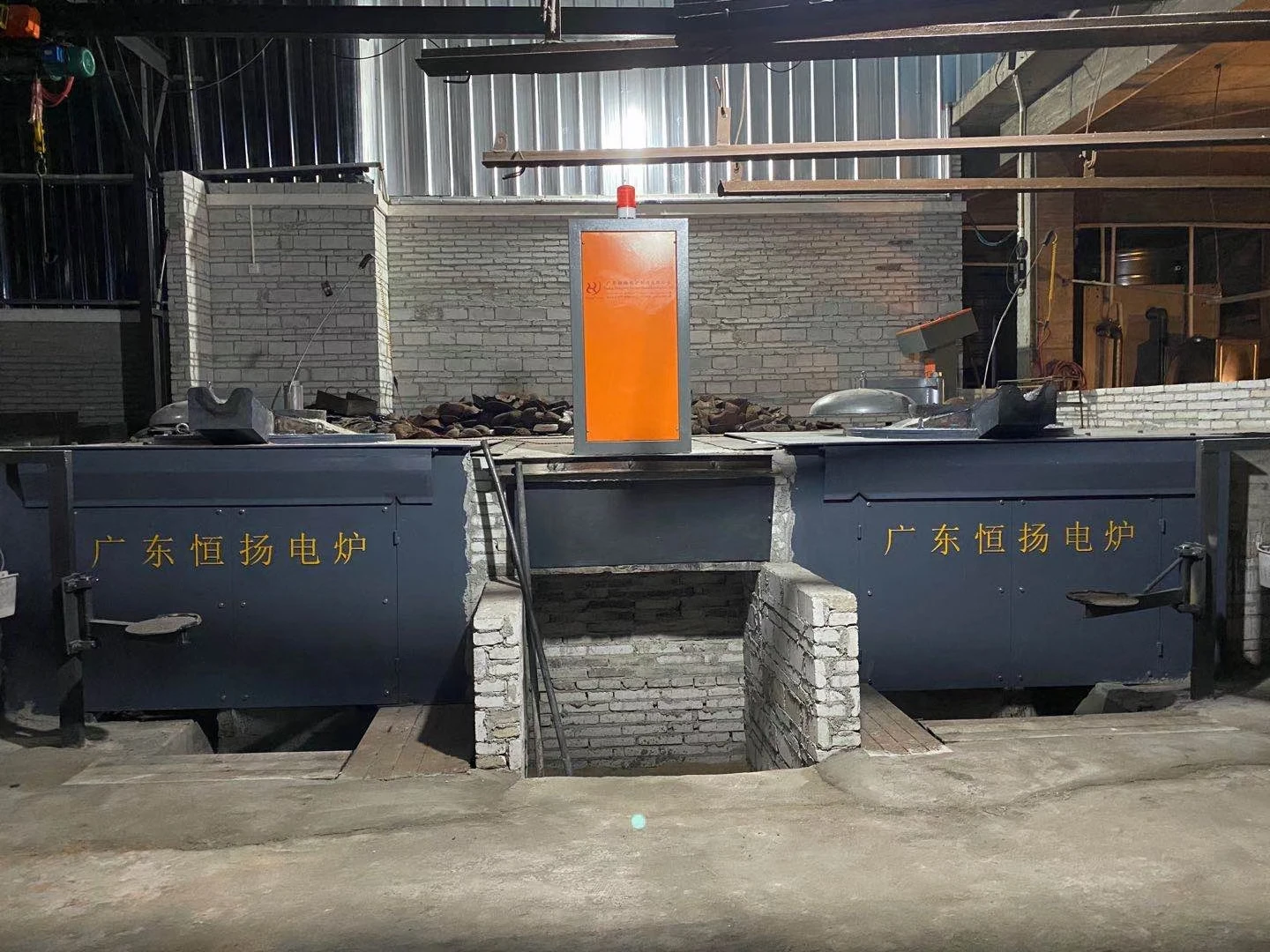

OPERATIONAL CASES

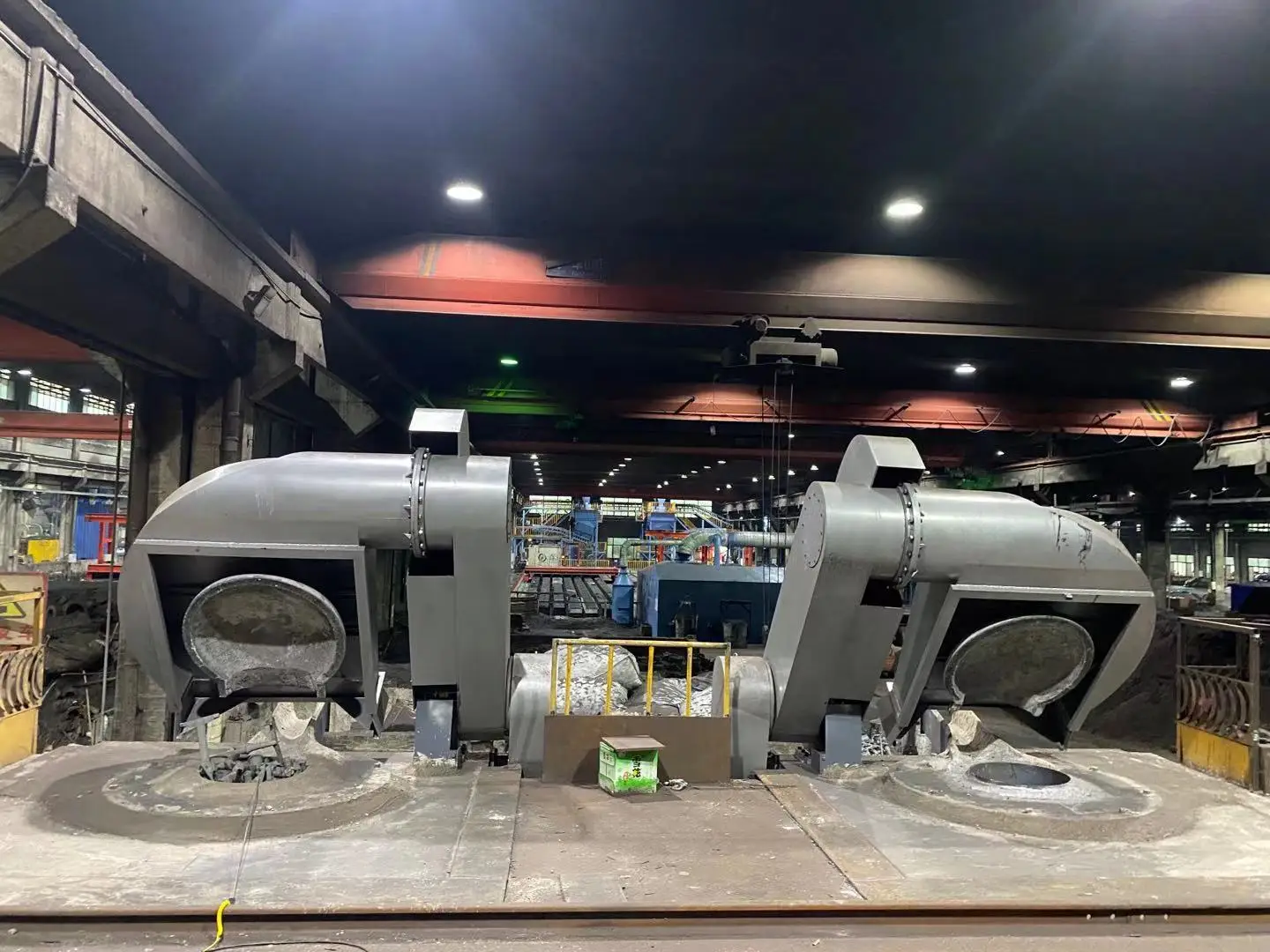

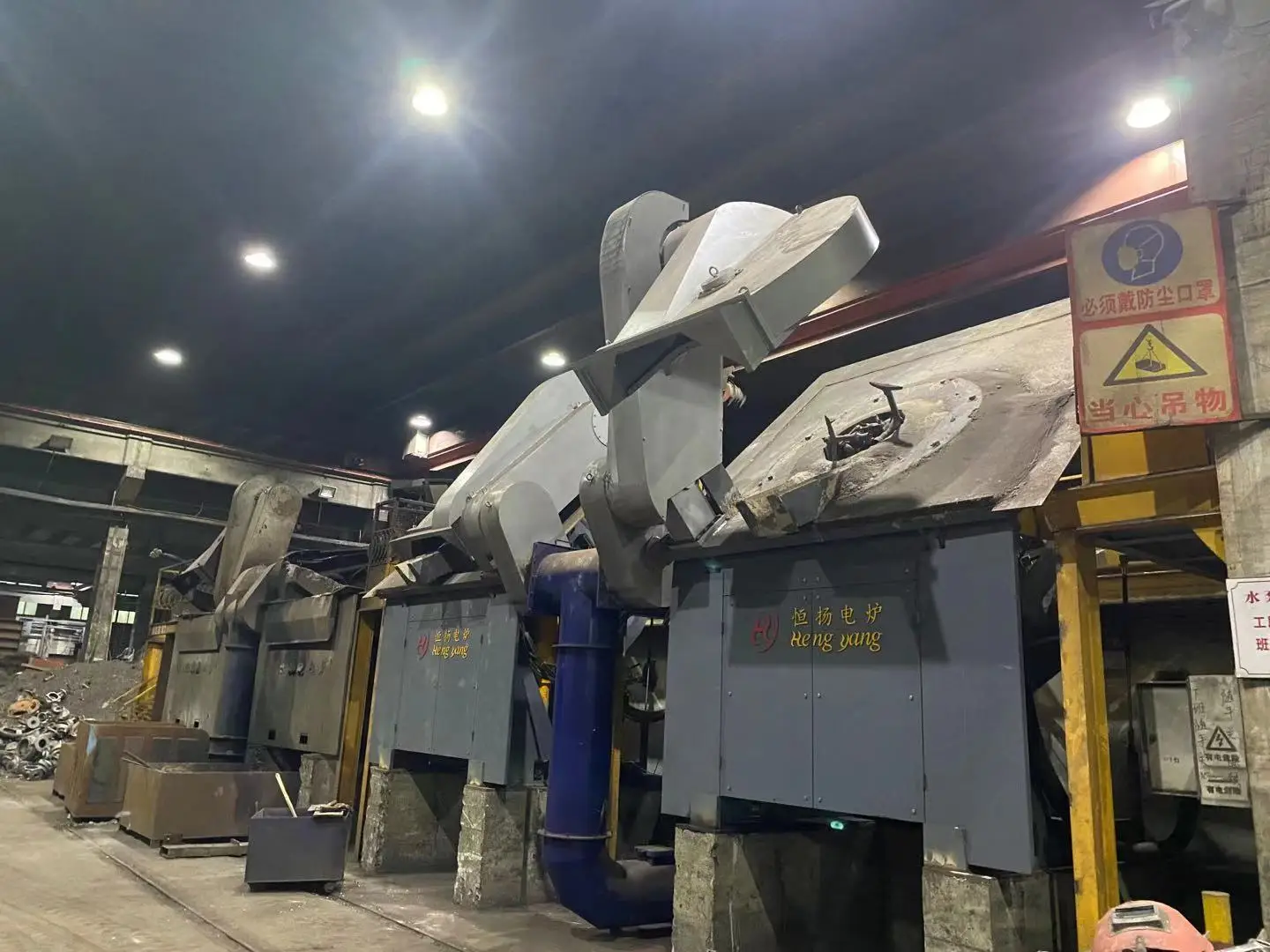

furnace with dust hood
Furnace with dust ring
RELATED PRODUCTS
DETAILS DISPLAY

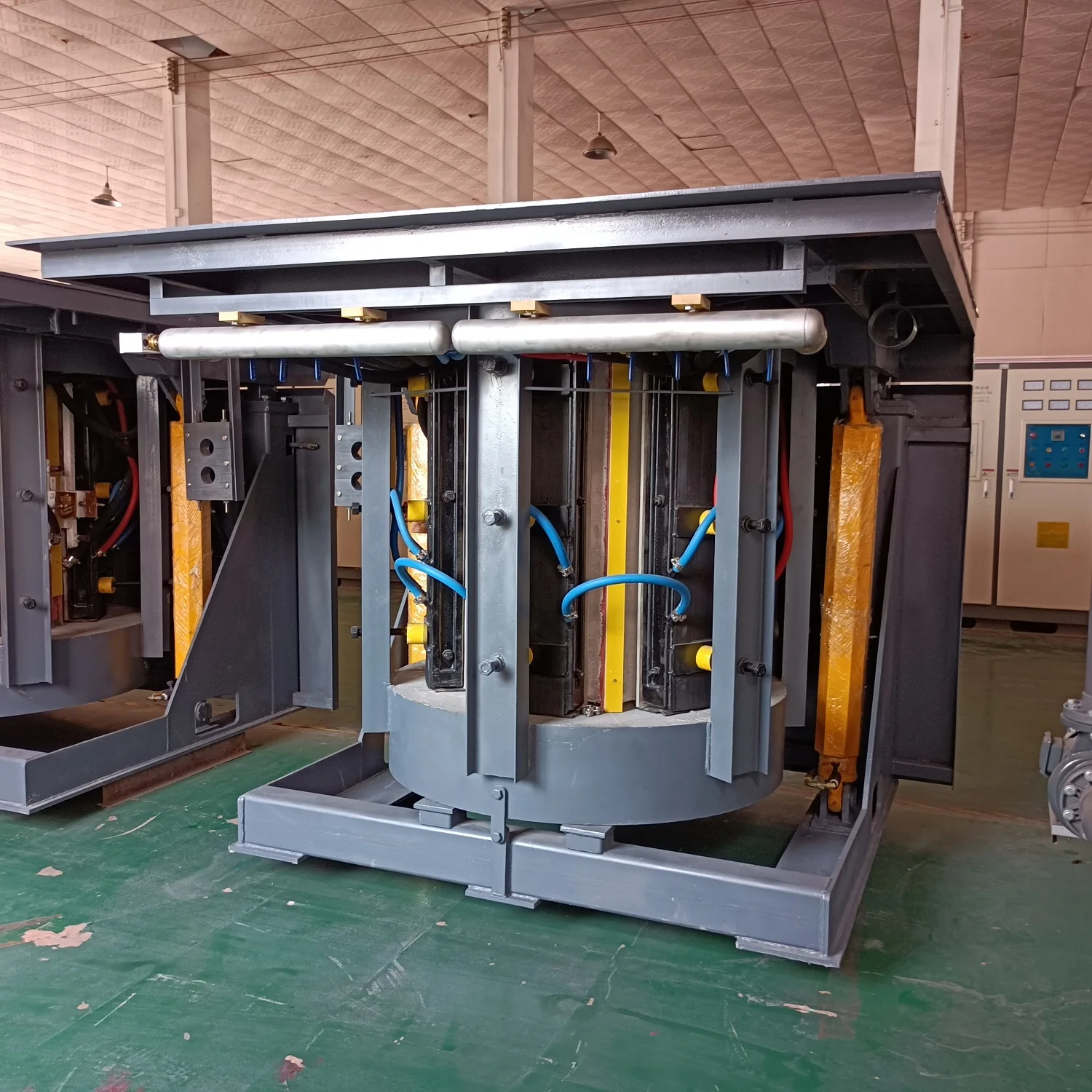

Furnace basicly includes: steel frame, induction coil, magnetic yoke
Configuration includes: anti-falling device, dust collector,furnace linning release device, weighing system, leakage-alarm device, slag reclining system, etc.

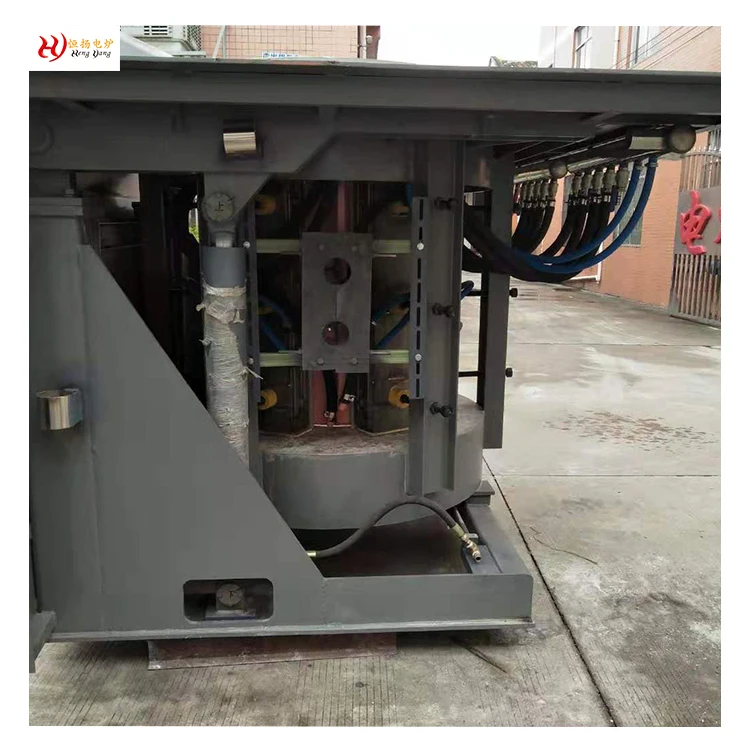

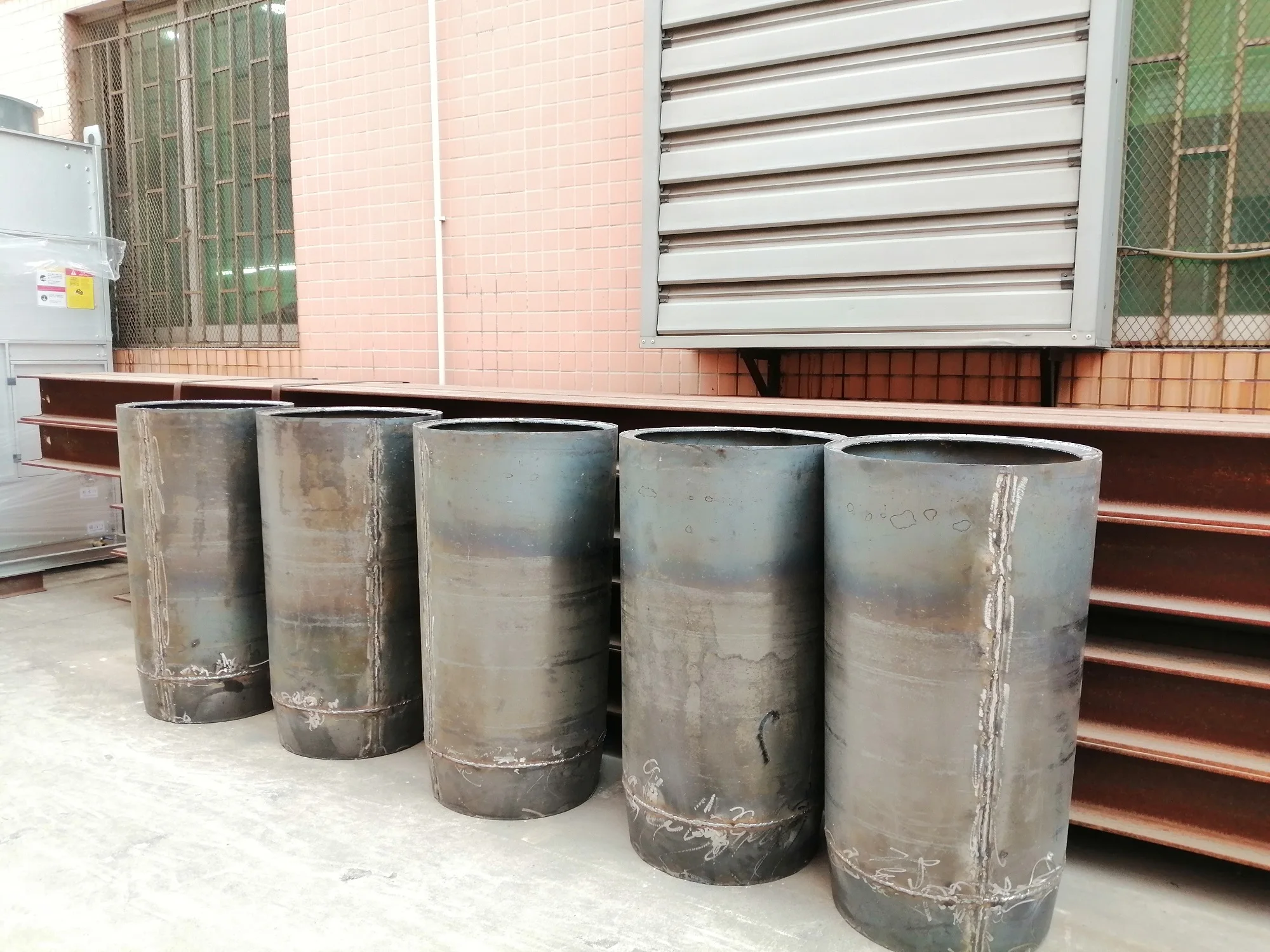

Steel frame
1. Stong enough to used for 15 years. Welded by two cylinder with thick seamless rectangular steel tube;
2. Its tilting maximum angle is over than 95 degrees,
3. with vacuum cover(heat preservation cover), the upper components can be disassembled to facilitate the repalcement of the coil.
3. with vacuum cover(heat preservation cover), the upper components can be disassembled to facilitate the repalcement of the coil.

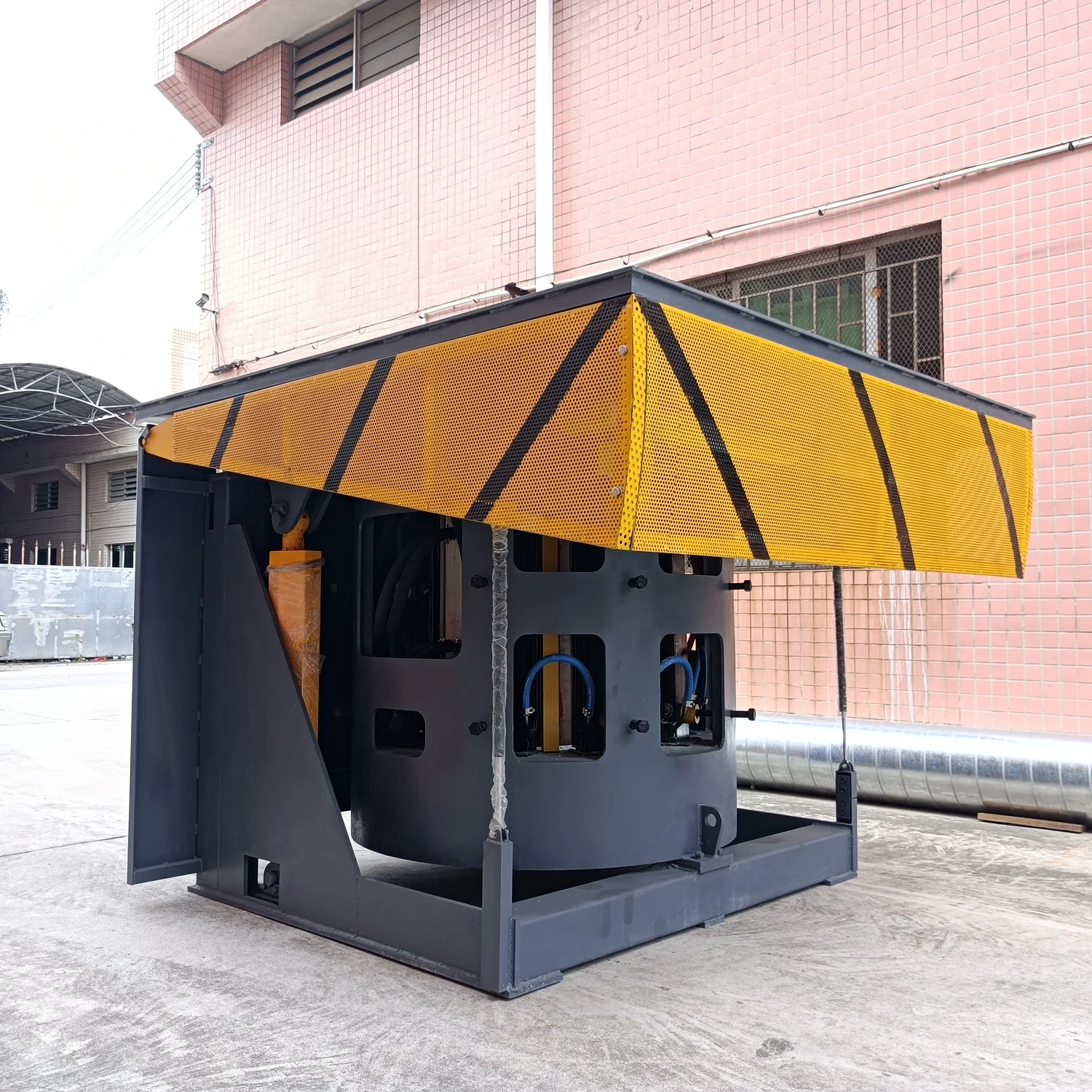

Furnace anti-fall protection device
Magnetic yoke
1. The induction coil is surrounded by a solid oriented yoke. This design eliminated heating from outside.
2. The yoke greatly support the induction coil to engsure long working life of the lining;
3. There are flow display, temperature display and temperaure pretection for the water circle of the yoke;
4. The yoke covers over more than 70% area, case least magnetic flux leakage, can save about 5% electricity.

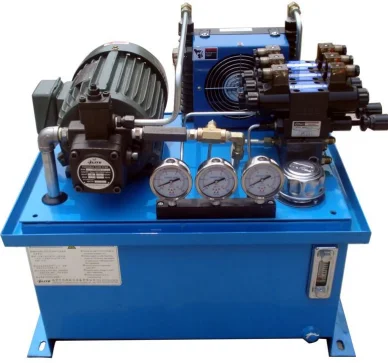

Hydraulic station
2.Furnace can be tilted in 95 degrees to pour out all the metal liquid;
3. Furnace can be controled to stay in any position to pour；
4. Easily to control the tilting speed of the furnace
