Product Overview

Description

1. Scope of application:

1)This silkscreen printing machine with conveyor belt are widely suitable for glass, stainless steel, plywood and kind of non-deforming materials



 2. Feature:

1).The silkscreen printing machine is a 3/4 automatic production line which feeds material to printer by human hand, then convey material automatically .

2).After the substrate printing , conveyor belt convey it to next working procedure (drying and paper collecting).
3).The silkscreen printing machine adopts micro computer integrated systerm, printing and plate moving up &down are driven by independent Current Source.
4).silkscreen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

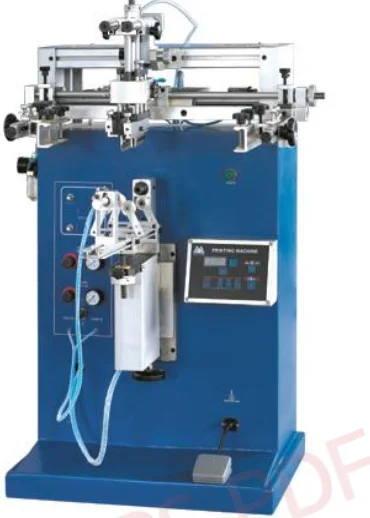

  3. silkscreen printing machine components pictures:
