Заземляющая машина с шестью роликами с автобиографией 1280 об/мин
- Category: Textile Finishing Machines >>>
- Supplier: Jiangsu Alid Textile Machinery Technology Co. Ltd.
Share on (1600565434934):
Product Overview
Description
Product Description
Product Application
The machine is suitable for brushing process of pure cotton, polyester cotton and blended fabric.

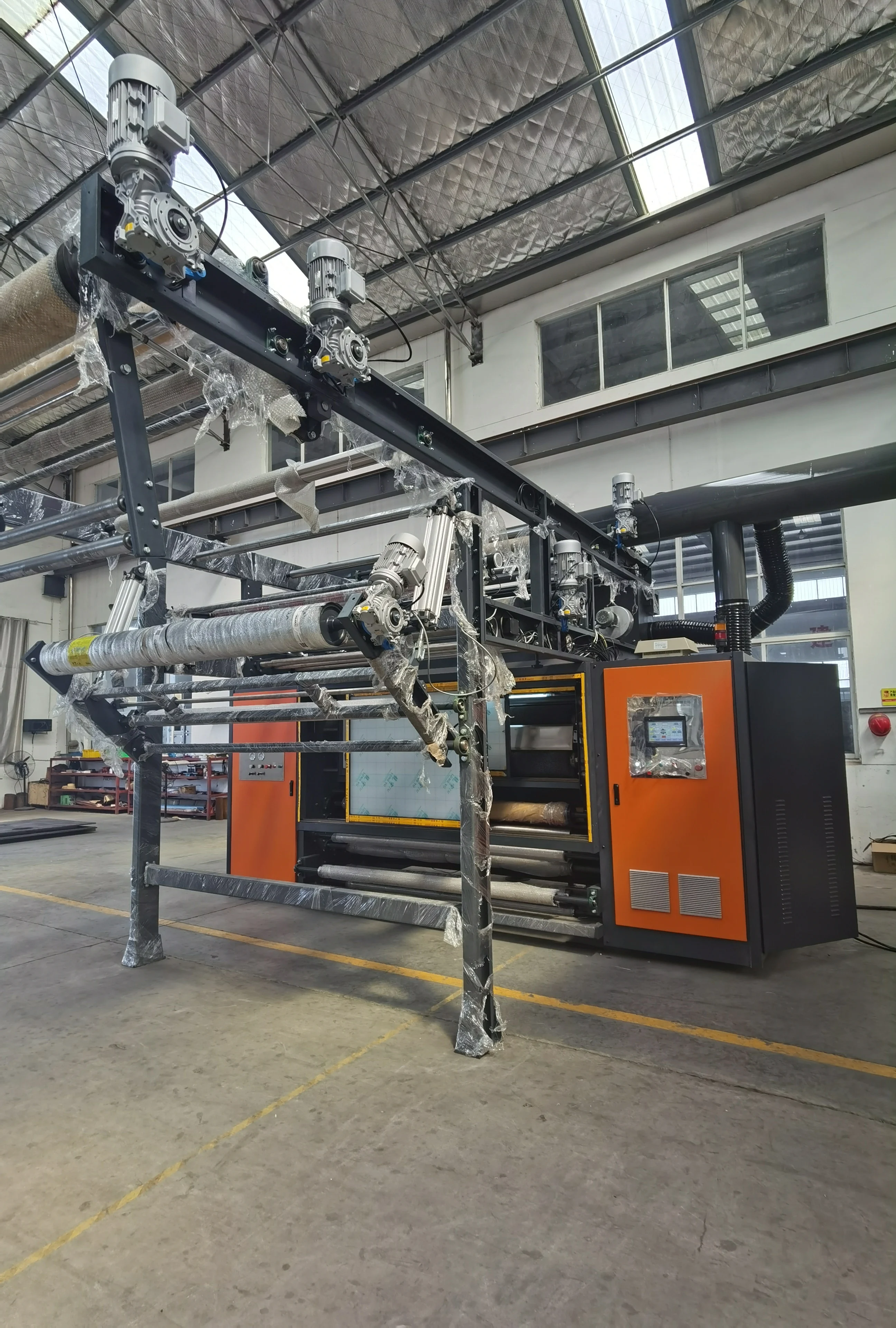

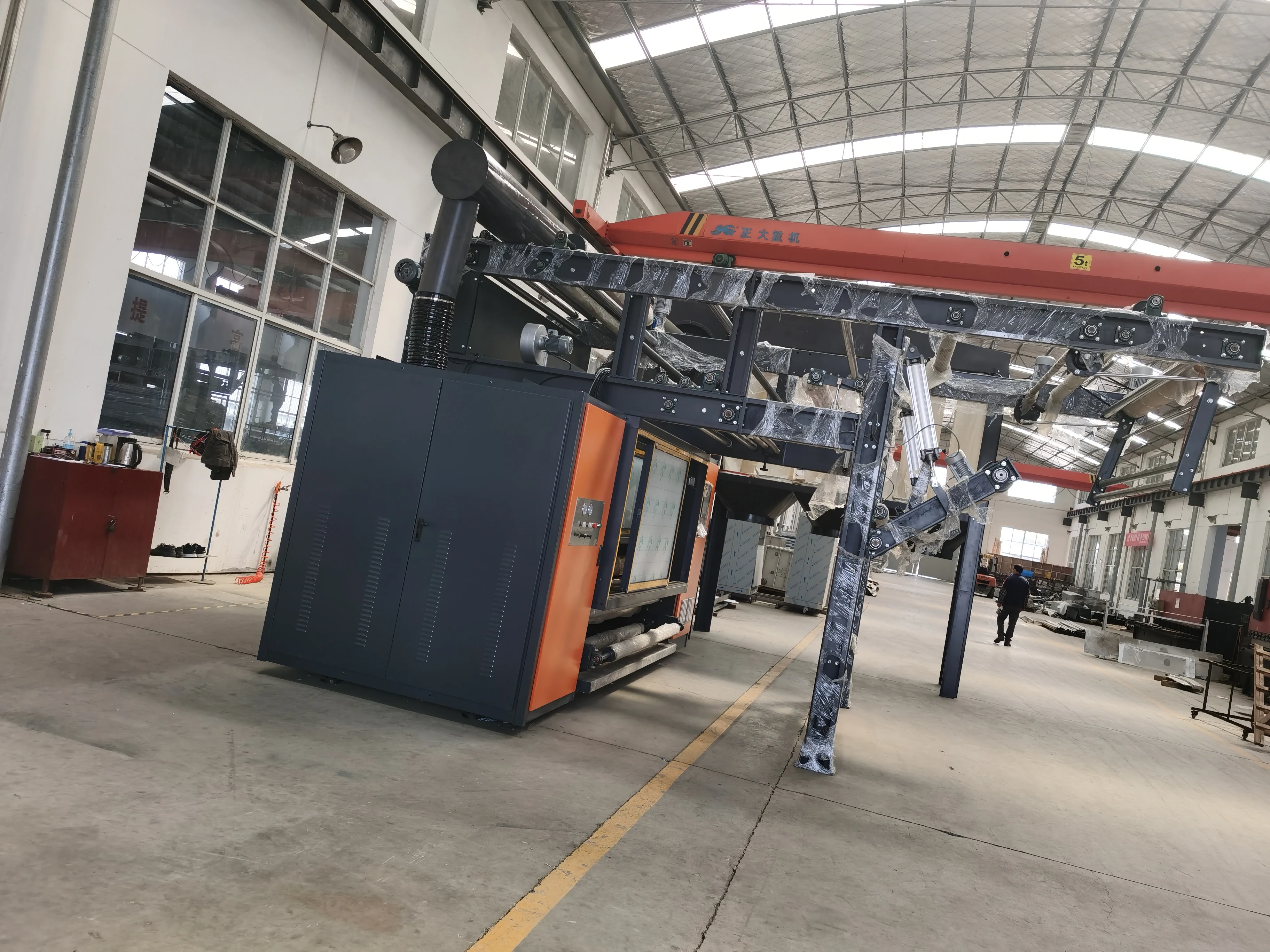

BRUSHING MACHINE WITH SIX ROLLER | ||||||
Technical Data | Roller width: 2200mm Working width: 2000mm Driving side(viewing in cloth run direction): left/right hand side(Customized) Speed range of the multi-motor drive: 8-60m/min Average production speed: 25-50m/min Voltage(phase-phase): 3*400V+/-10% Frequency: 50Hz+/-2% Control voltage: 24VDC/230VAC Total power of range :approx.90KW Panting color: Dark Grey 7545C Orange yellow 471C | |||||
Profile description.

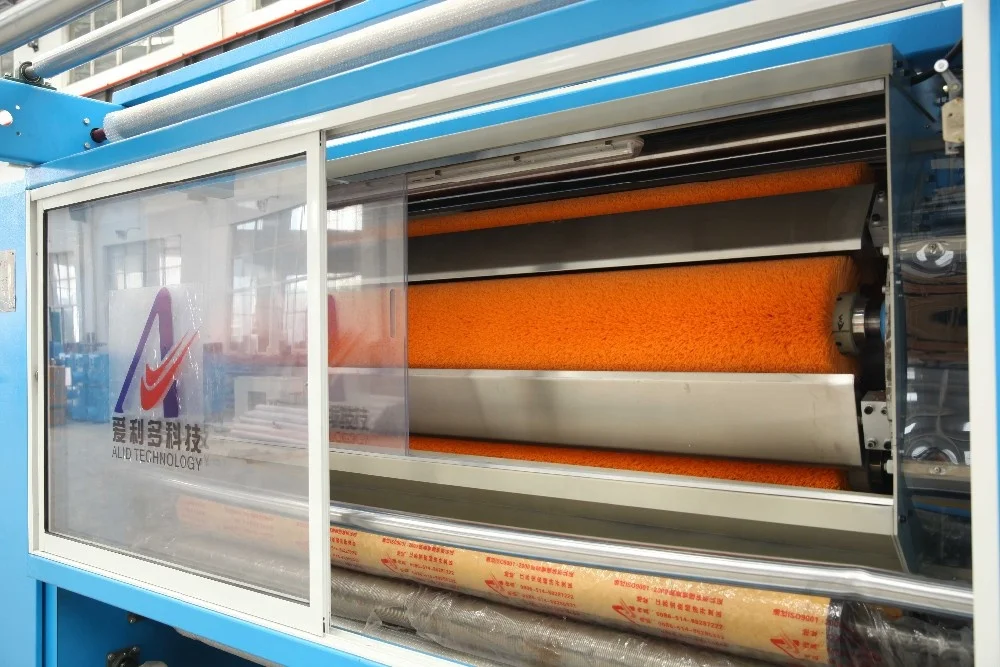

MH928-2200 type brushing machine also called as large cylinder type planetary gear
grinding machine, the material of sanding roller is carbon emery (220 /400 mesh). There are 2
drive rollers in front and back in the grinder which used to adjust the tension of the fabric so
that the fabric is always in a tight state. Beside this,The brush roller in brush box clean the
villus. 6 sanding roller operate as planetary (i.e. operation with 1280RPM rotation, on the
other hand, with Dali Synchronous rotation,).In this environment,more fabric contact times
with soft effect and finally to the fabric texture. Sanding machine equipped with protective
doors and windows, whole sealing, no leakage of wool dust.
Detailed Images
Machine Parts
Name: Sueding roller
Brand: HAHL or Dupont
Original: Germany / America
Material: carbon or ceramic
Main Parts
Name: Reducer / motor
Brand: B-ENERGY/ SIEMENS
Original: China /Germany
Machine Parts
Name: PLC
Brand: OMRON
Original: Japan
Main Parts
Name: Electrical components
Brand: Schneider
Original: Germany
Electrical parts: complete exchange of frequency conversion with synchronous
transmission, PLC control, man-machine interface, touchscreen and button control. The
touchscreen, the frequency converter, the contacts, the button, the circuit breaker and the
main electronic components are all provided by Schneider(France).
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
