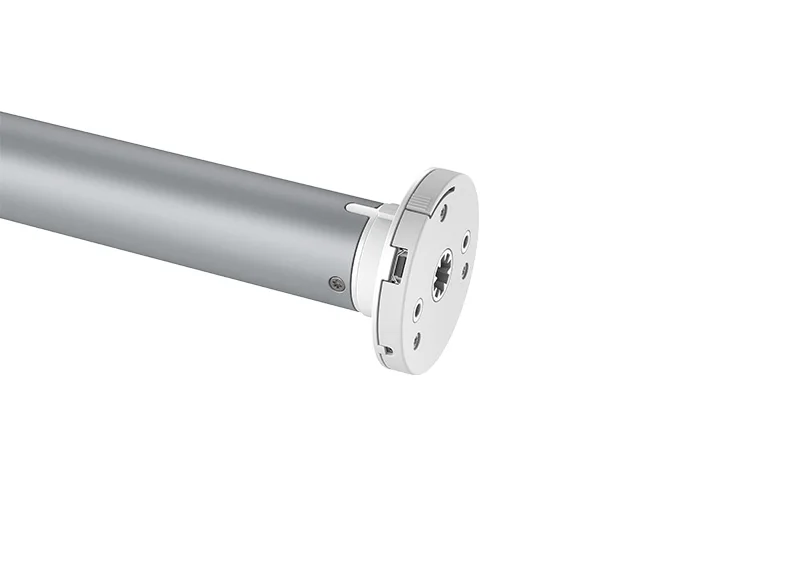

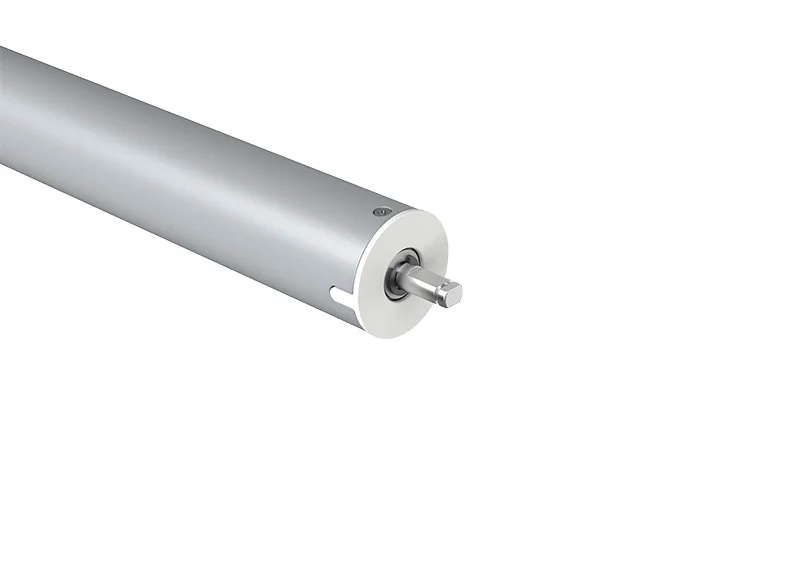

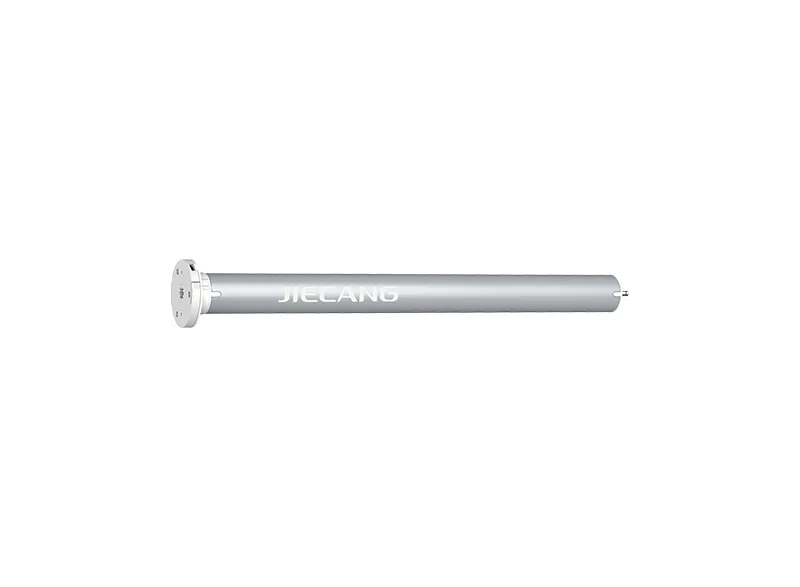

JIECANG High Torque Silent Venetian Blind Motor Electric Awning Motor Tubular Motor
- Category: Motors >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (1600565435202):
Product Overview
Description
JIECANG High Torque Silent Venetian Blind Motor Electric Awning Motor Tubular Motor
Products Description
1. Built-in Zigbee module, App and Smart speaker control
2. Extenal adapter, short motor length
3. Built-in wireless receiver, electronic limit
4. Patented spring arm button design on motor head
5. Thinnest motor head design, minimize light transmission gap
6.Patented silent motor design, running noise <31dB7. 3 speeds adjustable
8. Stall Protection.
9. Easily set up/down limit, and favorite position
Specification | ||
Model | JCD28 | |
Rated torque(N.m) | 2 | |
Output speed(rpm) | 20/24/28 | |
Rated voltage(V) | 12 | |
Rated current(A) | 1.5 | |
Rated power(W) | 18 | |
Frequency(MHz) | 433 | |
Power supply(V/A) | Adapter 12V/4A | |
Weight(kg) | 0.83 | |
Length(mm) | 598 | |
IP degree | IP 20 | |
Detailed Images

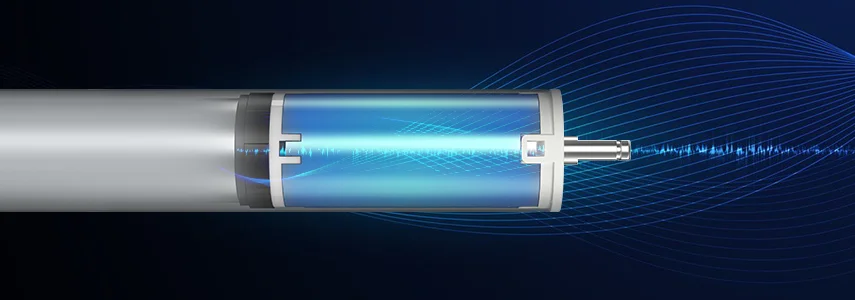

Silent technology
The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings
users excellent and sustainable acoustic comfort. The motor running noise is <=31dB.
users excellent and sustainable acoustic comfort. The motor running noise is <=31dB.
Intelligent control
Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration
with home automation systems.
with home automation systems.
Flush management
Precise percentage control, perfect alignment between roller blinds during up/down running.
Company Introduction
DRIVE A BETTER AND HIGH-QUALITY LIFE
JIECANG is committed to becoming the world's leading provider of linear drive solutions, creating smart and healthy emerging technologies to help partners succeed and drive a better and high-quality life.
