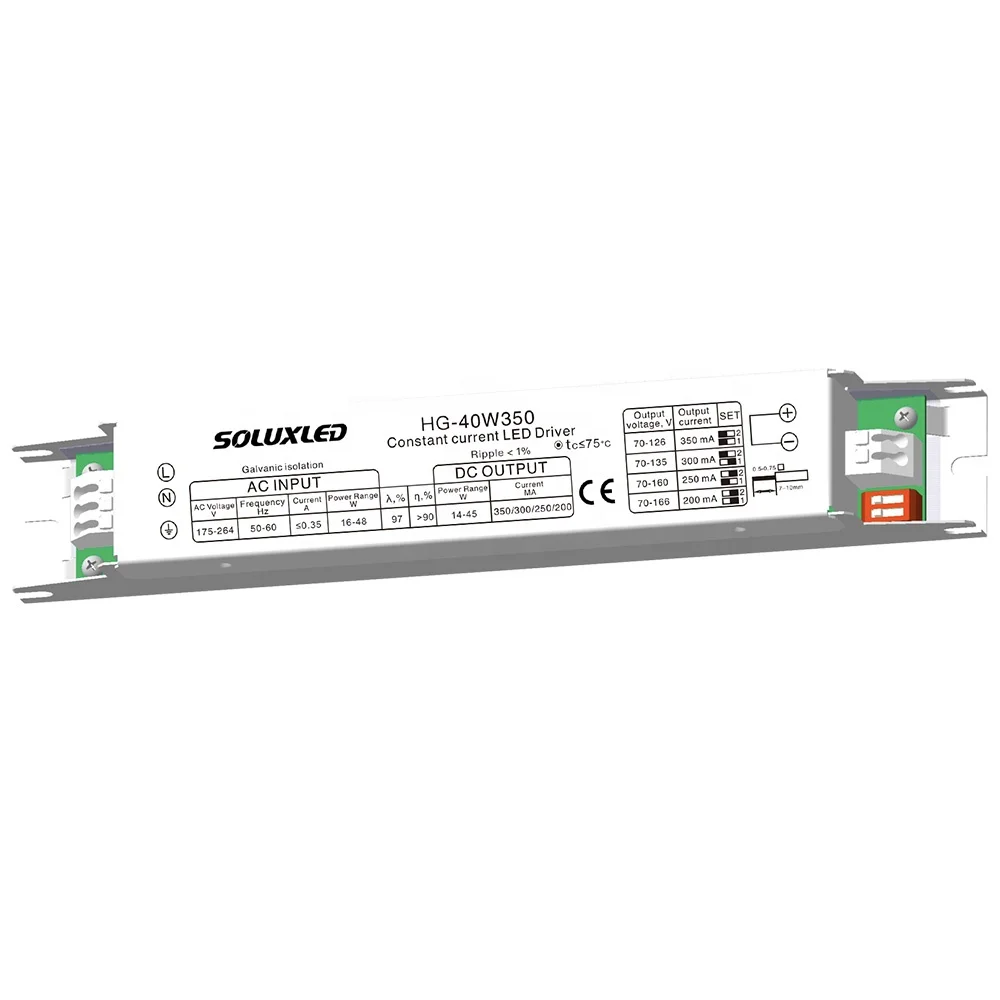

40W 350ma Galvanic Isolation LED Driver IP20 Current Adjustable with DIP Switch Ripple <1% Single Metal Case 5 Years 1 50W
- Category: >>>
- Supplier: Jianghai Soluxled Lighting Electron Factory
Share on (1600565506005):
Product Overview
Description
40W 350mA Galvanic isolation LED Driver IP20 Current Adjustable with DIP Switch
Ripple <1% with 90% efficiency
| LED DRIVER HG-40W350 | |||||
| Characteristic | |||||
| · Output Ripple <1 %; | |||||
| · Adjustable output current value; | |||||
| · High Power factor, λ,-0.97 | |||||
| · High Efficiency > 90% | |||||
| · Galvanic Isolation | |||||
| · Low THD < 12% | |||||
| · Warranty 5 years | |||||
| Technical Parameter | |||||
| Input characteristic | |||||
| Input Voltage Range | V | 175-264 | |||
| Power consumption range | W | 16-48 | |||
| Frequency | Hz | 50-60 | |||
| Power factor correction (λ, AC 220V) | % | 0.97 | |||
| Efficiency | % | >90% | |||
| Input Current (AC230V 50-60Hz) | A | <0.35 | |||
| Start Current | A | <0.5 | |||
| Input leakage current, no more than | mA | <0.62 | |||
| Output characteristic | |||||
| Output current regulation (dimming) | Dip Switch | ||||
| Dimming characteristic linearity | % | - | |||
| Output current tolerance | % | <5% | |||
| Output Ripple | % | <1% | |||
| Current | mA | 200 | 250 | 300 | 350 |
| Power | W | 14-33.2 | 17.5-40 | 21-40.5 | 24.5-44.1 |
| Voltage | V | 70-166 | 70-160 | 70-135 | 70-126 |
| No load voltage | V | 170 | |||
| Protection | |||||
| Short circuit protection | yes | ||||
| Overvoltage protection | yes | ||||
| Overload protection | yes | ||||
| Operating and storage conditions | |||||
| Working temperature range | °C | - 40 ~ 50 | |||
| Storage temperature range | °C | - 50~ 80 | |||
| Maximum temperature enclosure | °C | 75 | |||
| Allowable humidity | % | 5 ~ 95%(no condensation) | |||
| Degree of protection | IP20 | ||||
| Safety | |||||
| Electroplated insulation | yes | ||||
| Breakdown voltage AC (input output), (input ground), (output ground) | KW | ≤ 2,0 | |||
| Insulation resistance between conductive part and shell | ≥ 200 | ||||
| Standard | |||||
| Electromagnetic compatibility (electromagnetic stability) | EN55015 | ||||
| Others | |||||
| Mean time to failure (MTBF) (85 ° C) | Hours | 50000 | |||

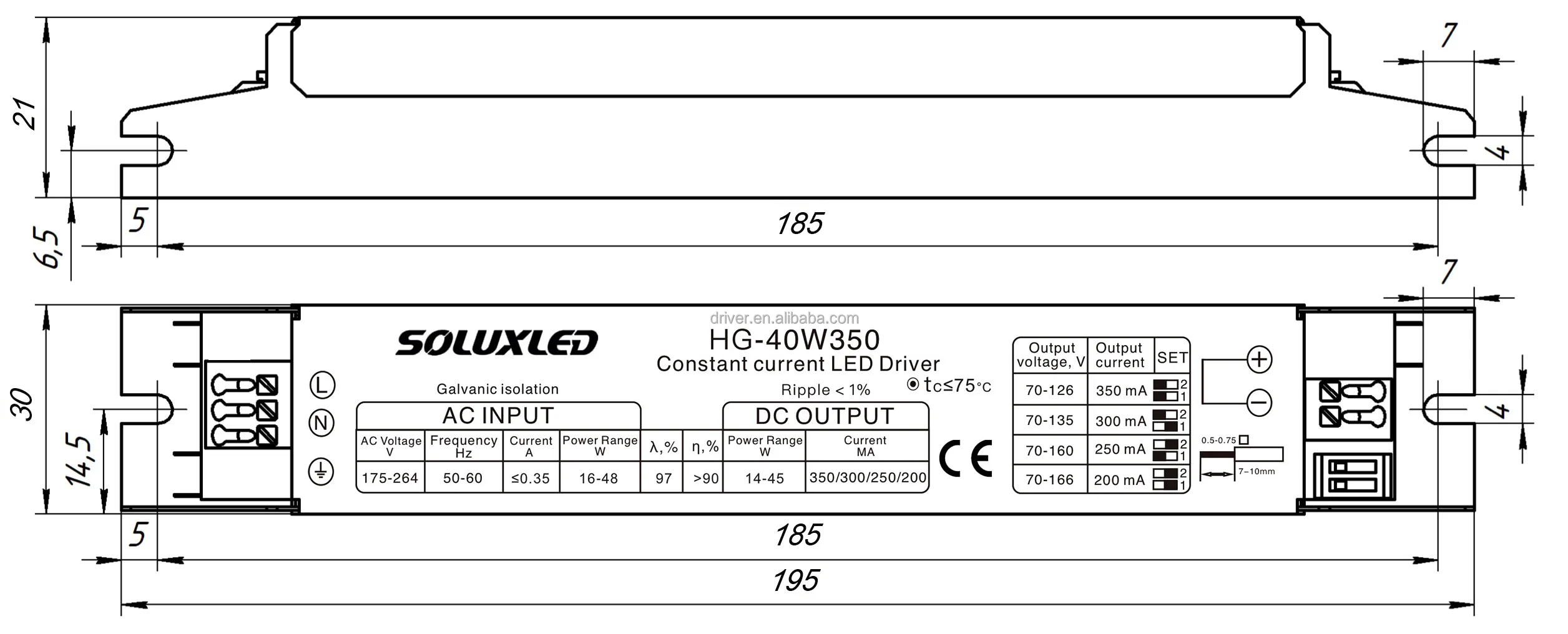

| Overall dimension (length x width x height) | mm | 195x30x21 | |||
| Weight | kg | 0.13kg | |||
| - The main parameters of the product are measured under 220V power supply voltage,full load of power output and 25 ° C ambient temperature. These power supplies are not suitable for street LED lights. | |||||
