180meter professional factory good price 100m diesel hydraulic small portable water well drilling machine
- Category: Mining Machinery >>>
- Supplier: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

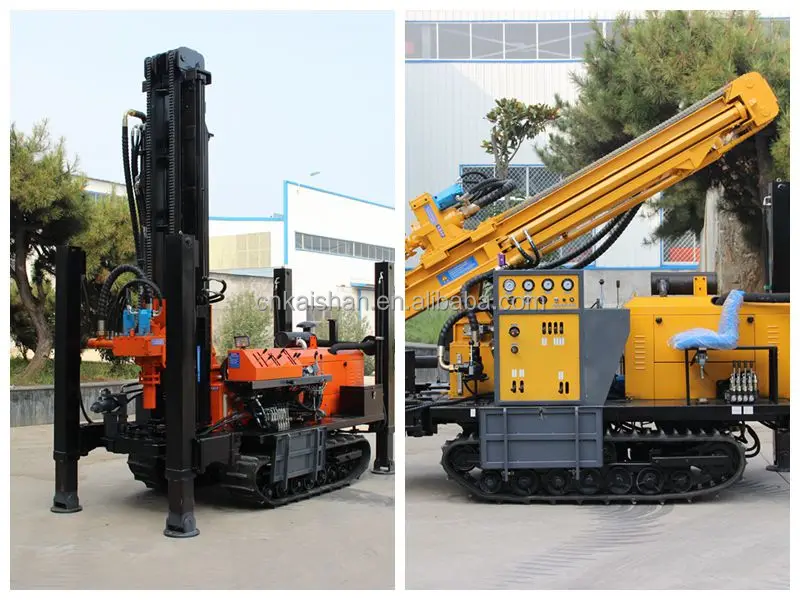

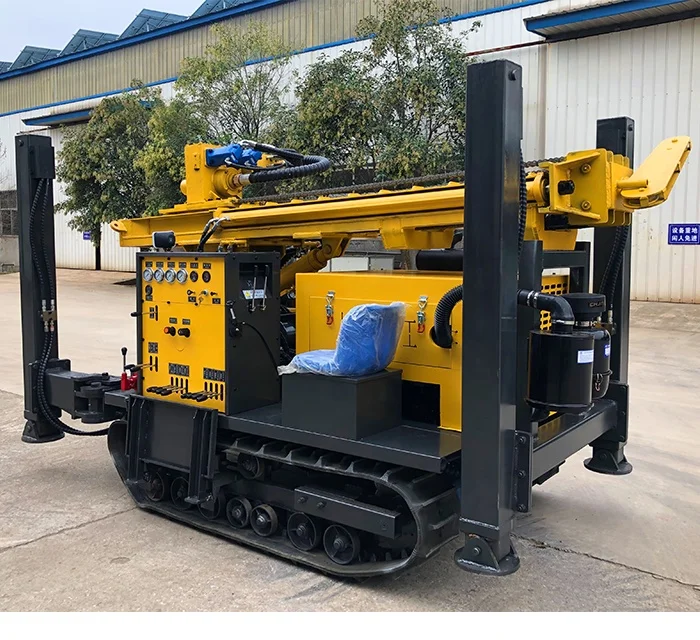

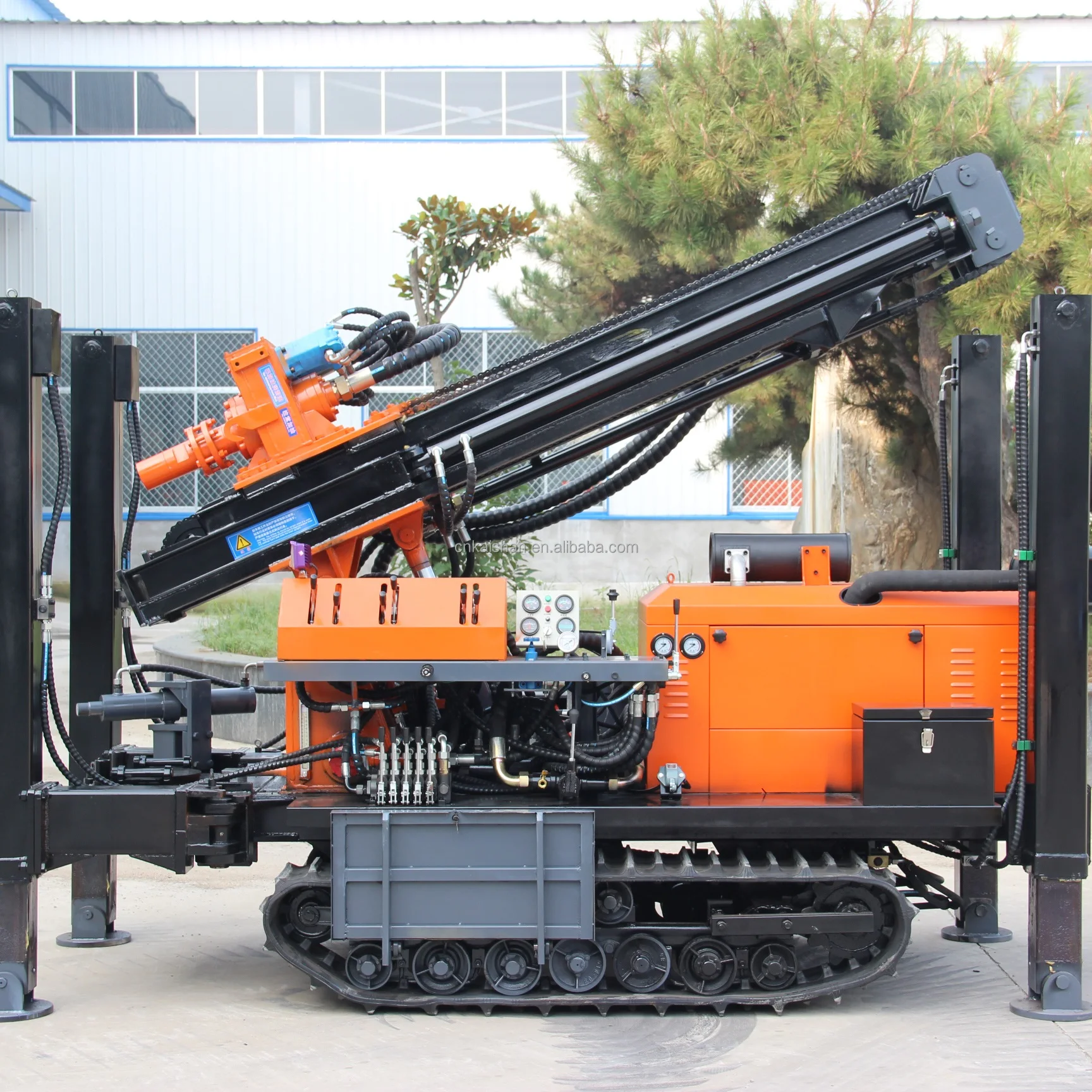

KW Series water well drilling rig 180m 300m 450m depth borehole drill machine.
KW600 Multi-function Geothermal Water Well Drilling Rig is mainly used for drilling water well, geothermal pump well and well hole for other purposes. The drilling machine can be used for drilling work at different stratums. The diameter of drill hole is large, which can reach up to 450m at maximum. Unique deep-hole axis pressure regulating system is used to properly adjust the propulsion force, which reduces the slewing resistance when drill deep hole. The drilling machine is equipped with two-stage retractable
carriage. The 4.5m drill rod can be used to reduce the times of extension rod.
carriage. The 4.5m drill rod can be used to reduce the times of extension rod.
Specification
Model | KW600 |
Drilling Hole Diameter | 130-350mm |
Drilling Depth | 450m |
Traveling Speed | 0-2km/h |
Rotation Speed | 33-61(76-120)r/min |
Rotation Torque | 8600(4300)N.m |
Max.Feed Force | 75000N |
Max.Hoist Force | 15300N |
Feed Stroke | 4400mm |
Climb Capacity | 20° |
Ground Clearance | 280mm |
Jacket Stroke | 1400mm |
Weight | 10ton |
Dimension | 7.3*2.25*2.75m |
Engine Model | YC6B150Z-T21 |
Power | 110kw |
Working Pressure | 10.5-34.5bar |
Air Consumption | 16-76.4m3/min |
Hammer | HD55/DHD65/DHD85 |
Rod | Φ89/102/114*3000mm |
Bit | Φ130-350mm |
Recommended Air Compressor | LGCY-33/25 |
Product advantage:
1. Double-motors swing mechanism Straight-tooth reducer mechanism driven by two international brands of hydraulic motors is adopted, with simple structure and reliable performance.
2. Combined positioner For the combined positioner, the positioning plate can be adjusted and replaced according to different models of drill stem and impactor, so as to ensure that the positioning and centering are accurate and reliable.
3. Flexible and stable hydraulic leg Swing-type front leg and retractable rear leg can provide reliable support after being unfolded. The transportation size can be reduced by retracting the shell.
4. Deep-hole axis pressure regulating system Unique deep-hole axis pressure regulating system is used to properly adjust the propulsion force, which reduces the slewing resistance when drilldeep holeand improves efficiency of drilling.
5. Two-stage retractable carriage Adopt two-stage retractable carriage and 4.5m drill stem also can be used under the circumstance of not increasing the length of carriage, which reduces the extension rod times and improves the working performance.
1. Double-motors swing mechanism Straight-tooth reducer mechanism driven by two international brands of hydraulic motors is adopted, with simple structure and reliable performance.
2. Combined positioner For the combined positioner, the positioning plate can be adjusted and replaced according to different models of drill stem and impactor, so as to ensure that the positioning and centering are accurate and reliable.
3. Flexible and stable hydraulic leg Swing-type front leg and retractable rear leg can provide reliable support after being unfolded. The transportation size can be reduced by retracting the shell.
4. Deep-hole axis pressure regulating system Unique deep-hole axis pressure regulating system is used to properly adjust the propulsion force, which reduces the slewing resistance when drilldeep holeand improves efficiency of drilling.
5. Two-stage retractable carriage Adopt two-stage retractable carriage and 4.5m drill stem also can be used under the circumstance of not increasing the length of carriage, which reduces the extension rod times and improves the working performance.
Packing & Delivery

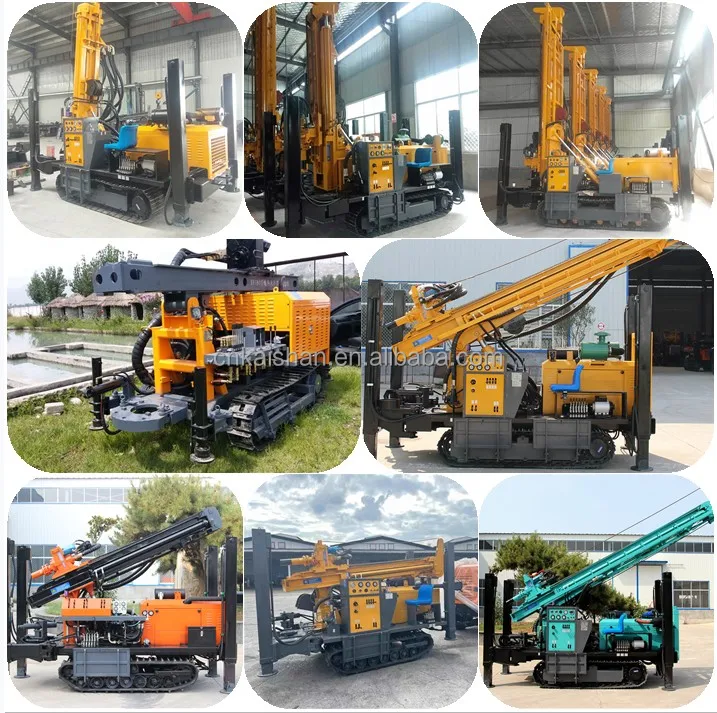

Related Products

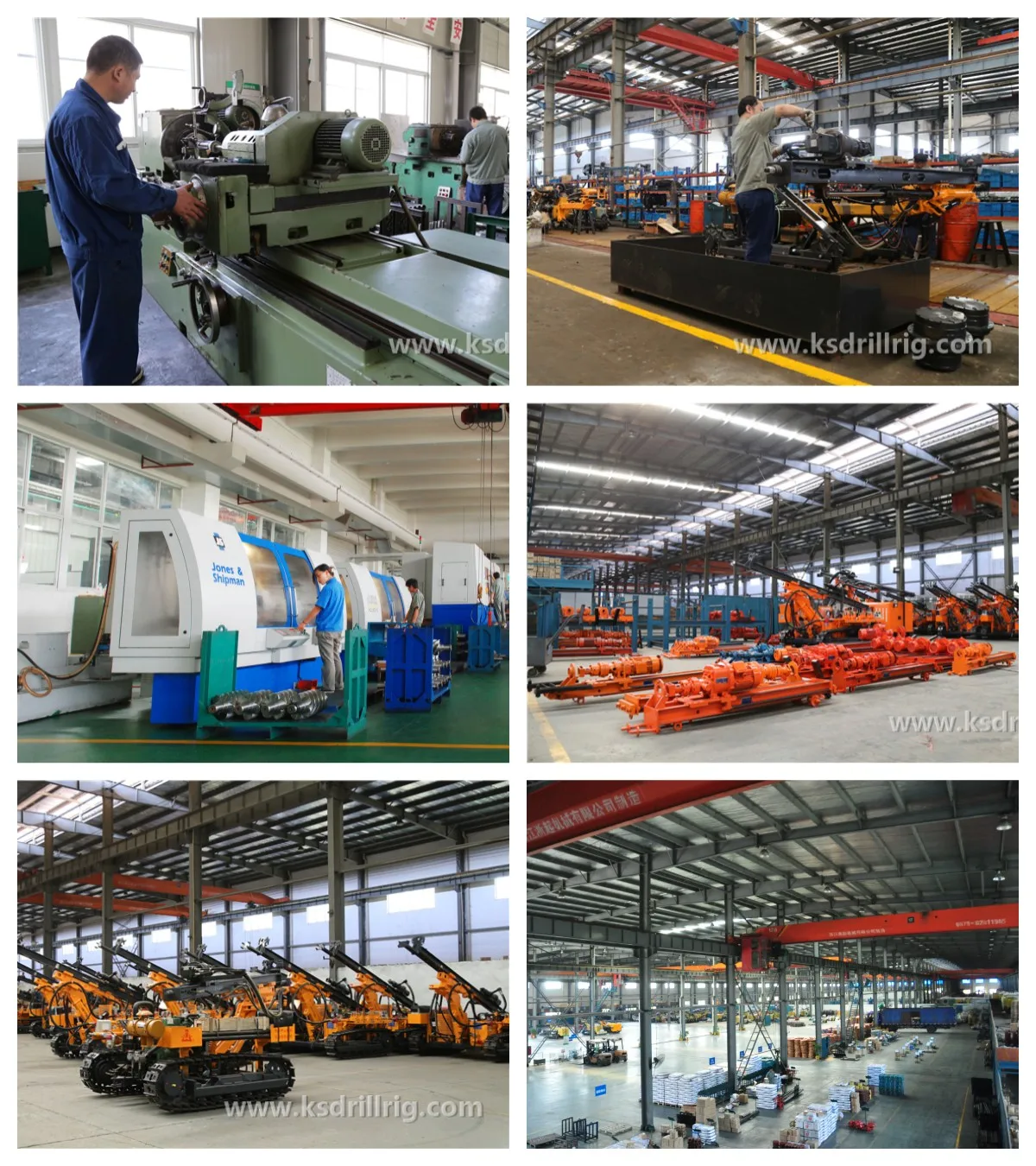

Company Profie
Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Exhibition
Certifications
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
