precision watch glass surface lapping polishing machine for Optical glass flat polishing

Precision Vertical Double Surface Lapping Polishing Machine  is  used for precision lapping/polishing of double surfaces of metal parts,such as valve plate,wearing plate, rigid seal ring,cylinder piston ring and oil pump blade,as well as laminated non-metal parts of hard&brittle materials like silicon,germanium,quartz,glass,ceramic,sapphire,gallium arsenide,ferrite,lithium niobate,etc.

Technical features:
1. This machine’s each axis of tray, lower plate ,upper plate bears weight by TRB(tapered roller bearing) and DGRB(deep groove ball bearing),machine precision can be assured;

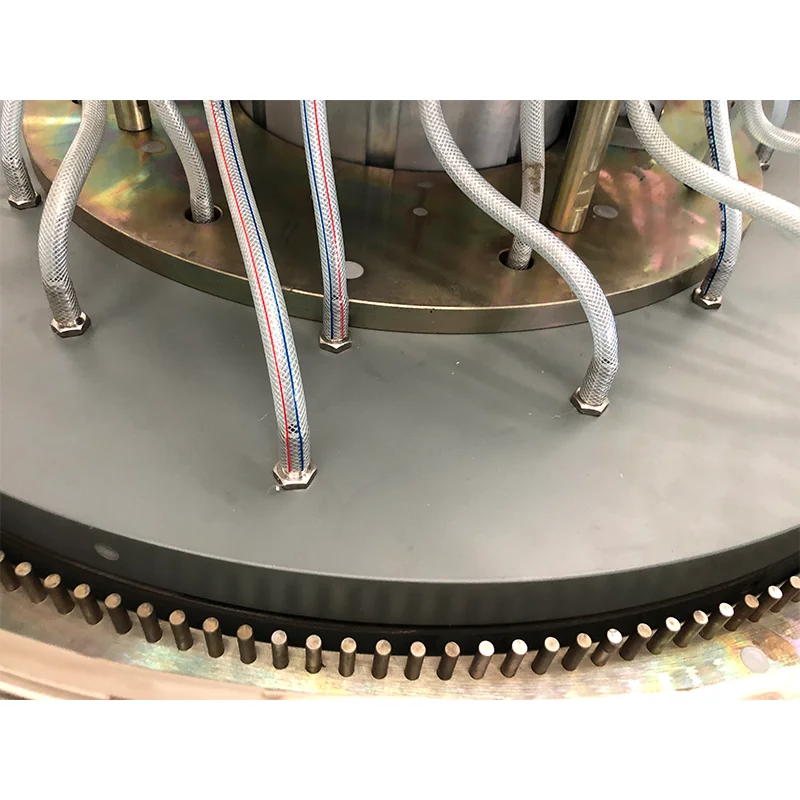

2. Gear ring up and down can be realized through cam bushing driven by air cylinder;
3. Sun wheel is driven by 1.5KW motor with reduction gears;

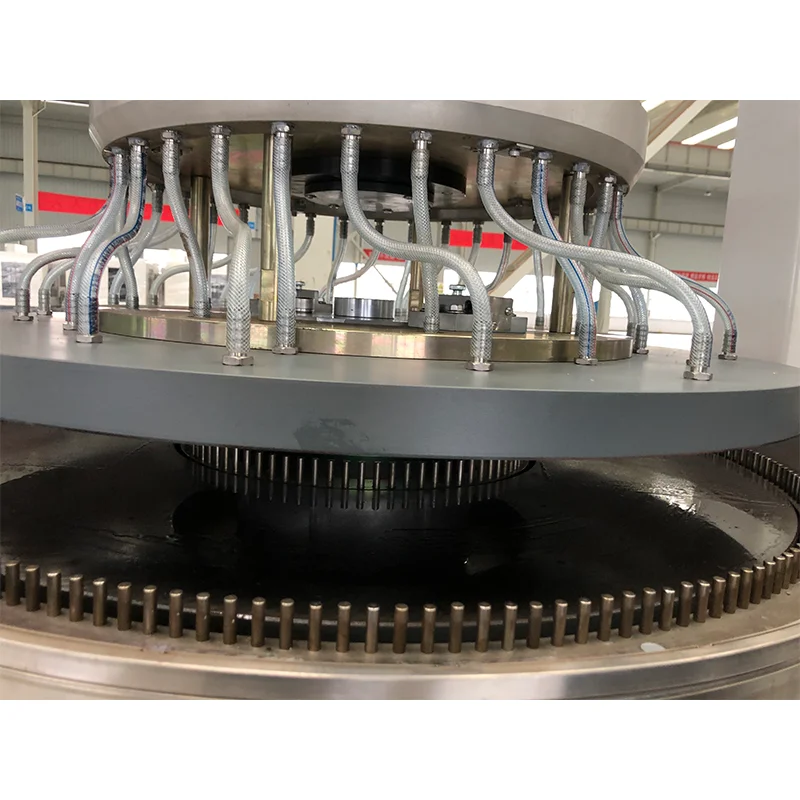

4. Lower polishing plate, and inner gear rings are directly driven by reduction gears, stepless variable frequency for speed-regulating, stable start &stop without impact.

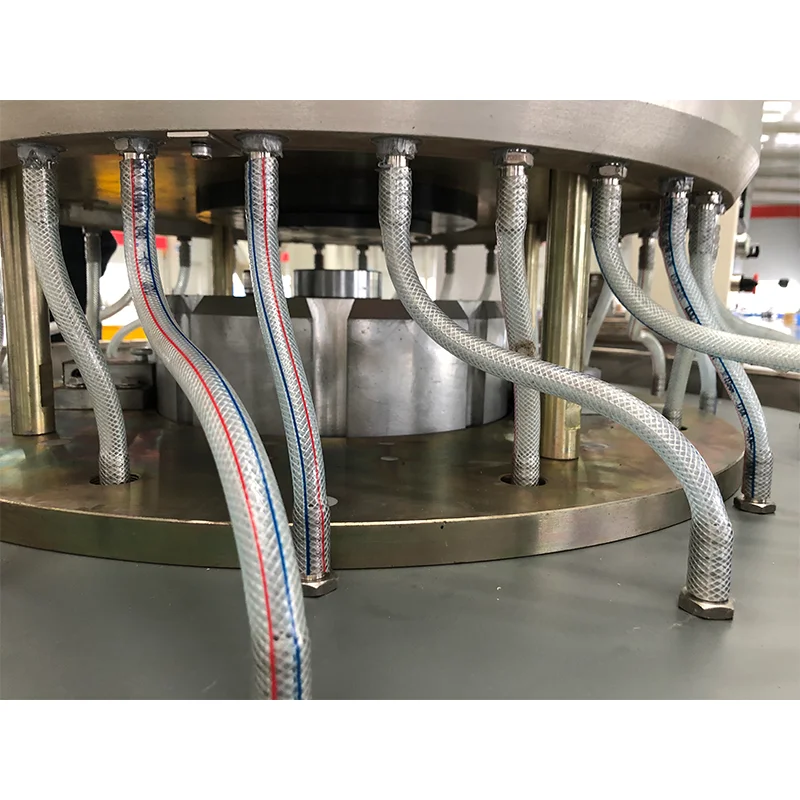

5. Upper polishing plate is directly driven by one reduction gears, stepless variable frequency for speed-regulating, stable start &stop without impact, the ideal polishing speed can be achieved for different material polishing.

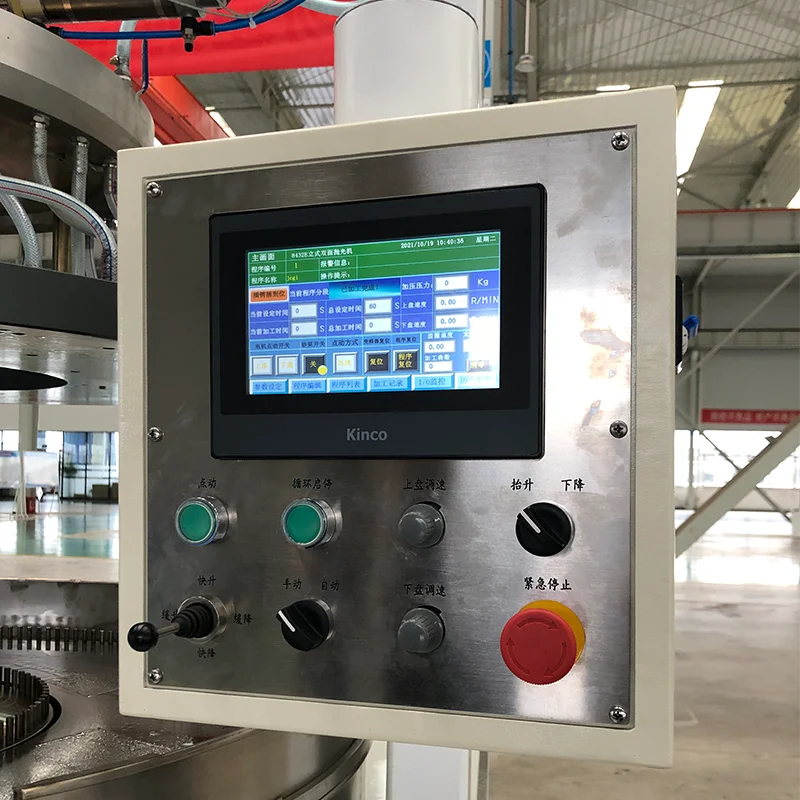

6. All control parts adopt 24v power supply, which can assure safety of the operator and equipment.

1.Moisture-proof packaging+Wooden Box.
2.Special packing requirements available.

Our R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers

• The workshop and office area covers 20K Sqmeters.


• With over 270 staffs, including over 50 R&D technical engineers.


• Main products output more than 1000 sets per year.

Our R & D team  establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student,get 5—9 patents per year .

• has got 36 related patents


• A certificate of international standard products in 2005


• has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards

Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.

Our products are widely used in Automotive/3C IT Electronic/Military/ Aerospace/ Shipbuilding/Bearings/seals/ Household Appliances/ And other key areas of National Economy.

3.  We will offer free the  training for machine’s management /operation/maintenance to user’s related people.

Please feel free to contact us,we will reply within 24h!
