200 W laser power gold silver platinum titanium laser welding machine high precision
- Category: >>>
- Supplier: Shenzhen Hs Laser Technology Co. Ltd.
Share on (1600565624741):
Product Overview
Description
Product Overview

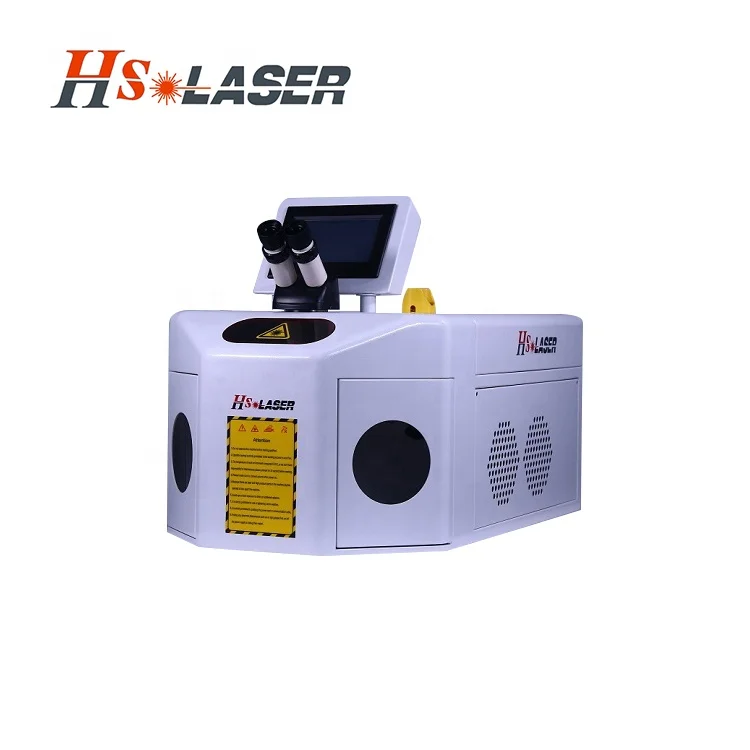

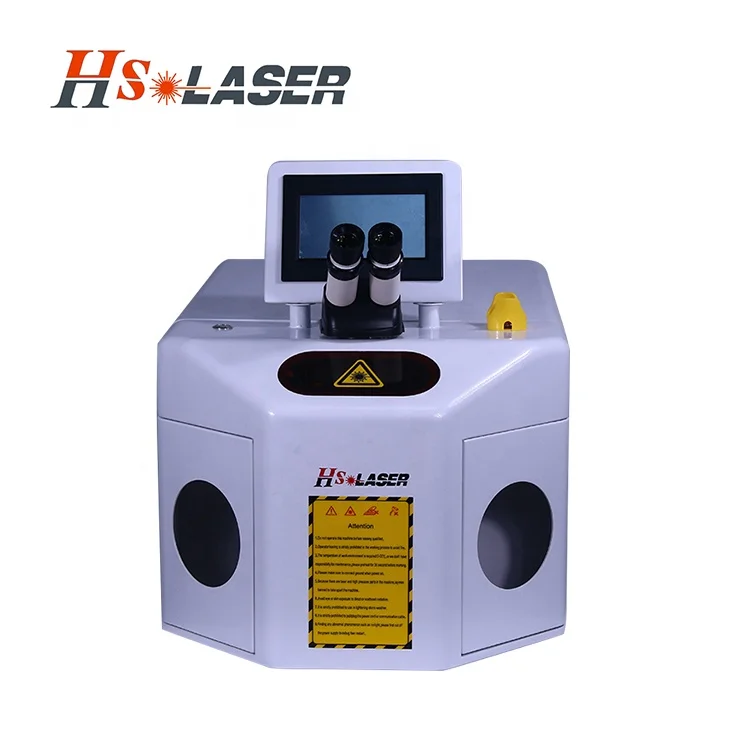

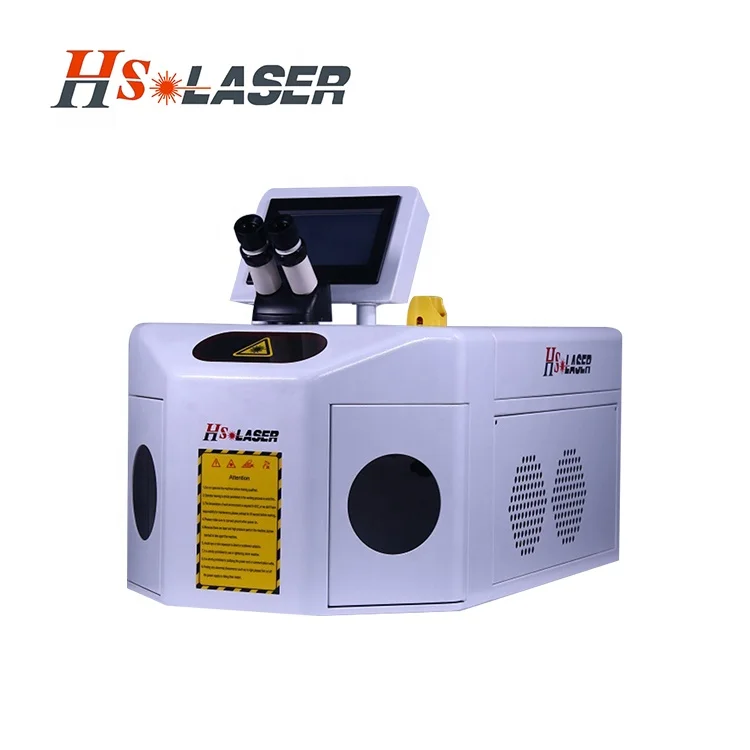

Best selling HS LASER mini portable benchtop 200w 100 joules jewelry laser welding machine
The laser welder combines a Nd:YAG laser, microscope viewer, and easy-to-use interface into a compact package. It enables spot and seam welds to be produced quickly, at micron level precision, even by inexperienced users.
The system’s compact, portable, space-saving design, coupled with conveniently located operator controls and display, ensures optimal utilization with minimal operator fatigue.
The machine is mainly used for gold and silver ornaments of the fill hole and the spot trachoma, widely used in spot welding of micro precision parts, such as jewelry, batteries nickel belt, IC lead, watch springs, tubes, assembly, and others areas.
FEATURES AT A GLANCE
NEW DESIGN
STABLE POWER SUPPLY
HIGH QUALITY MICROSCOPE
SIMPLE CONTROL
EXTREMELY EFFICIENT
PRECISION WORK
FLEXIBILITY FOR MATERIAL
Left dimension
Front dimension
Back dimension
PRODUCT SPECIFICATIONS
System Platform: Benchtop | Water cooler capacity: 3 litres |
Laser power: 200W | Type of water: Distilled water or pure water |
Laser type: YAG technology | Machine color: White |
Wavelength: 1064nm | Microscope: MOTIC |
Laser energy: 100 Joules | Radiation protection: Anti-laser acrylic material |
Pulse width: 0.1-20ms | Type of gas: Argon gas |
Frequency: 1-50Hz | Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa |
Focus distance: 100mm | Power required: AC 220V ±10% 50/60Hz |
Spot diameter: 0.3 to 2mm | Total power:3kw |
Flash lamp size:8*100*250mm | Warranty period: 12 months |
Flash lamp lifespan:3,000,000 times | Machine dimension: 860x500x580mm |
Laser bar size:6*130mm | Net Weight: 90kg |
Cooling system: Built-in water cooler | Package dimension:960x530x600mm |
PRODUCT CONFIGURATION
High-quality microscope
Good-performance welding head
Premium coaxial cable
Product samples
SIMILAR PRODUCTS
ABOUT US
Since 2013, HS LASER has been focusing on laser welding. From semiconductor lasers, YAG lasers to the current fiber laser welding technology, it has always been the leader in laser welding. We will continue to develop various laser welding applications and welding of more high-reflectivity materials. Laser hybrid welding, blue laser welding technology and other high-end welding technology research products.
