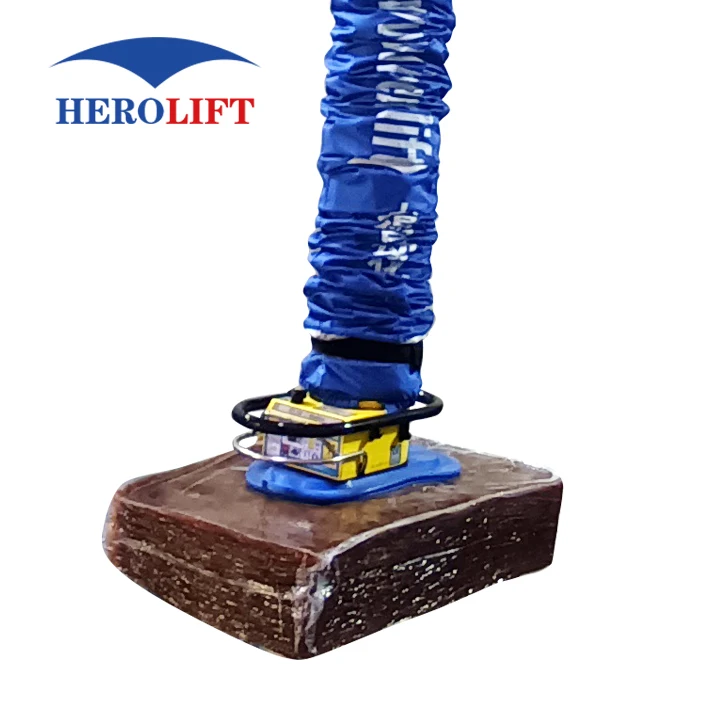

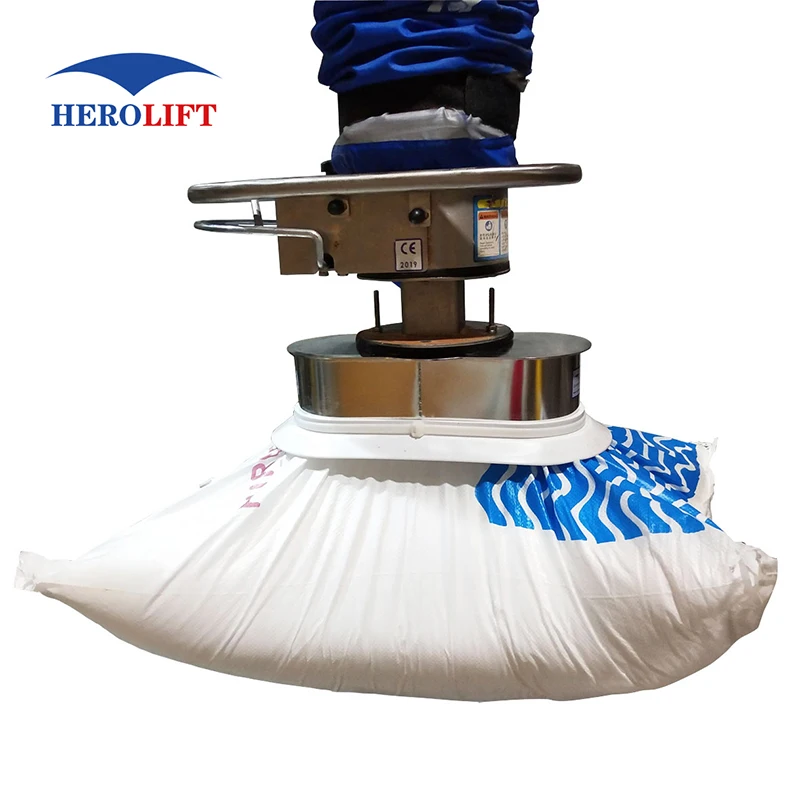

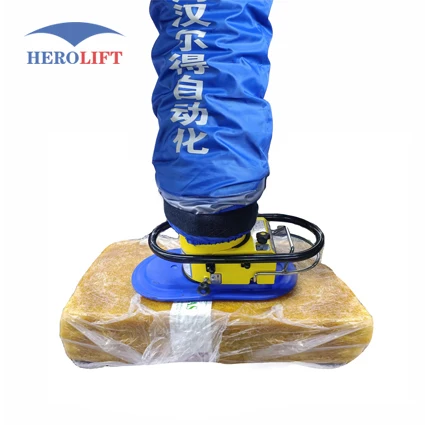

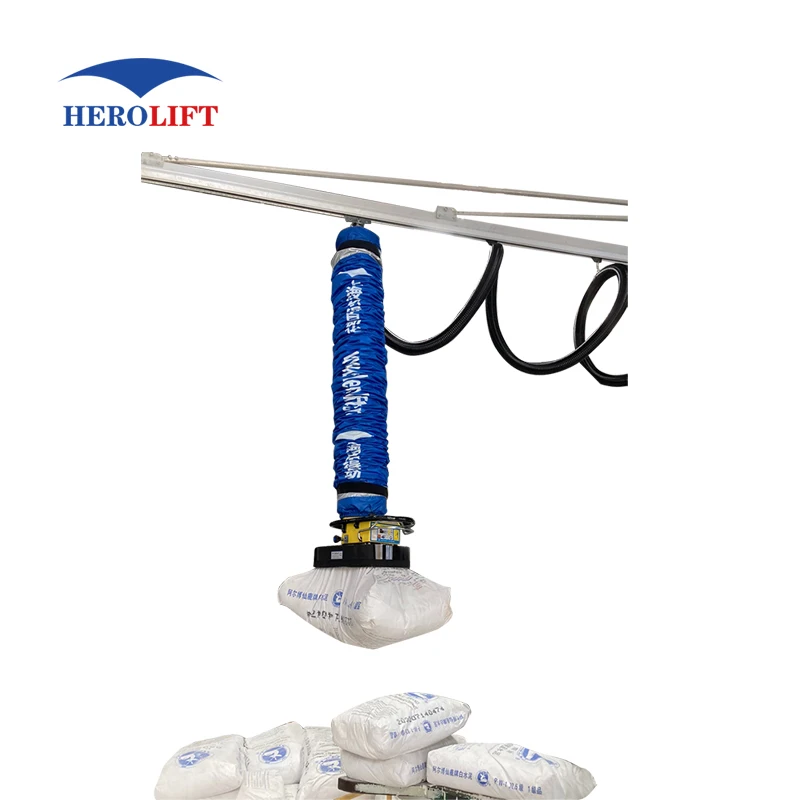

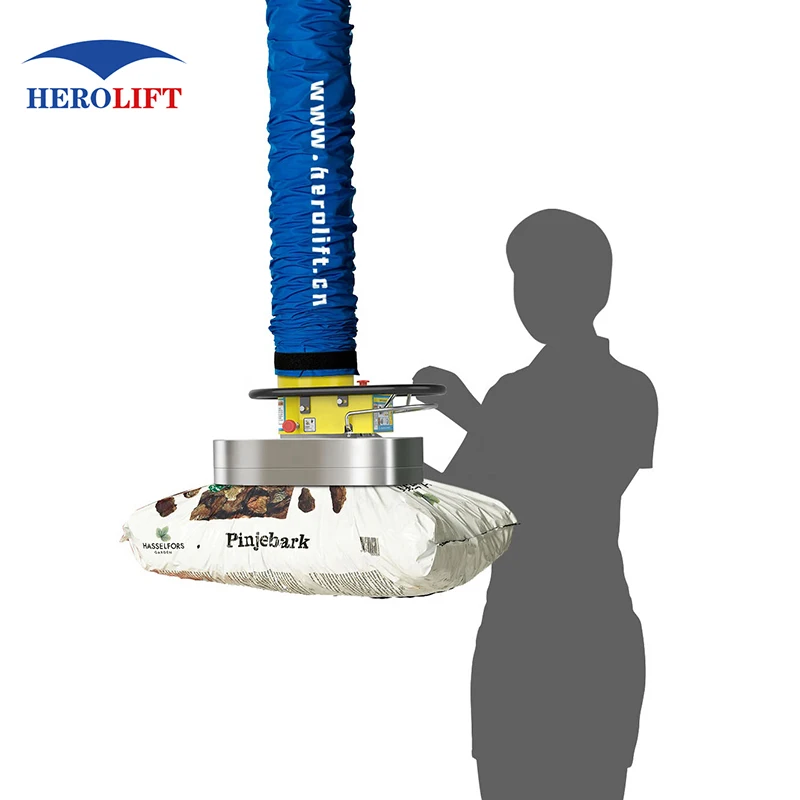

25kg 100kg Intelligent Vacuum Tube Lift Vacuum Suction Cup Pad Lifter, vacuum tube lifter for carton, sack or plate
- Category: >>>
- Supplier: Shanghai Herolift Automamation Equipment Co. Ltd.
Share on (1600565632612):
Product Overview
Description
Product Description
1,Filter | 6,Rail | ||||||
2,Pressure Release Valve | 7,Lifting Unit | ||||||
3,Bracket For Pump | 8,Suction Foot | ||||||
4,Vacuum Pump | 9,Control Handle | ||||||
5,Rail Limit | 10,Column | ||||||
Specification
Standard Jib Rail
40-500kg
Length2-6m
SS304available
Bridge Rail
40-2000kg
Articulated Jib Rail
40-80kg
Length2-3m
SS304available
Type | VEL100 | VEL160 | VEL180 | VEL200 | VEL300 | ||||
Capacity/kg | 30 | 70 | 90 | 120 | 300 | ||||
Tube Length/mm | 2500/4000 | ||||||||
Tube Diameter/mm | 100 | 160 | 180 | 200 | 300 | ||||
Lifter Speed(m/s) | appr1m/s | ||||||||
Lifter Height/mm | 1800/2500 | 1700/2400 | 1500/2200 | ||||||
Pump | 3Kw/4Kw | 4Kw/5.5Kw | |||||||
Application
Detailed Images
Machine Parts

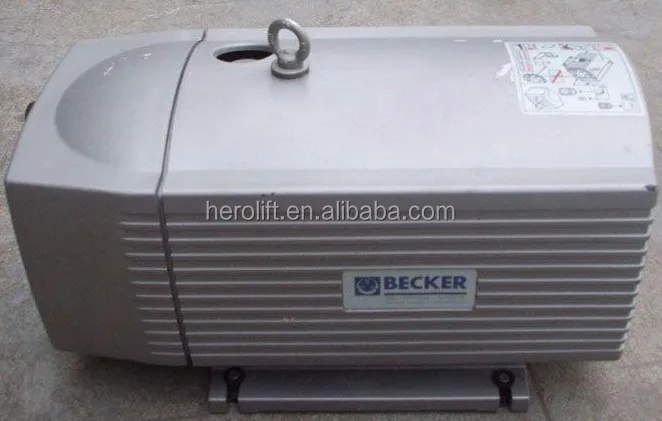

Name: Vacuum pump
Brand: Becker
Original: Germany
Oil free air cooling type rotary vane vacuum pump, connected to 380V, Three-phase power can produce vacuum, As a core part of vacuum system, The highest vacuum degree 85%;
Main Features

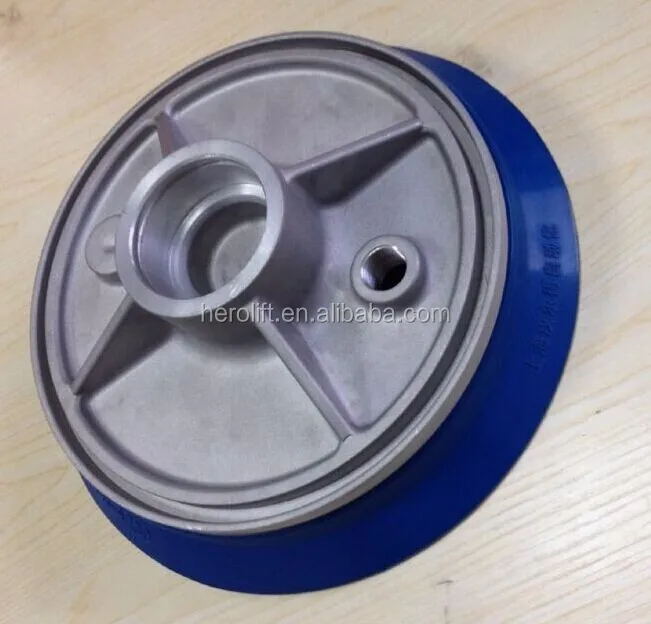

Name: Suction pad
Brand: Herolift
Original: Shanghai China
Suction pad material is NBR, Dia. 300mm,oil (benzene)resistance, durable, acid and alkali resistant, Be able to effectively and plate suction, create vacuum.
Machine Parts
Name: Vacuum gauge
Brand: Panasonic
Original: Japan
To show the vacuum level to the operator, Provide security;
Main Features
Name: Vacuum filter
Brand: Herolift
Original: Shanghai China
To eliminate the dust and particles in the air flow, ensure the lifetime of the vacuum pump;
certificate
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Process and Package
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
