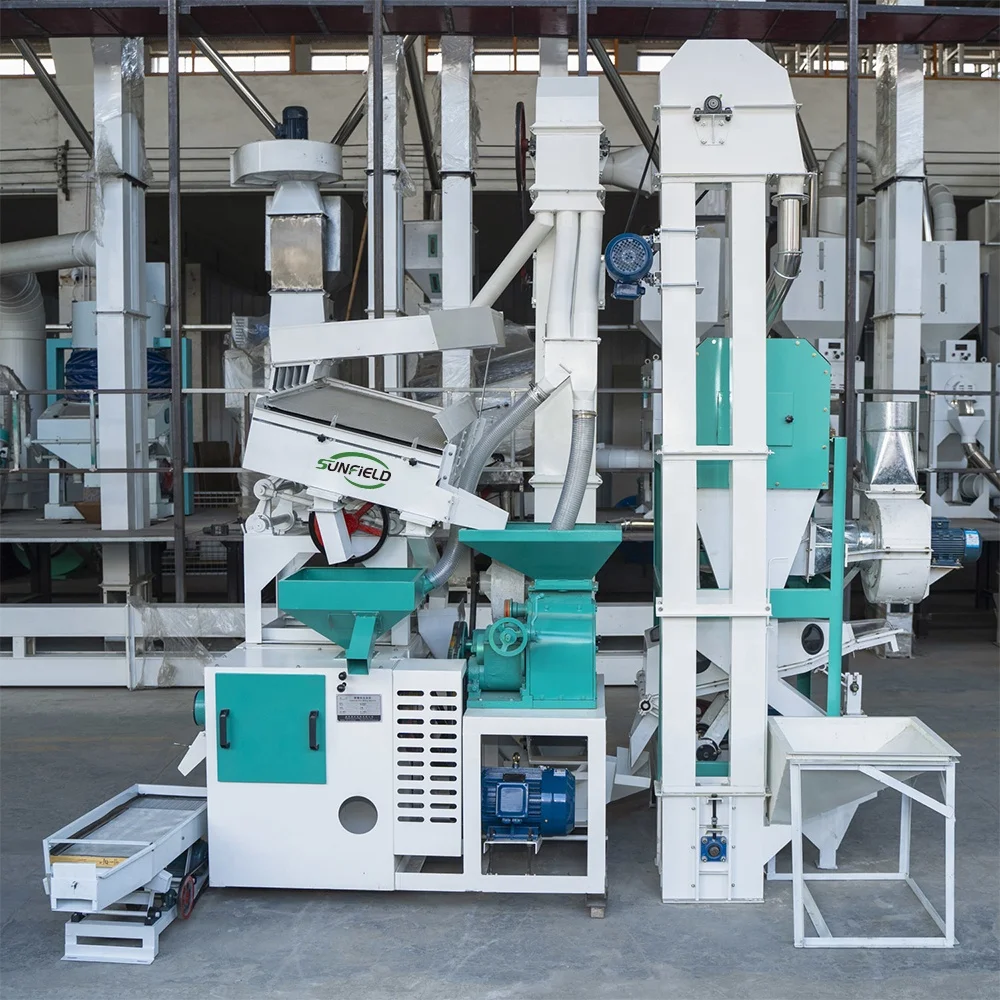

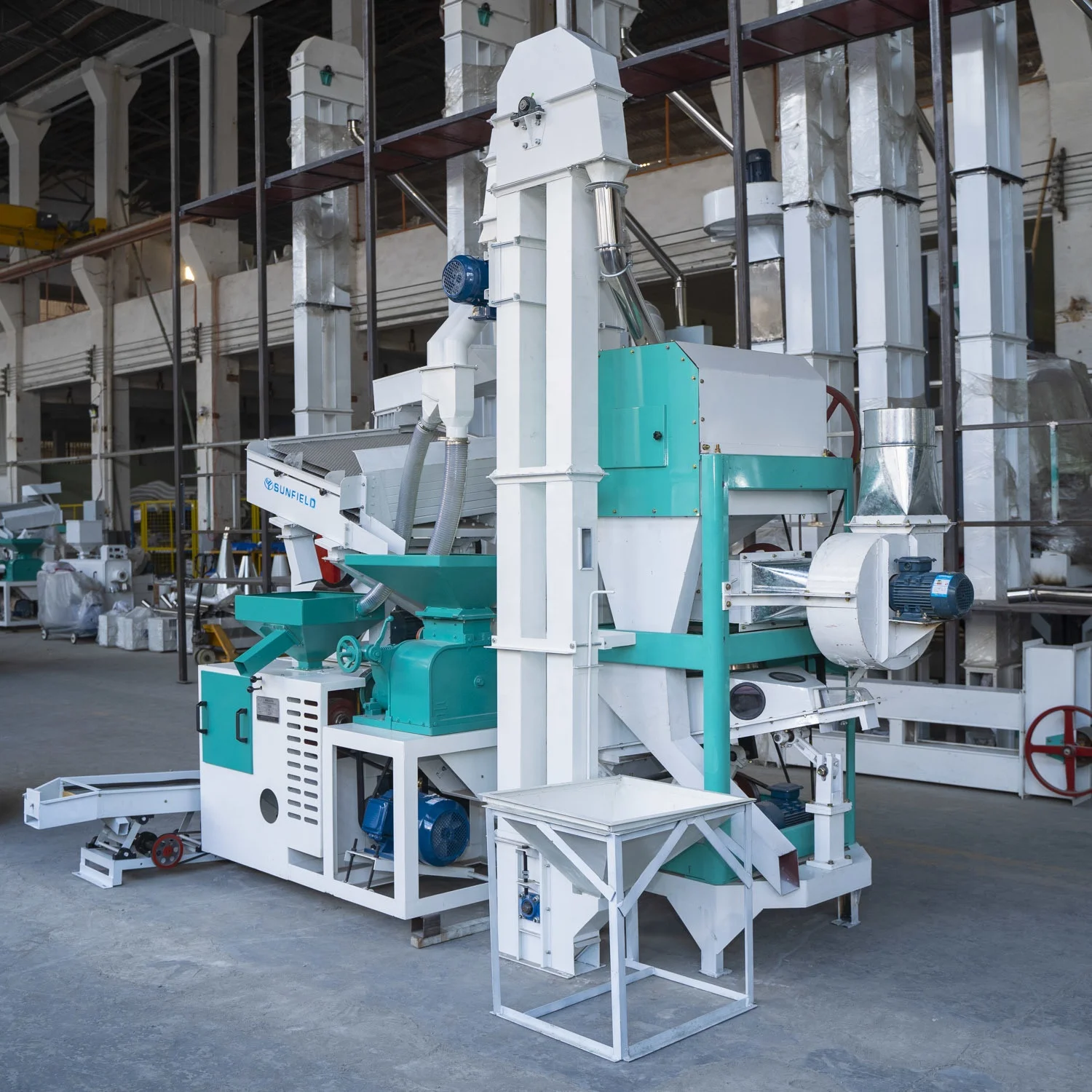

Complete Set Combined Rice Mill Machine Rice Milling Equipment Mini Rice Mill
- Category: >>>
- Supplier: Hunan Sunfield Machinery Co. Ltd.
Share on (1600565635219):
Product Overview
Description
Products Description
800-1000kg/h

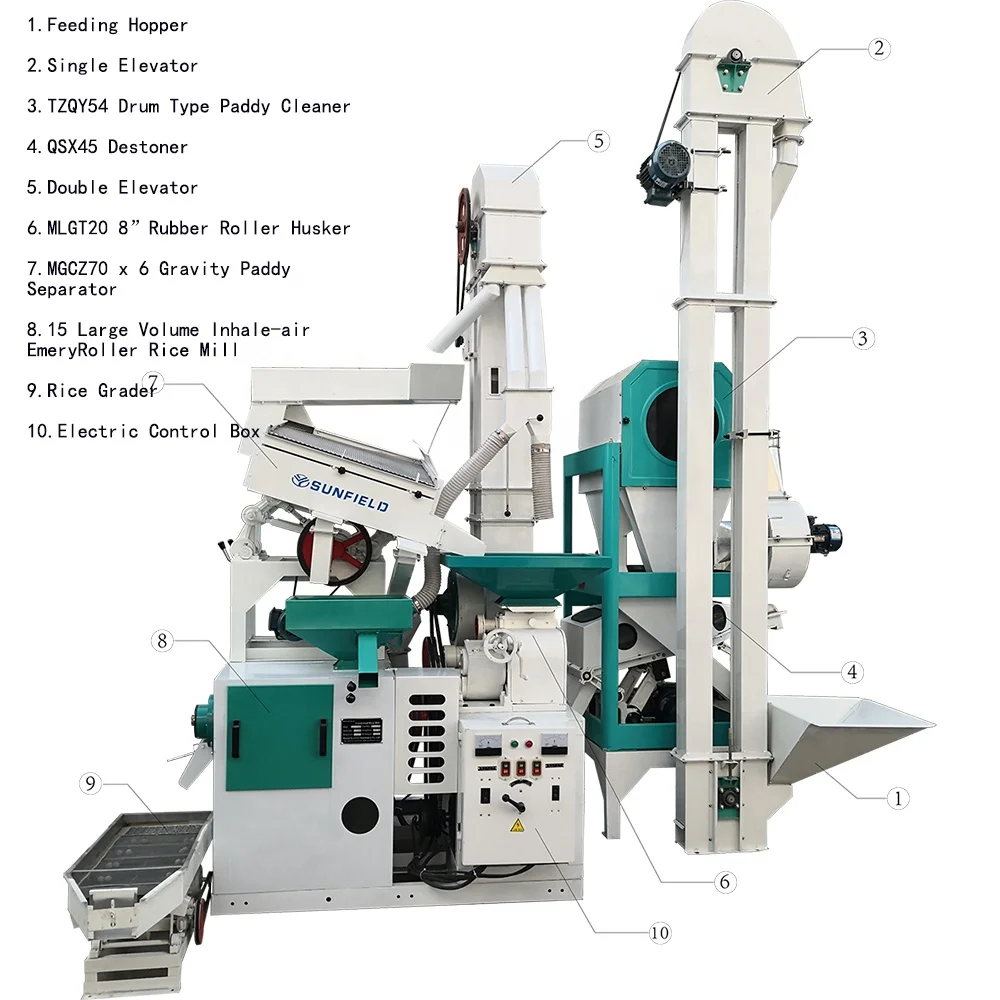

Combined Rice Milling Machine
1. TZQY54 drum paddy cleaner,;
2. QSX45 de-stoner
3. 8-inch rubber roller husker;
4. Gravity paddy separator;
5. Large volume inhale-air emery roller rice mill;
6. Rice grader;
7. Elevators.

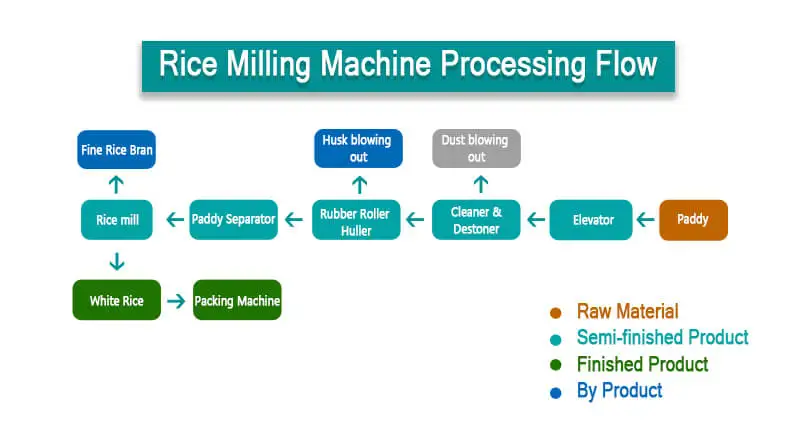

Double-layer Drum Cleaning, Destoning, Husking, Separating, Whitening, Grading
by ONE-TIME operation
Technical Parameters
Model | 6LN-20/15SA |
Rated output ( kg/h) | 800-1000 |
Matched power (kW) | 25.32 |
Rice milling rate | 68-72% |
Small broken rice rate | <2% |
Rubber roller dimension(mm) | φ225×152 |
Emery roller dimension(mm) | φ200×400 |
Overall weight（kg） | 1350 |
Overall dimension(L×W×H)(mm) | 3300×1200×3400 |
Packing Size(L×W×H)(mm) | 1530×1320×2280 1200×750×2000 |
Details Images
Unique DRUM TYPE Combined Paddy Cleaner and De-stoner
With the combination of cleaning and de-stoner design, the performance is much better than in traditional unibody design
Efficient Shell-Breaking, Low-noise Rice Hulling Machine
Over 90% de-hulling rate for one time operation,double support mobile gearbox husker,durable rubber roller, low noise and high stability
Innovated inhale-air
emery rice mill
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, increase the gloss of whitened rice and bring down the broken rate
Stable gravity
paddy separator
Bigger screen with high separation speed and even paddy distribution, low left paddy for rehusking, reduce the broken rate efficiently
Broken rice grader
It can shift milled rice efficiently and accurately into several classes: head rice, large
broken. medium broken, small broken
broken. medium broken, small broken
Electric control panel
It adopts weak current to start, high safety, and overload protection switch can avoid operation errors from burning out the motor
Product Features
* Unibody base designed for convenient transportation and installation, stable operation, low space occupation, it improves
production efficiency by the unique re-hulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.
* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipment to double mill, grade and sort for better rice quality.
* Low investment and high yield
production efficiency by the unique re-hulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.
* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipment to double mill, grade and sort for better rice quality.
* Low investment and high yield
Recommend Products
Please click the following picture for more details
600-800kg/h combined rice mill
15TPD Automatic Commercial Complete Set Parboiled Mini Rice Mill Milling Machine
Company Profile
Who are we?
Hunan Sunfield Machinery Co., Ltd. is a high-tech and professional manufacturer of Combined Rice Milling Machines and Complete-set Rice Milling Equipment, covering the whole processing from paddy cleaning, de-stoning, husking, separation, rice milling,
polishing, grading, color sorting to packing.
As a Chinese leading manufacturer andexporter of rice milling machines, our products include the 400kg per hour to 1,000kg per hour Combined Rice Milling machines and 20 ton per day to 120 ton per day Complete-set Rice Milling Equipment, which are multifunctional, user-friendly,cost-effective and good performance, produced under dozens of product patents in design and
technology.
polishing, grading, color sorting to packing.
As a Chinese leading manufacturer andexporter of rice milling machines, our products include the 400kg per hour to 1,000kg per hour Combined Rice Milling machines and 20 ton per day to 120 ton per day Complete-set Rice Milling Equipment, which are multifunctional, user-friendly,cost-effective and good performance, produced under dozens of product patents in design and
technology.
Packing & Delivery
Delivery
Products will be finished in 15-20 working days after payment. It depends on your order quantity. And the shipping time to the port is about 1-2 days
