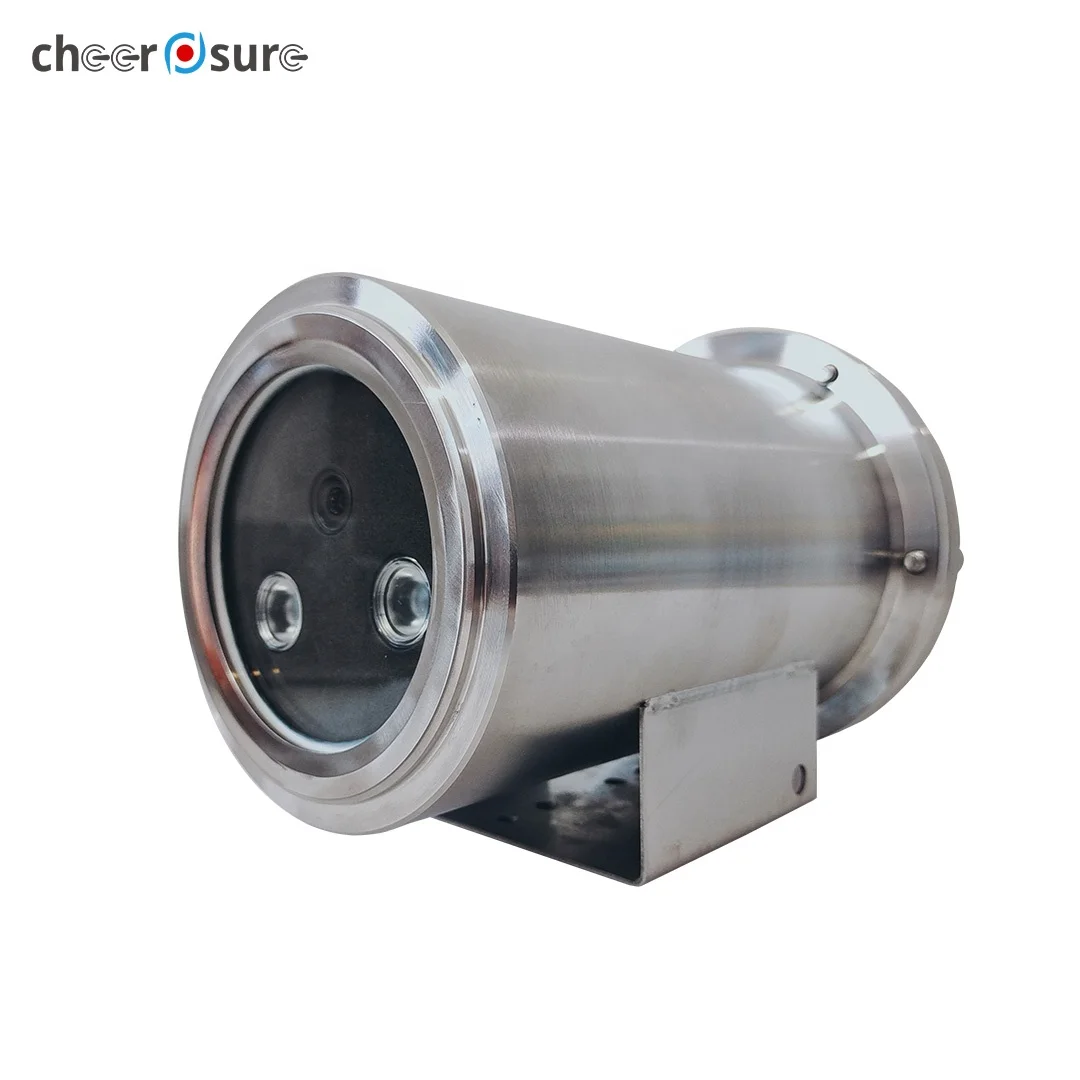

professional IP68 cctv high speed network explosion proof camera for Oil Tank Truck
- Category: >>>
- Supplier: Hangzhou Cheer Sure Intelligent Machinery Co. Ltd.
Share on (1600565647549):
Product Overview
Description
Product Overview

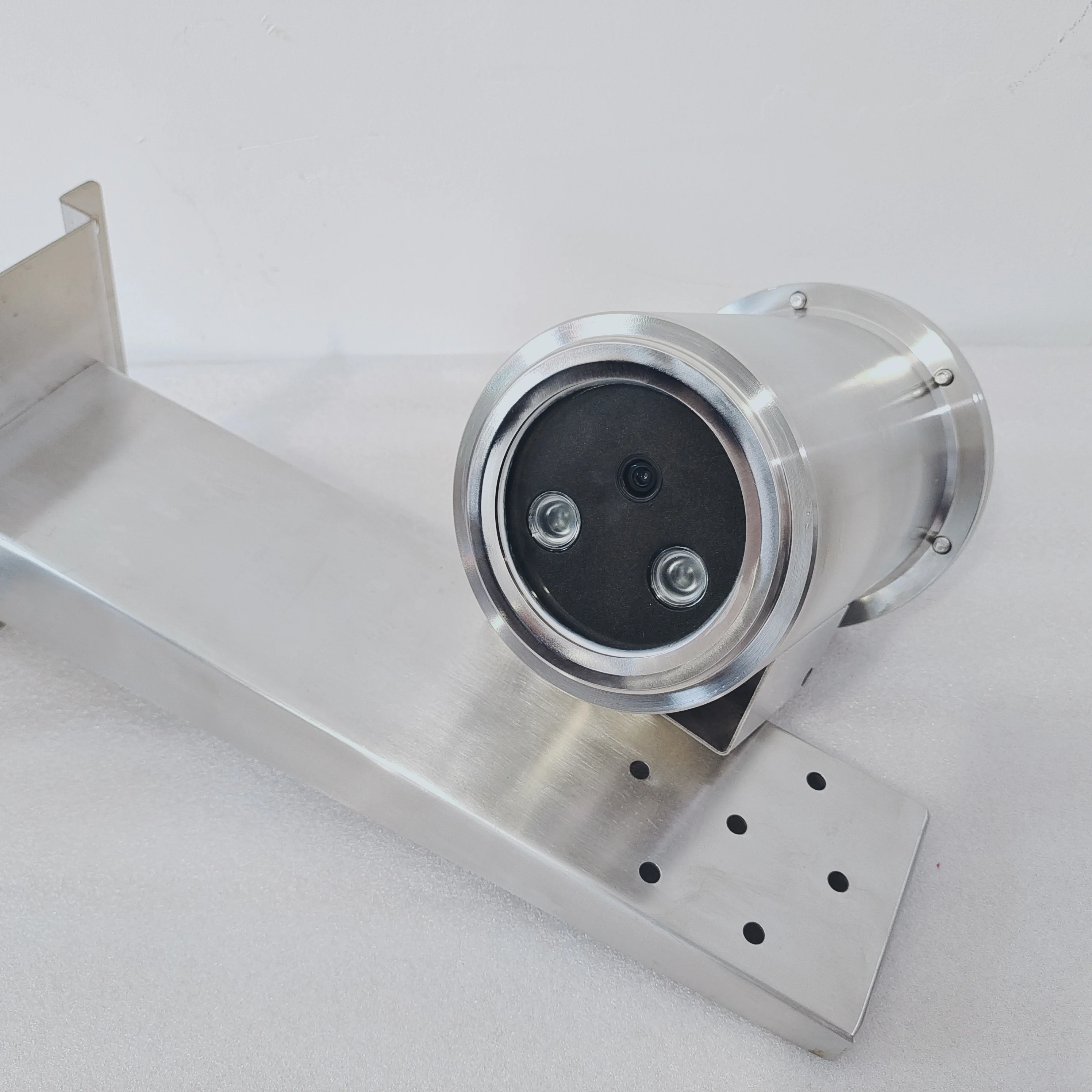

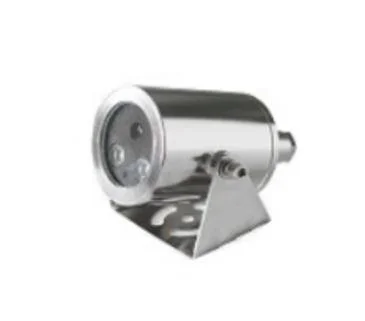

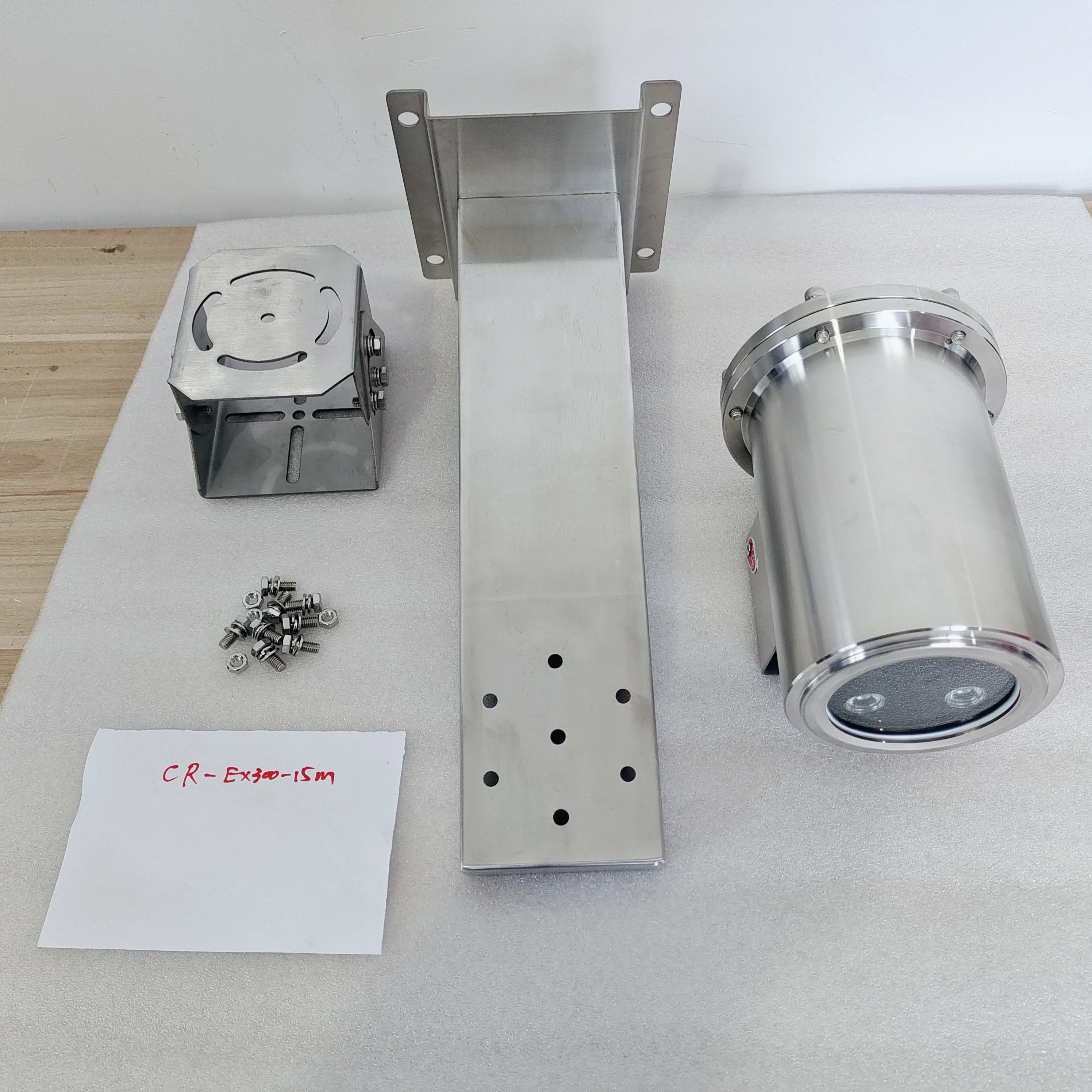

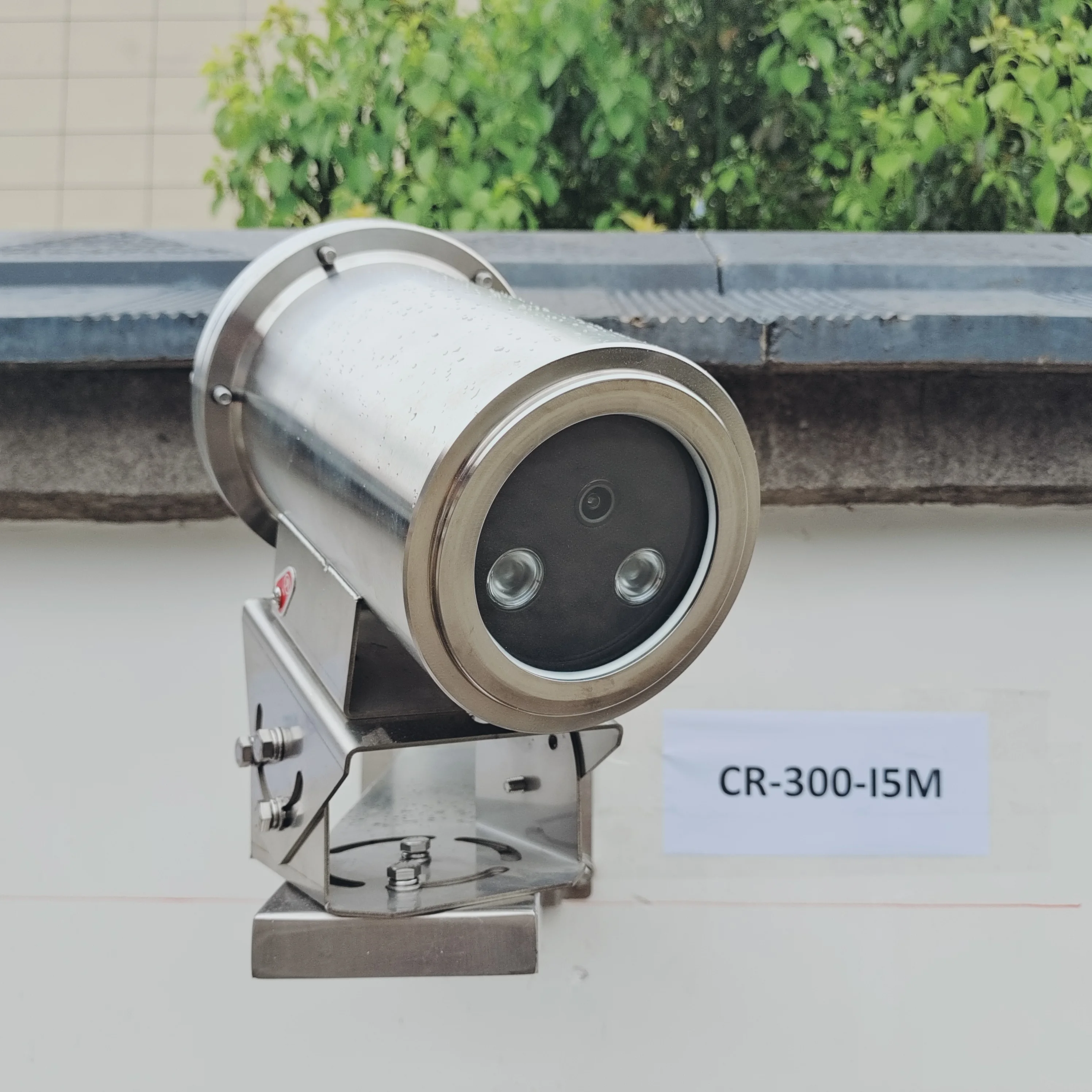

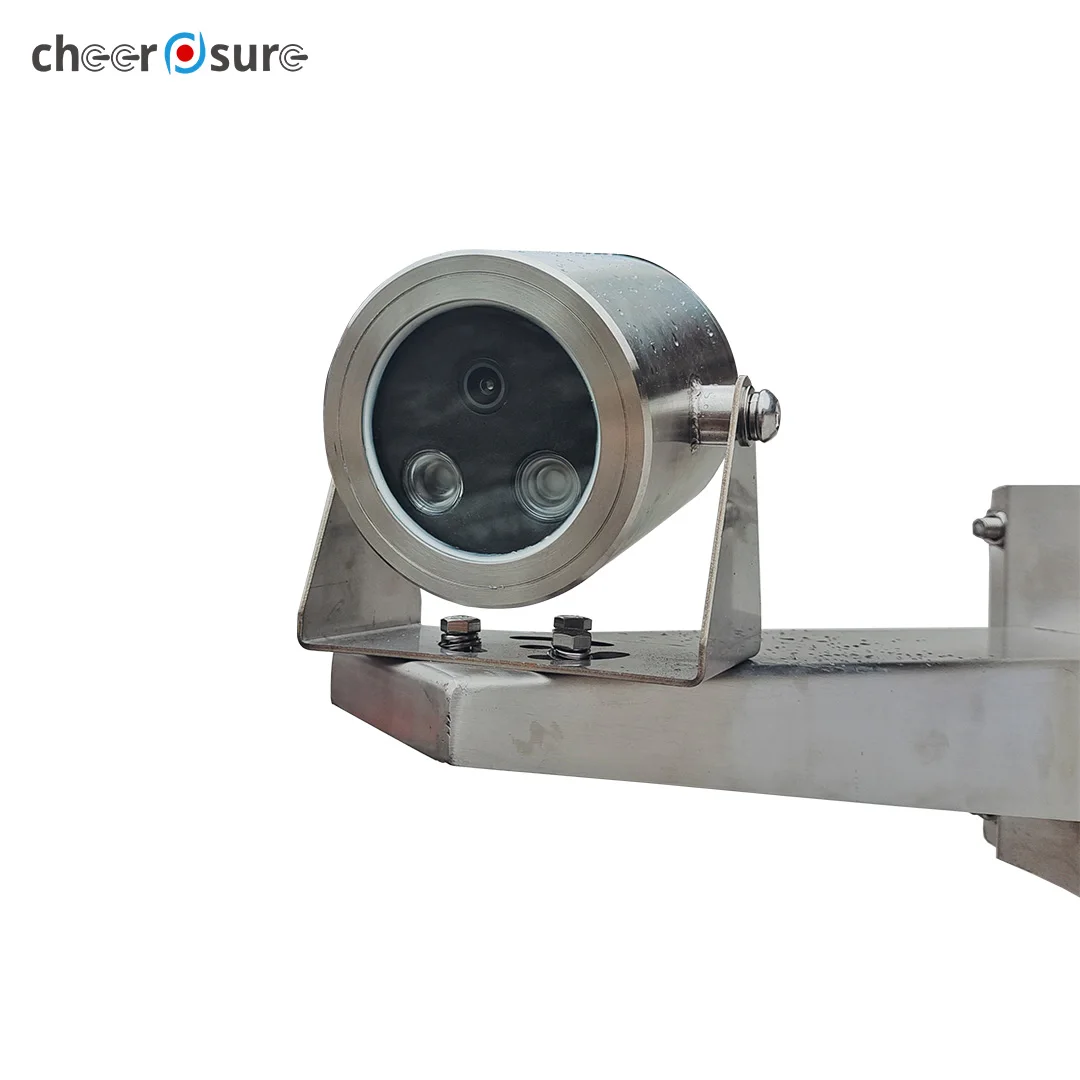

On board explosion-proof camera
It is applicable to areas 1 and 2 with class IIa, IIb and IIC combustible gases and ignition temperature group of T1-T6, explosive mixture formed by combustible gas or steam and air, as well as areas 20, 21 and 22 with ignition temperature group of t1-t-t6 and combustible dust mixture. The on-board explosion-proof camera has built-in high brightness infrared lamp, which can be used day and night. It has the characteristics of small volume, light weight, flexible configuration and advanced functions. It is a high-quality product specially designed to meet the monitoring needs of dangerous goods transportation vehicles.
FEATURES AT A GLANCE
Explosion proof identification: Exd IIC T6 GB / extd A21 IP68 T80 ℃
Protection grade: IP68
Product standard: Q / 006-2016
Stainless steel design, double explosion-proof certification
Wide voltage design supports user customization
·Precision processing of window glass, with self-cleaning function, can be used in hydrofluoric acid environment
Protection grade: IP68
Product standard: Q / 006-2016
DC Poe power supply mode
Stainless steel design, double explosion-proof certification
Wide voltage design supports user customization
·Precision processing of window glass, with self-cleaning function, can be used in hydrofluoric acid environment
PRODUCT SPECIFICATIONS
Model | JH-EM301M |
Ex Sign | ExdIICT6 |
Protection Grade | IP68 |
Image Sensor | 2 M 1 / 2.7 "CMOS ICR star level infrared array barrel network camera |
Resolution | 1920X1080 |
Frame rate | 50Hz: 25fps (1920 × 1080;1280 × 960;1280 × 720) |
Sensor type | 1/2.7" Progressive Scan CMOS |
Day /night | ICR infrared filter |
Wide dynamic range | 120dB |
Video compression | H.265 / H.264 / MJPEG |
Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour |
ONVIF | ONVIF(PROFILE S,PROFILE G), CGI,ISAPI |
Waterproof Criterion | IP68 |
IR View Distance | 30M |
Power Supply | DC12V±25% |
Working Environment | -30 ℃ ~ 60 ℃, humidity less than 95% (no condensation) |
Company Profile：

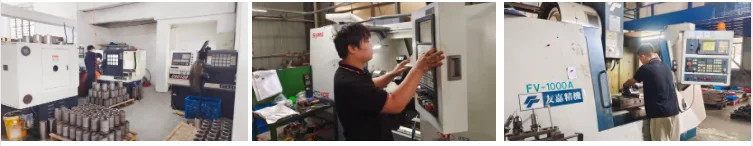

Hangzhou Cheer Sure Intelligent Machinery Co., Ltd. is an integrated enterprise of industry and trade with perfect system. The company is mainly engaged in explosion-proof cameras. Our company has independently produced explosion-proof cameras for more than 10 years. It is one of the first batch of processing plants to produce explosion-proof cameras in China. Our company has been cooperating with Hikvision for more than 5 years. The product quality is qualified, the price is reasonable, and the after-sales service is guaranteed. The purpose of Cheer Sure Intelligent is to bring excellent Chinese quality to the world and create greater value for global users.
FAQ
1.Do you have professional explosion proof qualification certificate？
Yes, we have CNEX professional explosion proof certificate
2.What is the material quality of your explosion proof enclosure?
2.What is the material quality of your explosion proof enclosure?
We use American standard stainless steel
3. About the shipment:
what type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your
nearest airport. If the order quantity is large, we may ship by sea container.
what type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your
nearest airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order
5. About the MOQ: What is your
minimum order qty? Our minimum order qty is 1pcs each model
minimum order qty? Our minimum order qty is 1pcs each model
6. About OEM: could we place order by OEM style to produce our own brand products in China?
elcome to contact us for OEM and ODM services.
