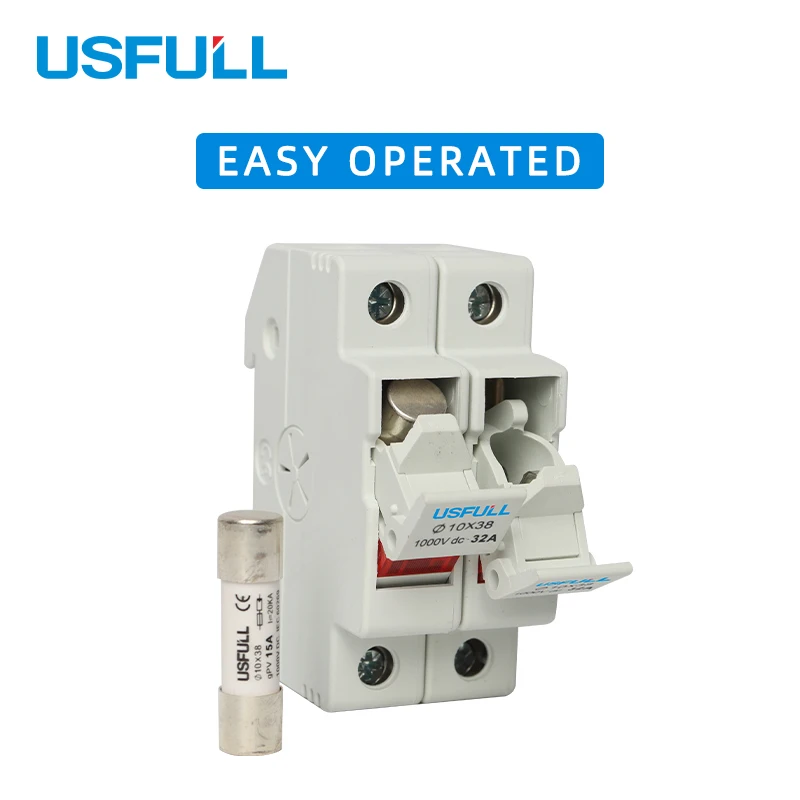

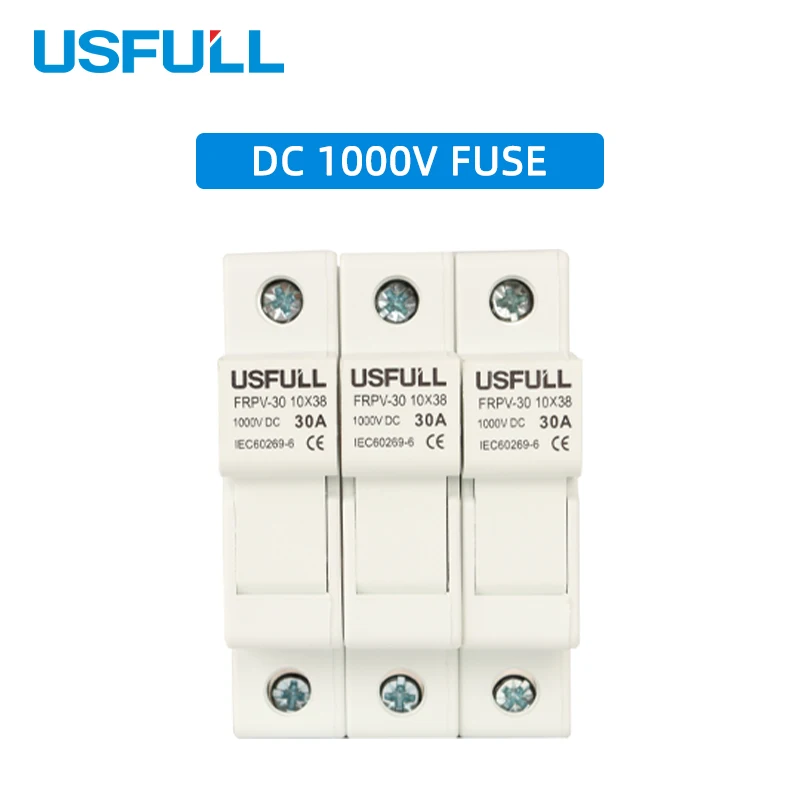

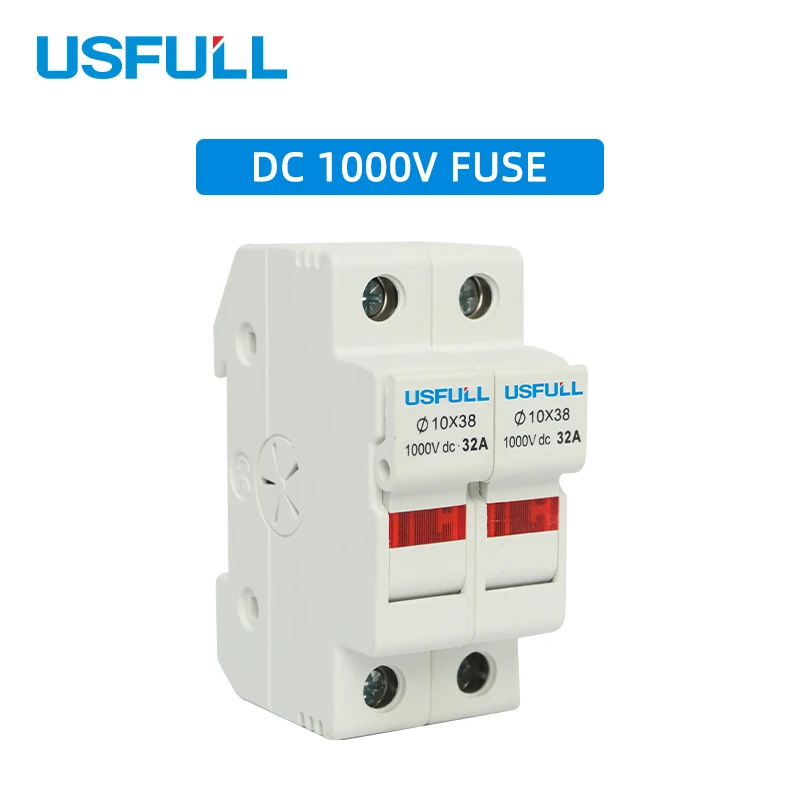

USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch
USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch

USFULL PV Solar Short Circuit Protection 1000Vdc Din Rail Fuse Holder Switch

Share on (1600565673996):


Price:$1.70 - $2.00

Quantity:


Product Overview

Description

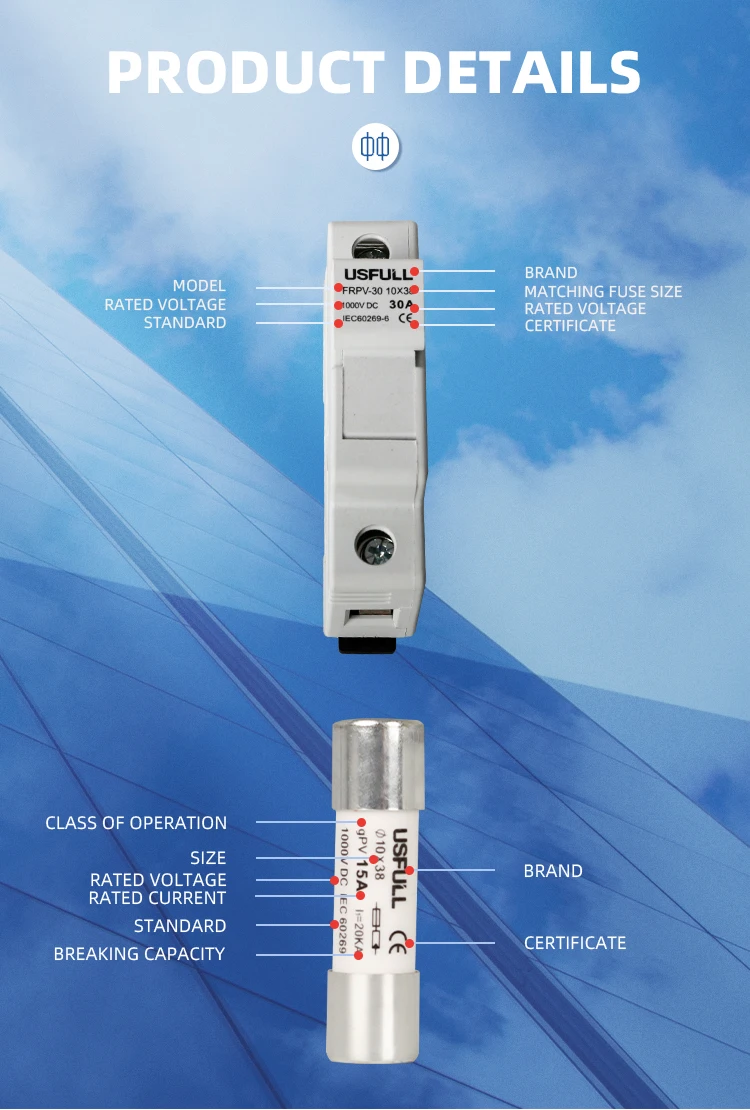

2022-FRPV-30 (1)2022-FRPV-30 (2)2022-FRPV-30 (3)2022-FRPV-30 (4)

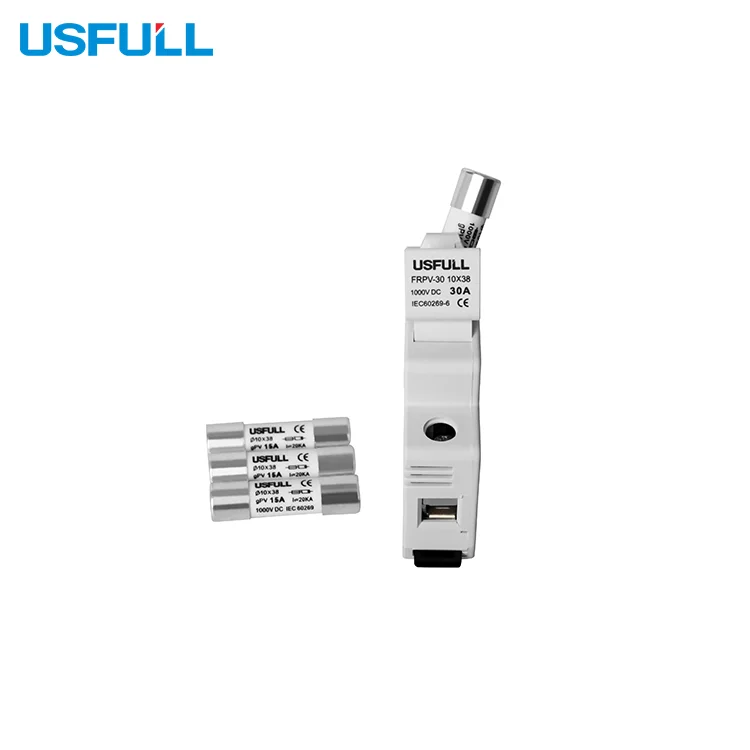

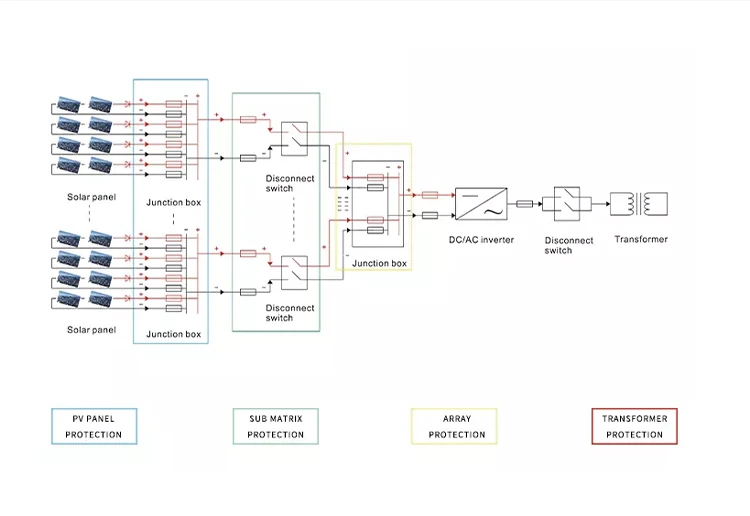

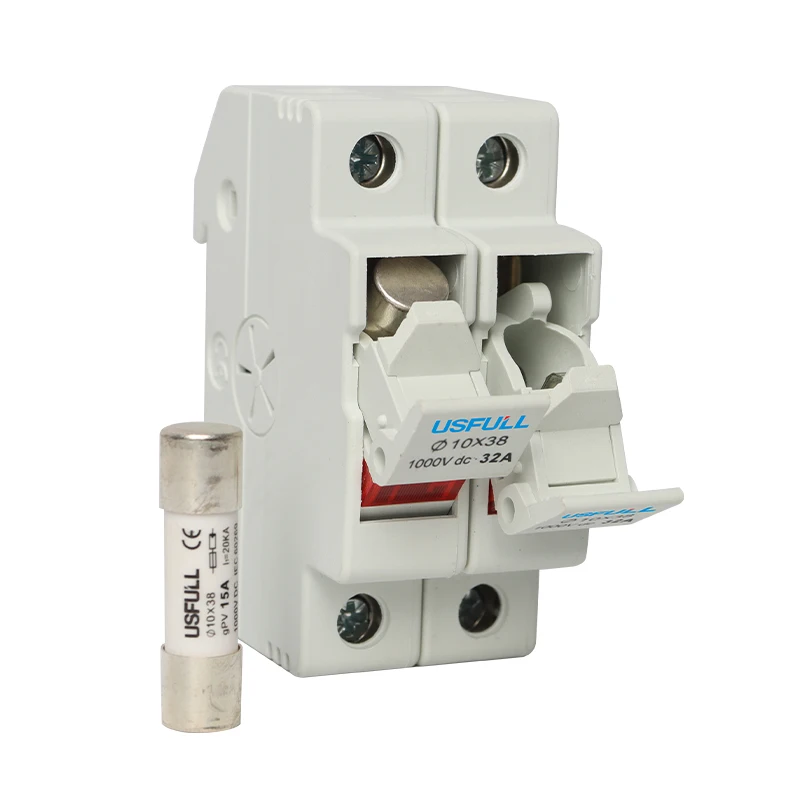

A range of 10x38mm fuse links is specifically designed for protecting photovoltaic strings. These fuse-links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).















DC Fuse Parameters:






















































































Specification
Product ModelFRPV-30
ColorWhiteGrey blue
Pole1P
Rated VoltageDC 1000V
Rated Current(A)1-32A
Short-Circuit Breaking Capacity22KA
Max Power Attenuation2.5-10mm²
Protection GradeIP20
Connection3.5KW
Operation Ambient Temperature-30℃ to +70℃
Resistance and Damp HotClass 2
Elevation≤2000
Installation WayTH35-7.5/ 35mm Din Rail Installation
RH(relative air humidity)when +20℃, not exceed 95%; when +40℃, not exceed 50%
Pollution Class+3
Installation Environmentthe place of no obvious vibrate&impact
Installation class

III

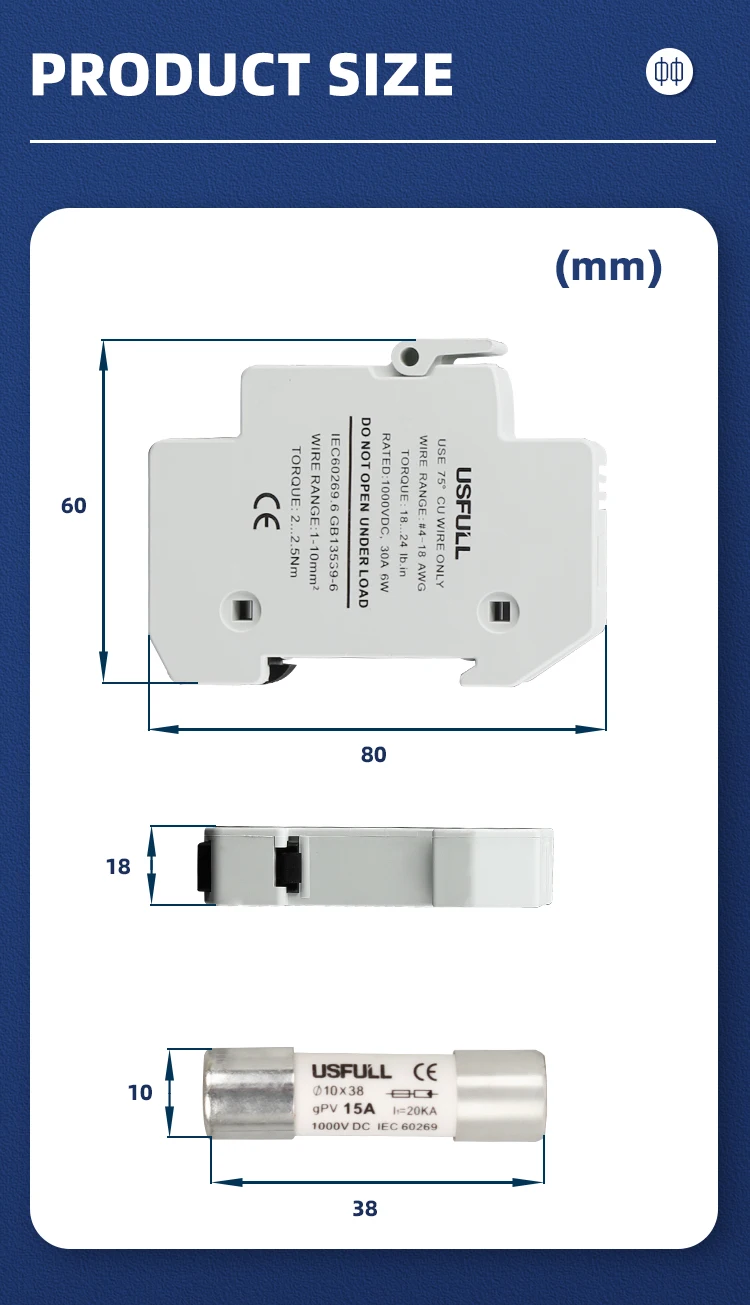

Dimension80x18x60 mm82x18x62 mm
Weight0.07KG

2022-FRPV-30 (6)2022-FRPV-30 (7)2022-FRPV-30 (8)2022-FRPV-30 (9)2022-FRPV-30 (10)
