Solar AC/DC hybrid input solar pump 4' stainless steel impeller brushless solar submersible deep well pump with controller
- Category: >>>
- Supplier: Shenzhen LK-Solar New Energy Technology Co. LtdShenzhen Ltd
Share on (1600565675175):
Product Overview
Description
Advantage

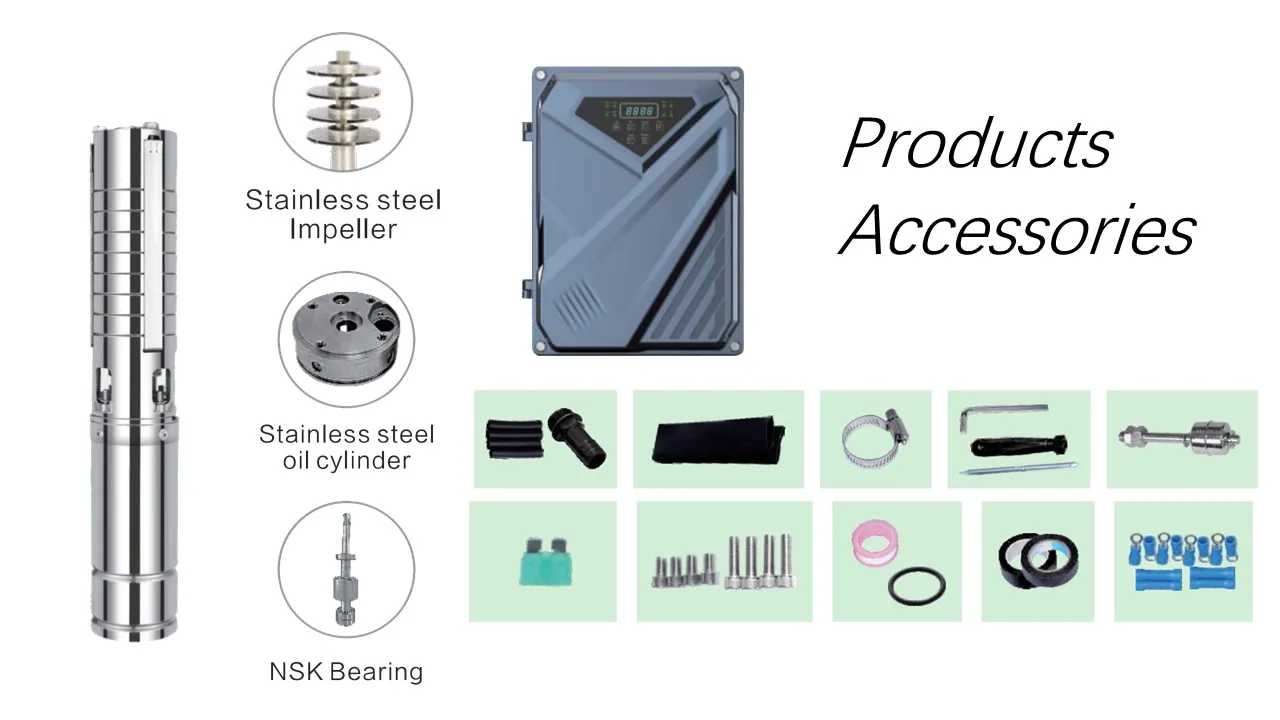

Product Components

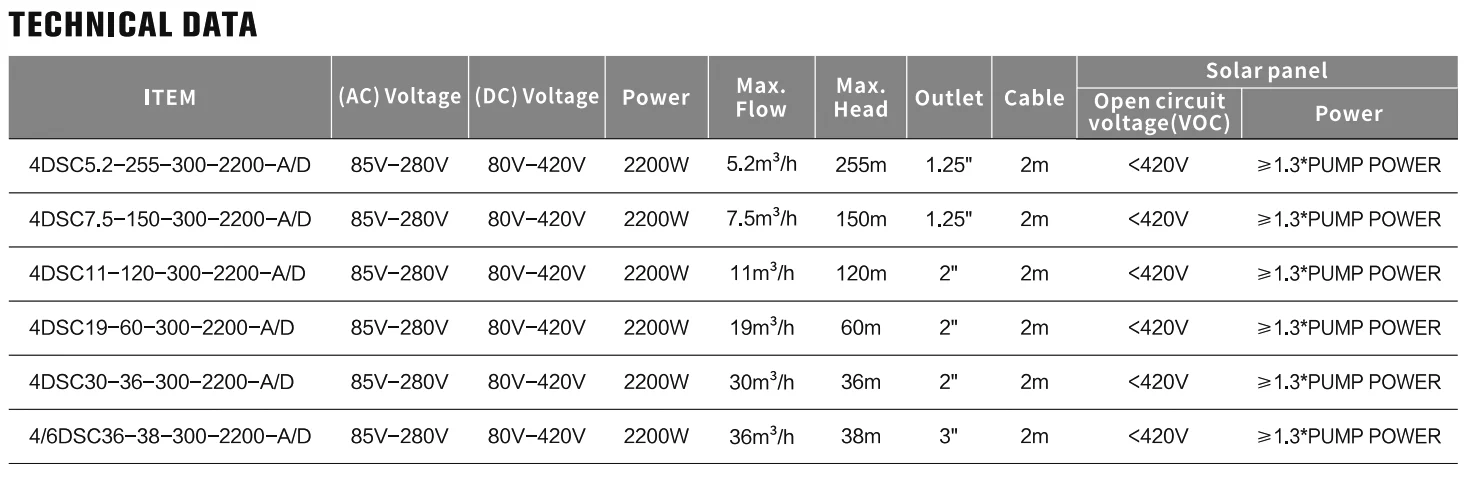

Specifications

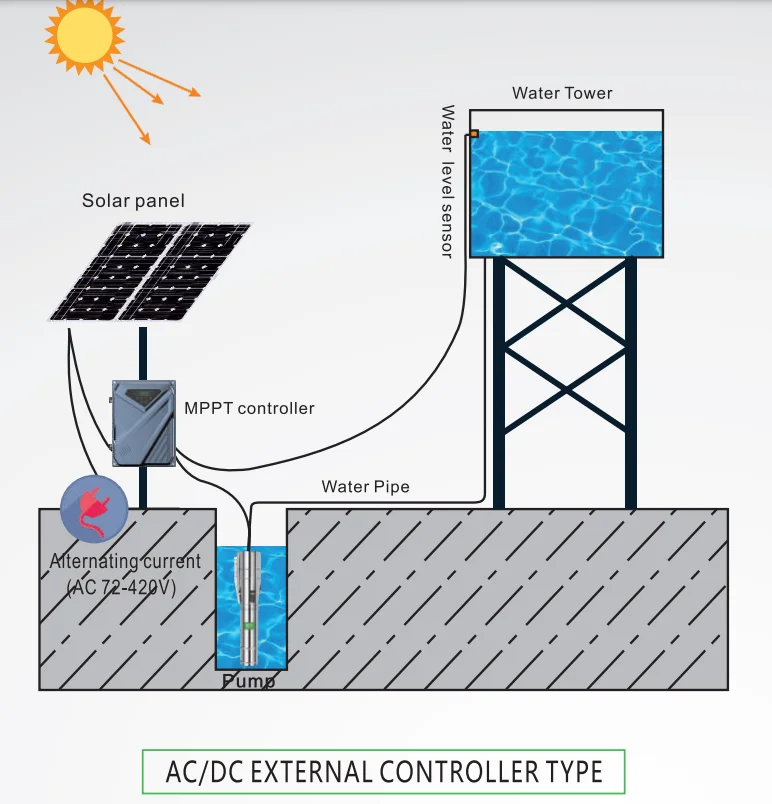

Working Sketch Map

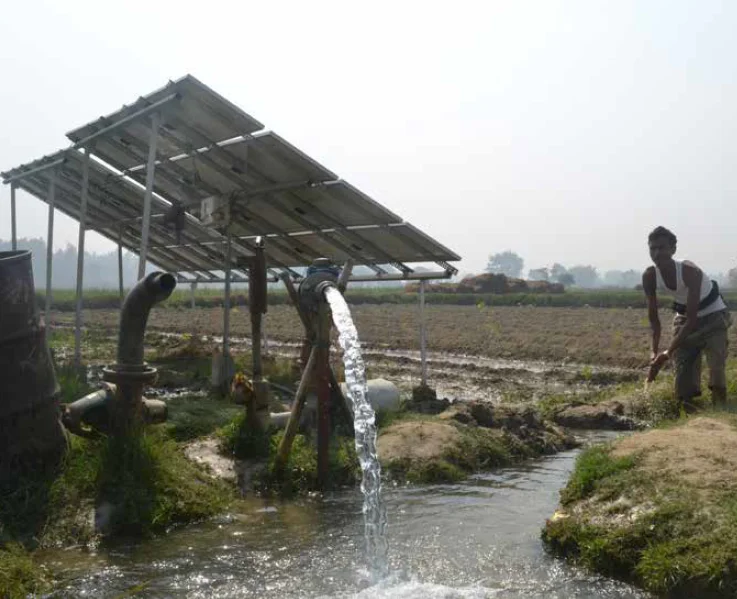

The solar pump system is mainly composed of solar panel, controller, water pump, mounting bracket,cables , water level sensor and other necessary accessories. The photovoltaic generation technology is used to solve the problem of power supply and water supply on the spot. The initial investment cost is less than 2KM and the long-distance erection grid.The comprehensive cost is lower than diesel generator after two years of continuous working. It is widely used in photovoltaic agricultural irrigation, irrigation station reconstruction,household water supply and desert greening,where there is no electricity or insufficient electricity supply.
The photovoltaic array is made up of many solar panels connected in series and in parallel, and the solar energy is converted into electric energy by absorbing the solar radiation energy to provide power for the solar pump system;

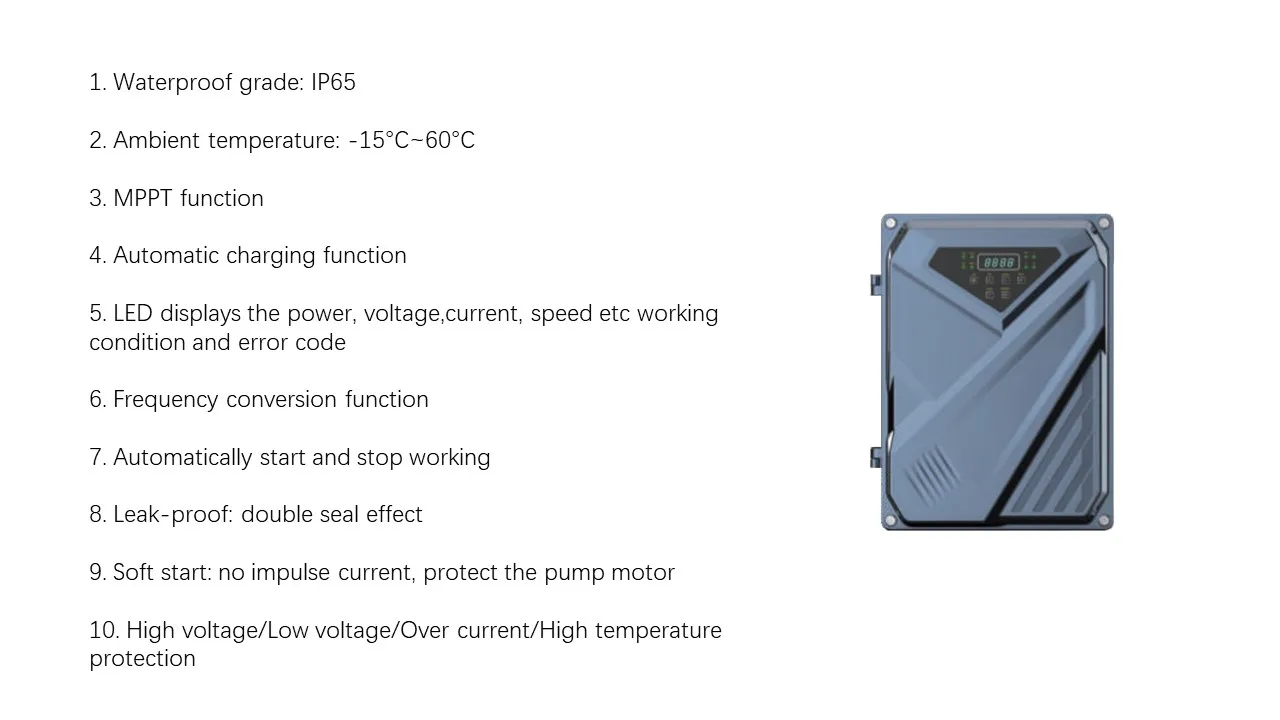

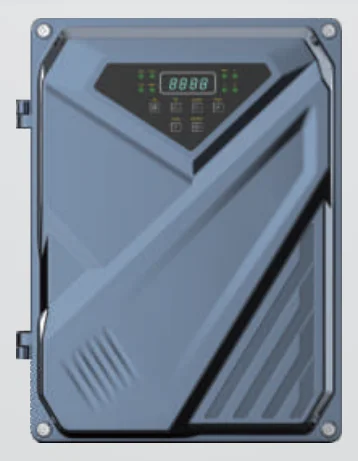

The solar pump controller, drives the water pump to supply water, with the functions of MPPT maximum power tracking, water level control, fully automatic operation, etc., to control and adjust the whole system operation;

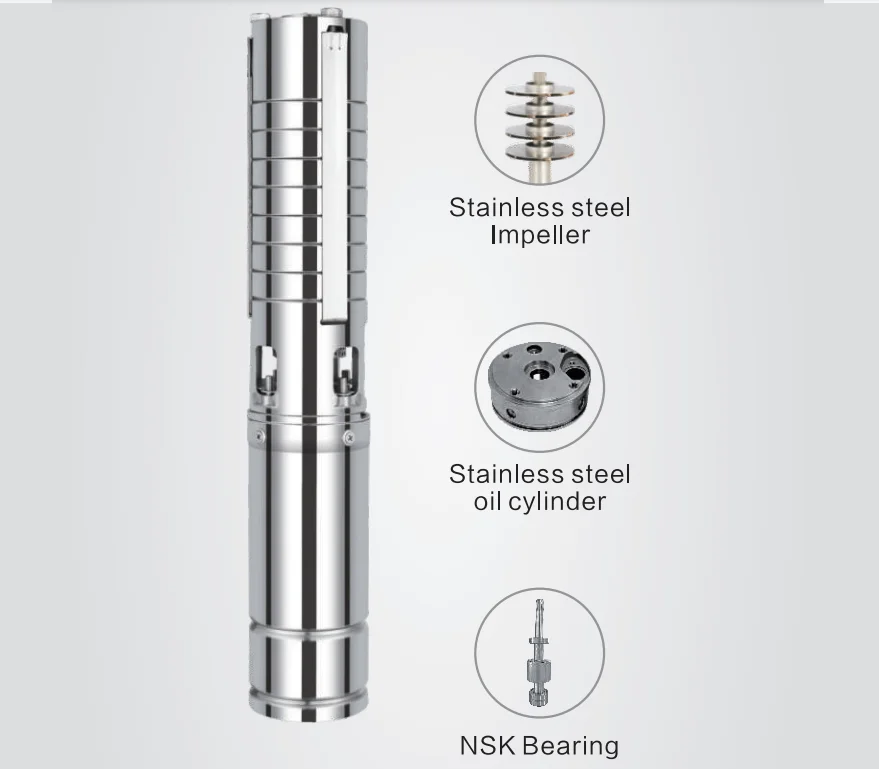

The solar pumps are deep well pump, submersible pump, horizontal centrifugal pump, vertical multistage centrifugal pump, driven by permanent DC brushless synchronous motor, pumping water from deep well, river and lake, injecting pool or tank, or agricultural irigation and domestic water supply.
The mounting bracket provides fixed and supporting for the solar panel. It is installed at the best angle according to the
latitude of different regions to achieve the maximum power generation efficiency of solar modules. It has good performances of earthquake resistance, wind resistance and corrosion resistance, and solar panels can be installed on the roof,or the ground.
latitude of different regions to achieve the maximum power generation efficiency of solar modules. It has good performances of earthquake resistance, wind resistance and corrosion resistance, and solar panels can be installed on the roof,or the ground.
The accessories are mainly DC cables, water pipes, sensors for control water level, wire rope for hanging deep well pump, multimeter for measuring current and voltage, MC4 connectors, filter, reactor, etc.
Shenzhen LK-Solar New Energy Technology Co., Ltd is an international high-tech enterprise, focusing on the practical fields of solar energy, such as solar irrigation, solar home appliances and so on. It is our aim to provide professional and economical solar energy solutions for every customer. Re-realizing green sea and blue sky is our vision.
Company's main products are: high-performance general-purpose frequency inverter, non-inductive vector frequency inverter, high-performance vector frequency inverter, solar water pump inverter, solar water pump system solutions and inverter peripheral products. Our products are widely used in municipal, petroleum, machinery, textile, printing, machine tools, mining, solar agricultural irrigation, desert greening, household water supply and other industries.
Welcom to contact us for win-win solar solutions
Company's main products are: high-performance general-purpose frequency inverter, non-inductive vector frequency inverter, high-performance vector frequency inverter, solar water pump inverter, solar water pump system solutions and inverter peripheral products. Our products are widely used in municipal, petroleum, machinery, textile, printing, machine tools, mining, solar agricultural irrigation, desert greening, household water supply and other industries.
Welcom to contact us for win-win solar solutions

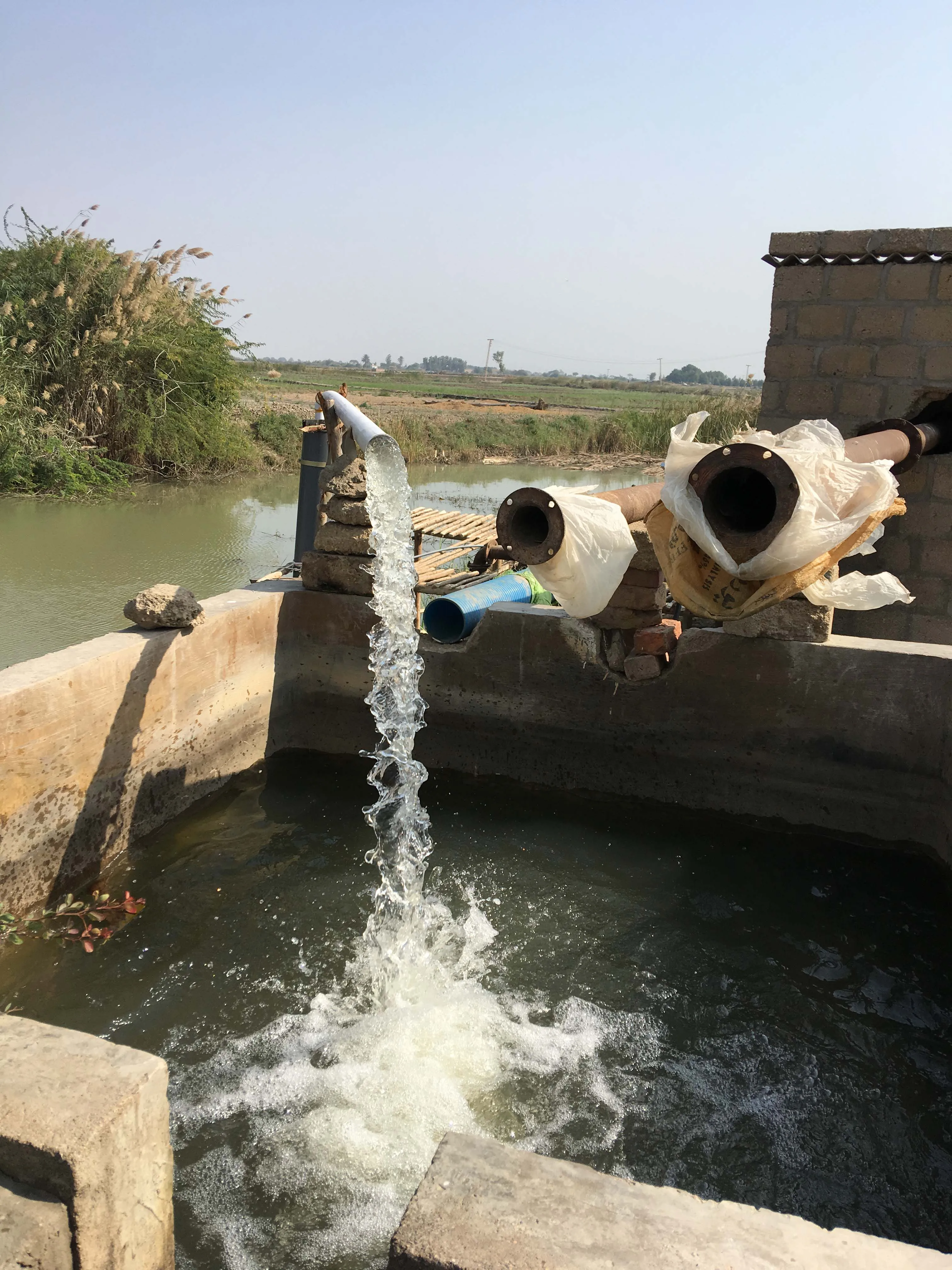

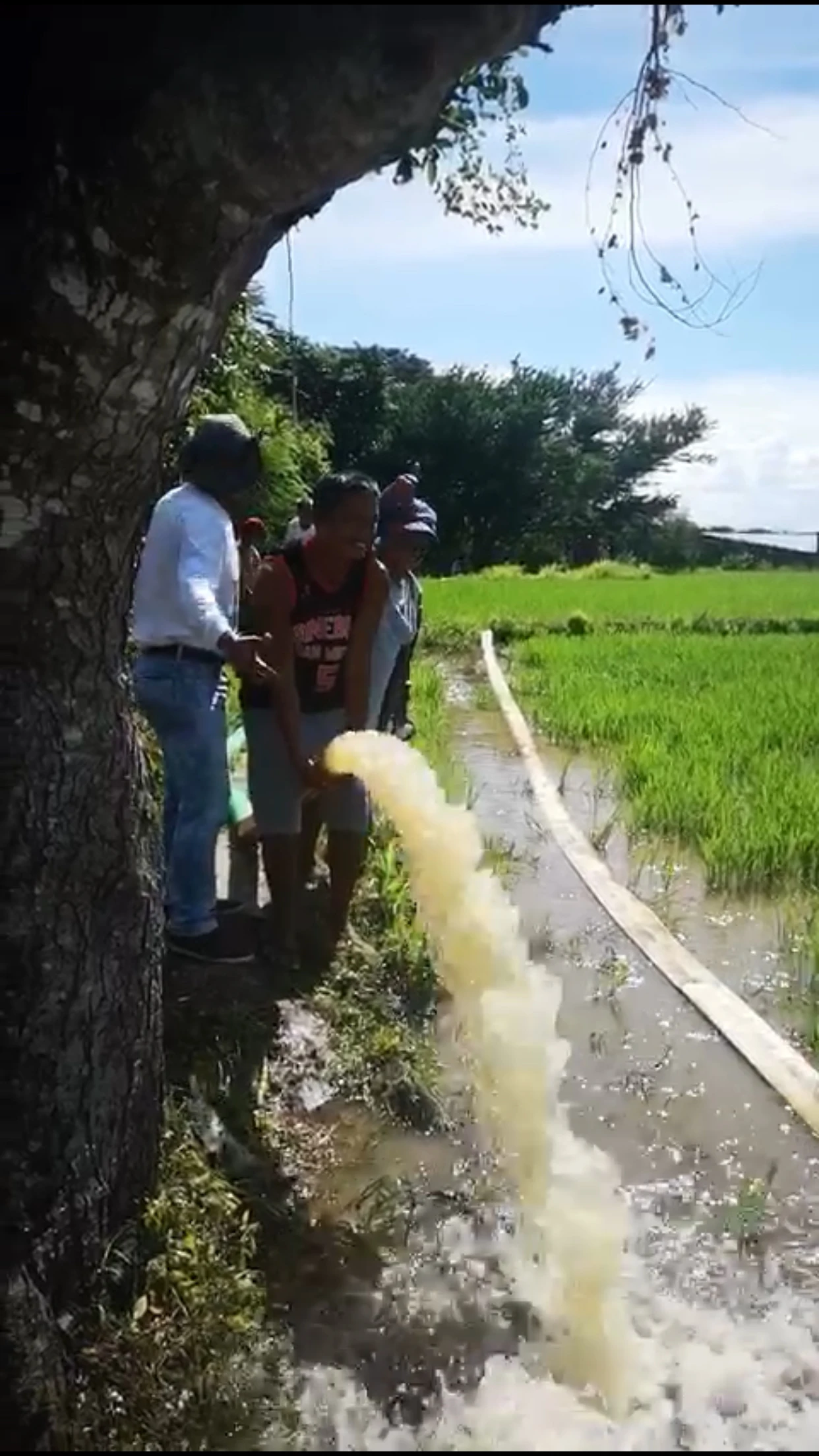

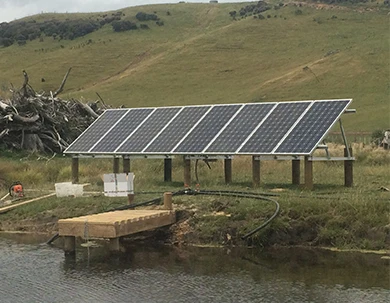

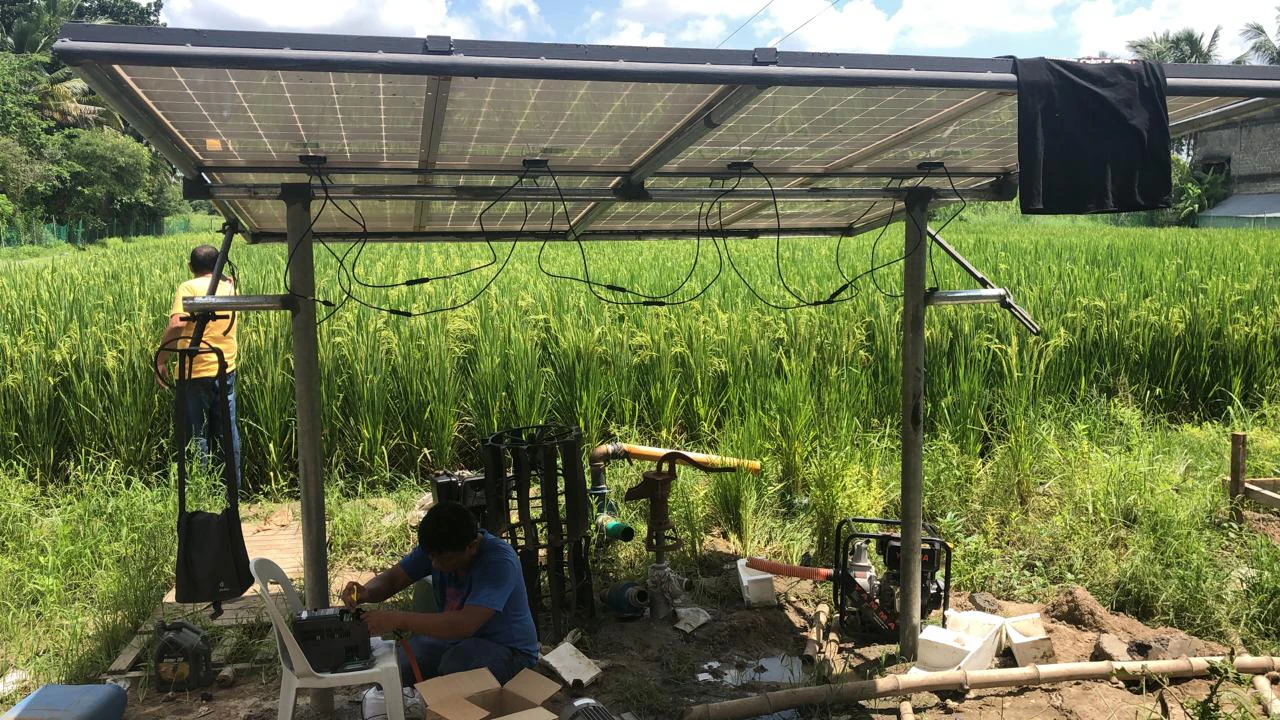

Project Location | Purpose | Water Source | Model of Pump |
Sindh-Pakistan | Agriculture irrigation | River. water depth 8-10m, 2m from river to tank | 3KW AISI304 submersible pump,3phase,380V Rated water flow:20 m³/h;Rated lift head:10m |
Muscat-Oman | Farm fishery, animal husbandry | Tank | 2pcs 15KW pump+8pcs 7.5KW pumps+4pcs 4KW pump |
Farmland Irrigation | River | 4SP5-17,1.5KW (2HP) 3PH 220V 50HZ,full AISI304 pump material Rate 6 m3/h water flow, rate 52 m lift head | |
Desert agriculture | 160m depth borehole well | 6SP46-20,30KW (40HP) 3PH 380V 50HZ,full AISI304 pump material Rate 46 m3/h water flow, rate 173m lift head |
