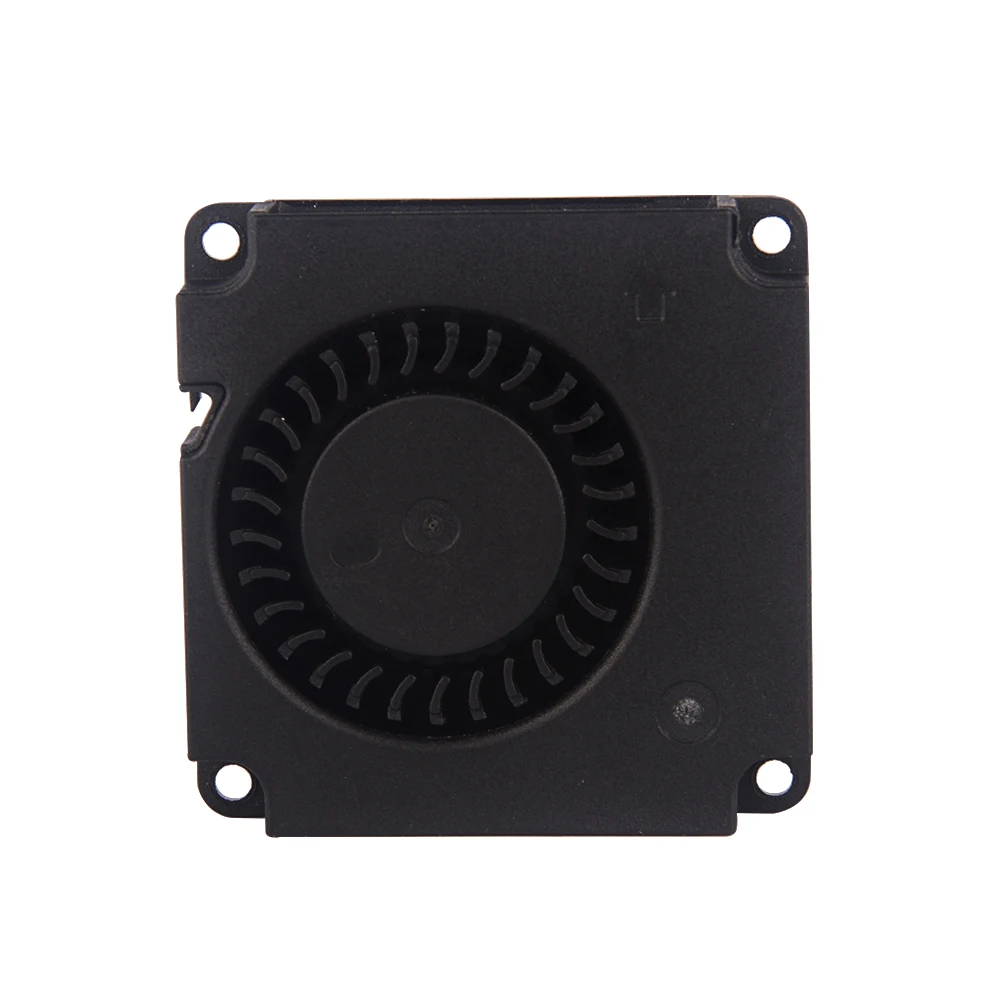

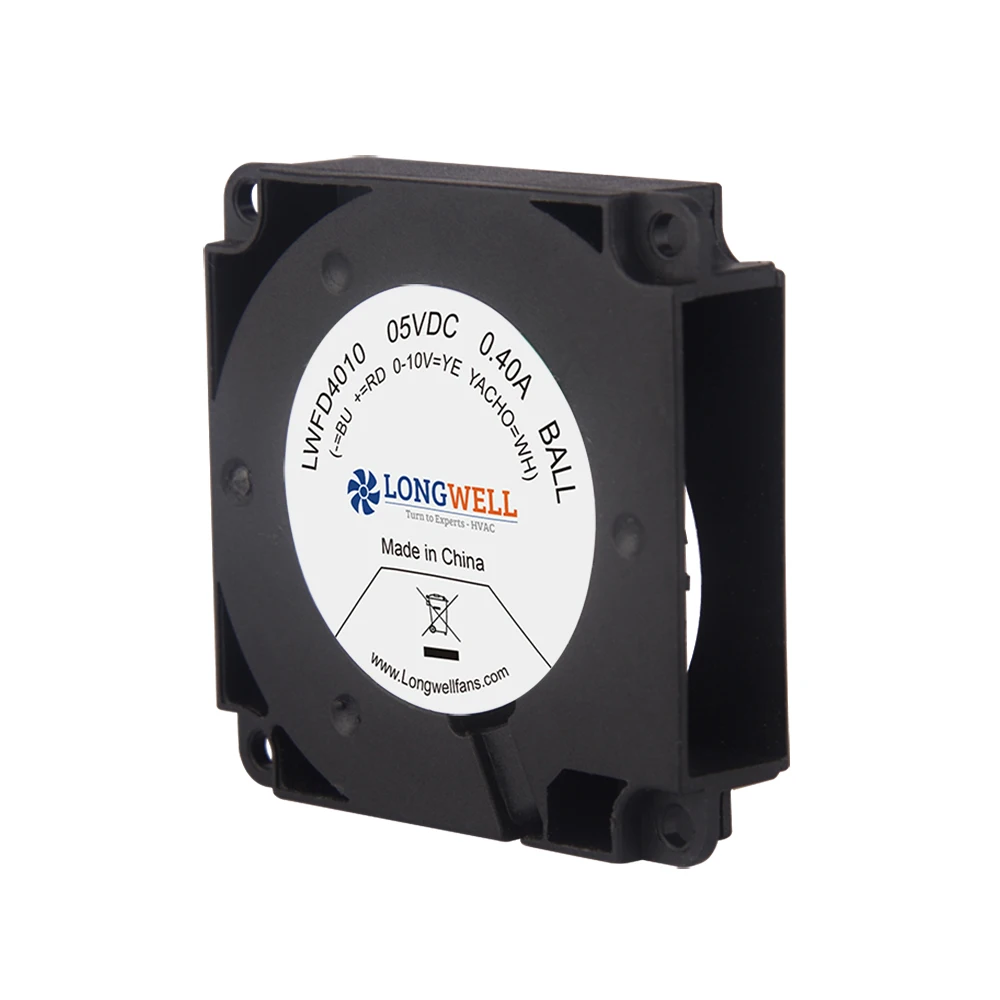

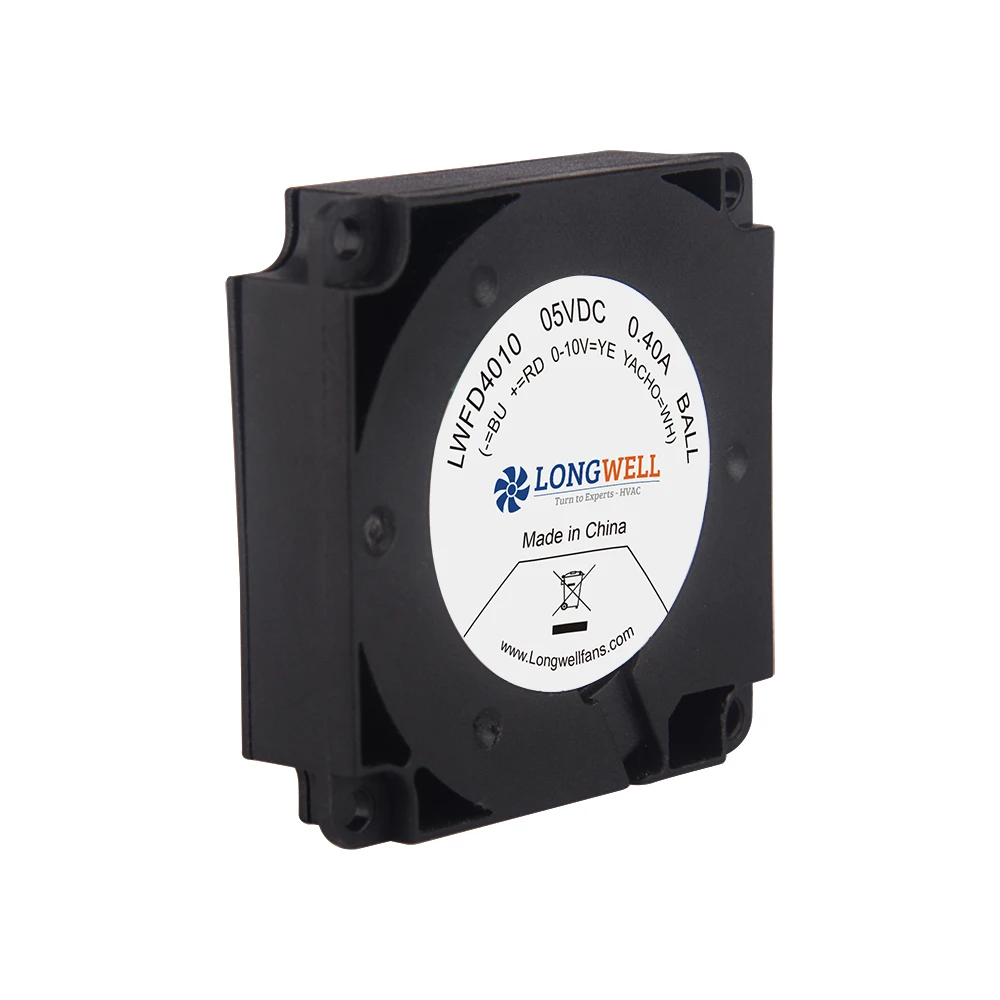

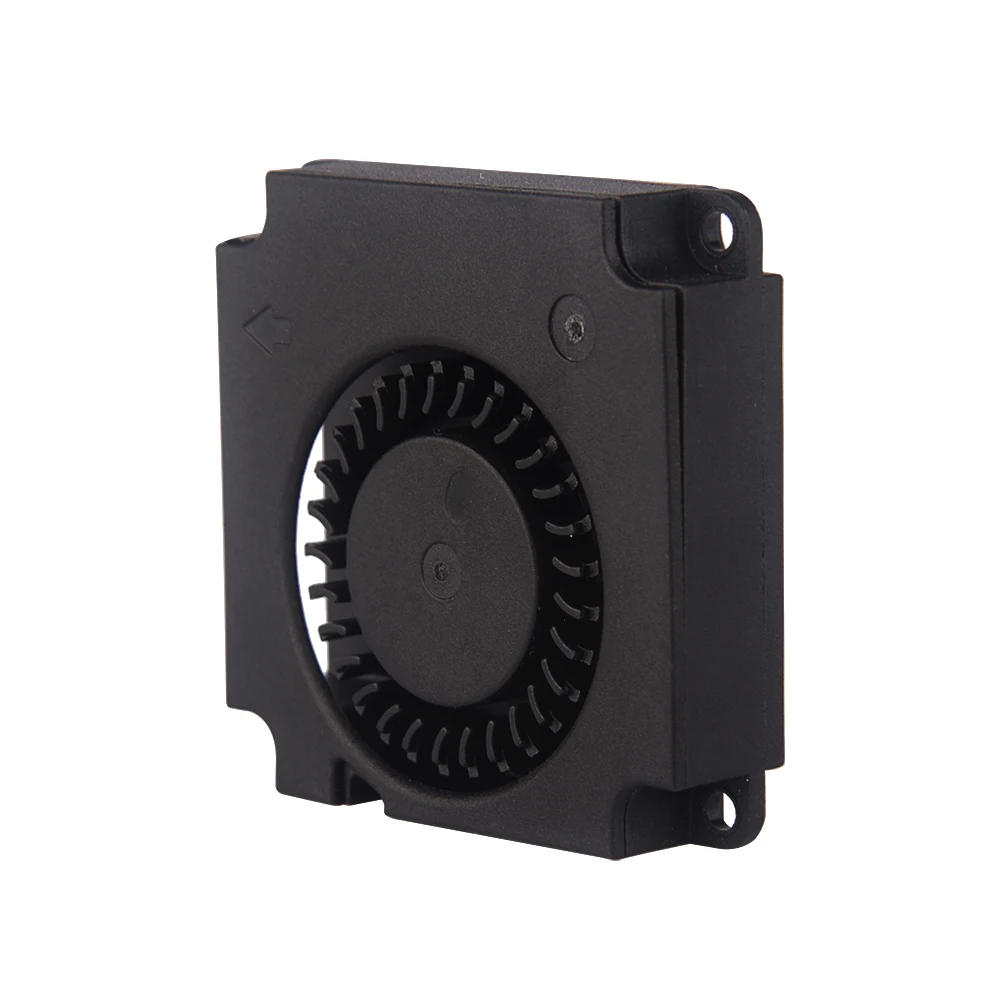

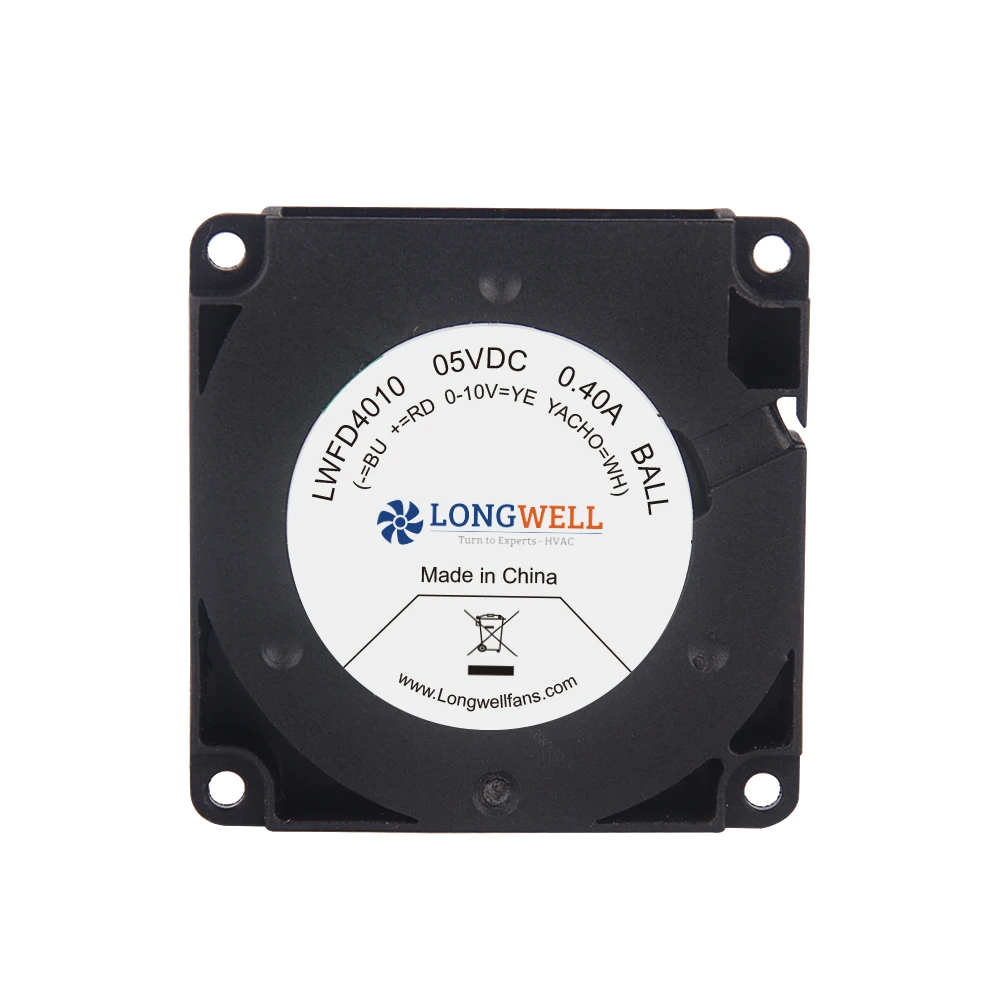

40x40x10 DC 5V 12V 24V 5000 9000RPM 4010 Mini Centrifugal Fan Blower for computer , Cooling ,Ventilating
- Category: >>>
- Supplier: Ningbo Longwell Electric Technology Co. Ltd.
Share on (1600565694117):
Product Overview
Description
40x40x10 DC 5V 12V 24V 5000 - 9000RPM 4010 Mini Centrifugal Fan Blower for computer , Cooling ,Ventilating
Product Overview | ||||||||
Norminal Voltage : | DC5V( 4.0 - 5.5 VDC) ; DC12V( 6 - 13.8 VDC) ; DC24V (12 - 27.6VDC); | |||||||
EC(115V ,230V ),AC 115V 230V | ||||||||
Dimensions : | 40mmx 40mmx10mm | |||||||
Specifications options : | AS,RD,FG,PWM,Temperature Control ,IP56,IP68 | |||||||
Materials : | Frame : Plastic ( UL94-VO) | |||||||
Impeller : Plastic ( UL94-VO) | ||||||||
Mainly Applications ： | · Electronic cabinet cooling · Ventilation cooling system · AutoMotive ·Server CCTV · Air Cooling system -CPU / computer Cooling · Pharmaceutical/biological control systems · Computer room air conditioning (CRAC) systems -etc | |||||||
Speed Control : PWM VSP Temperature control fix speed with pressure intermittent ;
Out Signal : FG RD LD
Insulation Resistance : 10 MΩ/500V DC ;
Dielectric Strength : 2Min/500V AC /5mA

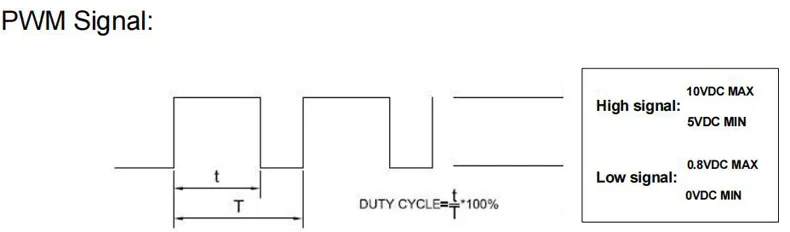

A: The frequency shall be able to accept 25 KHz ;B: At 0% duty cycle , the rotor will spin stop ;
C:At 100% duty cycle , the rotor will spin at Maximum speed ;
D: With control signal lead disconnected ,the fan will spin at Maximum speed .
C:At 100% duty cycle , the rotor will spin at Maximum speed ;
D: With control signal lead disconnected ,the fan will spin at Maximum speed .

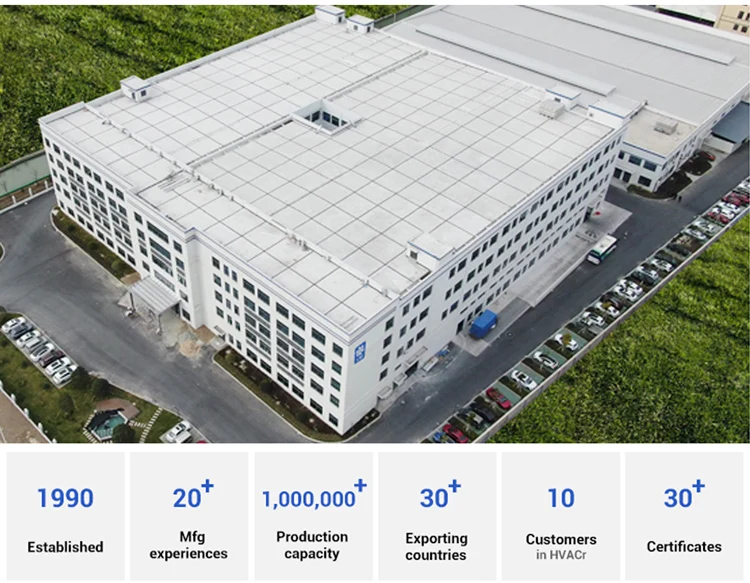

LONGWELL is a manufacturer of HVAC fans, blowers , motors and components ,such as centrifugal fans, axial fans, cross flow fans, single/double forward curved fans ,AC/BLDC/ECM motors as well as industrial fan blowers ，established in 1990 ,equipped with high advanced testing and production facilities ，automatic welding machines , CNC machining centers ,injection machines . with over than 28 years manufacturing experiences , LONGWELL is very skilled in designing, developing and manufacturing ,and exporting to over 30 countries including many Fortune Global 500 customers in HVACR application . and products passed CCC，CE ,ETL and UL .
