Food Grad Stainless Steel 304 2500L pasteurization machines goat milk pasteurizer milk pasteurized equipment With Best Quality

Product Overview

Description

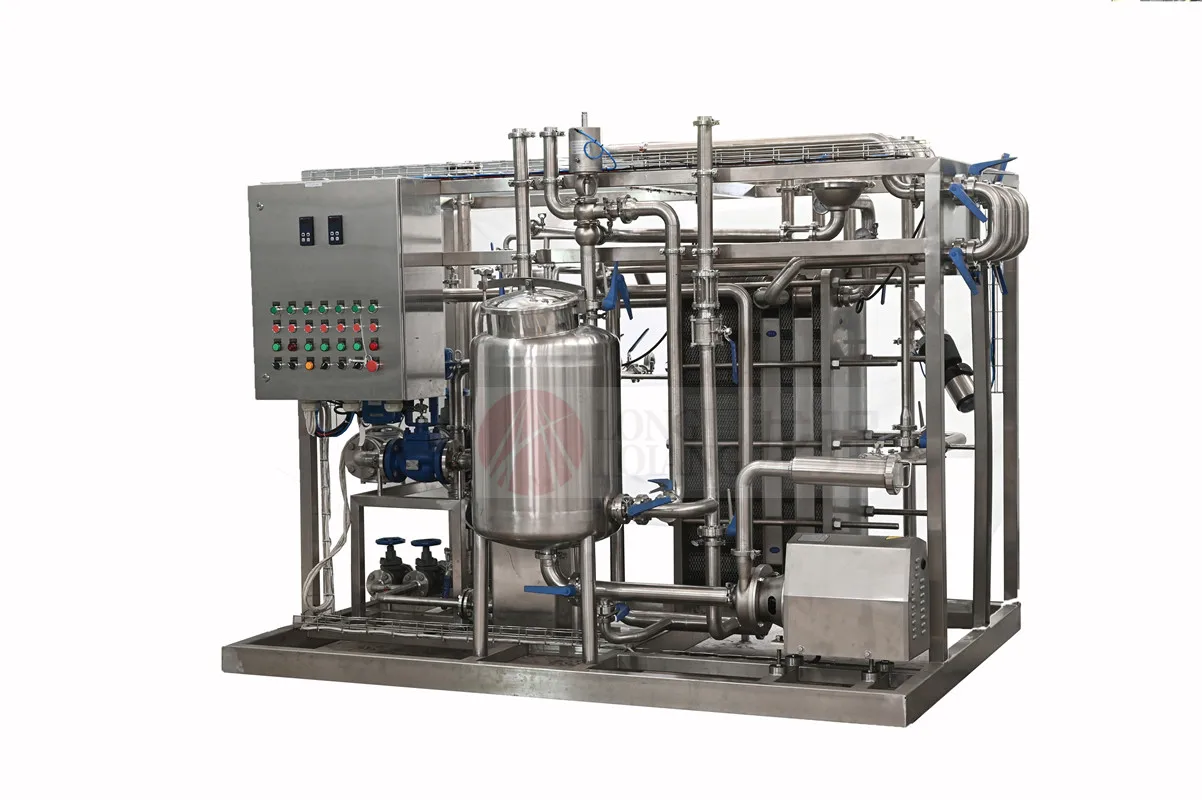

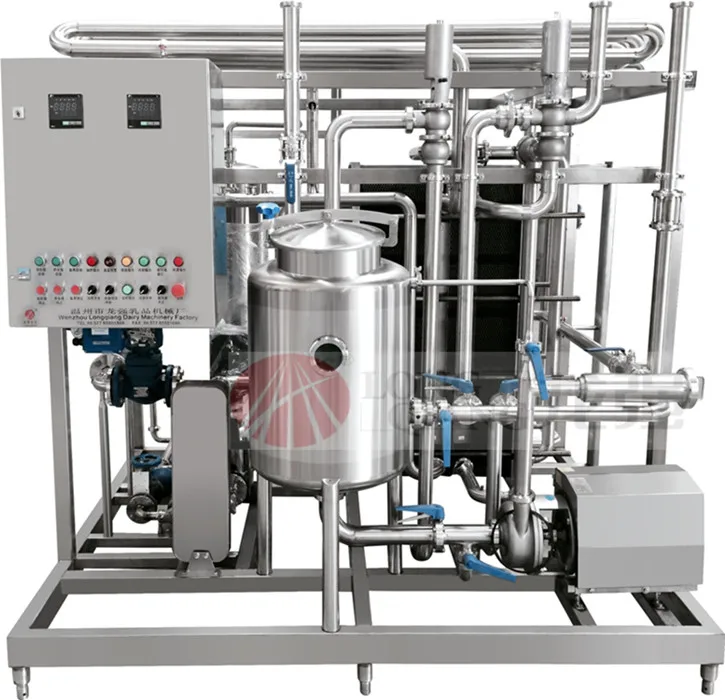

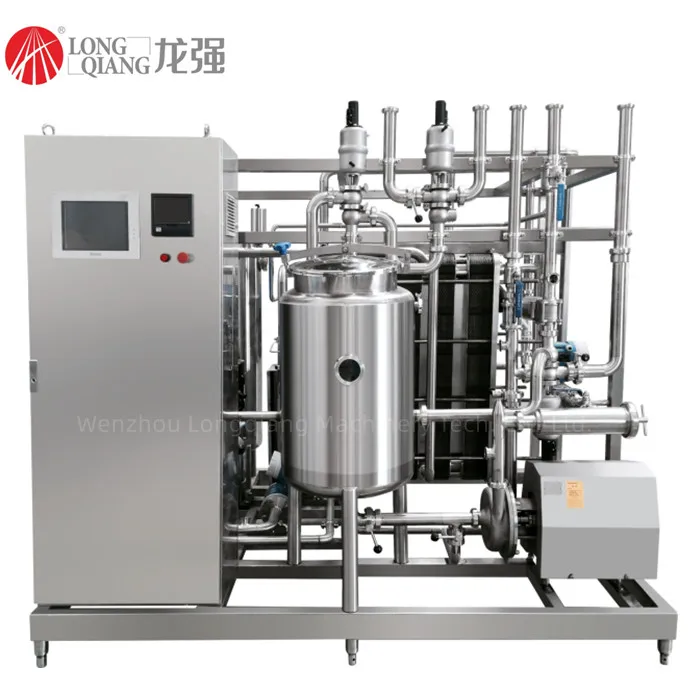

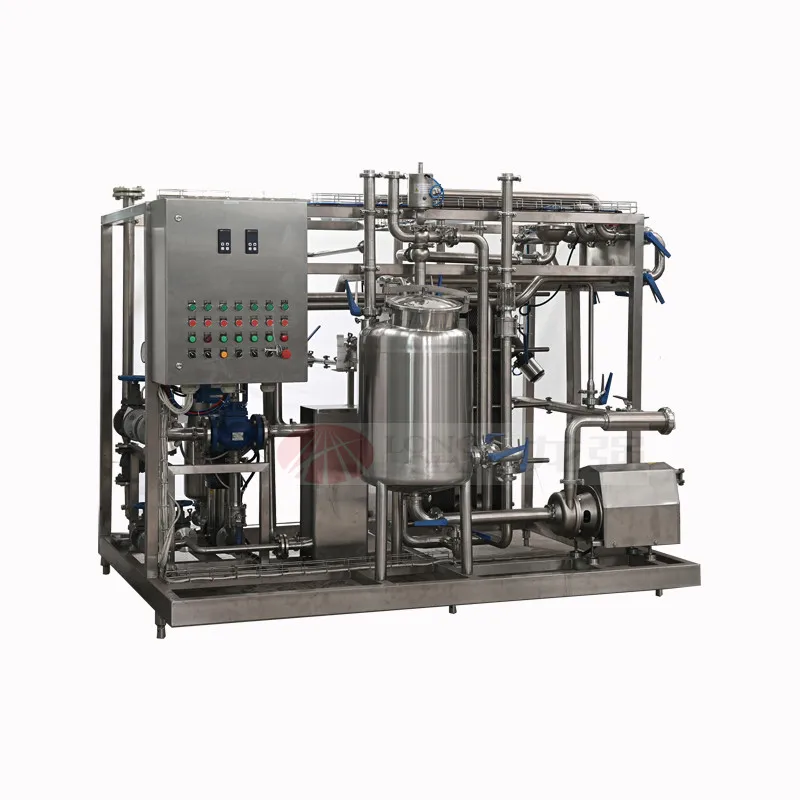

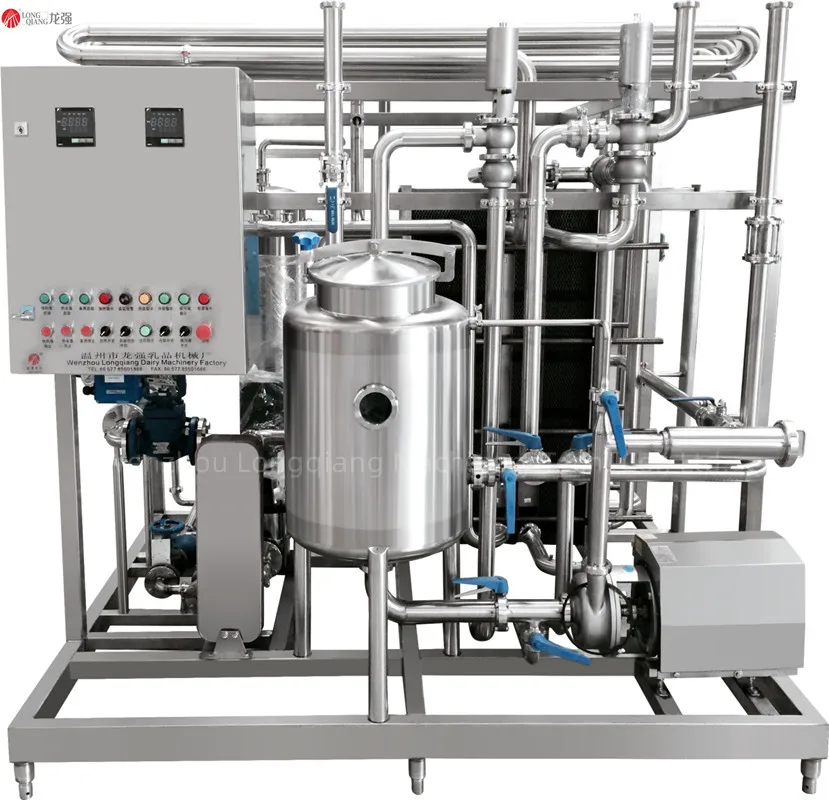

Milk Plate Pasteurizer

Application:
This unit can be connected with separator, homogenizer, flash evaporator and degasser etc...This unit is widely used in fresh milk, milk drink, fruit juice, tea drink, ice cream and wine, and also used to pasteurize raw material.

Characteristics:
This unit has characteristics of high heat recovery, lower energy consumption, compact structure, easy to operate and maintenance.

Operation type:
Fully automatic control( PLC and touch screen)
Semi automatic PID control

Equipped with:
1. Plate heat exchanger
2. Product balance bucket
3. Hot water system
4. Hot water pump
5. Product deliver pump
6. Control panel

Production capacity: 0.5t/hr to 20t/hr.



Model	Capacity (T/H)	Heat exchanging area	Power	Steam Consumption	External dimensions	Weight
BR16-3-0.5	0.5	5	5.2	52	1200×1200×1500	790kg
BR16-3-1	1	8	5.2	60	1500×1500×1800	880kg
BR16-3-2	2t/h	13	6	104	1800×2000×1800	980kg
BR26-3-3	3t/h	20	6	156	2000×2000×2200	1080kg
BR26-3-4-5	4-5t/h	30-45	8	260	2250×2000×2200	1250kg
BR26-3-6-8	6-8t/h	35-50	8	400	2250×2000×2200	1250kg
BR26-3-10	10t/h	60-	11	520	2800×2000×2200	1650kg
BR35-3-15	15t/h	75	15	780	3000×2200×2200	2150kg
BR35-3-20	20t/h	80	18	945	3300×2200×2200	2350kg
