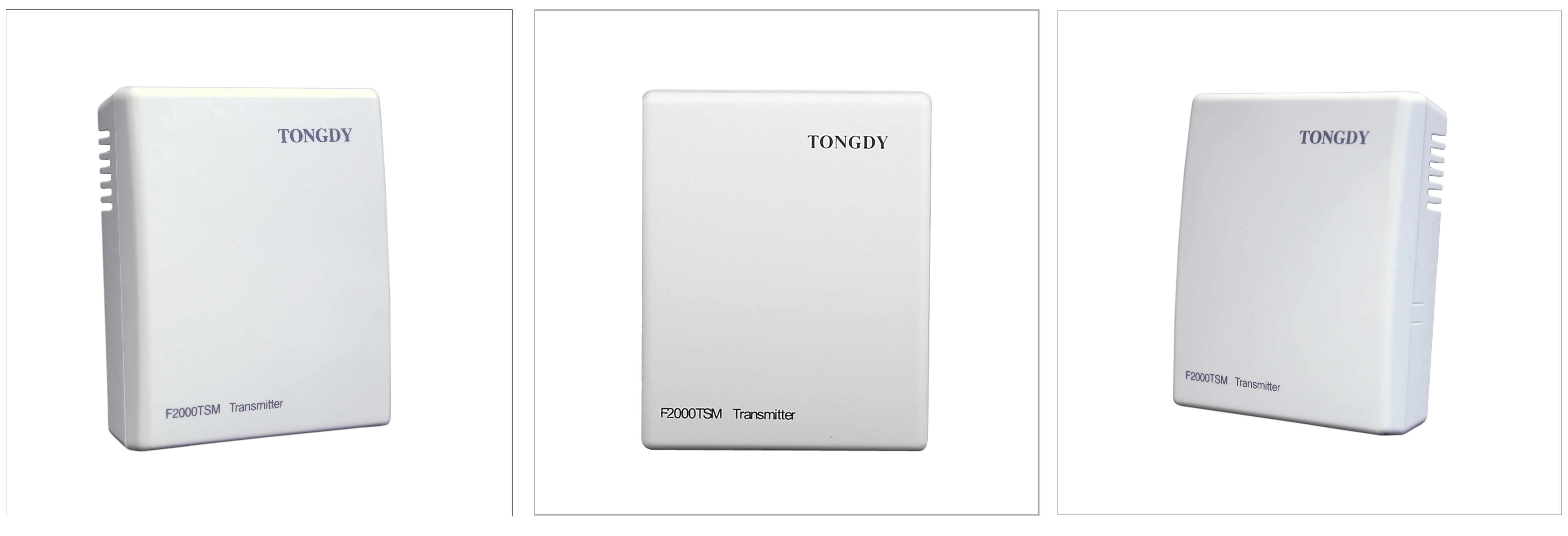

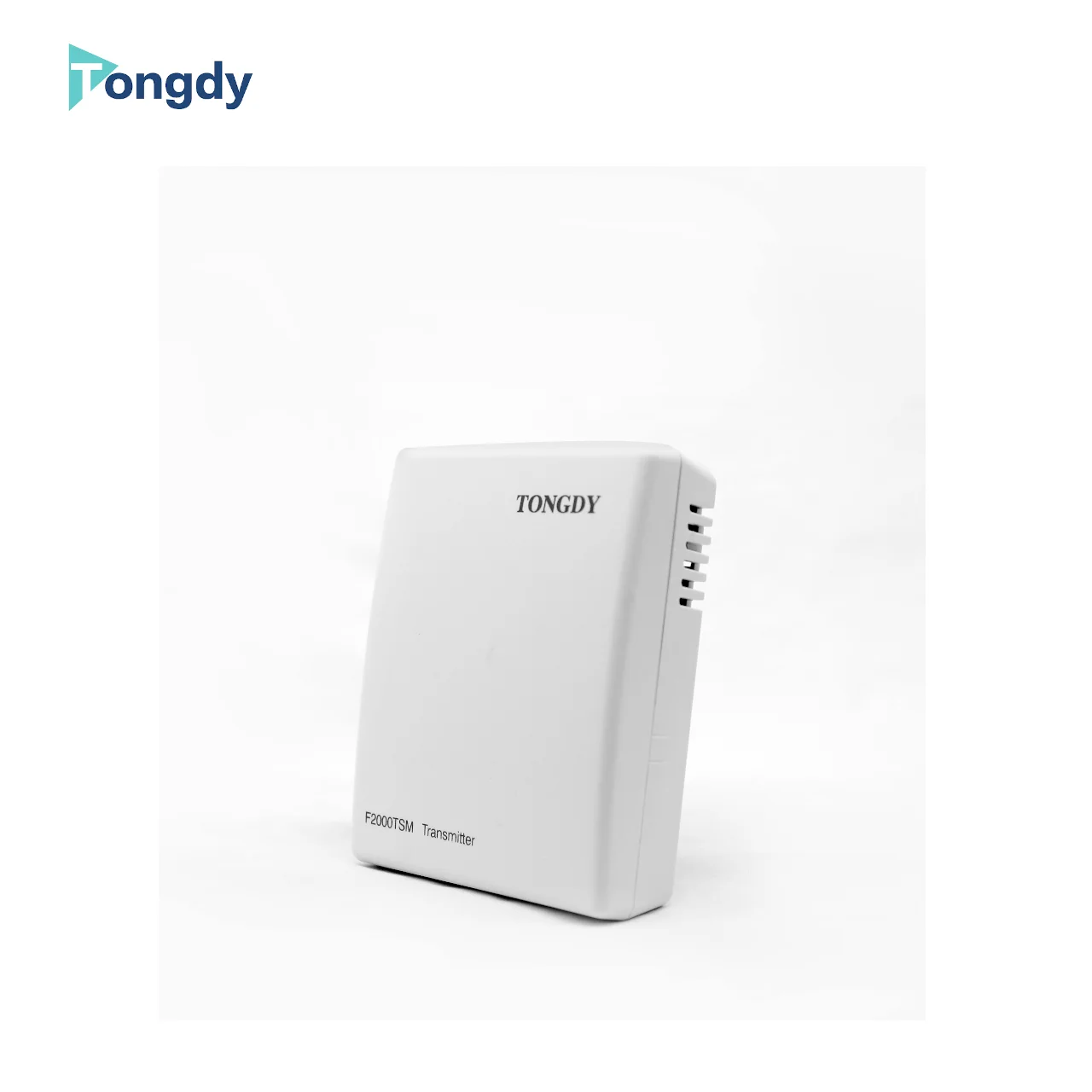

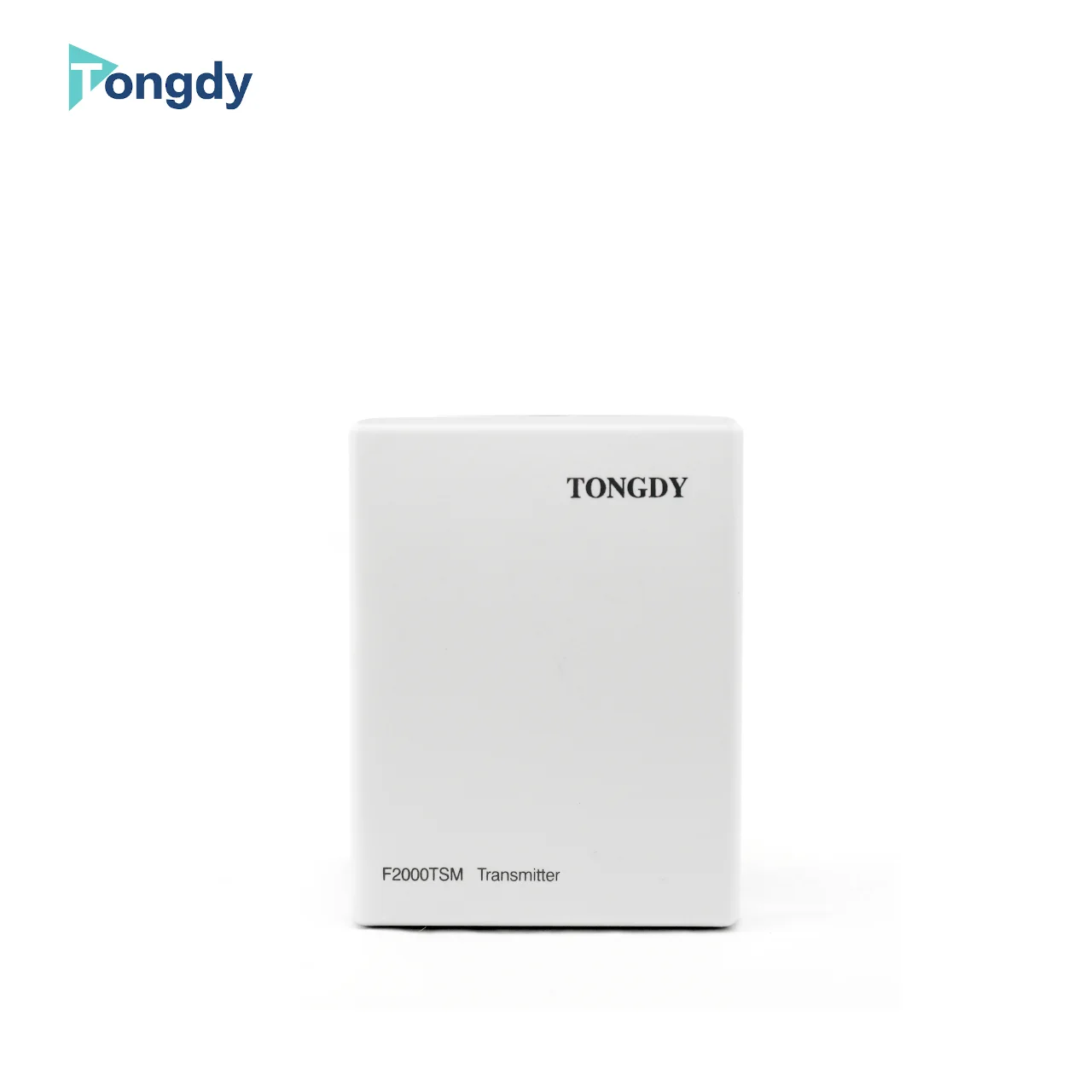

Tondy hot sale F2000TSM series temperature and humidity transmitter for factory china manufacture

Product Overview

Description

	Temperature	Relative Humidity
Sensing element:	Digital Temp.&RH combined sensor	Digital Temp.&RH combined sensor
Measuring range	0℃~50℃(32℉~122℉) (default)	0 -100%RH
Accuracy	±0.5℃ (20~40℃)	±4.5%RH (20%-80%RH)
Stability	±0.04℃ per year	<0.5%RH per year
Storage environment	10~50℃(32℉~122℉)/ 20~60%RH
Connection	Screw terminals
Set measurement zone	The zero and the end can be set via Modbus
Housing/IP Class	PC/ABS fireproof material/IP 40
Output	0~10VDC(default) or 4~20mA (selectable by jumpers) 0~5VDC (selected at place the order)
Power supply	24VAC/VDC±10%
Power cost	≤2W
Resistance permitted	≤500Ω
Net weight	180g

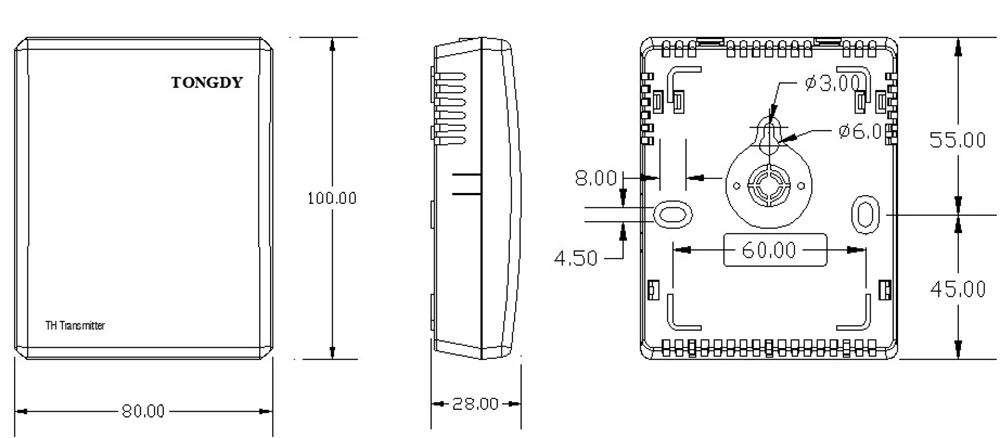

Dimensions	(W)100mm×(H)80mm×(D)28mm
Installation standard	65mm×65mm or 2”×4”wire box
Approval	CE-Approval



Tongdy Sensing, located in Beijing Zhongguancun Environmental Science and Technology Park, which is the leader of air quality detection.Tongdy has been always focusing on its strong technology development and design capabilities, constantly providing high quality products for air quality monitoring and control.

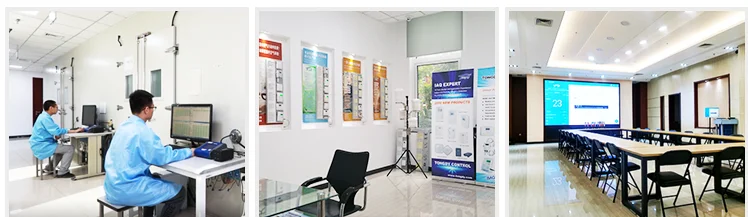

Tongdy has its own R&D office building and massive investments in R&D facilities like aging and testing laboratories and professional calibration chambers provide the necessary conditions for its continuous R&D and stable development. Tongdy’s products include: Carbon dioxide, carbon monoxide, ozone, TVOC, PM2.5/PM10, formaldehyde and other gas monitors/controllers; indoor air quality/in-duct air quality/outdoor air environment monitors, data collection and  analysis.

These products have been widely used in thousands of projects in Europe, North America, the Gulf region and the Asia-Pacific region for over 15 years, and accumulating long-term application data and experience in different environment.

Tongdy has excellent reputation and popularity in the HVAC and green building industries.
