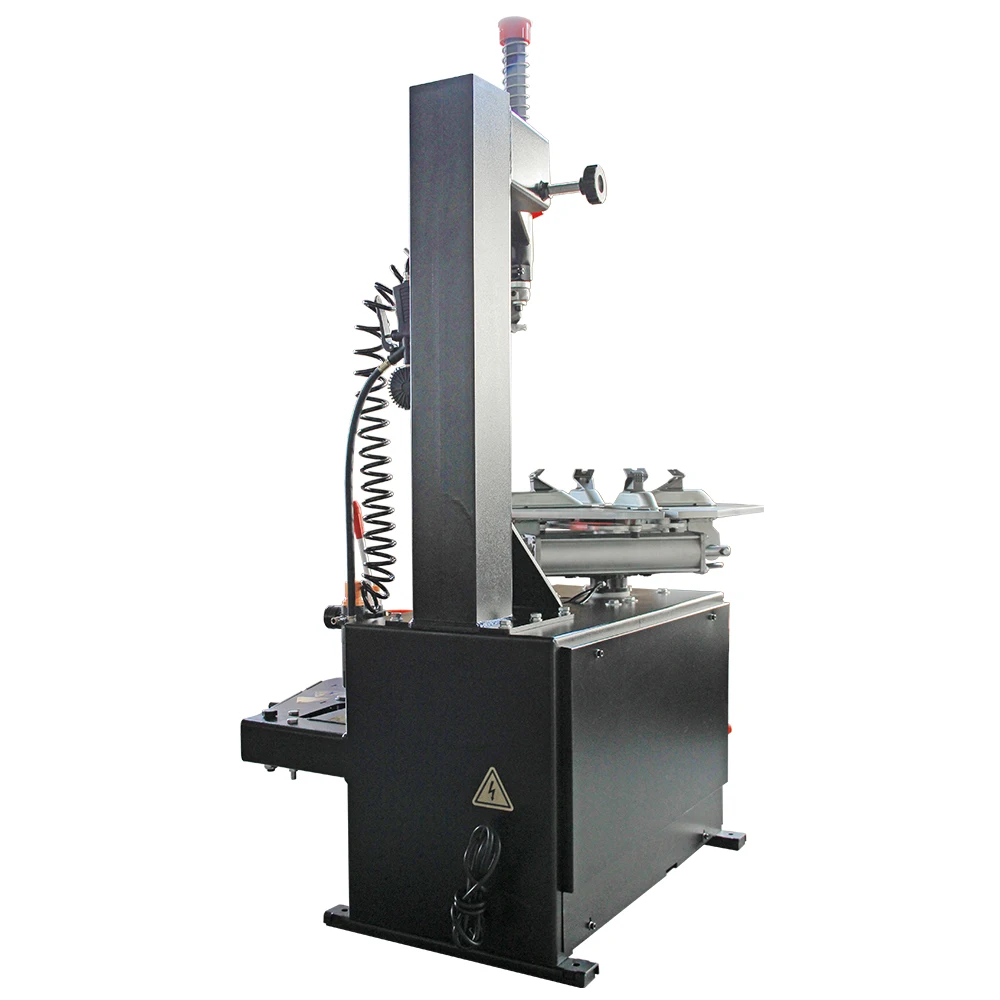

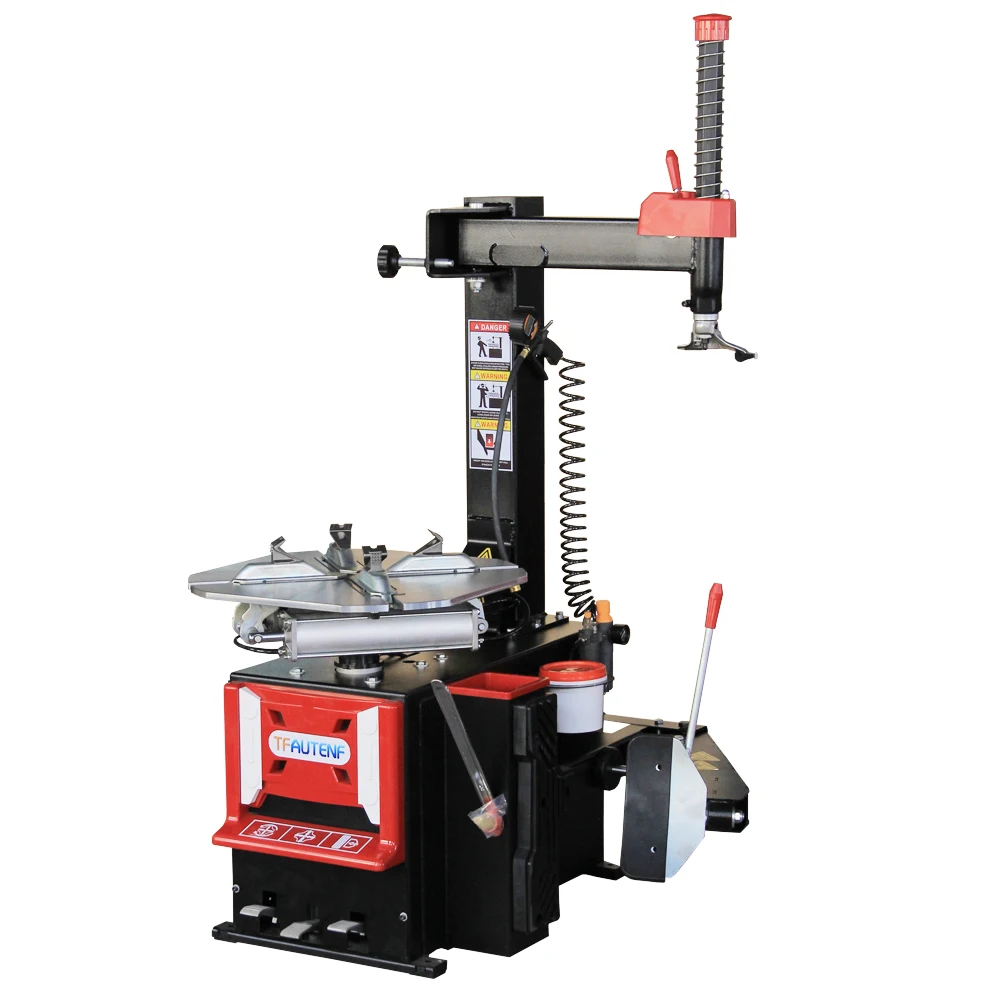

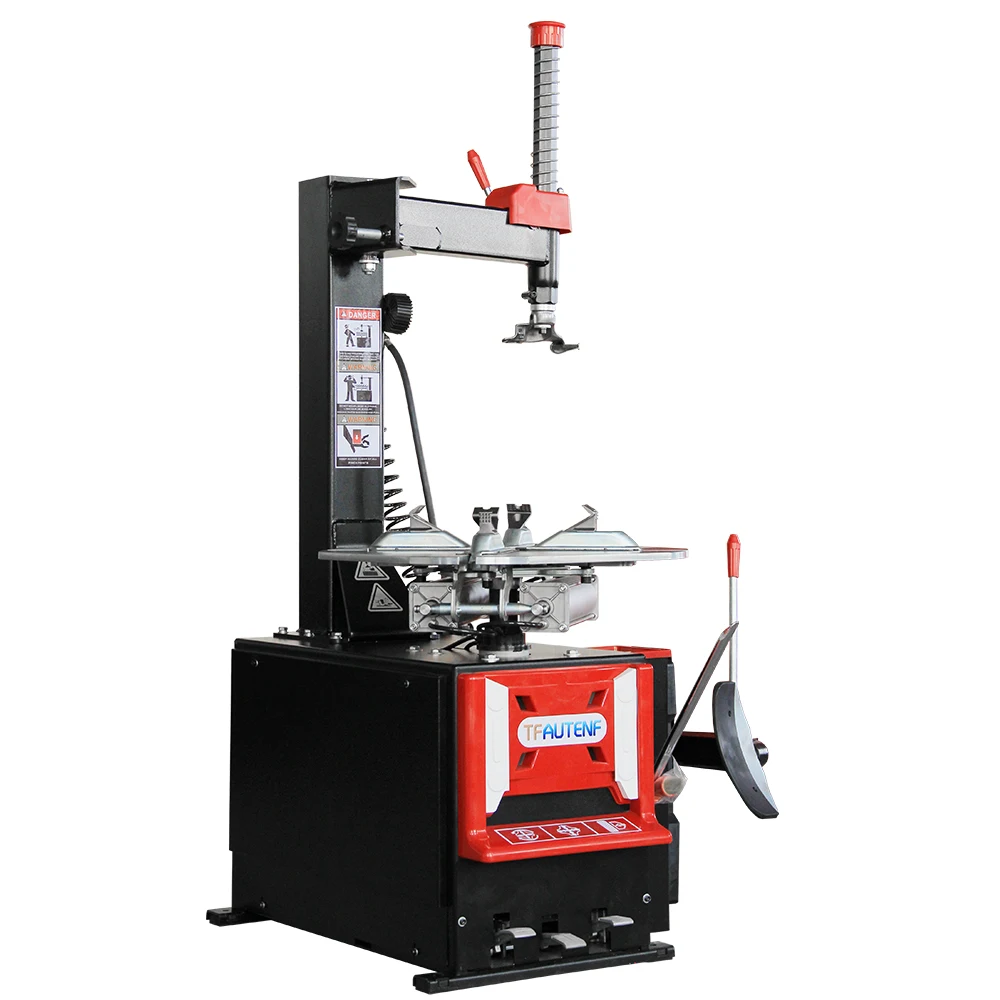

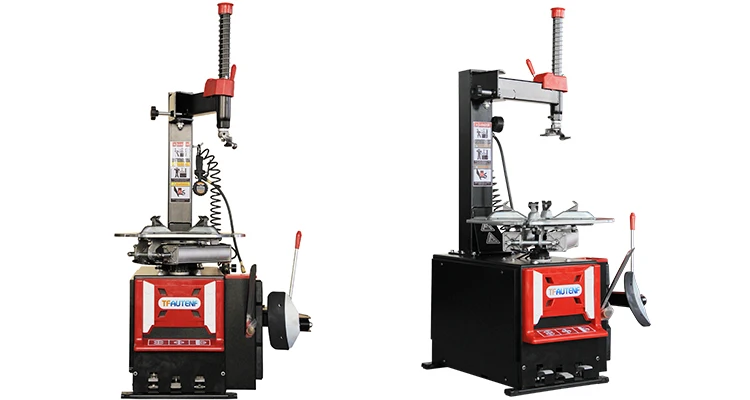

TC601 tyre changer / tyre changing machine
- Category: Tire Changers >>>
- Supplier: Yantai Autenf Import & Export Trading Co. Ltd.
Share on (1600565728428):
Product Overview
Description
Product Description
Specification
Product name & model | tyre changer machine TC-601 | |
Motor | 110/220/380V, 1.1/0.75KW | |
Air supply | 8~10 bar | |
Table turn | dual pneumatic cylinders | |
Bead breaking | pneumatic blade | |
Wheel clamping | 4 clamps - internal/external clamping | |
Internal rim clamping capacity | 12~24 in / 305~610 mm | |
External rim clamping capacity | 10~22 in / 254~559 mm | |
Max. tire diameter | 38.5 in / 980 mm | |
Max. tire width | 12 in / 305 mm | |
Sound | < 70 db | |
Packing information: | ||
Net weight | 219 kg / 430 lb | |
Gross weight | 225 kg/ 496 lb | |
Packing dimension | 38.5 x 31.5 x 35 in / 980 x 800 x 890 mm | |
Loading qty. per 20GP | 26 sets | |
Detailed Images
Operation plate
Jaws
Jaws
Mounting head
Mounting head
Cylinders
Foot pedals
Digital gauge
Oil & water separator
Packing & Delivery
