High Quality High Precision Whirling Water Pump Thread Milling Machine
- Category: >>>
- Supplier: Sunrise Mechatronic Technology Co. Ltd
Share on (1600565738929):
Product Overview
Description
Product display

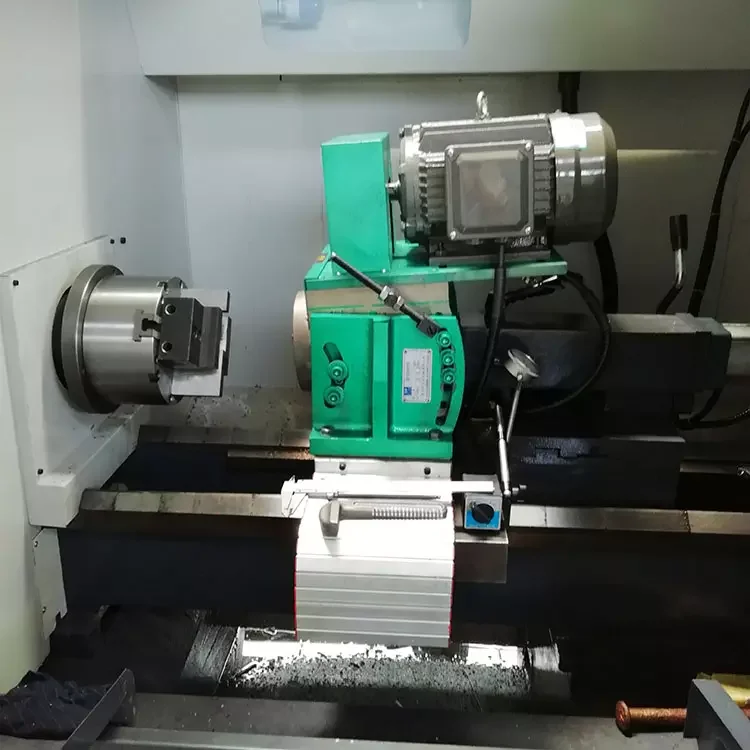

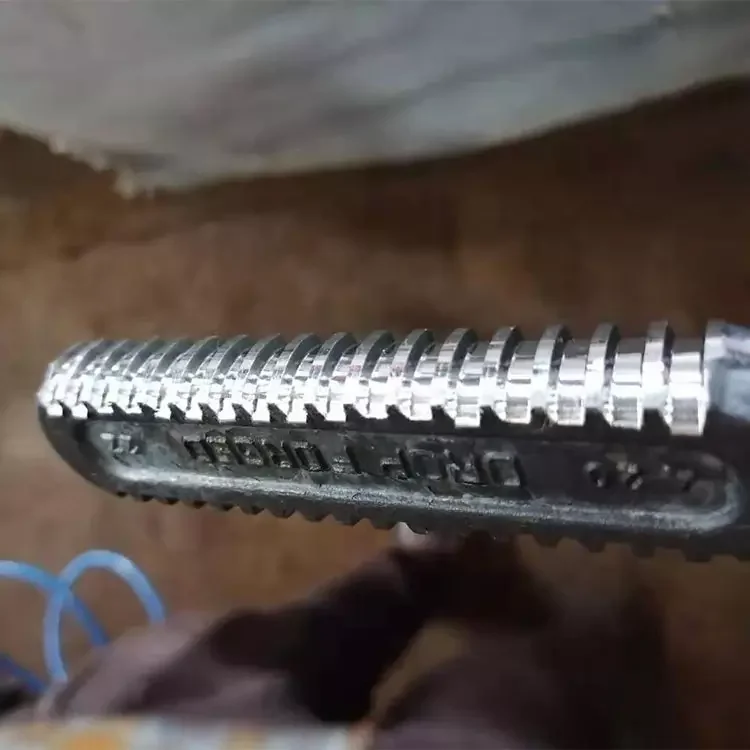

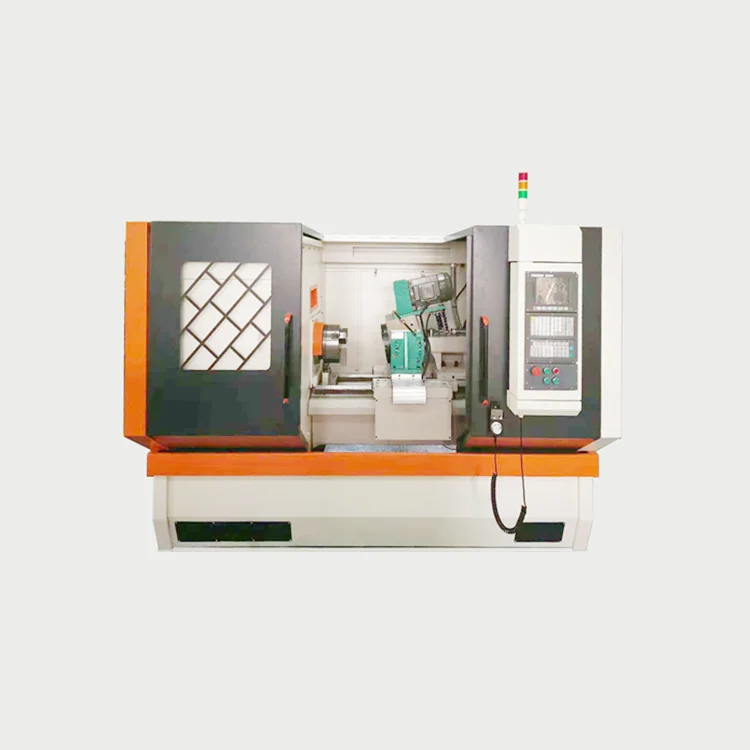

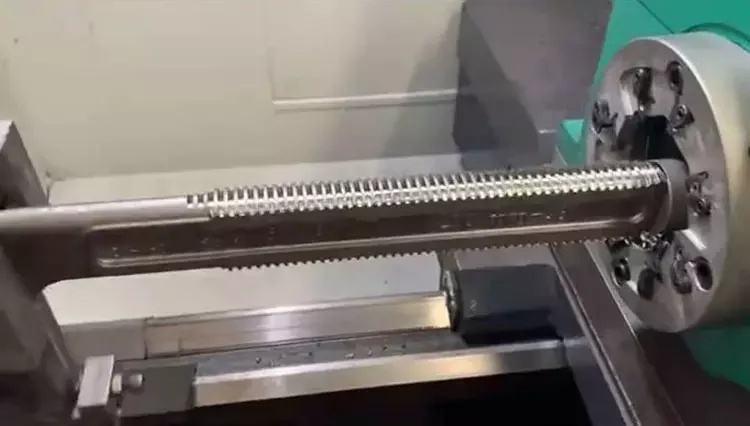

The machine is specially designed machine for making the pipe wrench thread. It has been applied for making good quality pipe wrench. Meanwhile, the threading efficiency is much higher than conventional turning machines.
Machine Feature:
1.High machining precision
The machine adopts the CNC controller with high precision.
1.High machining precision
The machine adopts the CNC controller with high precision.
2.High production
Due to the special designed machine for pipe wrench, the production will be higher than conventional machines (30 sec/pcs for 24” )
Due to the special designed machine for pipe wrench, the production will be higher than conventional machines (30 sec/pcs for 24” )
3.Better rigid machine structure.
4.Combined carbide tools
The tools is the combined tool holder with inserts to avoid from the resharpening by skilled operator. Due to this special tool, it will improve production and precision.
5.Full enclosed machine
The machine is equipped with metal cover to avoid from the chips flying. Meanwhile, it is a standard CNC machine, it will improve working environment.
4.Combined carbide tools
The tools is the combined tool holder with inserts to avoid from the resharpening by skilled operator. Due to this special tool, it will improve production and precision.
5.Full enclosed machine
The machine is equipped with metal cover to avoid from the chips flying. Meanwhile, it is a standard CNC machine, it will improve working environment.
Product Paramenters
ITEM | PH-D46 | PH-D50 | |
Application | Less than 34" | 36"-48" | |
Machine Axes | A、C、X、Z axis, | ||
Controller | Special controller for thread milling | ||
Clamping type | Auto clamping as per different pipe wrench | ||
Machine cover | Fully covered | ||
Control model | Position/velocity | ||
Spindle motor | Servo | ||
C/X/Z control model | Position control | ||
Motor&control type | Asynchronous motor，system switch，transducer | ||
Toolings | Combined tools | ||
Chip removal | By blowing | ||
Workpiece Length | 600mm | 800mm | |
Swing diameter over slides | 240mm | 280mm | |
Swing diameter within slides | 460mm | 500mm | |
Max thread dia | 80MM | 240MM | |
Total power | 8.5KW | 10KW | |
Max speed | 2000r/min | 850r/min | |
Max motor power | 3KW | 3KW | |
Rapid speed | 10m/min | 6m/min | |
Inner tool holder diameter | 70mm | 70mm | |
Positioning precsion | ≤0.02mm | ≤0.02mm | |
Repeated precision | ≤0.02mm | ≤0.02mm | |
Max inner thread pitch angle | ±15° | ±15° | |
Spindle speed | 0.5～1200r/min | 0.5～1200r/min | |
Swing axis precision | ≤15″ | ≤15″ | |
Swing axis repeated precision | ≤7.5″ | ≤7.5″ | |
Surface finish | ≤Ra1.6 | ≤Ra1.6 | |
Max outer thread length | 600MM | 500MM | |
Machine size | 1800×1200×1500 | 2800×1500×1500 | |
Machine weight | 2500KG | 3500KG | |
Standard Configuration
1.Customized controller
2.HIWIN/PMI lead screw
3.HIWIN/PMI guide rail
4.Automatic lubrication system
1.Customized controller
2.HIWIN/PMI lead screw
3.HIWIN/PMI guide rail
4.Automatic lubrication system
