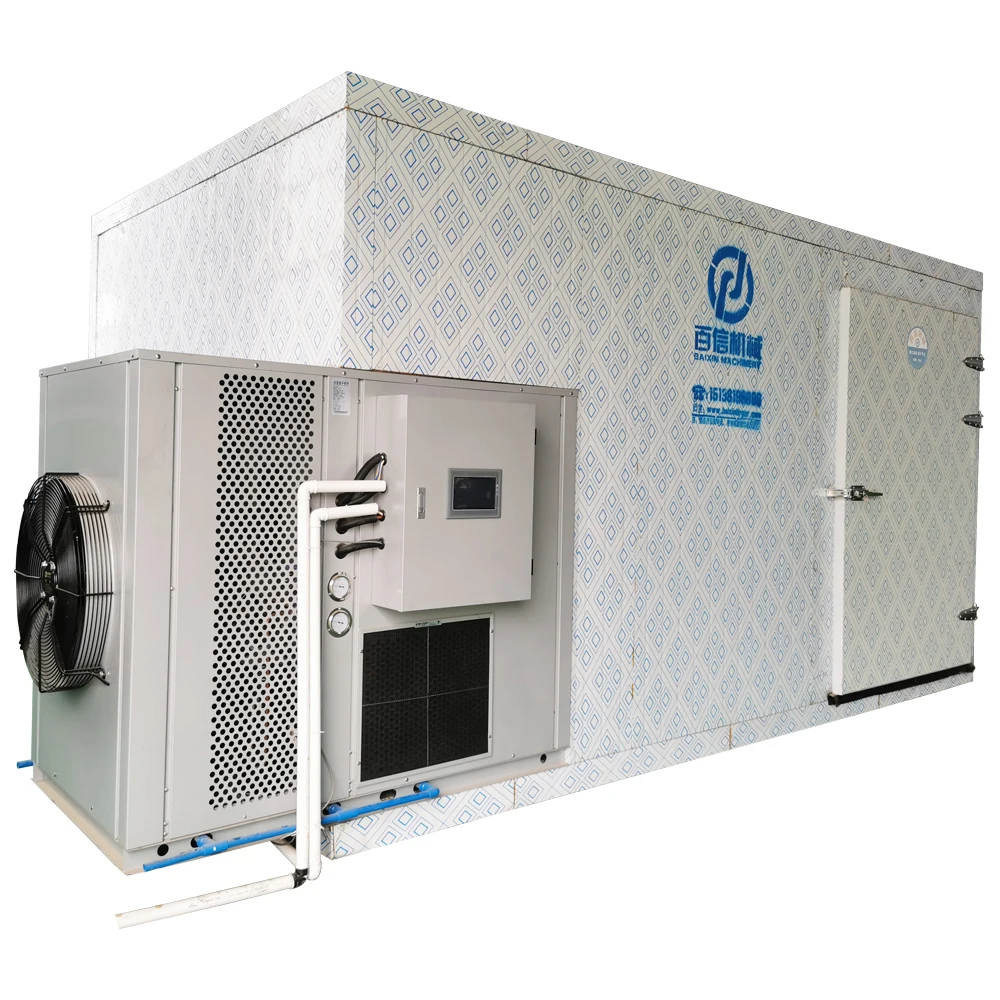

Electric Food Coconut Copra Dryer Drying Oven Machine Fruit Vegetable PLC Heat Pump Dehydrator with Tray

Product Overview

Description

Electric Food Coconut Copra Dryer Drying Oven Machine Fruit Vegetable Heat Pump Dehydrator with Tray

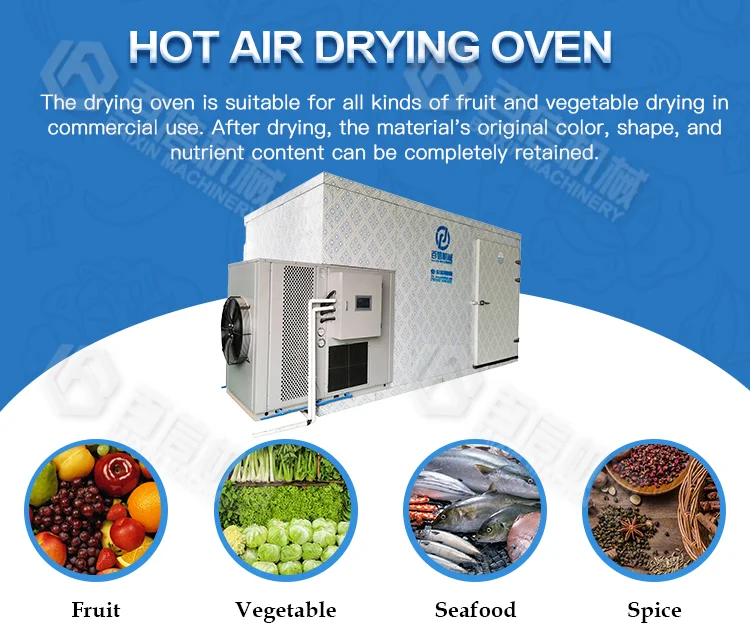

The drying oven is suitable for all kinds of fruits and vegetables drying in commercial use. After drying, the materials' original color, shape and nutrient content can be completely retained.

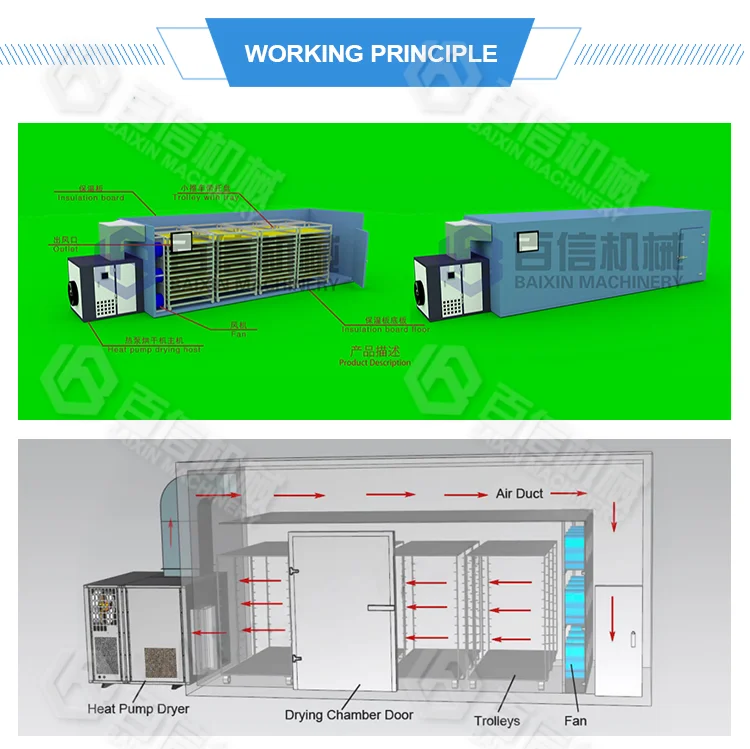

Heat pump work principle:

The heat pump dryer evaporator absorbs fresh air from outside, and use the heat pump system transfer heat to drying chamber, then the hot air will be repeatedly heated while absorbing moisture of materials. The hot air condensed water, the temperature of air reduce and water come out, then finally realize the continuous drying of materials.

Heat pump work principle : the working fluid of the heat pump is compressed by the compressor, becomes high temperature and high pressure gas, enters the condenser, condenses and liquefies the heat, and is used for air heating in the drying room. The moisture in the material is vaporized and evaporated by the form of hot air, and the evaporated water vapor is discharged by the moisture discharge system, thereby achieving the purpose of drying the drying material.



The heat pump dryer adopts the principle of reversed carnot cycle. It absorbs low-temperature heat energy in the air and becomes high-temperature heat energy after efficient heat collection and integration of the heat pump system, which is transported to the drying room is directly dis-charged to the outside of the drying room through the dehumidifier.

The heat pump dryer can quickly remove the water in the material without affecting the original color, shape, and nutrient content of the mateiral. The drying oven is equipped with a computer control system, which can realize automatic temperature control. The drying temperature range of the heat pump is 20-80℃, and the materials suitable for drying are very wide, such as grains, mushroom, edible fungi, shrimp, seafood, bacon, fruits and vegetables, tobacco leaves, seeds, spices, etc.

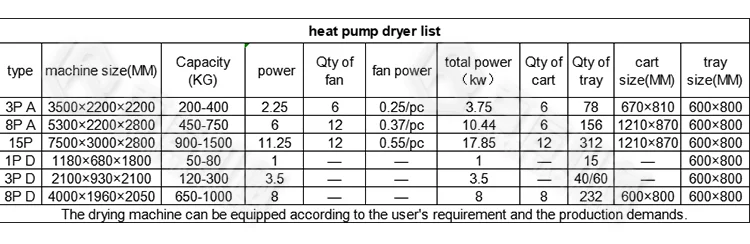

Model	Machine size (mm)	Capacity	Heat pump power	Fan Qty	Fan power	Total power	Trolley Qty	Trolley size (mm)	Tray Qty	Tray size
3P	3500x2200x2200	200-400kg	3kw	6	0.25kw/pc	4.5kw	6	670x810	78	600x800
8P	5300x2200x2200	450-750kg	7kw	12	0.37kw/pc	11.44kw	6	1210x870	156	600x800
15P	7500×3000×2800	900-1500kg	14.5kw	12	0.55kw/pc	21.1kw	12	1210x870	312	600x800
15P*2	9500×4000×2200	2600-3000kg	29kw	18	0.37kw/pc	35.66kw	20	1310x800	520	600x800
20P*2	13000×3300×2200	3000-3300kg	39kw	12	0.75kw/pc	48kw	26	1410x910	572	600x800

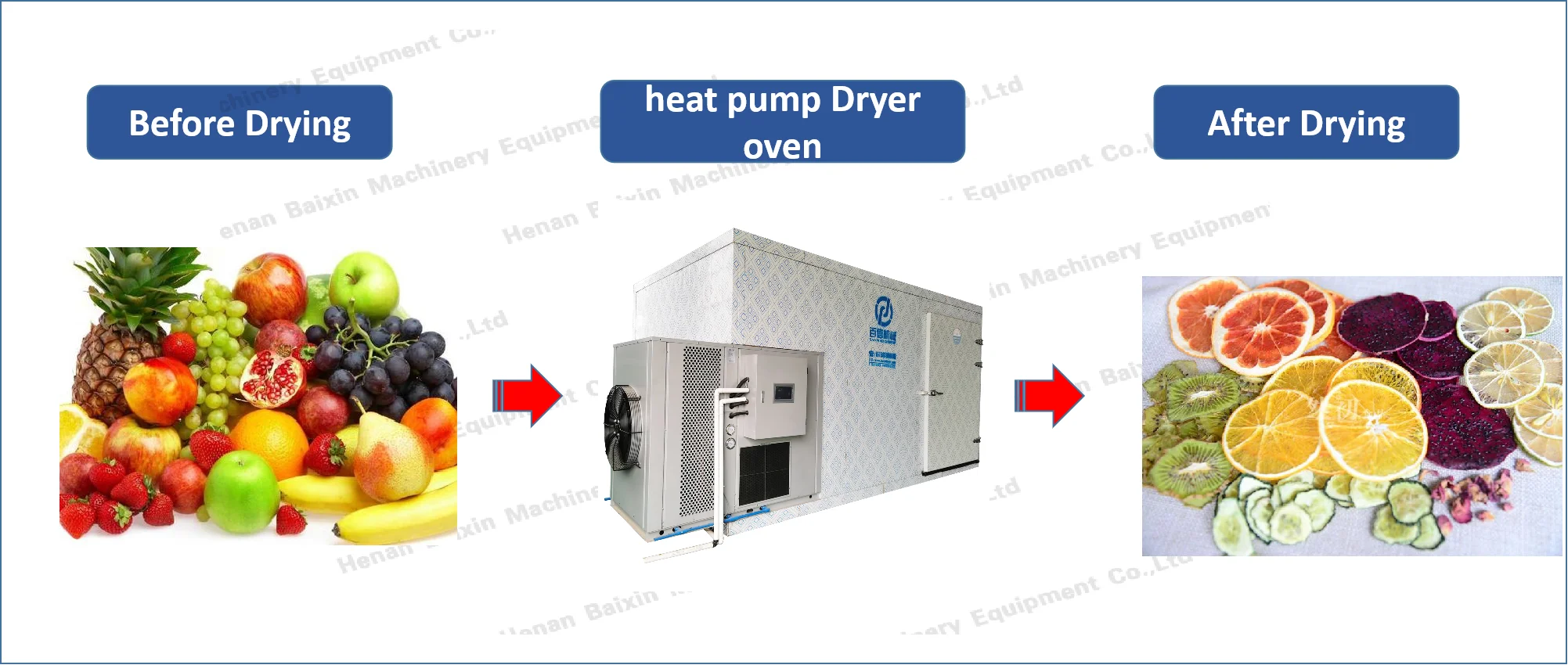

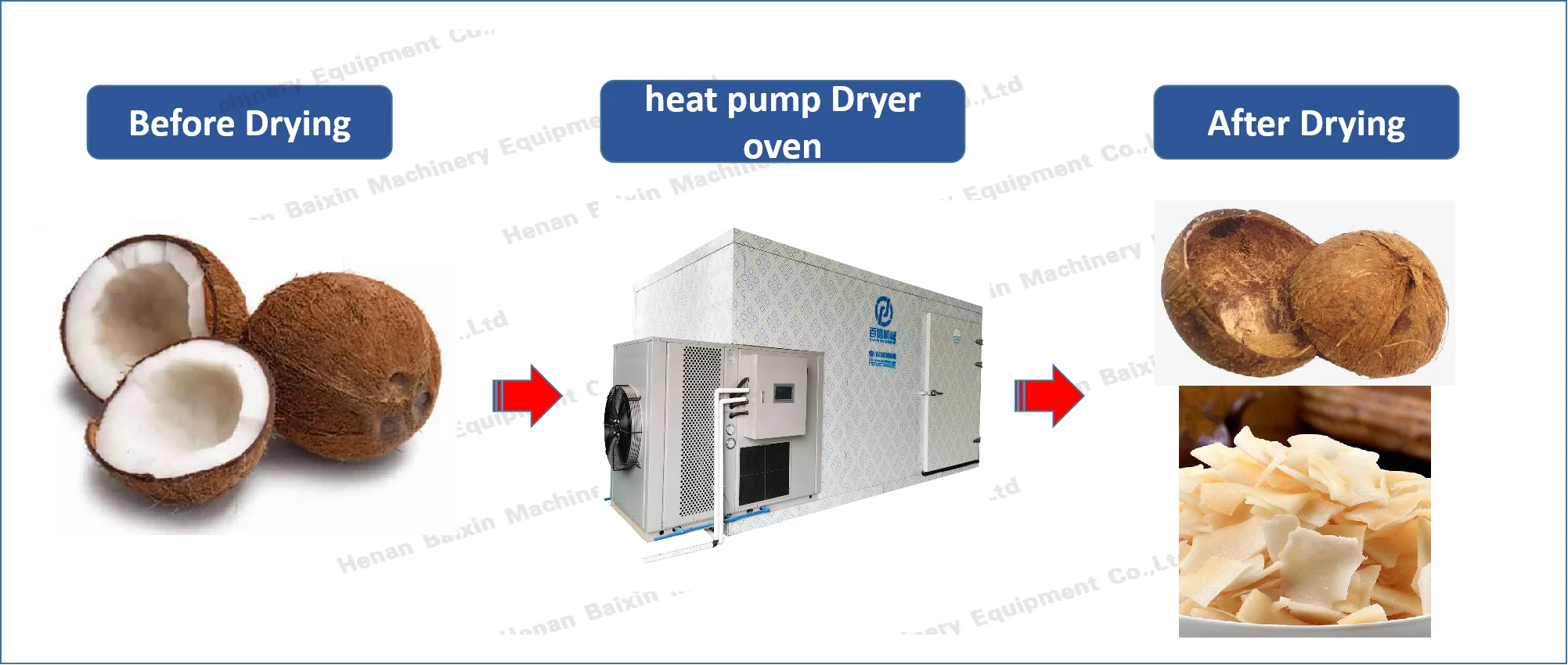

 Comparison before and after drying

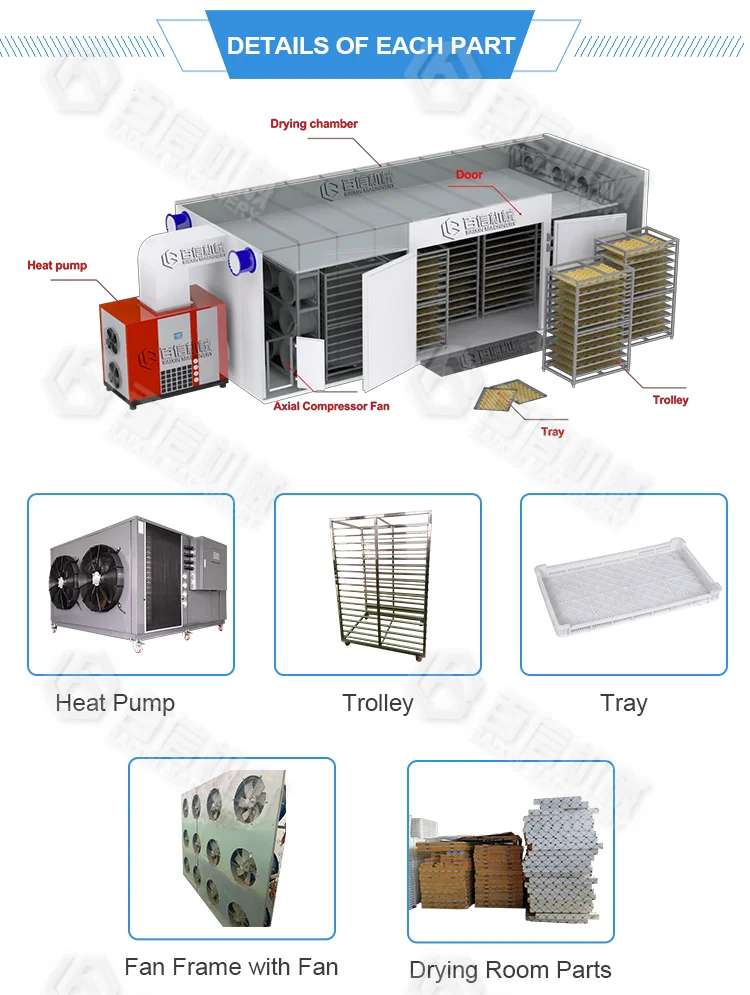

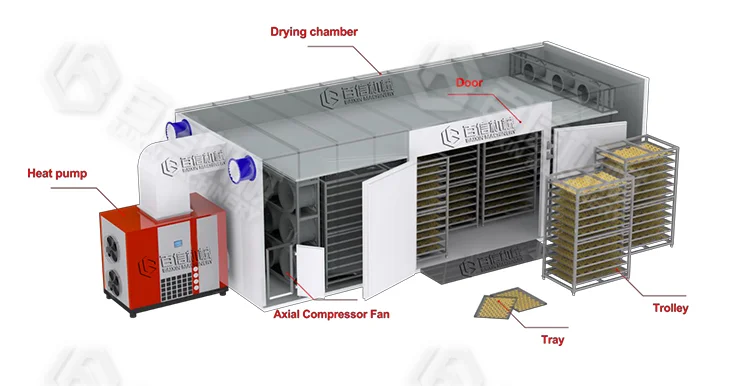

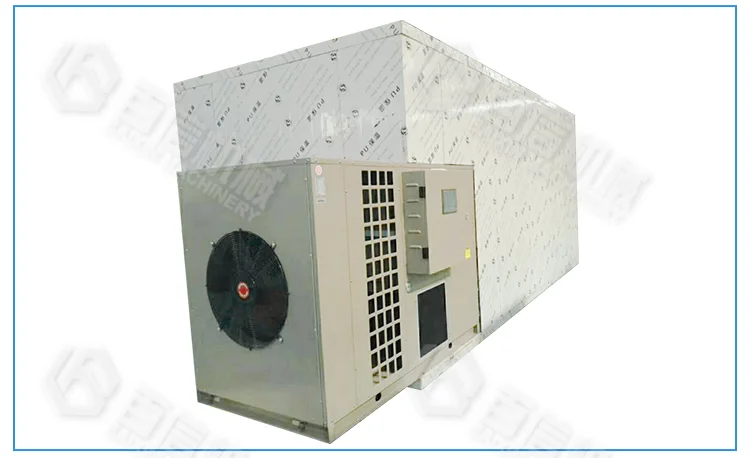

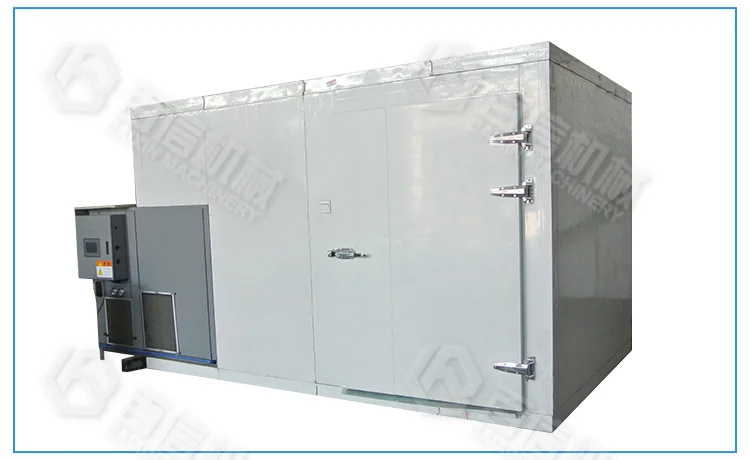

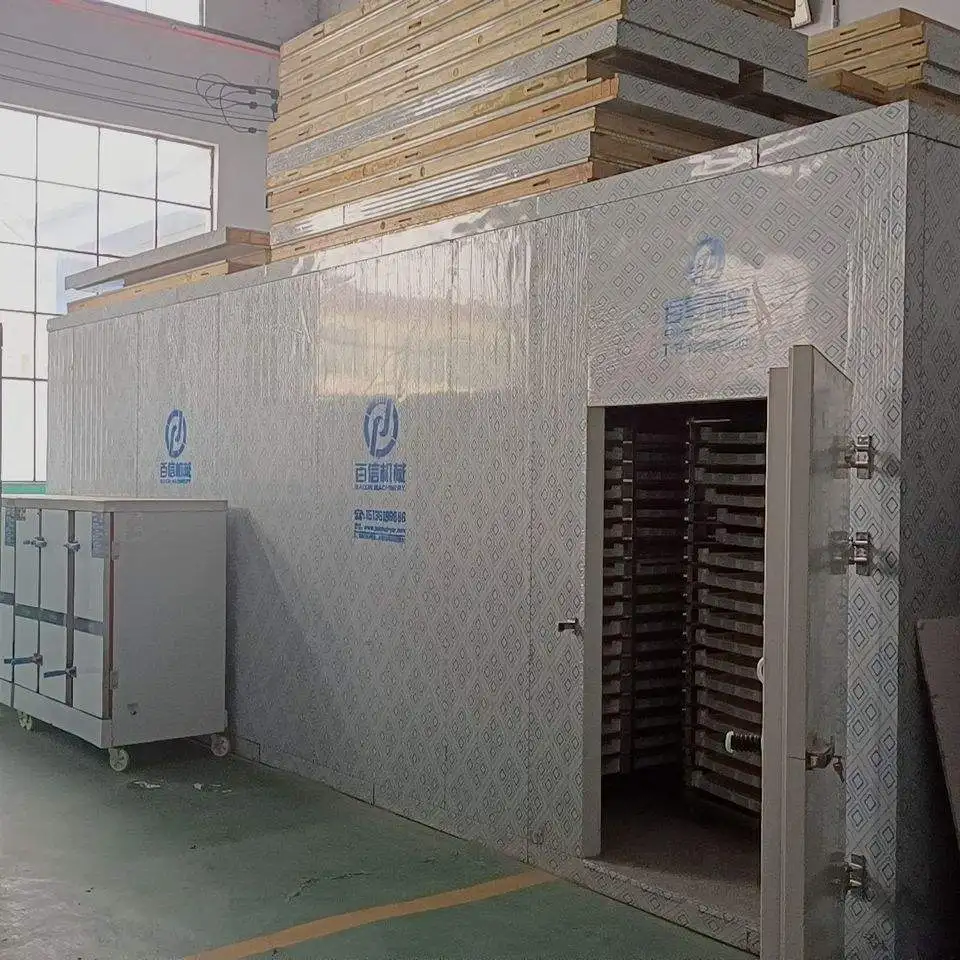

Components of Heat Pump Drying Oven Machine

One Set heat hemp dryer machine Contains:

1: Heat pump drying host: Copeland compressor, Siemens electric heating element etc.

2: Drying chamber:with Polyester insulation board /PU board ,better heat preservation and stability, long life time.

3: Fan frame with fan: stainless steel frame , Explosion-proof professional fan.

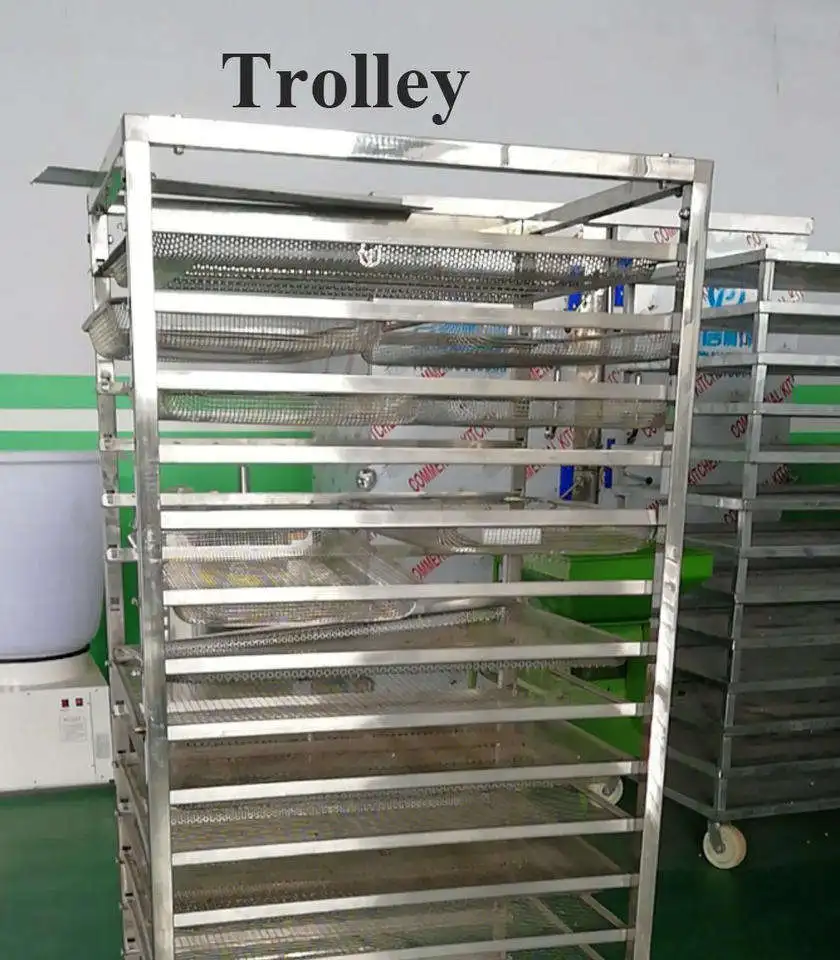

4: Trolley with tray: stainless steel trolley, tary material have stainless steel/ PP.



The heat pump dryer machine can be used in many application, like agriculture, industry, seafood, grain, herbs, construction, paper products,seasoning, mineral industry,etc.

1:Dry vegetables: like radish, lettuce, pumpkin, carrots, spinach, cassava,etc.

2:Dry fruits:like apple, lemon, mango slices, peach,apricots,etc.

3:Dry meat: like sausage, beef, duck, ham,etc.

4:Dry seafood:fish, shrimp, seaweed,etc.

5:Others it can dry noodle, wooden ,stick incense,herbs , etc.

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!





Type	BX-3P-78T
size	3500*2200*2200mm
Voltage	380V three phase
Rated power	3kw
Trolley	6set (670*810*1750mm)
Tray Quantity	78pcs (600*800*50mm)
Tray Material	PP or Stainless steel
Input capacity	250-400kg/batch
Drying temperature	40-80°C
Dryer time	depends on material moisture
Energy consumption	3kw-h







Advantage of heat pump dryer

1:The heat pump drying machine is Commercial  drying equipment.

2:Simple installation, provide operating manual and installation video .

3:Suitable for 85% of food vegetable fruit mature material.

4:Easy operation , can via PLC control panel to setup the temperature and humidity in advance.

5 low cost, save 75% energy than traditional electricity element heating dryer, lower energy consumption , high efficiently.

6 clean and sanitary, heat pump system keep clean hot air into drying room, during the dehydrate processing, no need to move material .

7 low temperature dehydration processing can better keep material nutrition.







Application of drying machine:



The heat pump can be used in many application, like agriculture, industry, seafood, grain, herbs, construction, paper products, seasoning, mineral industry, etc.

1: Dry vegetables: like radish, lettuce, pumpkin, carrots, spinach, cassava, etc.
2: Dry fruits: like apple, lemon, mango slices, peach, apricots, etc.
3: Dry meat: like sausage, beef, duck, ham, etc.
4: Dry seafood: fish, shrimp, seaweed, etc.
5: Others: it can dry noodels, wooden, stick incense, herbs, etc.
Your product is not listed above? We are ready to meet any new challenge! Contact us free product testing!



If your product is not on the above list, we will be glad to offer guidance, design and manufacture of a customized drying system. Just tell use your requirements.

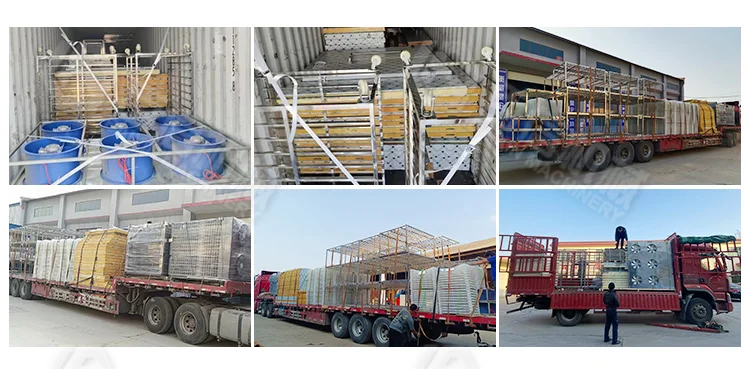

Package and Shipping:



1: Packaging: daub coal oil on the surface to protect the machine from moisture, then cover with plastic film. Finally pack them with wooden cases.

2: Customer's requirement is available.

3: If you want to know the transportation cost: by air-please tell me your airport name, by express-please tell me your detailed address (including zip code, house number, street, city, country), by ship-please tell me your delivery port.

We are a specialized manufacturer in drying machine more than 20 years. We have own brand drying machine production line. We own both of domestic and international sales department.



Henan Baixin Machinery Equipment Co.,Ltd is a set of technology development, manufacturering, operating services as one of the high-paying technology state import enterprises, the central plains regions is the largest drying equipment, food equipment research and development and production base.
The main products are continuous mesh dryer, heat pump dryer, drying ovens, microwave drying sterilization equipment, vegetables & fruits processing line, such as slicing machine, peeling machine, packaging machine, grinder, so on. Equipments is wide used in agriculture, industry, food, and other industries, to meet the existing more than 85% of raw materials, drying and deep processing.





Our factory has a service team with rich experience, skillful techniques and a blameless sales service network. Before customers purchase our products, we will send our engineers to design reasonable flow charts. After the purchase, we will bring back our professional engineers to guide and install the equipment and take trial run. We believe that our high-quality products, preferential prices and perfect services will be your second-to-none option. Your business is our business, we are looking forward to cooperating with customers from all over the world and creating our resplendent future. Welcome to contact us!

Welcome to our factory to test the performance of the machine, we can also take you to visit the work site





Now we plan to make the drying project, what should we do?

Firstly, please confirm your water content of material, before the dryer? after the dryer?

Secondly, please tell us what is your required capacity? Per hour or per day?

Thirdly, what kind of fuel available for you? Coal, gas, electrical or others.

We could recommend you the suitable drying solution base on your project requirments.



What kind of drying machine is suitable for me?

We could supply three types of food dryer machine:

*Multi-layer belt drying machine---which is more suitable for large-scale food drying.

*Heat pump drying machine---easier to operate, which is mostly used in the small and medium scale drying process.

*Microwave food drying machine---which has higher drying efficiency and sterilization function.

Based on your production process, you could choose the suitable one.



Can I specify the heat source?

Yes, Electricity and natural gas are widely used as heat sources.  but for Mesh belt dryers, which has a wide range of heat sources (electricity, hot air, natural gas, steam or coal), you could choose one that suits the conditions of your area.



What's the drying time?

It depends on various reasons:

*The water content of the materials

*The sugar content of materials

*The size of the raw materials

*The required dyied temperature

*The ambinet environment

*The final desired texture

The most important is that whether the dryer you chose is suitable for drying
