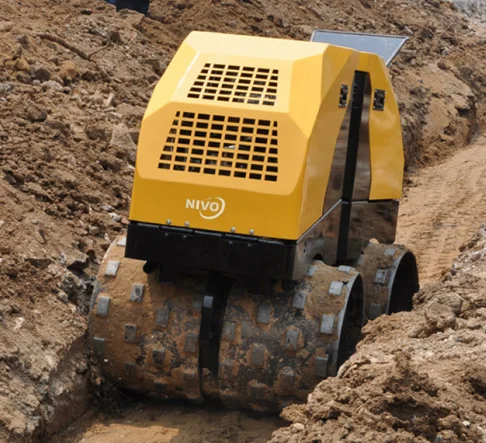

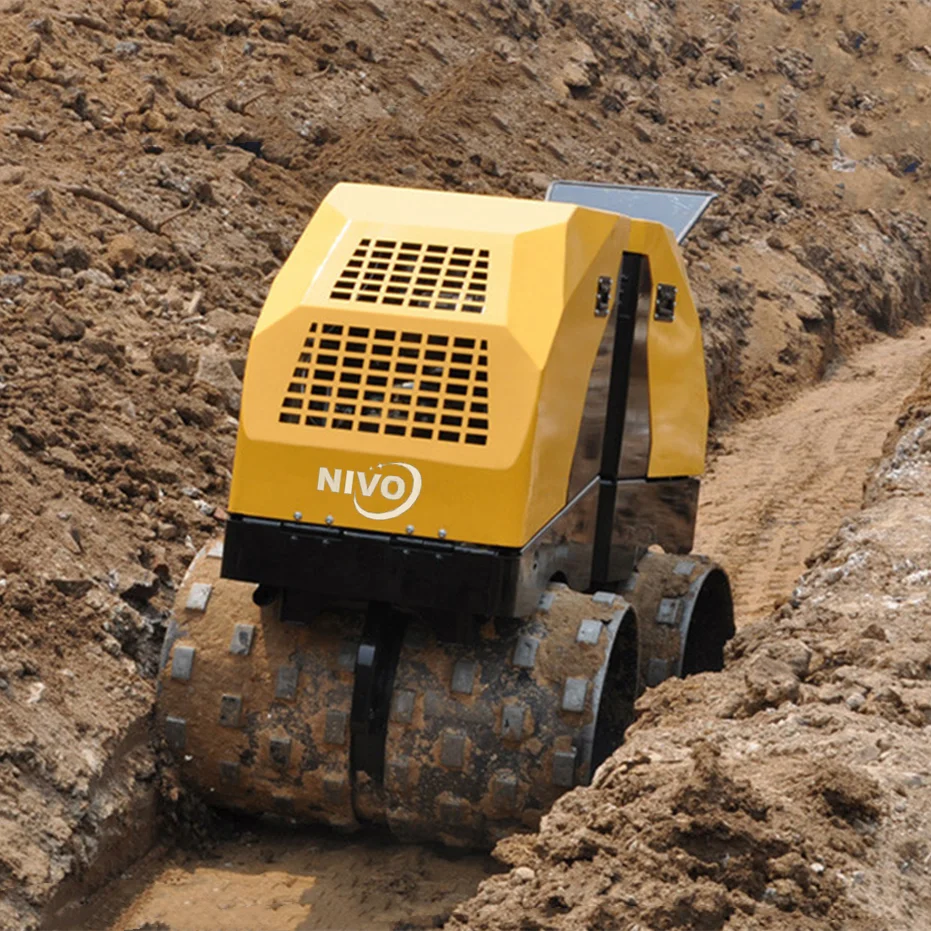

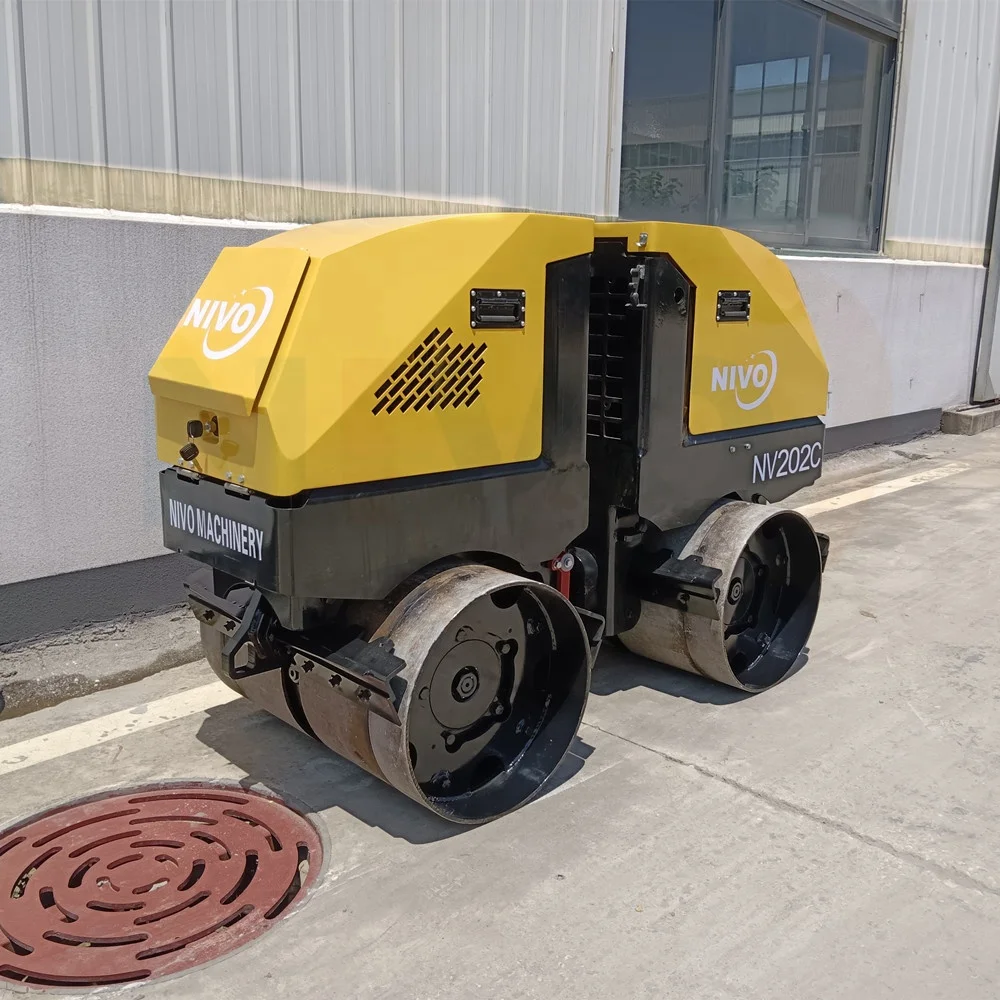

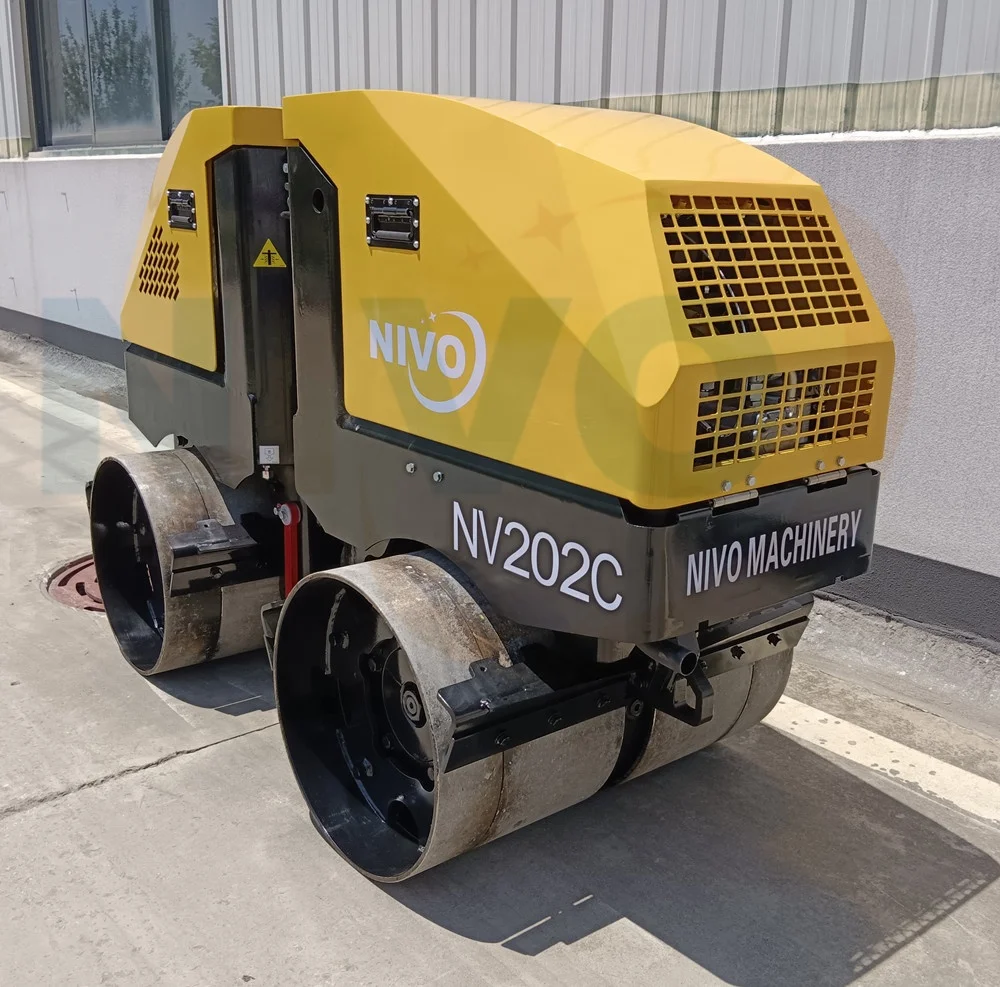

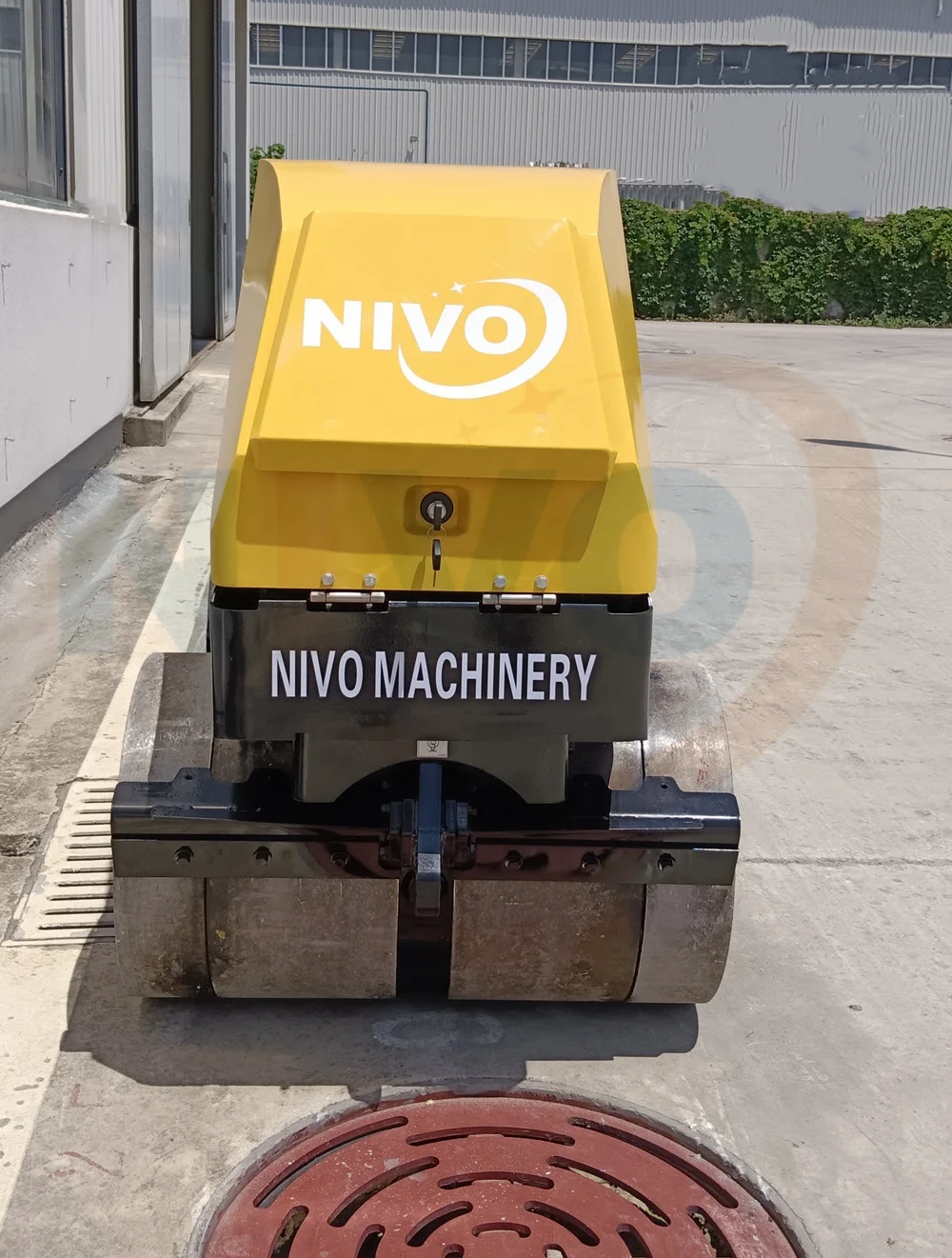

NIVO NV202C Walk behind Remote Control Trench Double Drum 1.6ton vibratory mini road roller compactor or parts
- Category: >>>
- Supplier: Nivo Machinery (jingjiang) Co. Ltd.
Share on (1600565749080):
Product Overview
Description
Product Description
SPECIFICATION
200kg to 40ton model , hydraulic/mechanical/static type, doubel drum or single drum can be optional, welcome contact at +8615861000958 for deeply communication
YNC1H
Operating weight | 1635kg |
Model | Yanmar (EPA engine can be optional Delivery time according the production of the EPA engine) |
Type | Diesel, liquid-cooled, three cylinder |
Power | 20hp/3000rpm |
Optional | Honda gasoline engine |
Speed | 2.4km/h(High) 1.2km/h(Low) |
Climbing capacity in theory | 50% |
Static linear load forward/back | 100/92 N/cm |
Nominal amplitude | 1.7mm |
Vibration frequency | 42Hz |
Exciting force | 70kN/35kN Hydraulic control |
Width of steel drum | 600/850mm |
Diameter of steel drum | 520mm |
Tread | 1000mm |
Turning radius | 1700mm |
Dimension | 2050*950*1500mm |
Operating weight | 848kg |
Engine Model | HONDA GX390 (EPA engine can be optional) |
Type | Gasoline, air-cooled, single cylinder |
Power | 13.0hp/3600rpm |
optional | Yanmar diesel engine |
Speed | 1.2km/h(Low)； 3.6km/h(High) |
Climbing capacity in theory | 30% |
Static linear load | 50.2/52.2 N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 62Hz |
Exciting force | 22KN |
Width of steel drum | 680mm |
Diameter of steel drum | 355mm |
Turning radius | 15° |
Dimension | 1300*900*1300mm |

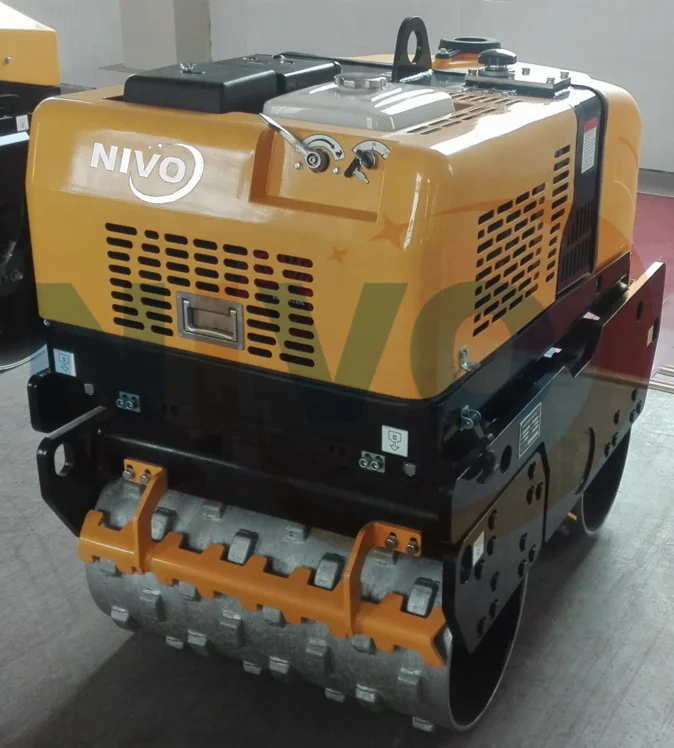

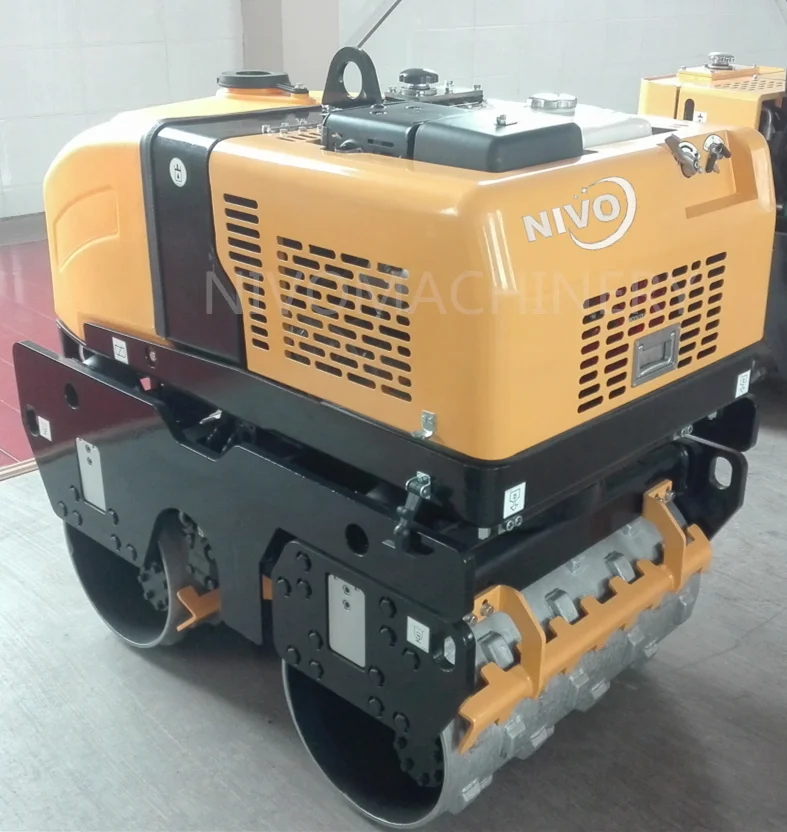

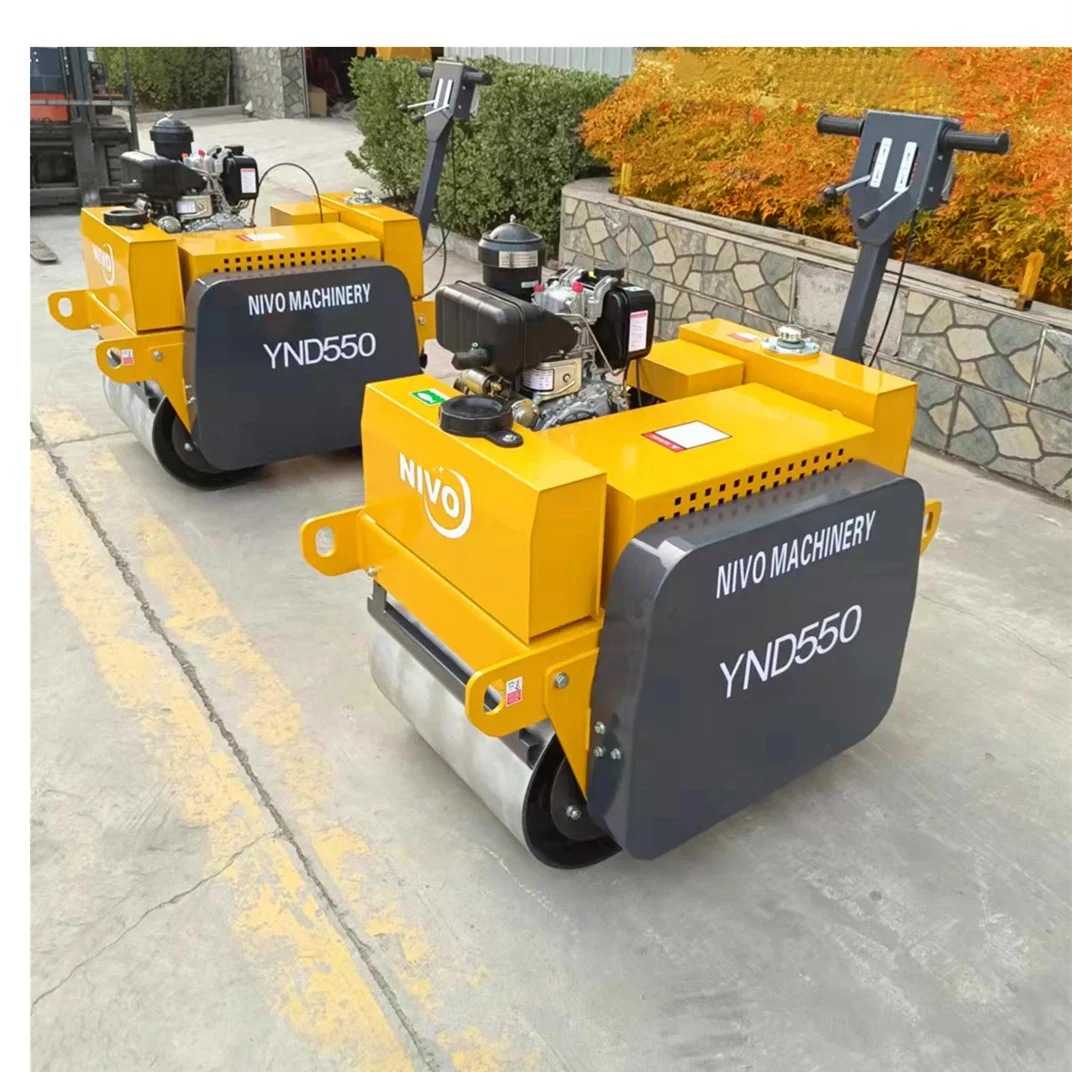

YND550 550kg | ||||||
Working weight | 550kg | |||||
Engine Model | HONDA GX270 | CF178F | KM178F | |||
Power | 9HP | 6HP | 4KW | |||
Static Linear Control | 60N/cm | |||||
Nominal Amplitude | 0.5mm | |||||
Vibration Frequency | 78Hz | |||||
Exciting Force | 28KN | |||||
Walk Speed | 0-4km/h | |||||
Gradeability | 30% | |||||
Steel Wheel Size | Φ425 X600mm X2 | |||||
Dimension | 1400*900*400mm | |||||
Specification YNC3H 3ton model | ||
Working Weight | 2900kg | |
Engine Model | Perkins water cooling diesel 403D-15 | |
Power | 32.7HP | |
Optional | YANMAR,CHANGCHAI,CHANGFA | |
Static Linear Load | 130/120N/cm | |
Nominal Amplitude | 0.5mm | |
Vibration Frequency | 65HZ | |
Exciting Force | 2X30KN | |
Walk Speed | 0-12km/h | |
Gradeability | 30-40% | |
Steel Wheel Size | φ700X1200mmX2 | |
Drive Type | Hydraulic Transmission | |
Vibration Model | Hydraulic Vibration | |
Water Tank | 200L | |
Hydraulic Oil Tank | 48L | |
Package Size | 2780X1500X2050mm | |
Starting Mode | Electric | |

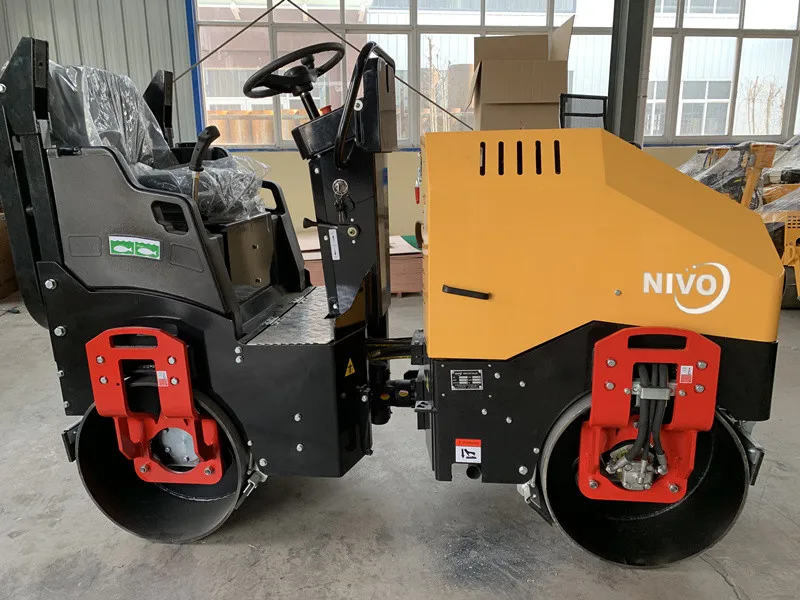

Specification YNC2H 2ton model | ||
Working Weight | 1700kg | |
Engine Model | Perkins 403D | |
Power | 25HP | |
Static Linear Load | 60/75 N/cm | |
Nominal Amplitude | 0.6mm | |
Vibration frequency | 70HZ | |
Exciting force | 30KN | |
Walk Speed | 0-8km/h | |
Climbing Capacity | 30% | |
Steel wheel size | Φ560*900mm*2 | |
Drive | Hydraulic transmission | |
Vibration Type | Hydraulic Vibration | |
Water tank | 100L | |
Hydraulic oil tank | 60L | |
Packing size | 2460*1180*1740mm | |
Starting Mode | Electric | |
for overseas government tender bulk export
Defferent configuration can be optional, and the price is differ. If in large quantity, price will be better

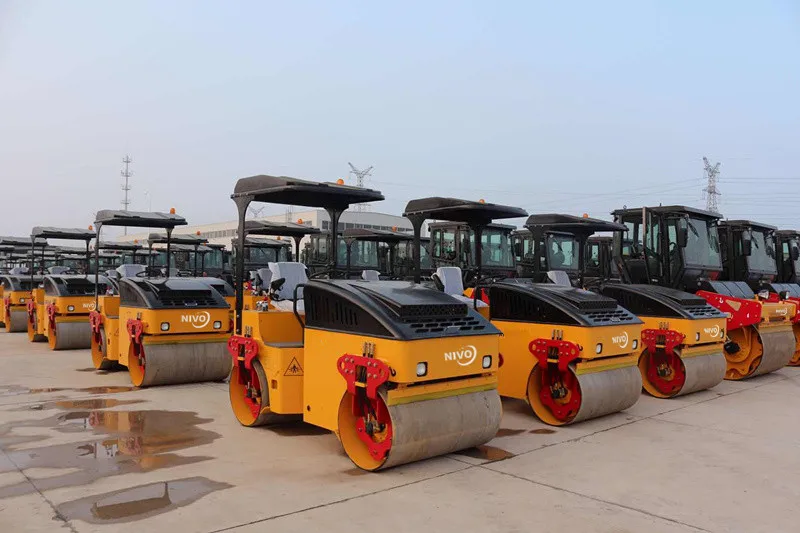

small roller export site
Final sea freight will be adjust to the actual shipping cost.All prices based on the general prodbasic configuration, engine,
hydraulic system will be updated by actual stock supply.NIVO reserve the all right including updated technical and appearance
without special notice.
hydraulic system will be updated by actual stock supply.NIVO reserve the all right including updated technical and appearance
without special notice.
