Одноуровневая Клеммная колодка 5,08 мм, латунный зажим, сквозное отверстие, Клеммная колодка
- Category: Terminal Blocks >>>
- Supplier: Cixi Zhongheng Electronics Co. Ltd.
Share on (1600565785265):
Product Overview
Description

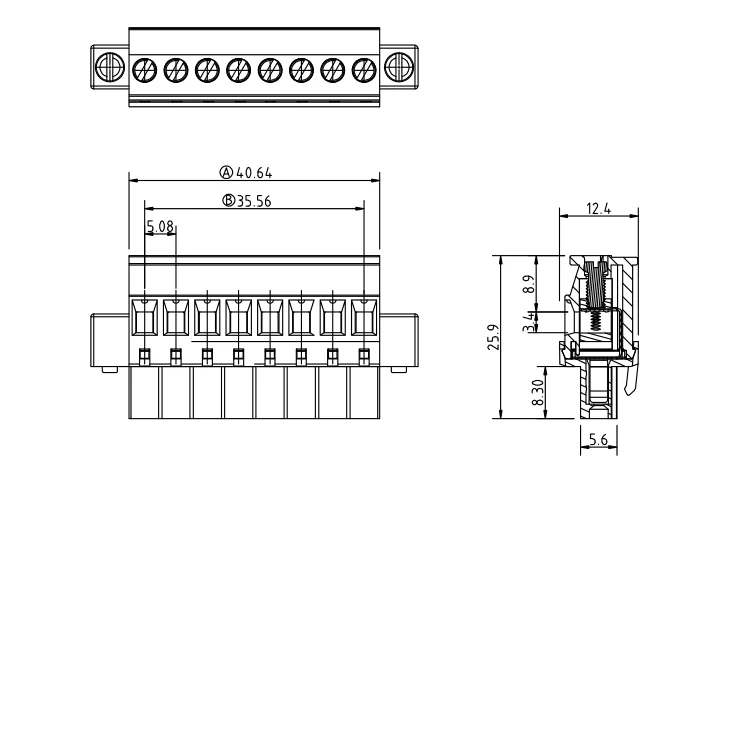

Pitch:5.00MM/5.08MM | ||
Part | Material | Plated |
Frame: | PA66 UL94V-0 | － |
Wire guard: | Phosphor bronze | Ni |
Screw: | M2.5Steel | Ni |
Clamp: | Brass | Ni |
Electrical | ||
Voltage: | 300V | |
Current: | 20A | |
Wire size: | 14-24AWG | |
Poles: | 2-24P | |
Insulation Reslistance: | 5000MΩ/1000V | |
Withstand Voltage: | AC2000V/1Min | |
Mechanical | ||
Acceptable Temperation: | -33℃~+120℃ | |
Max Soldering: | +250℃,5Sec | |
Strip Length: | 7.0-8.0mm |
