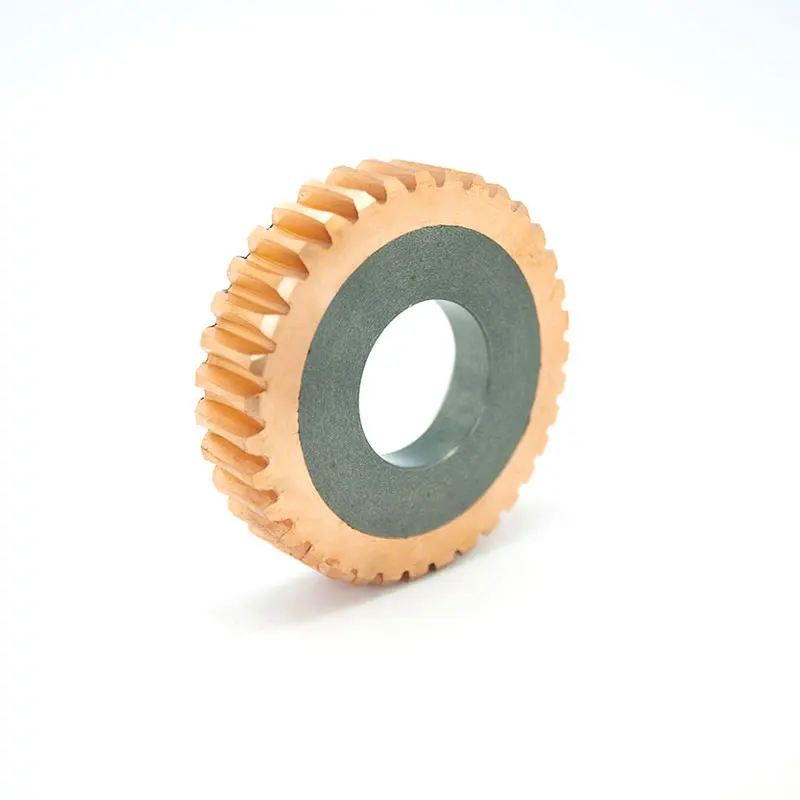

Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
- Category: >>>
- Supplier: Suzhou Konlida Precision Electronic Co. Ltd.
Share on (1600565785902):
Product Overview
Description
We can make standard gear/ special gear /Turbine Worm/Gear Rack as per drawing or sample. The gear material can be carbon steel,
stainless steel, aluminum, copper, brass and so on. Let us know your requirements today.
stainless steel, aluminum, copper, brass and so on. Let us know your requirements today.
1. High anti-wearing copper casting parts
2. Widely used in mining equipment, construction machine and metallurgy and other high loaded large machiner.
3. Strict casting processing control, make the tolerance less than 0.003m.
4.Long working life and PRsmooth surface treatment.Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm
Specification
Transmission Type | ZA Type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | |||||
Number of Paired Screw Heads | Z1 | 1 | MtNumber of worm heads | Mt | 1 | |||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | |||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | |||
Helix Direction | Right | |||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | ||||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | |||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | |||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | |||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | ||||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | ||||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Dividing circle diameter | df1 | ∅34 | |||
Pitch Limit Deviation | fpt | ±0.0085 | ||||||
Related products
Quenching and Heat Treatment ProcessIn order to enhance the hardness and wear resistance of the tooth surface, the tooth surface can be subjected to high frequency quenching and heat treatment, thereby increasing the life of the gear.
Application
Food Processing/Sewage treatment plant/Filling Machinery/Transport Equipment/Electronic/Medical Instruments/Glass
Machinery/Aircraft Accessories/Ship Manufacturin/Appliance/Auto/Industrial equipment metal stamping hardware parts.
Machinery/Aircraft Accessories/Ship Manufacturin/Appliance/Auto/Industrial equipment metal stamping hardware parts.
Factory
Package& Delivery
Company Profile
Suzhou Konlida Precision Electronic Co., Ltd. Established in 2006, the headquarter is in suzhou. KONLIDA is aspecialized supplier
of a full range of standard / special gears, racks, synchronous pulleys, sprockets, worms, conveyor belts, couplings and other
products.
of a full range of standard / special gears, racks, synchronous pulleys, sprockets, worms, conveyor belts, couplings and other
products.
One stop service, source factory, support small batch customization, worry free delivery, quality assurance, after-sales
assurance.
assurance.
FAQ
Q1. We don't have drawings, can we produce according to the samples we provide?
A1. OKPrecision CNC Machined Double Worm Wheel shaft Worm Gear
Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
Q2. Can I make a sample for testing first?
A2. OKPrecision CNC Machined Double Worm Wheel shaft Worm Gear
Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
Q3. What are your processing equipment?
A3. CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machineCPrecision CNC Machined Double Worm Wheel shaft Worm Gear
Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
Q4. What craftsmanship do you have for processing accessories?
A4. Our process includes tooling fabrication, stamping, deep drawing, punching, spinning, laser cutting, bending, seamless welding, machining and assembly.Precision CNC Machined Double Worm Wheel shaft Worm Gear
Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
Q5. What are the surface treatments?
A5. We can do heat treatment and surface treatment such as case harden, zinc plating , nick plating , chrome
plating, powder coating, blacken and so on.Precision CNC Machined Double Worm Wheel shaft Worm GearTeeth
plating, powder coating, blacken and so on.Precision CNC Machined Double Worm Wheel shaft Worm GearTeeth
Q6. Can you help assembling the product after it is made?
A6. OK.Small Plastic Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Turbine Worm Gear
