72V/71.4V 15A 20A 30A On Board Derating Power Waterproof Battery Charger
Specification


20S LiFePO4/17S NMC On Board Derating Power Golf Cart Battery Charger
Battery type
LiFePO4 in 20 Series/ NMC in 17 series



Model name
OBCD-1000-720-15
OBC-1300-720-20
OBCD-1600-720-25
OBCD-2000-720-30
OBCD-1000-714-15
OBCD-1300-714-20
OBCD-1600-714-25
OBCD-2000-714-30
OBCD-1000-720-15-CAN
OBCD-1300-720-20-CAN
OBCD-1600-720-25-CAN
OBCD-2000-720-30-CAN
OBCD-1000-714-15-CAN
OBCD-1300-714-20-CAN
OBCD-1600-714-25-CAN
OBCD-2000-714-30-CAN
Input
Input Voltage range
90-264V
90-264V
Input Frequency range
45-65HZ
45-65HZ
Input current(Typ.)
5A
6.5A
8A
10A
Input Power
Factor(Typ.)
≥0.98（Tested when the power is above half power）
Input Inrush
current(Typ.)
Cold start 50A at 220VAC
Input Max.
Efficiency(Typ.)
93%(220VAC); 91%(110VAC)
Input Leakage current
<0.5mA/220VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)
Output
Output Charging phase
Without CAN: pre-charge + constant current + constant voltage
With CAN: work on command
Output Max. output
power
1000W@220VAC
500W@110VAC
1300@220VAC
650W@110VAC
1600W@220VAC
800W@110VAC
2000W@220VAC
1000W@220VAC
Output Max. output
current
15A@220VAC
7.5A@220VAC
20A@220VAC
10A@110VAC
25A@220VAC
12.5A@110VAC
30A@220VAC
15A@110VAC
Output vol range
40~72.0V(LiFePO4 in 20 Series)/ 40~71.4V(NMC in 17 series)
Output Constant voltage
72.0V(LiFePO4 in 20 Series)/ 71.4V(NMC in 17 series)
Output Max. current
ripple
500mAp-p
Output Static power
<8W
Protection
Short circuit
Yes
Over temperature
Yes
Function

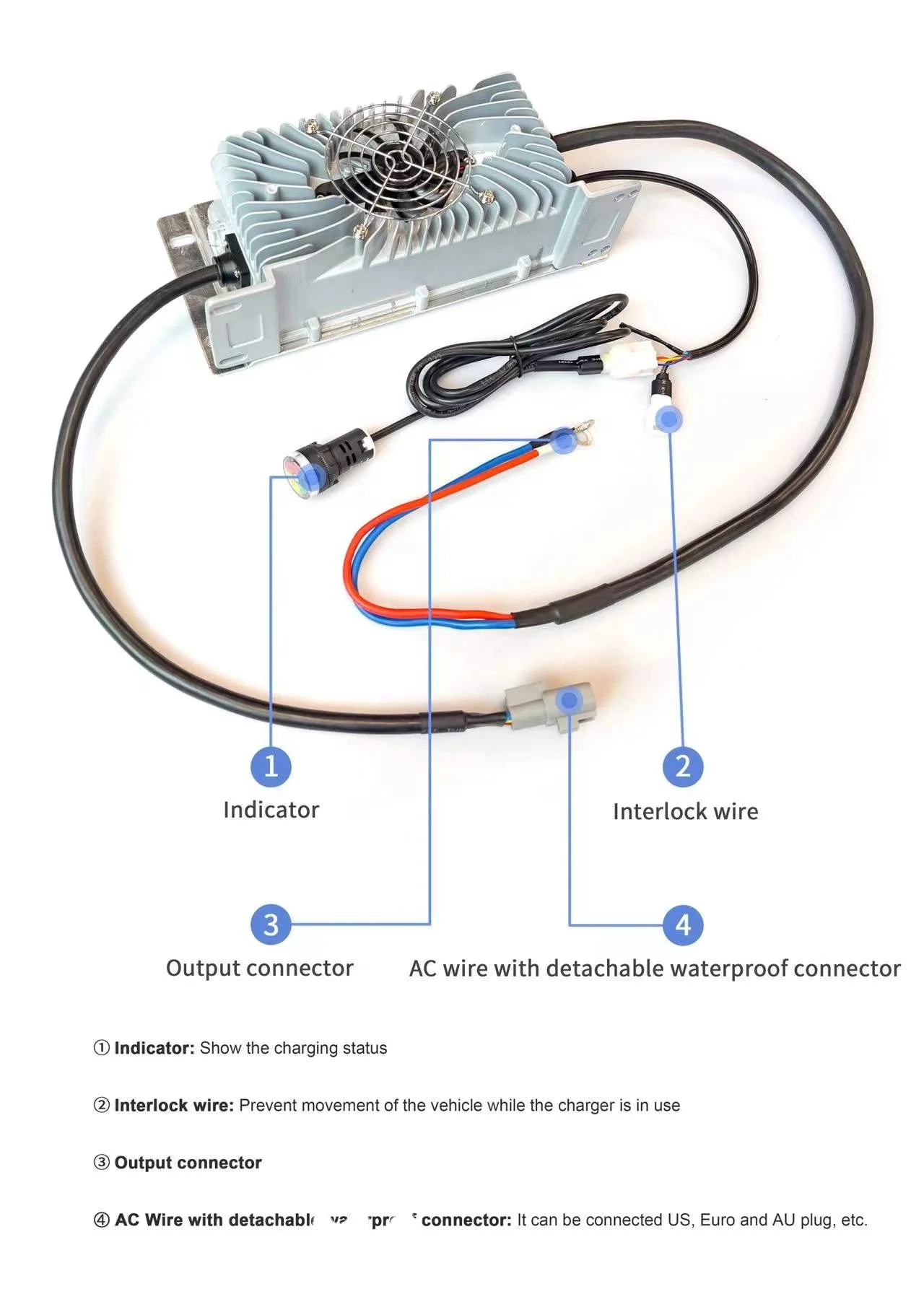

Indicator light
Yes
Interlock
Normally open when charging, normally closed when not charging
Environment
Cooling
Fan cooling
Waterproof
IP65
Working Temp.
–20～50℃
Working humidity
10%～95% RH non-condensing
Storage temp., humidity
–40～80℃, 10%～90% RH non-condensing
Vibration resistant
10～500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
SAFETY & EMC
Safety standards
EN60335, GB/T4706
        Withstand voltage
I/P-O/P: 3KVAC I/P-FG: 2KVAC
O/P-FG: 0.5KVAC
Isolation resistance
I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC/25℃/70%RH
EMC emission
EN55022 Class A, GB/T 9254 Class A
EMC immunity
EN 55024:2010, GB/T17618

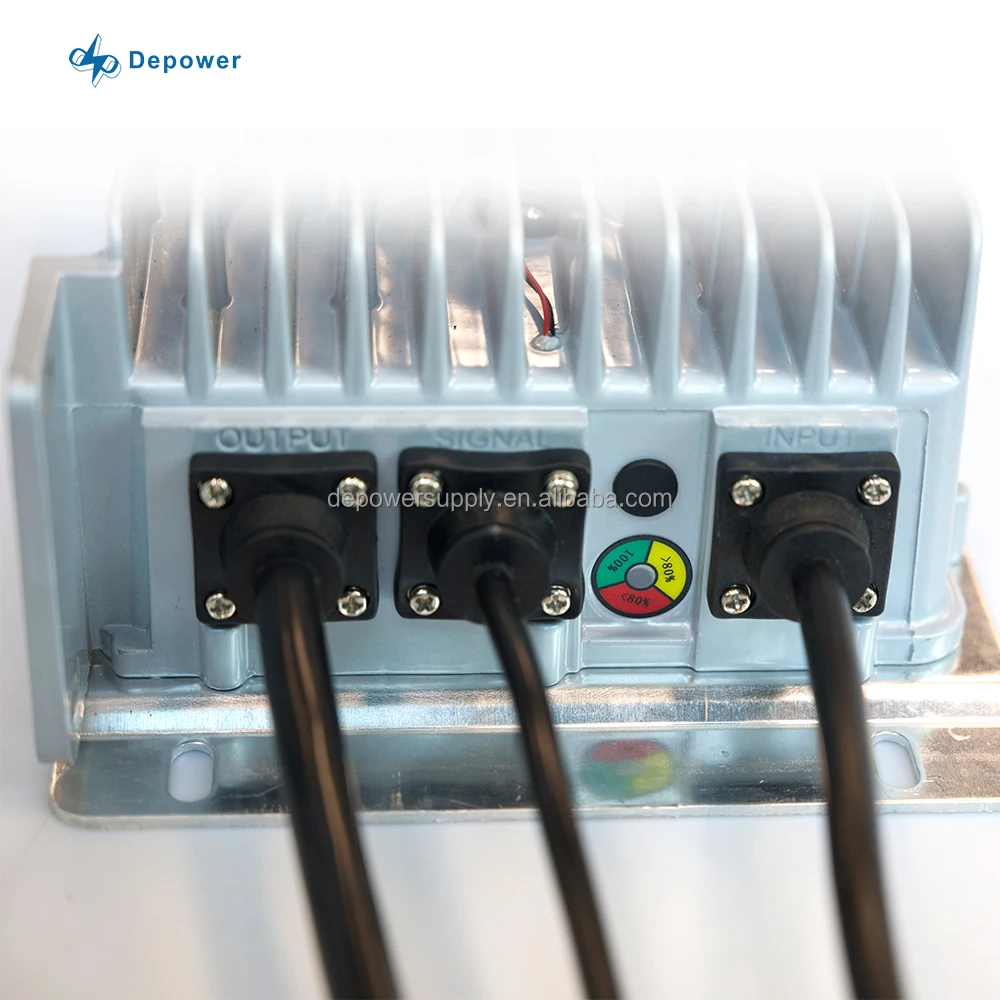

Indicator state
Steady red light
Charging
Steady yellow light
Almost full
Steady green light
Full charged
Red light flashing
Charger broken
Others
MTBF
>100K hours
Weight
4.5KG
5.5KG
Dimensions

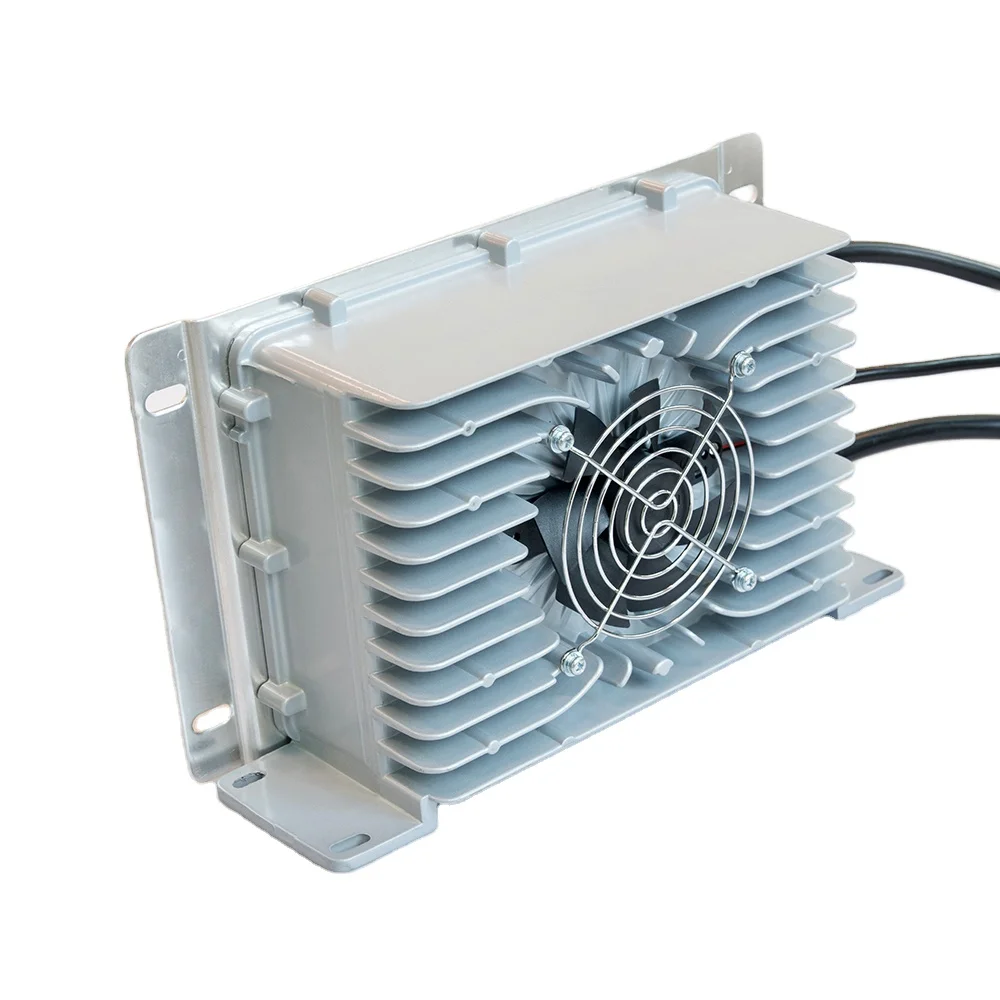

289*158*82 mm(Pic2)

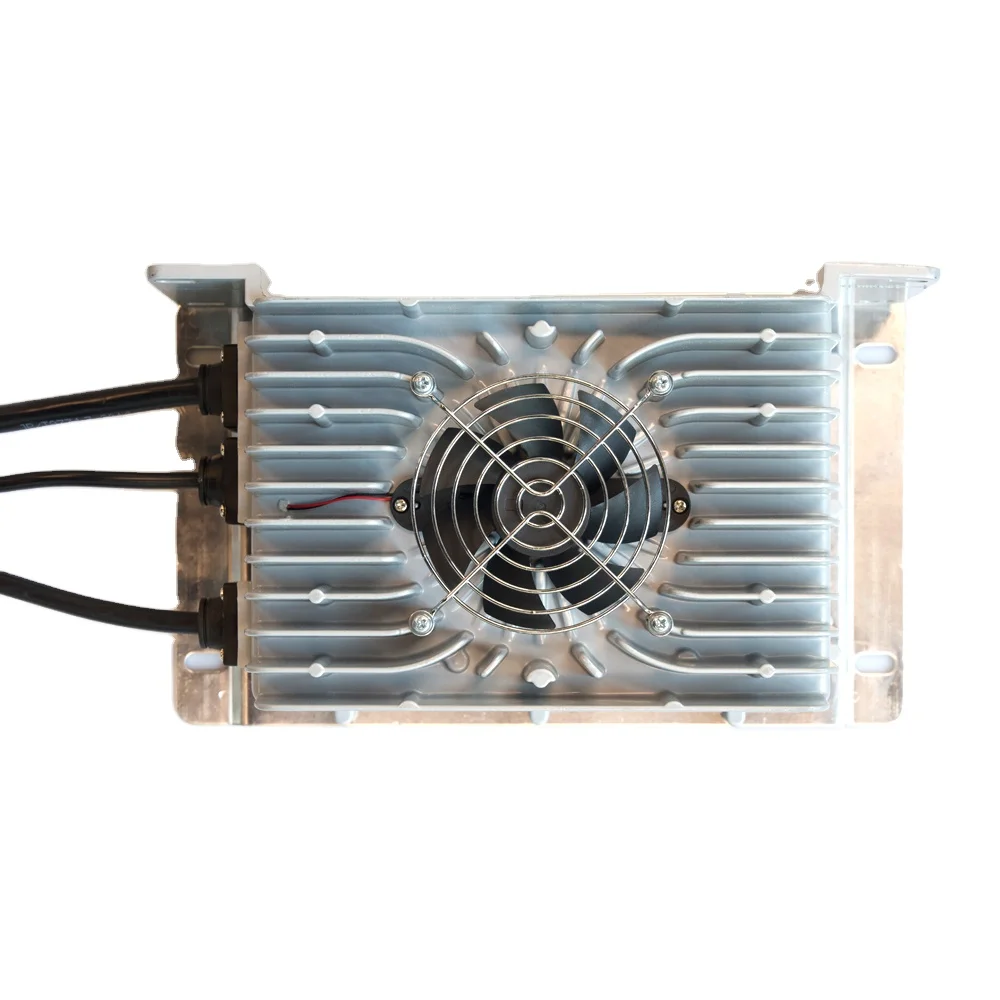

286*197*90 mm (Pic3)


Product Feature- OBCD Series battery charger 71.4V/72V 15A 20A 25A 30A
1. Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
2.  Charging conversion efficiency is up to 94%
3. Support lithium and lead-acid battery
4. Short circuit/ Over voltage/ Over temperature protection


On board battery charger curve
Note: 40-48V is a small current (10A constant current) pre-charge stage, and the current cannot be set. Its purpose is to protect over-discharged batteries (high current charging is prohibited).




Company Profile


Shenzhen Depowersupply Electric CO.,Ltd
Shenzhen Depowersupply Electric Co., Ltd. is committed to the application of power electronics in the new energy industry. The main products include MPPT solar charge controller, solar street light controller, solar off-grid inverter and so on. We rely on our own intellectual property and technology platforms to provide our customers with the best off-grid systems and product solutions.
Depowersupply has a highly qualified R&D team with an average age of 35 years. We have core cutting-edge power electronics platforms such as vector control technology, three-electrical level technology, LLC technology and SRC technology, and have obtained a number of national patents. Depowersupply adheres to the needs of customers and adheres to the design concept of “efficient, lightweight, reliable and easy to use” to develop products with industry-leading


Our Advantages


1. Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
2. Charging conversion efficiency is up to 94%
3. Over temperature protection and Low power protection
4. Full charge voltage is 28.8V 54V 54.6V 57.6V 71.4V 72V 84V 86.4V
5.Charging current is 15A 20A 25A 30A
6.Max output power is 800W 1000W 1300W 1400W 1600W 2000W
