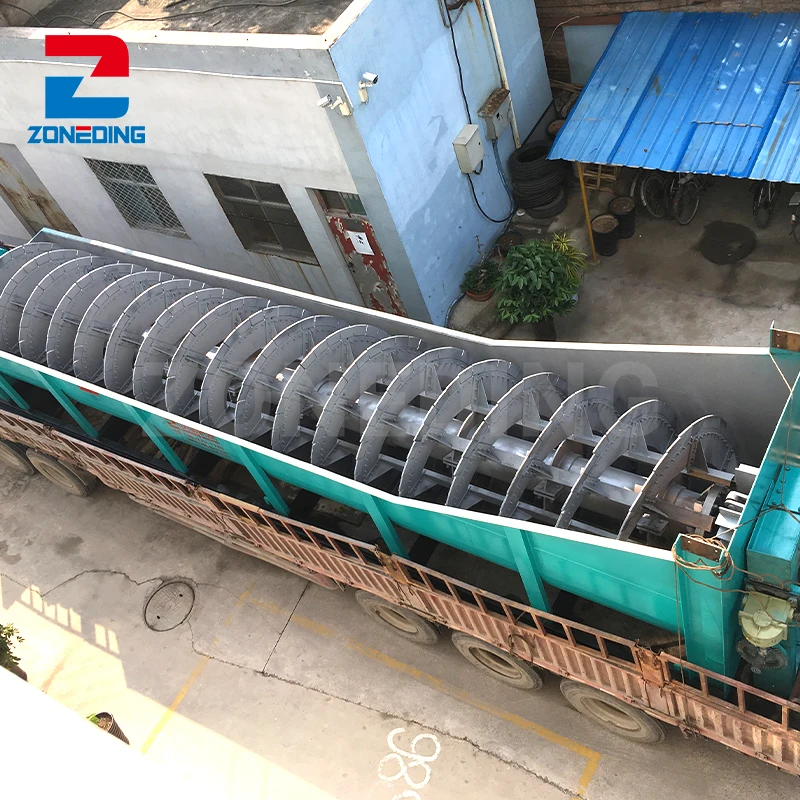

Spiral Classifier With Ball Mill Fine Powder Sand Making Machine
- Category: >>>
- Supplier: Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co. Ltd.
Share on (1600565820046):
Product Overview
Description
Product Description

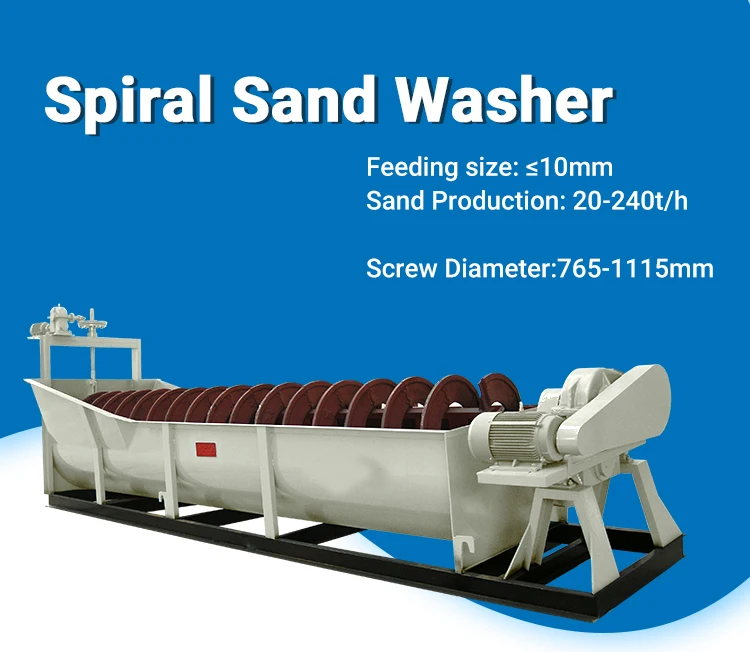

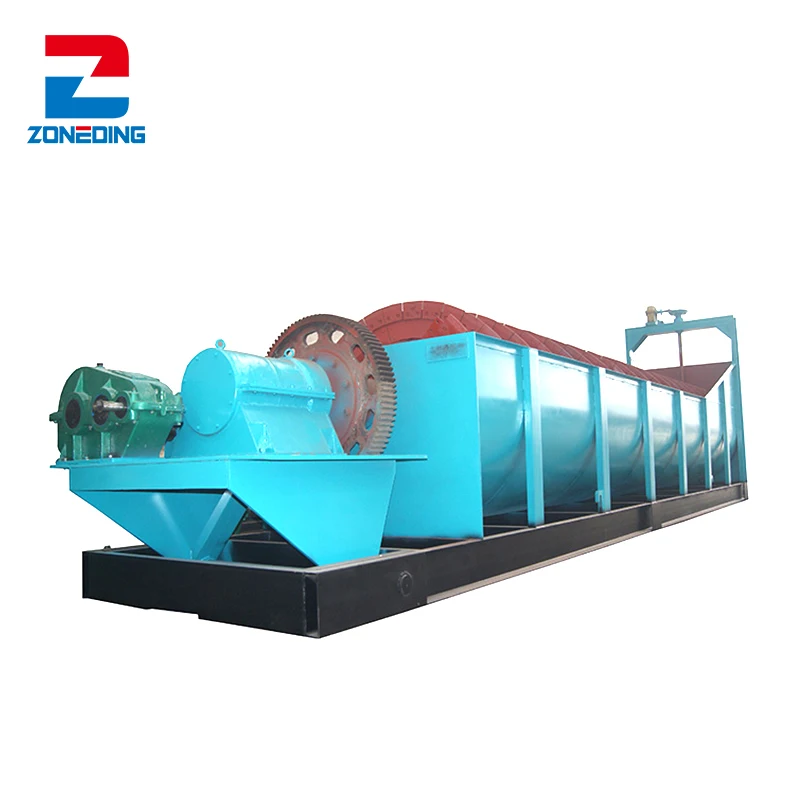

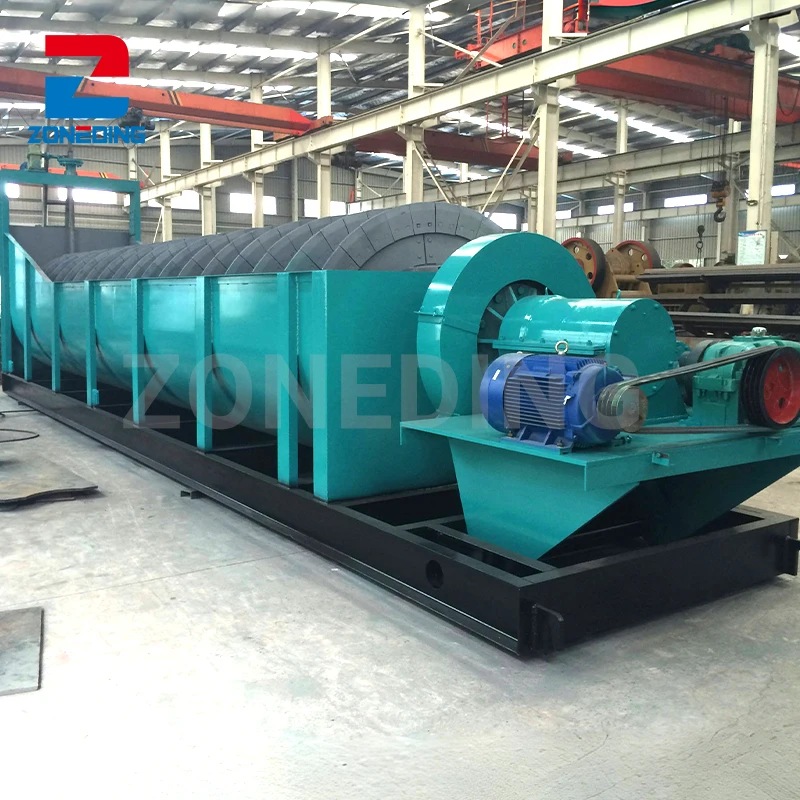

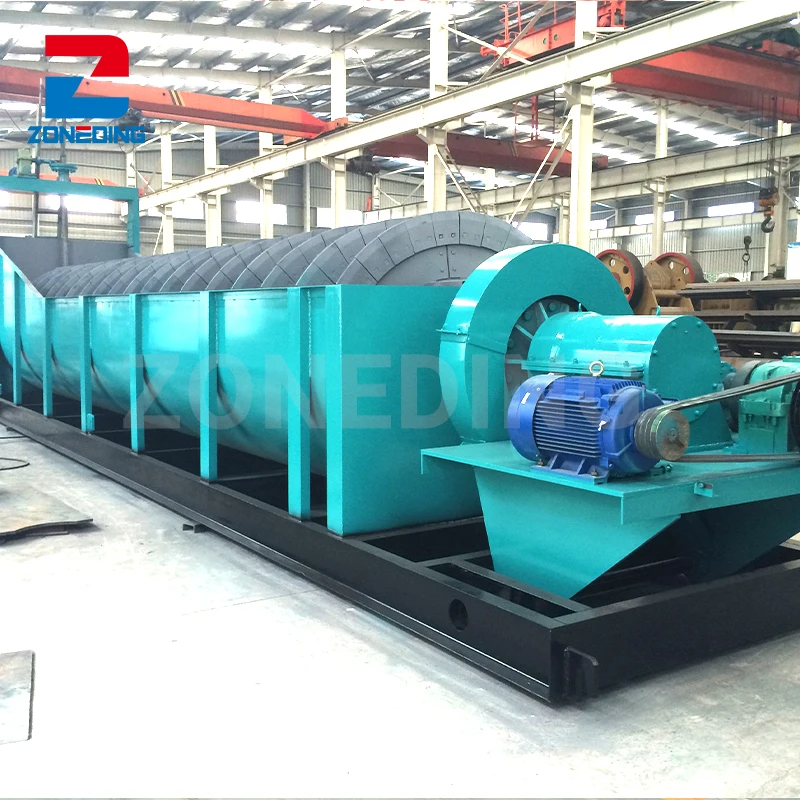

The spiral sand washing machine is a horizontal structure sand washing equipment and an upgraded version of the wheel sand washing machine. It uses an internal spiral device to produce high-quality sand through optimal cleaning, screening and dehydration.

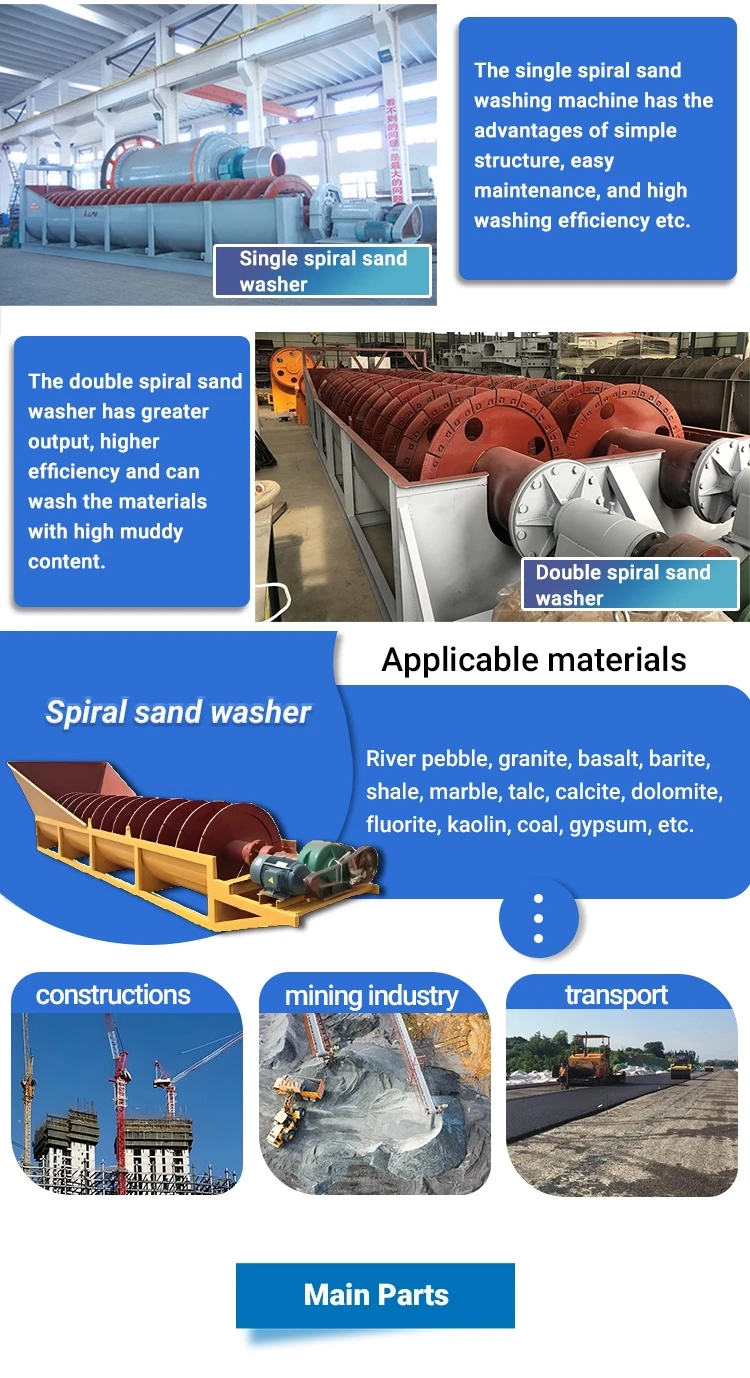

According to the number of spirals, the spiral sand washer can be divided into the single spiral washer and double spiral washer. The double screw sand washer has a greater output and higher efficiency, and can wash materials with high mud content.
According to the number of spirals, the spiral sand washer can be divided into the single spiral washer and double spiral washer. The double screw sand washer has a greater output and higher efficiency, and can wash materials with high mud content.

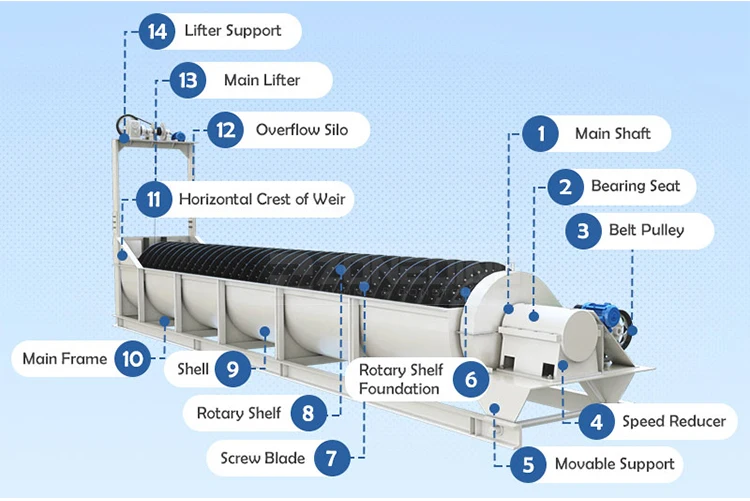

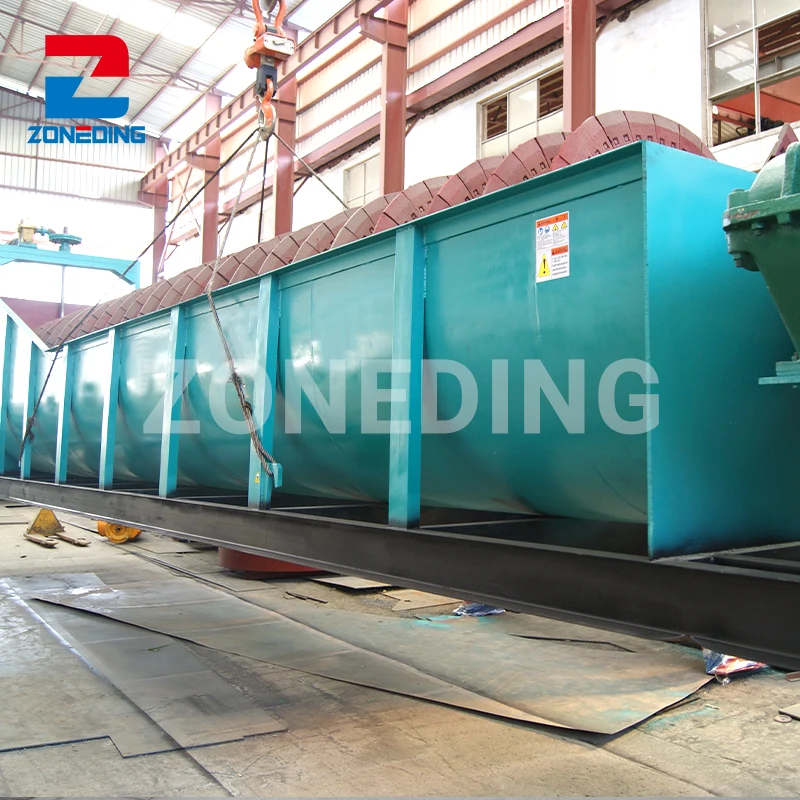

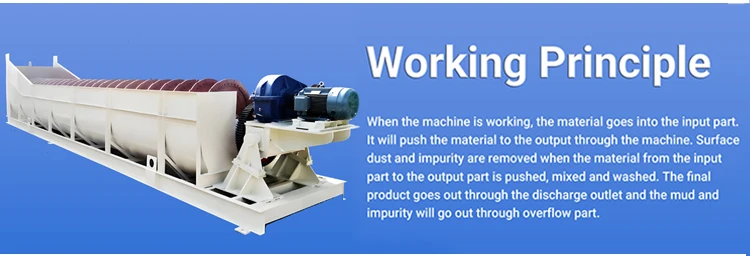

The spiral sand washing machine has a simple sealed structure. It is mainly composed of the sand washing tank, reducer, motor, main shaft, spiral blades, and bracket.
The rotor adopts a central structure. The spiral blade is installed on the main shaft and connected to the reducer to work. The impeller drives the bearing device to isolate the bearing from water and materials, ensuring that the finished product is not contaminated and effectively improving the cleaning effect.
Advantages of Zoneding Machinery Spiral Sand Washer
Model | Spiral diameter (mm) | Speed of Spiral (r/min) | Capacity | Slope (°) | Power (KW) | Weight (t) | ||
Sand Return (t/h) | Overflow (t/h) | |||||||
FL-5 | 500 | 8-15.5 | 143-2611 | 32 | 12-18 | 3 | 1.9 | |
FL-7 | 750 | 4.5-10 | 256-564 | 65 | 12-18 | 3 | 2.7 | |
FL-10 | 1000 | 1.6-7.4 | 473-1026 | 85 | 12-18 | 5.5 | 4.1 | |
FL-12 | 1200 | 5-7 | 1170-1600 | 155 | 12-18 | 5.5 | 7.5 | |
FL-15 | 1500 | 2.5-6 | 70-115 | 235 | 12-18 | 7.5 | 10.5 | |
FL-18 | 1800 | 2.5-6 | 100-190 | 310 | 12-18 | 11 | 17.1 | |
FL-20 | 2000 | 2.5-6 | 160-230 | 400 | 12-18 | 15 | 19.3 | |
FL-24 | 2400 | 3.64 | 160-230 | 580 | 12-18 | 18.5 | 26 | |

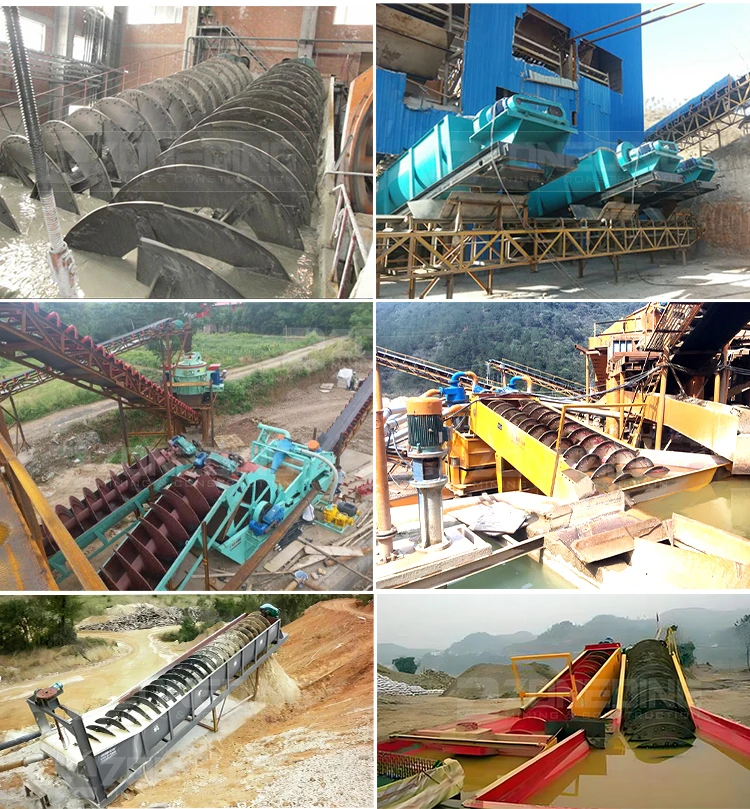

Customer Site

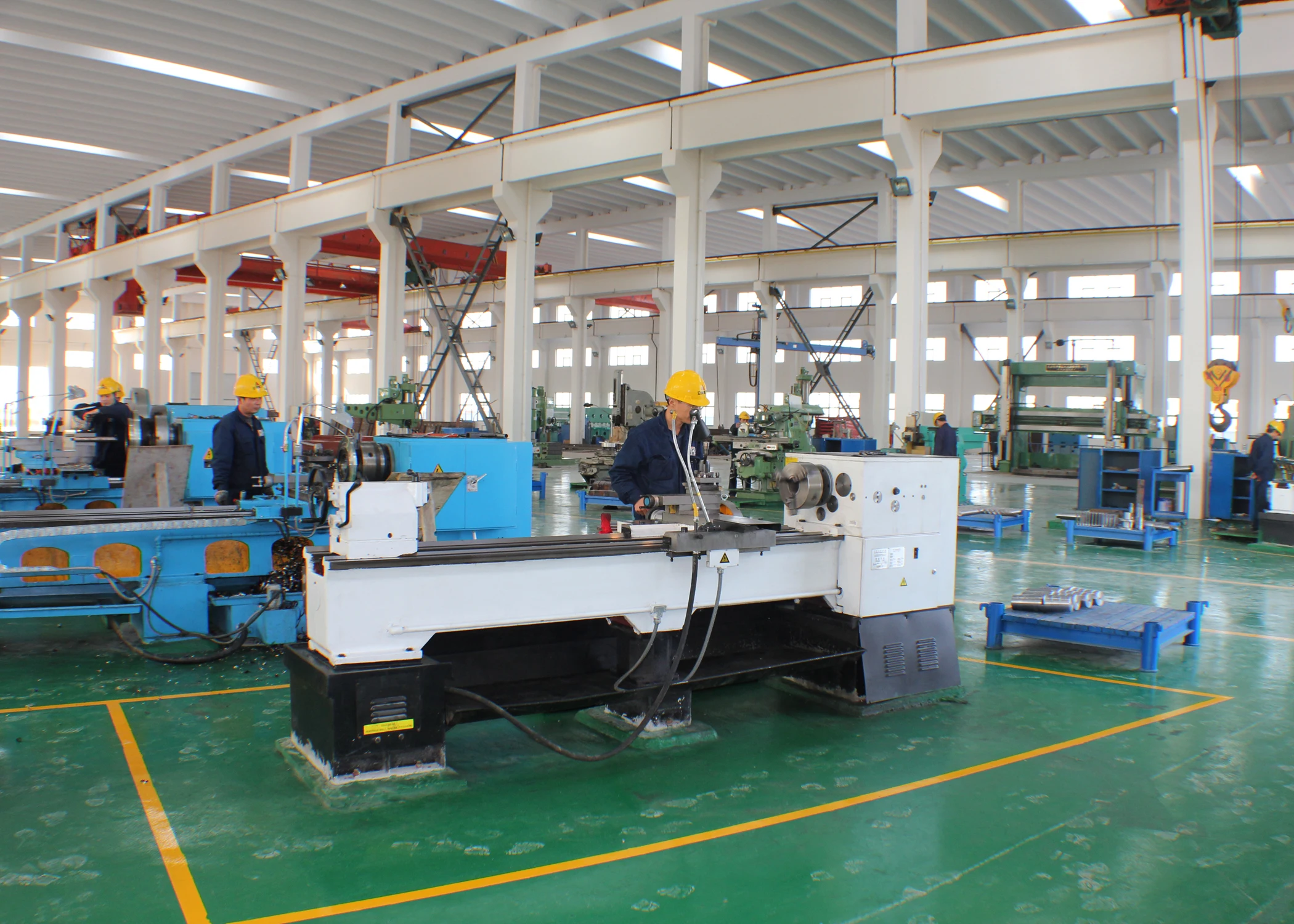

Company Information
Zhengzhou Zhongding Heavy Machinery Manufacturing Co., Ltd. is a professional solution provider of mineral processing, crushing, screening and drying equipment. We have long been committed to providing crushing equipment, vibrating screening equipment, washing equipment, belt conveyor equipment and other production line processes for the grinding, beneficiation, sand and aggregate industries.
Customer Visits
Why Choose Us
Technical Advantages
1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.

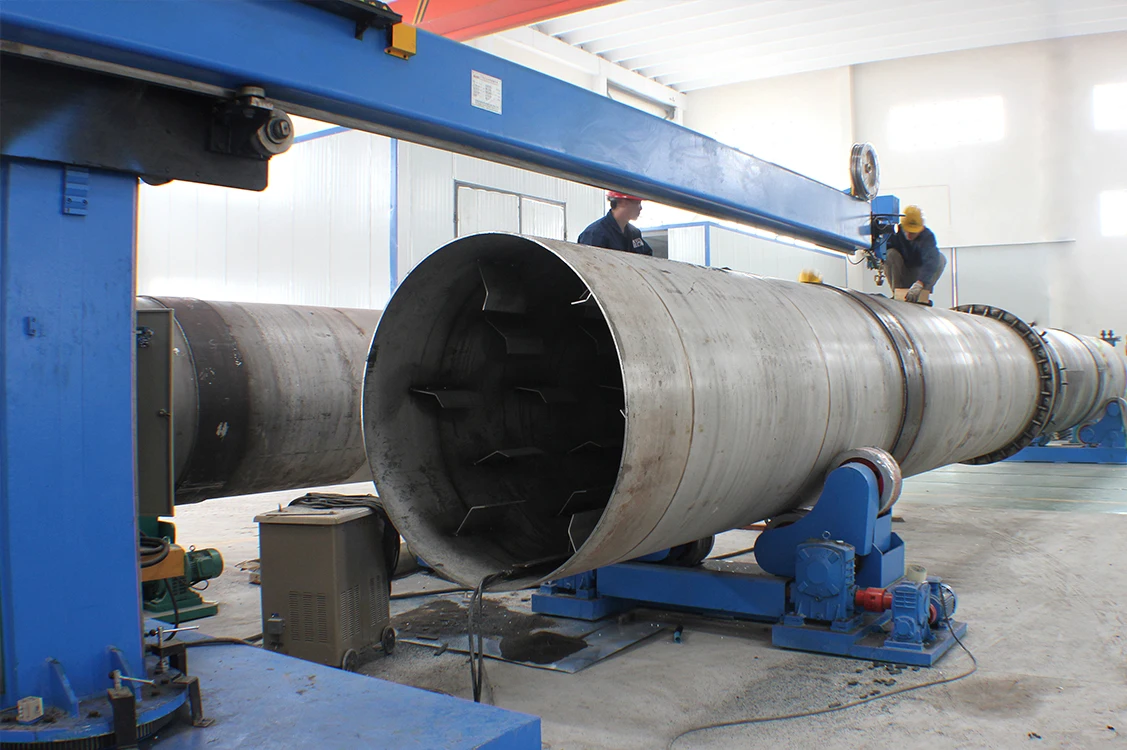

2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
Price advantages
1. We are the direct manufacturer, so we can offer you the lowest price than the market price.
2. The price of the machine can be given the largest discount based on quantity.
2. The price of the machine can be given the largest discount based on quantity.
Transportation Advantages
1.Standard container or bulk cargo transportation.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.
Packing & Delivery
FAQ
1.Are you a manufacturing or trading company?
We are manufacturer. Our factory established in 2004.
2.What is the after-service of your company?
We can provide the foundation drawing, installation service, training, spare parts and other service according to the customer's requirements.
3. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.
4. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
5. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
3. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.
4. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
5. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
