Product Overview
Description
Product Description
New arrival arm single board computer I.MX6ULL programmable Industrial and IoT kits
OKMX6ULL-C Single Board Computer
Based on NXP Cortex-A7 low power featuring processor i.MX6ULL @ 800MHz.
SoM+Carrier Board structure
SoM is only 40*29mm, suitable for application scenarios with a limited volume.
Native support: 8 serial ports, 2 Ethernet ports, 2 CAN controller, 2 USB 2.0, LCD, etc.

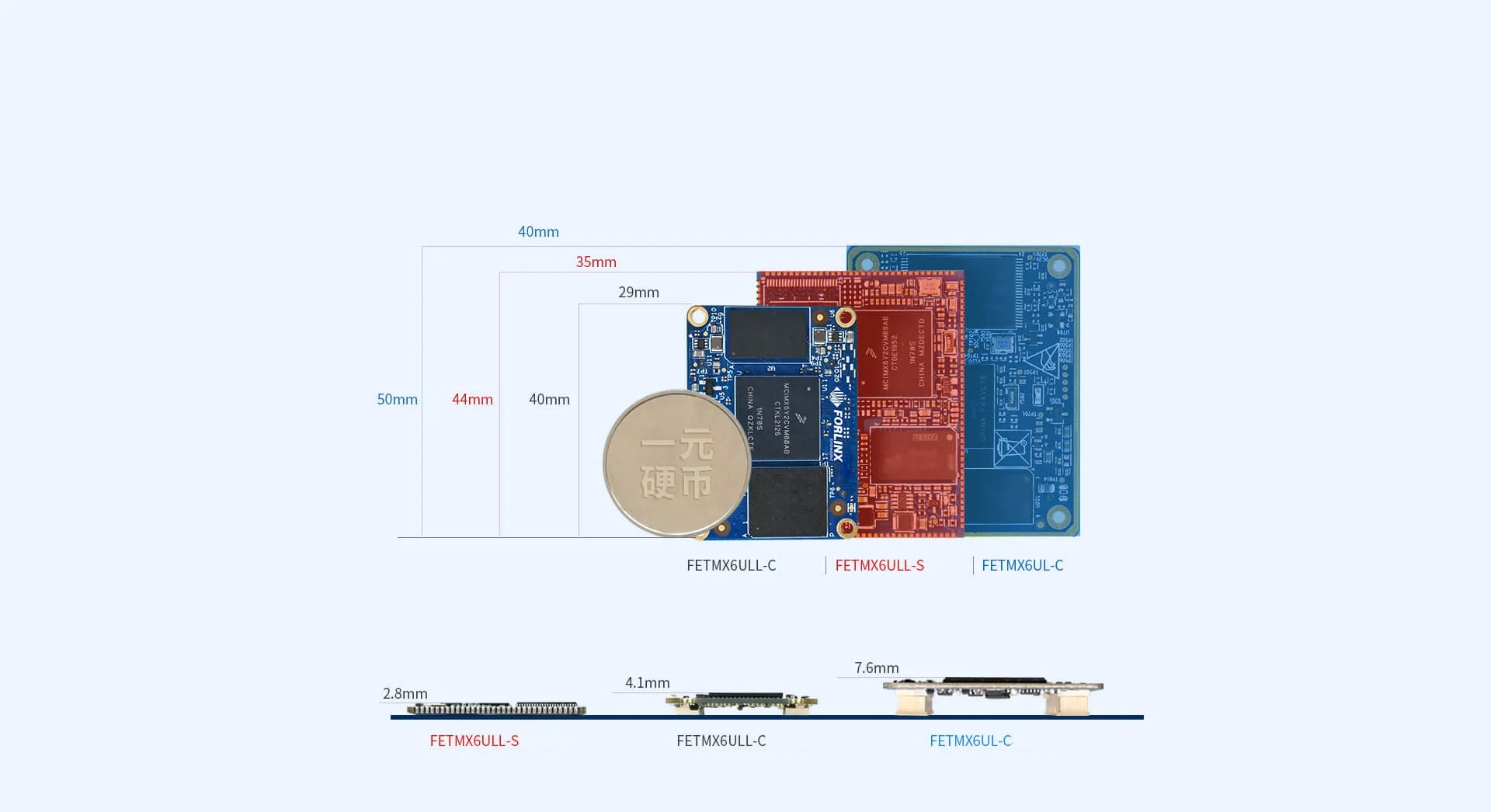

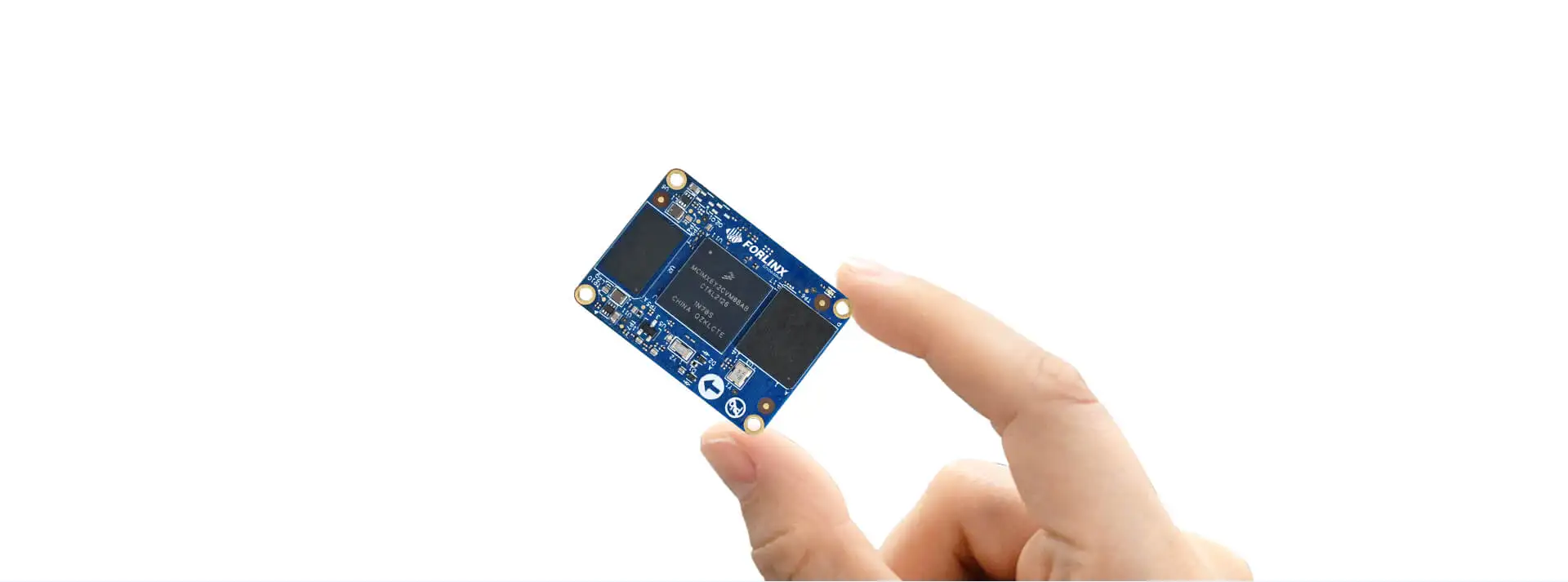

Small but Complete
Cute little, compact size by 40*29mm.
Package: 2mm height board to board connector
Combines small size and easy disassembly.
Mature and Stable
This is the Third SOM launched by Forlinx based on NXP i.MX6U series processors.
Matured technical solutions.
Stable and reliable.

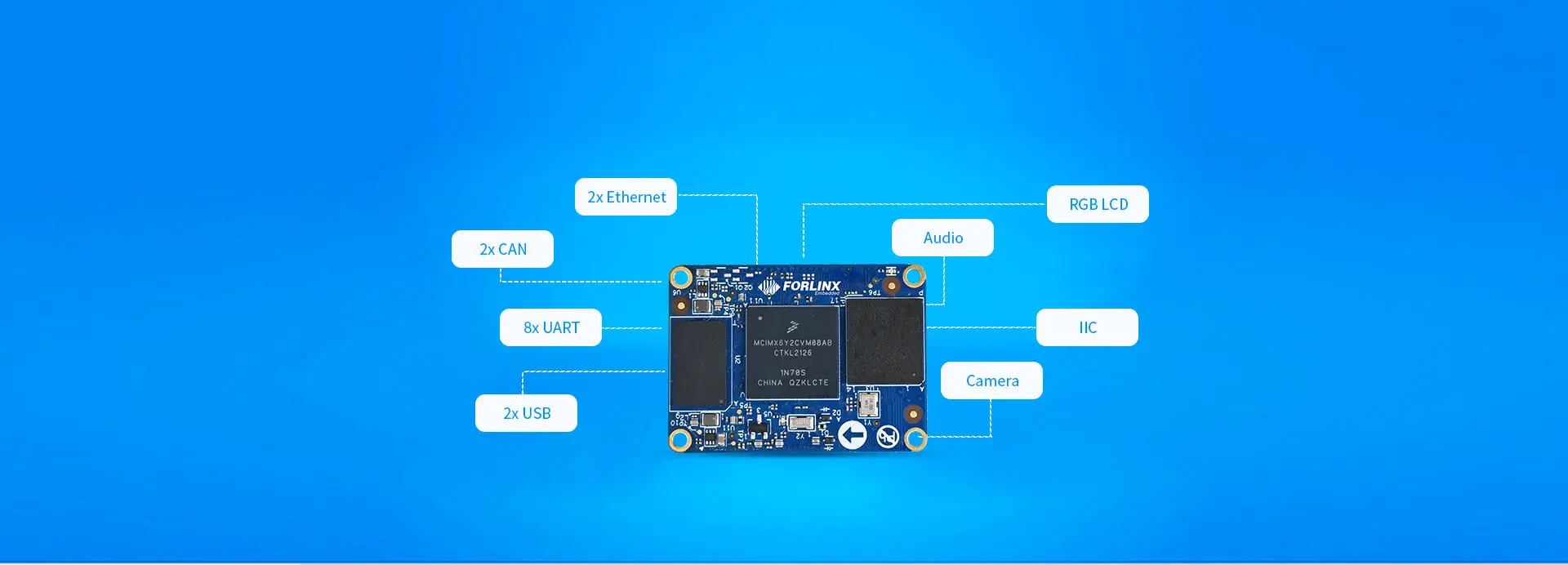

Comprehensive Functions
Natively support: 2x Ethernet, 2x CAN, 8x UART, 2x USB, RGB LCD, Audio, IIC, SPI, Camera, PWM, ADC, SDIO, GPIO,etc.
Meet the requirements of various application scenarios

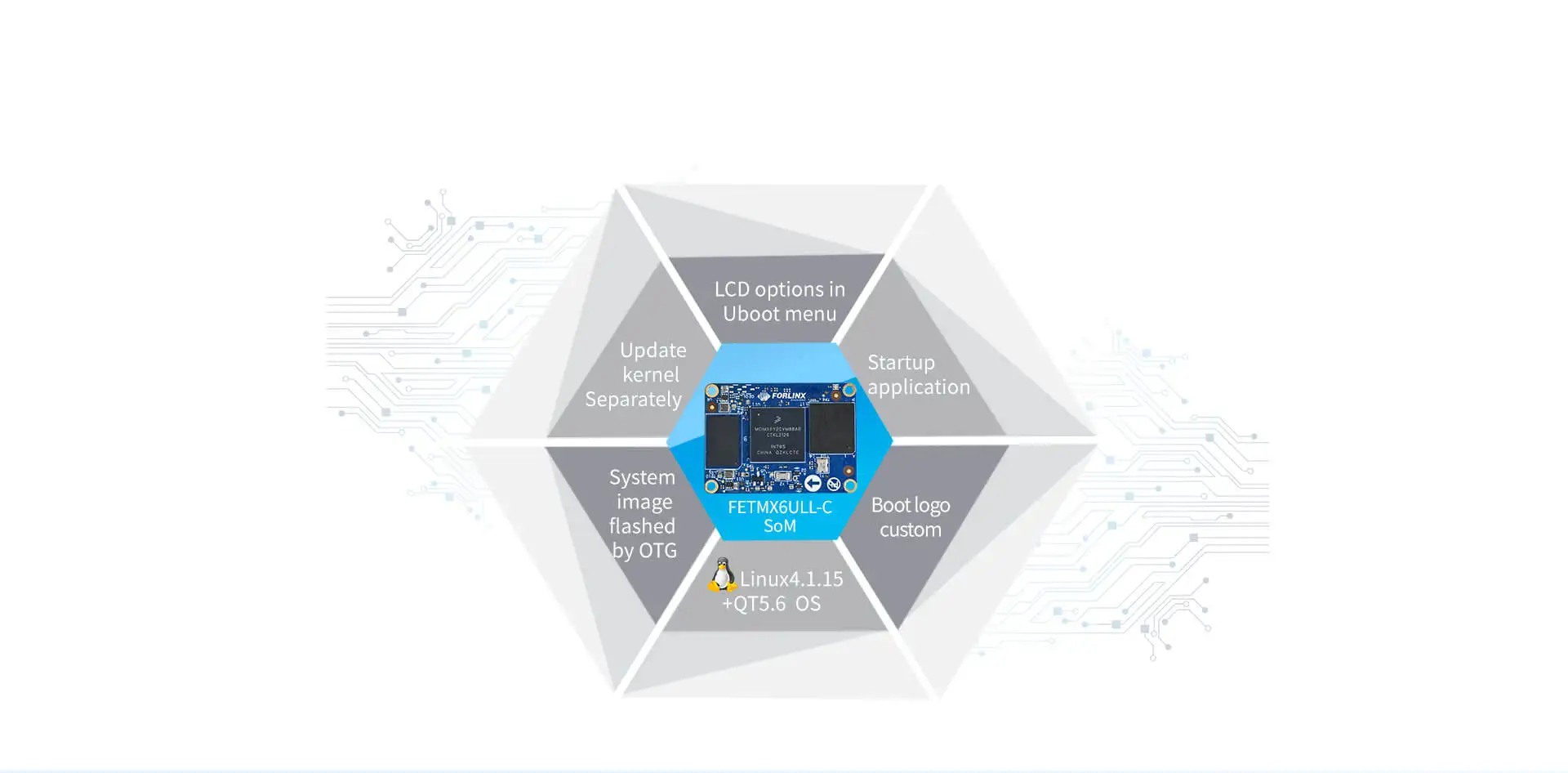

Easy to Develop
Separately update kernel
Batch flashing by OTG, SD/TF cards
Convenient for development and mass production.

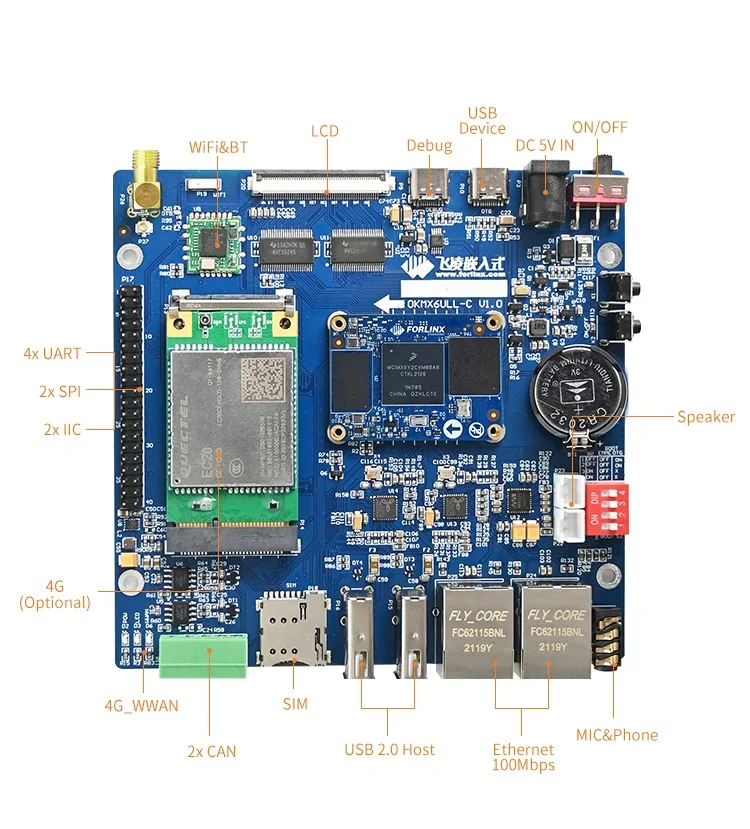

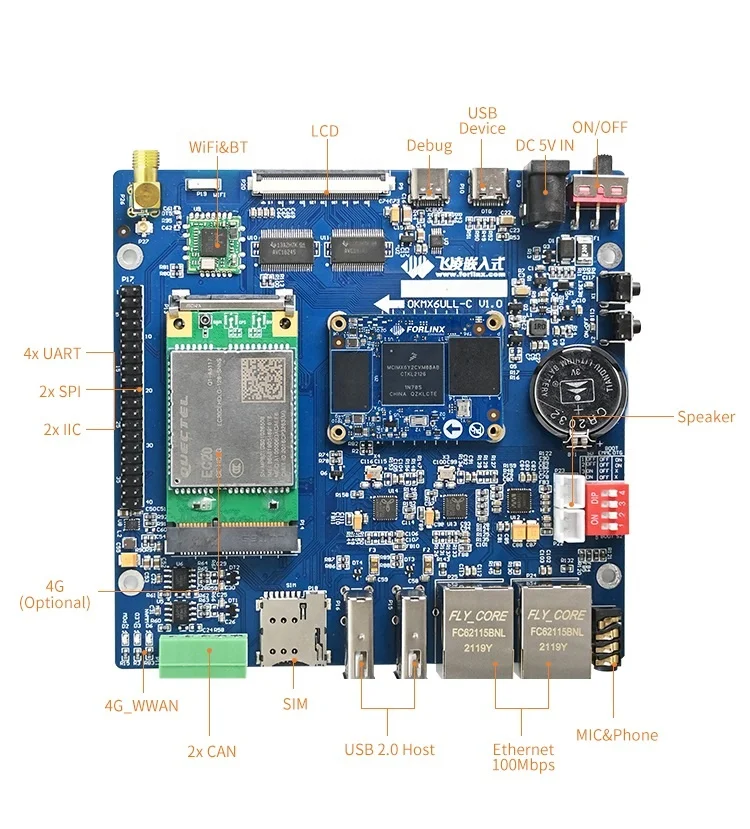

OKMX6ULL-C Single Board Computer
Matched Development Board, Integrates rich functional interfaces, Makes easy product evaluation.
Specification
Hardware Features | ||
FETMX6ULL-C SoM Basic Parameters | ||
CPU | NXP i.MX6ULL | |
Architecture | Cortex-A7 | |
Frequency | 800MHz | |
RAM | 512MB DDR3 | |
ROM | 8GB eMMC | |
Voltage Input | 3.3V | |
Working Temperature | -40~85℃ | |
Dimensions | 40mm*29mm | |
Package | board to board connector | |
OS | Linux4.1.15+QT5.6 | |
FETMX6ULL-C SoM Function Parameter | ||
LCD | RGB 24-bit, up to WXGA (1366 x 768) | |
Audio | 3 | |
I2C | 4 | |
SPI | 4 | |
CAN | 2 | |
USB | 2 | |
SD/MMC/SDIO | 2 | |
Ethernet | 2x 10/100M | |
UART/IrDA | 8 | |
EINT/GPIO | supported | |
Video Coder | software codec | |
Camera | 1-ch, 8-bit(DVP), up to 5-Megapixel; | |
PWM | 8 | |
ADC | 10 | |
eSAI | 1 | |
Keypad Port | 8*8 | |
SPDIF | 1 | |
QSPI | 1 | |
OKMX6ULL-C SBC Function Parameter | ||
Ethernet | 2x 10/100M，RJ45 | |
USB Host | 2x USB2.0, Type-A | |
4G | Mini PCIe | |
CAN | 2x CAN 2.0B | |
LED | 3, Power, User, 4G signal | |
Audio | 1x Phone, 1x MIC, 2x Speaker | |
RTC | supported | |
Power input | 5V DC | |

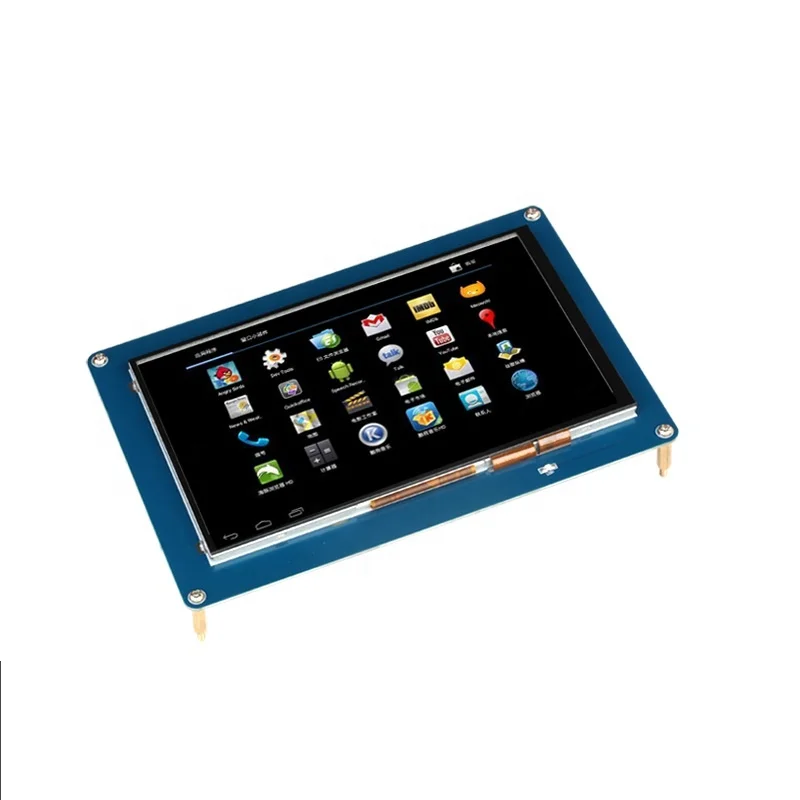

LCD | 1x RGB888, support touch function | |
PWM | 1, for backlight control | |
WiFi&Bluetooth | 1 | |
USB OTG | 1x USB Type-C | |

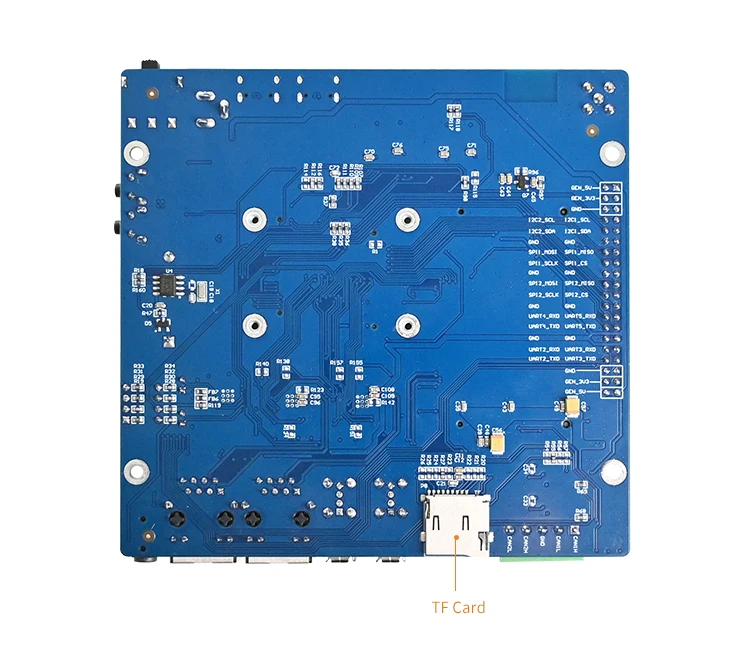

SD | 1 | |
UART | 4x 3.3V TTL level, by pin headers with pitch of 2.54mm | |
I2C | 2x 3.3V TTL level, by pin headers with pitch of 2.54mm | |
SPI | 2x 3.3V TTL level, by pin headers with pitch of 2.54mm | |
Packing & Delivery
Certifications
Technical Support
Company Profile
Founded in 2007,
Forlinx Embedded Tech. Co., Ltd. is the largest and leading manufacturer
of embedded system ARM development board or platforms in North China.
As an authorised IDH of TI Sitara and NXP/ Freescale, Forlinx is aiming at providing customers with best embedded ARM development board/single board computer, CPU module/SoM, expansion modules and solutions。
