Product Overview

Description

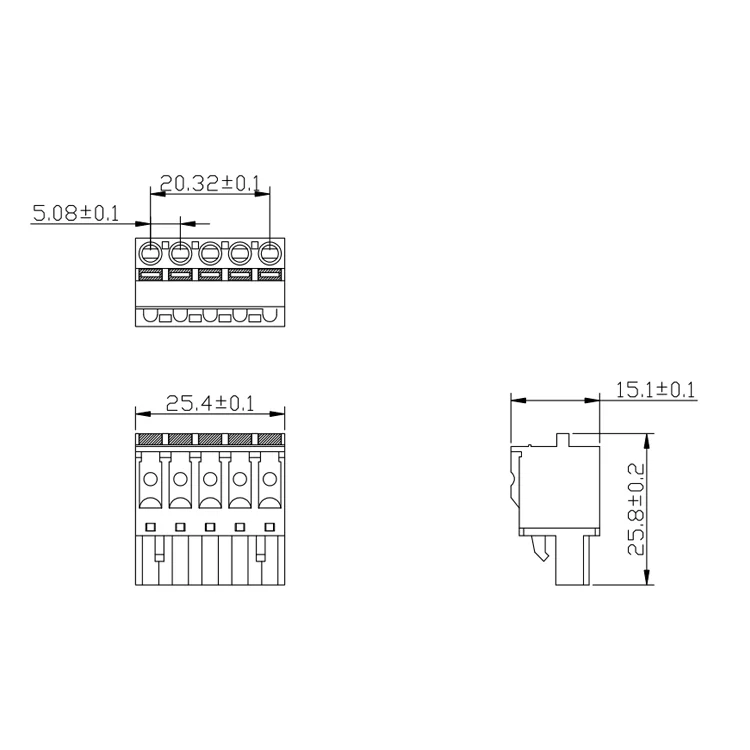

Pitch:5.00MM/5.08MM
Part
Material
Plated
Frame:
PA66 UL94V-0
－
Wire guard:
Stainless Steel
Ni
－
－
－
Clamp:
Brass
Ni
Electrical
Voltage:
300V
Current:
20A
Wire size:
16-28AWG
Poles:
2-24P
Insulation Reslistance:
5000MΩ/1000V
Withstand Voltage:
AC2000V/1Min
Mechanical
Acceptable Temperation:
-33℃~+120℃
Max Soldering:
+250℃,5Sec
Strip Length:
9.0-10.0mm
