Product Overview

Description

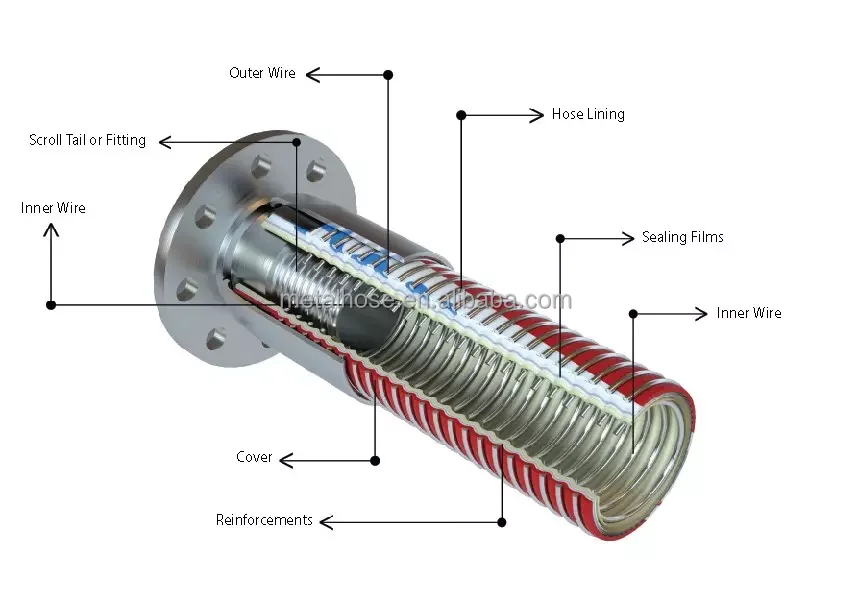

OIL COMPOSITE HOSE

It is very Light weight, flexible, free to bend, not limited by the operating space Good resistance to positive and negative pressure Electrostatic discharge function It can bear high pressure, wear-resist High temperature resistance It have good oil resistance and chemical corrosion resistance Use affinity is strong, feel good, do not stick, colorful

DN50, DN200,DN250 composite hose

Advantages:

1.   Light weight.

2.   Good flexible freely.

3.   Perfect pressure resistance.

4.   Good flame retardant performance.

5.   Excellent electrostatic function.

6.   Long service life.

7.   Convenient handling installation.

8.   Suit for many different kinds of medium.

9.   Energy conservation and environmental protection.

10. MOQ is small.



Parameters:

Inner Diameter		Max. Working Pressure	Bending Radius	WEIGHT	Max. Length	Style
inch	mm	bar	mm±20	Kg/m±0.8	m±0.3	/
1”	25	10	70	0.75	30	Standard series
1-1/2”	38	10	110	1.30	30
2”	50	10	190	1.80	30
2-1/2’	65	10	225	2.80	30
3”	76	10	290	3.20	30
4”	102	10	380	5.70	30
6”	150	10	600	9.80	24
8”	200	10	800	17.50	24

We can make different composite hoses with different working pressure, from 6-15bar.

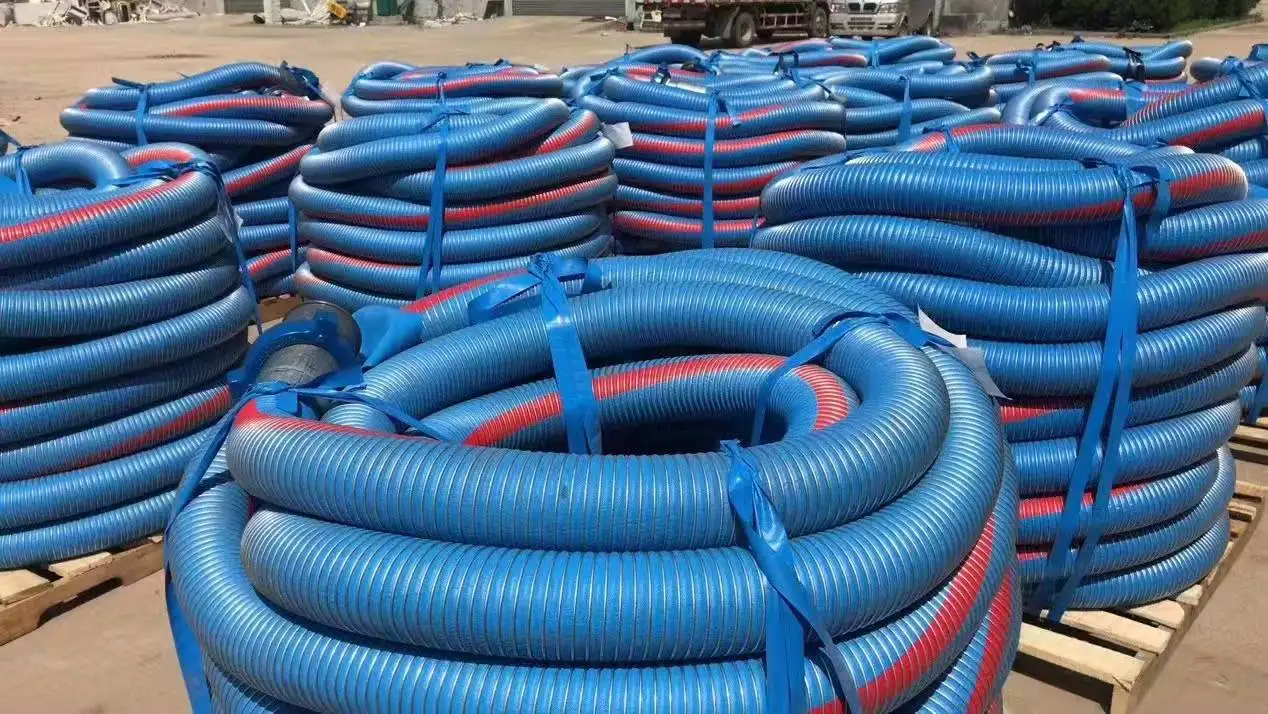

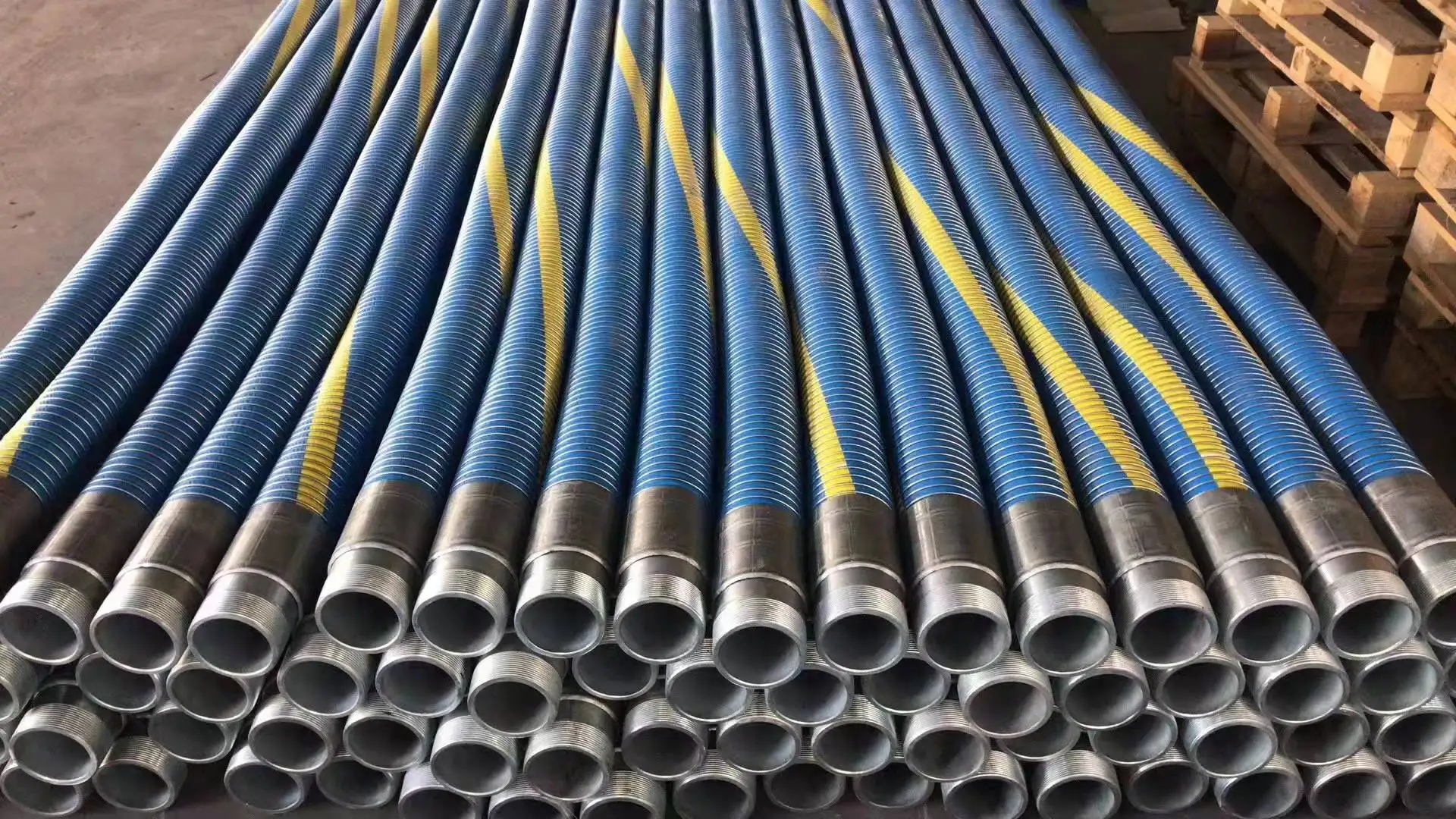

Pictures:

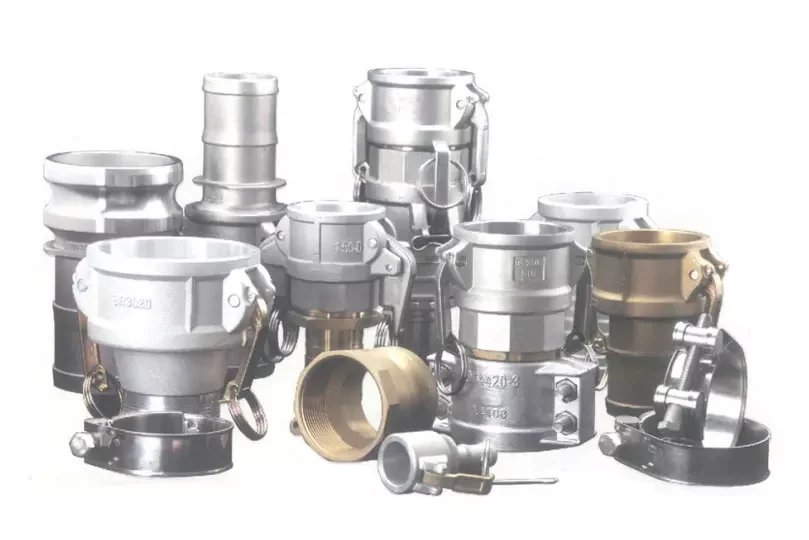

Couplings:

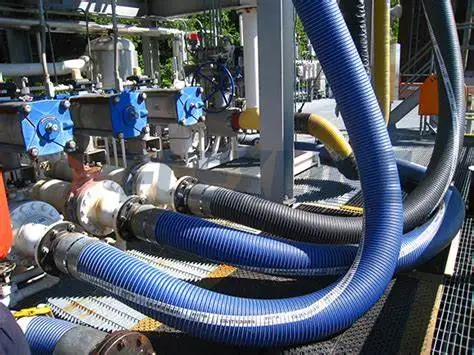

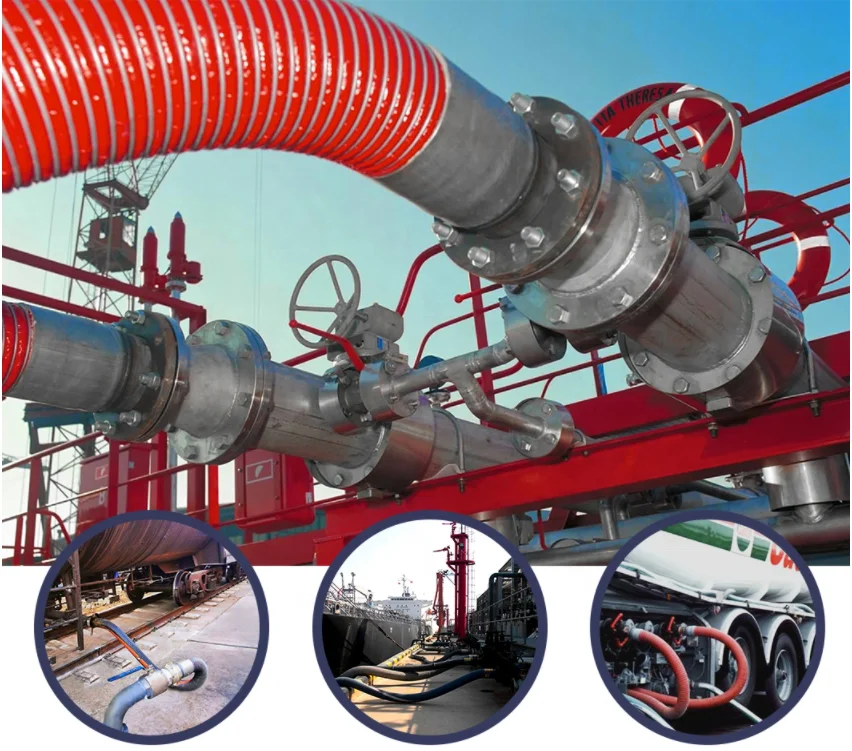

Application Scene:



Brief Introduction:



Hengshui Xinchi Hose Manufacturing Co.,Ltd (China Metal Hose Factory)

Who located in China(Jingzhou)Rubber and plastic pipe base and founded in 1990, 300 employees, the professional and senior technicians are 100 totally. We have advanced standards for design, mainly produce stainless steel metal hoses, metal bellows, nets, metal&non-metallic compensator polyurethane, high/low pressure hose, hose sheathed insulation, all kind of connectors and other products. Which are widely used in electric power, dock, construction, steel, mining, petroleum, chemical, cement, transportation and other industries of various pipes and equipment.

All the products have passed the ISO9001 international quality system certification.



Honors:
1) It has obtained ISO9001-2000 International Quality Certificated.
2) All of the products are determined as " The Best Products of Chinese Technology" by China Technological Enterprise Council.

3)Our company has the right of "Products Import & Export".

4) They are also insured the product quality liability insurance by PICC.



Certificates:
