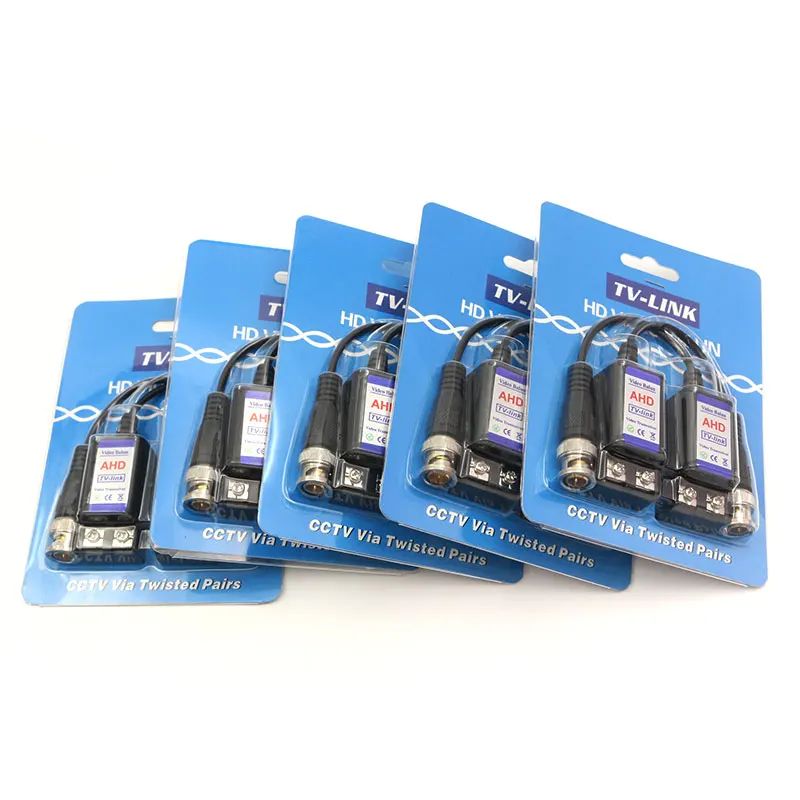

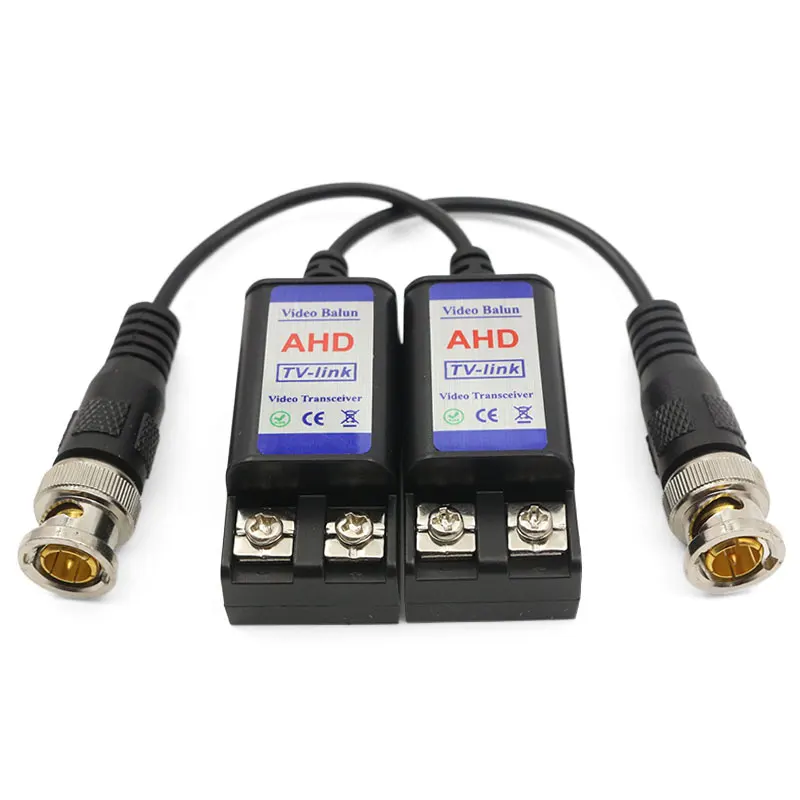

1080p 5mp CVI TVI AHD CVBS HD passive single channel video balun with CE FCC ROHS 2 years warranty for CCTV cam accessories
- Category: >>>
- Supplier: Shenzhen Guangkuoshiji Technology Co. Ltd.
Share on (1600565875512):
Product Overview
Description
Product parameters
8MP Coax UTP bnc 75 ohms to 100 ohms HD 1ch passive hd analog video balun for cctv accessories
Model | TV-LINK | ||||||
BNC | 75oHMS | ||||||
Terminal | 100ohms | ||||||
Frequency response | DC to 8MHz | ||||||
Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ | ||||||
Attenuation | 1.5dB typ Max | ||||||
Impedance | Male BNC:75Ω Terminal:100Ω | ||||||
Category Type | 5 or better | ||||||
Impedance | 100±20ohms | ||||||
DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) | ||||||
DC Loop Resistance | Different Capacitance | ||||||

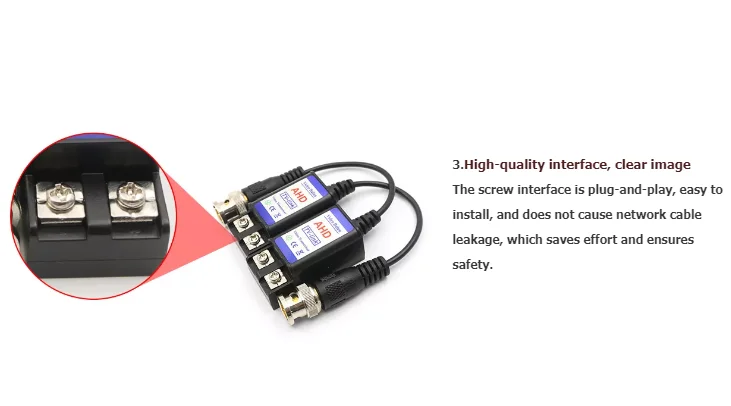

Video input/output | Male BNC / Push-Pins | ||||||

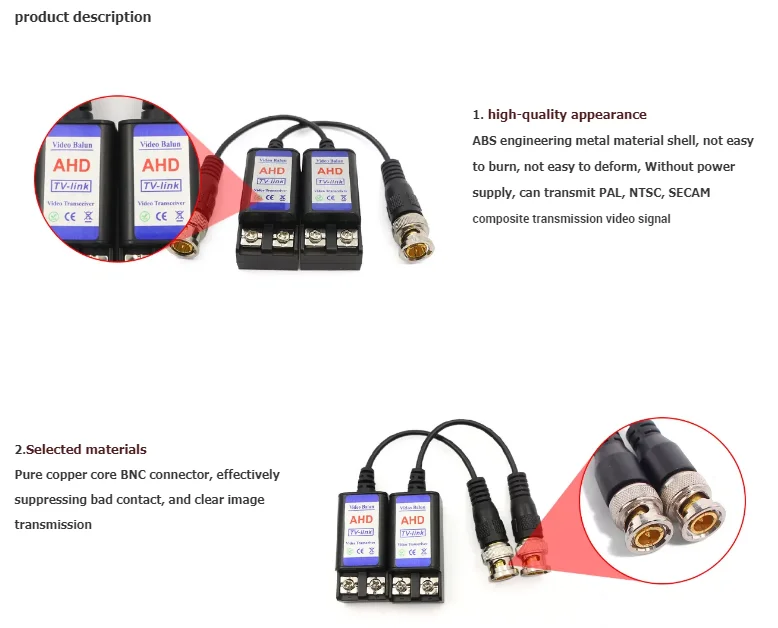

Housing | ABS engineering plastic | ||||||
Operating Temperature | -10℃-70℃ | ||||||
Relative Humidity | 0-95%(non-condensing) | ||||||
Storage Temperature | -30℃ to +70℃ | ||||||
