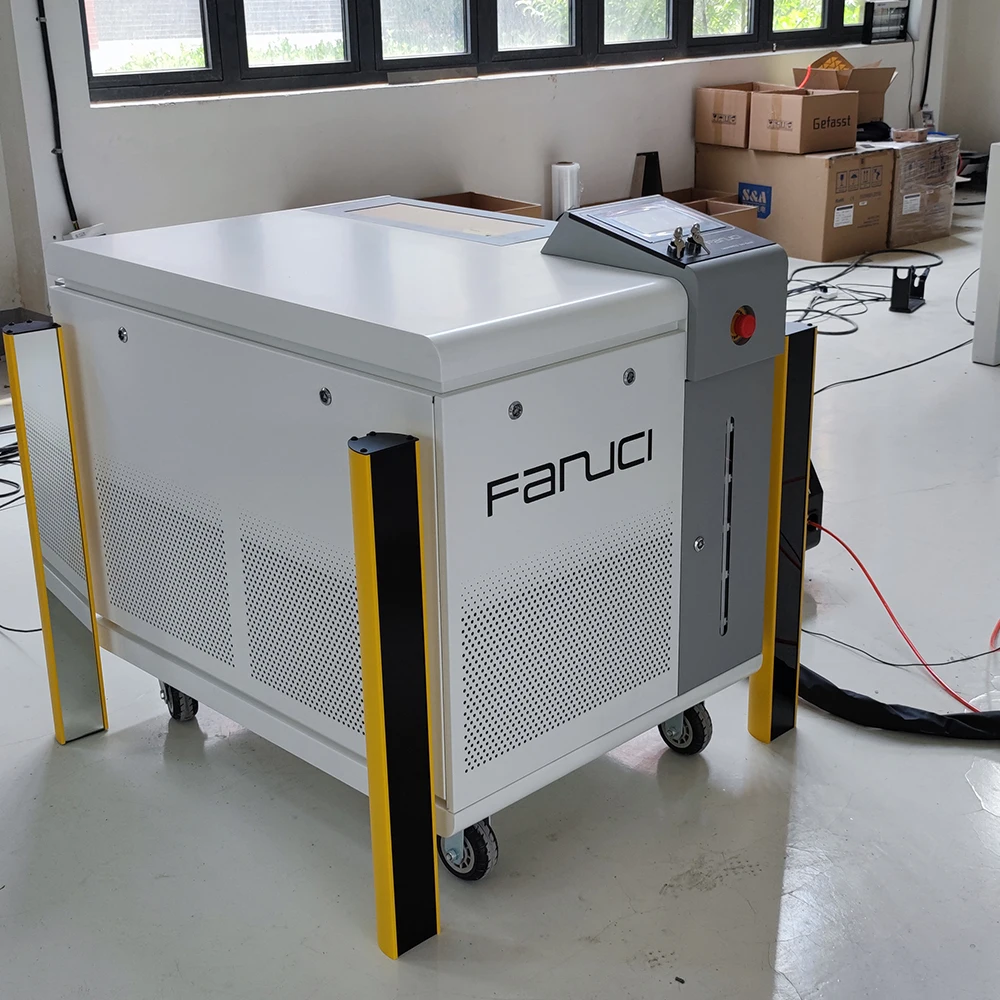

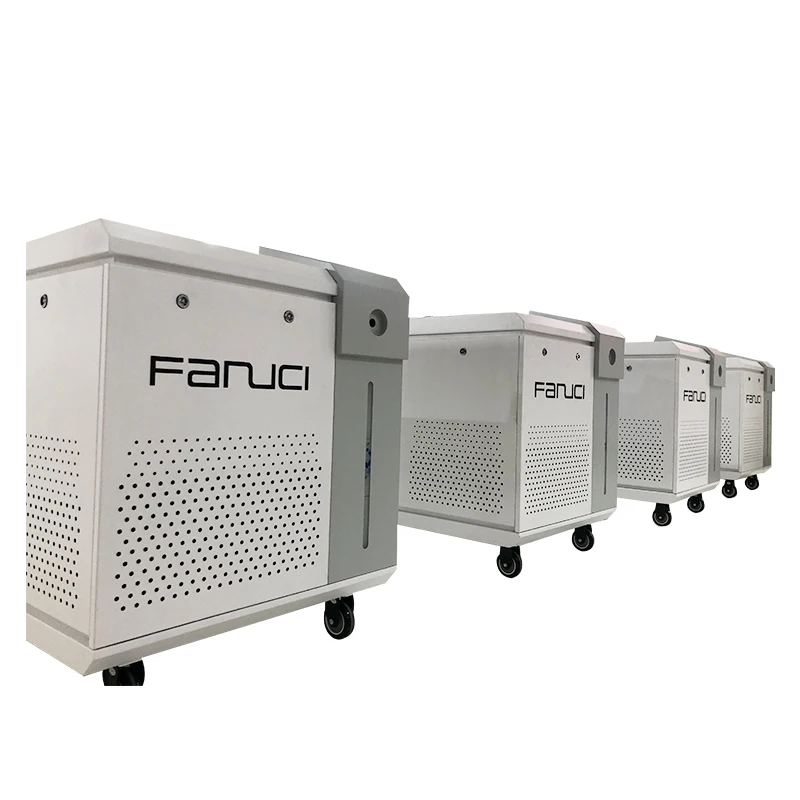

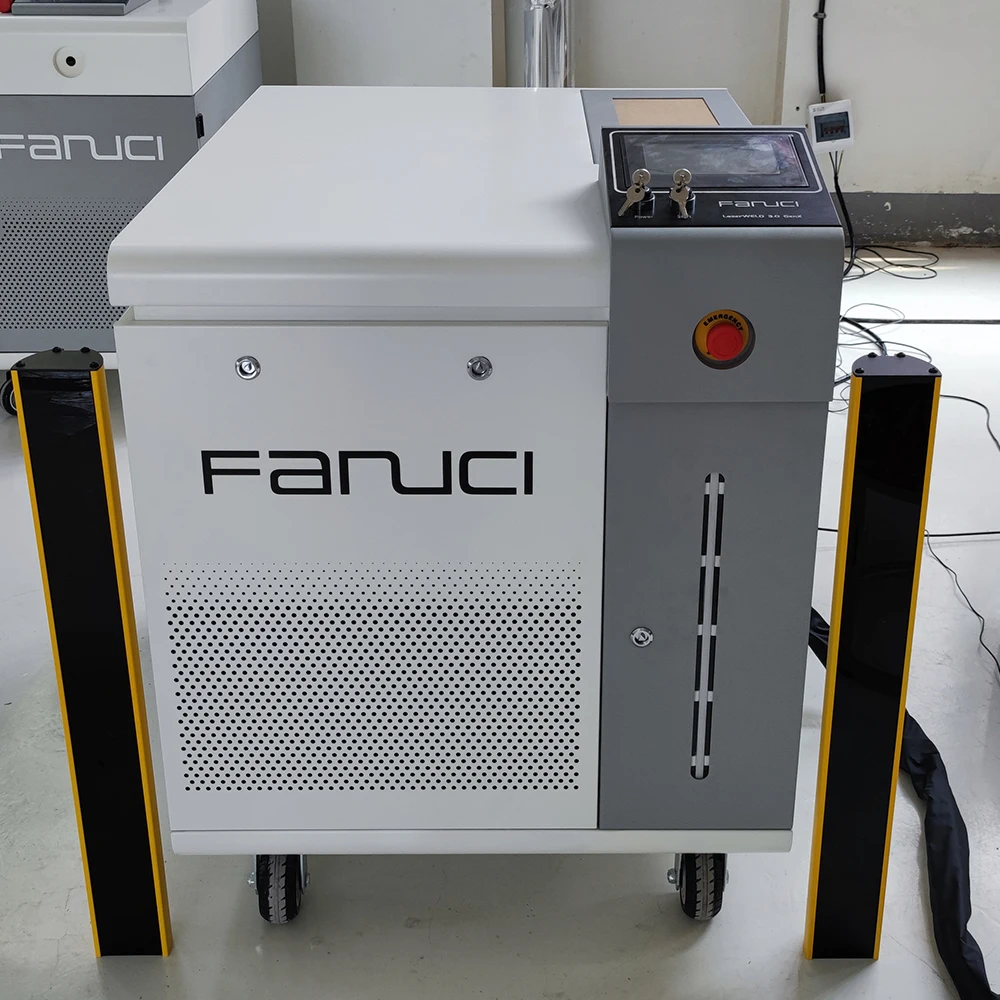

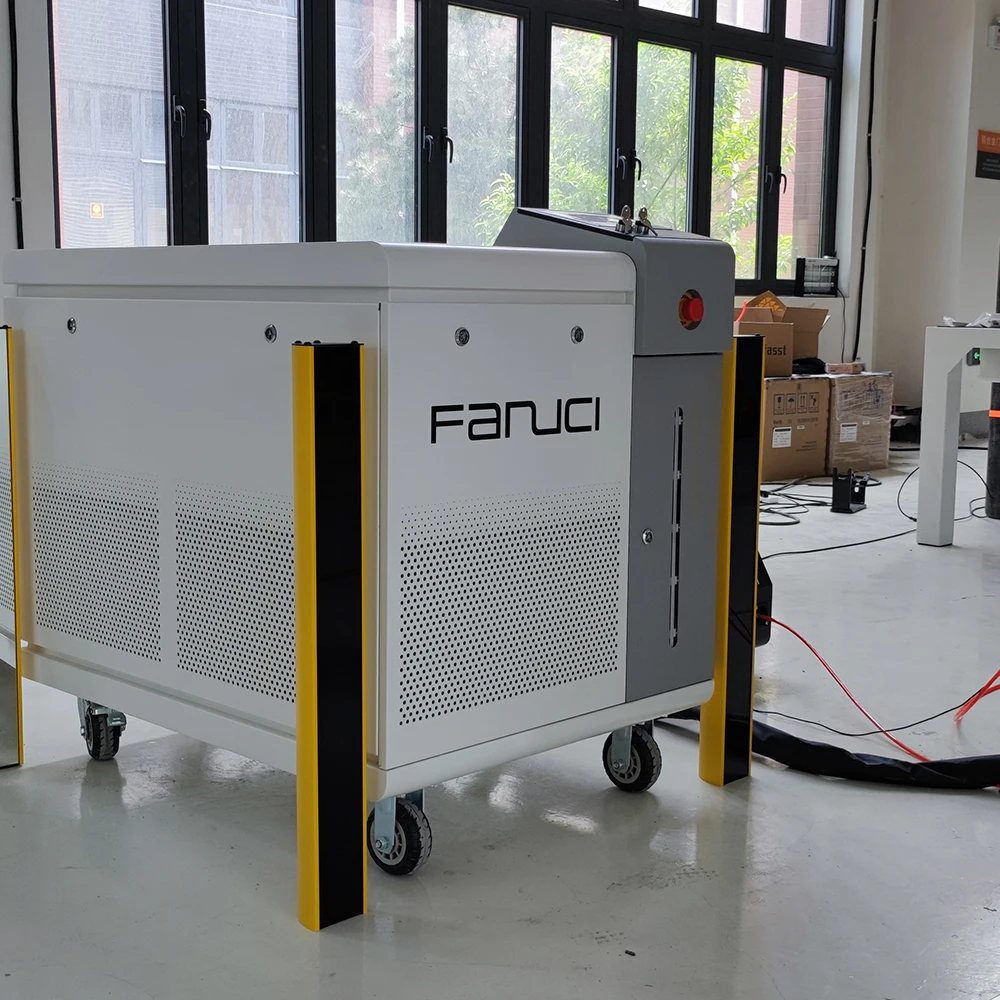

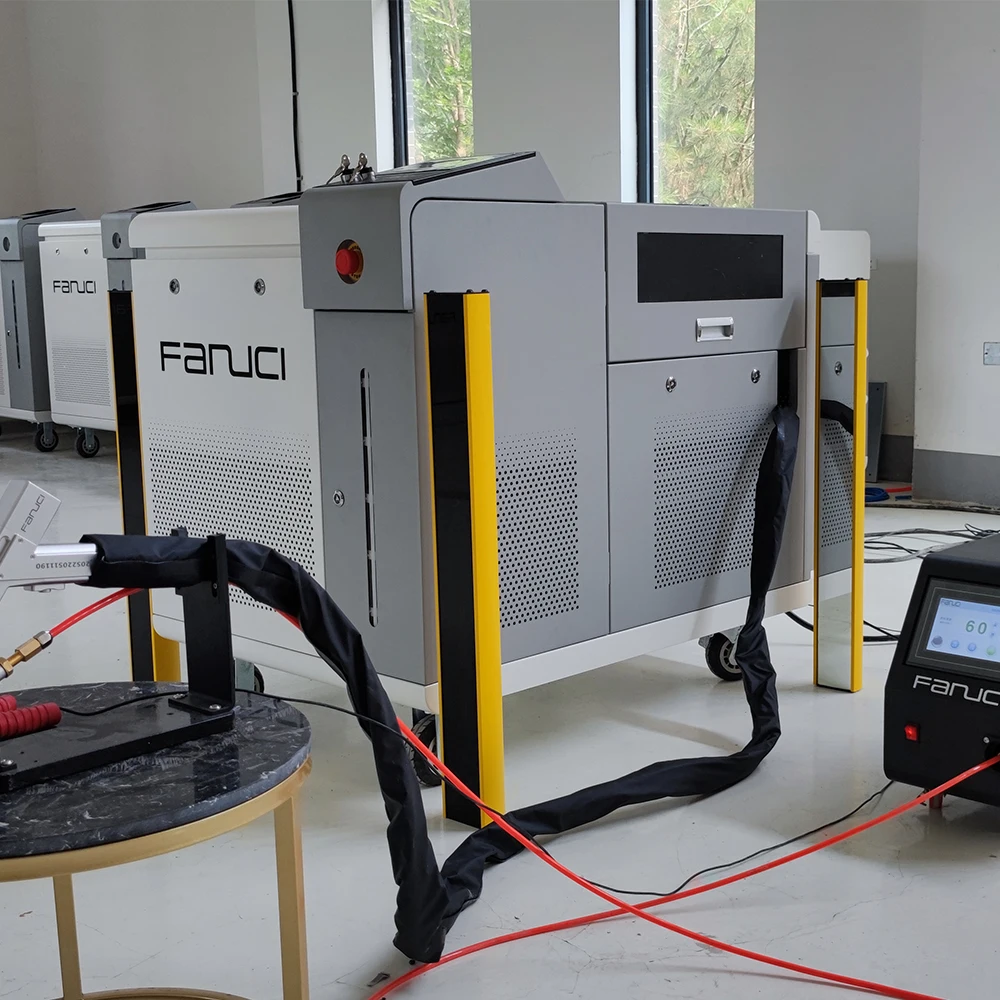

Hot Sale 2000W Beam Welder Price Fiber And Cutting Handheld Laser Welding Machine
- Category: Laser Welders >>>
- Supplier: Creative Laser Technology Co. Ltd.
Share on (1600565884202):
Product Overview
Description
Product Overview
FANUCI laser welding machine is an advanced welding technology, you can also have it!
Laser welding process is to melt the connecting area by a very high-energy and dense beam with a large amount of heat. The single module optical fiber laser source provides consistent and stable power and high quality of laser beam. The laser power range can be adjusted according to actual production needs. This solution guarantees unparalleled application flexibility and high reliability. Laser welding could be applicated in many industries, and is a very effective method in automatic and robotic manufacturing.
Laser Power | 1000W | 1500W | 2000W | ||||
Laser Wavelength | 1070 NM | 1070 NM | 1070 NM | ||||
Fiber Length | 10 m/15m | 10 m/15m | 10 m/15m | ||||
Operation Model | continuous/modulated | continuous/modulated | continuous/modulated | ||||
Positioning | red laser dot | red laser dot | red laser dot | ||||
Air Pressure | 5-15L/min | 10-15L/min | 10-15L/min | ||||
Voltage | 220V | 220V | 220V(MAX) | 380V(Raycus) | |||
Power Consumption | 5KW | 7KW | 9KW | ||||
Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ | ||||
Currency | 25A | 40A | 40A | 25A | |||
Laser Head Weight | 760g | 760g | 760g | ||||
Laser Head Operation Mode | Oscillation / Spot / Line | Oscillation / Spot / Line | Oscillation / Spot / Line | ||||
Focus Length | 150mm | 150mm | 150mm | ||||
Welding Speed | 0-160mm/s | 0-190mm/s | 0-215mm/s | ||||
Cooling | Distilled Water | ||||||
Laser Control Method | laser enable + security lock + metal switch/safety clamp + safety light curtains | ||||||
Touch Screen | PLC screen and board | ||||||
Wire Feeder | Auto feeding and drawback | ||||||
Welding Wire Diameter | 0.8mm, 1.0mm, 1.2mm, 1.6mm | ||||||

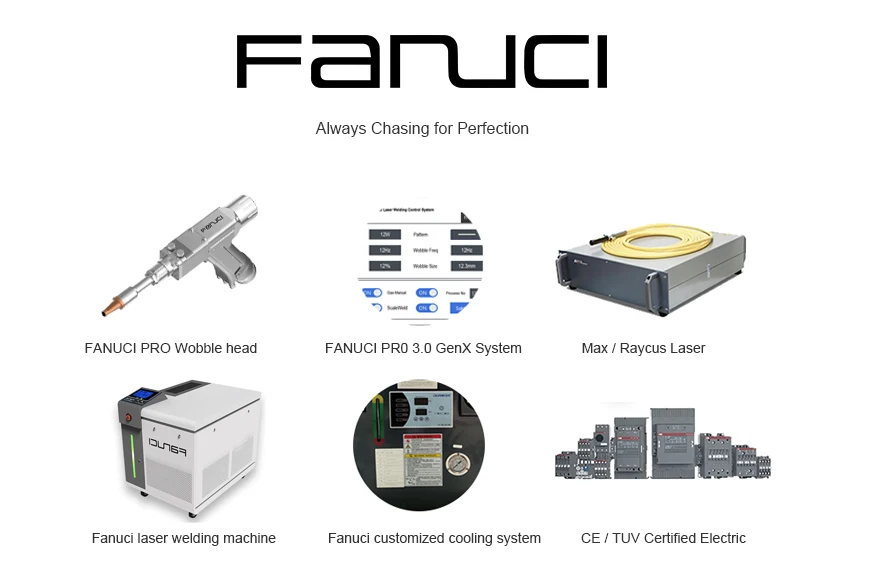

FEATURES AT A GLANCE
1. Maxphotonics or Raycus Laser
1. high efficiency and stability of the machining process
2. significant reduction of production costs
3. Operating time of the fiber source is approximately 100,000 hours
4. technology friendly and safe for the environment and the workplace

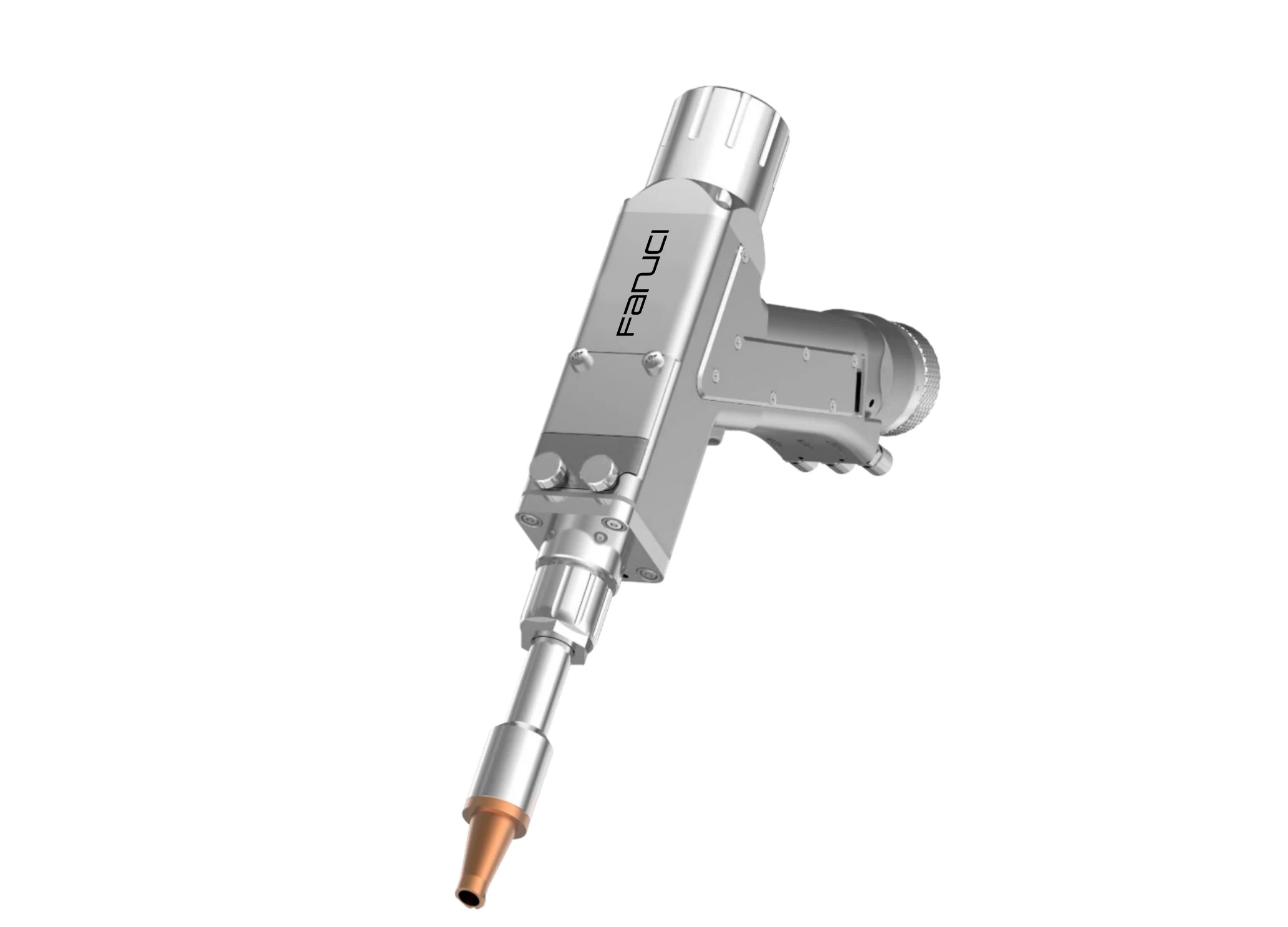

2.Fanuci PRO Wobble 3.0 GenX laser head
1. Handheld Laser Processing Head-Cut/Weld
2.Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
3.Various tip assemblies in standard kit to fulfill cutting, welding .
4. Wide welding seam, low porosity and excellent melting pool protection.

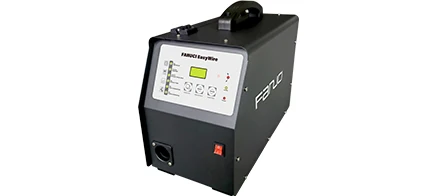

3. Fanuci PRO EasyWire 3.0 GenX automatic wire feeder
The offered device is equipped with a fully automatic Fanuci PRO EasyWire wire feeder integrated with the software. The system
allows you to work with 0.8-1.6mm filling in "push" or "pull" mode.

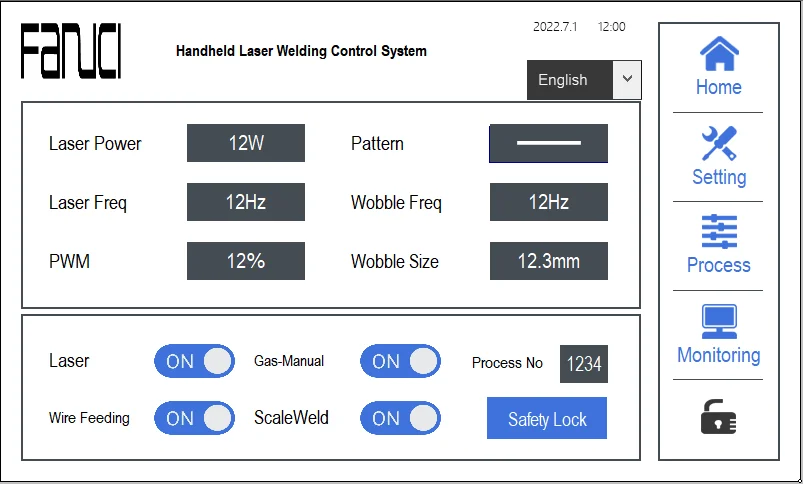

4. Control System Fanuci PRO LaserWELD 3.0 GenX System
The operation system combines high performance with intuitiveness and ease of use.
The control is placed on a color touch screen that allows you to set all the necessary parameters depending on the user’s needs.
Service Station | Country | ||
UK | Portugal | ||
Germany | France | ||
Estonia & Finland | Russia | ||
Italy | Switzerland | ||
Poland | Hungary | ||
Croatia, Serbia | Australia | ||
Netherlands | Chile | ||
Belgium | South Africa | ||
Spain | |||
Fanuc provides local after-sales service in many countries around the world
Service station: UK, Germany, Estonia & Finland, Italy, Poland Croatia, Serbia, Netherlands, Belgium, Spain, Portugal, FranceRussia, Switzerland, HUNGARY, Australia, Chile, South Africa
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
✦ What about after-sales problems?
Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region.You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
✦: What payment terms can you accept?
Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
