Product Overview
Description
The complete production line can be customized
Exhibition

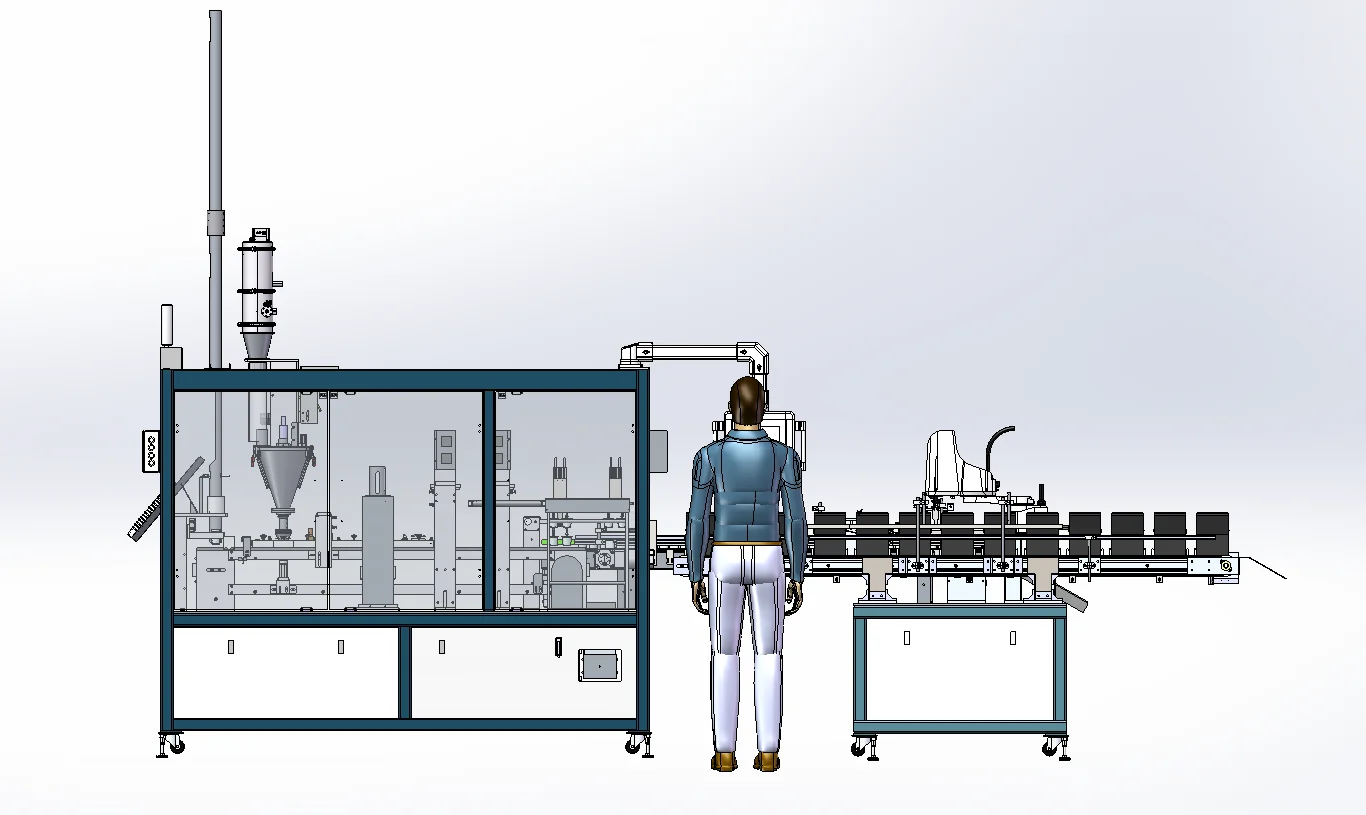

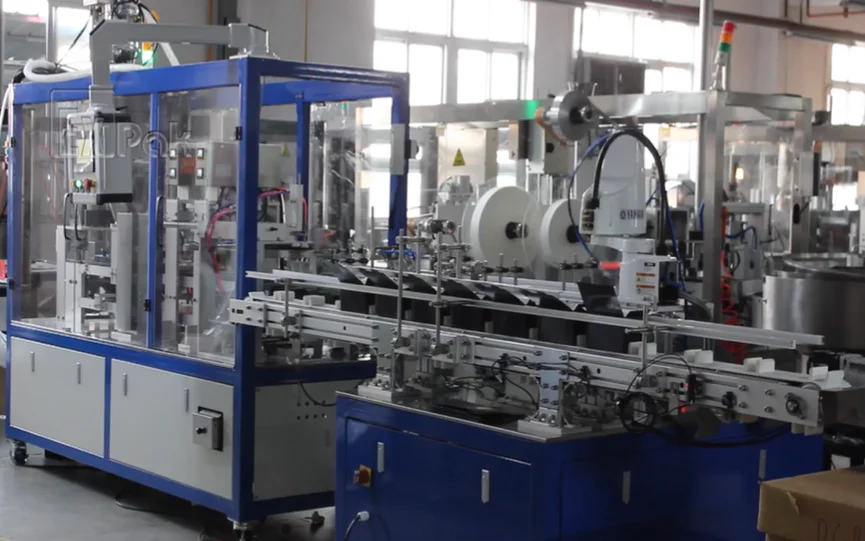

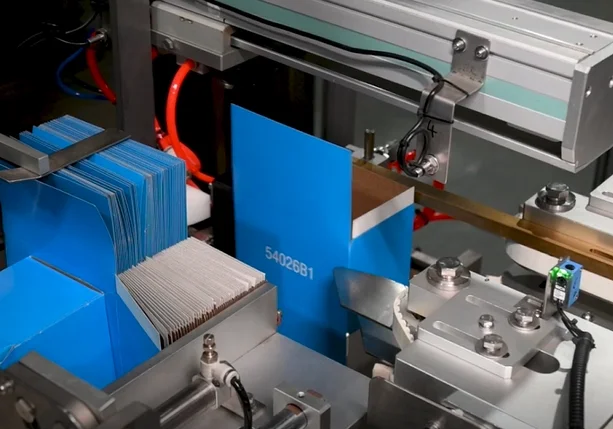

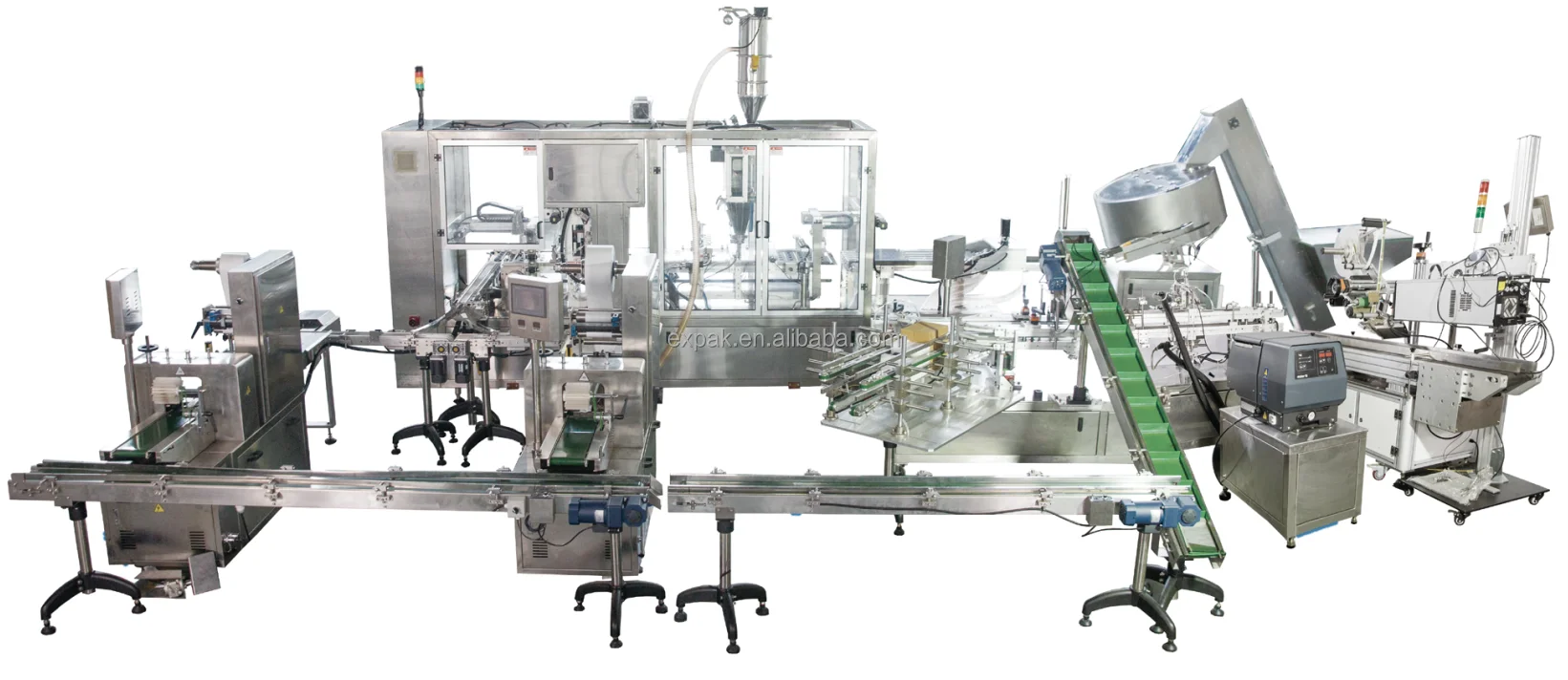

Completely Packaging Machine for Single Serve Cup
1 This is Cartoning Machine connect with K Cup Pod filling machine. Capacity is up to 800 CTN/Hour with updated Nitrogen Injection function. As medium model can meet most customers demand.
2 We give more compatibility, available for semi-automatic or fully automatic, and different packing specifications, 12ct, 16ct, 24ct,etc. And we also consider if you just want production line running without cartoner. This solution is acceptable as well.
3 Most of our machine accessories are Siemens, SMC, Omron, Schneider which can make sure stability for this production line, and easy-purchased to buy spare parts to replace in local
4 This line has a large advantage to take over labor, Automated operations are more efficient than manual labor, and cost-effective machines can save labor costs in a short period of time
2 We give more compatibility, available for semi-automatic or fully automatic, and different packing specifications, 12ct, 16ct, 24ct,etc. And we also consider if you just want production line running without cartoner. This solution is acceptable as well.
3 Most of our machine accessories are Siemens, SMC, Omron, Schneider which can make sure stability for this production line, and easy-purchased to buy spare parts to replace in local
4 This line has a large advantage to take over labor, Automated operations are more efficient than manual labor, and cost-effective machines can save labor costs in a short period of time
Model | PB-F2 Packaging Machine for K Cup | CP4501L Precut Lid Type | |
Suitable Product | Coffee Pod | 37.5KW | |
Capacity | 500 Cartons/H | 2.8 M3 | |
Filling weight range | 0-20g*n (set by customer) | 125Ton | |
Accuracy | ±0.2g | 96kN | |
Voltage | AC220V/380V 50/60hz need confirm by customer | 96kN | |
InstalledDimension (LxWxH) | 4000X1350X2200(mm) | 2035X670X1920(mm) | |
Weight | 1500KG | 800KG | |

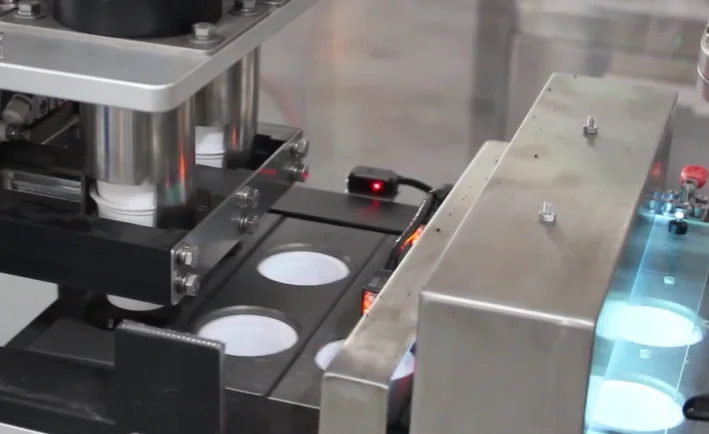

Cup Loading
Vertical loading empty cup can save more space and long tube as a buffer can stack kcups well, three detectors can make sure cup loading work correctly, nitrogen injection after empty cup loading.

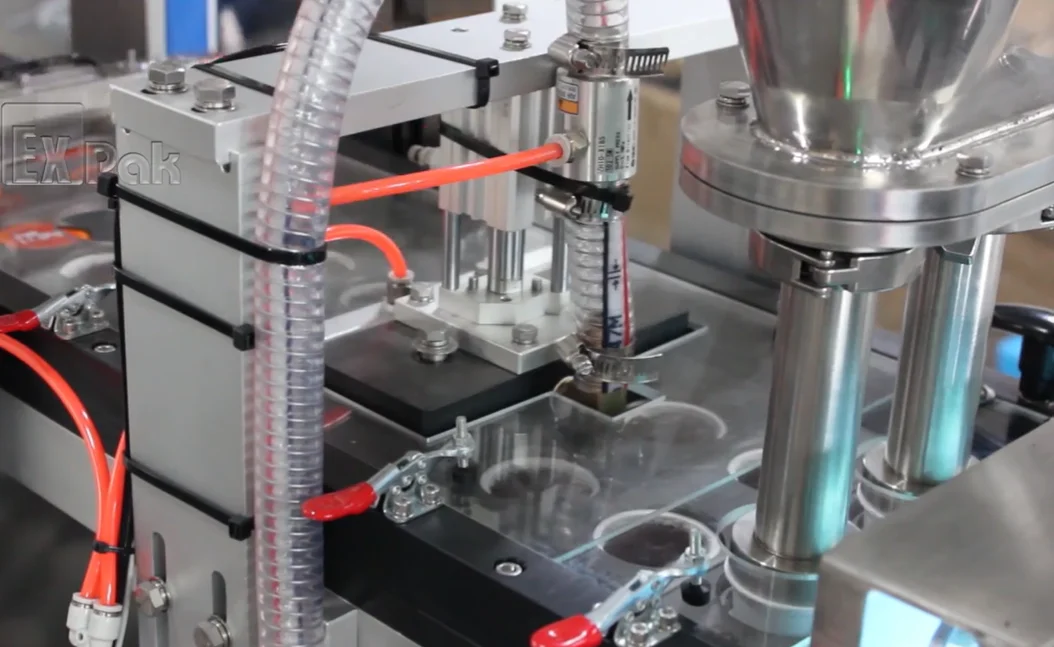

Auger Doser/Filler
Precisely auger spins to fill coffee into K Cup with servo motor control, servo motor with brushless type can make sure filling accuracy, quick and accuracy to control speed, updated nitrogen flush keep aroma of coffee.
Twice Heat Seal
We use two heat seals for the K Cup, Compared with the common single heat seal on the market, competitive of K Cups are produced is undoubtedly better, not to mention the temp control system of Omron.
Grouper system to sort cups into different combination
One of track is receive positive kcups and another one receives reversed kcups by flipper device. A special designed tooling would sort as 3 or 4 cups by two groups then the YAHAMA Robot grab two times to combine them into one group which 6 or 8 kcups and load them into carton.

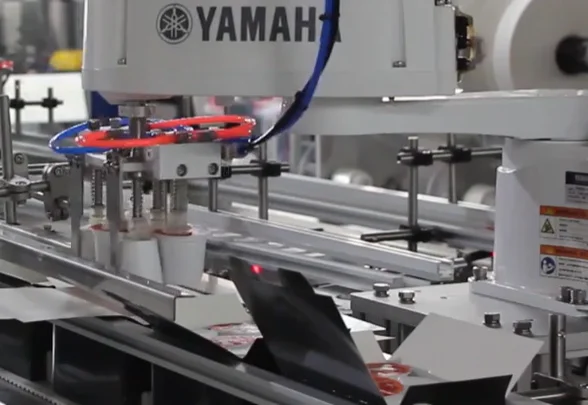

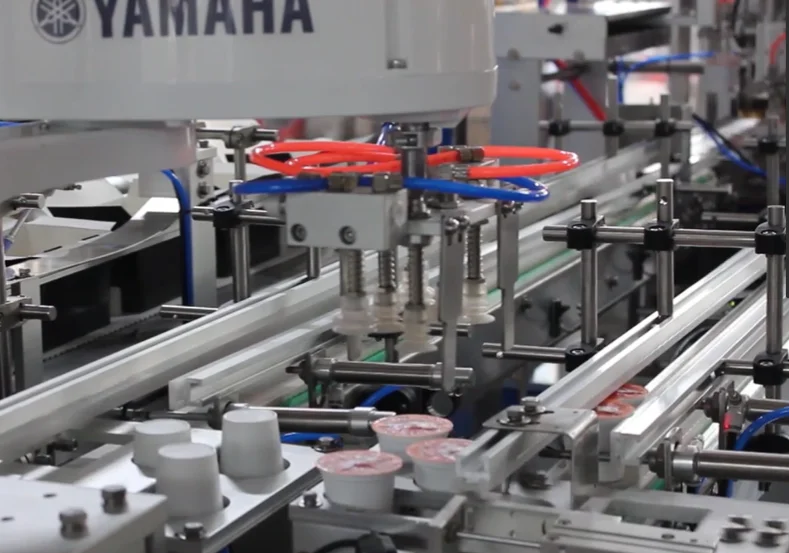

Place K Cup into each carton
Yamaha robot would be program as typical 12ct and 16ct or 24ct mode as each be 6(or8) as one group and then load twice by different height as two layers in each paper carton. Then, move to next and the staff close this carton (if need full auto close the carton solution then need hot melt glue system).
Feedback
Company Profile
About us

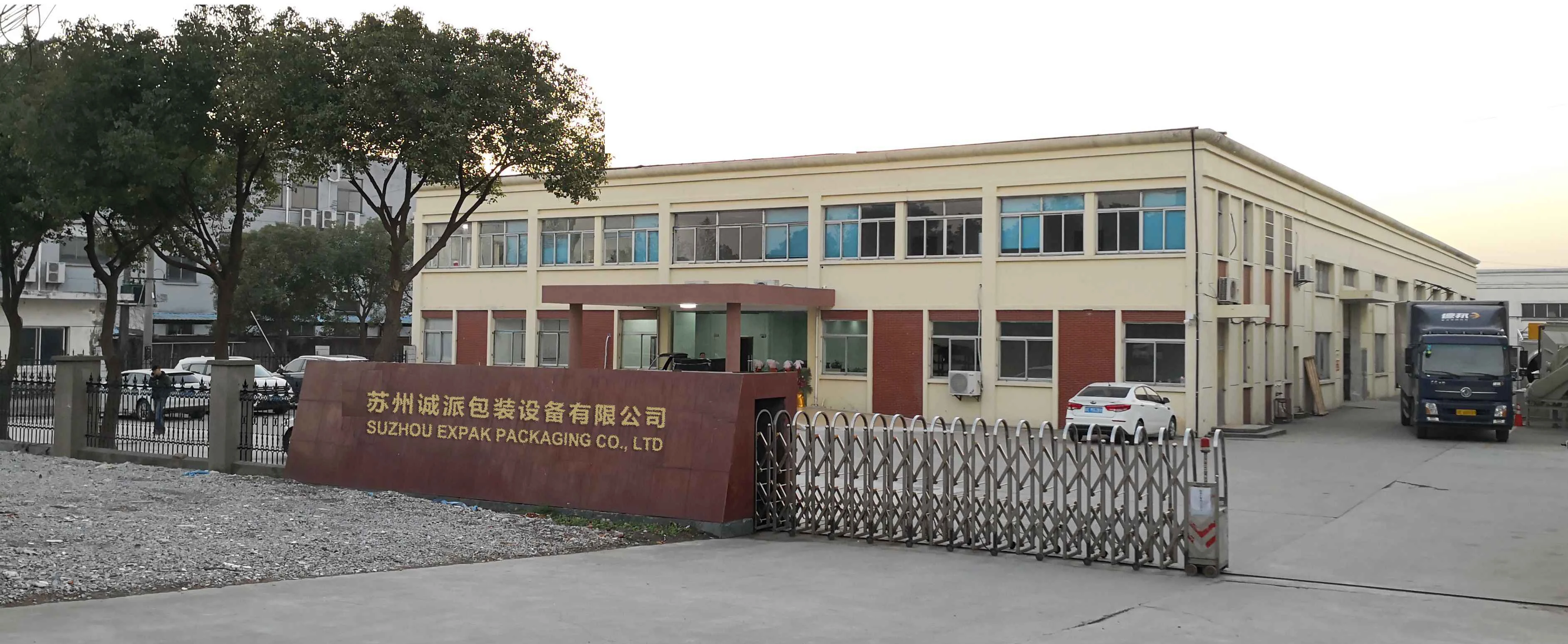

EXPAK Packaging was founded in 2010, located in Suzhou, one-hour drive to Shanghai airport. Our workshop is 12000 square meters of area, we are one of China's machinery manufactory unit that design our machine from zero to fit singe serve production. Upon our R&D, manufacturing team continues effort, we have been leading the industry 3-5 years in advance. Featured products as: coffee capsule packing system and packing material, such as empty capsule, filter, precut lid, roll film etc.
We have reached over 90% of China domestic market and have supplied our machinery all over the world and set up local after-service in Euro and USA.
We have reached over 90% of China domestic market and have supplied our machinery all over the world and set up local after-service in Euro and USA.
Customer Photos
Main machines we manufacture：
Keurig coffee Kcup filling and sealing machine/Nespresso compatible capsule filling sealing machines/Dolce Gusto compatible capsules filling production line/LB Espresso illy capsule filling sealing machine/Coffee pod automatic filling packing machine/Customize filling machine for dry nuts; herbal tea; green tea etc.Instant product filling as: hot chocolate, cocoa milk, milk tea powders.
Box Packing machine.

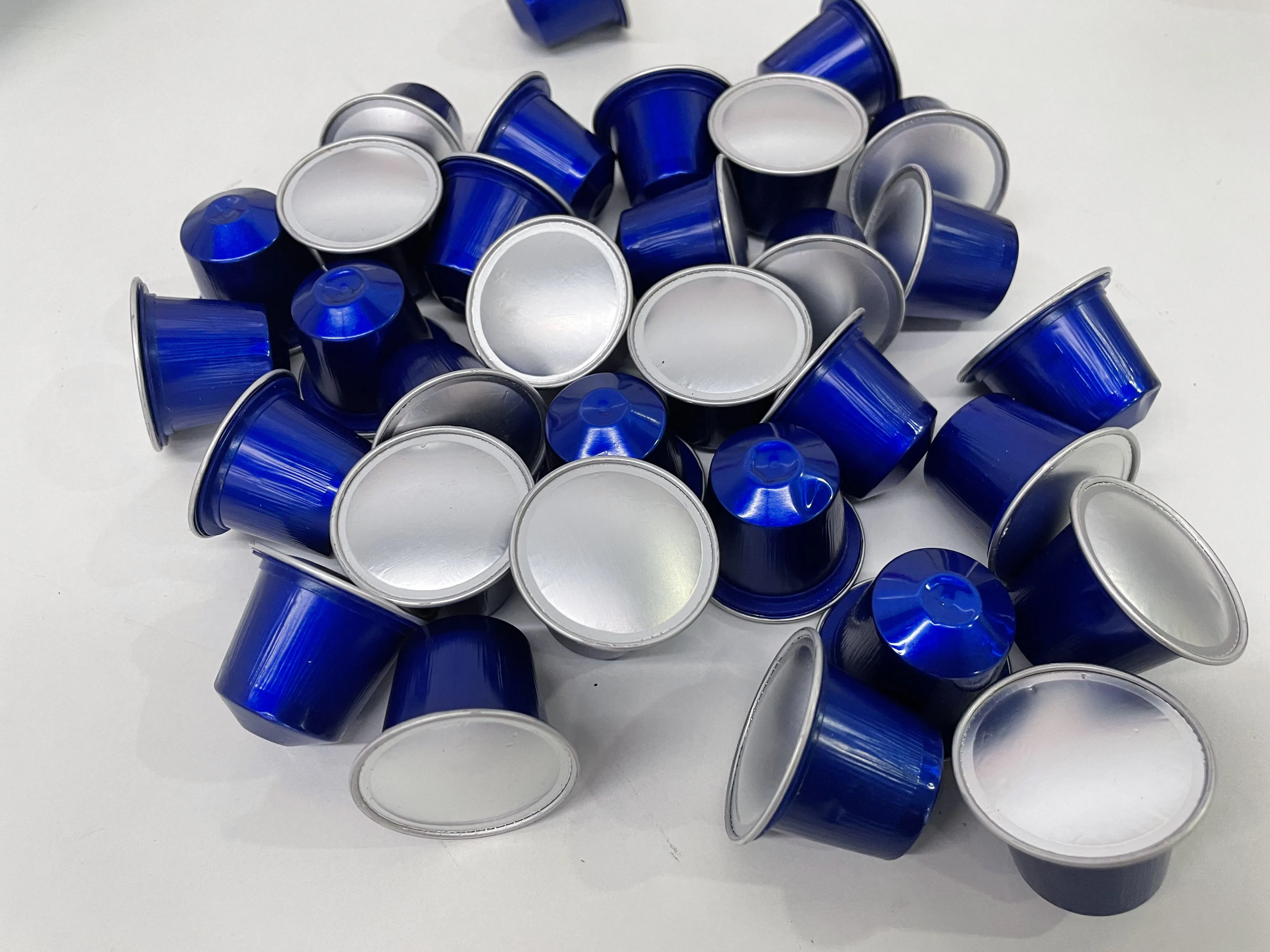

Packaging materials we supply：

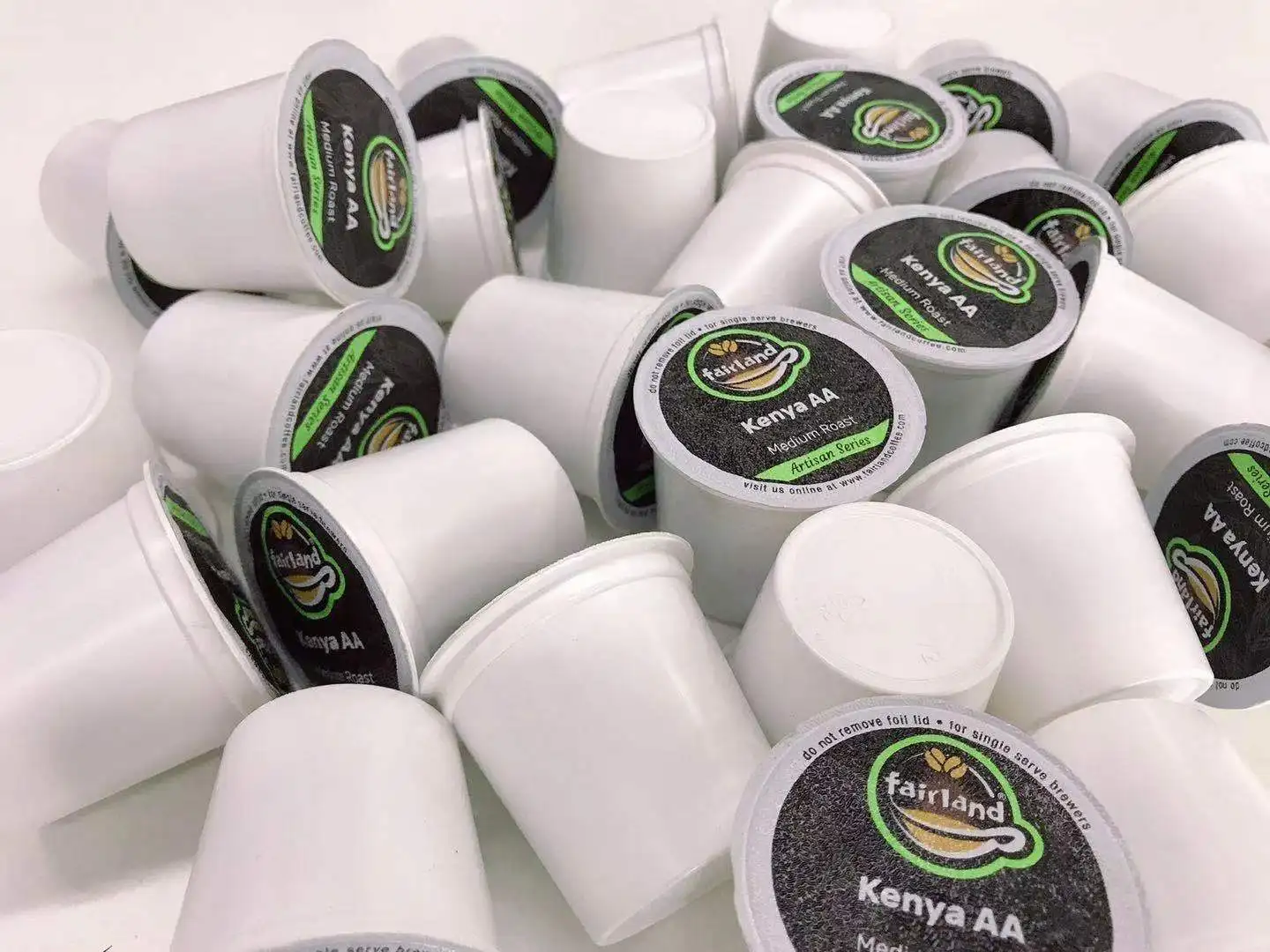

Keurig kcup empty cups of PP and PS / Kcup inside filters snap into each kcup / Ready Kcup that filter welded inside / Die cut foil lids of Keurig 2.0 compatible / Roll film printed Keurig 2.0 compatible / Coffee bean or ground coffee bags
Keurig kcup empty cups of PP and PS / Kcup inside filters snap into each kcup / Ready Kcup that filter welded inside / Die cut foil lids of Keurig 2.0 compatible / Roll film printed Keurig 2.0 compatible / Coffee bean or ground coffee bags
