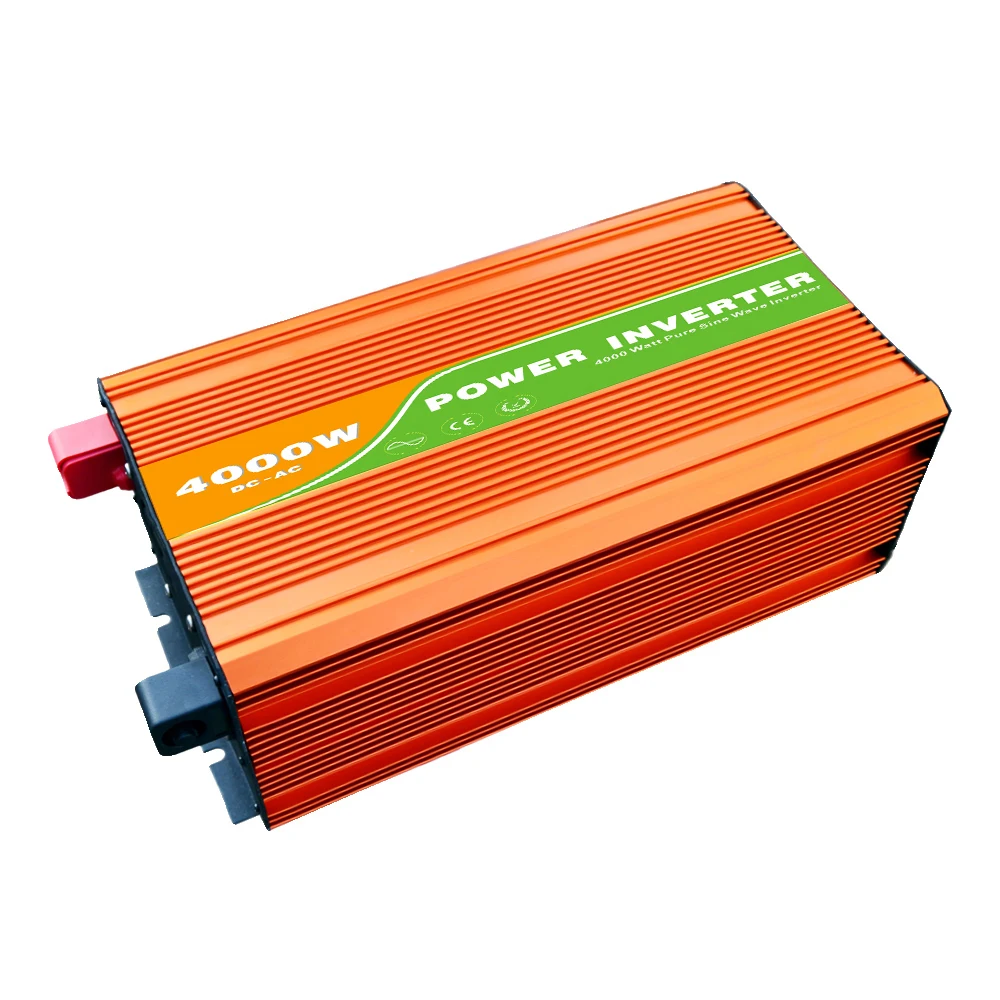

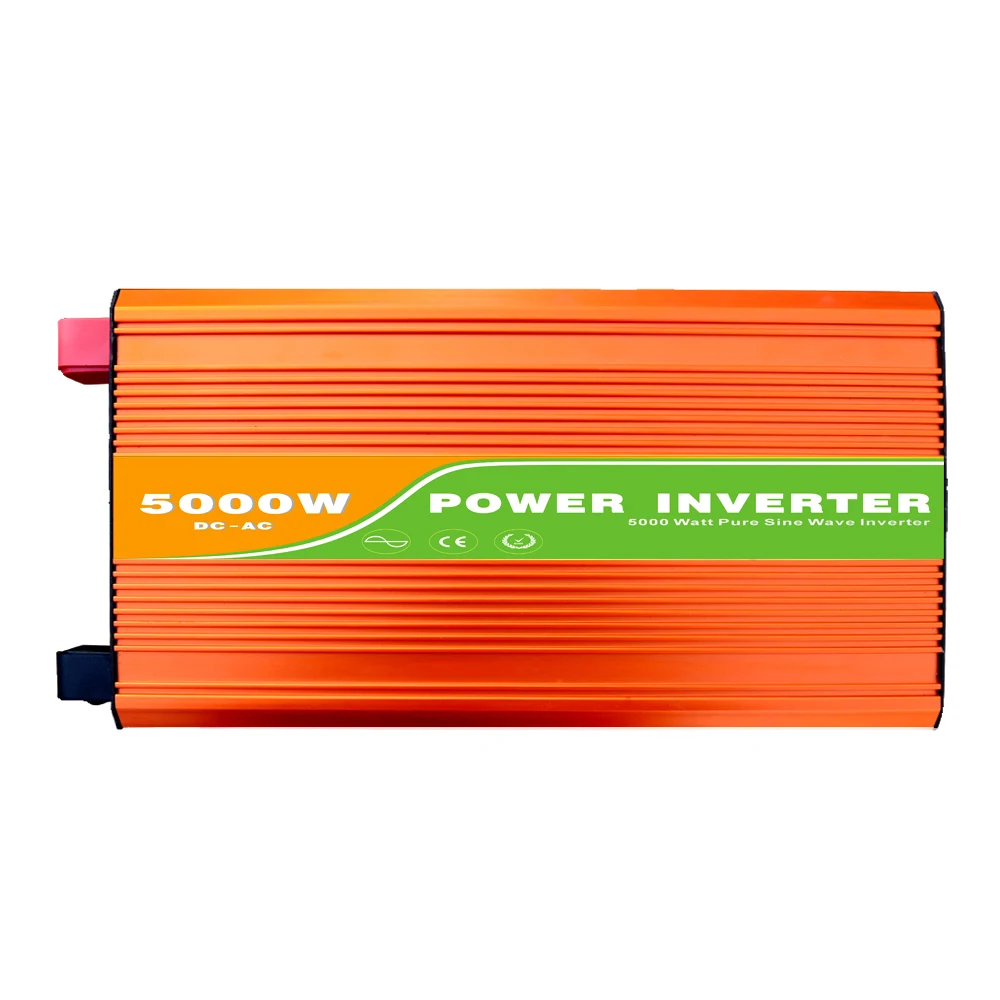

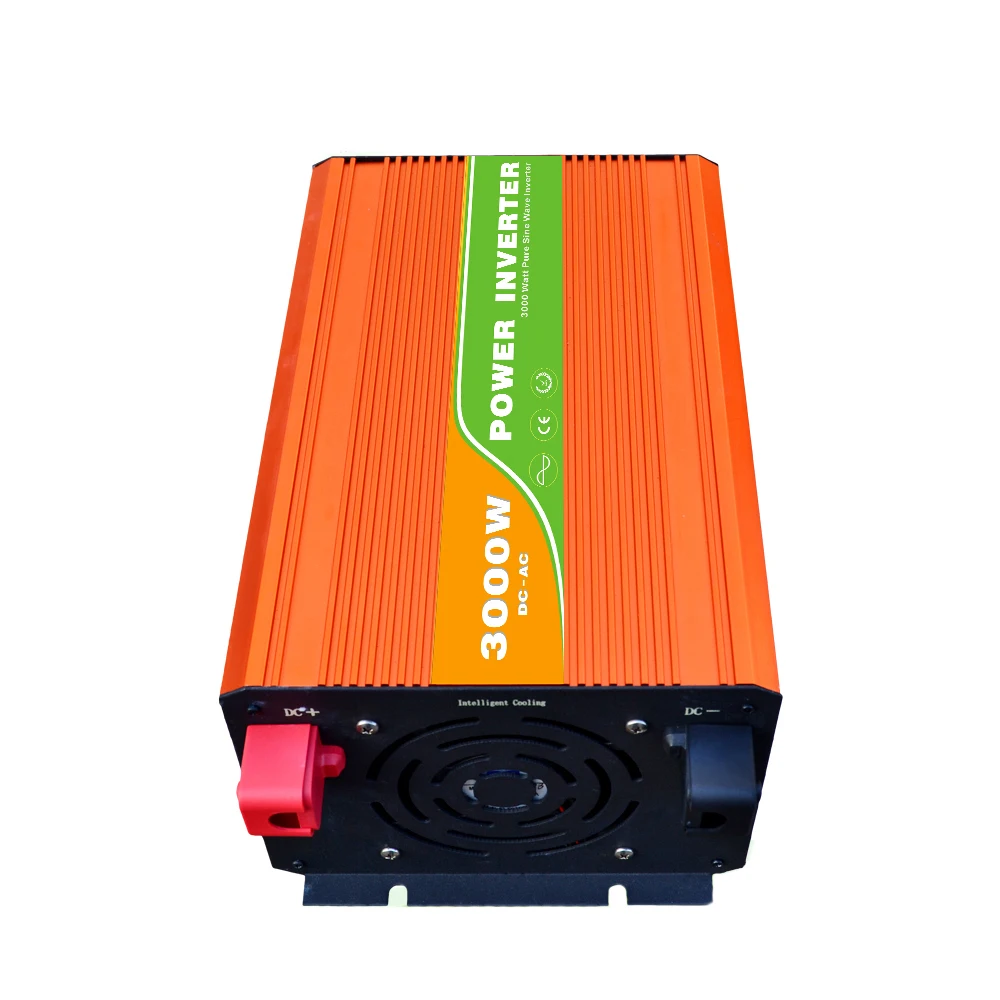

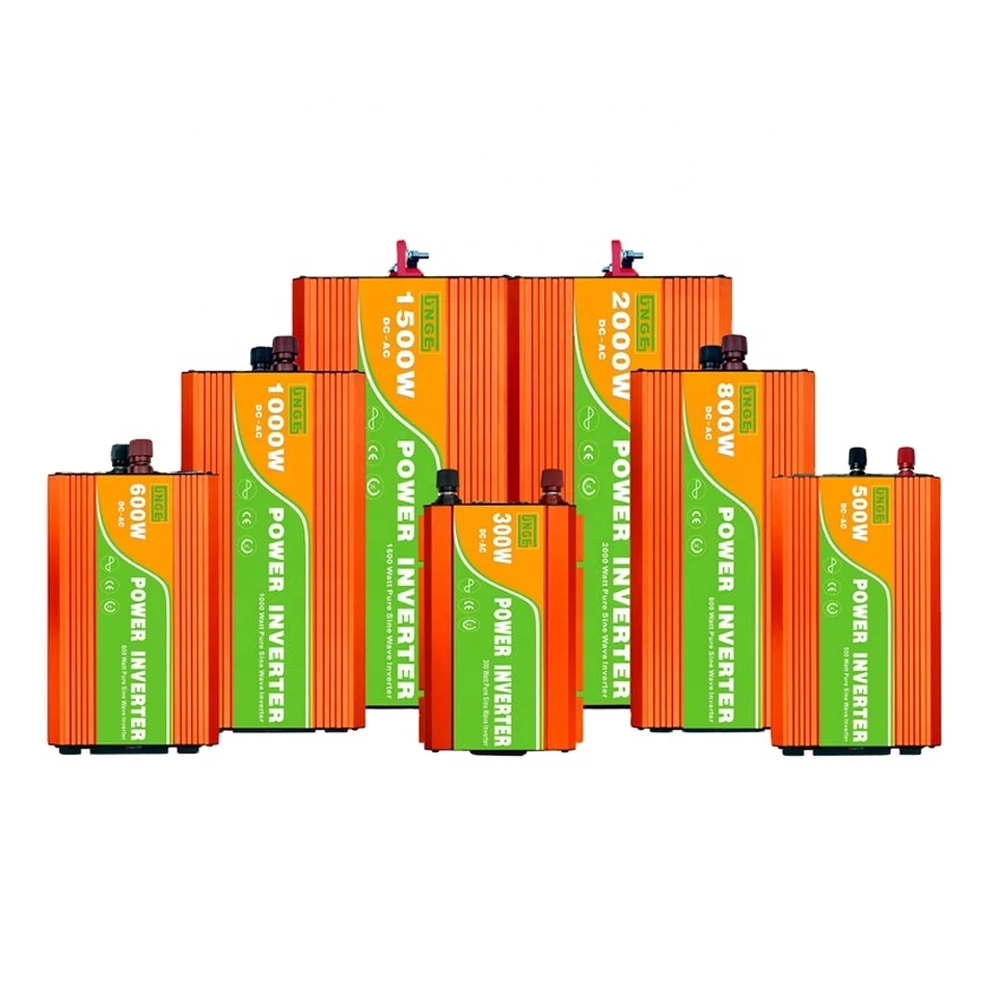

Complete Home Solar System 5000W off Grid Hybrid DC/AC Inverter
- Category: >>>
- Supplier: Anhui Chenxin Teco. Co. Ltd.
Share on (1600565893743):
Product Overview
Description
System parameters | |||||||||||||||||
Product number | CT-H | ||||||||||||||||
Power level | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | |||||||||
Rated power | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | |||||||||
Output peak power | 600W (＜1S) | 1000W (＜1S) | 2000W (＜1S) | 3000W (＜1S) | 4000W (＜1S) | 6000W (＜1S) | 8000W (＜1S) | 1000W (＜1S) | |||||||||
Battery voltage | 12/24/48VDC | 24/48/96VDC | |||||||||||||||
Machine ( L*W*H mm ) | 166*125*55 | 235*146*66 | 305*146*66 | 330*180*90 | 390*180*90 | 390*216*155 | 485*218*155 | 485*218*155 | |||||||||
Package ( L*W*H mm ) | 510*260*380(10PCS) | 590*310*380(10PCS) | 490*200*380(4PCS) | 405*230*165(1PC) | 485*445*370(4PCS) | 460*315*255(1PC) | 560*300*250(1PC) | 560*300*250(1PC) | |||||||||
Net weight kg | 0.9 | 1.55 | 2.45 | 3.5 | 4.35 | 8.85 | 11.8 | 12 | |||||||||
Gross weight kg | 1.2 | 2.05 | 3 | 4.2 | 5.5 | 10.35 | 12.5 | 13 | |||||||||
Output | Inverter output voltage | 100/110/120/220/230/240VAC | |||||||||||||||
Inverter output frequency | 50HZ ±0.5HZ or 60HZ±0.5HZ | ||||||||||||||||
Output waveform | pure sine wave | ||||||||||||||||
Output waveform distortion | THD＜3%(linear load) | ||||||||||||||||
Output maximum efficiency | up to 95% | ||||||||||||||||
Output voltage error value | low&high 10% | ||||||||||||||||
USB output voltage | 5V | ||||||||||||||||
LED display | shows working status, and error status | ||||||||||||||||
Current type | Optional according to customer requirements | ||||||||||||||||
Start mode | soft start | ||||||||||||||||
Cooling method | Intelligent fan control | ||||||||||||||||
Protection function | Undervoltage/overvoltage | LED red light, automatic recovery Buzzer alarm | |||||||||||||||
Overload | Overload 120%, LED red light, lock up Buzzer alarm | ||||||||||||||||
Over temperature | LED red light, automatic recovery Buzzer alarm | ||||||||||||||||
Short- circuit | LED red light, automatic recovery Buzzer alarm | ||||||||||||||||
Input | reverse diode | ||||||||||||||||
Working environment Temperature | -20*--+70° | ||||||||||||||||
Storage environment Temperature | -30--+ 75° | ||||||||||||||||
