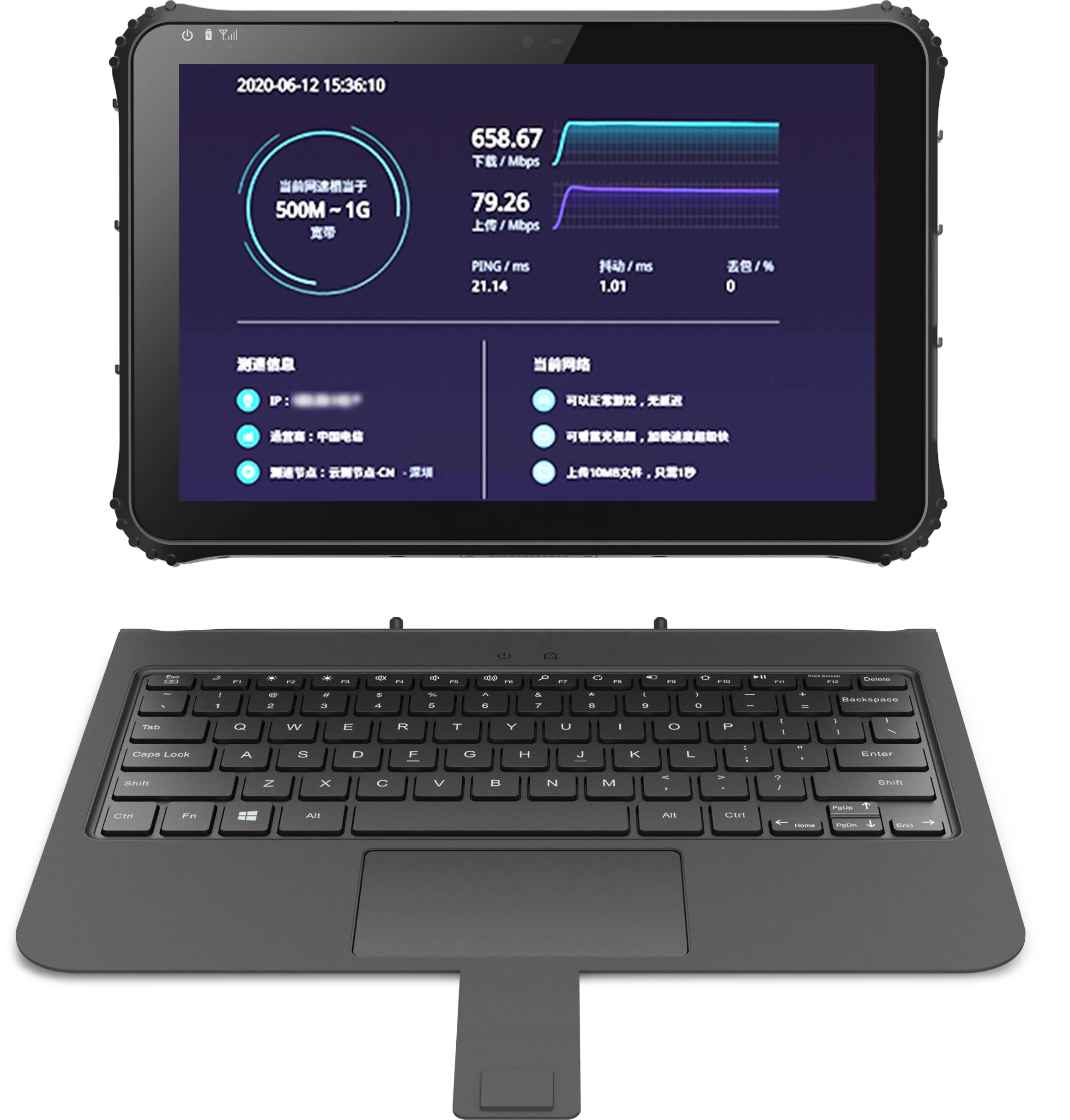

GENZO 12 inch Window s 10 with keyboard Waterproof IP65 rugged tablet with rs485 and barcode scanner Z12
- Category: >>>
- Supplier: Shenzhen Genzo Technology Co. Ltd
Share on (1600565915035):
Product Overview
Description
10 Years Old Store Upgraded & Reopened
Product Description
Hardware | ||
CPU | Intel Cherrytrail Z8350,1.44Ghz-1.84GHz | |
GPU | Intel® HD Graphics | |
RAM/ROM | 4GB DDR3L / 128GB EMMC | |
External Memory | Support TF*1,MAX 128GB | |
LCD Display | 12.2 inch 16:10, 1200×1920P, 400 cd/m2 | |
Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen | |
Camera | Front:2.0MP, Rear: 5.0MP | |
Battery(Small+Big) | 3.7V/12600mAH, (Removeable Backup Battery) 8-10hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video) | |
Speaker | Embedded 8Ω/0.8W waterproof speakerx 2 | |
Mic | Sensitivity:-42db, Output resistance:2.2kΩ | |
G_sensor | Gravity acceleration sensor | |
Compass | Built-in | |
Gyroscope | Built-in | |
Data Collection & Networking | ||
Barcode Scanner | 1D Optional MOTO SE655E100R; 2D Optional Honeywell N3680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse) | |
NFC | NXP NFC 13.56MHz Support ISO/IEC:14443A/14443B/15693/18092/mifare protocol，read card distance:4cm | |
BT | BT4.2 (BLE) class1 transmission distance:10m | |
WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI | |
4G | MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan | |
GPS | U-blox NEO-7,Support:GLONASS,QZSS GPS Capture sensitivity: -160 dBm; Cool Start Time:less 50second,Hot Start Time:less 28second | |
OS | Windows 10 Pro inactivated os(Free), Optiona Home/IOT/LTSC | |
Module extension | ||

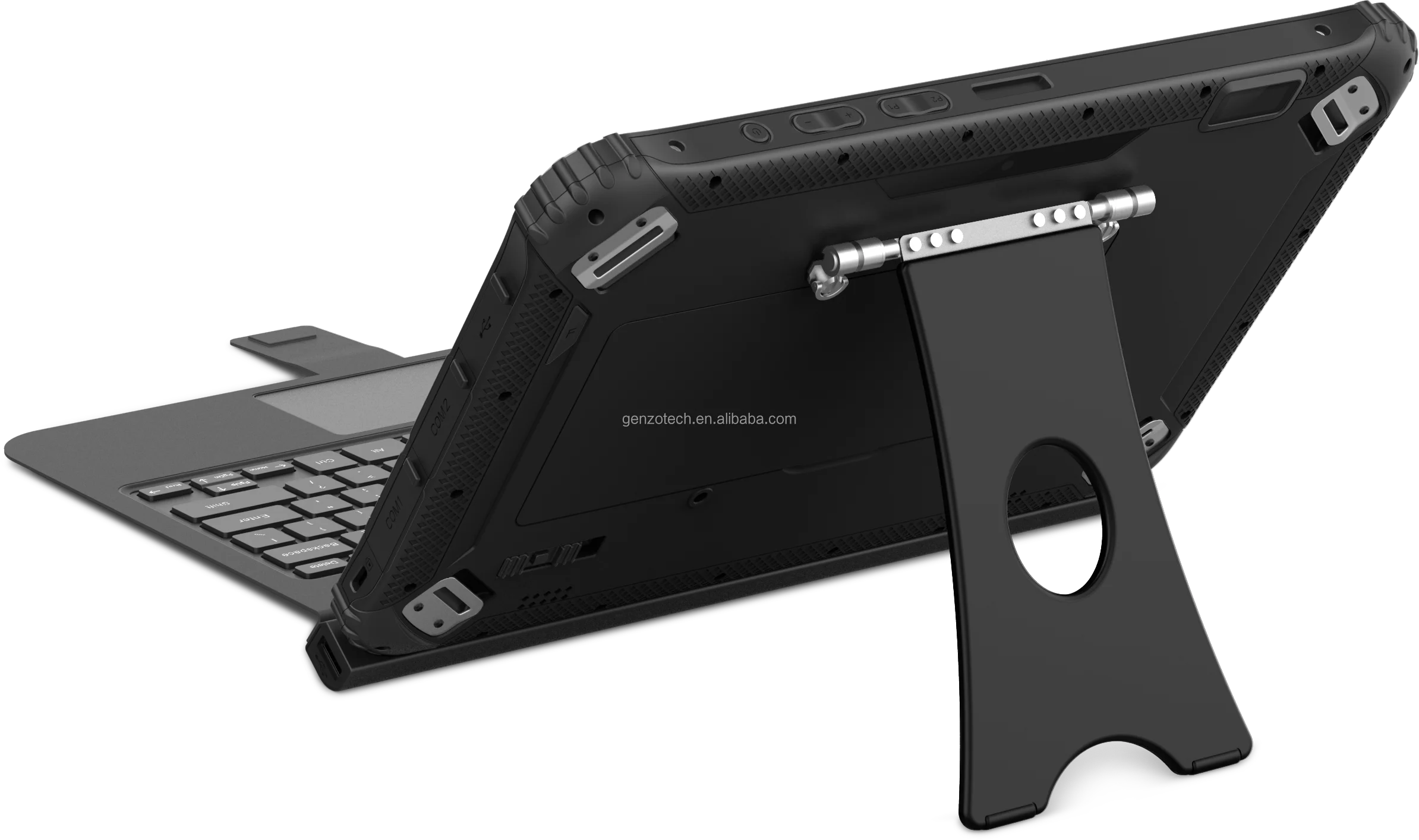

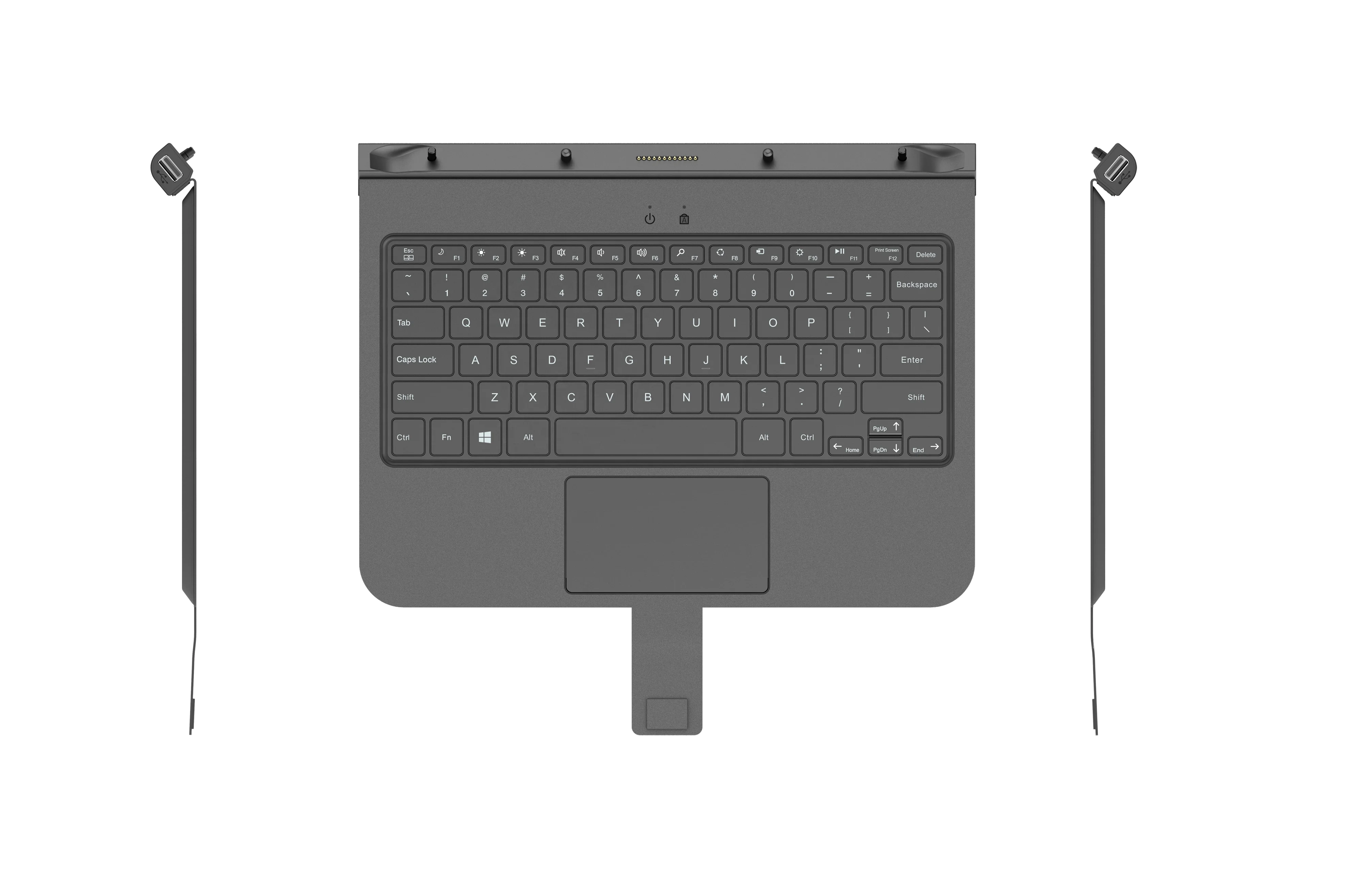

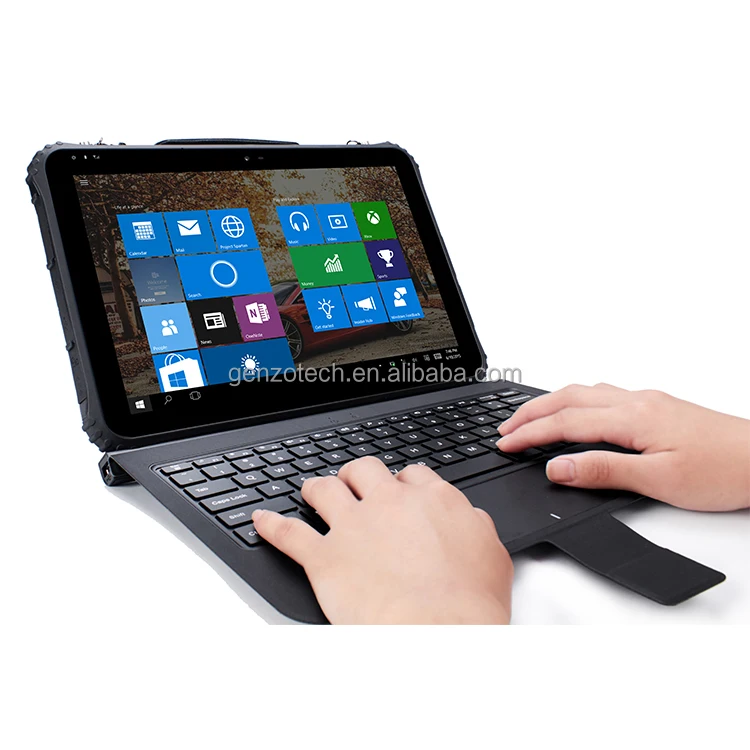

Keyboard | Optional Material: keyboard ABS+PC Leather; bracket stainless steel+TPU； keyboard（23.5cm（W）*37cm（L），bracket：11.5cm（W）*18.4cm（L）；Weight：604g； | |
I/O Port & Appearance & Package | ||

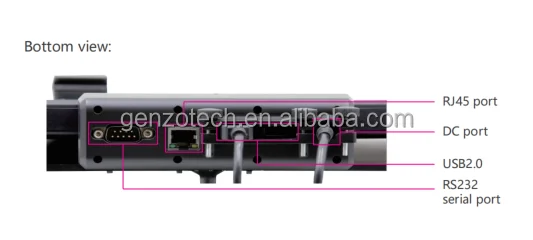

I/O Port | HDMI 1.4a x 1, Mirco USB x 1, USB 3.0 Type-A x 1, USB 2.0 Type-A x 2, SIM Card x 1, TF Card x 1, 12pin（USB&Docking charging） x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC 12V 2A DC jack x 1 DB9 (RS232) ×1 AND DB9 (RS485) ×1, RJ45 10/100/1000Mbps ×1 | |
Keys | Barcode Scanning Key(back of unit) x1, P Key(Custom Key) x2, Volume adjustment key(+) x 1, Volume adjustment key(-) x 1, Power keyx 1 | |
Indicator light | Power on is always blue, power off light is off ×1, (Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1 | |
Power Adaptor | AC100V ~ 240V, 5V3A/ Output USA Standard CE approval. UK/EU Standard Optional | |
Dimension | 319.6*216*23.4 mm | |
Weight | Device unit: 1500g. | |
Package | USB cable/OTG cable/Charger 5V 3A/Hand Straps/Back Wrist Straps/Back bracket/ Packing box（Can be customized logo), | |
Certificate System & Reliability Design | ||
IP67/IP65 | IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample. | |
CE NB | YES | |
MIL-STD-810G | YES | |
Battery | UN38.3，MSDS,IEC62133 | |
Drop Height | 1.22m composite wood floors,in operation status | |
Operate Temperature | ‘-20 °C to 60 °C | |
Store Temperature | ’-30 °C to 70 °C | |
Humidity | Humidity: 95% Non-Condensing | |

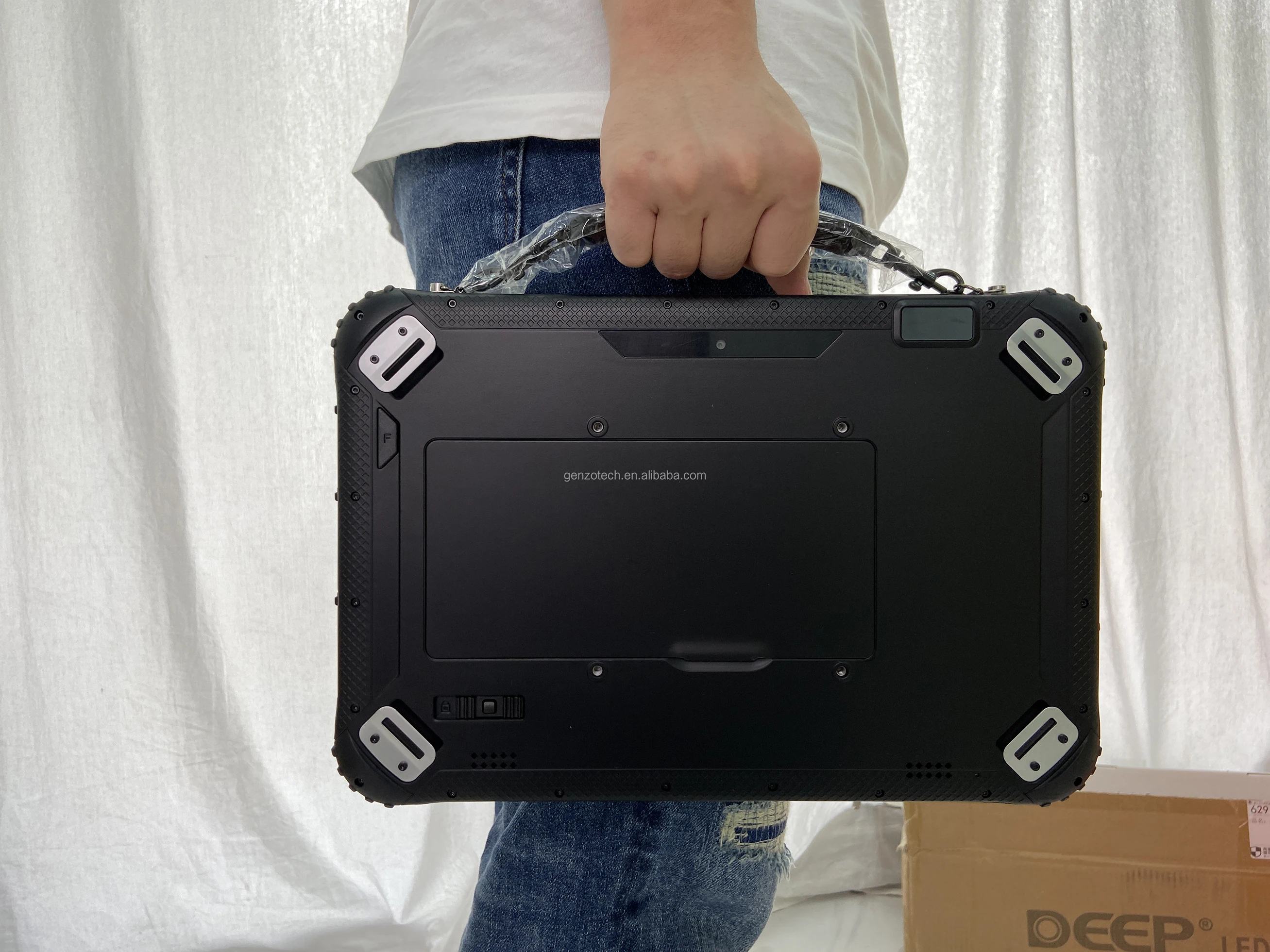

Details Images

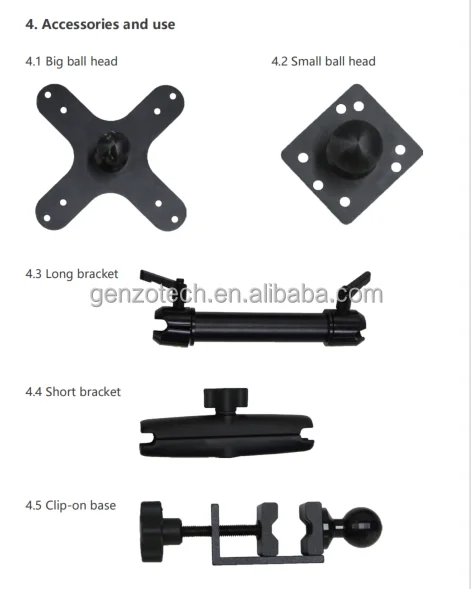

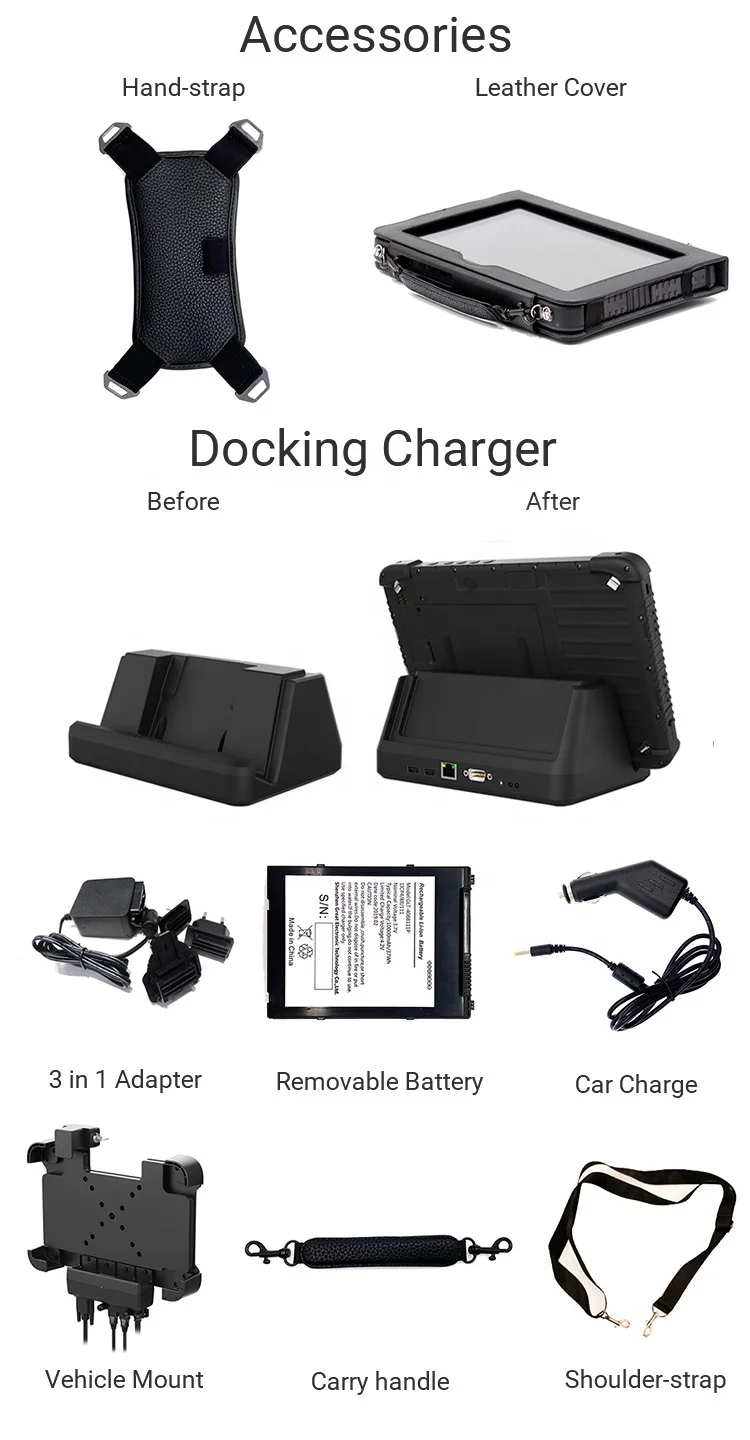

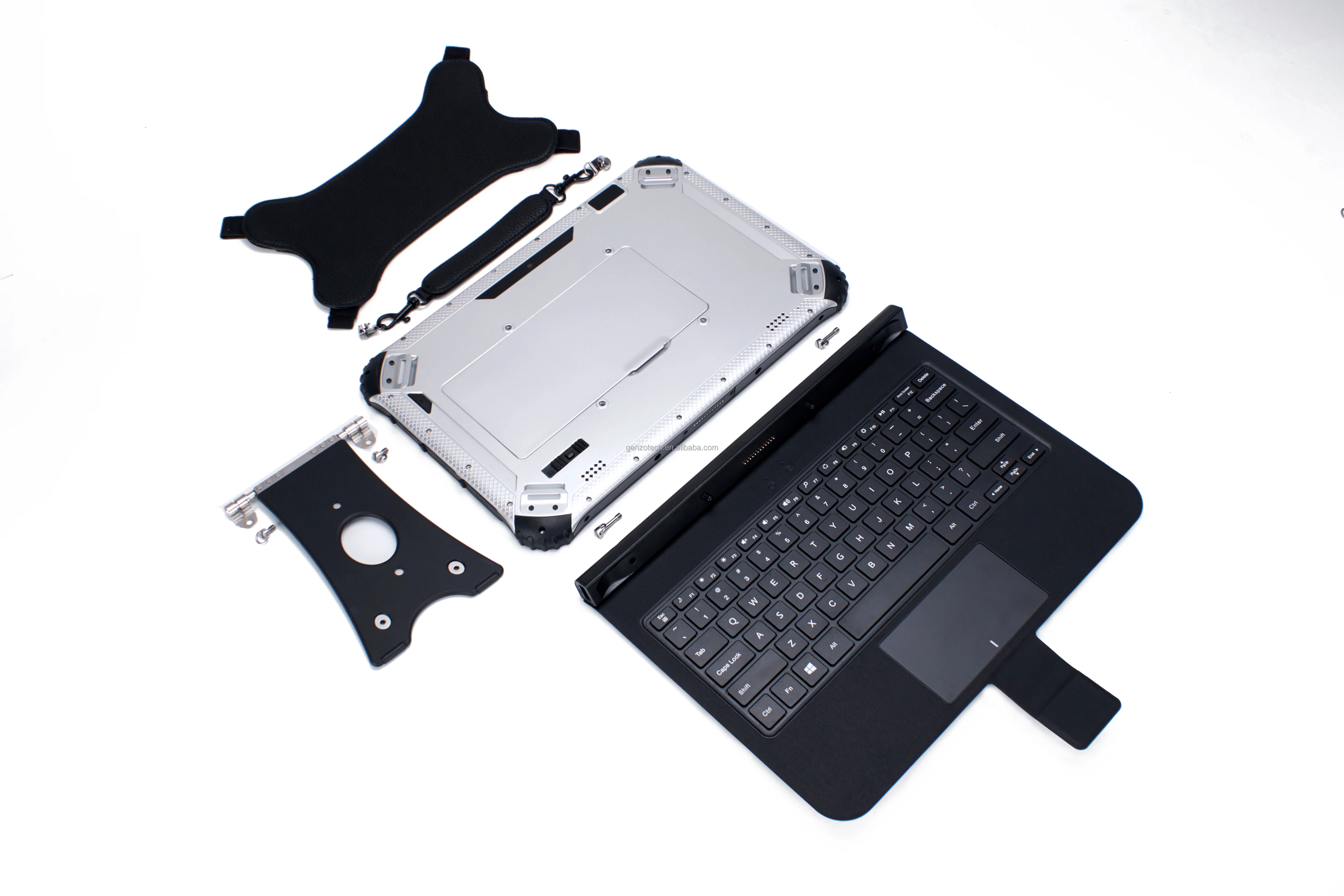

Optional Accessories

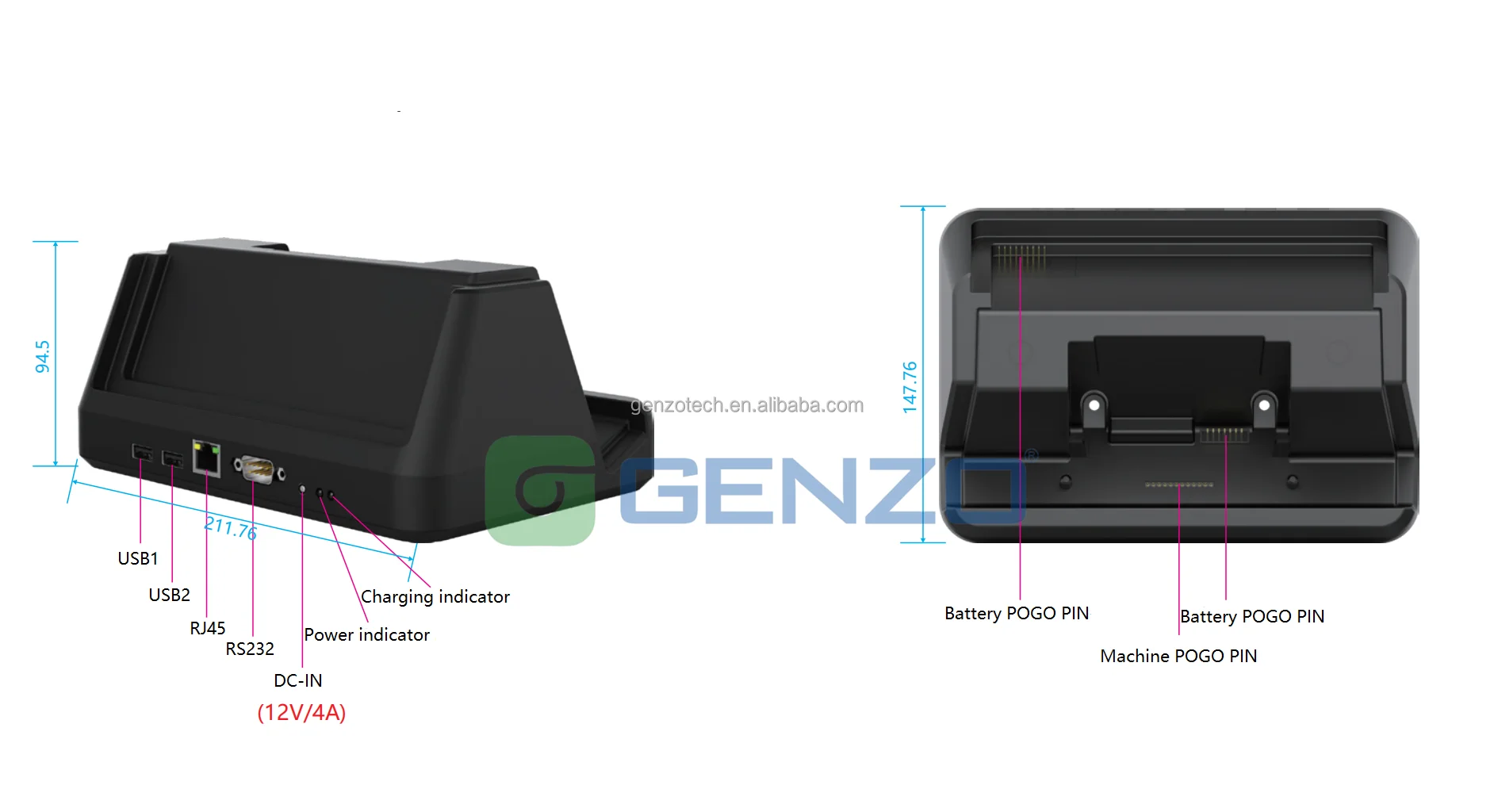

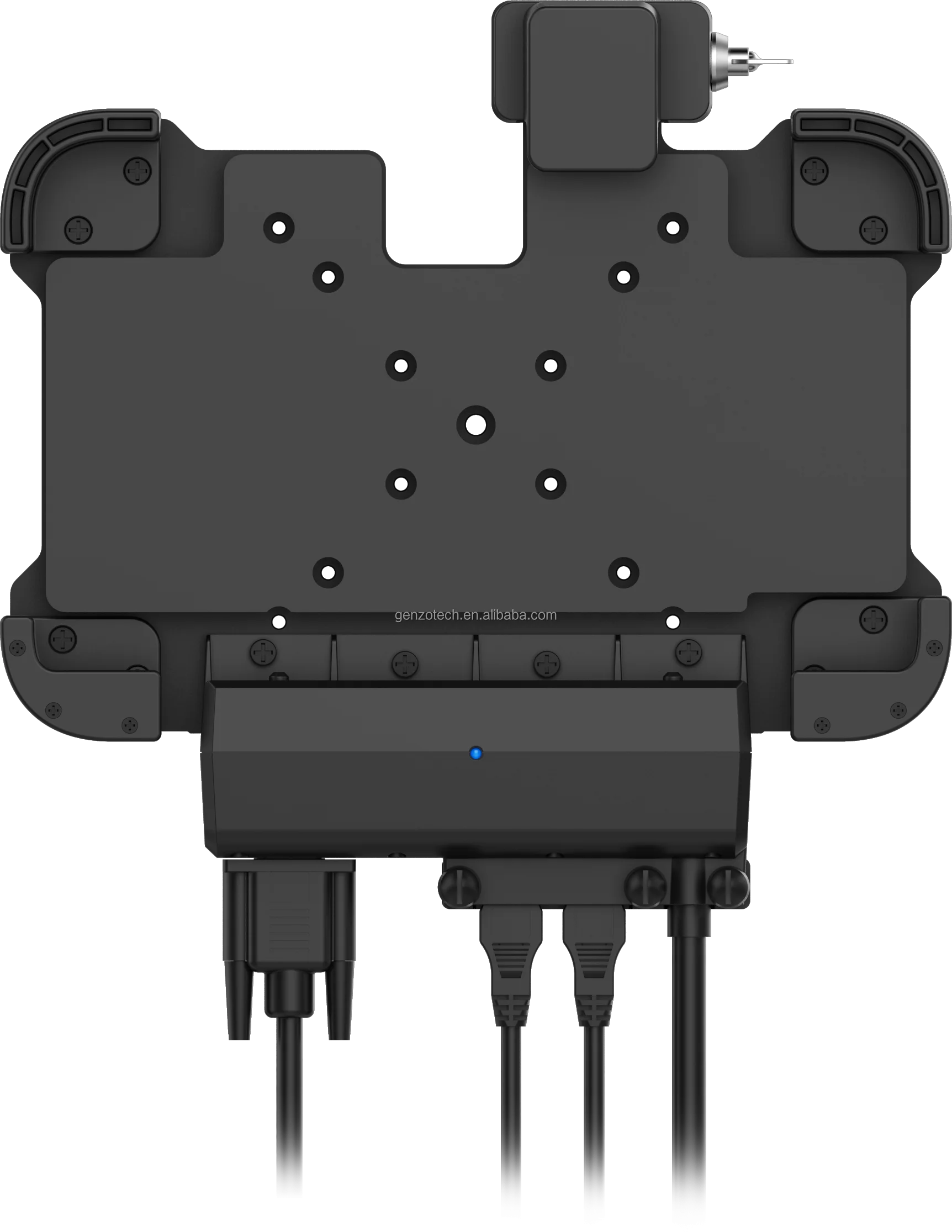

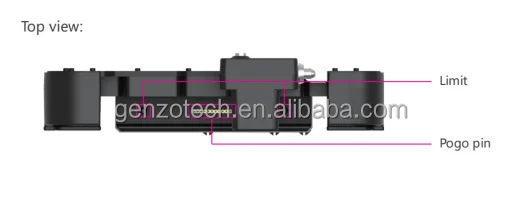

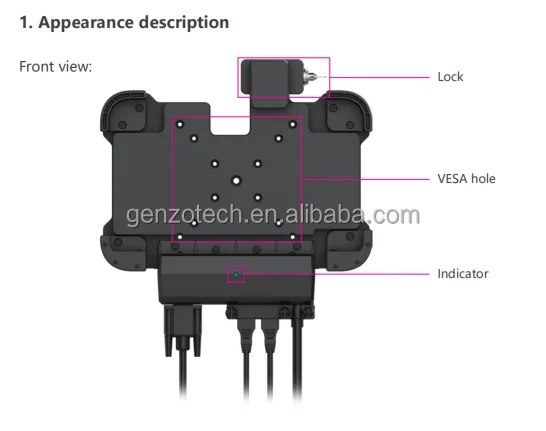

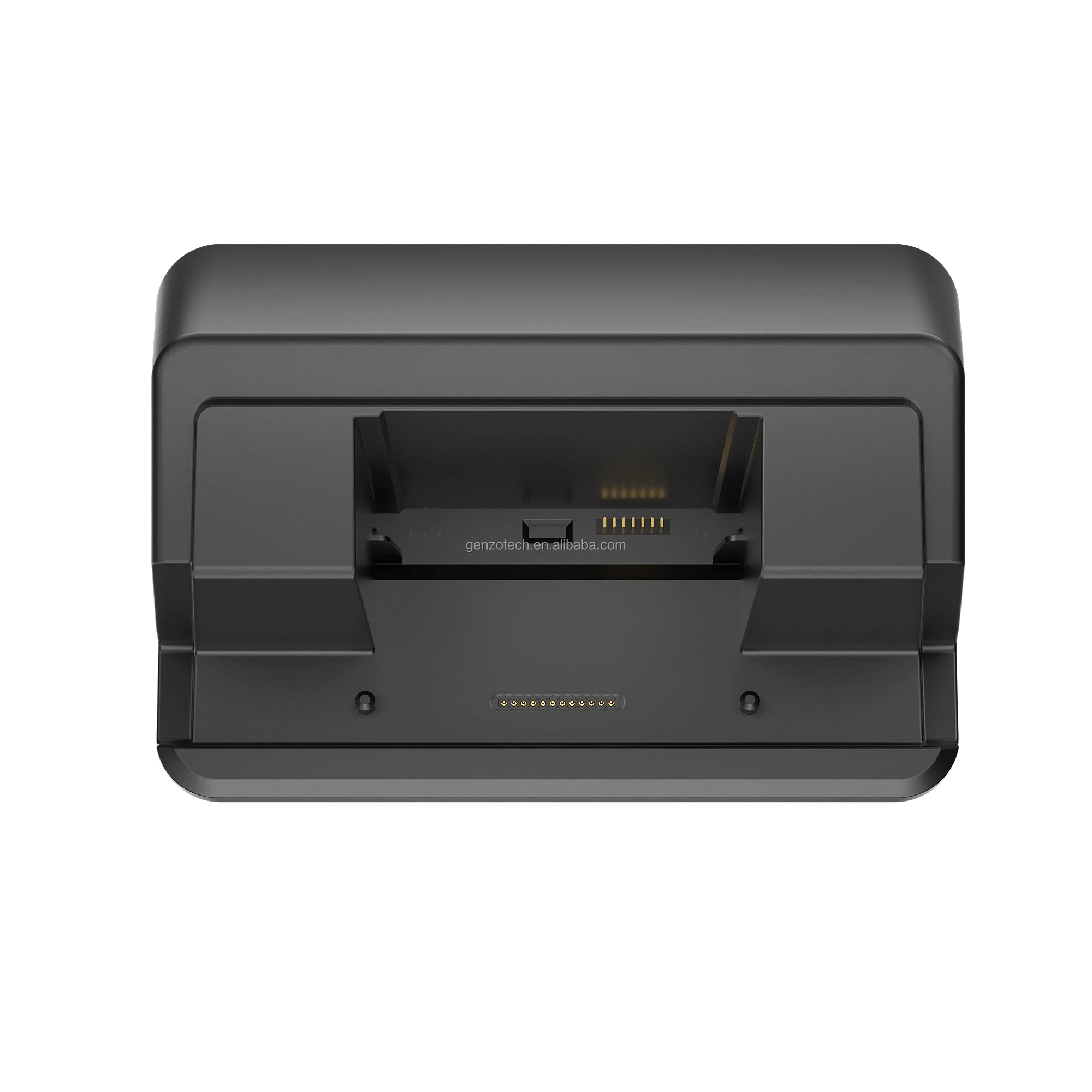

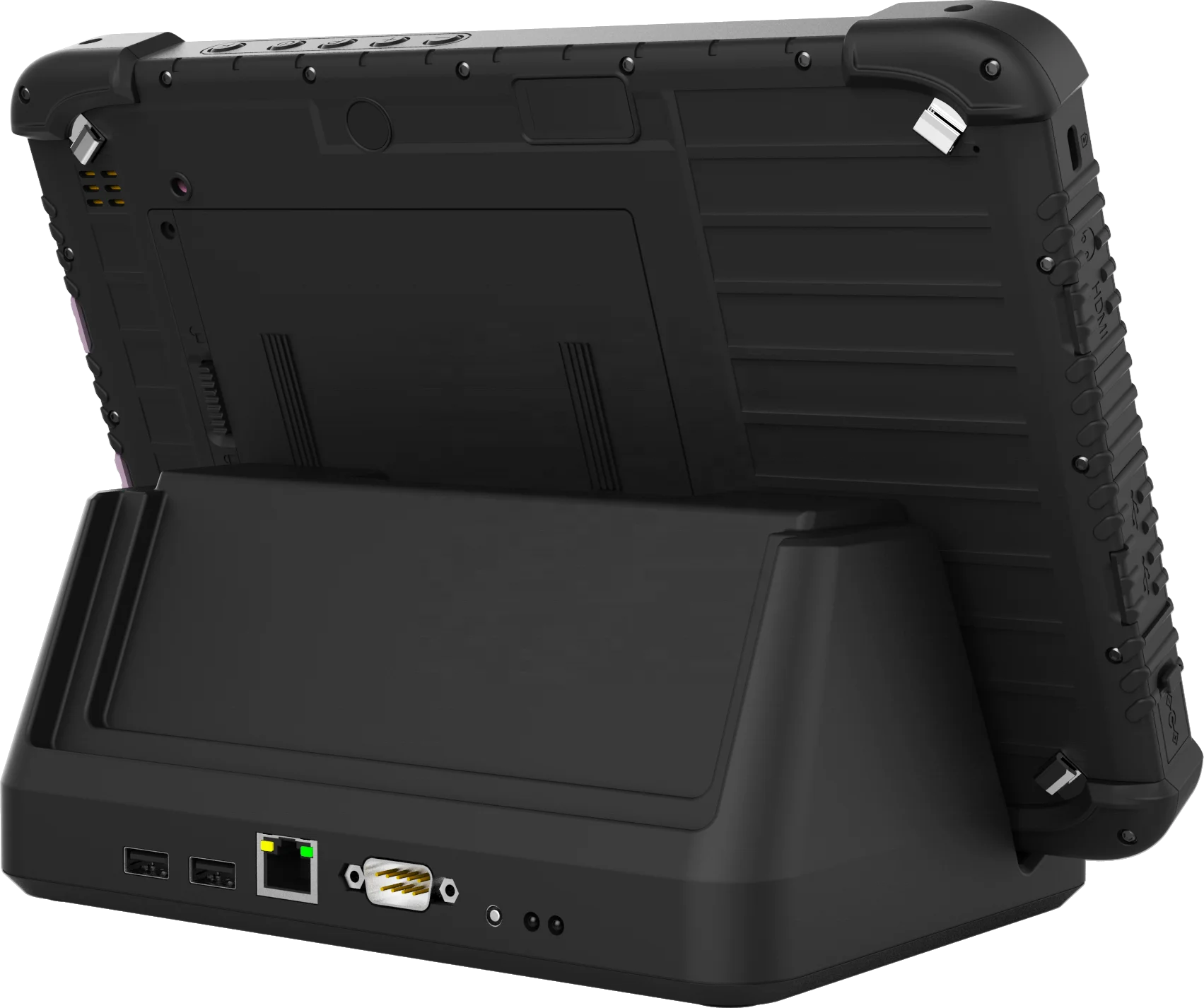

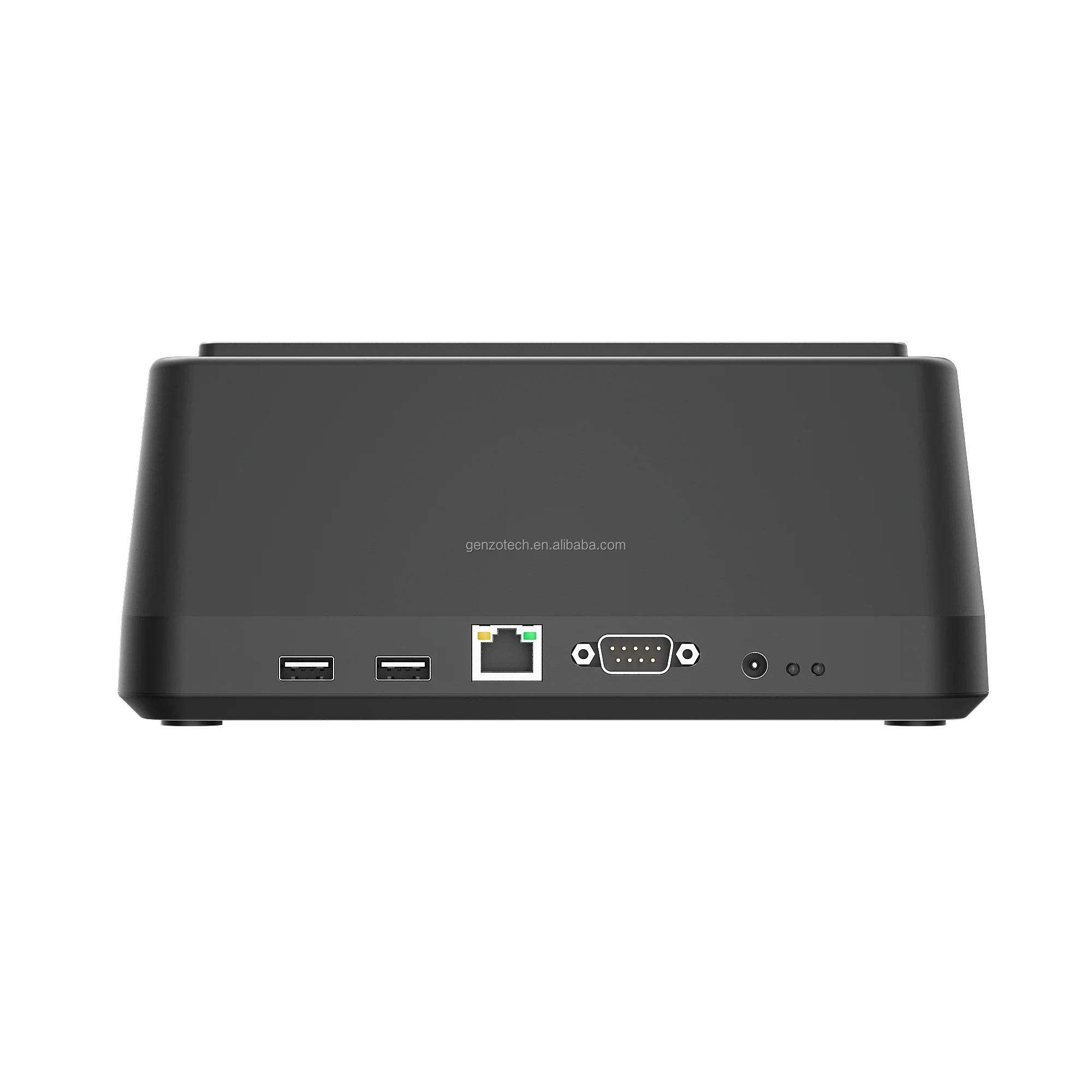

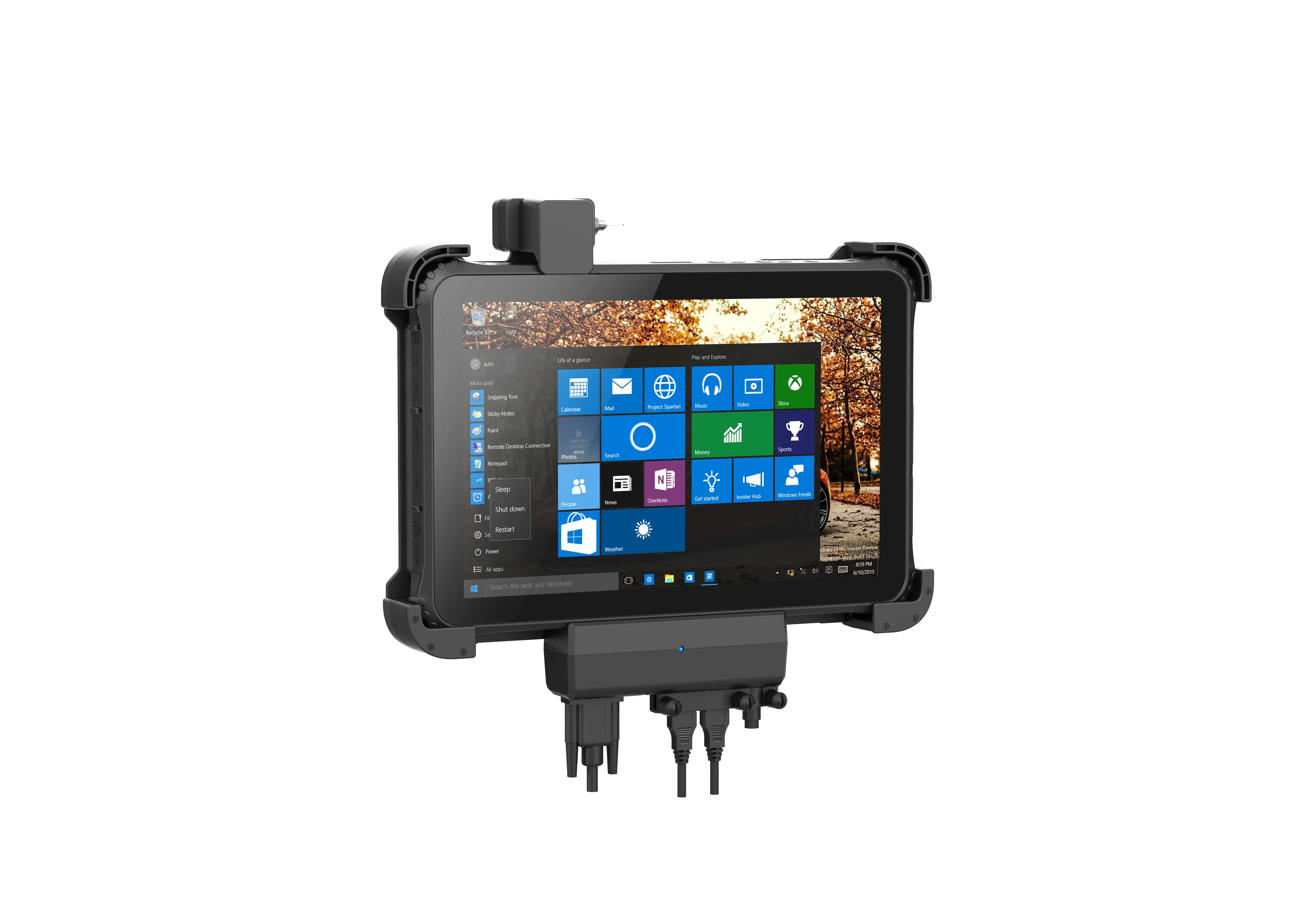

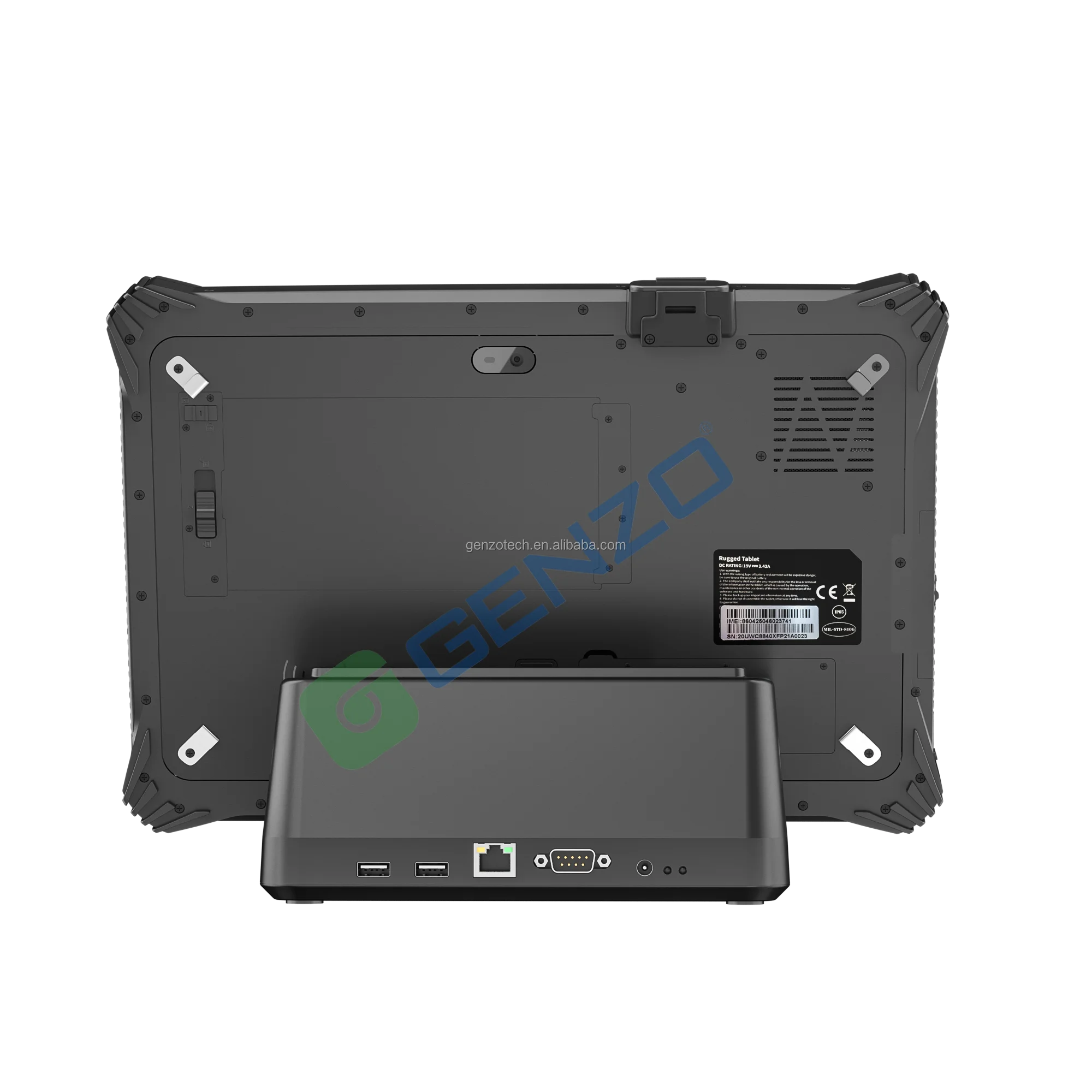

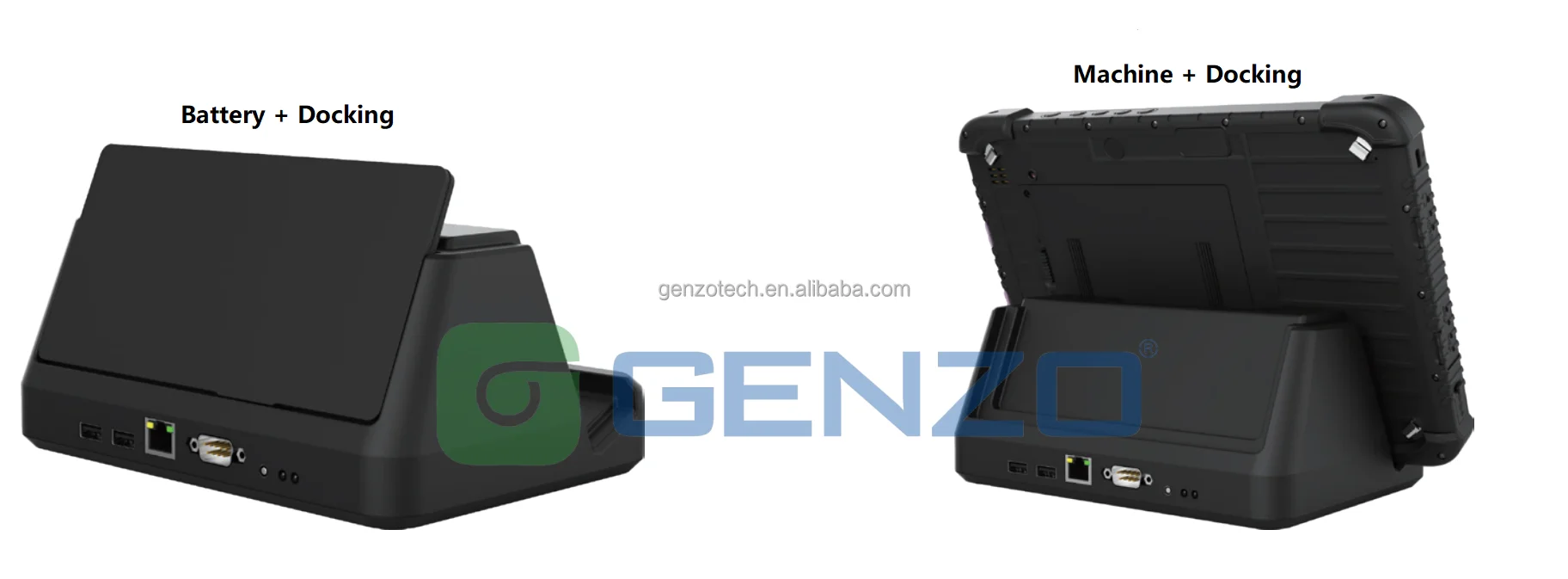

Vehicle Mount, Docking Charger, Leather Cover, Shoulder strap, Back Strap, Stylus, Car Charger, TP protective film
Leather Cover Six View
Leather Cover
Shoulder Strap With Leather Cover
Shoulder Strap With Leather Cover
Back Strap with Leather Cover
Back Strap with Leather Cover
Stylus
Car Charger

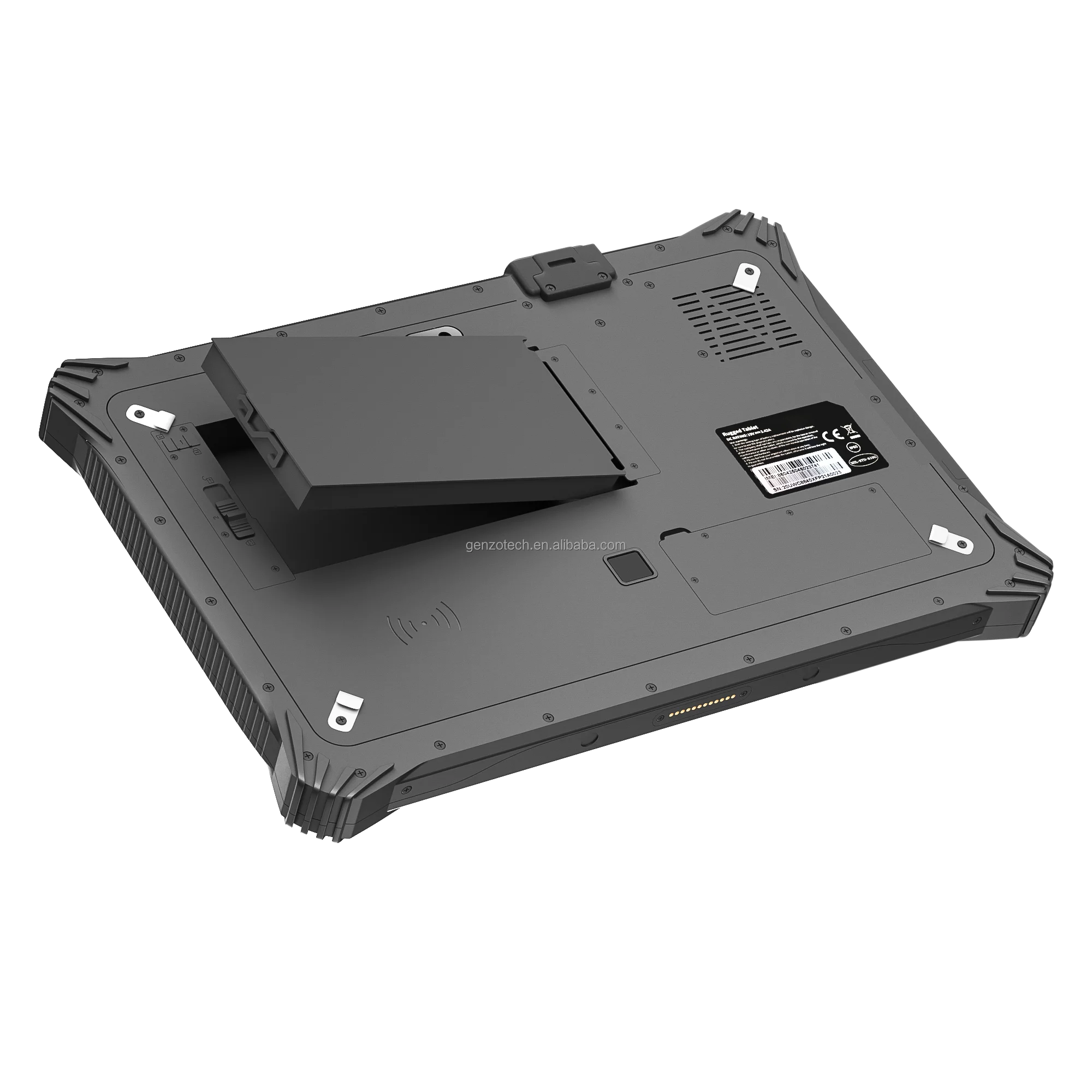

Battery
Payment & Packing &Shipping
Company Introduction
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
