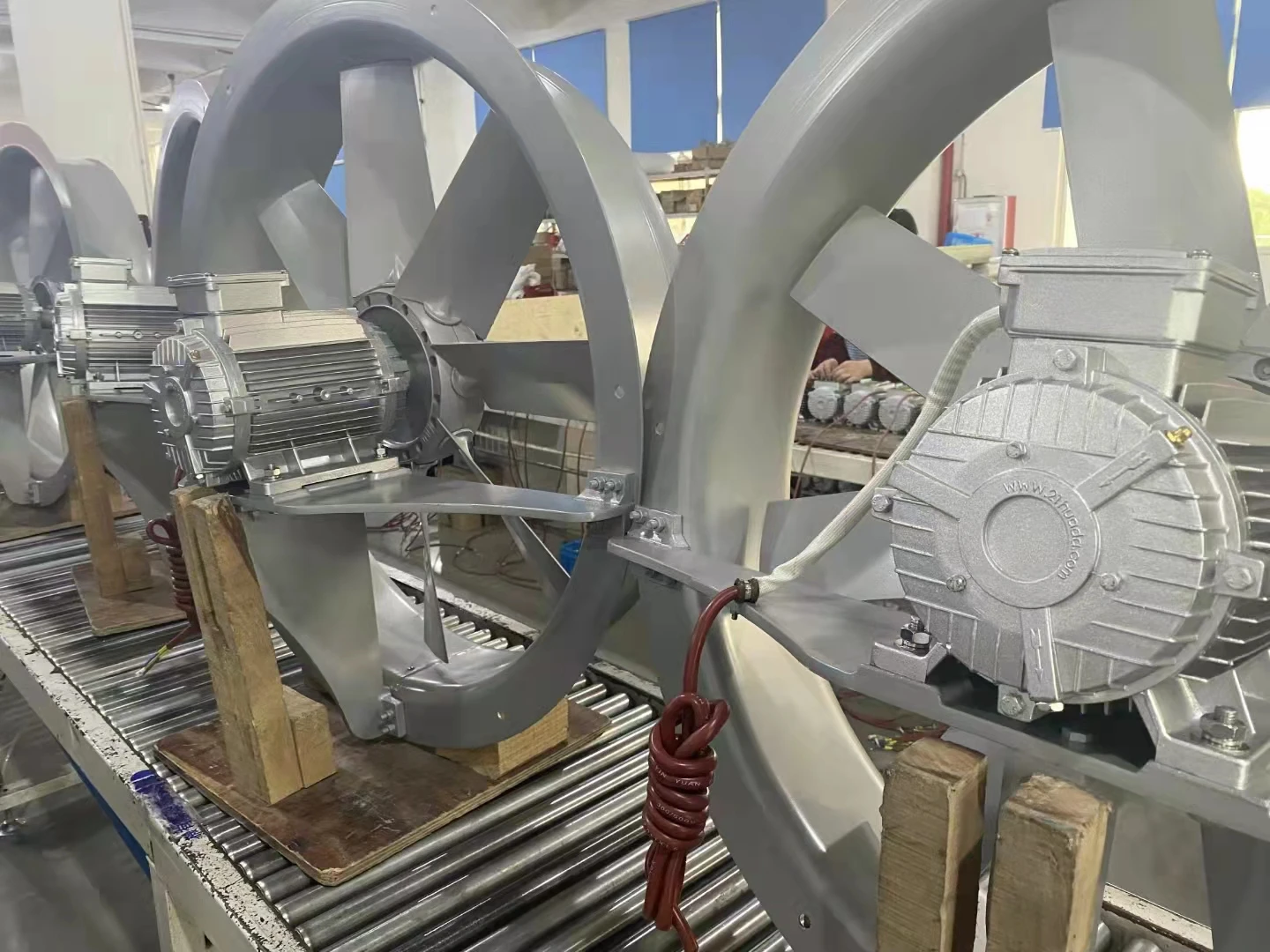

800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment
800mm GKW two directions axial ventilation exhaust fan for wood drying equipment

800mm GKW two directions axial ventilation exhaust fan for wood drying equipment

Share on (1600565955563):


Price:$323.00 - $369.00

Quantity:


Product Overview

Description

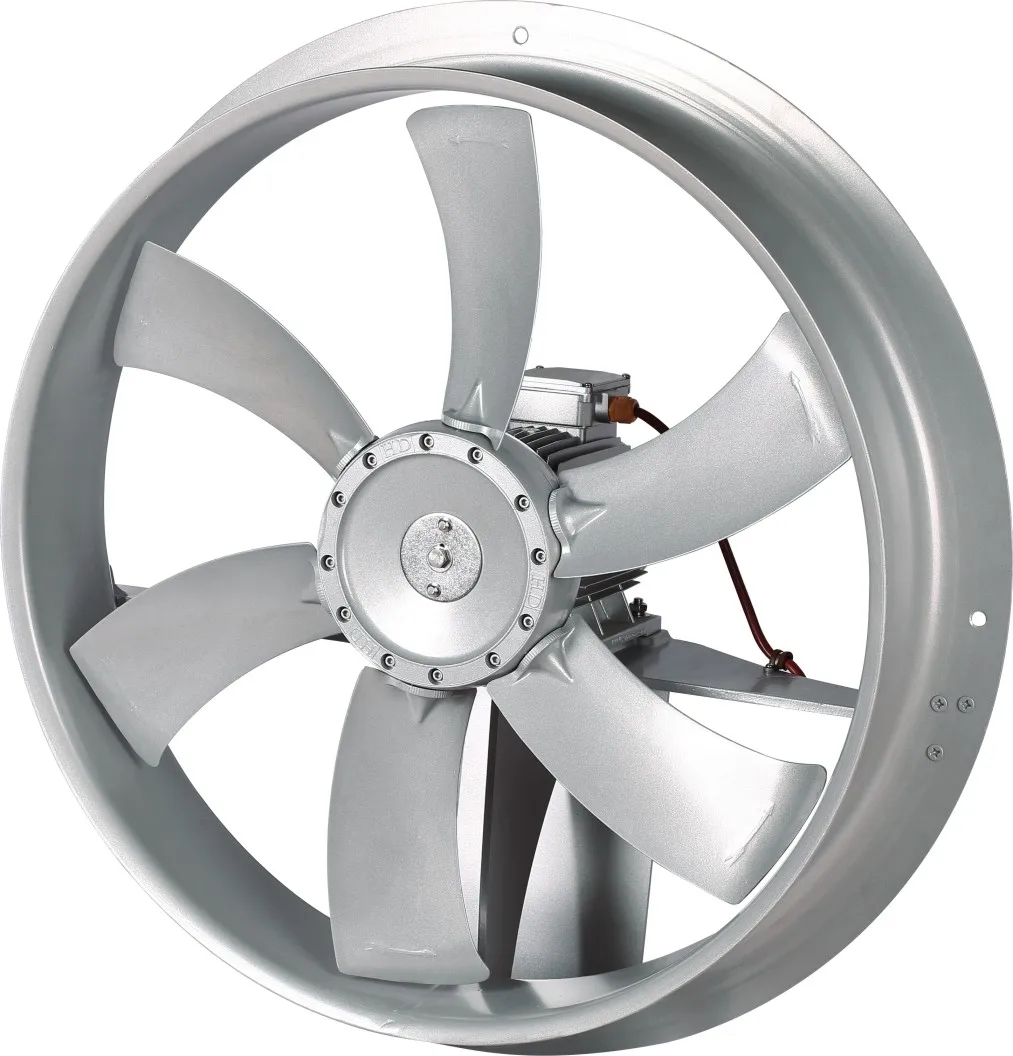

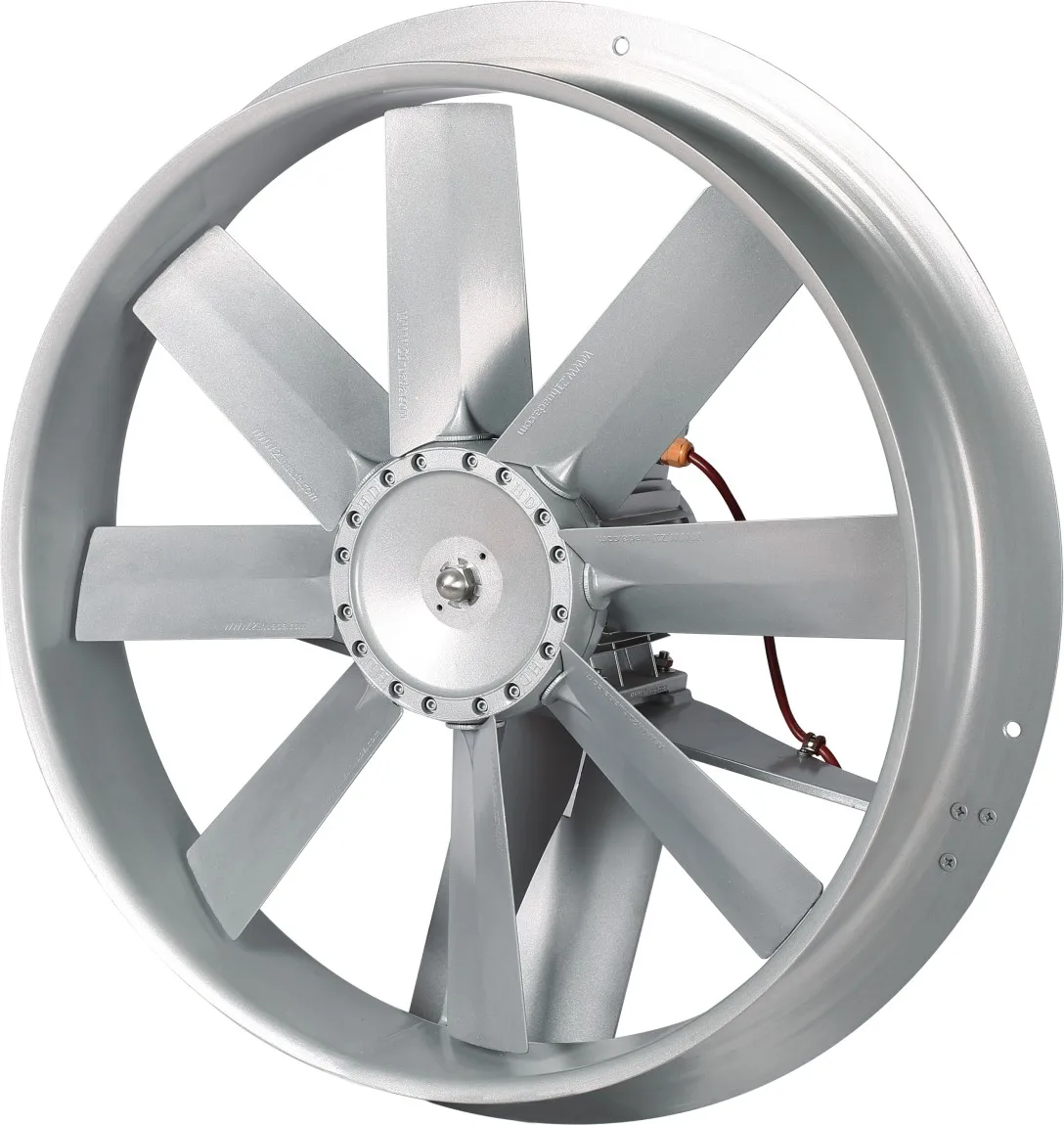

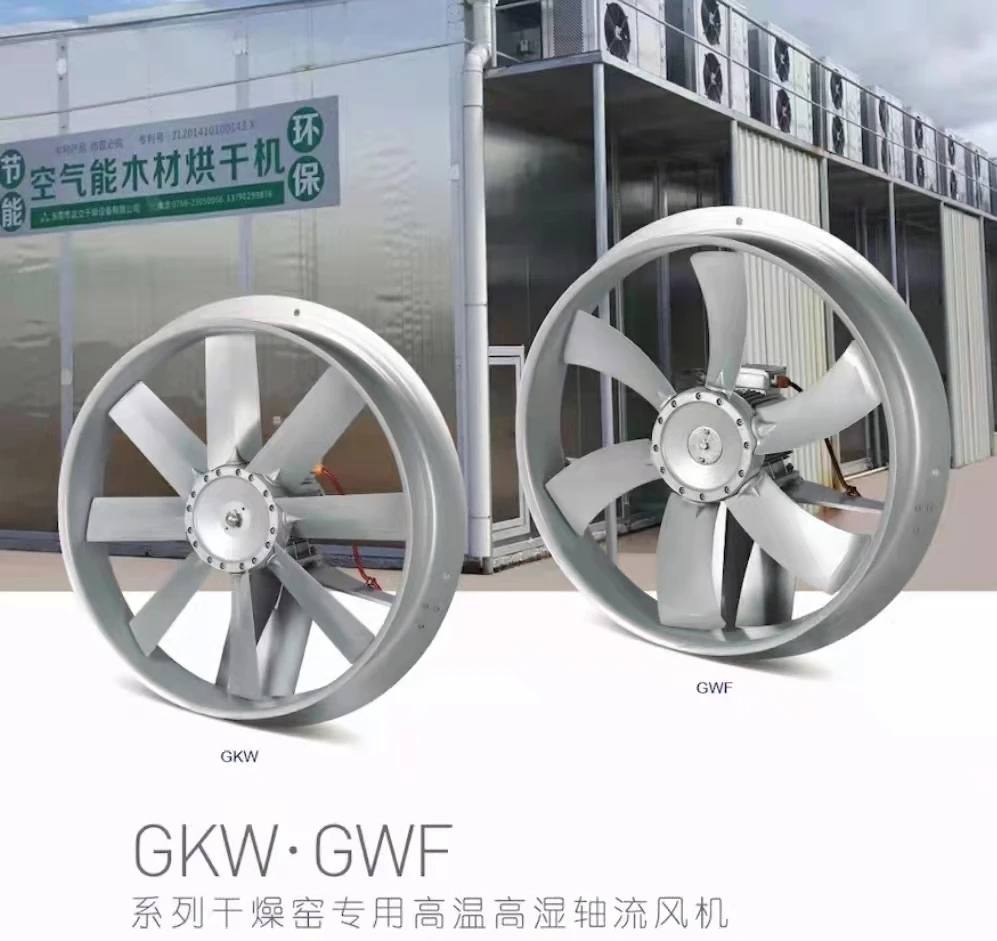

GKW/GWF series drying kiln special high temperature high humidity axial ventilator fan,is special designed for drying kiln,which ventilator equipment.It has remarkable characteristic of resistant to high temperature,resistant to high humidity,large air volume,high efficiency,energy saving,and convenient installation.The axial fan is used in the ventilation system for wood drying kiln and other drying equipment.As the blades diameter is different,there are 7 model,No.4,5,6,7,8,9,10.The angle of fan can be adjusted according to the clients' requirements.

Features:
The fans blades can be direct connected with the motor.The circumferential velocity of the impeller does not exceed the condition,there are three different rotational speed:2900 r/min,1450 r/min,960r/min.

Since the frame size and the blades diameter are different,the installation angle of the blades,speed of main shaft is different.Air flow,air pressure and motor output are different.The air pressure from 60Pa to 400Pa,the air flow from 1000 cbm/h to 60000cbm/h.(details as per performance table).

Applied conditions:Max. Ambient Temp:<130℃，Relative humidity:<98%,in the ambient of weak alkali,vapor and no flammable gas,the motor can be also used in the vacuum drying equipment according to the specific conditions.




Tech Data


Item No.
Speed （rpm)
Airflow(m³/h)
Total pressure (Pa)
Hydrostatic(Pa)
Motor No.
Power(kw)
Noise(dB)
No. of blades
4
2900
3000-5000
110-200
60-180
712-2
0.55
≤74
6
4000-6500
160-250
70-200
801-2
0.75
≤74
6
4500-7000
200-280
80-210
802-2
1.1
≤75
6
1450
2000-3500
60-70
30-55
711-4
0.25
≤66
6
2500-4000
70-78
35-55
712-4
0.37
≤68
6
2800-4300
72-80
36-58
801-4
0.55
≤70
6
5
1450
5500-7000
130-145
70-105
801-4
0.55
≤71
6
6000-8500
138-150
80-100
802-4
0.75
≤74
6
6
1450
7500-11500
140-160
80-130
90S-4
1.1
≤76
6
8000-13500
160-180
80-135
90L-4
1.5
≤78
6
7
1450
10000-17500
180-220
140-175
90L-4
1.5
≤79
6
12000-20000
200-250
145-180
100L1-4
2.2
≤80
6
8
1450
15000-25000
180-270
100-260
100L1-4
2.2
≤81
6
17000-27000
210-300
120-260
100L2-4
3
≤82
8
20000-30000
240-330
125-265
112M-4
4
≤86
8
960
13000-20000
110-145
53-105
100L-6
1.5
≤78
8
15000-22000
120-155
500-100
112M-6
2.2
≤80
8
9
1450
20000-34000
240-340
160-320
112M-4
4
≤86
8
22000-36000
250-350
150-310
132S-4
5.5
≤87
8
960
13000-22000
100-140
70-120
112M-6
2.2
≤82
8
15000-24000
12--160
70-136
132S-6
3
≤83
8
10
1450
23000-36000
250-400
160-370
132S-4
5.5
≤87
8
28000-40000
270-420
165-380
132M-4
7.5
≤88
8
960
20000-31500
150-220
90-170
132M1-6
4
≤85
8
21000-33000
160-230
90-176
132M2-6
5.5
≤86
8

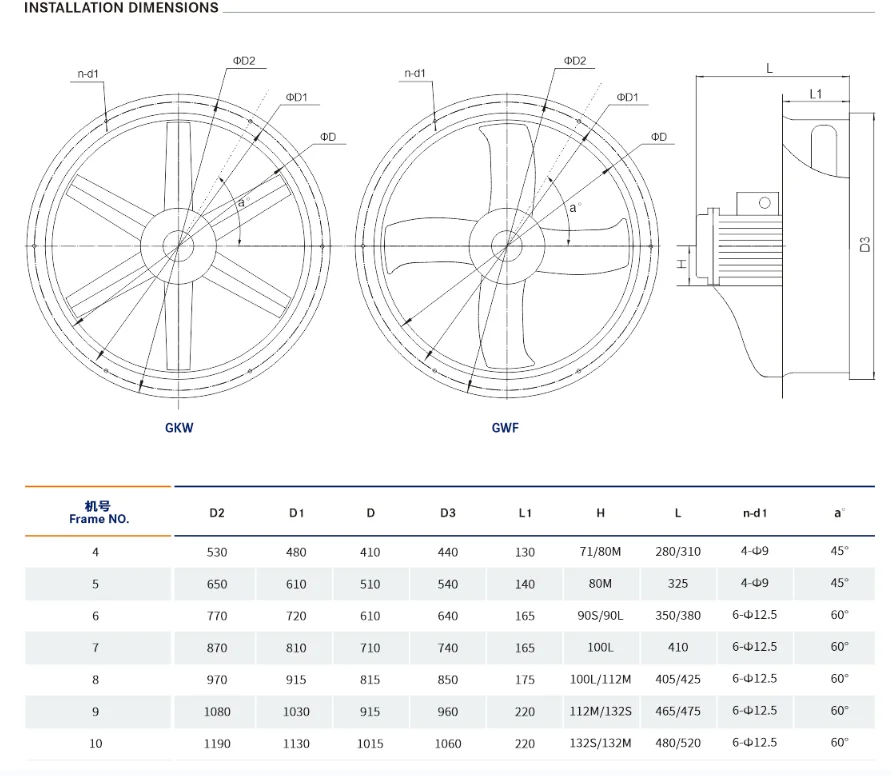

Installation Data




Company Introduction

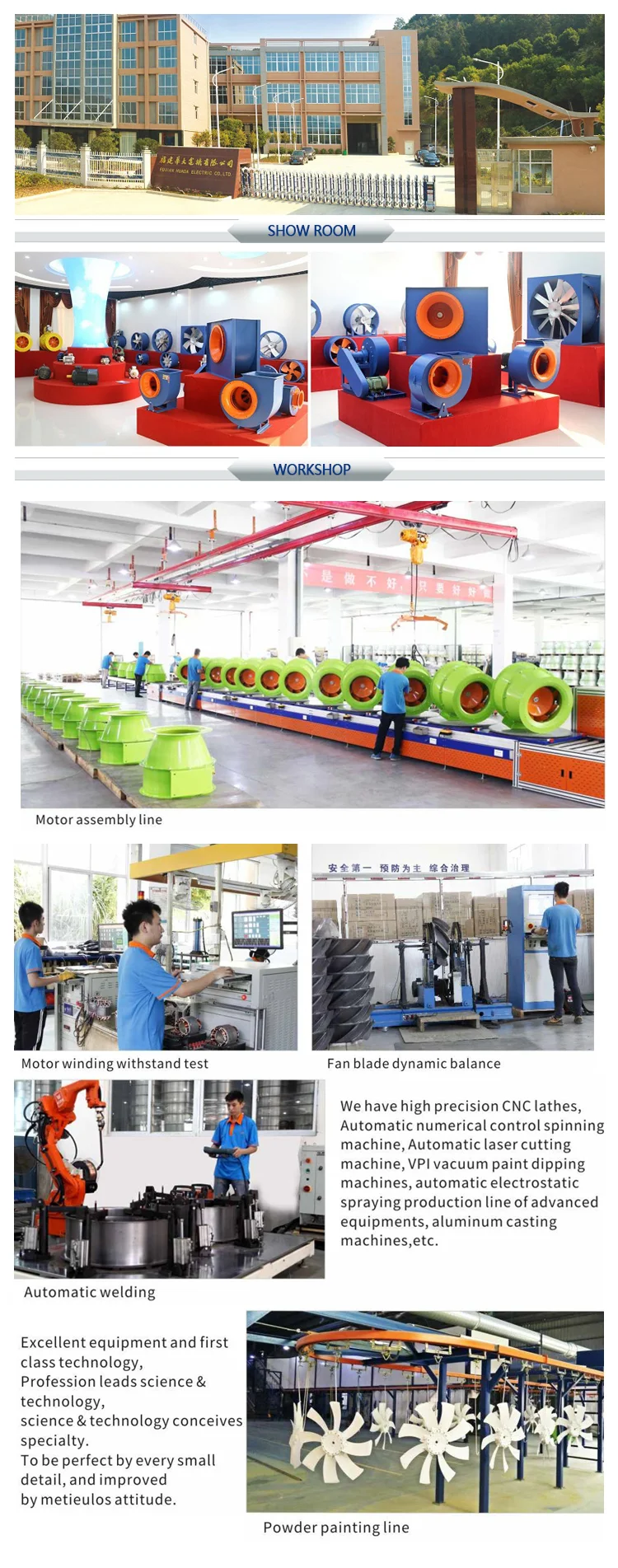

Fujian Huada Motor Factory established in 1998,registered as Fujian Huada Electric CO.,LTD,located in Fujian Province.It is a modern enterprise which engaged in Scientific research,production,sales and service.Covering an area of 50,000 square meters,of which 40,000 square meters are standard workshop.

Huada is more than ten years to focus on the research and development of high temperature motor,high temperature fan;Strictly control the production process ,making the high-quality goods.Products are included MSW series high temperature motor,GKF series flue-cured tobacco special-purpose fan,GKW series full aluminum high temperature and high humidity fan,CRF series grain drying dedicated fan,DJF series multistage high -pressure fan,DRF series diversion type high temperature fan,HTF series high temperature fire smoke exhaust fan,SWF series mixed flow fan and all kinds of high temperature and centrifugal fan and so on.

Besides our products passed the CCC certification,European Union CE certification.

Best selling in China and overseas markets,Huada as well known brand reputation in the domestic complete set of drying industry. GKF series fan was chosen as the industry standard by the national tobacco administration in 2009. The project of Flue-cured tobacco asynchronous motor with variable speed multistage won the third prize in Ningde science and technology progress and the second prize in Fuan Science and technology progress.


More Information

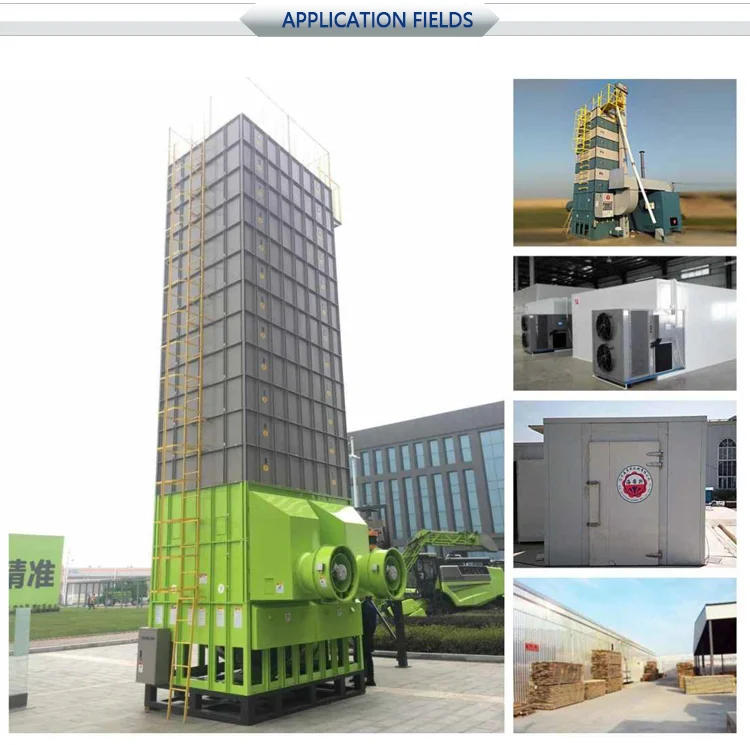

Application

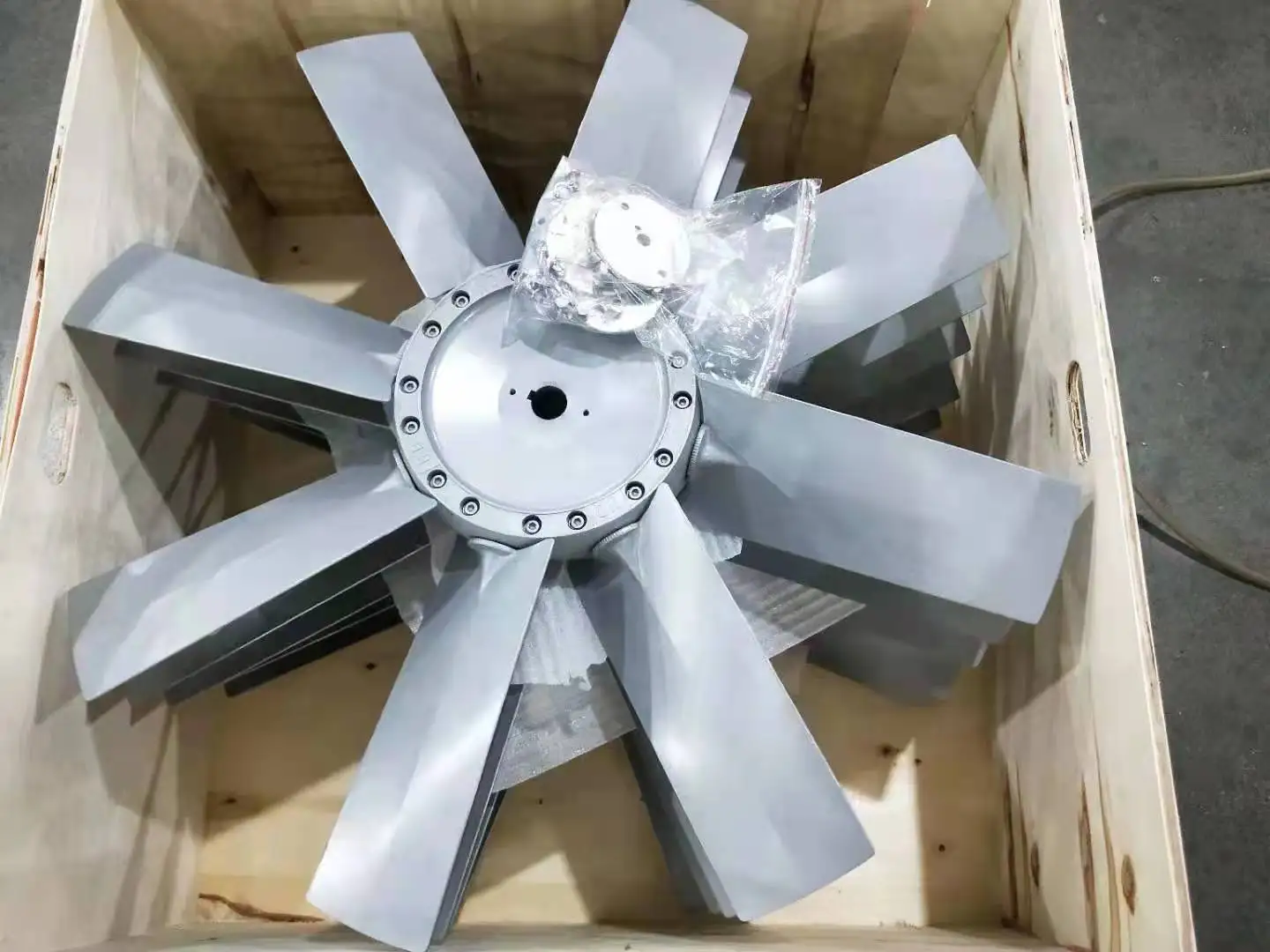

Packing Details
