4K 120Hz HDMI Audio Extractor Converter Adapter HDMI to HDMI Digital Optical TOSLINK (SPDIF) 3.5mm Audio Support 3D, ARC

Share on (1600565960193):


Price:$7.00 - $7.70

Quantity:


Product Overview

Description



Product Description

























































Input1HDMI 2160P/120Hz
OutputHDMI+Audio(SPDIF+L/R+ARC)
3 Audio Modes OptionalTV/ 2.0 / 5.1CH
Support Video Format24/30/36 bit deep color
Support Audio FormatDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max Bandwidth600MHZ
Max Baud Rate18.5Gbps
Power Adapter FormatDC5V/1A
MaterialAluminum Alloy
ColorBlack
Dimension(LxWxH)69x59x23mm
Weight180g
PackageGiftbox (User Manual+Power Adapter)






Features:

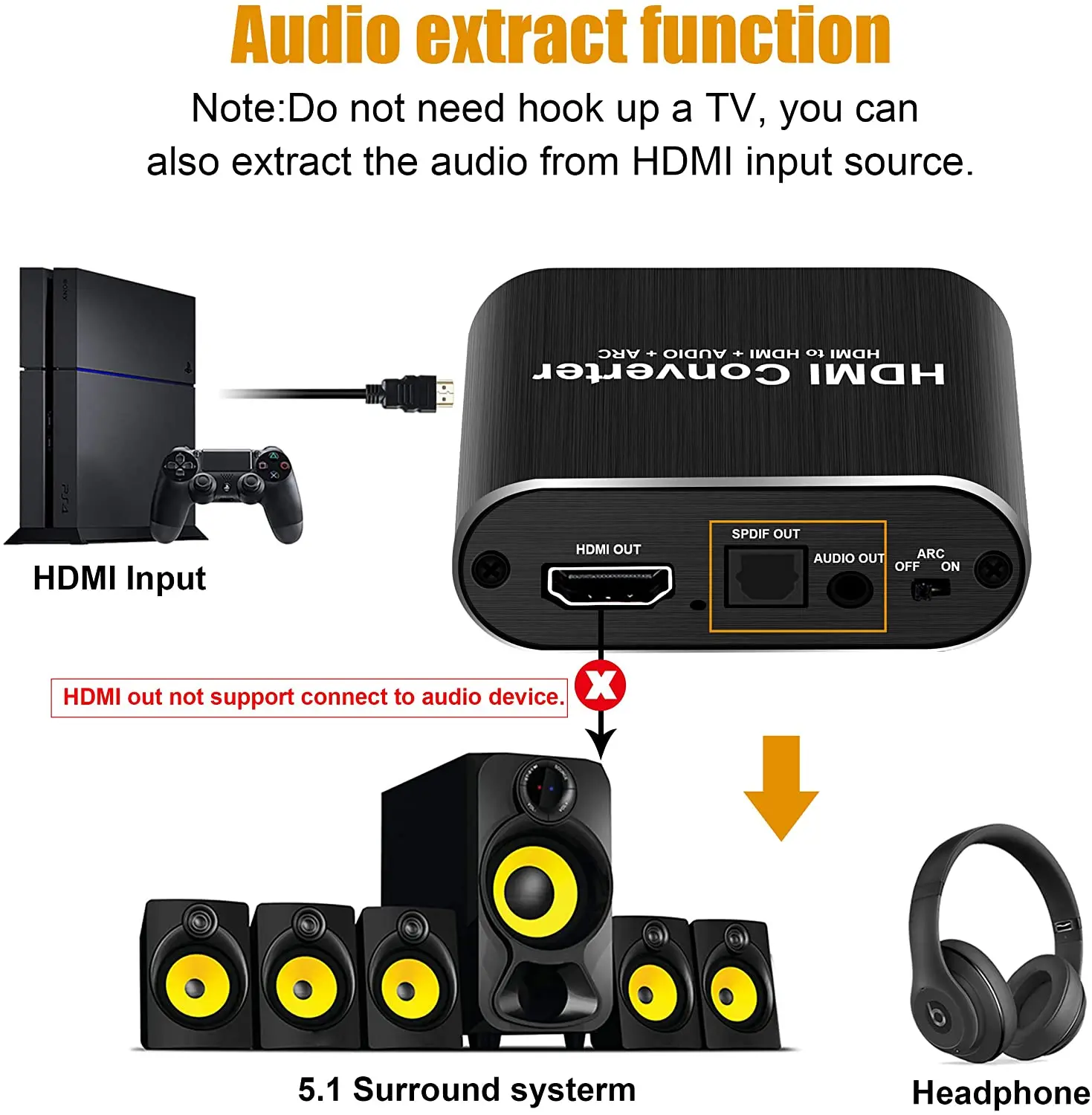

  • 4K 60z HDMI Audio Extractor: One HDMI Input to one HDMI Output(TV Mode), SPDIF (Optical) digital audio output(2CH/5.1CH Mode), and 3.5mm Stereo audio output(2CH Mode). Extract the audio from the HDMI input source to your soundbar or speaker. Please set your PS4 Pro to 2160P - YVU420 when you use it.

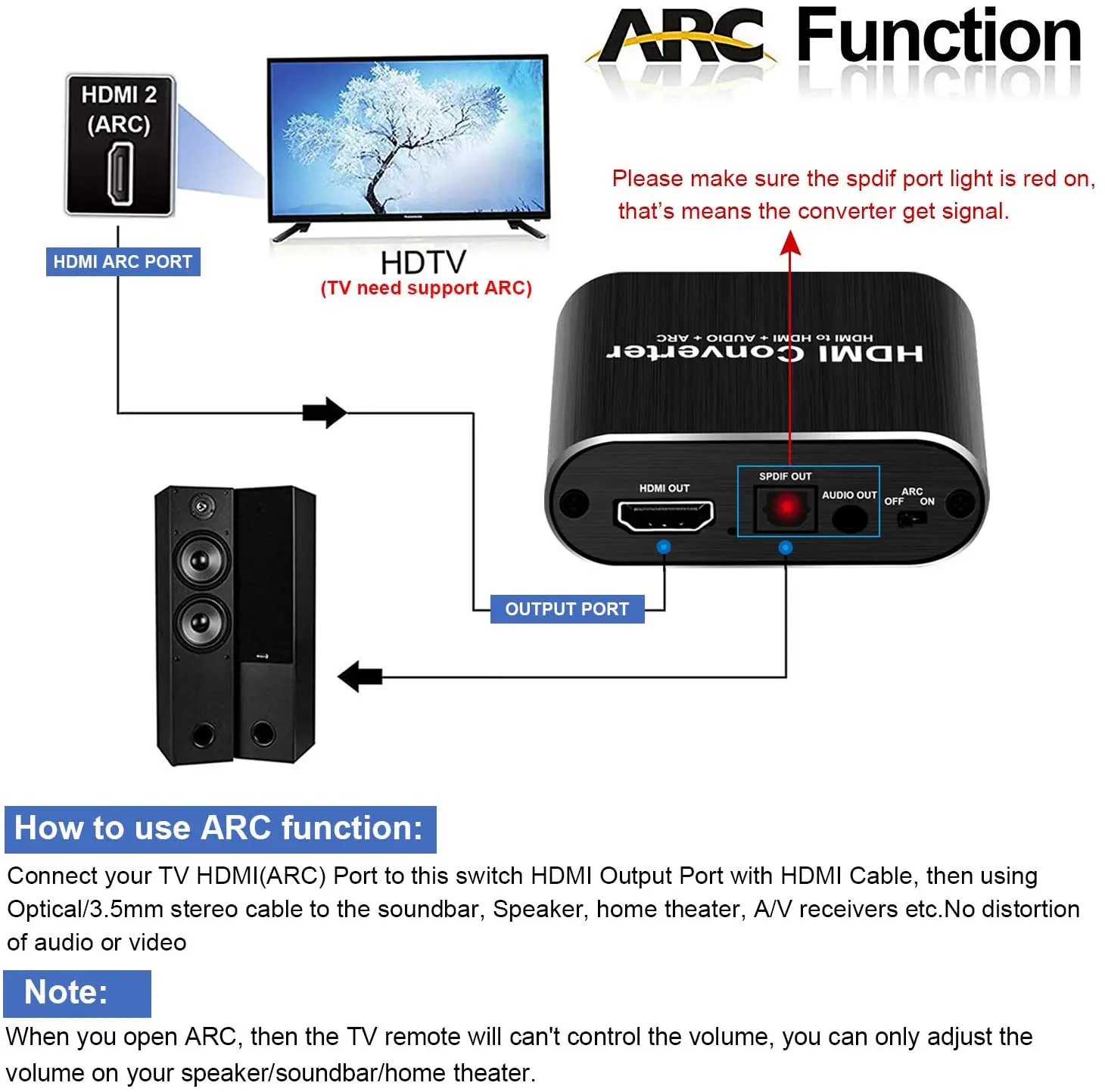

  • ARC Function (Audio Return Channel): Extract the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) Port to this Audio converter HDMI Output Port with HDMI Cable, then connect Optical cable to Amplifier. Please Note: ARC function is only available from the Optical SPDIF Port.

  • Audio EDID Settings: SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/60Hz, 3D/24Hz. For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), Please USE PHONE ADAPTER to charger it.

  • Without Signal Loss: Resolution max support up to 4K@120HZ, Bandwidth up to 18Gbps to achieve the synchronization of audio and video signal, there are no signal loss or data transmission problems. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS. The HDMI audio extractor will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, s

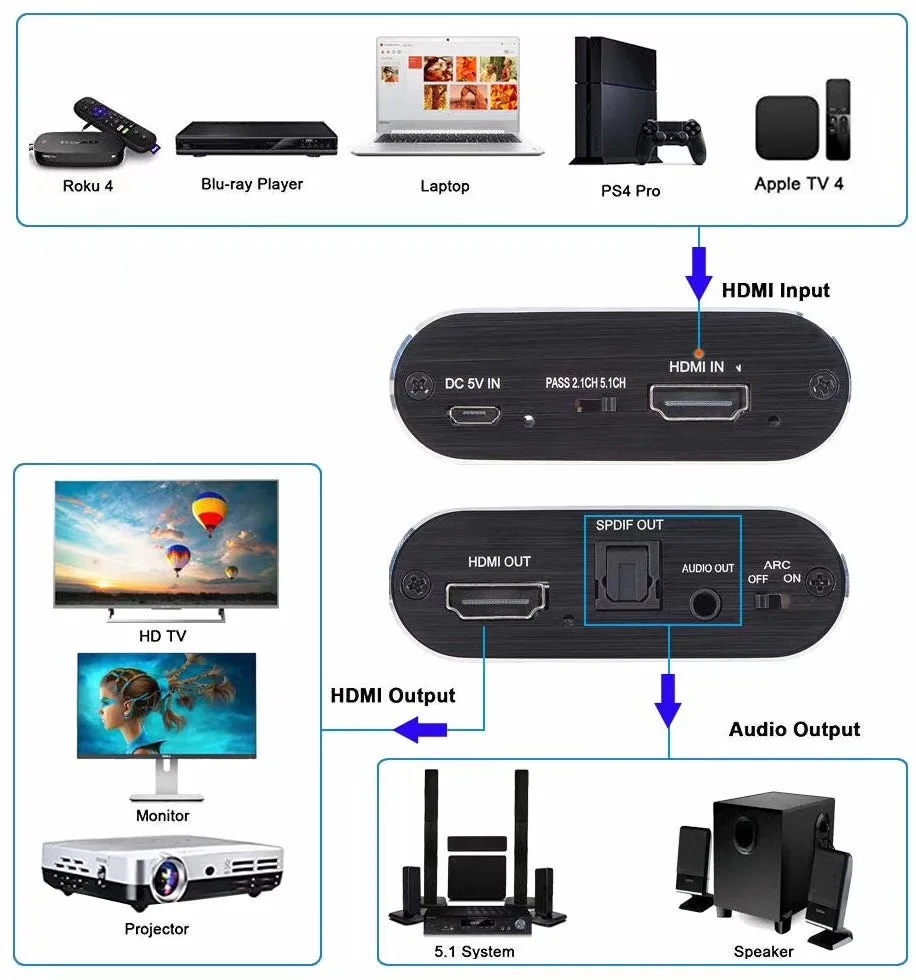

  • Wide Compability: Suitable for various HDMI source devices like Amazon Fire Stick, Roku, Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Apple TV, PS3/4, PS4 Pro, Xbox, PC/laptop, HD camera, HD DVR etc.


Note:
1: HDMI, Optical Digital (SPDIF/Toslink) are not included in the box.
2:Optical, L/R, ARC work with HDMI Output A only
3:Splitter function may not work with HDCP protected content or devices such as cable set-top boxes, cable/ satellite TV programs





Package:
Giftbox
1 * HDMI Converter
1 * DC 5V/1A Power Adapter
1 * User Manual









Product Pictures
