Digital Portable Volumetric Medical Vet Infusion Pump
- Category: Health & Medical >>>
- Supplier: Ari Medical Technology Co. Ltd.
Share on (1600565965126):
Product Overview
Description
Products Description

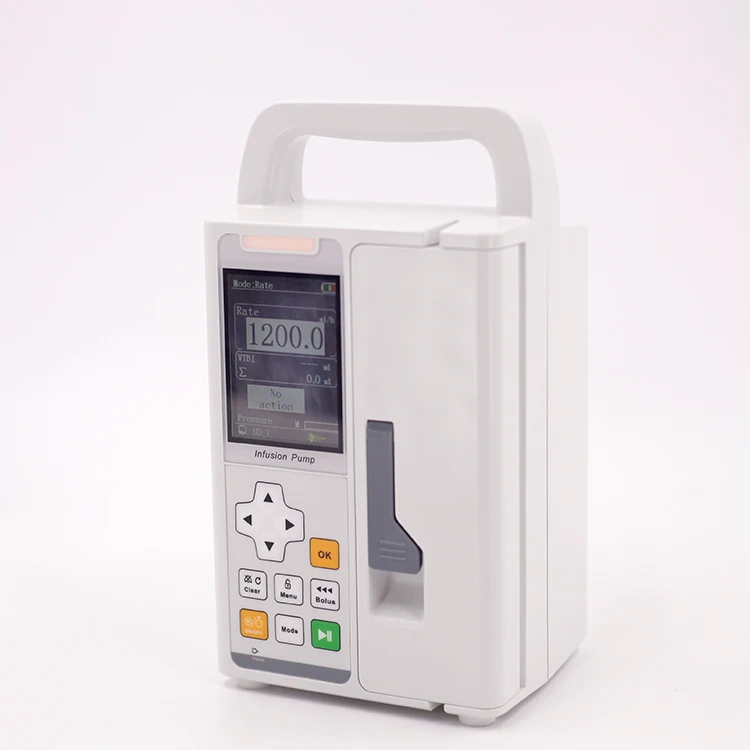

Digital Portable Volumetric Medical Vet Infusion Pump
Features:
1. Delivery range: 0.1ml/h~1200ml/h.2. High accuracy +/- 2% after correct calibrated.
3. Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug library Mode.
4. Manual /Automatic Bolus
5. Vertical & Horizontal mounting clamp.
6. Anti-bolus system to reduce significantly after occlusion sudden release.
7. DPS dynamic pressure display.
8. 2000 events stored can be checked and downloaded.
9. Large color TFT display, the brightness can be adjusted to adapt to the clinical use of the environment.
Technial Specifications
Fit IV tubes | Can be used with any brand IV set after exactly calibration | ||||||
Pump Type | Peristaltic finger pump | ||||||
Accuracy | ±2% | ||||||
Delivery rate range | 0.1ml/h~1200ml/h (0.1ml/h~99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step) | ||||||
Delivery time range | 00h01min~99h59min (1 min step) | ||||||
Volume limit range | 0.0-9999ml (1 ml step) | ||||||
Total Volume Range | 0.0-9999ml (1 ml step) | ||||||
Dose Mode | Volume:0.1-999.9ml(0.1ml step) DRUG MASS:0.1-999.9mg 0.1mg step) DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step) WEIGHT:0.1-300kg (0.1kg the least step) | ||||||
Drug library Mode | AIP-1200Y with drug library, can store 1030 kinds of drug names, makes drug dispensing more convenient and safer. | ||||||
Sequential mode | (Optional) | ||||||
KVO Rate | 0.0~5.0ml/h. Programmable and adjustable | ||||||
DPS Occlusion Pressure | LOW: 60± (15) kPa MEDIUM: 90 ±15kPa HIGH: 120 ±15kPa (Adjustable) | ||||||
Alarms | Rate Abnormal, Door Open, Air-in-line, Occlusion, Bottle Empty, Battery Empty, No Battery, Key Holding During Infusion/Pause, Infusion Complete, No Action, Battery Low. | ||||||
Alarm volume | Three levels of alarm volume: LOW, MEDIUM or HIGH | ||||||
Bolus function | Bolus rate:1.0~1200ml/h, Bolus volume:1.0~100ml Automatic/Manual, programmable and adjustable | ||||||
Purge Rate | Programmable and adjustable | ||||||
Interface | RS-232 | ||||||
Brightness | 1~10 levels can be selected | ||||||
History records | 2000 events stored can be checked and downloaded | ||||||
Power source | AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; DC Power supply: 12~15V, power>15W; Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 12 hours of continuous operation | ||||||
Protection Class | Class I, Type CF, IPX4 | ||||||
Dimension /N.W | 120mm*100mm*215mm, 1.7kg | ||||||
Packing size/G.W | 300mm*260mm*160mm, 2.5KG | ||||||
