Dongguan slide switch factory wholesale SMD 6.5A 4 pin horizontal slide switch with PCB board




Slide switches switch on/ off by moving the slider from one position to another or some in multi positions. Defond slide switches have three major contact types and come in plastic and metal case options, with all configurations of single pole single throw (SPST), single pole double throw(SPDT), double pole single throw (DPST) and double pole double throw (DPDT).






Features




-High rating

-Multi-circuits and positions options









Application




-Kitchenware appliances: Blender

-Beautycare appliances: Hair dryer

-Household appliances: Electric heat blanket

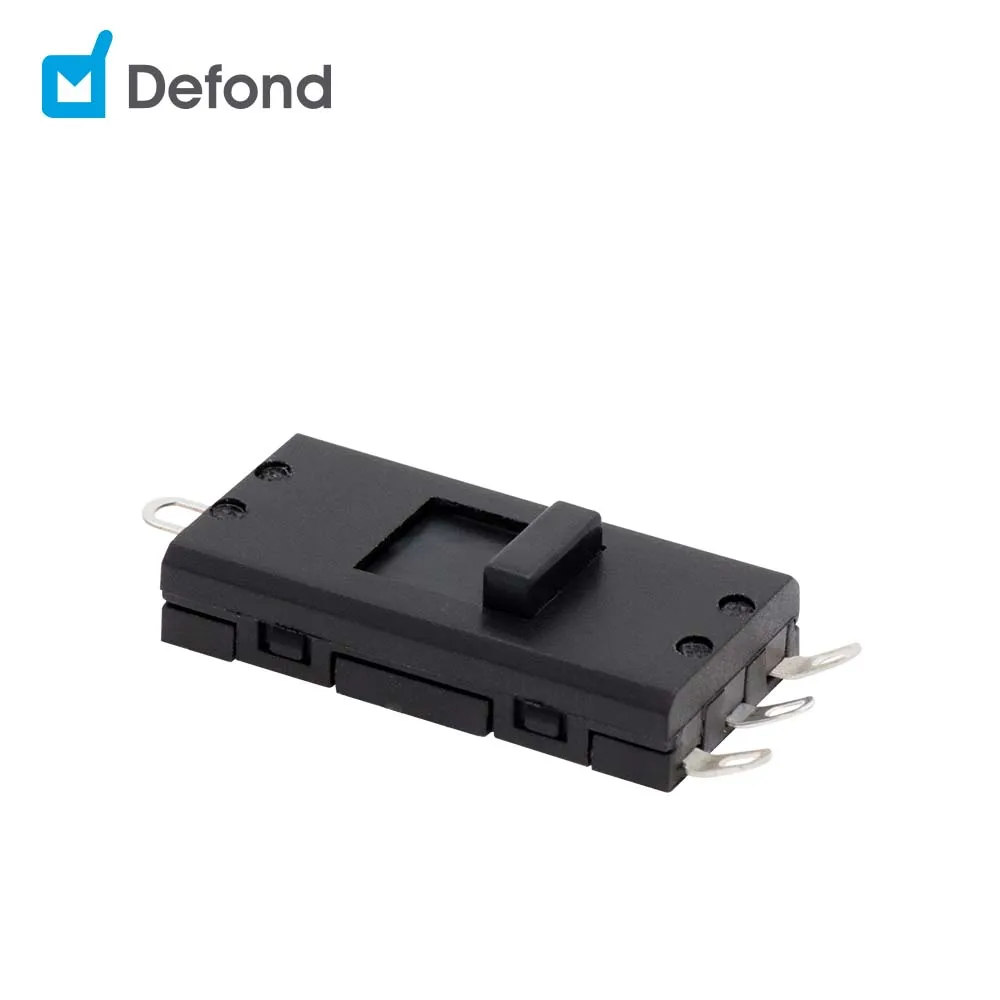

BSB-1316-021-AGD01-01R-2


























































































Item


Value


Certification


NO


Place of Origin


China


Brand Name


Defond


Model Number


BSB-1316-021-AGD01-01R


Max. Current


13A, 6.5A, 8(2)A


Max. Voltage


125Vac, 250Vac


Mechanical Life


UL1504: 6,000 Cycles; ENEC: 10,000 Cycles



Protection Level


IP30


Environmental Temperature


UL1504: 0~65°C ; ENEC: 0~85°C


Conductive Material


Silver alloy


Size


30mmx15mmx5.6mm


Operating Force (range)


450 ~ 1150 CN


Pre-travel (range)


2.5mm


Insulation Resistance


50M ohm Min.


Contact Resistance


50m Ohm Max.


Pole


1


Throw


3









223.BSB-1316-021-AGD01-01R

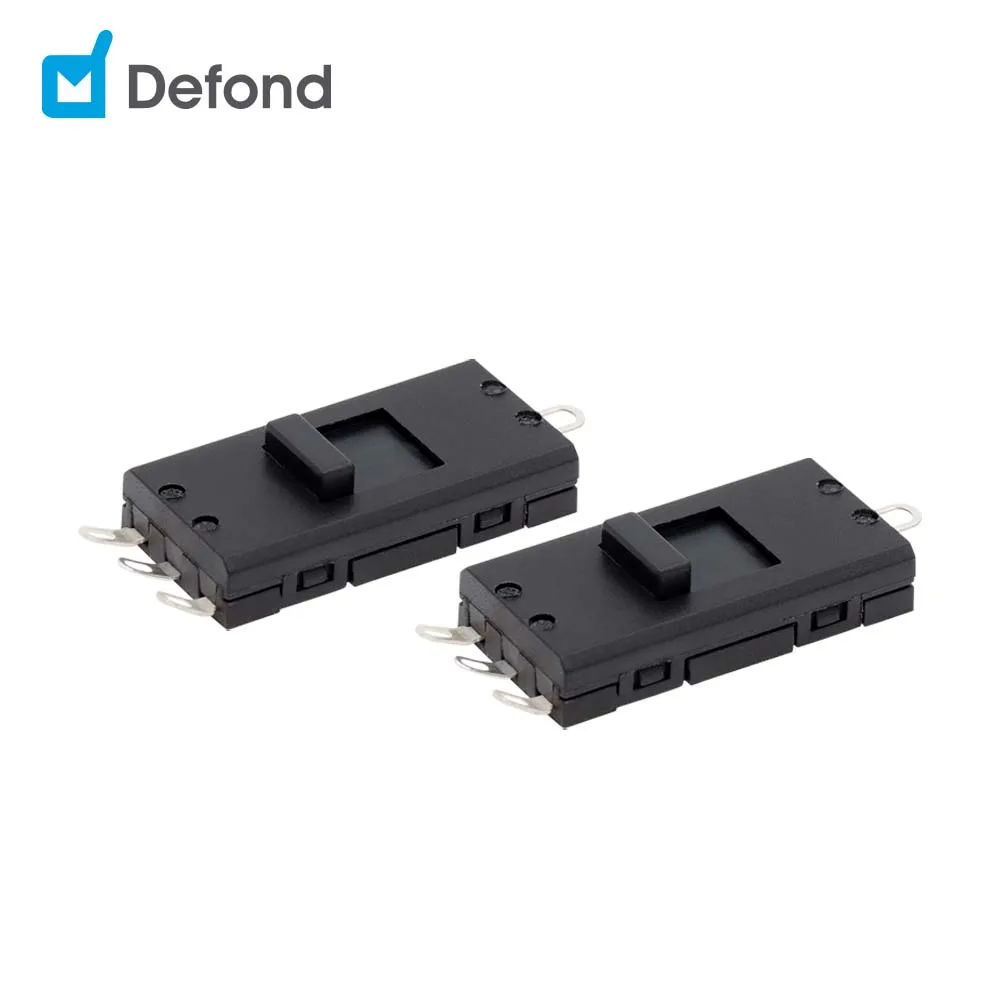

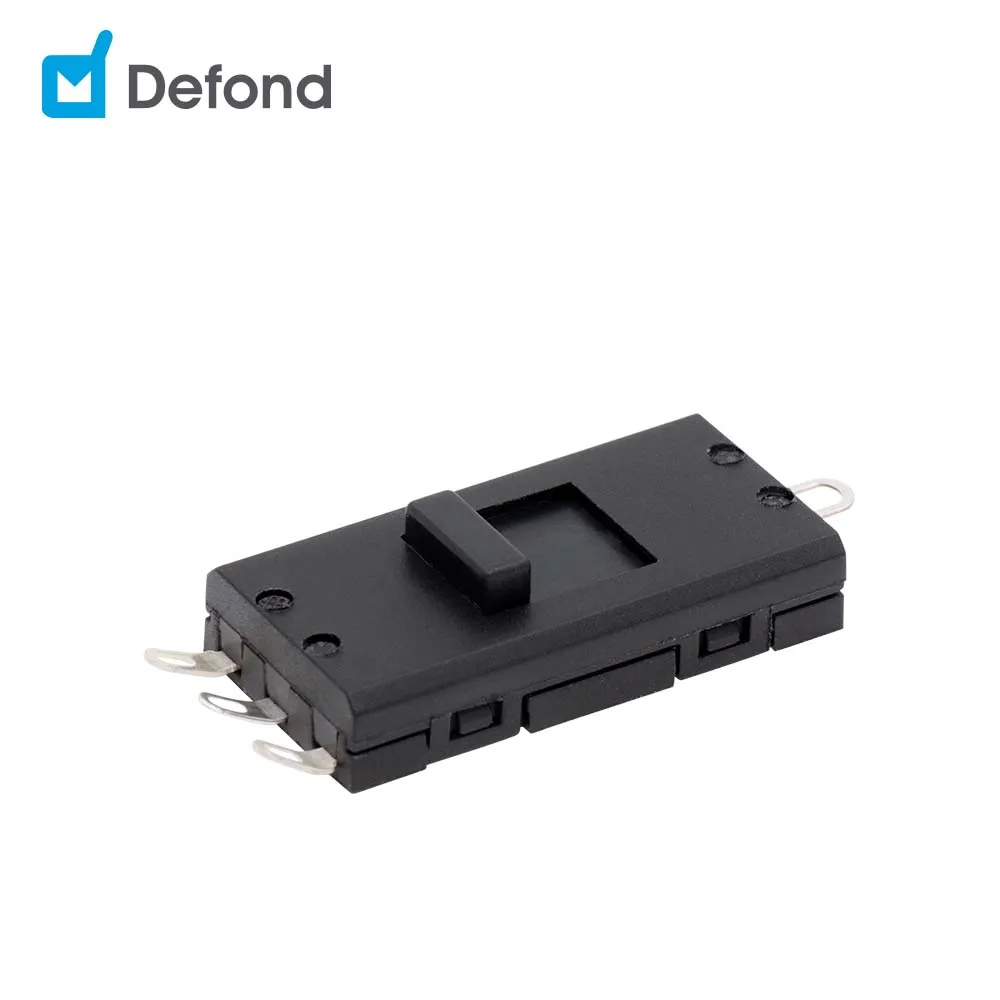

BSB-1316-021-AGD01-01R-1BSB-1316-021-AGD01-01R-5BSB-1316-021-AGD01-01R-6
