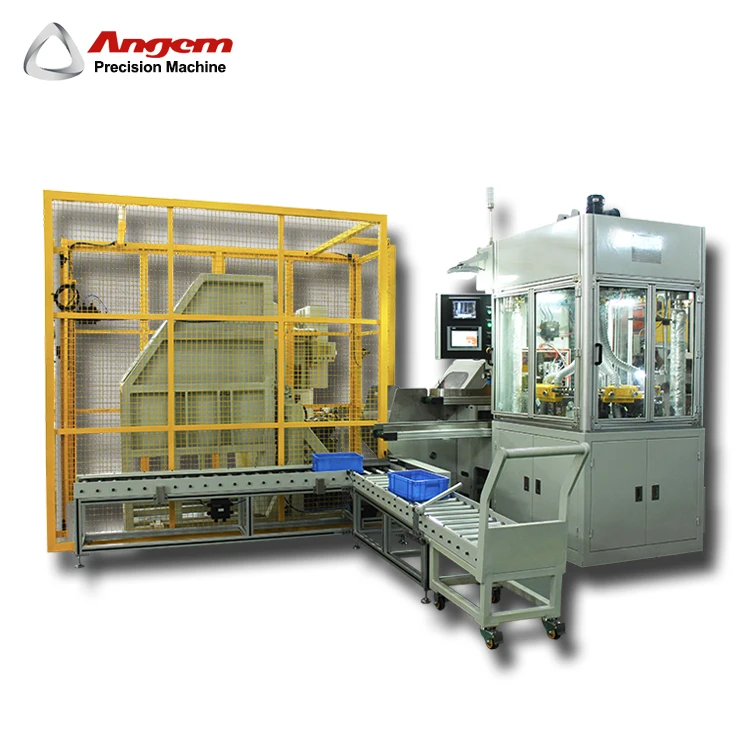

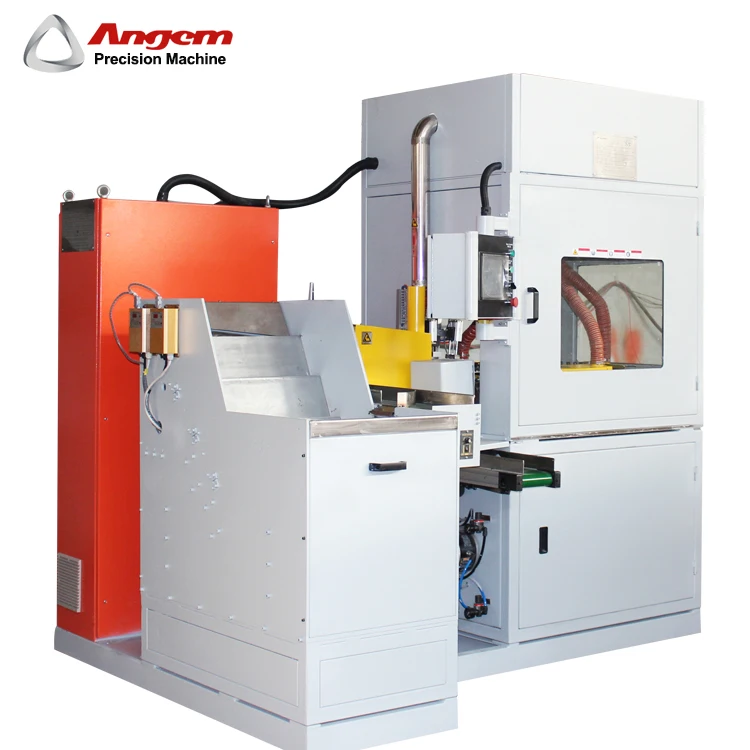

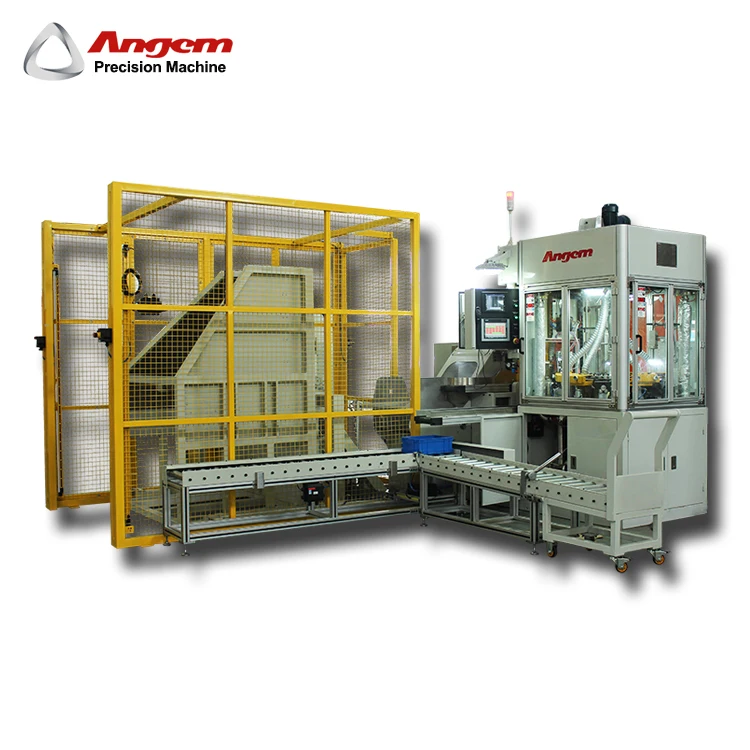

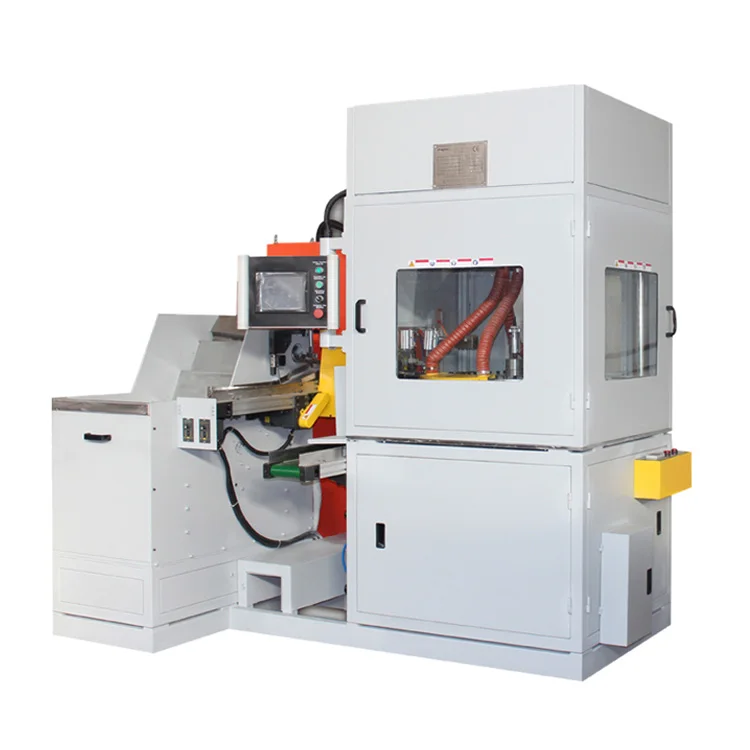

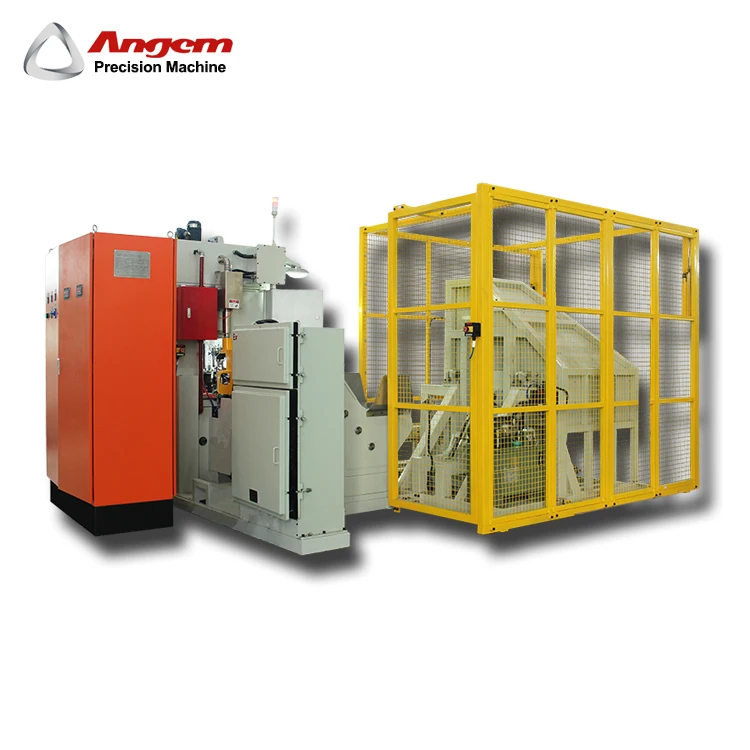

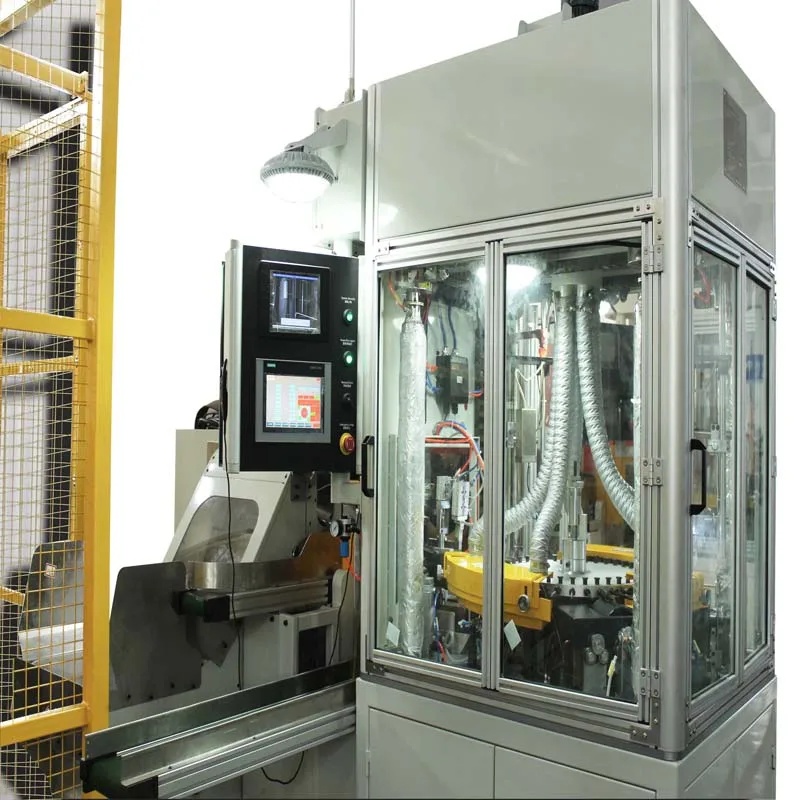

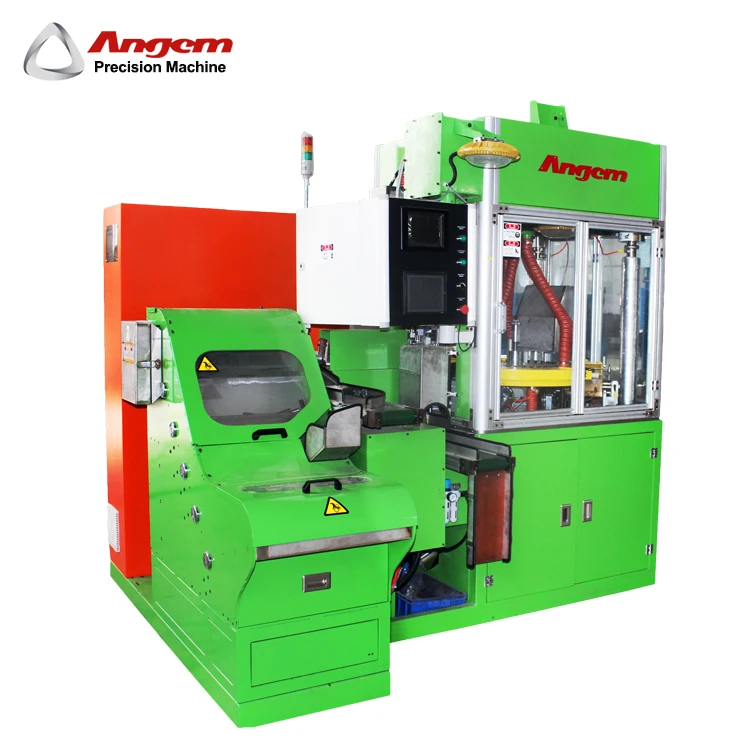

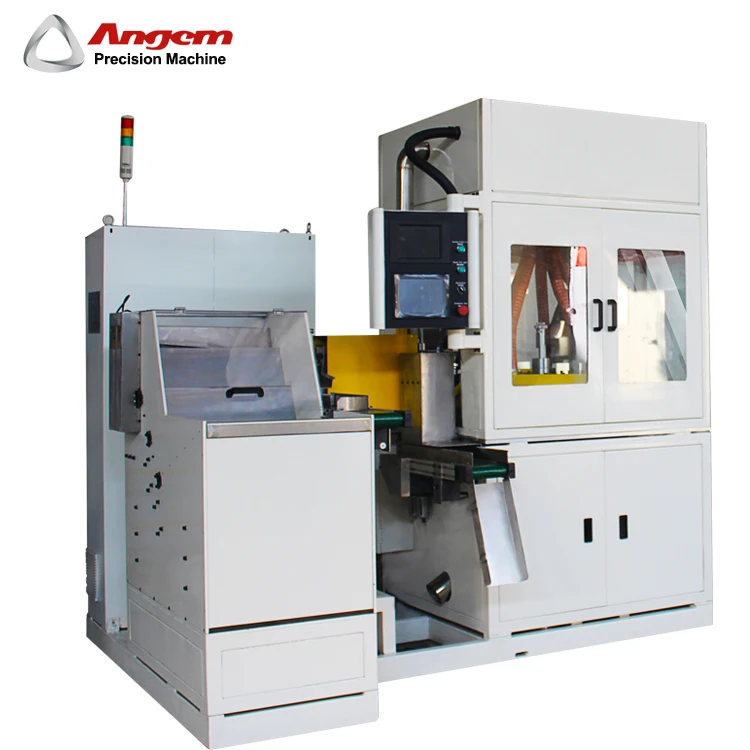

Regular bushing automatic roller glue sprayer gluing machine glue sprayer
- Category: >>>
- Supplier: Suzhou Angem Precision Machine Co. Ltd.
Share on (1600565983068):
Product Overview
Description
Product Description
Brand | Angem |
Product Name | Automatic Glue-smearing Machine |
Diameter of Work Table( mm ) | 550 |
Quantity of Work Stations | 40 |
Production takt | 2-3s (Ajustable automatic control) |
Pressure of Compressed Air (bar) | 6 |
Glue-smearing time(s) | 1-2s (Ajustable automatic control) |
Drying temperature | Normal-100℃(Ajustable automatic control) |
Auto-rotation speed of parts | 0-240rpm/min(Ajustable) |
Specifications of work piece | Diameter 10-50mm,Length25-100mm |
Pressure | 0.7Mpa |
Heating Power | 5kw*3 |
Total power motor | 2kw |
Power | 15KVA |
Diaphragm Pump | Graco |
Coating parameters can be adjusted | Yes |
Voltage | 380v±10%,50Hz |
Prevent omission spray | Yes |
Computer management | Yes |
Material unloading | Automatic material unloading system |
Machine Size | 2000*1500*3100 |
Product Display
☞The product passes CE Certification.
☞Awarded 1 national invention patent：Patent No.:201120279220.4
☞Proven by the market, good roll-out effect, high degree of automation
Our Advantages
With new design concept, modern sheet metal technology and French technology, it is exquisite and elegant in appearance.
Glue application and image visual inspection are carried out simultaneously
The glue supply system equipped with an automatic flow control system to ensure uniform glue application
Adopting a fully imported servo control system and a novel design mechanism provide a reliable guarantee for precise positioning of the workpiece
Up to 40 stations, 2-5 seconds takt time, preheating, gluing and drying are performed simultaneously. It is a solution for mass and automated gluing.
Adopting the glue coating method, there is no waste caused by spraying and splashing. It has the function for environmental protection and rubber saving.
Applications
Shock absorber bushing
Shock absorber bushing
Shock absorber bushing
Adhesive spraying: used for coating the outer surface of automobile shock absorption parts and metal rubber parts skeleton.
Our Company
The company covers area about 8,000 square meters. The company's team is divided into marketing department, research and development center and manufacturing shop. It has more than 70 employees, including more than 10 marketing experts, more than 20 senior R&D engineers, more than 30 efficient production teams, and have 5 people for after-sales service. Provide the perfect solution and technical support for you.
Website: szangem.com; Contact:sales8@angemsz.com, sales10@angemsz.com
Why choose us
◆ Concentration: For 16 years, we are focus on precision coating equipment for medium & small parts.
◆ Large market share: Professional choice of more than 60% domestic enterprises and more than 80% foreign enterprises.
◆ Leading technology: Choosing Angem, your coating technology and equipment will keep pace with world-class companies.
◆ Reliability:The company passed the ISO9001: 2015 quality system certification,has acquired the CE certification and obtained a number of national patents.
◆ Reputation:Angem serves for more than 20 provinces in China and more than 20 countries in the world. Angem has become a leading brand in coating equipment field, with high reputation all over the world. Equipment are exported to southeast Asia and many developed countries.
Exhibition
Packing
Angem producs are divided into two series: Automatic coating equipment series, shock absorber special automation equipment series. Products are widely used in auto parts, rubber and hardware industry.
