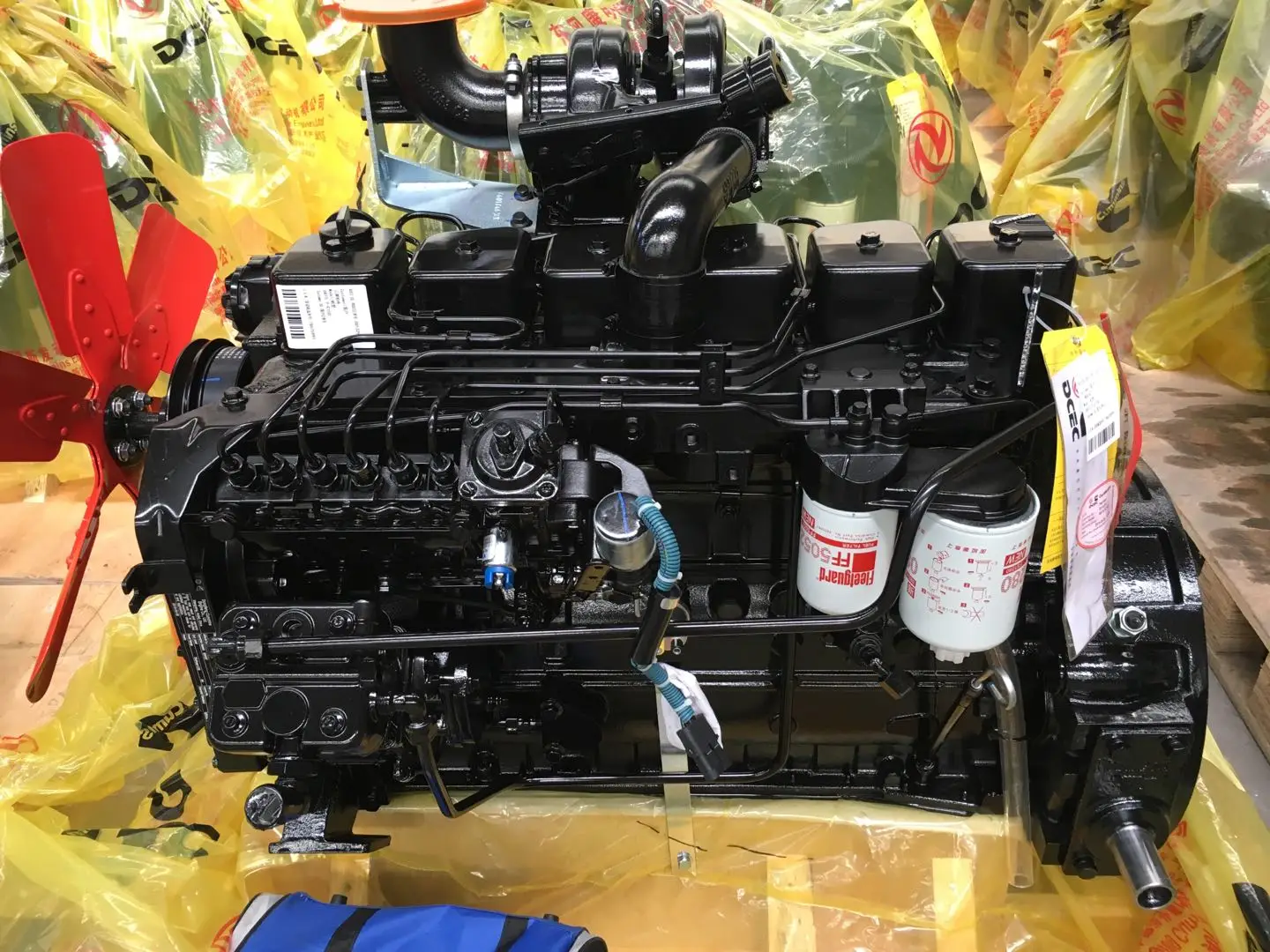

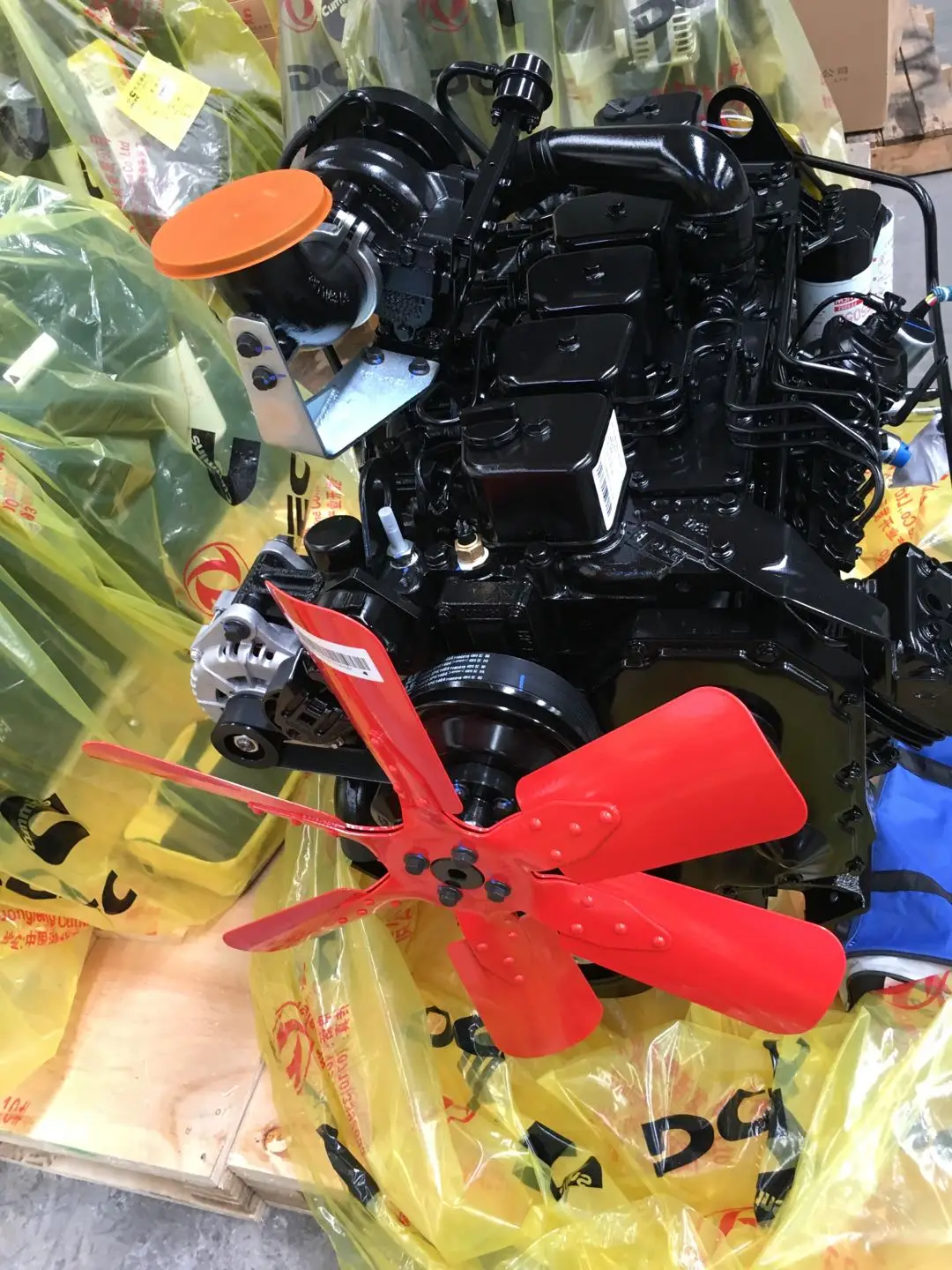

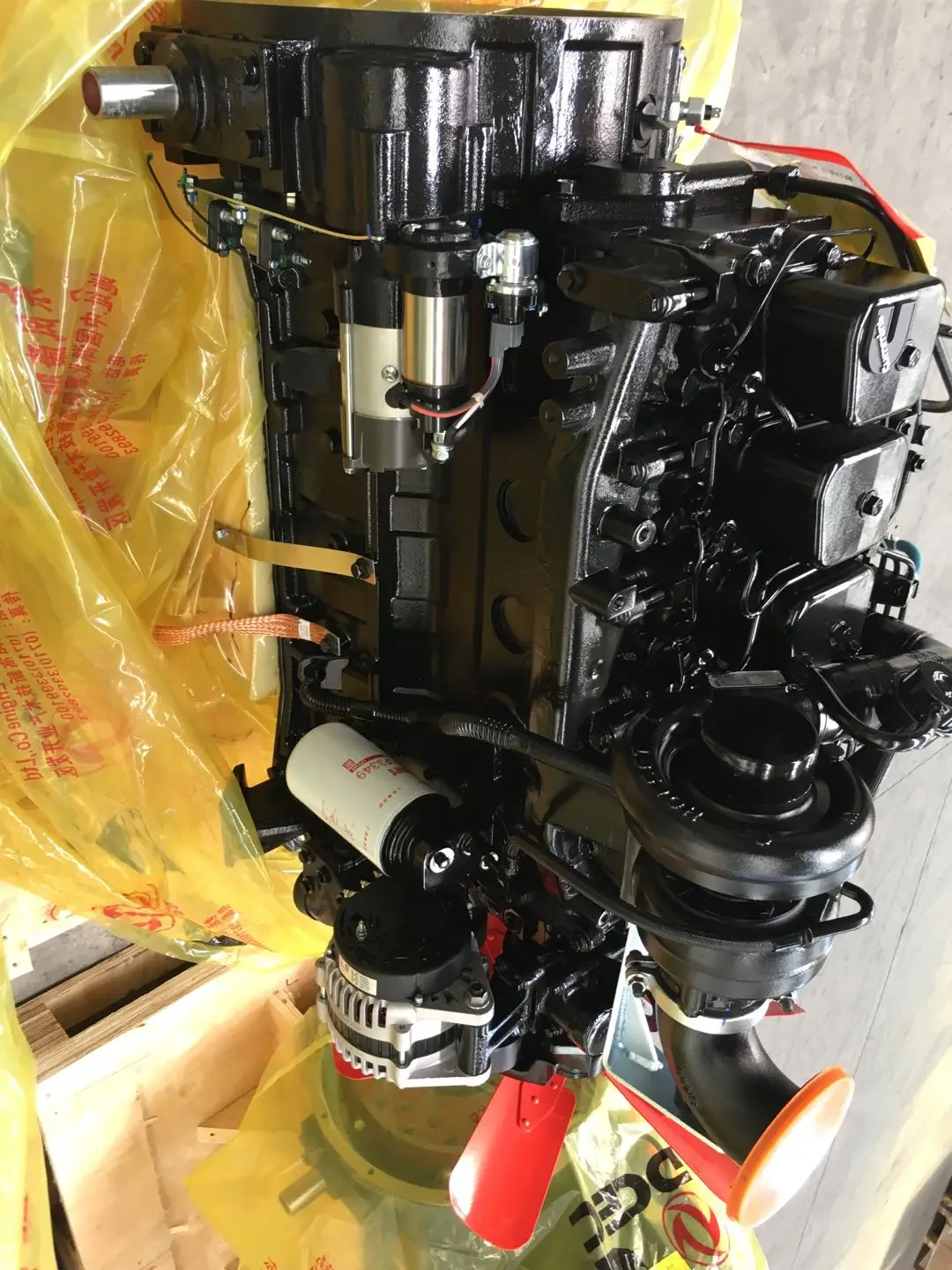

100KW 1500RPM Marine Main Engine 6BTA5.9 6BT5.9 GM100
Product Description
Specifications For 6BT5.9 GM100 | ||||||
Engine Type | In-Line, 6-Cylinder | Manufacture | (DCEC)Dongfeng Cummins Engine Co., Ltd. | |||
Rated Speed | 1500RPM | Fuel system | Indirect injection: number 2 diesel fuel, fuel filter, electric fuel shutoff | |||
Displacement | 5.9 L | Standard cooling system | High ambient radiator | |||
Prime Power | 100 kW | Length | 2268mm | |||
Standby Power | 110 kW | Width | 1094mm | |||
Bore and Stroke | 4.02 in x 4.72 in (95mm x 115.1mm) | Height | 1576mm | |||
Aspiration | Turbocharged and Charge Air Cooled | Weight (wet) | 1244kg | |||
Fuel filter | Single element, 10 micron filtration, spin-on fuel filter with water separator | Air cleaner type | Dry replaceable element | |||
Battery capacity | 1000 amps minimum at ambient temperature of -18 °C to 0 °C (0 °F to 32 °F) | Lube oil filter type(s) | Spin-on, full flow | |||
Company Profile
Our main products are Machienry Engine, Mining Engine, Marine Engine, Generator Set and other Accessories.
ISX15, QSX15, QST30, QST60, ISBE, QSB3.3, QSB4.5, QSB5.9 , QSB6.7, N14; XCEC: ISM11, QSM11, M11; CCEC: NT855, KTA19, KTA38, KTA50; Foton: ISF2.8, ISF3.8, ISG11; DCEC: 4BT3.9, 6CT8.3, 6L8. 9. ISLE, ISDE, ISZ13, L9.3, L9.5; all diesel engine assemblies and accessories.
We can supply other assy and spare parts number as follow:
Construction | Marine | Generator set | Pump application |
NTC-290 | NTA855-M | MTA11-G2/G3 | KTA38-G9 |
NT855-C250 | NTA855-DM | NT855-GA | NTA855-P400 |
NTA855-C360 | NTA855-Mb1/2/3 | NTA855-G1/G2 | NTA855-P470 |
NTA855-C400 | KTA19-M/M3/M4 | NTA855-G1B | NT 855-P270 |
NTA855-C310S10 | KTA19-Mb1/2/3 | NTA855-G2A | QSNT-P400S31 |
M11-C300 | KTA19-DM/DM1 | NTA855-G4 | KTA19-P495 |
M11-C330S10 | KTA38-M/M2 | NTAA855-G7/G7A | KTA19-P500 |
M11-C350E20 | KTA38-DM | KTA19-G3/G3A | KTA19-P600 |
M11-C380E20 | KTA38-Mb1/2/3 | KTA19-G4 | KTA19-P700 |
KT19-C450 | 6BT5.9-M120 | KTAA19-G5 | QSK19-C700 |
KTA19-C525 | 6BTA5.9-M150 | KTAA19-G6 | KTA19-P680 |
KTA19-C600S10 | 6CTA8.3-M188 | KTA19-G8 | KTA19-P750 |
KTTA19-C700 | 6CTA8.3-M205 | KTAA19-G6A | KTA19-P525 |
KTA19-L600 | 6CTA8.3-M220 | KTAA19-G7 | KTA19-P755 |
QSK19-C600/760 | 4BTA3.9-GM47 | KT38-G | KT 38-P780 |
QSKTAA19-C700 | 6BT5.9-GM83 | KT38-G1 | KT 38-P830 |
QSKTAA19-C755 | 6BTA5.9-GM100 | KT38-G2A | KTA38-P980 |
KTA38-C1050 | 6BTAA5.9-GM115 | KTA38-G4/G4B | KT 38-P1000 |
KTA38-C1200 | 6LTAA8.9-GM200 | KTA38-G5 | KTA38-P1200 |
KTA38-C1400/1500 | 50 Hz & 60 Hz available | KTA38-G9 | KTA38-P1490 |
