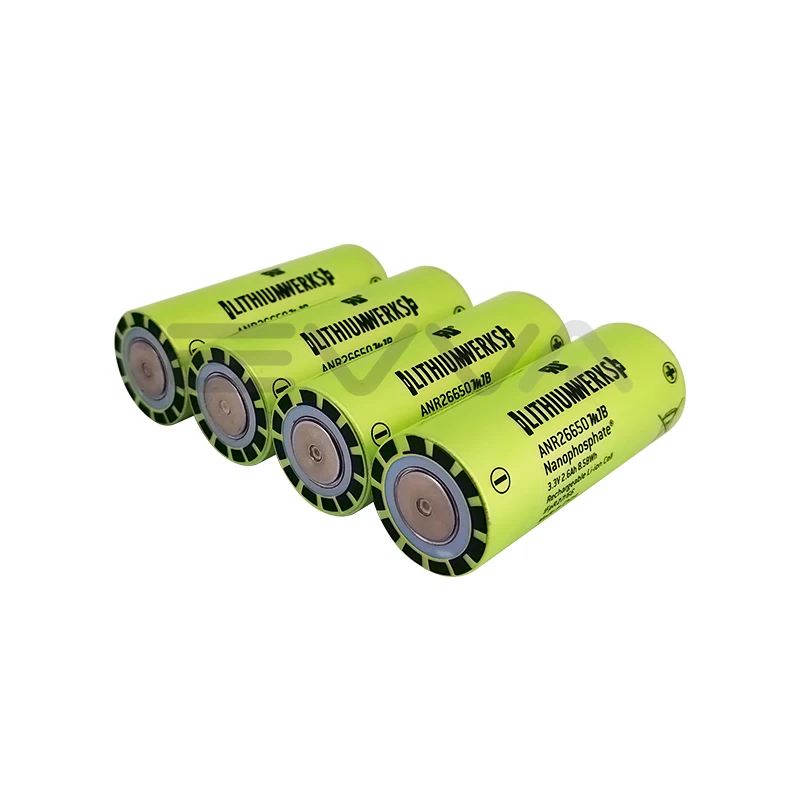

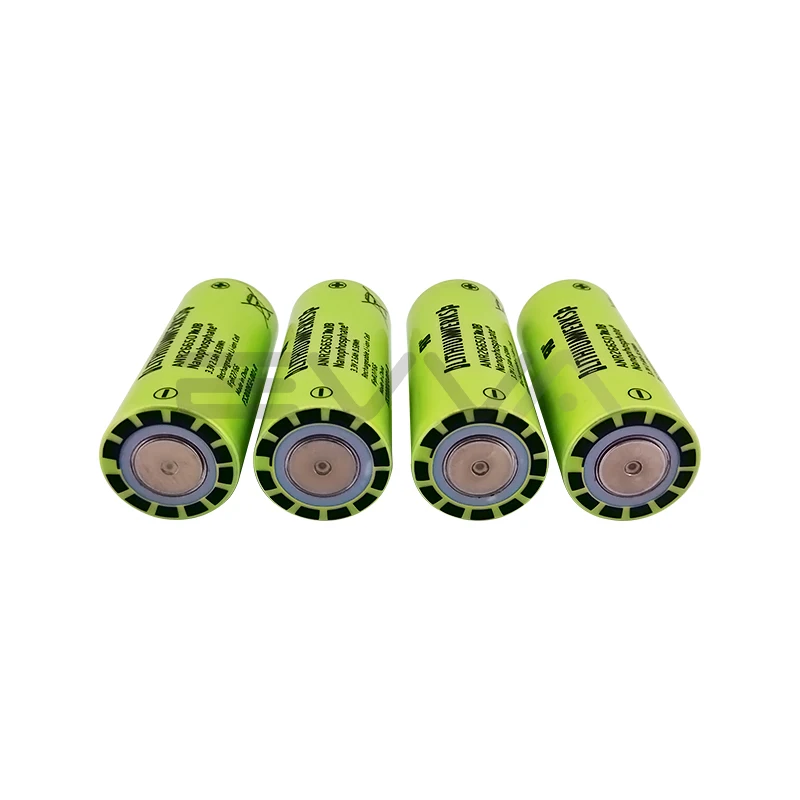

3.3V 2.6Ah High Power Long Cycle Life Cylindrical LiFePo4 Battery LW 26650 Lithiumwerks A123 ANR26650M1B Battery

Share on (1600566067388):


Price:$5.80 - $6.50

Quantity:


Product Overview

Description





Product Description



































































































Nominal RatingItemSpecifications
Nominal Voltage3.3V
Capacity2600mAh Nominal
2500mAh Minimum
Internal Impedance (1kHz AC typical, mΩ)<10mΩ
Cycle Life>4000 cycles
ChargingRecommended Charge Current3A (1.2C rate)
Max. Continuous Charge Current10A (4C rate)
Pulse Discharge Current (10S)26A (8C rate)
Recommended Fast Charge Voltage3.6V
Terminate Charge @ 3.6 V < 50 mA
Temperature Range0 ºC to 60 ºC
DischargingMaximum Continuous Discharge Current52A (20C rate)
Maximum Pulse Discharge (10 seconds)120A (48C rate)
Minimum Voltage / HPPC Pulse 2 V / 1.6 V
Temperature-30 ºC to 60 ºC
MechanicalWeight

76.0 g +/- 1.5 g


Dimension

Height : 65.4 +/- 0.25 mm
Diameter : 25.96 +/- 0.5 mm


StorageStorage temperature

-40~70°C


CertificationsTransportationUN 3480 (UN38.3), CIQ
SafetyUL 1642, IEC 62133-2
Environmental REACH, RoHS,
ISO-14001
Quality System TS/IATF-16949,
ISO-9001







Detailed Images

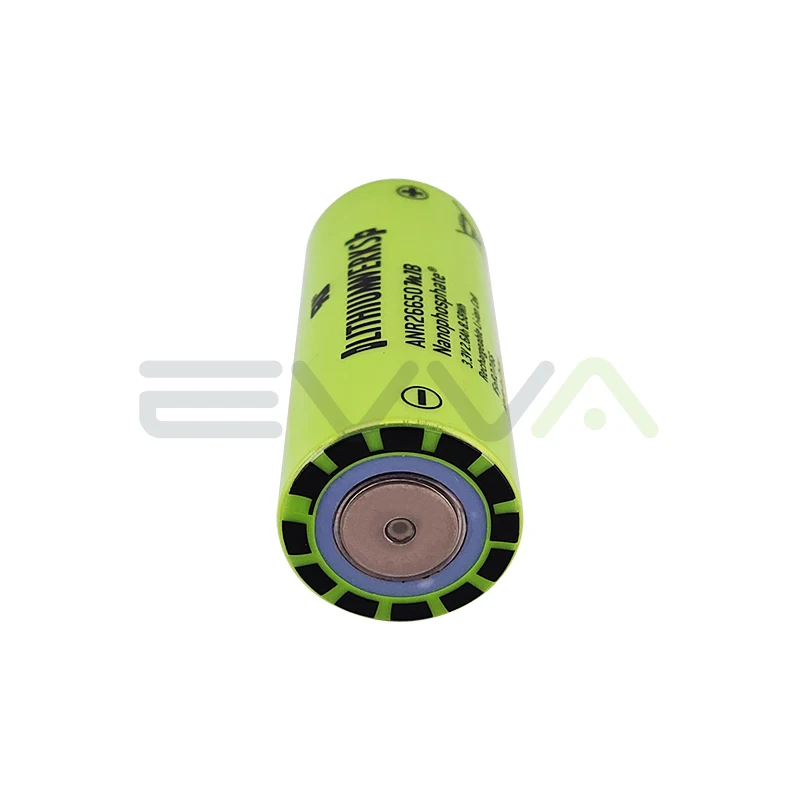

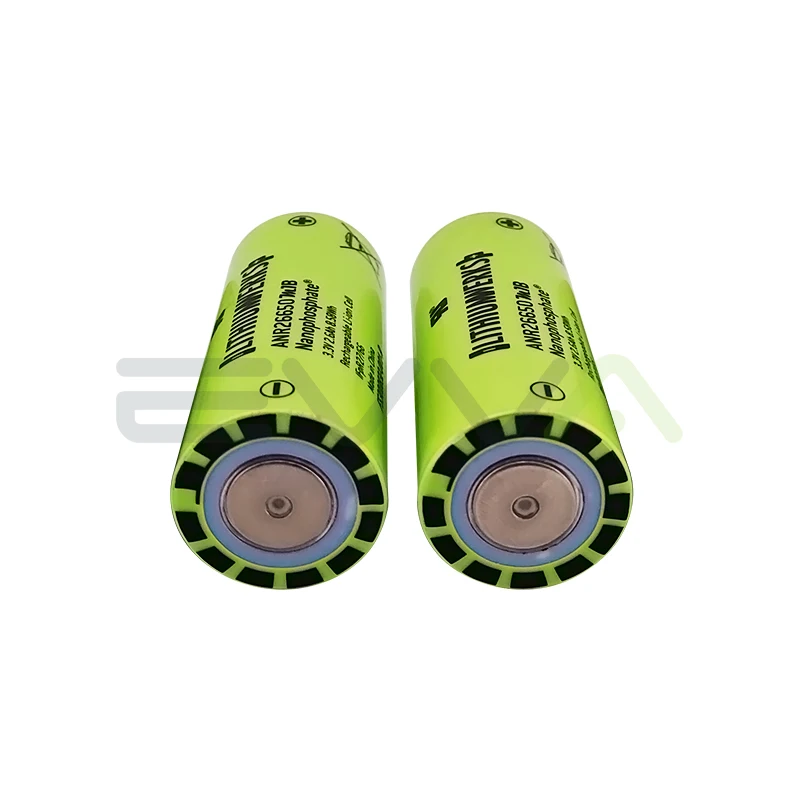

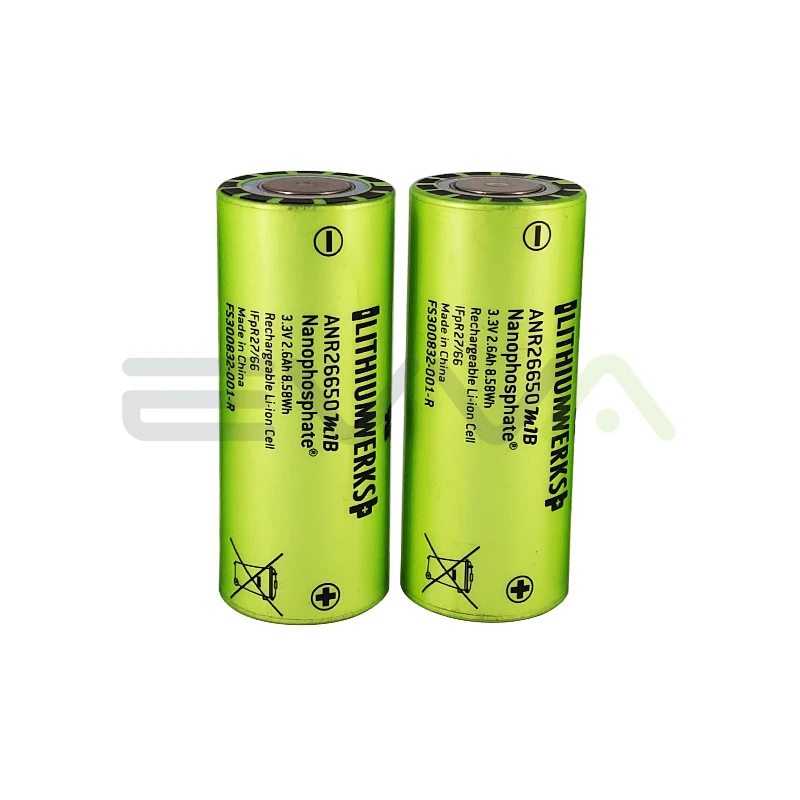

 Lithiumwerks 26650Lithiumwerks ANR26650M1B

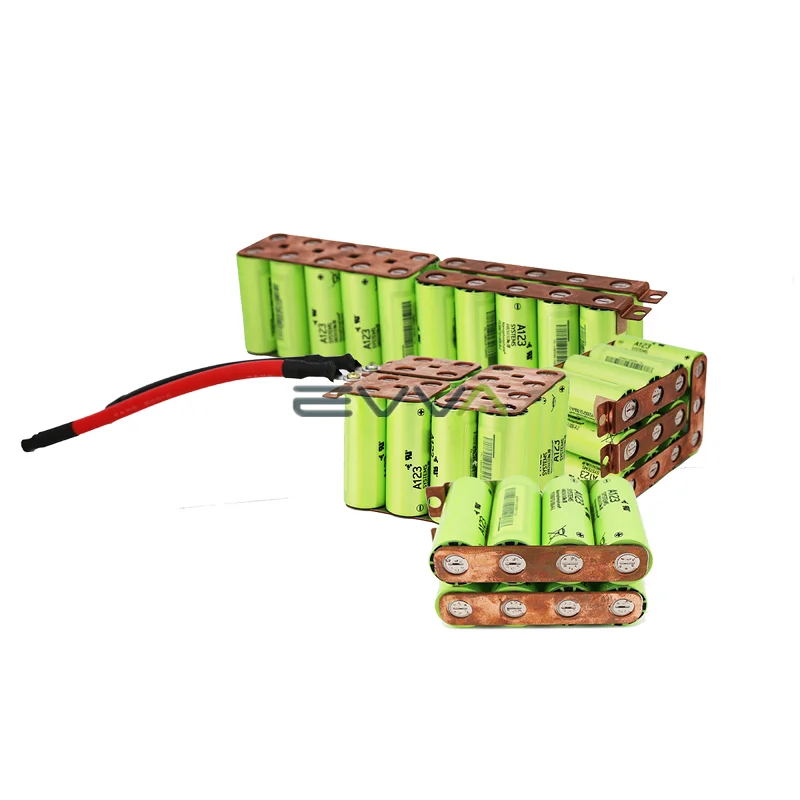

26650 LFP BATTERY PACK_.png











Features



  1. Capable of delivering very high power due to its use of patented Nanophosphate ® battery technology

  2. Inherently safe over a wide range of temperatures and conditions

  3. Outstanding cycle life and stable float reliability

  4. Small internal resistance

  5. suitable for a wide variety of power, pulse, or stand-by applications

  6. OEM orders are available (battery pack, battery with spot welding etc.)

  7. UN38.3, IEC62133, CE, ROHS approved

  8. Applicable to Energy storage, Uninterruptible Power Supplies, Communication technologies, Aerospace, Electrified mobility devices, Industrial equipment, Medical devices, Toys etc.




3



Company Information


.jpg


EVVA Technology Co., Limited is a professional leading company with over 15-year rich experience in the field of Lithium ion batteries. We possess factory with a series of advanced machines for OEM battery packs building, such as accurate cell sorting, full-automatic battery pack welding, battery aging testing, etc.


We are committed to providing the first hand high-end innovative power solutions to a wide range of battery applications and bringing the best service to worldwide customers. Putting quality as the top priority, we select A Grade cells only, and has established a long-term business cooperation with Lithiumwerks, Samsung, Panasonic, Molicel and LG Chem. All the BMS/PCM/PCB are designed by our team to ensure a strong protection for each battery.


EVVA is strictly complying with all necessary regulations related to battery production and shipment. And we have obtained ISO 9001: 2015 certification on battery design and production, ROHS, CE, IEC62133 on battery quality and UN38.3, MSDS for battery shipment etc.


We keep supporting our employees to continuously come up with new design ideas and innovative new products to improve the operational efficiency and safety. And that's why you can trust that our fully dedicated battery packs are of first-class quality standards and will work better in your application.


We view each satisfactory feedback as the key and motivation to our long-term partnership with our customers. We also hope that our products will benefit more and more customers from all walks of life .


Contact us freely and create your own satisfying battery packs!

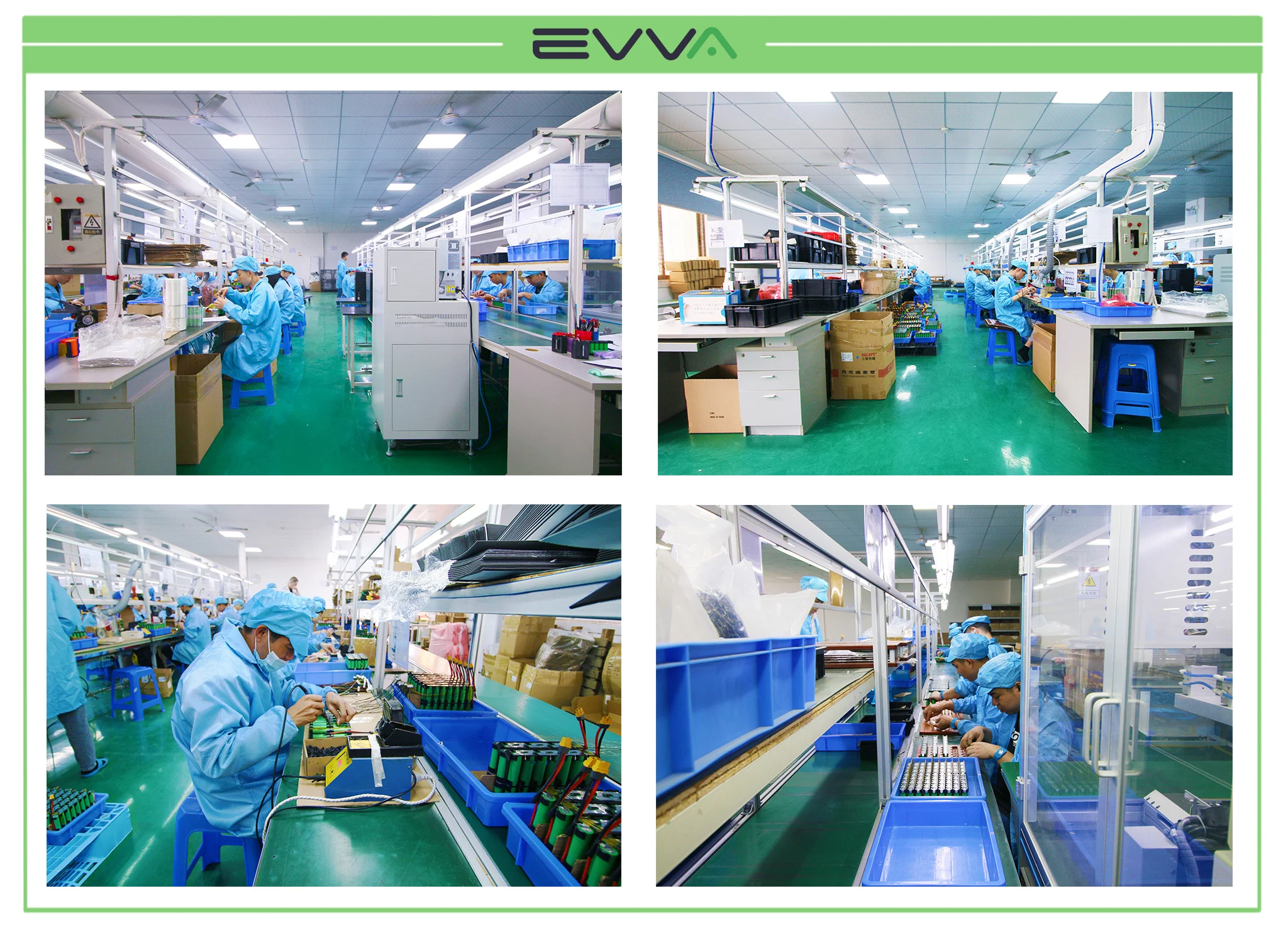

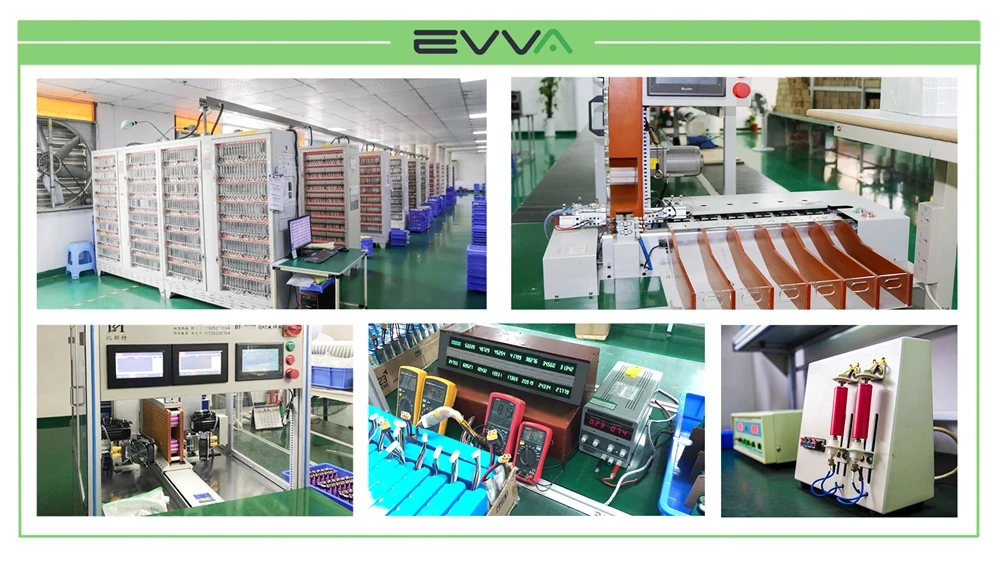

1.png2.png3.png Production.jpg





4





Packaging & Shipping


Air: 2-4pcs per small box, and several boxes in one carton. Each carton is less then 10KG according to IATA shipping rules of batteires.


Sea: original packing


Notice: All products of EVVA will be well packaed with strong paper carton and extra protected materials to ensure safe delivery
