JQX 68F SPDT 200A 12 VDC General Purpose Power Relay
- Category: >>>
- Supplier: Ivy Metering Co. Ltd.
Share on (1600566067945):
Product Overview
Description

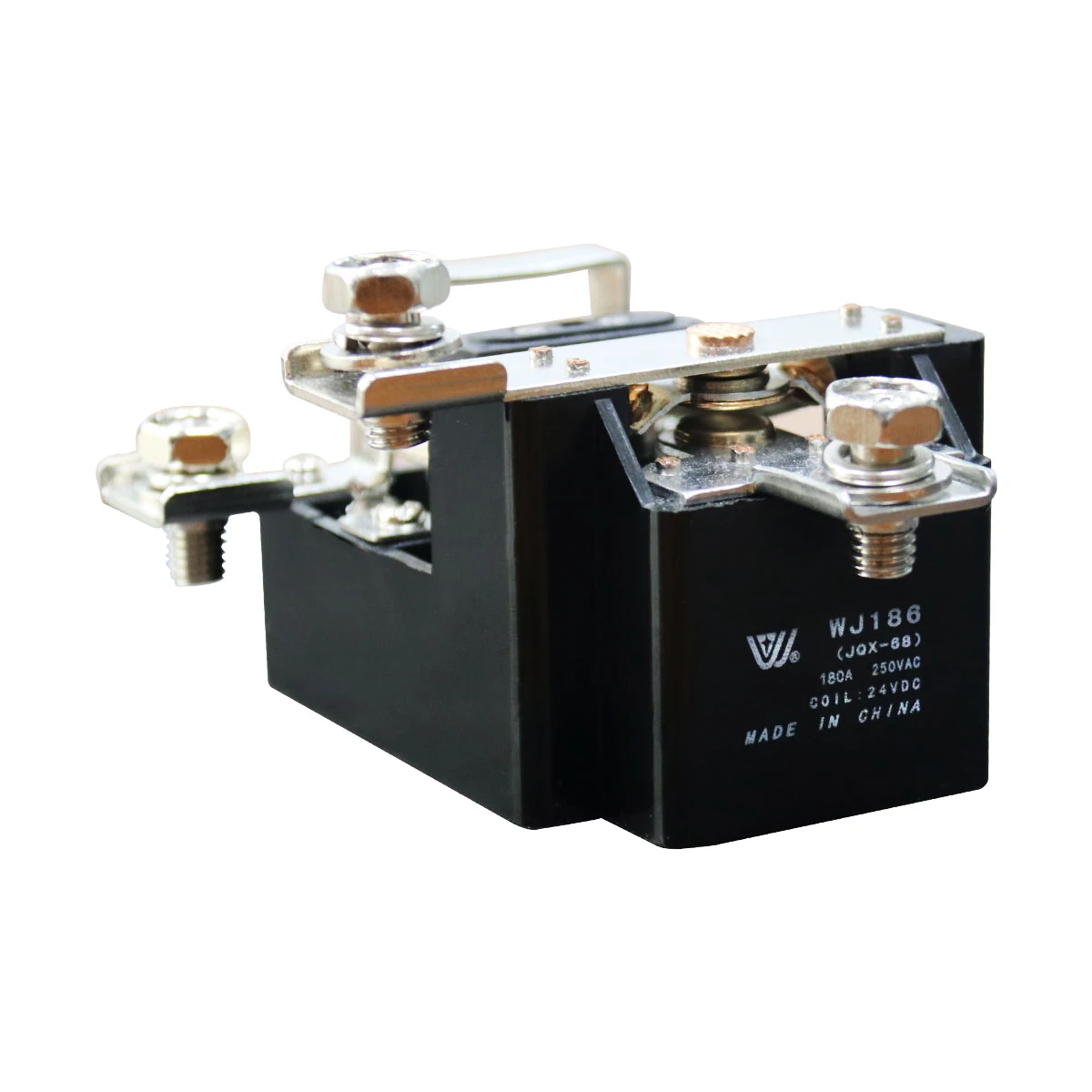

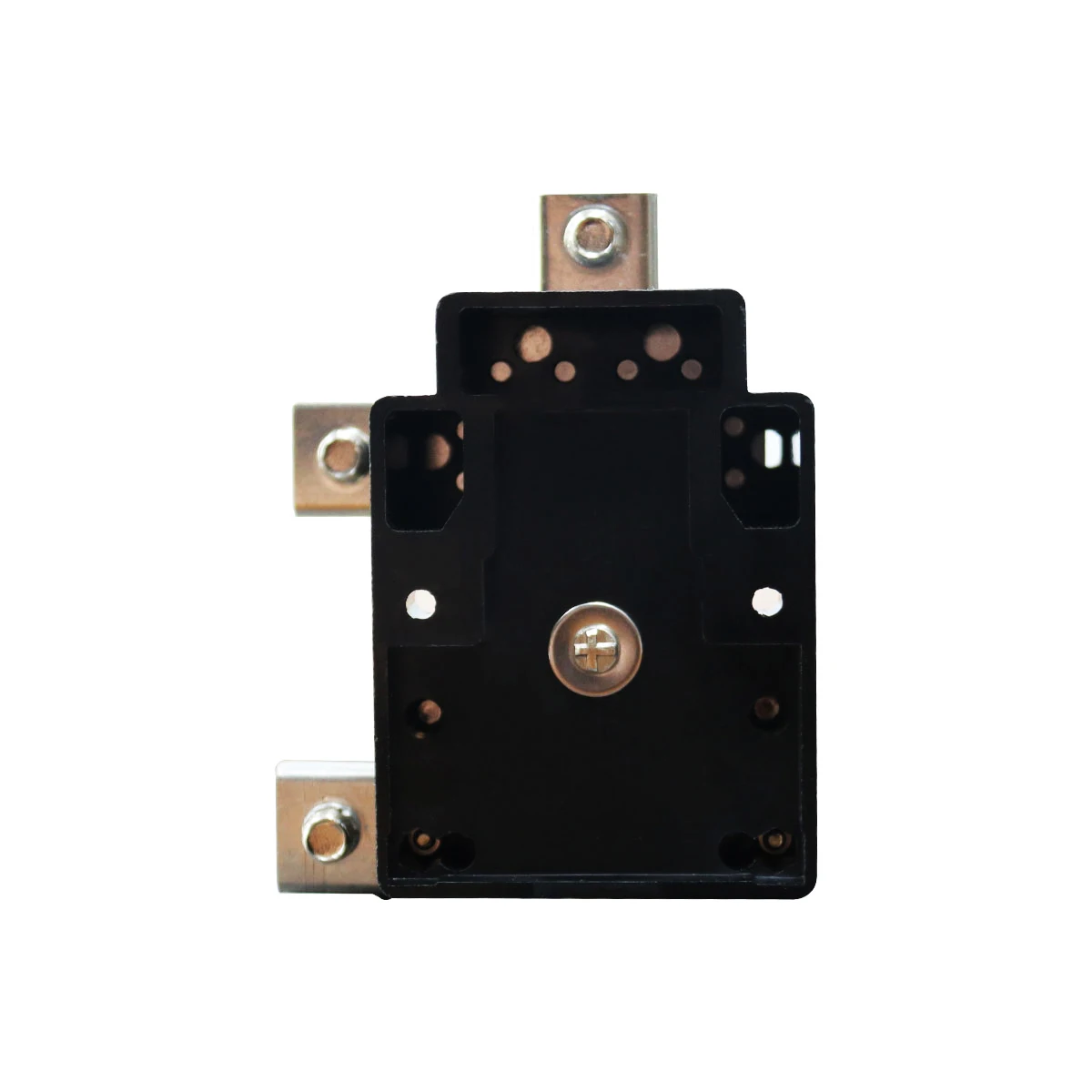

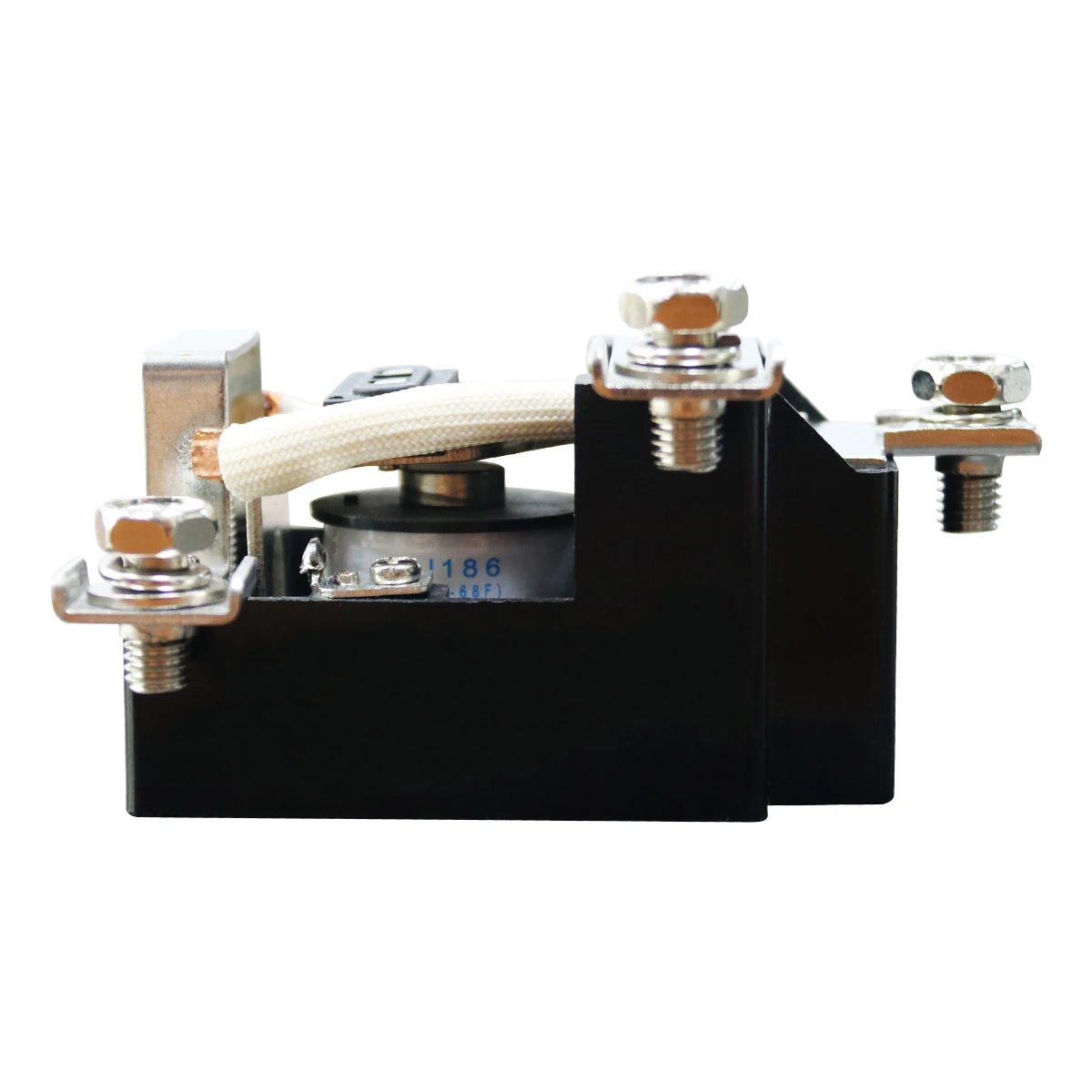

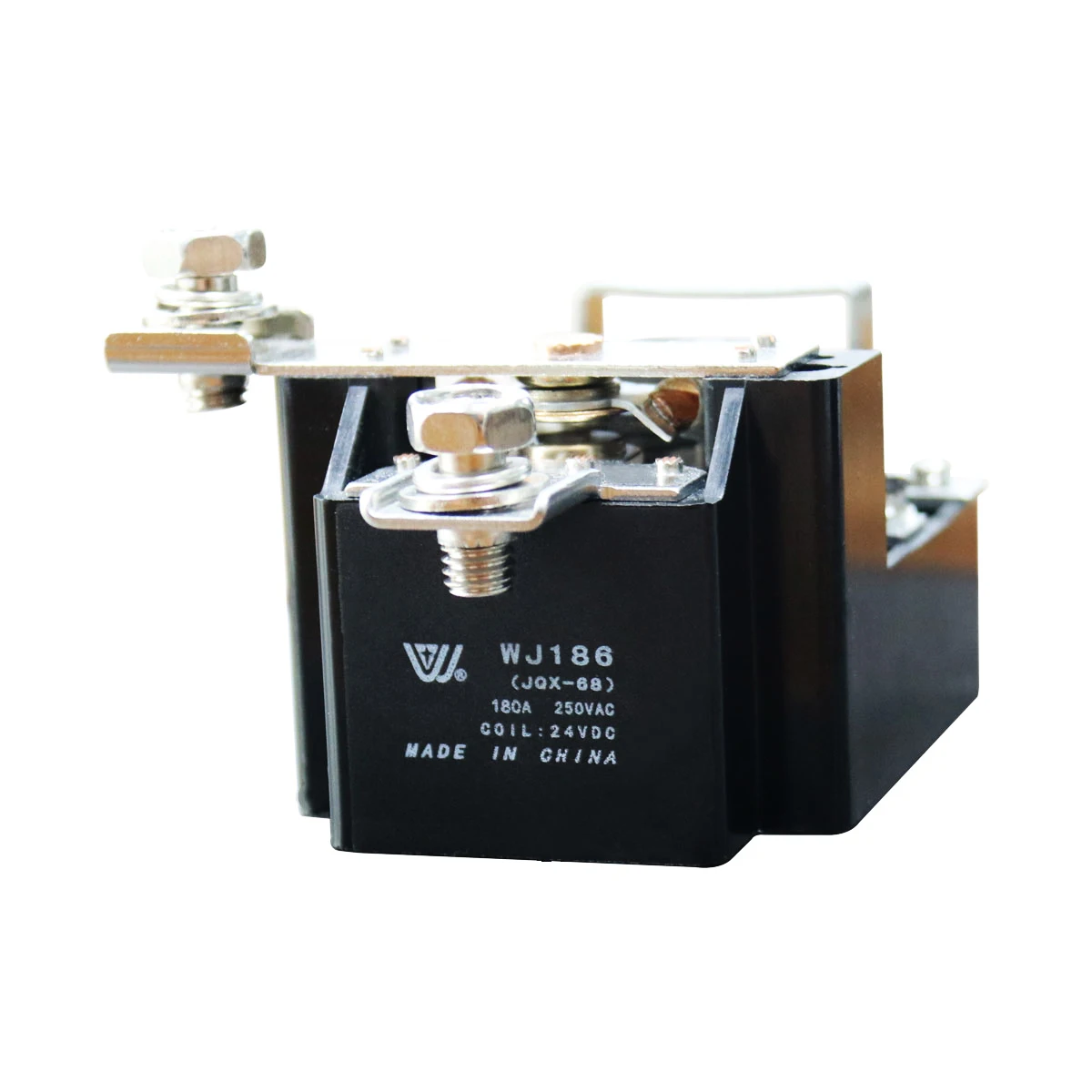

JQX-68F SPDT 200A 12 VDC General Purpose Power Relay

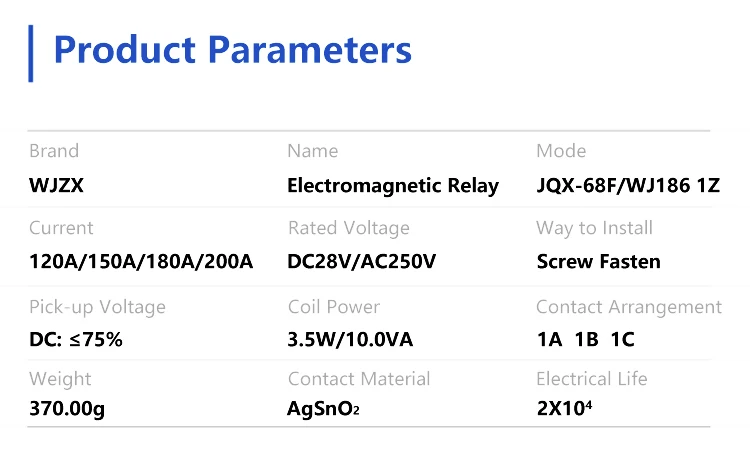

Main Parameter | ||||

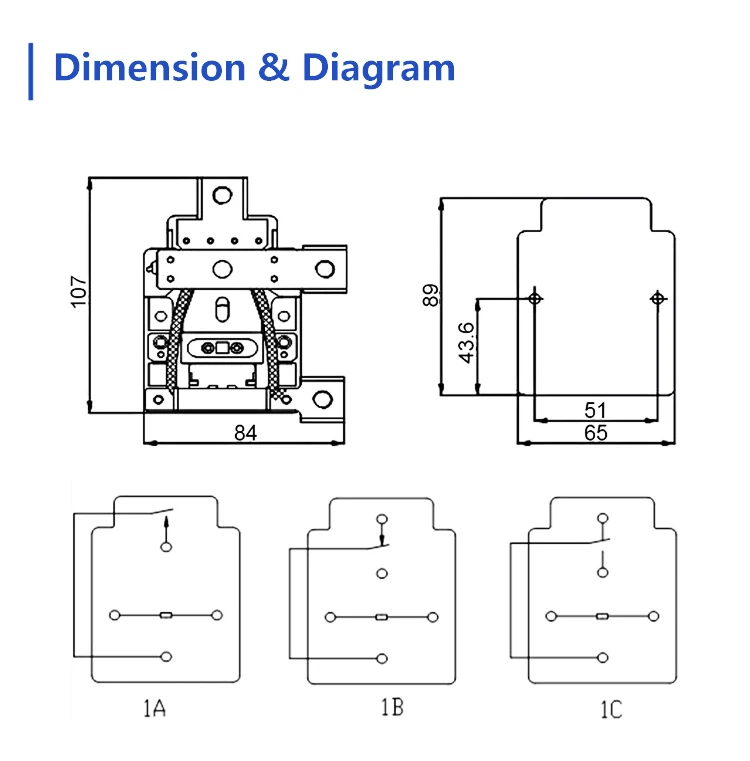

Contact Arrangement | 1A,1B,1C | |||
Contact Material | Silver alloy | |||
Contact Resistance | Max.50mΩ | |||
150A 250VAC | ||||
180A 250VAC | ||||
Max. Switching Voltage | 250VAC | |||
Max. Switching Current | 150A/180A | |||
Max. Switching Power | 37500VA/45000VA | |||
Electrical Life | 2×104 | |||
Mechanical Life | 1×107 | |||
Coil Voltage | 6~220VDC | |||
Coil Power Consumption | 3.5W | |||
Other Parameters | ||||
Pick-up Time | Max.35ms | |||
Release Time | Max.35ms | |||
Coil Contacts | 2500VAC,(50/60Hz),1 min. | |||
Open Contacts | 2000VAC,(50/60Hz),1 min. | |||
Insulation Resistance | Min. 1000MΩ (500 VDC) | |||
Environment Temperature | -40ºC~+55ºC | |||
Operation Humidity | 45%~85% RH | |||
Functional | Min. 10G | |||
Destructive | Min. 100G | |||
Functional | 1.5mm(DA)10~55 Hz | |||
Destructive | 1.5mm(DA)10~55 Hz | |||
Weight | ≤370g | |||
Wan Jia Star focuses on the research and development and manufacture of high-quality high-power electromagnetic relays. With contact anti-arc material and single-contact structure, it has an excellent performance in large-capacity load switching of power supply systems, while maintaining excellent performance in terms of contact volume and contact pressure. Our relay products include single group, double group, and triple group, 7A to 200A current range, NO, NC, and Transfer contacts, coil voltage 6~220VDC, 6~240VAC, and contact capacity 12VDC 24VDC 28VDC / 110VAC 220VAC 250VAC. In addition, Wan Jia Star power relays comply with various safety standards. IEC255, GB8898, UL, CE, TUV, RoHS, Reach, CQC standards, etc. It is used in electronic control equipment, household appliances, smart home, office automation, security series, commercial machinery, communication equipment, automobiles, machine tools, construction, transportation equipment, and instrumentation, and can be used as a remote control intermediate conversion or amplification component.
